RB13-MRQ (1980)
Toyota Coaster
Production
Aug 1980
-
Apr 1982
Engine
22R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8008- )22R

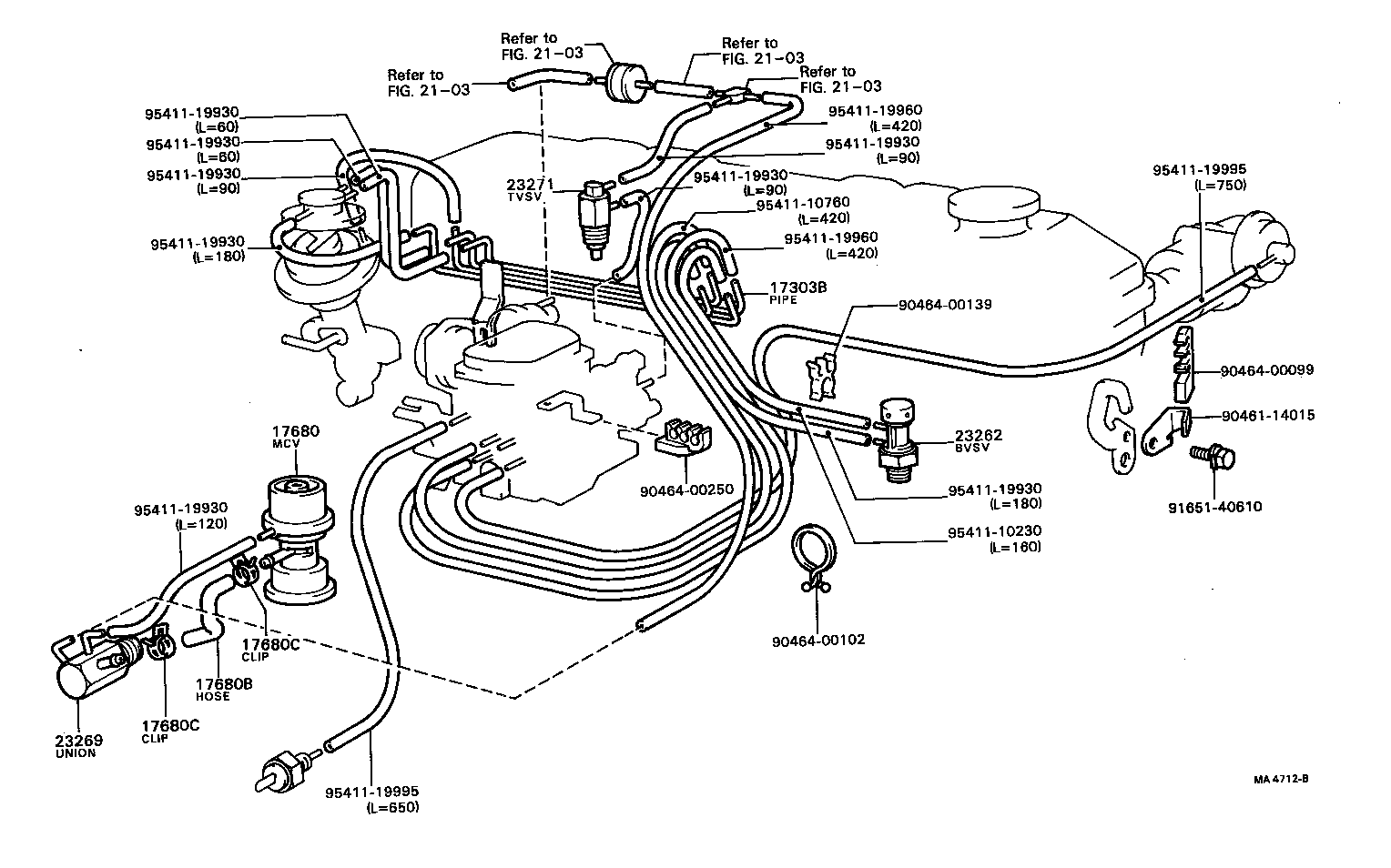

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-35070 |
22R..RB13 |
1 | ||
| 17680 - VALVE ASSY, MIXTURE CONTROL | ||||
| 17680-35020 |
22R..RB13 |
1 | ||
| 17680B - HOSE(FOR MIXTURE CONTROL VALVE) | ||||
| 17346-35020 |
22R..RB13 |
1 | ||
| 17680C - CLAMP OR CLIP(FOR MIXTURE CONTROL VALVE HOSE) | ||||
| 96132-30600 |
22R..RB13 MCV SIDE,ID=11.5 |
1 | ||
| 90467-13007 |
22R..RB13 CARBURETOR SIDE,ID=13 |
1 | ||
| 17680C - CLAMP OR CLIP(FOR MIXTURE CONTROL VALVE HOSE) | ||||
| 96132-30600 |
22R..RB13 MCV SIDE,ID=11.5 |
1 | ||
| 90467-13007 |
22R..RB13 CARBURETOR SIDE,ID=13 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 25820-13010 |
22R..RB13 |
1 | ||
| 23269 - UNION(FOR GAS FILTER) | ||||
| 90404-54020 |
22R..RB13 |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02028 |
20R,22R..RB1# |
1 | ||
| Common parts | ||||
| 90461-14015 | ||||
| 90464-00099 | ||||
| 90464-00102 | ||||
| 90464-00139 | ||||
| 90464-00250 | ||||
| 91651-40610 | ||||
| 95411-10230 | ||||
| 95411-10760 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| 95411-19995 | ||||
| Linked diagrams | ||||
| 2103 | ||||
(8205-8408)22R
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90413-04005 | ||||
| 90445-08218 | ||||
| 90461-14015 | ||||
| 90464-00082 | ||||
| 90464-00099 | ||||
| 90464-00102 | ||||
| 90464-00139 | ||||
| 90464-00250 | ||||
| 90520-01001 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 91651-40612 | ||||
| Linked diagrams | ||||
| 2103 | ||||
