RB13-MREQ (1980)

Toyota Coaster

Production Aug 1980 - Apr 1982
Engine 22R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )22R

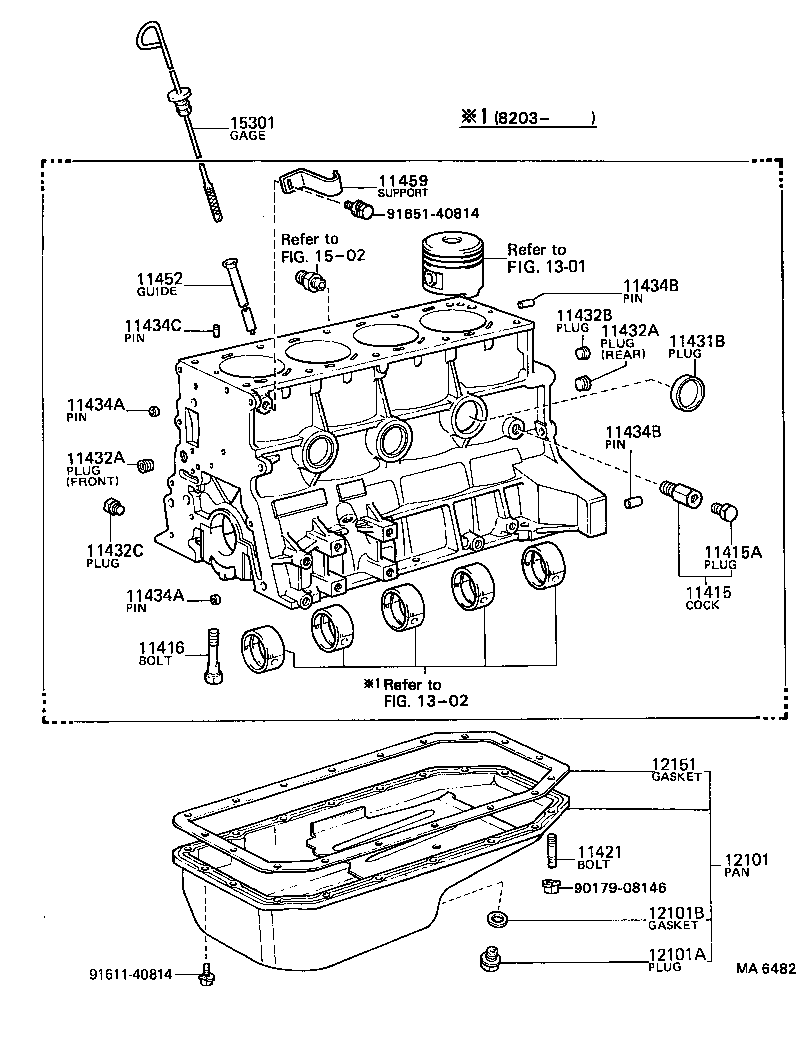

Click highlighted areas on diagram

diagram 11415 11415A 11416 11421 11431B 11432A 11432A 11432B 11432C 11434A 11434A 11434B 11434B 11434C 11452 11459 12101 12101A 12101B 12151 1301 1302 1502 15301 9017908146 9161140814 9165140814
Part # Description Qty Price
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
96431-03833

20R,22R..RB1#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
96431-23814

20R,22R..RB1#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02042

20R,22R..RB1#

*12-1.25PX75-25

 10
11421 - BOLT, STUD(FOR OIL PAN)
92122-40814

20R,22R..RB1#

L=26,S=12&12

 3
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-44000

20R,22R..RB1#

OD=40

 6
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90344-53002

22R..RB13

RR

 1
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90344-53002

22R..RB13

RR

 1
11432B - PLUG, W/HEAD TAPER SCREW, NO.2
90344-52013

20R,22R..RB1#

 1
11432C - PLUG, W/HEAD TAPER SCREW, NO.3
90345-51025

20R,22R..RB1#

 2
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90253-11021

20R,22R..RB1#

長さ=8,外径=11,L=8,OD=11

 4
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90253-11021

20R,22R..RB1#

長さ=8,外径=11,L=8,OD=11

 4
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

20R,22R..RB1#

長さ=22,外径=10,L=22,OD=10

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

20R,22R..RB1#

長さ=22,外径=10,L=22,OD=10

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08120

20R,22R..RB1#

長さ=18,外径=8,L=18,OD=8

 2
12151 - GASKET, OIL PAN
12151-38010

20R,22R..RB1#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-35010

22R..RB13

 1
Common parts
90179-08146
91611-40814
91651-40814
Linked diagrams
1301
1302
1502

(8205-8408)22R

Click highlighted areas on diagram

diagram 11401 11415 11415A 11416 11421 11431B 11432A 11432A 11432B 11432C 11434A 11434A 11434B 11434B 11434C 11452 11459 12101 12101A 12101B 12151 1301 1302 1502 15301 9011908378 9017908146 9165140814
Part # Description Qty Price
Common parts
90119-08378
90179-08146
91651-40814
Linked diagrams
1301
1302
1502
