RB13-MDRQ (1980)

Toyota Coaster

Production Aug 1980 - Apr 1982
Engine 22R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8408)22R

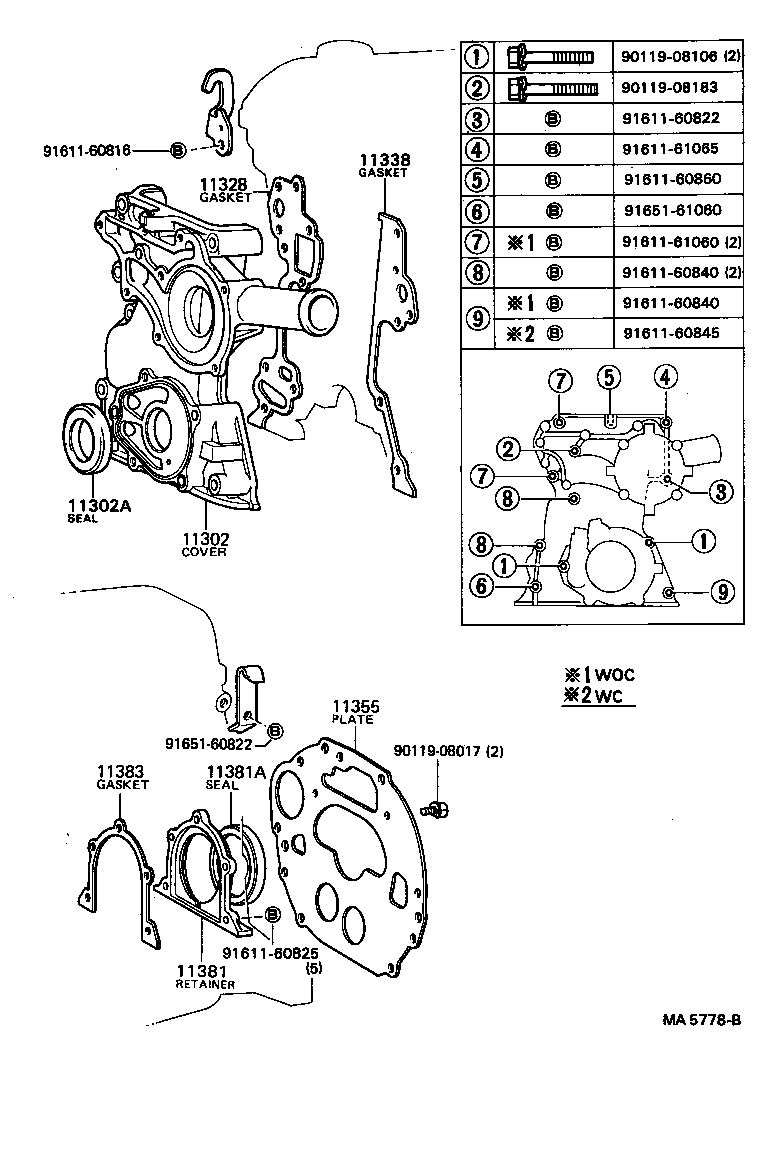

Click highlighted areas on diagram

diagram 11302 11302A 11328 11338 11355 11381 11381A 11383 9011908017 9011908106 9011908183 9161160816 9161160822 9161160825 9161160840 9161160840 9161160845 9161160860 9161161060 9161161065 9165160822 9165161060
Part # Description Qty Price
Common parts
90119-08017
90119-08106
90119-08183
91611-60816
91611-60822
91611-60825
91611-60840
91611-60845
91611-60860
91611-61060
91611-61065
91651-60822
91651-61060
