RB12-MRQ (1979)
Toyota Coaster
Production
Nov 1979
-
Aug 1980
Engine
20R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

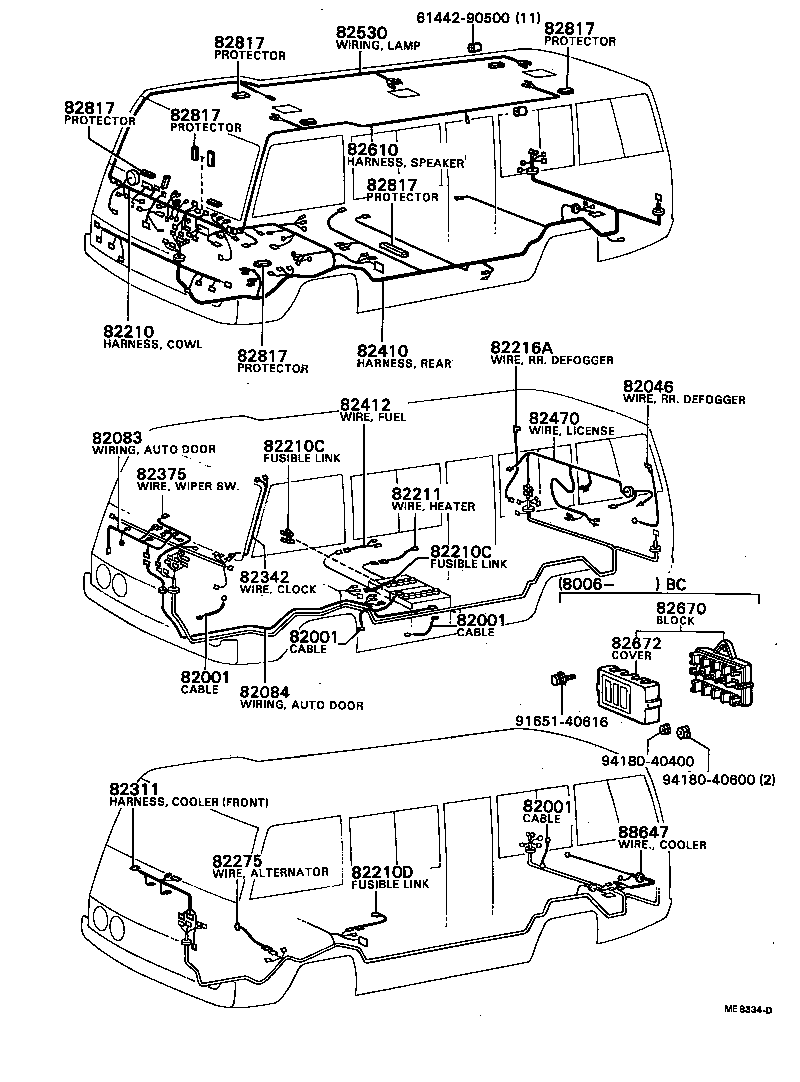

ILLUST NO. 1 OF 2(7911- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07124 |
RB1# L=280 |
1 | ||
| 90980-07021 |
RB1# L=280 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07124 |
RB1# L=280 |
1 | ||
| 90980-07021 |
RB1# L=280 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07124 |
RB1# L=280 |
1 | ||
| 90980-07021 |
RB1# L=280 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07124 |
RB1# L=280 |
1 | ||
| 90980-07021 |
RB1# L=280 |
1 | ||
| 82046 - WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH | ||||
| 82419-90501 |
BB11,RB12..21S,22S,25S,26S |
1 | ||
| 82210 - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1 | ||||
| 82210-90758 |
RB12 W/COOLER & COLD SPEC |
1 | ||
| 82210-90755 |
RB12..DLX,STD |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08038 |
BB1#,RB1# L=110,1.0B |
1 | ||
| 90982-08042 |
BB1#,RB1# L=100, 0.85R |
1 | ||
| 90982-08036 |
BB1#,RB1# L=100, 0.5G |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08038 |
BB1#,RB1# L=110,1.0B |
1 | ||
| 90982-08042 |
BB1#,RB1# L=100, 0.85R |
1 | ||
| 90982-08036 |
BB1#,RB1# L=100, 0.5G |
1 | ||
| 82216A - WIRE, REAR WINDOW DEFOGGER | ||||
| 82408-90500 |
BB11,RB12..21S,22S,25S,26S |
1 | ||
| 82410 - HARNESS ASSY, WIRING TO REAR LAMP | ||||
| 82410-90783 |
RB12..22S,26S COLD SPEC |
1 | ||
| 82410-90776 |
RB12..22S,26S |
1 | ||
| 82530 - WIRING ASSY, INTERIOR LAMP FEED | ||||
| 82530-90743 |
BB11,RB12..(21S,22S,25S,26S)..SRF |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-95600 |
BB1#,RB1# L=80 |
6 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-95600 |
BB1#,RB1# L=80 |
6 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-95600 |
BB1#,RB1# L=80 |
6 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-95600 |
BB1#,RB1# L=80 |
6 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-95600 |
BB1#,RB1# L=80 |
6 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-95600 |
BB1#,RB1# L=80 |
6 | ||
| Common parts | ||||
| 61442-90500 | ||||
| 91651-40616 | ||||
| 94180-40400 | ||||
| 94180-40600 | ||||
