RB12-MDZERQ (1979)

Toyota Coaster

Production Nov 1979 - Aug 1980
Engine 20R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7911-8008)RB12

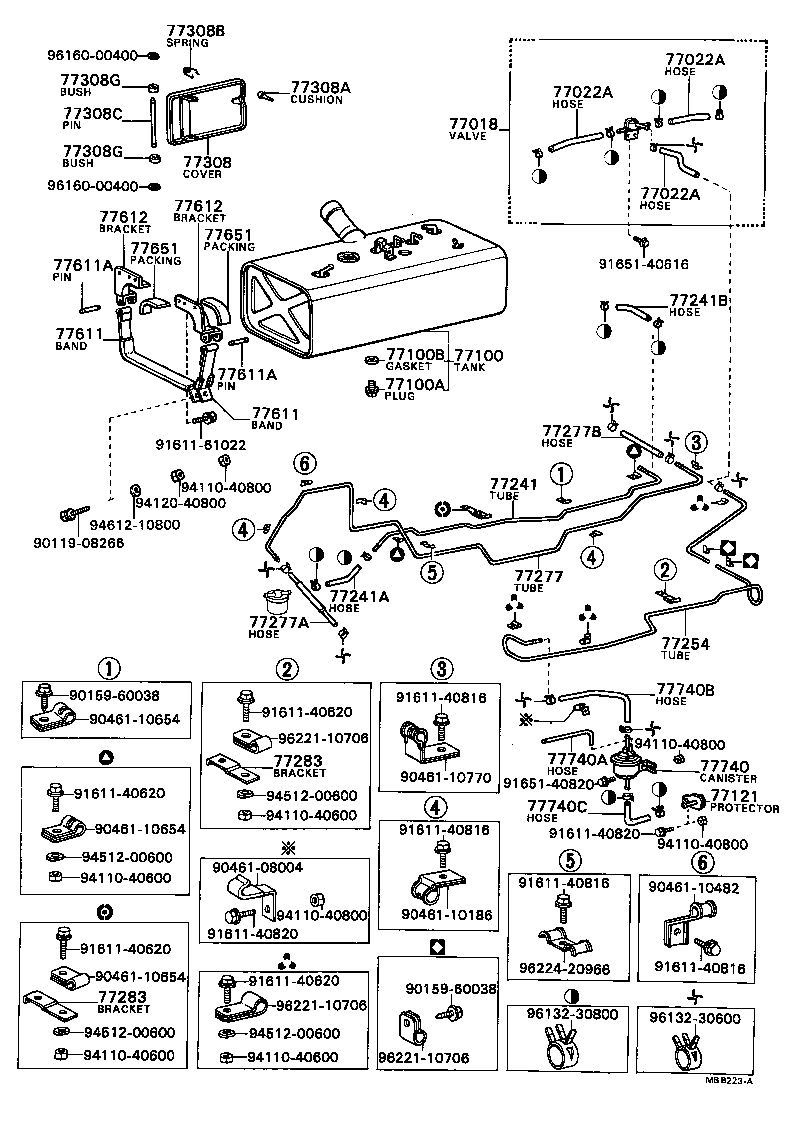

Click highlighted areas on diagram

diagram 77018 77022A 77022A 77022A 77100 77100A 77100B 77121 77241 77241A 77241B 77254 77277 77277A 77277B 77283 77283 77308 77308A 77308B 77308C 77308G 77308G 77611 77611 77611A 77611A 77612 77612 77651 77651 77740 77740A 77740B 77740C 9011908266 9015960038 9015960038 9046108004 9046110186 9046110482 9046110654 9046110654 9046110654 9046110770 9161140620 9161140620 9161140620 9161140620 9161140816 9161140816 9161140816 9161140816 9161140820 9161140820 9161161022 9165140616 9165140820 9411040600 9411040600 9411040600 9411040600 9411040800 9411040800 9411040800 9411040800 9412040800 9451200600 9451200600 9451200600 9451200600 9461210800 9613230600 9613230800 9616000400 9616000400 9622110706 9622110706 9622110706 9622420966
Part # Description Qty Price
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-36090

RB1#

 1
77100A - PLUG(FOR FUEL TANK)
90105-12018

BB1#,RB1#

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

BB1#,RB1#

 1
77121 - PROTECTOR, FUEL TUBE
77258-36010

RB1#

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08030

BB1#,RB12,13

*H,L=300,内径=7.6

 1
77254 - TUBE, FUEL EMISSION, NO.1
77263-36011

RB1#

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
90447-12012

RB12

L=320

 1
77283 - BRACKET, FUEL TUBE
77283-36040

BB1#,RB1#

 2
77283 - BRACKET, FUEL TUBE
77283-36040

BB1#,RB1#

 2
77308 - COVER SUB-ASSY, FUEL INLET BOX
58802-90502

BB1#,RB1#

 1
77308A - CUSHION(FOR FUEL INLET BOX COVER)
90541-05080

BB1#,RB1#

 2
77308B - SPRING, TORSION(FOR FUEL INLET BOX COVER)
58827-90500

BB1#,RB1#

 1
77308C - PIN, STRAIGHT(FOR FUEL INLET BOX COVER)
58824-90501

BB1#,RB1#

 1
77308G - BUSH(FOR FUEL INLET BOX COVER)
58829-90500

BB1#,RB1#

 2
77308G - BUSH(FOR FUEL INLET BOX COVER)
58829-90500

BB1#,RB1#

 2
77611 - BAND, FUEL TANK
77602-36020

BB1#,RB1#

LH

 2
77601-36070

BB1#,RB1#

RH

 2
77611 - BAND, FUEL TANK
77602-36020

BB1#,RB1#

LH

 2
77601-36070

BB1#,RB1#

RH

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

BB1#,RB1#

 4
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

BB1#,RB1#

 4
77612 - BRACKET SUB-ASSY, FUEL TANK
77502-36011

BB1#,RB1#

LH

 2
77501-36011

BB1#,RB1#

RH

 2
77612 - BRACKET SUB-ASSY, FUEL TANK
77502-36011

BB1#,RB1#

LH

 2
77501-36011

BB1#,RB1#

RH

 2
77651 - PACKING, FUEL TANK BRACKET
77651-36060

BB1#,RB1#

 4
77651 - PACKING, FUEL TANK BRACKET
77651-36060

BB1#,RB1#

 4
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
90445-08167

RB1#

L=1500

 1
Common parts
90119-08266
90159-60038
90461-08004
90461-10186
90461-10482
90461-10654
90461-10770
91611-40620
91611-40816
91611-40820
91611-61022
91651-40616
91651-40820
94110-40600
94110-40800
94120-40800
94512-00600
94612-10800
96132-30600
96132-30800
96160-00400
96221-10706
96224-20966
