RB12-MDQ (1979)

Toyota Coaster

Production Nov 1979 - Aug 1980
Engine 20R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7911- )20R,22R..DLX,STD

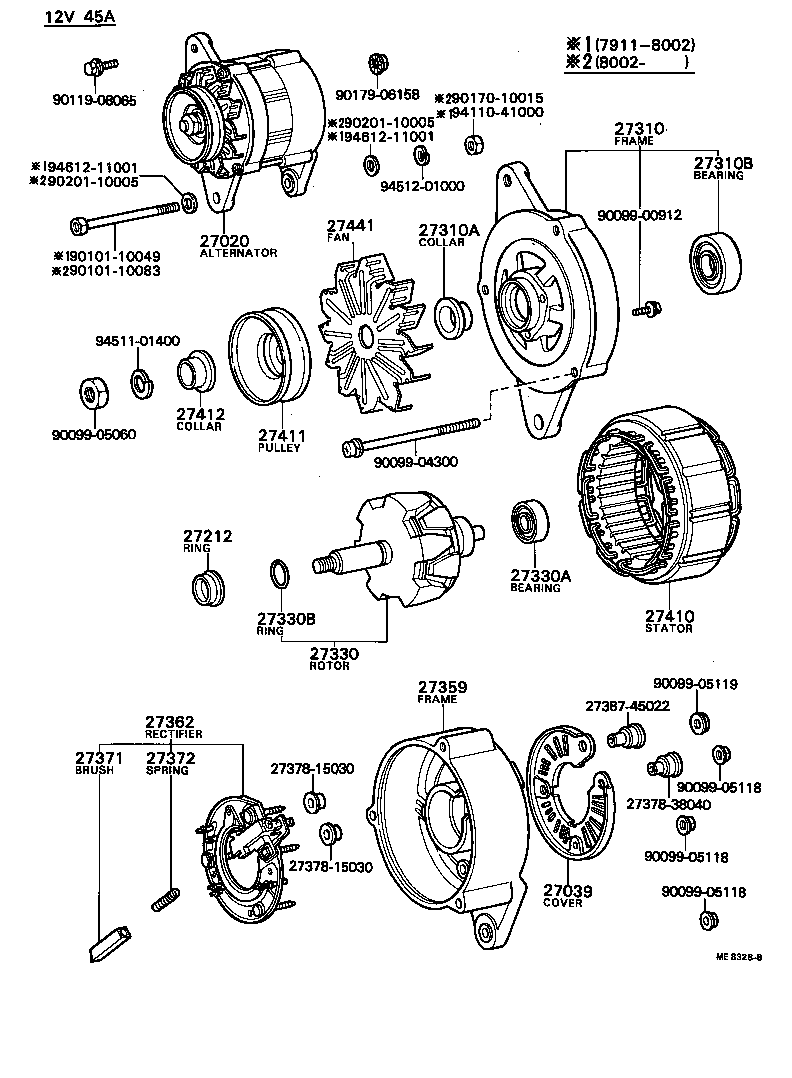

Click highlighted areas on diagram

diagram 27020 27039 27212 27310 27310A 27310B 27330 27330A 27330B 27359 27362 27371 27372 2737815030 2737815030 2737838040 2738745022 27410 27411 27412 27441 9009900912 9009904300 9009905060 9009905118 9009905118 9009905118 9009905119 9010110049 9010110083 9011908065 9017010015 9017906158 9020110005 9020110005 9411041000 9451101400 9451201000 9461211001 9461211001
Part # Description Qty Price
27039 - COVER, ALTERNATOR REAR END
27039-15030

20R..RB12..DLX,STD

12V 45A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10115

20R..RB12..22S,26S

12V 55A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-45020

20R,22R..RB1#..DLX,STD

12V 45A

 1
27371 - BRUSH, ALTERNATOR
27371-44070

20R..RB12..22S,26S

12V 55A

 2
27372 - SPRING, ALTERNATOR BRUSH
90099-17114

20R..RB12..22S,26S

12V 55A

 2
Common parts
27378-15030
27378-38040
27387-45022
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90101-10049
90101-10083
90119-08065
90170-10015
90179-06158
90201-10005
94110-41000
94511-01400
94512-01000
94612-11001

(7911- )20R,22R..22S,26S

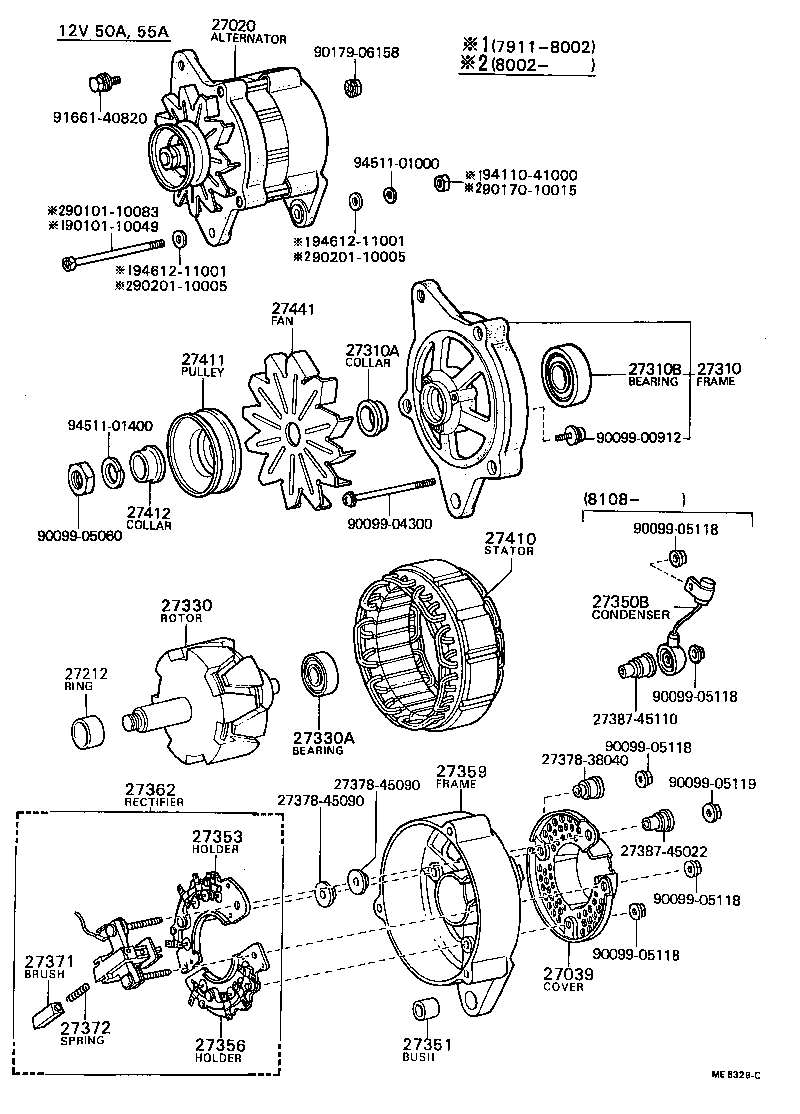

Click highlighted areas on diagram

diagram 27020 27039 27212 27310 27310A 27310B 27330 27330A 27350B 27351 27353 27356 27359 27362 27371 27372 2737838040 2737845090 2737845090 2738745022 2738745110 27410 27411 27412 27441 9009900912 9009904300 9009905060 9009905118 9009905118 9009905118 9009905118 9009905118 9009905119 9010110049 9010110083 9017010015 9017906158 9020110005 9020110005 9166140820 9411041000 9451101000 9451101400 9461211001 9461211001
Part # Description Qty Price
27039 - COVER, ALTERNATOR REAR END
27039-15030

20R..RB12..DLX,STD

12V 45A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10115

20R..RB12..22S,26S

12V 55A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-45020

20R,22R..RB1#..DLX,STD

12V 45A

 1
27371 - BRUSH, ALTERNATOR
27371-44070

20R..RB12..22S,26S

12V 55A

 2
27372 - SPRING, ALTERNATOR BRUSH
90099-17114

20R..RB12..22S,26S

12V 55A

 2
Common parts
27378-38040
27378-45090
27387-45022
27387-45110
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90101-10049
90101-10083
90170-10015
90179-06158
90201-10005
91661-40820
94110-41000
94511-01000
94511-01400
94612-11001
