RB12-MDEQ (1979)

Toyota Coaster

Production Nov 1979 - Aug 1980
Engine 20R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7911- )20R,22R

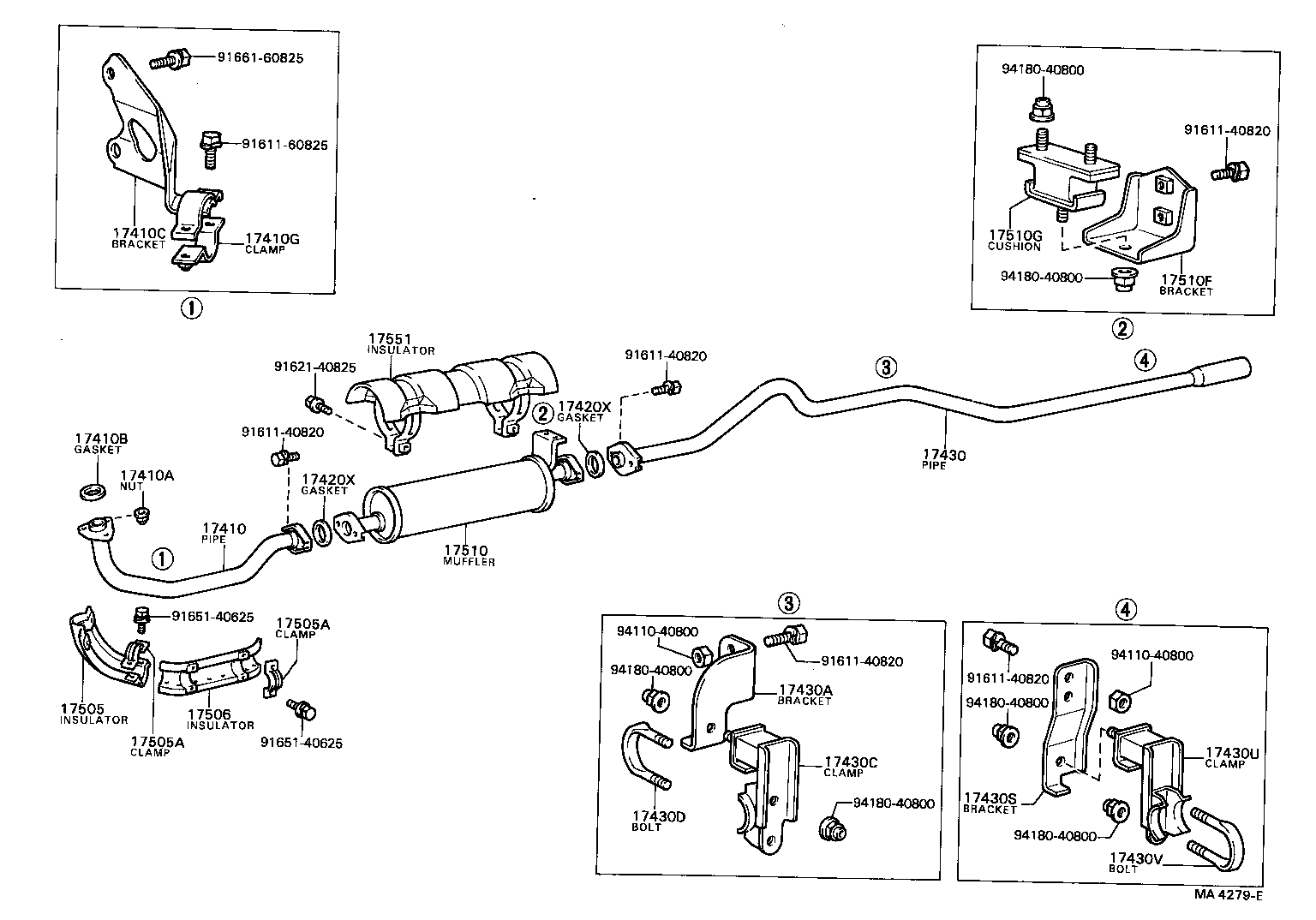

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17410G 17420X 17420X 17430 17430A 17430C 17430D 17430S 17430U 17430V 17505 17505A 17505A 17506 17510 17510F 17510G 17551 9161140820 9161140820 9161140820 9161140820 9161140820 9161160825 9162140825 9165140625 9165140625 9166160825 9411040800 9411040800 9418040800 9418040800 9418040800 9418040800 9418040800 9418040800
Part # Description Qty Price
17410B - GASKET, EXHAUST PIPE
90917-06012

20R,22R..RB1#

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06008

20R,2B..BB1#,RB1#

FR

 1
90917-06004

20R,2B..BB1#,RB1#

RR

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06008

20R,2B..BB1#,RB1#

FR

 1
90917-06004

20R,2B..BB1#,RB1#

RR

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-38020

20R..RB12

 1
17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1
17551-57010

20R,22R..RB1#

 1
Common parts
91611-40820
91611-60825
91621-40825
91651-40625
91661-60825
94110-40800
94180-40800
