RB11-QRE (1977)

Toyota Coaster

Production Aug 1977 - Nov 1979
Engine 20R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )20R,22R

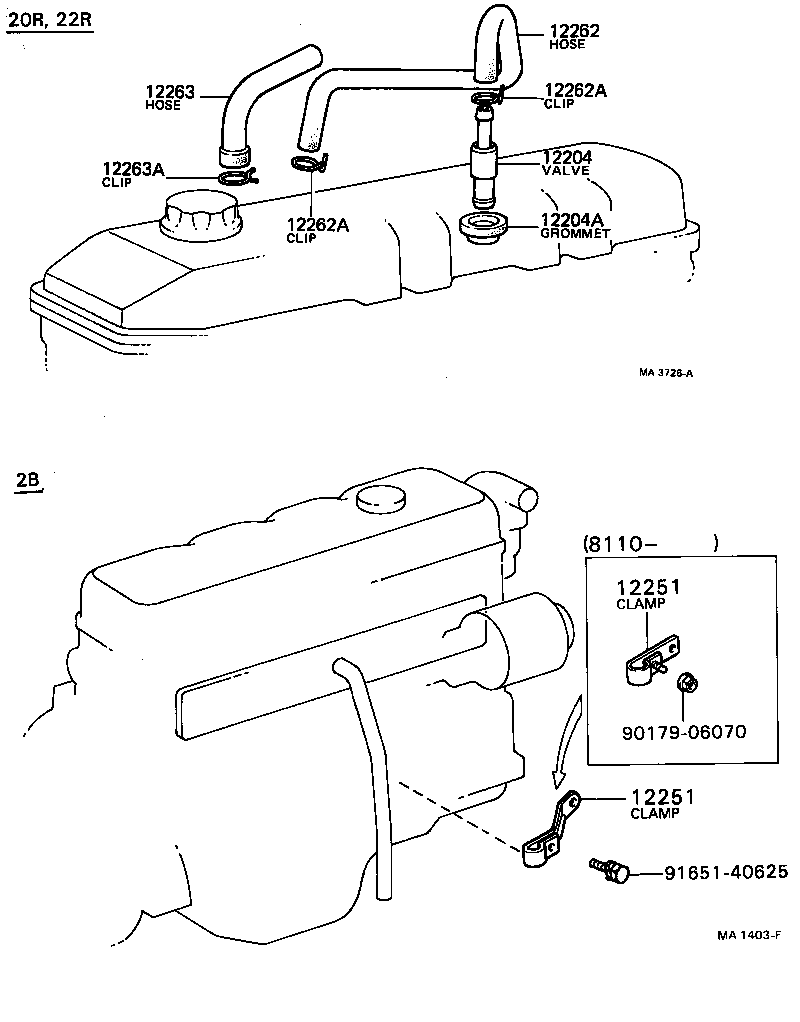

Click highlighted areas on diagram

MA3726A,MA1403F

diagram 12204 12204A 12251 12251 12262 12262A 12262A 12263 12263A 9017906070 9165140625
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-31020

20R..RB11

 1
12204-31020

20R..RB11

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18180

20R,22R..RB1#

 1
90480-18180

20R,22R..RB1#

 1
12262 - HOSE, VENTILATION, NO.2
12261-38011

20R,22R..RB1#

 1
12261-38011

20R,22R..RB1#

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16010

20R,22R..RB1#

ID=16

 2
90467-16010

20R,22R..RB1#

ID=16

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16010

20R,22R..RB1#

ID=16

 2
90467-16010

20R,22R..RB1#

ID=16

 2
12263 - HOSE, VENTILATION, NO.3
12262-38010

20R,22R..RB1#

 1
12262-38010

20R,22R..RB1#

 1
12263A - CLIP(FOR VENTILATION HOSE)
90467-20020

20R,22R..RB1#

ID=20

 1
90467-20020

20R,22R..RB1#

ID=20

 1
Common parts
90179-06070
91651-40625
