RB11-QR (1977)

Toyota Coaster

Production Aug 1977 - Nov 1979
Engine 20R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )

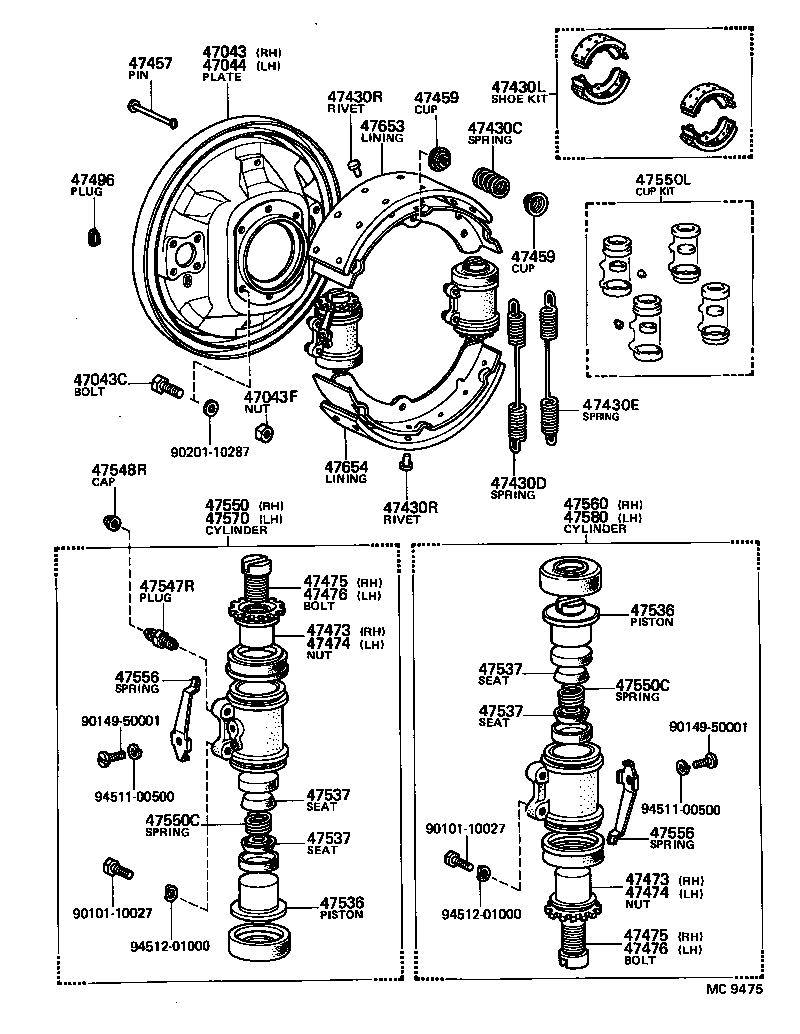

Click highlighted areas on diagram

diagram 47043 47043C 47043F 47044 47430C 47430D 47430E 47430L 47430R 47430R 47457 47459 47459 47473 47473 47474 47474 47475 47475 47476 47476 47496 47536 47536 47537 47537 47537 47537 47547R 47548R 47550 47550C 47550C 47550L 47556 47556 47560 47570 47580 47653 47654 9010110027 9010110027 9014950001 9014950001 9020110287 9451100500 9451100500 9451201000 9451201000
Part # Description Qty Price
47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043-36060

BB1#,RB1#

 1
47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
90101-10028

BB1#,RB1#

*10−1.25PX27−18

 12
47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
94110-71000

BB1#,RB1#

 12
47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47044-36020

BB1#,RB1#

 1
47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN)
90501-20012

BB1#,RB1#

 4
47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
90506-29216

BB1#,RB1#

 2
47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
90506-29216

BB1#,RB1#

 2
47430L - SHOE KIT, REAR BRAKE
04495-36050

BB1#,RB1#

 1
04497-36050

BB1#,RB1#

REBUILT

 1
47430R - RIVET, BRAKE LINING(FOR REAR BRAKE)
90266-05005

BB1#,RB1#

 48
47430R - RIVET, BRAKE LINING(FOR REAR BRAKE)
90266-05005

BB1#,RB1#

 48
47457 - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47447-60010

BB1#,RB1#

 4
47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449-30020

BB1#,RB1#

 8
47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449-30020

BB1#,RB1#

 8
47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE)
47551-36023

BB1#,RB1#

 2
47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE)
47551-36023

BB1#,RB1#

 2
47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)
47552-36023

BB1#,RB1#

 2
47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)
47552-36023

BB1#,RB1#

 2
47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE
47553-36030

BB1#,RB1#

 2
47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE
47553-36030

BB1#,RB1#

 2
47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)
47554-36030

BB1#,RB1#

 2
47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)
47554-36030

BB1#,RB1#

 2
47496 - PLUG, HOLE(FOR REAR BRAKE)
47491-36010

BB1#,RB1#

 4
47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)
47531-36032

BB1#,RB1#

 4
47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)
47531-36032

BB1#,RB1#

 4
47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE)
47533-25010

BB1#,RB1#

 8
47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE)
47533-25010

BB1#,RB1#

 8
47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE)
47533-25010

BB1#,RB1#

 8
47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE)
47533-25010

BB1#,RB1#

 8
47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47547-12010

BB1#,RB1#

 2
47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
31478-30010

BB1#,RB1#

 2
47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550-39255

BB1#,RB1#

ID=31.75

 1
47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
90501-10759

BB1#,RB1#

 4
47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
90501-10759

BB1#,RB1#

 4
47550L - CUP KIT, REAR WHEEL CYLINDER
04906-36060

BB1#,RB1#

 1
47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE)
47555-36020

BB1#,RB1#

 4
47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE)
47555-36020

BB1#,RB1#

 4
47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER)
47560-39105

BB1#,RB1#

ID=31.75

 1
47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47570-39095

BB1#,RB1#

ID=31.75

 1
47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER)
47580-39095

BB1#,RB1#

ID=31.75

 1
47653 - LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)
47655-36010

BB1#,RB1#

 2
47654 - LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)
47655-36010

BB1#,RB1#

 2
Common parts
90101-10027
90149-50001
90201-10287
94511-00500
94512-01000
