RB11-QDZR (1977)
Toyota Coaster
(7708- )RB1#..21S,22S,25S,26S

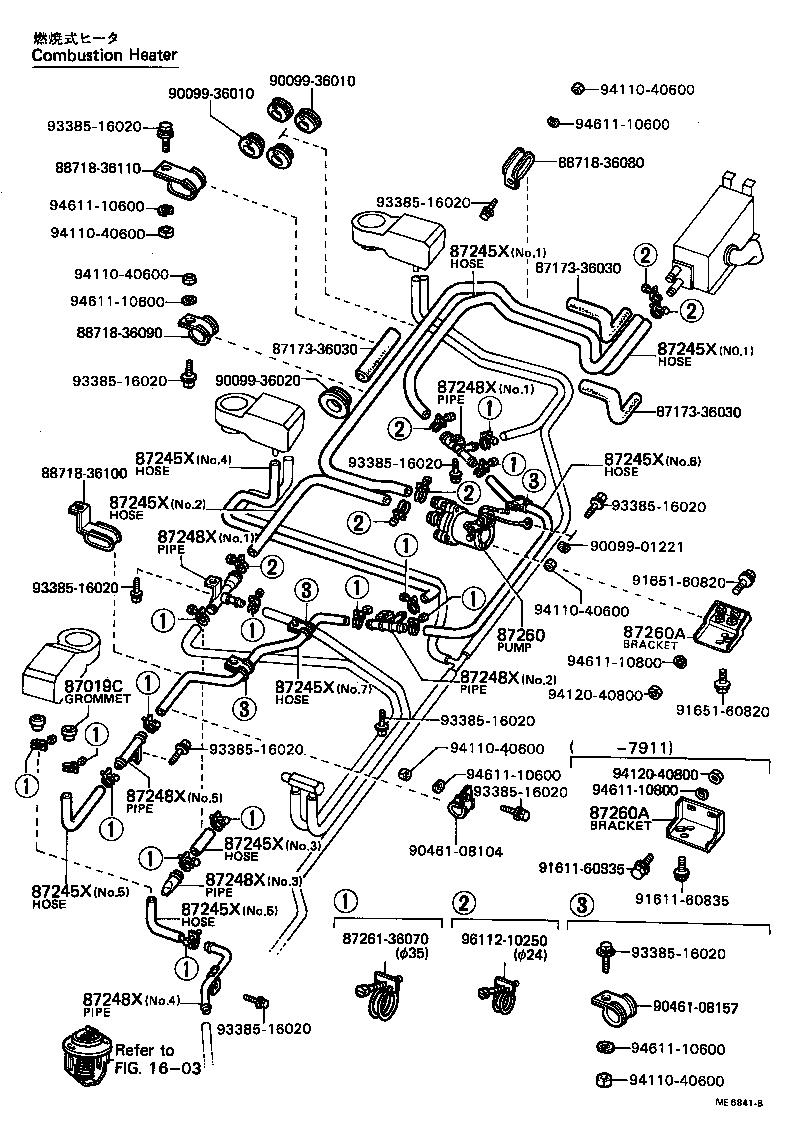

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87019C - GROMMET, HEATER HOSE | ||||
| 90099-32096 |
BB1#,RB11,12..21S,22S,25S,26S W/*CH |
2 | ||
| 90480-01059 |
BB1#,RB1# FR HEATER |
1 | ||
| 90480-20005 |
BB1#,RB1# OD=24,RR HEATER |
4 | ||
| 90480-69217 |
BB1#,RB1#..25S,26S OD=60,RR,NO.1 HEATER |
1 | ||
| 87245X - HOSE, HEATER WATER | ||||
| 87245-36120 |
BB10,RB11..21S,22S,25S,26S NO.1,W/*CH |
2 | ||
| 99552-30580 |
BB1#,RB1#..21S,22S,25S,26S *H,L=580,NO.4,W/*CH |
1 | ||
| 99552-31750 |
BB1#,RB1#..21S,22S,25S,26S *H,L=1750,NO.6,W/*CH |
1 | ||
| 99552-30800 |
BB1#,RB1#..21S,22S,25S,26S *H,L=800,NO.5,W/*CH |
2 | ||
| 99552-30060 |
BB1#,RB1#..21S,22S,25S,26S *H,L=60,W/*CH,NO.3 |
1 | ||
| 87245-36130 |
BB10,RB11..21S,22S,25S,26S NO.2,W/*CH |
1 | ||
| 99552-32000 |
BB1#,RB1#..21S,22S,25S,26S *H,L=2000,NO.7,W/*CH |
1 | ||
| 87245X - HOSE, HEATER WATER | ||||
| 87245-36120 |
BB10,RB11..21S,22S,25S,26S NO.1,W/*CH |
2 | ||
| 99552-30580 |
BB1#,RB1#..21S,22S,25S,26S *H,L=580,NO.4,W/*CH |
1 | ||
| 99552-31750 |
BB1#,RB1#..21S,22S,25S,26S *H,L=1750,NO.6,W/*CH |
1 | ||
| 99552-30800 |
BB1#,RB1#..21S,22S,25S,26S *H,L=800,NO.5,W/*CH |
2 | ||
| 99552-30060 |
BB1#,RB1#..21S,22S,25S,26S *H,L=60,W/*CH,NO.3 |
1 | ||
| 87245-36130 |
BB10,RB11..21S,22S,25S,26S NO.2,W/*CH |
1 | ||
| 99552-32000 |
BB1#,RB1#..21S,22S,25S,26S *H,L=2000,NO.7,W/*CH |
1 | ||
| 87245X - HOSE, HEATER WATER | ||||
| 87245-36120 |
BB10,RB11..21S,22S,25S,26S NO.1,W/*CH |
2 | ||
| 99552-30580 |
BB1#,RB1#..21S,22S,25S,26S *H,L=580,NO.4,W/*CH |
1 | ||
| 99552-31750 |
BB1#,RB1#..21S,22S,25S,26S *H,L=1750,NO.6,W/*CH |
1 | ||
| 99552-30800 |
BB1#,RB1#..21S,22S,25S,26S *H,L=800,NO.5,W/*CH |
2 | ||
| 99552-30060 |
BB1#,RB1#..21S,22S,25S,26S *H,L=60,W/*CH,NO.3 |
1 | ||
| 87245-36130 |
BB10,RB11..21S,22S,25S,26S NO.2,W/*CH |
1 | ||
| 99552-32000 |
BB1#,RB1#..21S,22S,25S,26S *H,L=2000,NO.7,W/*CH |
1 | ||
| 87245X - HOSE, HEATER WATER | ||||
| 87245-36120 |
BB10,RB11..21S,22S,25S,26S NO.1,W/*CH |
2 | ||
| 99552-30580 |
BB1#,RB1#..21S,22S,25S,26S *H,L=580,NO.4,W/*CH |
1 | ||
| 99552-31750 |
BB1#,RB1#..21S,22S,25S,26S *H,L=1750,NO.6,W/*CH |
1 | ||
| 99552-30800 |
BB1#,RB1#..21S,22S,25S,26S *H,L=800,NO.5,W/*CH |
2 | ||
| 99552-30060 |
BB1#,RB1#..21S,22S,25S,26S *H,L=60,W/*CH,NO.3 |
1 | ||
| 87245-36130 |
BB10,RB11..21S,22S,25S,26S NO.2,W/*CH |
1 | ||
| 99552-32000 |
BB1#,RB1#..21S,22S,25S,26S *H,L=2000,NO.7,W/*CH |
1 | ||
| 87245X - HOSE, HEATER WATER | ||||
| 87245-36120 |
BB10,RB11..21S,22S,25S,26S NO.1,W/*CH |
2 | ||
| 99552-30580 |
BB1#,RB1#..21S,22S,25S,26S *H,L=580,NO.4,W/*CH |
1 | ||
| 99552-31750 |
BB1#,RB1#..21S,22S,25S,26S *H,L=1750,NO.6,W/*CH |
1 | ||
| 99552-30800 |
BB1#,RB1#..21S,22S,25S,26S *H,L=800,NO.5,W/*CH |
2 | ||
| 99552-30060 |
BB1#,RB1#..21S,22S,25S,26S *H,L=60,W/*CH,NO.3 |
1 | ||
| 87245-36130 |
BB10,RB11..21S,22S,25S,26S NO.2,W/*CH |
1 | ||
| 99552-32000 |
BB1#,RB1#..21S,22S,25S,26S *H,L=2000,NO.7,W/*CH |
1 | ||
| 87245X - HOSE, HEATER WATER | ||||
| 87245-36120 |
BB10,RB11..21S,22S,25S,26S NO.1,W/*CH |
2 | ||
| 99552-30580 |
BB1#,RB1#..21S,22S,25S,26S *H,L=580,NO.4,W/*CH |
1 | ||
| 99552-31750 |
BB1#,RB1#..21S,22S,25S,26S *H,L=1750,NO.6,W/*CH |
1 | ||
| 99552-30800 |
BB1#,RB1#..21S,22S,25S,26S *H,L=800,NO.5,W/*CH |
2 | ||
| 99552-30060 |
BB1#,RB1#..21S,22S,25S,26S *H,L=60,W/*CH,NO.3 |
1 | ||
| 87245-36130 |
BB10,RB11..21S,22S,25S,26S NO.2,W/*CH |
1 | ||
| 99552-32000 |
BB1#,RB1#..21S,22S,25S,26S *H,L=2000,NO.7,W/*CH |
1 | ||
| 87245X - HOSE, HEATER WATER | ||||
| 87245-36120 |
BB10,RB11..21S,22S,25S,26S NO.1,W/*CH |
2 | ||
| 99552-30580 |
BB1#,RB1#..21S,22S,25S,26S *H,L=580,NO.4,W/*CH |
1 | ||
| 99552-31750 |
BB1#,RB1#..21S,22S,25S,26S *H,L=1750,NO.6,W/*CH |
1 | ||
| 99552-30800 |
BB1#,RB1#..21S,22S,25S,26S *H,L=800,NO.5,W/*CH |
2 | ||
| 99552-30060 |
BB1#,RB1#..21S,22S,25S,26S *H,L=60,W/*CH,NO.3 |
1 | ||
| 87245-36130 |
BB10,RB11..21S,22S,25S,26S NO.2,W/*CH |
1 | ||
| 99552-32000 |
BB1#,RB1#..21S,22S,25S,26S *H,L=2000,NO.7,W/*CH |
1 | ||
| 87245X - HOSE, HEATER WATER | ||||
| 87245-36120 |
BB10,RB11..21S,22S,25S,26S NO.1,W/*CH |
2 | ||
| 99552-30580 |
BB1#,RB1#..21S,22S,25S,26S *H,L=580,NO.4,W/*CH |
1 | ||
| 99552-31750 |
BB1#,RB1#..21S,22S,25S,26S *H,L=1750,NO.6,W/*CH |
1 | ||
| 99552-30800 |
BB1#,RB1#..21S,22S,25S,26S *H,L=800,NO.5,W/*CH |
2 | ||
| 99552-30060 |
BB1#,RB1#..21S,22S,25S,26S *H,L=60,W/*CH,NO.3 |
1 | ||
| 87245-36130 |
BB10,RB11..21S,22S,25S,26S NO.2,W/*CH |
1 | ||
| 99552-32000 |
BB1#,RB1#..21S,22S,25S,26S *H,L=2000,NO.7,W/*CH |
1 | ||
| 87245X - HOSE, HEATER WATER | ||||
| 87245-36120 |
BB10,RB11..21S,22S,25S,26S NO.1,W/*CH |
2 | ||
| 99552-30580 |
BB1#,RB1#..21S,22S,25S,26S *H,L=580,NO.4,W/*CH |
1 | ||
| 99552-31750 |
BB1#,RB1#..21S,22S,25S,26S *H,L=1750,NO.6,W/*CH |
1 | ||
| 99552-30800 |
BB1#,RB1#..21S,22S,25S,26S *H,L=800,NO.5,W/*CH |
2 | ||
| 99552-30060 |
BB1#,RB1#..21S,22S,25S,26S *H,L=60,W/*CH,NO.3 |
1 | ||
| 87245-36130 |
BB10,RB11..21S,22S,25S,26S NO.2,W/*CH |
1 | ||
| 99552-32000 |
BB1#,RB1#..21S,22S,25S,26S *H,L=2000,NO.7,W/*CH |
1 | ||
| 87248X - PIPE, HEATER WATER | ||||
| 87251-36230 |
BB1#,RB1#..21S,22S,25S,26S NO.5,W/*CH |
1 | ||
| 87251-36210 |
BB1#,RB1#..21S,22S,25S,26S NO.3,W/*CH |
1 | ||
| 87251-36190 |
BB1#,RB1#..21S,22S,25S,26S NO.1,W/*CH |
2 | ||
| 87251-36200 |
BB1#,RB1#..21S,22S,25S,26S NO.2,W/*CH |
1 | ||
| 87251-36220 |
BB1#,RB1#..21S,22S,25S,26S NO.4,W/*CH |
1 | ||
| 87248X - PIPE, HEATER WATER | ||||
| 87251-36230 |
BB1#,RB1#..21S,22S,25S,26S NO.5,W/*CH |
1 | ||
| 87251-36210 |
BB1#,RB1#..21S,22S,25S,26S NO.3,W/*CH |
1 | ||
| 87251-36190 |
BB1#,RB1#..21S,22S,25S,26S NO.1,W/*CH |
2 | ||
| 87251-36200 |
BB1#,RB1#..21S,22S,25S,26S NO.2,W/*CH |
1 | ||
| 87251-36220 |
BB1#,RB1#..21S,22S,25S,26S NO.4,W/*CH |
1 | ||
| 87248X - PIPE, HEATER WATER | ||||
| 87251-36230 |
BB1#,RB1#..21S,22S,25S,26S NO.5,W/*CH |
1 | ||
| 87251-36210 |
BB1#,RB1#..21S,22S,25S,26S NO.3,W/*CH |
1 | ||
| 87251-36190 |
BB1#,RB1#..21S,22S,25S,26S NO.1,W/*CH |
2 | ||
| 87251-36200 |
BB1#,RB1#..21S,22S,25S,26S NO.2,W/*CH |
1 | ||
| 87251-36220 |
BB1#,RB1#..21S,22S,25S,26S NO.4,W/*CH |
1 | ||
| 87248X - PIPE, HEATER WATER | ||||
| 87251-36230 |
BB1#,RB1#..21S,22S,25S,26S NO.5,W/*CH |
1 | ||
| 87251-36210 |
BB1#,RB1#..21S,22S,25S,26S NO.3,W/*CH |
1 | ||
| 87251-36190 |
BB1#,RB1#..21S,22S,25S,26S NO.1,W/*CH |
2 | ||
| 87251-36200 |
BB1#,RB1#..21S,22S,25S,26S NO.2,W/*CH |
1 | ||
| 87251-36220 |
BB1#,RB1#..21S,22S,25S,26S NO.4,W/*CH |
1 | ||
| 87248X - PIPE, HEATER WATER | ||||
| 87251-36230 |
BB1#,RB1#..21S,22S,25S,26S NO.5,W/*CH |
1 | ||
| 87251-36210 |
BB1#,RB1#..21S,22S,25S,26S NO.3,W/*CH |
1 | ||
| 87251-36190 |
BB1#,RB1#..21S,22S,25S,26S NO.1,W/*CH |
2 | ||
| 87251-36200 |
BB1#,RB1#..21S,22S,25S,26S NO.2,W/*CH |
1 | ||
| 87251-36220 |
BB1#,RB1#..21S,22S,25S,26S NO.4,W/*CH |
1 | ||
| 87248X - PIPE, HEATER WATER | ||||
| 87251-36230 |
BB1#,RB1#..21S,22S,25S,26S NO.5,W/*CH |
1 | ||
| 87251-36210 |
BB1#,RB1#..21S,22S,25S,26S NO.3,W/*CH |
1 | ||
| 87251-36190 |
BB1#,RB1#..21S,22S,25S,26S NO.1,W/*CH |
2 | ||
| 87251-36200 |
BB1#,RB1#..21S,22S,25S,26S NO.2,W/*CH |
1 | ||
| 87251-36220 |
BB1#,RB1#..21S,22S,25S,26S NO.4,W/*CH |
1 | ||
| 87260 - PUMP ASSY, HEATER | ||||
| 87260-36020 |
RB1#..21S,22S,25S,26S |
1 | ||
| 87260A - BRACKET, HEATER PUMP | ||||
| 87431-36010 |
BB10,RB11..21S,22S,25S,26S |
1 | ||
| 87260A - BRACKET, HEATER PUMP | ||||
| 87431-36010 |
BB10,RB11..21S,22S,25S,26S |
1 | ||
| Common parts | ||||
| 87173-36030 | ||||
| 87261-36070 | ||||
| 88718-36080 | ||||
| 88718-36090 | ||||
| 88718-36100 | ||||
| 88718-36110 | ||||
| 90099-01221 | ||||
| 90099-36010 | ||||
| 90099-36020 | ||||
| 90461-08104 | ||||
| 90461-08157 | ||||
| 91611-60835 | ||||
| 91651-60820 | ||||
| 93385-16020 | ||||
| 94110-40600 | ||||
| 94120-40800 | ||||
| 94611-10600 | ||||
| 94611-10800 | ||||
| 96112-10250 | ||||
| Linked diagrams | ||||
| 1603 | ||||

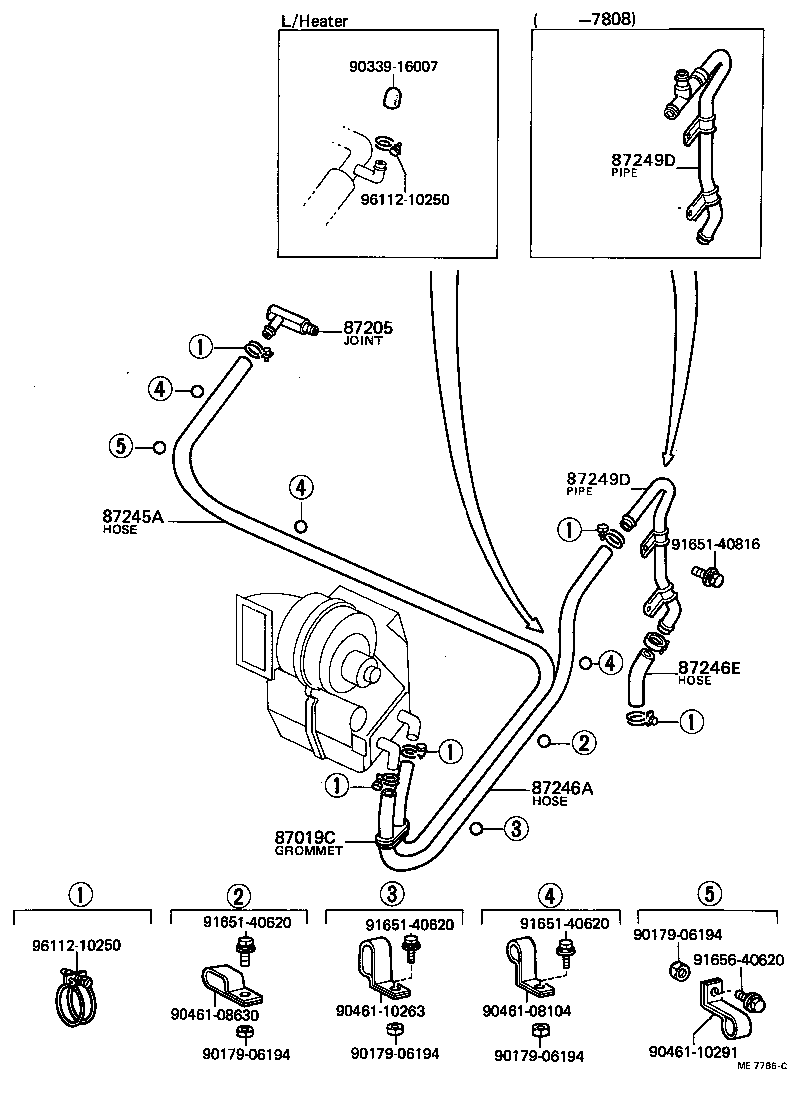

ILLUST NO. 1 OF 2(7708-7911)RB11
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87019C - GROMMET, HEATER HOSE | ||||
| 90099-32096 |
BB1#,RB11,12..21S,22S,25S,26S W/*CH |
2 | ||
| 90480-01059 |
BB1#,RB1# FR HEATER |
1 | ||
| 90480-20005 |
BB1#,RB1# OD=24,RR HEATER |
4 | ||
| 90480-69217 |
BB1#,RB1#..25S,26S OD=60,RR,NO.1 HEATER |
1 | ||
| 87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV | ||||
| 87240-36050 |
RB11 FR |
1 | ||
| 87240-36060 |
RB11 RR |
1 | ||
| 87240-36051 |
RB11 FR |
1 | ||
| 87240-36061 |
RB11 RR |
1 | ||
| 87240-36062 |
RB11 RR |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-36090 |
RB11 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 99552-32000 |
RB1# *H,L=1550 |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 99552-30100 |
RB1# *H,L=70,*H,L=70 |
1 | ||
| 87249D - PIPE, HEATER WATER OUTLET, D | ||||
| 87251-36160 |
RB11 |
1 | ||
| 87251-36161 |
RB11 |
1 | ||
| 87249D - PIPE, HEATER WATER OUTLET, D | ||||
| 87251-36160 |
RB11 |
1 | ||
| 87251-36161 |
RB11 |
1 | ||
| Common parts | ||||
| 90179-06194 | ||||
| 90339-16007 | ||||
| 90461-08104 | ||||
| 90461-08630 | ||||
| 90461-10263 | ||||
| 90461-10291 | ||||
| 91651-40620 | ||||
| 91651-40816 | ||||
| 91656-40620 | ||||
| 96112-10250 | ||||

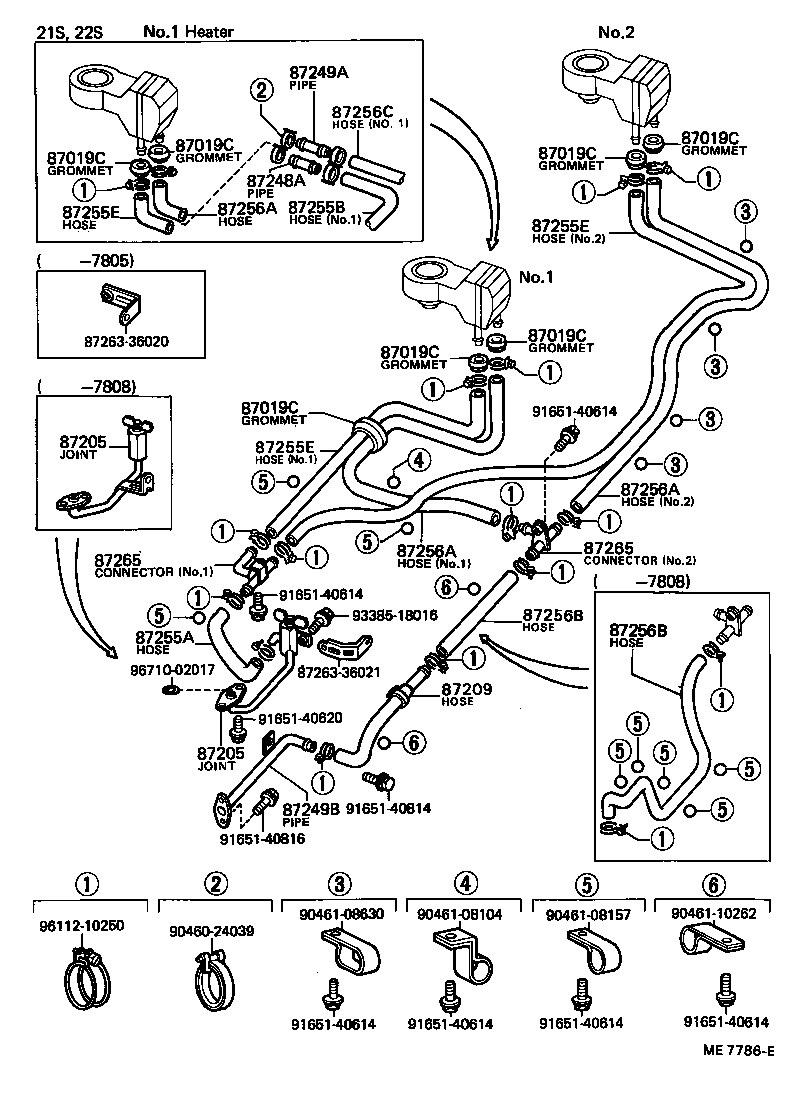

ILLUST NO. 2 OF 2(7708-7911)RB11..21S,22S,25S,26S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87019C - GROMMET, HEATER HOSE | ||||
| 90099-32096 |
BB1#,RB11,12..21S,22S,25S,26S W/*CH |
2 | ||
| 90480-01059 |
BB1#,RB1# FR HEATER |
1 | ||
| 90480-20005 |
BB1#,RB1# OD=24,RR HEATER |
4 | ||
| 90480-69217 |
BB1#,RB1#..25S,26S OD=60,RR,NO.1 HEATER |
1 | ||
| 87019C - GROMMET, HEATER HOSE | ||||
| 90099-32096 |
BB1#,RB11,12..21S,22S,25S,26S W/*CH |
2 | ||
| 90480-01059 |
BB1#,RB1# FR HEATER |
1 | ||
| 90480-20005 |
BB1#,RB1# OD=24,RR HEATER |
4 | ||
| 90480-69217 |
BB1#,RB1#..25S,26S OD=60,RR,NO.1 HEATER |
1 | ||
| 87019C - GROMMET, HEATER HOSE | ||||
| 90099-32096 |
BB1#,RB11,12..21S,22S,25S,26S W/*CH |
2 | ||
| 90480-01059 |
BB1#,RB1# FR HEATER |
1 | ||
| 90480-20005 |
BB1#,RB1# OD=24,RR HEATER |
4 | ||
| 90480-69217 |
BB1#,RB1#..25S,26S OD=60,RR,NO.1 HEATER |
1 | ||
| 87019C - GROMMET, HEATER HOSE | ||||
| 90099-32096 |
BB1#,RB11,12..21S,22S,25S,26S W/*CH |
2 | ||
| 90480-01059 |
BB1#,RB1# FR HEATER |
1 | ||
| 90480-20005 |
BB1#,RB1# OD=24,RR HEATER |
4 | ||
| 90480-69217 |
BB1#,RB1#..25S,26S OD=60,RR,NO.1 HEATER |
1 | ||
| 87019C - GROMMET, HEATER HOSE | ||||
| 90099-32096 |
BB1#,RB11,12..21S,22S,25S,26S W/*CH |
2 | ||
| 90480-01059 |
BB1#,RB1# FR HEATER |
1 | ||
| 90480-20005 |
BB1#,RB1# OD=24,RR HEATER |
4 | ||
| 90480-69217 |
BB1#,RB1#..25S,26S OD=60,RR,NO.1 HEATER |
1 | ||
| 87019C - GROMMET, HEATER HOSE | ||||
| 90099-32096 |
BB1#,RB11,12..21S,22S,25S,26S W/*CH |
2 | ||
| 90480-01059 |
BB1#,RB1# FR HEATER |
1 | ||
| 90480-20005 |
BB1#,RB1# OD=24,RR HEATER |
4 | ||
| 90480-69217 |
BB1#,RB1#..25S,26S OD=60,RR,NO.1 HEATER |
1 | ||
| 87019C - GROMMET, HEATER HOSE | ||||
| 90099-32096 |
BB1#,RB11,12..21S,22S,25S,26S W/*CH |
2 | ||
| 90480-01059 |
BB1#,RB1# FR HEATER |
1 | ||
| 90480-20005 |
BB1#,RB1# OD=24,RR HEATER |
4 | ||
| 90480-69217 |
BB1#,RB1#..25S,26S OD=60,RR,NO.1 HEATER |
1 | ||
| 87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV | ||||
| 87240-36050 |
RB11 FR |
1 | ||
| 87240-36060 |
RB11 RR |
1 | ||
| 87240-36051 |
RB11 FR |
1 | ||
| 87240-36061 |
RB11 RR |
1 | ||
| 87240-36062 |
RB11 RR |
1 | ||
| 87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV | ||||
| 87240-36050 |
RB11 FR |
1 | ||
| 87240-36060 |
RB11 RR |
1 | ||
| 87240-36051 |
RB11 FR |
1 | ||
| 87240-36061 |
RB11 RR |
1 | ||
| 87240-36062 |
RB11 RR |
1 | ||
| 87209 - HOSE SUB-ASSY, WATER | ||||
| 87209-36180 |
RB11 |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 87209-36150 |
RB11 |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 99552-33000 |
BB10,RB11..21S,22S,25S,26S L=3000,RR,NO.2 HEATER |
1 | ||
| 99552-31060 |
RB11..25S,26S L=1060,RR,NO.1 HEATER |
1 | ||
| 99552-31060 |
RB11..21S,22S,25S,26S L=1060,RR,NO.1 HEATER |
1 | ||
| 99552-32750 |
RB11..21S,22S,25S,26S L=2750,RR,NO.2 HEATER |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 99552-33000 |
BB10,RB11..21S,22S,25S,26S L=3000,RR,NO.2 HEATER |
1 | ||
| 99552-31060 |
RB11..25S,26S L=1060,RR,NO.1 HEATER |
1 | ||
| 99552-31060 |
RB11..21S,22S,25S,26S L=1060,RR,NO.1 HEATER |
1 | ||
| 99552-32750 |
RB11..21S,22S,25S,26S L=2750,RR,NO.2 HEATER |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 99552-33000 |
BB10,RB11..21S,22S,25S,26S L=3000,RR,NO.2 HEATER |
1 | ||
| 99552-31060 |
RB11..25S,26S L=1060,RR,NO.1 HEATER |
1 | ||
| 99552-31060 |
RB11..21S,22S,25S,26S L=1060,RR,NO.1 HEATER |
1 | ||
| 99552-32750 |
RB11..21S,22S,25S,26S L=2750,RR,NO.2 HEATER |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 99552-32200 |
BB10,RB11..21S,22S,25S,26S L=2200,RR,NO.2 HEATER |
1 | ||
| 99552-31060 |
BB10,RB11..25S,26S L=1060,RR,NO.1 HEATER |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 99552-32200 |
BB10,RB11..21S,22S,25S,26S L=2200,RR,NO.2 HEATER |
1 | ||
| 99552-31060 |
BB10,RB11..25S,26S L=1060,RR,NO.1 HEATER |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 99552-32200 |
BB10,RB11..21S,22S,25S,26S L=2200,RR,NO.2 HEATER |
1 | ||
| 99552-31060 |
BB10,RB11..25S,26S L=1060,RR,NO.1 HEATER |
1 | ||
| 87256B - HOSE, REAR HEATER WATER OUTLET, B | ||||
| 99552-32100 |
RB11..21S,22S,25S,26S L=2100 |
1 | ||
| 99552-30800 |
RB11..21S,22S,25S,26S L=800 |
1 | ||
| 99552-32100 |
RB11..21S,22S,25S,26S L=2100 |
1 | ||
| 87256B - HOSE, REAR HEATER WATER OUTLET, B | ||||
| 99552-32100 |
RB11..21S,22S,25S,26S L=2100 |
1 | ||
| 99552-30800 |
RB11..21S,22S,25S,26S L=800 |
1 | ||
| 99552-32100 |
RB11..21S,22S,25S,26S L=2100 |
1 | ||
| 87265 - CONNECTOR, HEATER WATER HOSE | ||||
| 87251-36110 |
BB1#,RB1#..21S,22S,25S,26S 3 WAY,NO.2 |
1 | ||
| 87251-36150 |
RB11 3 WAY,NO.1 |
1 | ||
| 87265 - CONNECTOR, HEATER WATER HOSE | ||||
| 87251-36110 |
BB1#,RB1#..21S,22S,25S,26S 3 WAY,NO.2 |
1 | ||
| 87251-36150 |
RB11 3 WAY,NO.1 |
1 | ||
| Common parts | ||||
| 87263-36020 | ||||
| 87263-36021 | ||||
| 90460-24039 | ||||
| 90461-08104 | ||||
| 90461-08157 | ||||
| 90461-08630 | ||||
| 90461-10262 | ||||
| 91651-40614 | ||||
| 91651-40620 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 93385-18016 | ||||
| 96112-10250 | ||||
| 96710-02017 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
