RB11-QDZE (1977)

Toyota Coaster

Production Aug 1977 - Nov 1979
Engine 20R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

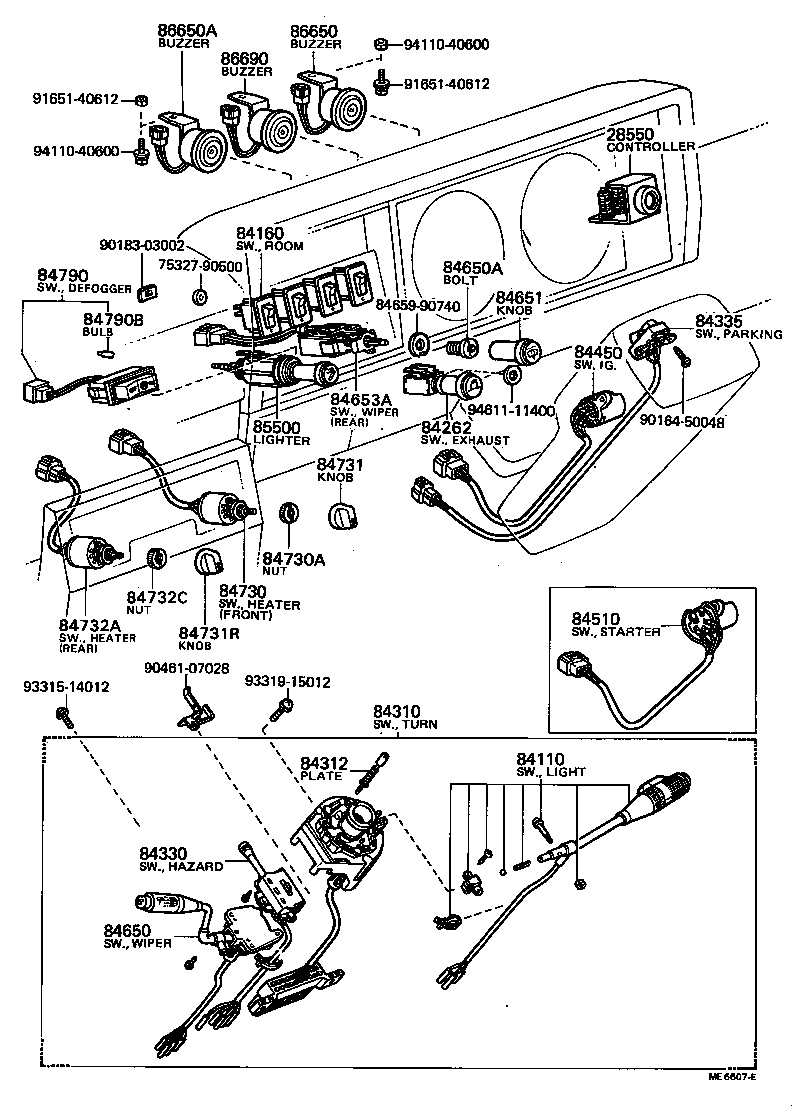

ILLUST NO. 1 OF 4(7708- )

Click highlighted areas on diagram

diagram 28550 7532790500 84110 84160 84262 84310 84312 84330 84335 84450 84510 84650 84650A 84651 84653A 8465990740 84730 84730A 84731 84731R 84732A 84732C 84790 84790B 85500 86650 86650A 86690 9016450048 9018303002 9046107028 9165140612 9165140612 9331514012 9331915012 9411040600 9411040600 9461111400
Part # Description Qty Price
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84112-39015

BB1#,RB1#

 1
84160 - SWITCH ASSY, ROOM LAMP
84730-60020

BB1#,RB11,12

 4
84310 - SWITCH ASSY, TURN SIGNAL
84310-36100

BB10,RB11

W/INTERMITTENT WIPER

 1
84312 - PLATE, HORN CONTACT
84312-20011

BB1#,RB1#

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-39015

BB1#,RB1#

 1
84335 - SWITCH ASSY, PARKING LAMP
84330-36040

BB1#,RB1#

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-14021

RB1#

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-36020

BB10,RB11

W/INTERMITTENT WIPER

 1
84650A - BOLT OR NUT, WINDSHIELD WIPER SWITCH SET
90984-01007

BB1#,RB1#..BC;BB1#,RB1#..DLX

RR WIPER

 1
84651 - KNOB, WINDSHIELD WIPER SWITCH
84651-21010

BB1#,RB1#..BC;BB1#,RB1#..DLX

RR WIPER

 1
84653A - SWITCH, REAR WIPER
84653-12010

BB1#,RB1#..BC;BB1#,RB1#..DLX

 1
84730 - SWITCH ASSY, HEATER BLOWER
84732-36010

BB1#,RB1#

 1
84730A - NUT, HEATER BLOWER SWITCH
90179-10155

BB1#,RB1#

 1
84731 - KNOB, HEATER BLOWER SWITCH
84731-12010

BB1#,RB1#

 1
84731R - KNOB, REAR HEATER BLOWER SWITCH
84731-12010

BB1#,RB1#

 1
84732A - SWITCH, REAR HEATER BLOWER
84732-36020

BB1#,RB1#

 1
84732C - NUT, REAR HEATER BLOWER SWITCH
90179-10155

BB1#,RB1#

 1
85500 - LIGHTER ASSY, CIGARETTE
85500-20042

BB1#,RB1#

 1
86690 - BUZZER ASSY, SPEED INDICATOR
86650-36010

RB1#

 1
Common parts
75327-90500
84659-90740
90164-50048
90183-03002
90461-07028
91651-40612
93315-14012
93319-15012
94110-40600
94611-11400

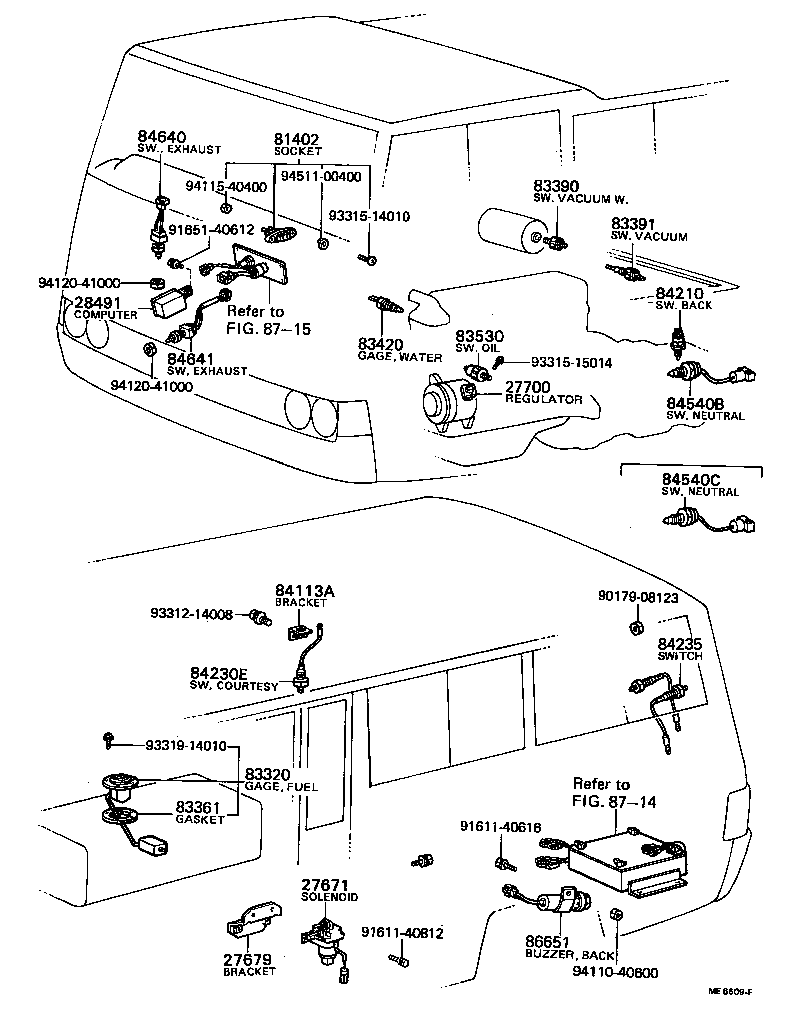

ILLUST NO. 4 OF 4(7708- )

Click highlighted areas on diagram

diagram 27671 27679 27700 28491 81402 83320 83361 83390 83391 83420 83530 84113A 84210 84230E 84235 84540B 84540C 84640 84641 86651 8714 8715 9017908123 9161140616 9161140812 9165140612 9331214008 9331514010 9331515014 9331914010 9411040600 9411540400 9412041000 9412041000 9451100400
Part # Description Qty Price
27700 - REGULATOR ASSY, GENERATOR
27700-36020

20R..RB11

 2
27700-36020

20R..RB11

 1
81402 - SOCKET SUB-ASSY, INSPECTION LAMP, NO.1
81402-29015

BB10,RB11

 1
83320 - GAGE ASSY, FUEL SENDER
83320-59016

BB1#,RB1#

 1
83361 - GASKET, FUEL SENDER GAGE
83361-20030

BB1#,RB1#

 1
83391 - SWITCH, VACUUM
83391-14010

RB1#

 1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20011

BB10,RB11

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-14010

BB10,RB11

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-14010

BB1#,RB1#

 1
84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR)
84231-30010

BB1#,RB11,12

 2
86651 - BUZZER ASSY, BACK
86650-95401

RB1#

 1
Common parts
90179-08123
91611-40616
91611-40812
91651-40612
93312-14008
93315-14010
93315-15014
93319-14010
94110-40600
94115-40400
94120-41000
94511-00400
Linked diagrams
8714
8715

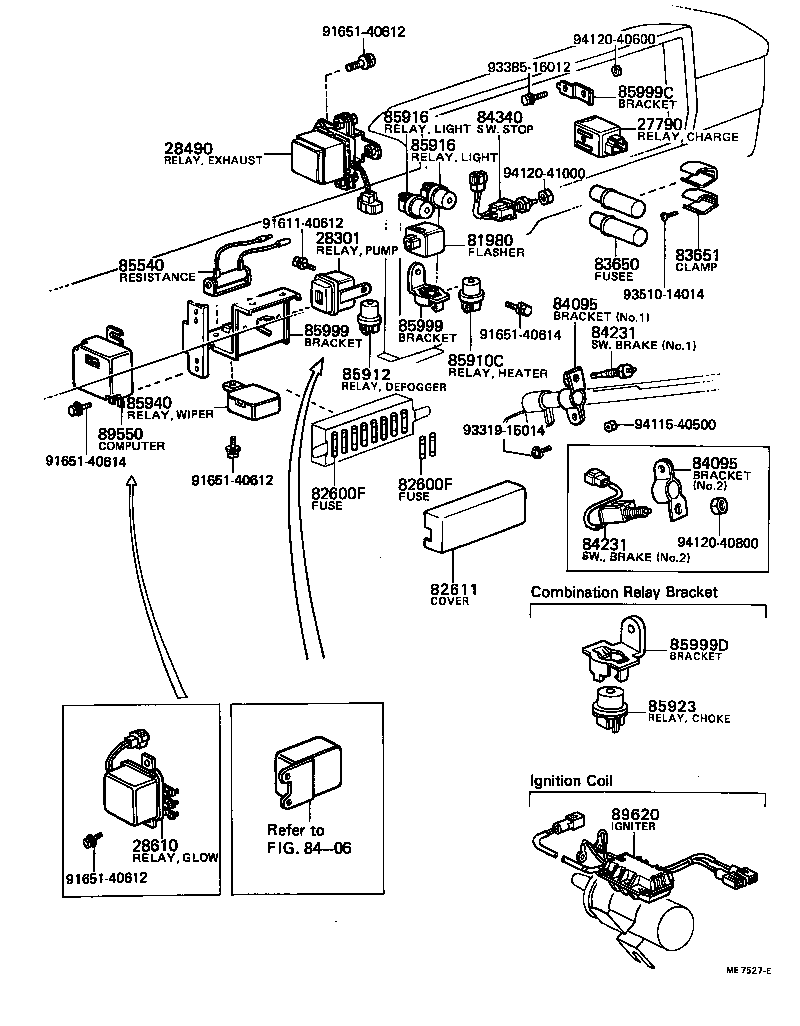

ILLUST NO. 2 OF 4(7708- )

Click highlighted areas on diagram

diagram 27790 28301 28490 28610 81980 82600F 82600F 82611 83650 83651 8406 84095 84095 84231 84231 84340 85540 85910C 85912 85916 85923 85940 85999 85999 85999C 85999D 89550 89620 9161140612 9165140612 9165140612 9165140612 9165140614 9165140614 9331915014 9338516012 9351014014 9411540500 9412040600 9412040800 9412041000
Part # Description Qty Price
28301 - RELAY ASSY, FUEL PUMP
28380-20010

20R..RB11

 1
81980 - FLASHER ASSY, TURN SIGNAL
81980-22060

RB1#

 1
82600F - FUSE, FUSE BLOCK
90982-07008

BB10,RB11

5A

 1
99118-62915

BB10,RB11

15A,15A

 9
82600F - FUSE, FUSE BLOCK
90982-07008

BB10,RB11

5A

 1
99118-62915

BB10,RB11

15A,15A

 9
83650 - FUSEE
90986-01003

BB1#,RB1#

 2
83651 - CLAMP, FUSEE
81713-90500

BB1#,RB11,12

 2
84095 - BRACKET SUB-ASSY, HAND BRAKE SIGNAL SWITCH
84956-36020

BB10,RB11

NO.1

 1
84095 - BRACKET SUB-ASSY, HAND BRAKE SIGNAL SWITCH
84956-36020

BB10,RB11

NO.1

 1
84231 - SWITCH ASSY, COURTESY LAMP (FOR PARKING BRAKE)
84231-20010

BB10,RB11

NO.1

 1
84231 - SWITCH ASSY, COURTESY LAMP (FOR PARKING BRAKE)
84231-20010

BB10,RB11

NO.1

 1
84340 - SWITCH ASSY, STOP LAMP
84340-12021

BB1#,RB1#

 1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-02001

RB1#

 1
85916 - RELAY, LIGHT CONTROL
90987-01001

RB1#

 2
85940 - RELAY ASSY, WINDSHIELD WIPER
85940-36010

RB1#

 1
85999 - BRACKET, COMBINATION RELAY
85909-90740

BB1#,RB1#

 1
85999-26010

BB10,RB11

HEATER RELAY

 1
85999 - BRACKET, COMBINATION RELAY
85909-90740

BB1#,RB1#

 1
85999-26010

BB10,RB11

HEATER RELAY

 1
89550 - COMPUTER ASSY, EMISSION CONTROL
89550-36011

RB1#

 1
Common parts
91611-40612
91651-40612
91651-40614
93319-15014
93385-16012
93510-14014
94115-40500
94120-40600
94120-40800
94120-41000
Linked diagrams
8406

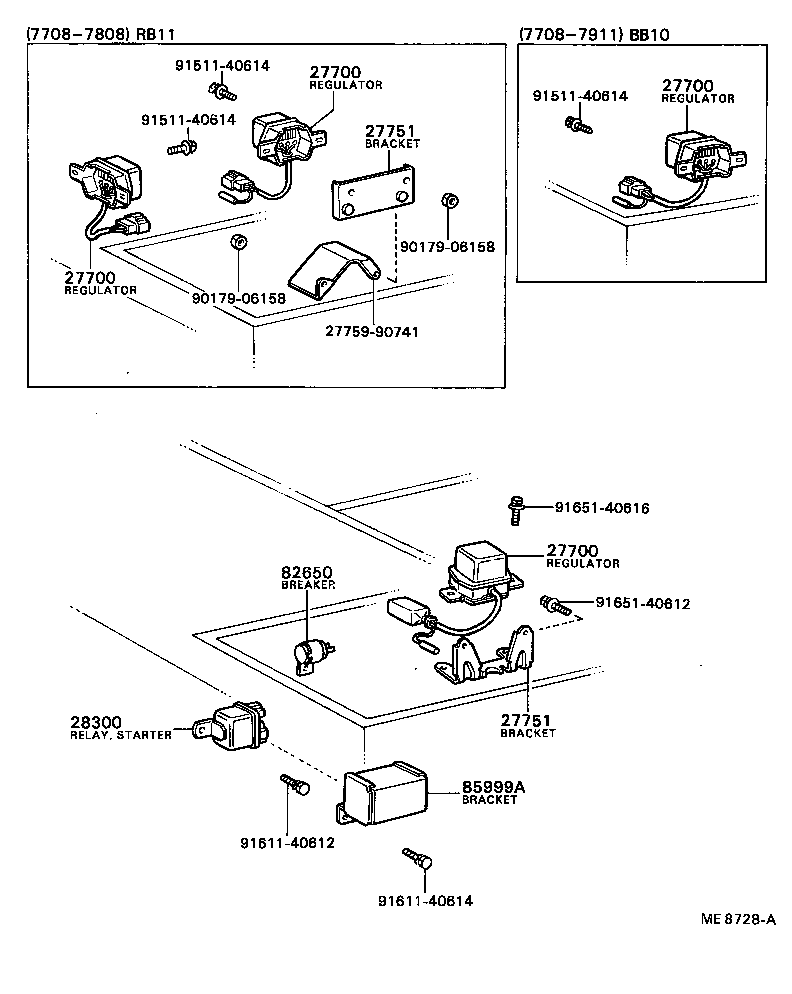

ILLUST NO. 3 OF 4(7708- )

Click highlighted areas on diagram

diagram 27700 27700 27700 27700 27751 27751 2775990741 28300 82650 85999A 9017906158 9017906158 9151140614 9151140614 9151140614 9161140612 9161140614 9165140612 9165140616
Part # Description Qty Price
27700 - REGULATOR ASSY, GENERATOR
27700-36020

20R..RB11

 2
27700-36020

20R..RB11

 1
27700 - REGULATOR ASSY, GENERATOR
27700-36020

20R..RB11

 2
27700-36020

20R..RB11

 1
27700 - REGULATOR ASSY, GENERATOR
27700-36020

20R..RB11

 2
27700-36020

20R..RB11

 1
27700 - REGULATOR ASSY, GENERATOR
27700-36020

20R..RB11

 2
27700-36020

20R..RB11

 1
Common parts
27759-90741
90179-06158
91511-40614
91611-40612
91611-40614
91651-40612
91651-40616
