RB11-QDZ (1977)

Toyota Coaster

Production Aug 1977 - Nov 1979
Engine 20R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )

Click highlighted areas on diagram

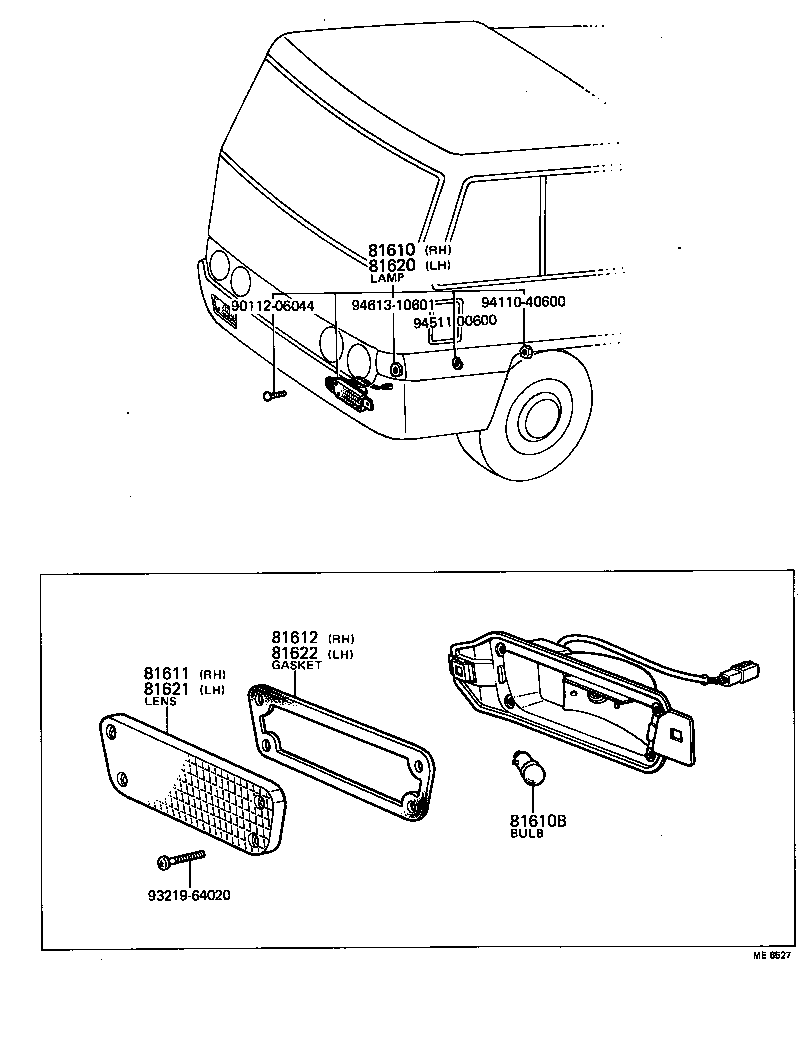

diagram 81610 81610B 81611 81612 81620 81621 81622 9011206044 9321964020 9411040600 9451100600 9461310601
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-39105

RB1#

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-11050

RB1#

12V 5W,12V 5W

 2
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-36130

BB1#,RB1#

CLEAR

 1
81612 - GASKET, PARKING AND CLEARANCE LAMP LENS, RH
81512-14011

BB1#,RB1#

 1
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-39105

RB1#

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-36110

BB1#,RB1#

CLEAR

 1
81622 - GASKET, PARKING AND CLEARANCE LAMP LENS, LH
81522-14011

BB1#,RB1#

 1
Common parts
90112-06044
93219-64020
94110-40600
94511-00600
94613-10601
