RB11-QDR (1977)
Toyota Coaster
Production
Aug 1977
-
Nov 1979
Engine
20R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7708- )RB1#..BC

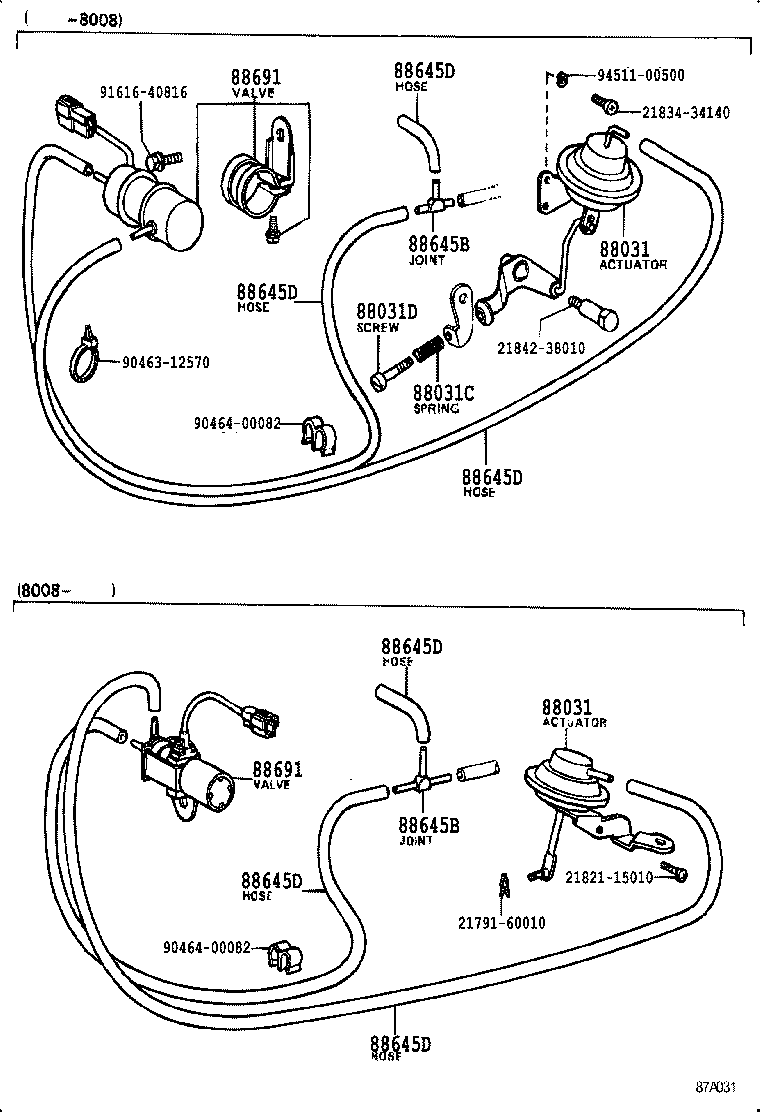

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88031 - ACTUATOR SET, IDLE-UP | ||||
| 88031-36010 |
RB11..BC |
1 | ||
| 88031 - ACTUATOR SET, IDLE-UP | ||||
| 88031-36010 |
RB11..BC |
1 | ||
| 88031C - SPRING(FOR IDLE-UP ACTUATOR) | ||||
| 21723-10010 |
BB10,RB11..BC |
1 | ||
| 88031D - SCREW, THROTTLE ADJUSTING(FOR IDLE-UP ACTUATOR) | ||||
| 21844-26030 |
BB10,RB11..BC |
1 | ||
| 88645B - JOINT, NO.1 (FOR IDLE UP DIVICE) | ||||
| 90413-04001 |
RB11..BC 3WAY |
1 | ||
| 88645B - JOINT, NO.1 (FOR IDLE UP DIVICE) | ||||
| 90413-04001 |
RB11..BC 3WAY |
1 | ||
| 88645D - HOSE (FOR IDLE UP DEVICE) | ||||
| 95411-19930 |
RB11..BC *H,L=260,ﾏｰｸ=#* |
1 | ||
| 95411-10130 |
RB11,12..BC *H,L=240,ﾏｰｸ=#1 |
1 | ||
| 95411-19930 |
RB1#..BC *H,L=100,ﾏｰｸ=#* |
1 | ||
| 88645D - HOSE (FOR IDLE UP DEVICE) | ||||
| 95411-19930 |
RB11..BC *H,L=260,ﾏｰｸ=#* |
1 | ||
| 95411-10130 |
RB11,12..BC *H,L=240,ﾏｰｸ=#1 |
1 | ||
| 95411-19930 |
RB1#..BC *H,L=100,ﾏｰｸ=#* |
1 | ||
| 88645D - HOSE (FOR IDLE UP DEVICE) | ||||
| 95411-19930 |
RB11..BC *H,L=260,ﾏｰｸ=#* |
1 | ||
| 95411-10130 |
RB11,12..BC *H,L=240,ﾏｰｸ=#1 |
1 | ||
| 95411-19930 |
RB1#..BC *H,L=100,ﾏｰｸ=#* |
1 | ||
| 88645D - HOSE (FOR IDLE UP DEVICE) | ||||
| 95411-19930 |
RB11..BC *H,L=260,ﾏｰｸ=#* |
1 | ||
| 95411-10130 |
RB11,12..BC *H,L=240,ﾏｰｸ=#1 |
1 | ||
| 95411-19930 |
RB1#..BC *H,L=100,ﾏｰｸ=#* |
1 | ||
| 88645D - HOSE (FOR IDLE UP DEVICE) | ||||
| 95411-19930 |
RB11..BC *H,L=260,ﾏｰｸ=#* |
1 | ||
| 95411-10130 |
RB11,12..BC *H,L=240,ﾏｰｸ=#1 |
1 | ||
| 95411-19930 |
RB1#..BC *H,L=100,ﾏｰｸ=#* |
1 | ||
| 88645D - HOSE (FOR IDLE UP DEVICE) | ||||
| 95411-19930 |
RB11..BC *H,L=260,ﾏｰｸ=#* |
1 | ||
| 95411-10130 |
RB11,12..BC *H,L=240,ﾏｰｸ=#1 |
1 | ||
| 95411-19930 |
RB1#..BC *H,L=100,ﾏｰｸ=#* |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-36030 |
RB11..BC |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-36030 |
RB11..BC |
1 | ||
| Common parts | ||||
| 21791-60010 | ||||
| 21821-15010 | ||||
| 21834-34140 | ||||
| 21842-38010 | ||||
| 90463-12570 | ||||
| 90464-00082 | ||||
| 91616-40816 | ||||
| 94511-00500 | ||||
