RB11-JRK (1977)
Toyota Coaster
Production
Aug 1977
-
Nov 1979
Engine
20R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 4(7708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-36150 |
RB1# |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-22020 |
BB1#,RB1# |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-36081 |
BB1#,RB1# |
1 | ||
| 87110 - HEATER ASSY | ||||
| 87110-36230 |
RB1# |
1 | ||
| 87114 - COVER, HEATER | ||||
| 87114-14010 |
BB1#,RB11,12 |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-36070 |
RB1# |
1 | ||
| 87173 - PROTECTOR, WATER VALVE, HEATER | ||||
| 87173-36020 |
BB1#,RB1# |
1 | ||
| 87188 - PACKING, HEATER BLOWER MOTOR | ||||
| 87128-22010 |
BB1#,RB11,12 |
1 | ||
| Common parts | ||||
| 87129-14010 | ||||
| 88467-22030 | ||||
| 90099-00006 | ||||
| 90099-02133 | ||||
| 90099-02134 | ||||
| 90099-02135 | ||||
| 90099-04544 | ||||
| 90101-06255 | ||||
| 91651-40816 | ||||
| 93315-15012 | ||||
| 93319-14010 | ||||
| 93385-16012 | ||||
| 94110-40600 | ||||
| 94115-40500 | ||||
| 94511-00600 | ||||
| Linked diagrams | ||||
| 8715 | ||||

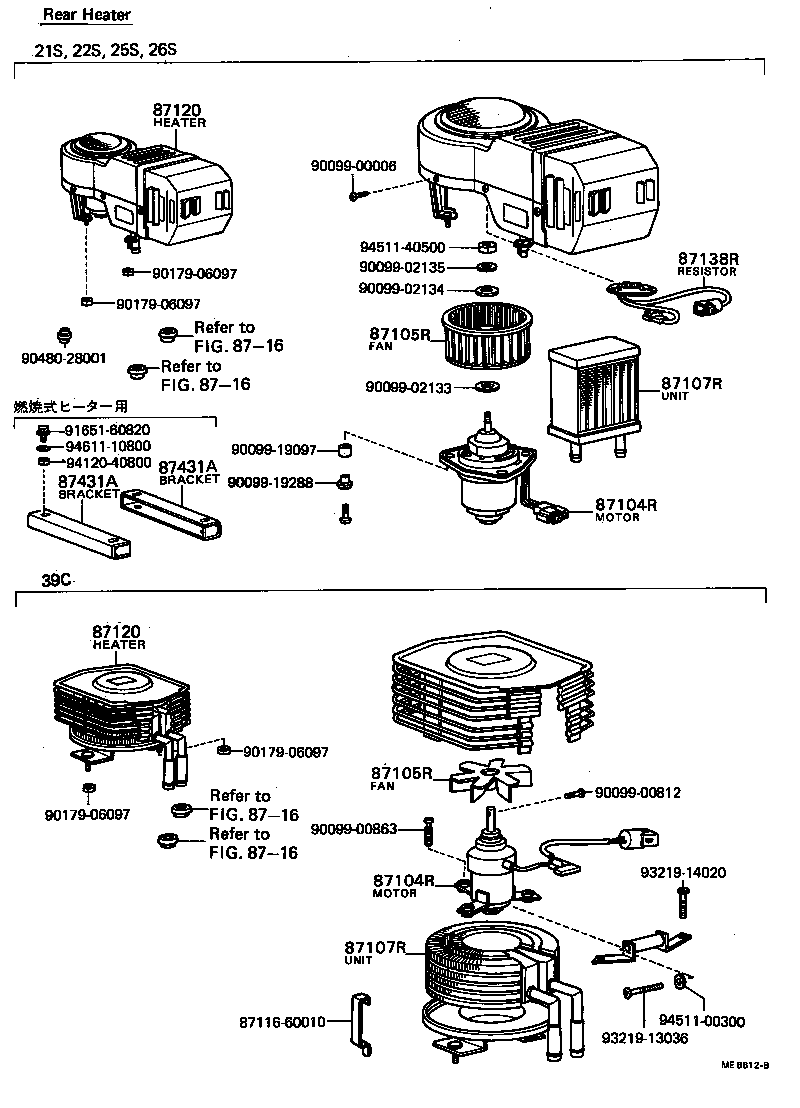

ILLUST NO. 2 OF 4(7708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER | ||||
| 87104-36140 |
RB11..39C |
2 | ||
| 87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER | ||||
| 87104-36140 |
RB11..39C |
2 | ||
| 87105R - FAN SUB-ASSY, REAR HEATER BLOWER | ||||
| 87105-60040 |
BB1#,RB11,13..39C |
2 | ||
| 87105R - FAN SUB-ASSY, REAR HEATER BLOWER | ||||
| 87105-60040 |
BB1#,RB11,13..39C |
2 | ||
| 87107R - UNIT SUB-ASSY, REAR HEATER | ||||
| 87107-36110 |
BB1#,RB1#..39C |
2 | ||
| 87107R - UNIT SUB-ASSY, REAR HEATER | ||||
| 87107-36110 |
BB1#,RB1#..39C |
2 | ||
| 87120 - HEATER ASSY, REAR | ||||
| 87110-36290 |
RB11..39C |
2 | ||
| 87120 - HEATER ASSY, REAR | ||||
| 87110-36290 |
RB11..39C |
2 | ||
| Common parts | ||||
| 87116-60010 | ||||
| 90099-00006 | ||||
| 90099-00812 | ||||
| 90099-00863 | ||||
| 90099-02133 | ||||
| 90099-02134 | ||||
| 90099-02135 | ||||
| 90099-19097 | ||||
| 90099-19288 | ||||
| 90179-06097 | ||||
| 90480-28001 | ||||
| 91651-60820 | ||||
| 93219-13036 | ||||
| 93219-14020 | ||||
| 94120-40800 | ||||
| 94511-00300 | ||||
| 94511-40500 | ||||
| 94611-10800 | ||||
| Linked diagrams | ||||
| 8716 | ||||
