RB11-JR (1977)

Toyota Coaster

Production Aug 1977 - Nov 1979
Engine 20R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

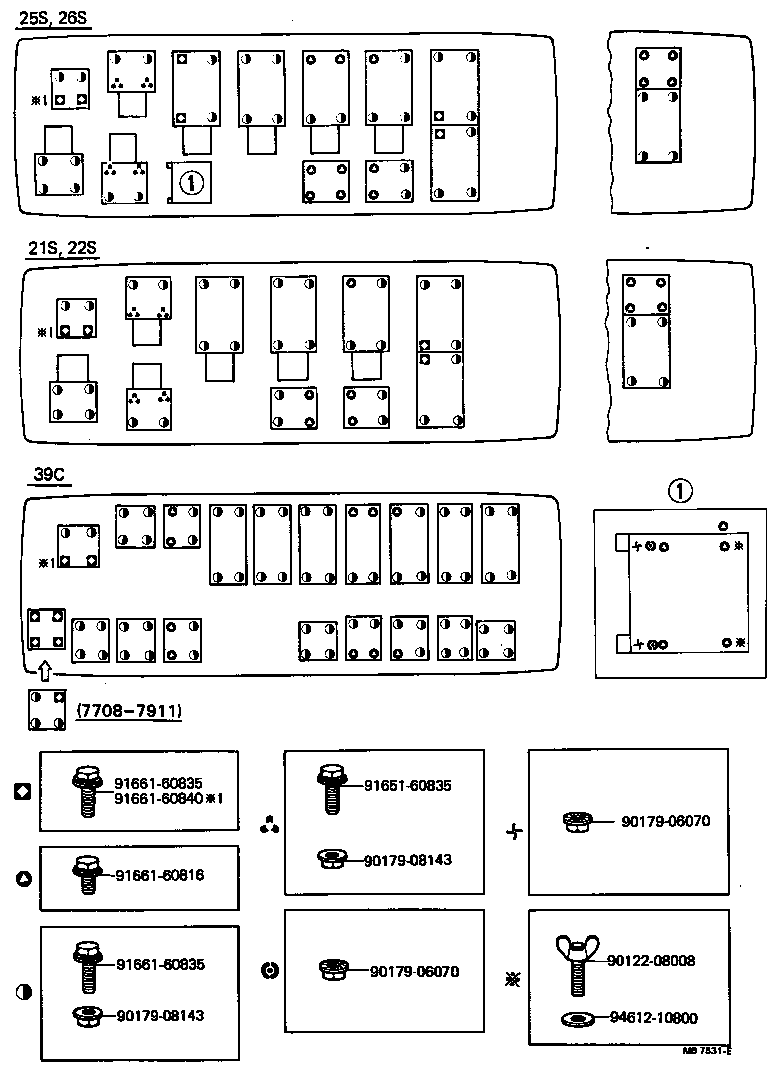

ILLUST NO. 3 OF 3(7708- )

Click highlighted areas on diagram

diagram 9012208008 9017906070 9017906070 9017908143 9017908143 9165160835 9166160816 9166160835 9166160835 9166160840 9461210800
Part # Description Qty Price
Common parts
90122-08008
90179-06070
90179-08143
91651-60835
91661-60816
91661-60835
91661-60840
94612-10800

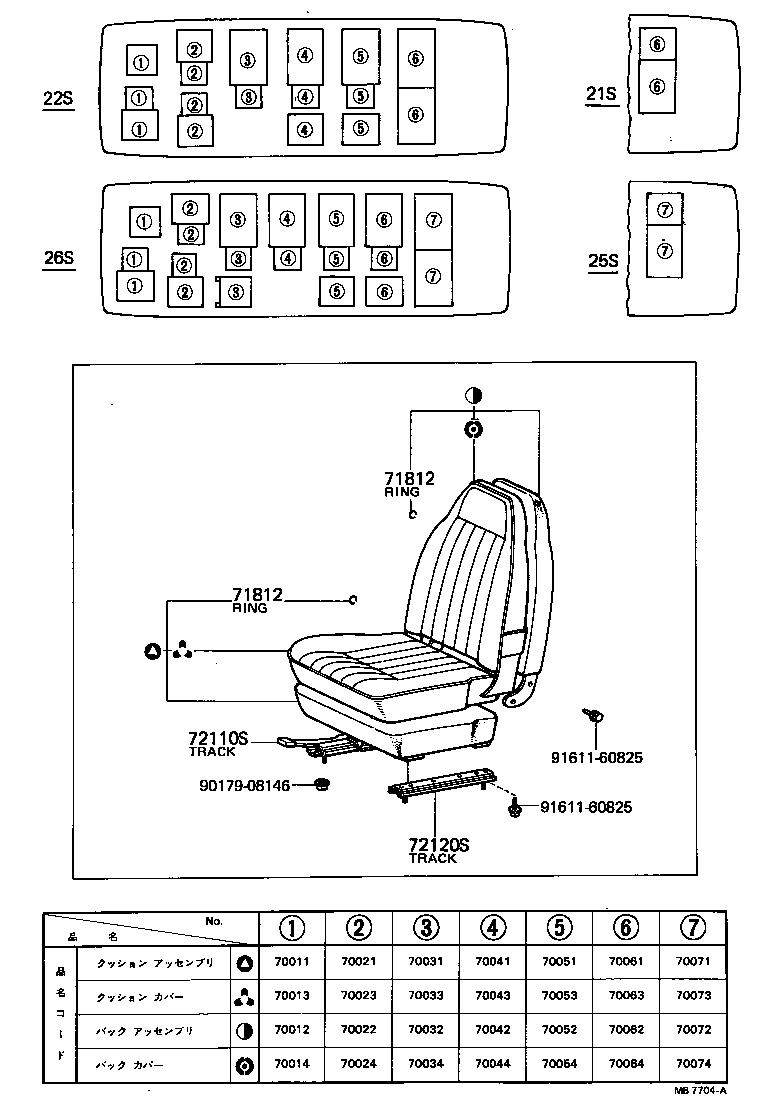

ILLUST NO. 1 OF 3(7708-7911)21S,22S,25S,26S

Click highlighted areas on diagram

diagram 70011 70012 70013 70014 70021 70022 70023 70024 70031 70032 70033 70034 70041 70042 70043 70044 70051 70052 70053 70054 70061 70062 70063 70064 70071 70072 70073 70074 71812 71812 72110S 72120S 9017908146 9161160825 9161160825
Part # Description Qty Price
70011 - CUSHION ASSY, NO.1 SEAT
71120-90740

BB10,RB11..(22S,26S)..STD

RH

 1
71220-90746

BB10,RB11..26S..STD

LH,AUTO DOOR

 1
72420-90740

BB10,RB11..(22S,26S)..STD

LH,SUB SEAT

 1
71220-90740

BB10,RB11..(22S,26S)..STD

LH

 1
70012 - BACK ASSY, NO.1 SEAT
71130-90740

BB10,RB11..(22S,26S)..STD

RH

 1
71830-90740

BB10,RB11..(22S,26S)..STD

LH

 1
71830-90743

BB10,RB11..(22S,26S)..STD

LH,W/SEAT BELT

 1
72330-90740

BB10,RB11..(22S,26S)..STD

LH,SUB SEAT

 1
70013 - COVER ASSY, NO.1 SEAT CUSHION
72405-90740

BB10,RB11..(22S,26S)..STD

LH,SUB SEAT

 1
71206-90740

BB10,RB11..(22S,26S)..STD

LH

 1
71105-90740

BB10,RB11..(22S,26S)..STD

RH

 1
70014 - COVER ASSY, NO.1 SEAT BACK
71106-90740

BB10,RB11..(22S,26S)..STD

RH

 1
72307-90740

BB10,RB11..(22S,26S)..STD

LH,SUB SEAT

 1
71208-90740

BB10,RB11..(22S,26S)..STD

LH

 1
71106-90745

BB10,RB11..(22S,26S)..STD

RH

 1
70021 - CUSHION ASSY, NO.2 SEAT
71220-90740

BB10,RB11..(22S,26S)..STD

RH,LH

 2
72320-90740

BB10,RB11..(22S,26S)..STD

RH,SUB SEAT

 1
72420-90740

BB10,RB11..(22S,26S)..STD

LH,SUB SEAT

 1
70022 - BACK ASSY, NO.2 SEAT
71830-90740

BB10,RB11..(22S,26S)..STD

RH,LH

 2
72330-90740

BB10,RB11..(22S,26S)..STD

RH,LH,SUB SEAT

 2
71830-90743

BB10,RB11..(22S,26S)..STD

RH,LH,W/SEAT BELT

 2
70023 - COVER ASSY, NO.2 SEAT CUSHION
72305-90740

BB10,RB11..(22S,26S)..STD

RH,SUB SEAT

 1
72405-90740

BB10,RB11..(22S,26S)..STD

LH,SUB SEAT

 1
71206-90740

BB10,RB11..(22S,26S)..STD

RH,LH

 2
70024 - COVER ASSY, NO.2 SEAT BACK
71208-90740

BB10,RB11..(22S,26S)..STD

RH,LH

 2
72307-90740

BB10,RB11..(22S,26S)..STD

RH,LH,SUB SEAT

 2
70031 - CUSHION ASSY, NO.3 SEAT
71220-90740

BB10,RB11..26S..STD

LH

 1
71320-90740

BB10,RB11..(22S,26S)..STD

RH

 1
72320-90740

BB10,RB11..(22S,26S)..STD

RH,SUB SEAT

 1
70032 - BACK ASSY, NO.3 SEAT
71830-90740

BB10,RB11..26S..STD

LH

 1
71330-90746

BB10,RB11..(22S,26S)..STD

RH,W/SEAT BELT

 1
72330-90740

BB10,RB11..(22S,26S)..STD

RH,SUB SEAT

 1
71830-90743

BB10,RB11..26S..STD

LH,W/SEAT BELT

 1
71330-90740

BB10,RB11..(22S,26S)..STD

RH

 1
70033 - COVER ASSY, NO.3 SEAT CUSHION
71306-90740

BB10,RB11..(22S,26S)..STD

RH

 1
71206-90740

BB10,RB11..26S..STD

LH

 1
72305-90740

BB10,RB11..(22S,26S)..STD

RH,SUB SEAT

 1
70034 - COVER ASSY, NO.3 SEAT BACK
71308-90740

BB10,RB11..(22S,26S)..STD

RH

 1
71208-90740

BB10,RB11..26S..STD

LH

 1
72307-90740

BB10,RB11..(22S,26S)..STD

RH,SUB SEAT

 1
70041 - CUSHION ASSY, NO.4 SEAT
72320-90740

BB10,RB11..(22S,26S)..STD

RH,SUB SEAT

 1
71320-90740

BB10,RB11..(22S,26S)..STD

RH

 1
70042 - BACK ASSY, NO.4 SEAT
72330-90740

BB10,RB11..(22S,26S)..STD

RH,SUB SEAT

 1
71330-90746

BB10,RB11..(22S,26S)..STD

RH,W/SEAT BELT

 1
71330-90740

BB10,RB11..(22S,26S)..STD

RH

 1
70043 - COVER ASSY, NO.4 SEAT CUSHION
71306-90740

BB10,RB11..(22S,26S)..STD

RH

 1
72305-90740

BB10,RB11..(22S,26S)..STD

RH,SUB SEAT

 1
70044 - COVER ASSY, NO.4 SEAT BACK
72307-90740

BB10,RB11..(22S,26S)..STD

RH,SUB SEAT

 1
71308-90740

BB10,RB11..(22S,26S)..STD

RH

 1
70051 - CUSHION ASSY, NO.5 SEAT
71320-90740

BB10,RB11..(22S,26S)..STD

RH

 1
71220-90740

BB10,RB11..(22S,26S)..STD

LH

 1
72320-90740

BB10,RB11..(22S,26S)..STD

RH,SUB SEAT

 1
70052 - BACK ASSY, NO.5 SEAT
71930-90740

BB10,RB11..26S..STD

LH

 1
72330-90740

BB10,RB11..(22S,26S)..STD

RH,SUB SEAT

 1
71430-90740

BB10,RB11..26S..STD

RH

 1
71930-90743

BB10,RB11..26S..STD

LH,W/SEAT BELT

 1
71430-90746

BB10,RB11..26S..STD

RH,W/SEAT BELT

 1
70053 - COVER ASSY, NO.5 SEAT CUSHION
71206-90740

BB10,RB11..(22S,26S)..STD

LH

 1
71306-90740

BB10,RB11..(22S,26S)..STD

RH

 1
72305-90740

BB10,RB11..(22S,26S)..STD

RH,SUB SEAT

 1
70054 - COVER ASSY, NO.5 SEAT BACK
71208-90740

BB10,RB11..(22S,26S)..STD

LH

 1
71308-90740

BB10,RB11..(22S,26S)..STD

RH

 1
72307-90740

BB10,RB11..(22S,26S)..STD

RH,SUB SEAT

 1
70061 - CUSHION ASSY, NO.6 SEAT
71220-90740

BB10,RB11..26S..STD

LH

 1
72320-90740

BB10,RB11..26S..STD

RH,SUB SEAT

 1
71320-90740

BB10,RB11..26S..STD

RH

 1
70062 - BACK ASSY, NO.6 SEAT
72330-90740

BB10,RB11..26S..STD

RH,SUB SEAT

 1
71230-90740

BB10,RB11..26S..STD

LH

 1
71330-90746

BB10,RB11..26S..STD

RH,W/SEAT BELT

 1
71330-90740

BB10,RB11..26S..STD

RH

 1
71830-90743

BB10,RB11..26S..STD

LH,W/SEAT BELT

 1
70063 - COVER ASSY, NO.6 SEAT CUSHION
71306-90740

BB10,RB11..26S..STD

RH

 1
71206-90740

BB10,RB11..26S..STD

LH

 1
72305-90740

BB10,RB11..26S..STD

RH,SUB SEAT

 1
70064 - COVER ASSY, NO.6 SEAT BACK
71208-90740

BB10,RB11..26S..STD

LH

 1
72307-90740

BB10,RB11..26S..STD

RH,SUB SEAT

 1
71308-90740

BB10,RB11..26S..STD

RH

 1
70071 - CUSHION ASSY, NO.7 SEAT
71320-90740

BB10,RB11..26S..STD

RH,LH

 2
70072 - BACK ASSY, NO.7 SEAT
72230-90740

BB10,RB11..26S..STD

LH

 1
71330-90740

BB10,RB11..26S..STD

RH

 1
71630-90517

BB10,RB11..26S..STD

RH,W/SEAT BELT

 1
71630-90514

BB10,RB11..26S..STD

RH

 1
72230-90746

BB10,RB11..26S..STD

LH,W/SEAT BELT

 1
70073 - COVER ASSY, NO.7 SEAT CUSHION
71306-90740

BB10,RB11..26S..STD

RH,LH

 2
70074 - COVER ASSY, NO.7 SEAT BACK
71308-90740

BB10,RB11..26S..STD

RH,LH

 2
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010

BB1#,RB1#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010

BB1#,RB1#

 1
72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)
72110-20042

BB1#,RB1#

 1
72120S - TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)
72120-90740

BB1#,RB1#

 1
Common parts
90179-08146
91611-60825

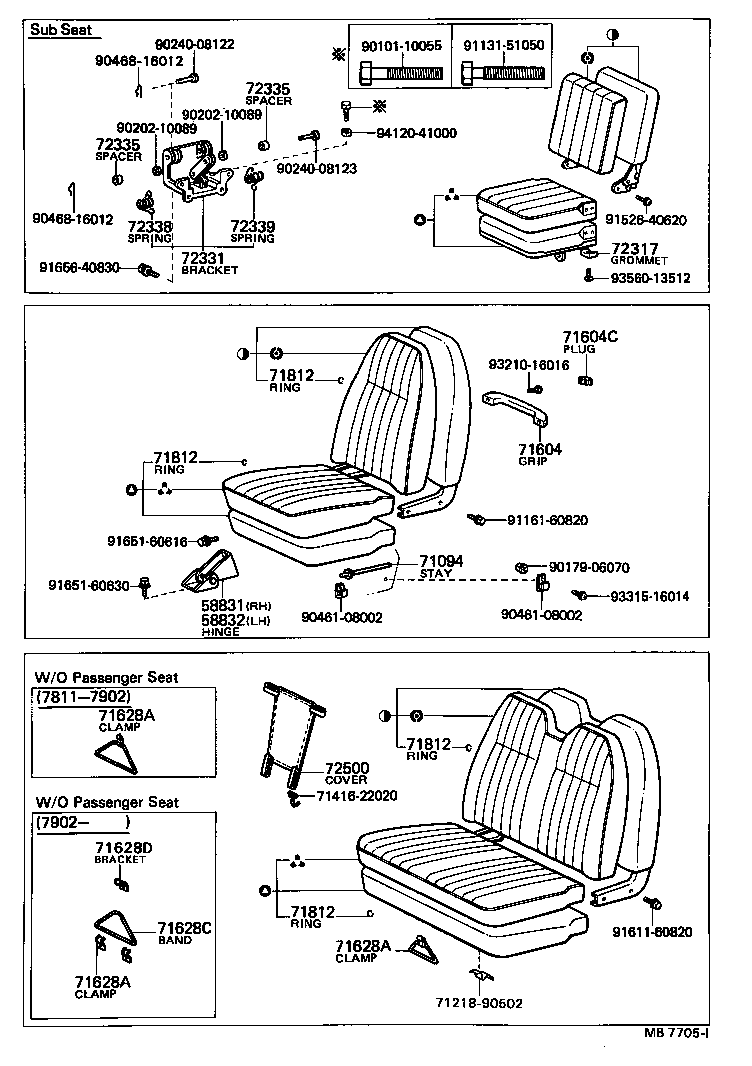

ILLUST NO. 2 OF 3(7708-7911)21S,22S,25S,26S

Click highlighted areas on diagram

diagram 58831 58832 71094 7121890502 7141622020 71604 71604C 71628A 71628A 71628A 71628C 71628D 71812 71812 71812 71812 72317 72331 72335 72335 72338 72339 72500 9010110055 9017906070 9020210089 9020210089 9024008122 9024008123 9046108002 9046108002 9046816012 9046816012 9113151050 9116160820 9152640620 9161160820 9165160616 9165160630 9165640830 9321016016 9331516014 9356013512 9412041000
Part # Description Qty Price
58831 - HINGE, PASSENGER SINGLE SEAT LEG, RH
71840-90740

BB1#,RB1#..25S,26S

 1
58832 - HINGE, PASSENGER SINGLE SEAT LEG, LH
71840-90740

BB1#,RB1#..25S,26S

 1
71094 - STAY SUB-ASSY, BATTERY SERVICE HOLE COVER
71804-90740

BB1#,RB1#..25S,26S

 1
71604 - GRIP SUB-ASSY, ASSIST(FOR SEAT BACK)
74603-2001005

BB1#,RB1#..21S,22S,25S,26S

BEIGE,BEIGE

 13
71604C - PLUG, HOLE(FOR ASSIST GRIP)
74617-1202005

BB1#,RB1#..21S,22S,25S,26S

BEIGE,BEIGE

 26
71628A - CLAMP SUB-ASSY, TOOL BAG
74701-95601

BB1#,RB1#

 1
71628A - CLAMP SUB-ASSY, TOOL BAG
74701-95601

BB1#,RB1#

 1
71628A - CLAMP SUB-ASSY, TOOL BAG
74701-95601

BB1#,RB1#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010

BB1#,RB1#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010

BB1#,RB1#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010

BB1#,RB1#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010

BB1#,RB1#

 1
72317 - GROMMET, SUB SEAT CUSHION
72317-90500

BB1#,RB1#

 14
72331 - BRACKET, SUB SEAT CUSHION
72301-90741

BB1#,RB1#..21S,22S,25S,26S

 7
72335 - SPACER, SUB SEAT LINK
72335-90500

BB1#,RB1#

 14
72335 - SPACER, SUB SEAT LINK
72335-90500

BB1#,RB1#

 14
72338 - SPRING, SUB SEAT LINK, RH
72337-90500

BB1#,RB1#

 7
72339 - SPRING, SUB SEAT LINK, LH
72339-90500

BB1#,RB1#

 7
72500 - COVER ASSY, LUGGAGE SPACE
72503-90741

BB10,RB11..21S,22S,25S,26S

 1
Common parts
71218-90502
71416-22020
90101-10055
90179-06070
90202-10089
90240-08122
90240-08123
90461-08002
90468-16012
91131-51050
91161-60820
91526-40620
91611-60820
91651-60616
91651-60630
91656-40830
93210-16016
93315-16014
93560-13512
94120-41000
