RB11-JDZE (1977)

Toyota Coaster

Production Aug 1977 - Nov 1979
Engine 20R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )

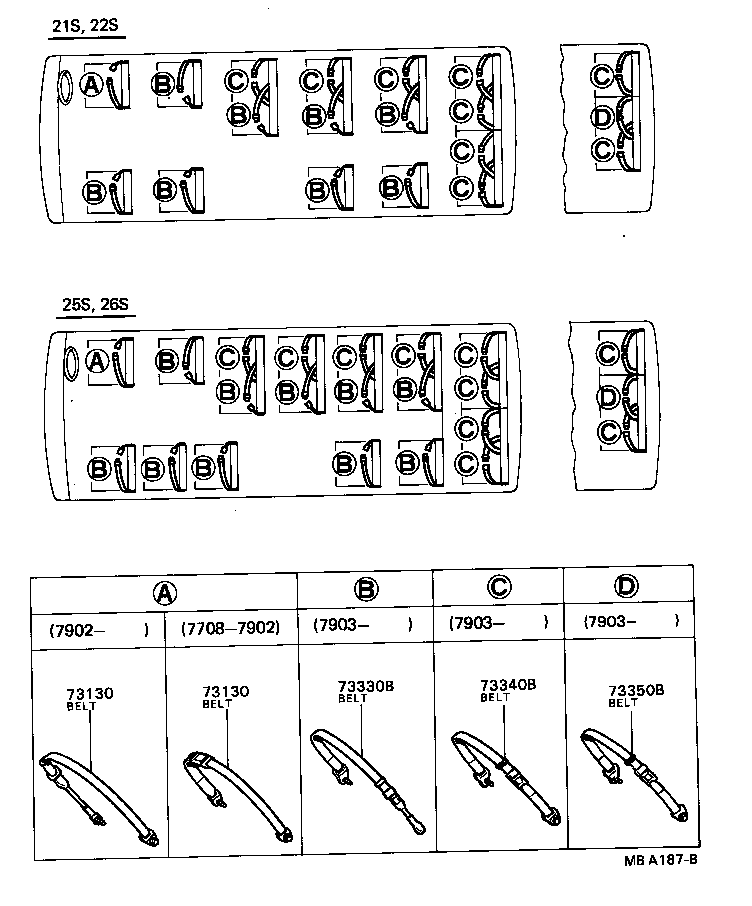

Click highlighted areas on diagram

diagram 73130 73130 73330B 73340B 73350B
Part # Description Qty Price
73130 - BELT ASSY, FRONT SEAT LAP TYPE, RH
73210-90740

BB10,RB11

 1
73210-90742

BB10,RB11

 1
73130 - BELT ASSY, FRONT SEAT LAP TYPE, RH
73210-90740

BB10,RB11

 1
73210-90742

BB10,RB11

 1
73330B - BELT ASSY, SEAT LAP TYPE, NO.1
73220-90740

BB10,RB11..21S,22S

 8
73340B - BELT ASSY, SEAT LAP TYPE, NO.2
73230-90740

BB10,RB11..22S

 7
