RB11-JD (1977)

Toyota Coaster

Production Aug 1977 - Nov 1979
Engine 20R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )

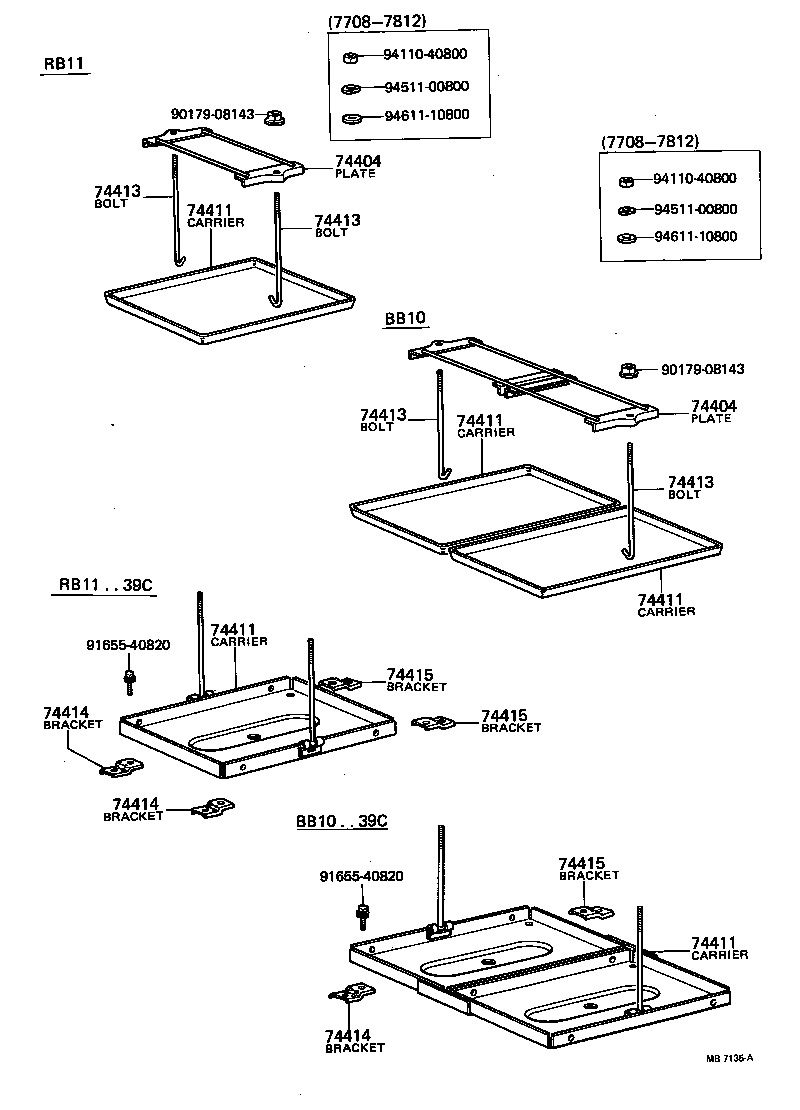

Click highlighted areas on diagram

diagram 74404 74404 74411 74411 74411 74411 74411 74413 74413 74413 74413 74414 74414 74414 74415 74415 74415 9017908143 9017908143 9165540820 9165540820 9411040800 9411040800 9451100800 9451100800 9461110800 9461110800
Part # Description Qty Price
74404 - PLATE SUB-ASSY, BATTERY SET
74404-60030

RB11

 1
74404 - PLATE SUB-ASSY, BATTERY SET
74404-60030

RB11

 1
74411 - CARRIER, BATTERY
57428-90740

BB1#,RB1#

 2
74411 - CARRIER, BATTERY
57428-90740

BB1#,RB1#

 2
74411 - CARRIER, BATTERY
57428-90740

BB1#,RB1#

 2
74411 - CARRIER, BATTERY
57428-90740

BB1#,RB1#

 2
74411 - CARRIER, BATTERY
57428-90740

BB1#,RB1#

 2
74413 - BOLT, BATTERY CLAMP
58849-90500

BB1#,RB1#..21S,22S,25S,26S

 2
74413 - BOLT, BATTERY CLAMP
58849-90500

BB1#,RB1#..21S,22S,25S,26S

 2
74413 - BOLT, BATTERY CLAMP
58849-90500

BB1#,RB1#..21S,22S,25S,26S

 2
74413 - BOLT, BATTERY CLAMP
58849-90500

BB1#,RB1#..21S,22S,25S,26S

 2
Common parts
90179-08143
91655-40820
94110-40800
94511-00800
94611-10800
