RB11-JD (1977)
Toyota Coaster

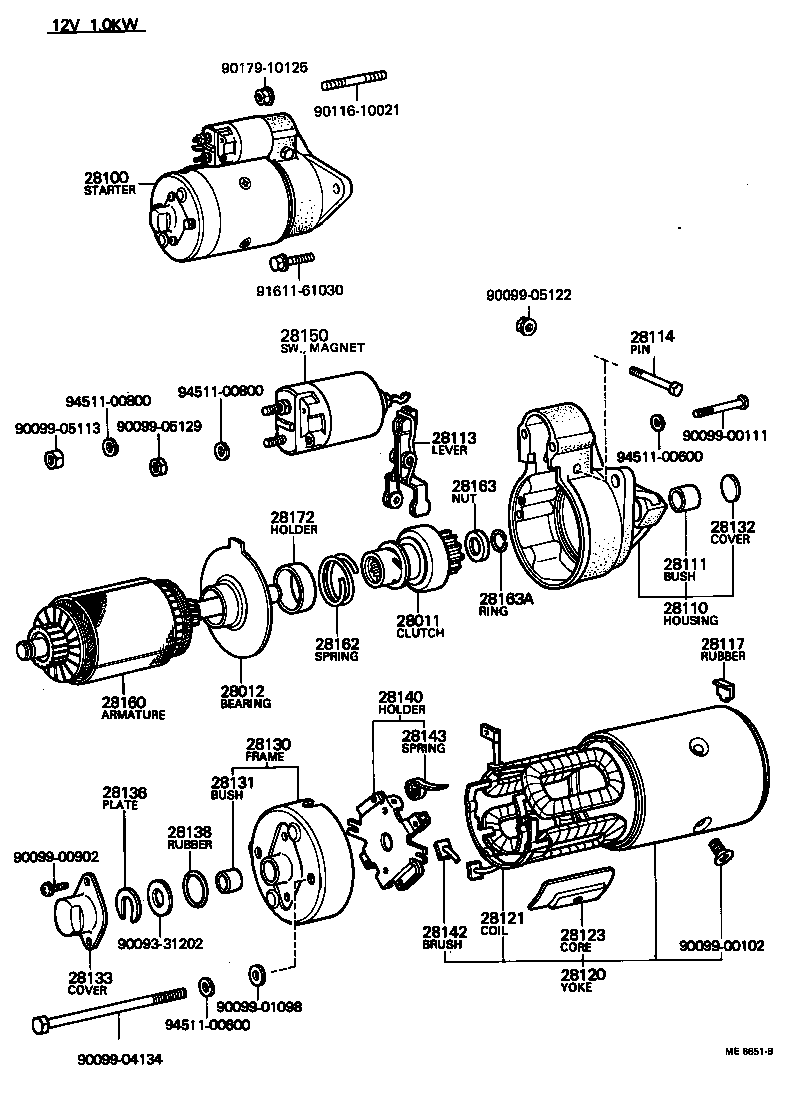

(7708- )20R,22R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-41020 |
20R,22R..RB1# 12V 1.0KW |
1 | ||
| 28011-41011 |
20R..RB11 12V 0.8KW |
1 | ||
| 28012 - BEARING SUB-ASSY, CENTER | ||||
| 28126-33021 |
20R,22R..RB1# 12V 1.0KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-33020 |
20R..RB11 12V 1.0KW |
1 | ||
| 28100-36070 |
20R..RB11 12V 0.8KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-40061 |
20R,22R..RB1# 12V 1.0KW |
1 | ||
| 28110-40045 |
20R..RB11 12V 0.8KW |
1 | ||
| 28111 - BUSH(FOR STARTER HOUSING) | ||||
| 28111-51011 |
20R..RB11 |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-41011 |
20R..RB11 |
1 | ||
| 28114 - PIN, STARTER DRIVE LEVER SET | ||||
| 28114-41011 |
20R..RB11 12V 0.8KW,1.0KW |
1 | ||
| 28117 - RUBBER(FOR STARTER YOKE) | ||||
| 28117-41013 |
20R..RB11 12V 0.8KW |
1 | ||
| 28117-41020 |
20R,22R..RB1# 12V 1.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-36040 |
20R..RB11 12V 0.8KW |
1 | ||
| 28120-33022 |
20R..RB11 12V 1.0KW |
1 | ||
| 28121 - COIL, STARTER FIELD | ||||
| 28121-41020 |
20R..RB11 12V 1.0KW |
1 | ||
| 28121-36040 |
20R..RB11 12V 0.8KW |
1 | ||
| 28123 - CORE, STARTER POLE | ||||
| 28123-40012 |
20R..RB11 12V 0.8KW |
4 | ||
| 28123-41020 |
20R,22R..RB1# 12V 1.0KW |
4 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-41020 |
20R,22R..RB1# 12V 1.0KW |
1 | ||
| 28130-21011 |
20R..RB11 12V 0.8KW |
1 | ||
| 28131 - BUSH, COMMUTATOR END FRAME | ||||
| 28131-20010 |
20R..RB11 STD,12V 0.8KW,1.0KW |
1 | ||
| 90099-10040 |
20R..RB11 U/S 0.5,12V 0.8KW,1.0KW |
1 | ||
| 90099-10039 |
20R..RB11 U/S 0.3,12V 0.8KW,1.0KW |
1 | ||
| 28132 - COVER, STARTER BEARING(FOR DRIVE HOUSING) | ||||
| 28166-41011 |
20R..RB11 12V 0.8KW,1.0KW |
1 | ||
| 28133 - COVER, BEARING(FOR END FRAME) | ||||
| 28132-41011 |
20R..RB11 12V 0.8KW |
1 | ||
| 28132-40010 |
20R,22R..RB1# 12V 1.0KW |
1 | ||
| 28136 - PLATE, STARTER LOCK | ||||
| 28136-41011 |
20R..RB11 12V 0.8KW |
1 | ||
| 28136-40010 |
20R,22R..RB1# 12V 1.0KW |
1 | ||
| 28138 - RUBBER(FOR STARTER BEARING COVER) | ||||
| 28138-41011 |
20R..RB11 12V 0.8KW |
1 | ||
| 28138-40010 |
20R,22R..RB1# 12V 1.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-41012 |
20R..RB11 12V 0.8KW |
1 | ||
| 28140-25020 |
20R,22R..RB1# 12V 1.0KW |
1 | ||
| 28142 - BRUSH, STARTER | ||||
| 28142-25011 |
20R,22R..RB1# 12V 1.0KW,HOLDER |
2 | ||
| 28142-25020 |
20R,22R..RB1# 12V 1.0KW,YOKE |
2 | ||
| 28142-21010 |
20R..RB11 12V 0.8KW |
4 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-40010 |
20R..RB11 12V 0.8KW,1.0KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-22011 |
20R..RB11 12V 0.8KW |
1 | ||
| 28150-33020 |
20R..RB11 12V 1.0KW |
1 | ||
| 28150-34070 |
20R..RB11 12V 0.8KW,1.0KW |
1 | ||
| 28150-22011 |
20R..RB11 12V 0.8KW,1.0KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-40014 |
20R..RB11 12V 0.8KW |
1 | ||
| 28160-41020 |
20R,22R..RB1# 12V 1.0KW |
1 | ||
| 28162 - SPRING, STARTER BRAKE | ||||
| 28162-41022 |
20R,22R..RB1# 12V 1.0KW |
1 | ||
| 28162-41011 |
20R..RB11 12V 0.8KW |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-40011 |
20R,22R..RB1# 12V 0.8KW,1.0KW |
1 | ||
| 28163A - RING, SNAP(FOR STARTER PINION STOP NUT) | ||||
| 90099-07047 |
20R,22R..RB1# 12V 0.8KW,1.0KW |
1 | ||
| 28172 - HOLDER, STARTER SPRING | ||||
| 28172-41021 |
20R,22R..RB1# 12V 1.0KW |
1 | ||
| Common parts | ||||
| 90093-31202 | ||||
| 90099-00102 | ||||
| 90099-00111 | ||||
| 90099-00902 | ||||
| 90099-01098 | ||||
| 90099-04134 | ||||
| 90099-05113 | ||||
| 90099-05122 | ||||
| 90099-05129 | ||||
| 90116-10021 | ||||
| 90179-10125 | ||||
| 91611-61030 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
(7708-7909)20R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-41020 |
20R,22R..RB1# 12V 1.0KW |
1 | ||
| 28011-41011 |
20R..RB11 12V 0.8KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-33020 |
20R..RB11 12V 1.0KW |
1 | ||
| 28100-36070 |
20R..RB11 12V 0.8KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-40061 |
20R,22R..RB1# 12V 1.0KW |
1 | ||
| 28110-40045 |
20R..RB11 12V 0.8KW |
1 | ||
| 28111 - BUSH(FOR STARTER HOUSING) | ||||
| 28111-51011 |
20R..RB11 |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-41011 |
20R..RB11 |
1 | ||
| 28114 - PIN, STARTER DRIVE LEVER SET | ||||
| 28114-41011 |
20R..RB11 12V 0.8KW,1.0KW |
1 | ||
| 28117 - RUBBER(FOR STARTER YOKE) | ||||
| 28117-41013 |
20R..RB11 12V 0.8KW |
1 | ||
| 28117-41020 |
20R,22R..RB1# 12V 1.0KW |
1 | ||
| 28118 - PLATE(FOR STARTER YOKE) | ||||
| 28118-41013 |
20R..RB11 12V 0.8KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-36040 |
20R..RB11 12V 0.8KW |
1 | ||
| 28120-33022 |
20R..RB11 12V 1.0KW |
1 | ||
| 28121 - COIL, STARTER FIELD | ||||
| 28121-41020 |
20R..RB11 12V 1.0KW |
1 | ||
| 28121-36040 |
20R..RB11 12V 0.8KW |
1 | ||
| 28123 - CORE, STARTER POLE | ||||
| 28123-40012 |
20R..RB11 12V 0.8KW |
4 | ||
| 28123-41020 |
20R,22R..RB1# 12V 1.0KW |
4 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-41020 |
20R,22R..RB1# 12V 1.0KW |
1 | ||
| 28130-21011 |
20R..RB11 12V 0.8KW |
1 | ||
| 28131 - BUSH, COMMUTATOR END FRAME | ||||
| 28131-20010 |
20R..RB11 STD,12V 0.8KW,1.0KW |
1 | ||
| 90099-10040 |
20R..RB11 U/S 0.5,12V 0.8KW,1.0KW |
1 | ||
| 90099-10039 |
20R..RB11 U/S 0.3,12V 0.8KW,1.0KW |
1 | ||
| 28132 - COVER, STARTER BEARING(FOR DRIVE HOUSING) | ||||
| 28166-41011 |
20R..RB11 12V 0.8KW,1.0KW |
1 | ||
| 28133 - COVER, BEARING(FOR END FRAME) | ||||
| 28132-41011 |
20R..RB11 12V 0.8KW |
1 | ||
| 28132-40010 |
20R,22R..RB1# 12V 1.0KW |
1 | ||
| 28136 - PLATE, STARTER LOCK | ||||
| 28136-41011 |
20R..RB11 12V 0.8KW |
1 | ||
| 28136-40010 |
20R,22R..RB1# 12V 1.0KW |
1 | ||
| 28138 - RUBBER(FOR STARTER BEARING COVER) | ||||
| 28138-41011 |
20R..RB11 12V 0.8KW |
1 | ||
| 28138-40010 |
20R,22R..RB1# 12V 1.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-41012 |
20R..RB11 12V 0.8KW |
1 | ||
| 28140-25020 |
20R,22R..RB1# 12V 1.0KW |
1 | ||
| 28142 - BRUSH, STARTER | ||||
| 28142-25011 |
20R,22R..RB1# 12V 1.0KW,HOLDER |
2 | ||
| 28142-25020 |
20R,22R..RB1# 12V 1.0KW,YOKE |
2 | ||
| 28142-21010 |
20R..RB11 12V 0.8KW |
4 | ||
| 28142 - BRUSH, STARTER | ||||
| 28142-25011 |
20R,22R..RB1# 12V 1.0KW,HOLDER |
2 | ||
| 28142-25020 |
20R,22R..RB1# 12V 1.0KW,YOKE |
2 | ||
| 28142-21010 |
20R..RB11 12V 0.8KW |
4 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-40010 |
20R..RB11 12V 0.8KW,1.0KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-22011 |
20R..RB11 12V 0.8KW |
1 | ||
| 28150-33020 |
20R..RB11 12V 1.0KW |
1 | ||
| 28150-34070 |
20R..RB11 12V 0.8KW,1.0KW |
1 | ||
| 28150-22011 |
20R..RB11 12V 0.8KW,1.0KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-40014 |
20R..RB11 12V 0.8KW |
1 | ||
| 28160-41020 |
20R,22R..RB1# 12V 1.0KW |
1 | ||
| 28162 - SPRING, STARTER BRAKE | ||||
| 28162-41022 |
20R,22R..RB1# 12V 1.0KW |
1 | ||
| 28162-41011 |
20R..RB11 12V 0.8KW |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-40011 |
20R,22R..RB1# 12V 0.8KW,1.0KW |
1 | ||
| 28163A - RING, SNAP(FOR STARTER PINION STOP NUT) | ||||
| 90099-07047 |
20R,22R..RB1# 12V 0.8KW,1.0KW |
1 | ||
| Common parts | ||||
| 90099-00102 | ||||
| 90099-00111 | ||||
| 90099-00902 | ||||
| 90099-01090 | ||||
| 90099-02169 | ||||
| 90099-04884 | ||||
| 90099-05113 | ||||
| 90099-05122 | ||||
| 90099-05129 | ||||
| 90116-10021 | ||||
| 90179-10125 | ||||
| 91611-61030 | ||||
| 94511-00500 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
(7909- )20R,22R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-41020 |
20R,22R..RB1# 12V 1.0KW |
1 | ||
| 28011-41011 |
20R..RB11 12V 0.8KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-33020 |
20R..RB11 12V 1.0KW |
1 | ||
| 28100-36070 |
20R..RB11 12V 0.8KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-40061 |
20R,22R..RB1# 12V 1.0KW |
1 | ||
| 28110-40045 |
20R..RB11 12V 0.8KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-40061 |
20R,22R..RB1# 12V 1.0KW |
1 | ||
| 28110-40045 |
20R..RB11 12V 0.8KW |
1 | ||
| 28111 - BUSH(FOR STARTER HOUSING) | ||||
| 28111-51011 |
20R..RB11 |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-41011 |
20R..RB11 |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-36040 |
20R..RB11 12V 0.8KW |
1 | ||
| 28120-33022 |
20R..RB11 12V 1.0KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-41020 |
20R,22R..RB1# 12V 1.0KW |
1 | ||
| 28130-21011 |
20R..RB11 12V 0.8KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-41020 |
20R,22R..RB1# 12V 1.0KW |
1 | ||
| 28130-21011 |
20R..RB11 12V 0.8KW |
1 | ||
| 28131 - BUSH, COMMUTATOR END FRAME | ||||
| 28131-20010 |
20R..RB11 STD,12V 0.8KW,1.0KW |
1 | ||
| 90099-10040 |
20R..RB11 U/S 0.5,12V 0.8KW,1.0KW |
1 | ||
| 90099-10039 |
20R..RB11 U/S 0.3,12V 0.8KW,1.0KW |
1 | ||
| 28133 - COVER, BEARING(FOR END FRAME) | ||||
| 28132-41011 |
20R..RB11 12V 0.8KW |
1 | ||
| 28132-40010 |
20R,22R..RB1# 12V 1.0KW |
1 | ||
| 28136 - PLATE, STARTER LOCK | ||||
| 28136-41011 |
20R..RB11 12V 0.8KW |
1 | ||
| 28136-40010 |
20R,22R..RB1# 12V 1.0KW |
1 | ||
| 28138 - RUBBER(FOR STARTER BEARING COVER) | ||||
| 28138-41011 |
20R..RB11 12V 0.8KW |
1 | ||
| 28138-40010 |
20R,22R..RB1# 12V 1.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-41012 |
20R..RB11 12V 0.8KW |
1 | ||
| 28140-25020 |
20R,22R..RB1# 12V 1.0KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-22011 |
20R..RB11 12V 0.8KW |
1 | ||
| 28150-33020 |
20R..RB11 12V 1.0KW |
1 | ||
| 28150-34070 |
20R..RB11 12V 0.8KW,1.0KW |
1 | ||
| 28150-22011 |
20R..RB11 12V 0.8KW,1.0KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-40014 |
20R..RB11 12V 0.8KW |
1 | ||
| 28160-41020 |
20R,22R..RB1# 12V 1.0KW |
1 | ||
| 28162 - SPRING, STARTER BRAKE | ||||
| 28162-41022 |
20R,22R..RB1# 12V 1.0KW |
1 | ||
| 28162-41011 |
20R..RB11 12V 0.8KW |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-40011 |
20R,22R..RB1# 12V 0.8KW,1.0KW |
1 | ||
| 28163A - RING, SNAP(FOR STARTER PINION STOP NUT) | ||||
| 90099-07047 |
20R,22R..RB1# 12V 0.8KW,1.0KW |
1 | ||
| Common parts | ||||
| 90099-00926 | ||||
| 90099-01467 | ||||
| 90099-04921 | ||||
| 90099-05148 | ||||
| 90099-12405 | ||||
| 90116-10021 | ||||
| 90179-10125 | ||||
| 91611-61030 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
