HZB50-ZRPDS (1999)

Toyota Coaster

Production Jul 1999 - Aug 2004
Engine 1HZ
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9907- )

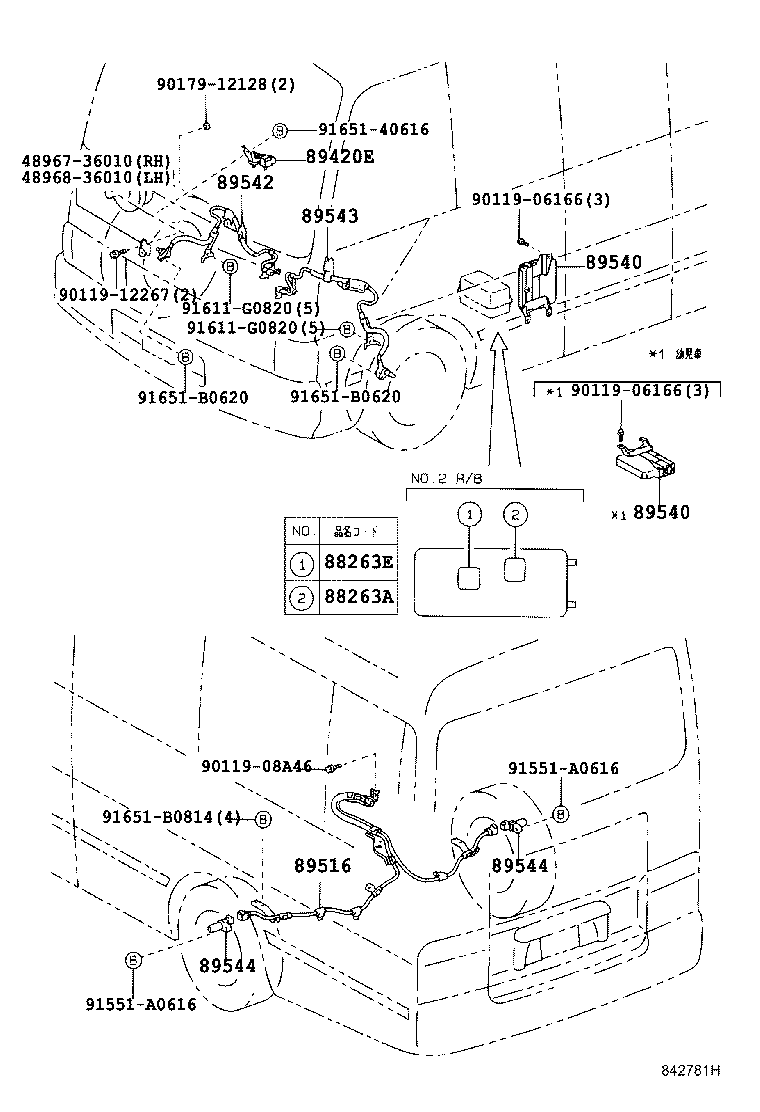

Click highlighted areas on diagram

diagram 4896736010 4896836010 88263A 88263E 89420E 89516 89540 89540 89542 89543 89544 89544 9011906166 9011906166 9011908A46 9011912267 9017912128 91551A0616 91551A0616 91611G0820 91611G0820 9165140616 91651B0620 91651B0620 91651B0814
Part # Description Qty Price
88263A - RELAY, SKID CONTROL
88263-36040

HDB5#,HZB4#,5#..09S,10S,20S,24S,26S,29S,39S,49S

 1
88263-36040

HDB5#,HZB4#,5#

 1
88263-37010

BZB40,50

 1
88263E - RELAY, SKID CONTROL NO.2
88263-36050

HDB5#,HZB4#,5#..09S,10S,20S,24S,26S,29S,39S,49S

 1
88263-36050

HDB5#,HZB4#,5#

 1
88263-37020

BZB40,50

 1
89420E - SENSOR ASSY, VACUUM
89420-36010

BZB40,50,HDB5#,HZB4#,5#..09S,10S,20S,24S,26S,29S,39S,49S

 1
89420-36010

BZB40,50,HDB5#,HZB4#,5#

 1
89516 - WIRE, SKID CONTROL SENSOR
89516-36050

BZB40,50,HDB50,HZB40,46,5#..09S,26S,29S,39S,49S

 1
89516-36050

BZB40,50,HDB50,HZB40,46,5#

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-36070

BZB40,50

 1
89540-36050

HDB5#,HZB4#,5#..09S,10S,20S,24S,26S,29S,39S,49S

 1
89540-36050

HDB5#,HZB4#,5#

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-36070

BZB40,50

 1
89540-36050

HDB5#,HZB4#,5#..09S,10S,20S,24S,26S,29S,39S,49S

 1
89540-36050

HDB5#,HZB4#,5#

 1
89542 - SENSOR, SPEED, FRONT RH
89542-36020

BZB40,50,HDB5#,HZB4#,5#..09S,10S,20S,24S,26S,29S,39S,49S

 1
89542-36020

BZB40,50,HDB5#,HZB4#,5#

 1
89543 - SENSOR, SPEED, FRONT LH
89543-36020

BZB40,50,HDB5#,HZB4#,5#

 1
89543-36020

BZB40,50,HDB5#,HZB4#,5#..09S,10S,20S,24S,26S,29S,39S,49S

 1
89544 - SENSOR, SKID CONTROL
89544-36030

BZB40,50,HDB5#,HZB4#,5#..09S,10S,20S,24S,26S,29S,39S,49S

 2
89544 - SENSOR, SKID CONTROL
89544-36030

BZB40,50,HDB5#,HZB4#,5#..09S,10S,20S,24S,26S,29S,39S,49S

 2
Common parts
48967-36010
48968-36010
90119-06166
90119-08A46
90119-12267
90179-12128
91551-A0616
91611-G0820
91651-40616
91651-B0620
91651-B0814
