HZB50-ZRPDS (1999)
Toyota Coaster
Production
Jul 1999
-
Aug 2004
Engine
1HZ
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

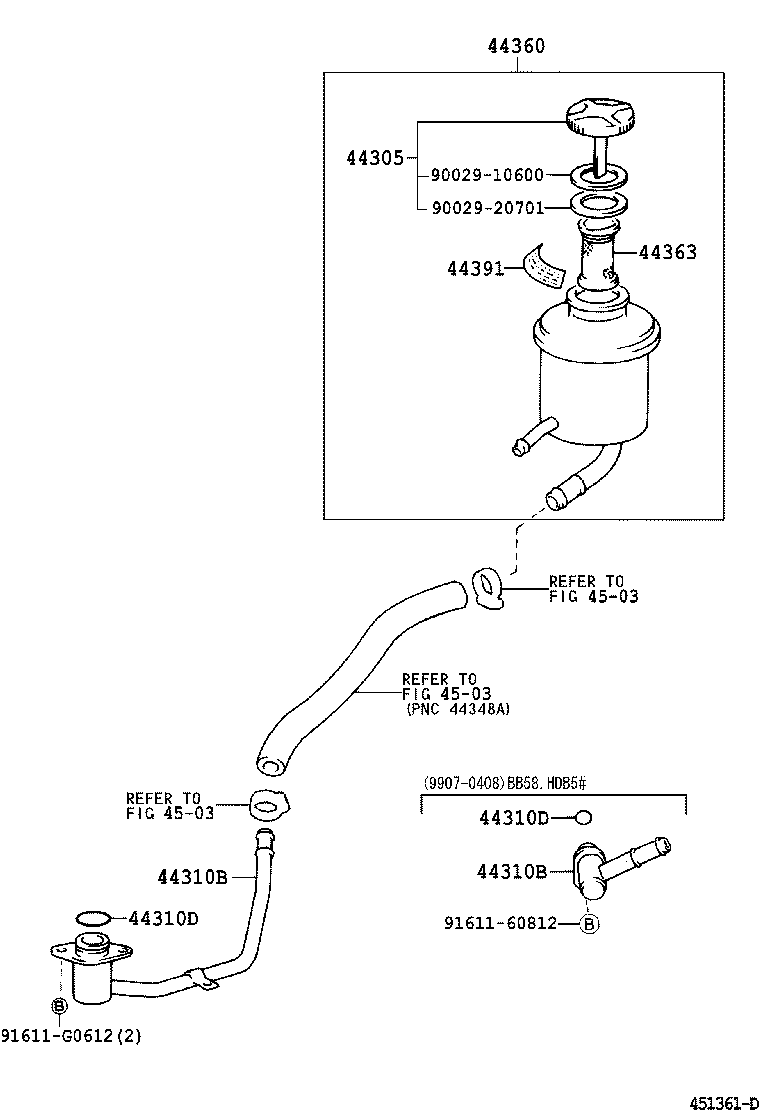

ILLUST NO. 2 OF 2(9301-0408)BB4#,5#,HDB5#,HZB4#,5#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44037-36080 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 44037-36080 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 44310B - UNION(FOR VANE PUMP) | ||||
| 90405-16031 |
HZB4#,5# |
1 | ||
| 90405-16031 |
HDB5#,HZB4#,5# |
1 | ||
| 44337-37010 |
BZB40,50 |
1 | ||
| 44310B - UNION(FOR VANE PUMP) | ||||
| 90405-16031 |
HZB4#,5# |
1 | ||
| 90405-16031 |
HDB5#,HZB4#,5# |
1 | ||
| 44337-37010 |
BZB40,50 |
1 | ||
| 44310D - RING, O(FOR VANE PUMP UNION) | ||||
| 96711-19019 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 96711-19019 |
BZB40,50,HZB4#,5# |
1 | ||
| 44310D - RING, O(FOR VANE PUMP UNION) | ||||
| 96711-19019 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 96711-19019 |
BZB40,50,HZB4#,5# |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-36331 |
HZB4#,5# |
1 | ||
| 44360-36330 |
HDB5#,HZB4#,5# |
1 | ||
| 44360-36390 |
BZB40,50 |
1 | ||
| 44363 - STRAINER, OIL(FOR VANE PUMP) | ||||
| 44363-36040 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 44363-36040 |
HZB4#,5# |
1 | ||
| 44391 - PLATE, POWER STEERING OIL RESERVOIR CAUTION | ||||
| 44391-36020 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 44391-36020 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| Common parts | ||||
| 90029-10600 | ||||
| 90029-20701 | ||||
| 91611-60812 | ||||
| 91611-G0612 | ||||
| Linked diagrams | ||||
| 4503 | ||||
ILLUST NO. 2 OF 2(0203- )BZB40,50
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44310B - UNION(FOR VANE PUMP) | ||||
| 90405-16031 |
HZB4#,5# |
1 | ||
| 90405-16031 |
HDB5#,HZB4#,5# |
1 | ||
| 44337-37010 |
BZB40,50 |
1 | ||
| 44310D - RING, O(FOR VANE PUMP UNION) | ||||
| 96711-19019 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 96711-19019 |
BZB40,50,HZB4#,5# |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-36331 |
HZB4#,5# |
1 | ||
| 44360-36330 |
HDB5#,HZB4#,5# |
1 | ||
| 44360-36390 |
BZB40,50 |
1 | ||
| 44391 - PLATE, POWER STEERING OIL RESERVOIR CAUTION | ||||
| 44391-36020 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 44391-36020 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| Common parts | ||||
| 91611-G0612 | ||||
| Linked diagrams | ||||
| 4503 | ||||
