HZB50-ZRPDS (1999)

Toyota Coaster

Production Jul 1999 - Aug 2004
Engine 1HZ
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9907- )1HZ

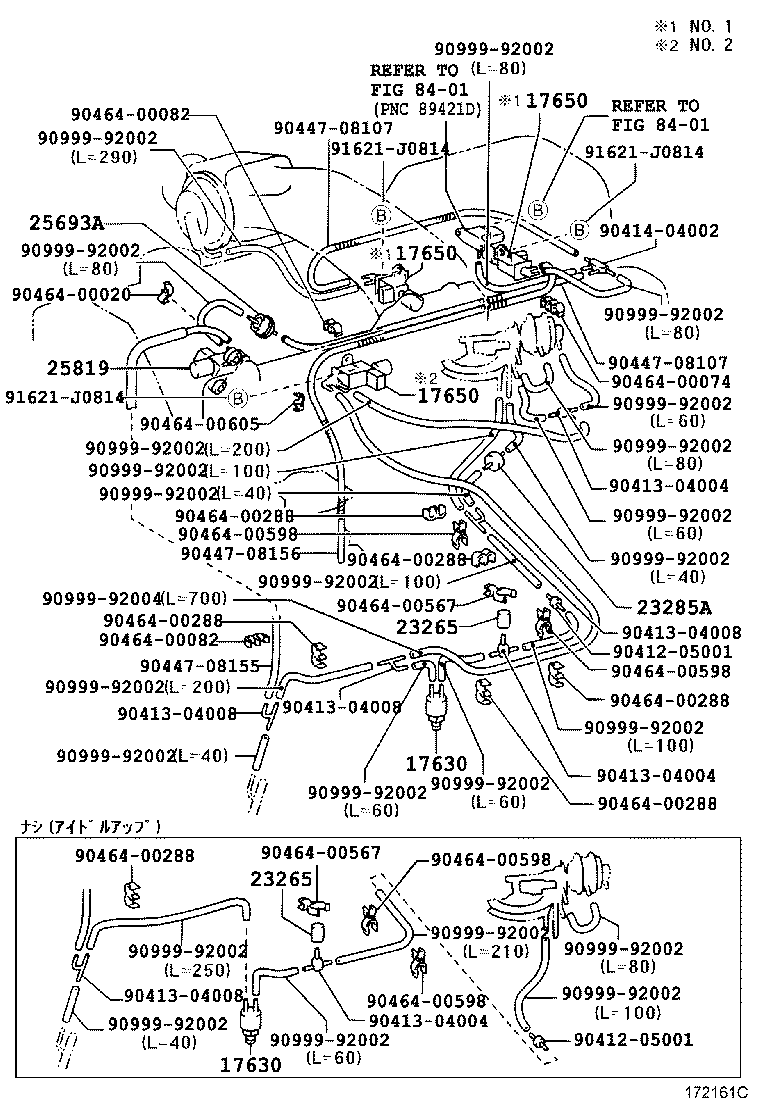

Click highlighted areas on diagram

diagram 17630 17630 17650 17650 17650 23265 23265 23285A 25693A 25819 8401 8401 9041205001 9041205001 9041304004 9041304004 9041304004 9041304008 9041304008 9041304008 9041304008 9041404002 9044708107 9044708107 9044708155 9044708156 9046400020 9046400074 9046400082 9046400082 9046400288 9046400288 9046400288 9046400288 9046400288 9046400288 9046400567 9046400567 9046400598 9046400598 9046400598 9046400598 9046400605 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992004 91621J0814 91621J0814 91621J0814
Part # Description Qty Price
17630 - VALVE ASSY, AIR CONTROL
17630-15010

1HZ..HZB41..15S..5F;1HD#,1HZ..HDB5#,HZB4#,5#..09S,20S,26S,29S,39S,49S

 1
17630-15010

1HZ..HZB4#,5#

 1
17630 - VALVE ASSY, AIR CONTROL
17630-15010

1HZ..HZB41..15S..5F;1HD#,1HZ..HDB5#,HZB4#,5#..09S,20S,26S,29S,39S,49S

 1
17630-15010

1HZ..HZB4#,5#

 1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12167

1HZ..HZB4#,5#

NO.2

 1
90910-12167

1HZ..HZB4#,5#

NO.1

 2
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12167

1HZ..HZB4#,5#

NO.2

 1
90910-12167

1HZ..HZB4#,5#

NO.1

 2
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12167

1HZ..HZB4#,5#

NO.2

 1
90910-12167

1HZ..HZB4#,5#

NO.1

 2
23265 - FILTER, GAS, NO.1
90925-06009

1HZ..HZB4#,5#

 1
90925-06009

1HZ..HZB41..15S..5F;1HD#,1HZ..HDB5#,HZB4#,5#..09S,20S,26S,29S,39S,49S

 1
23265 - FILTER, GAS, NO.1
90925-06009

1HZ..HZB4#,5#

 1
90925-06009

1HZ..HZB41..15S..5F;1HD#,1HZ..HDB5#,HZB4#,5#..09S,20S,26S,29S,39S,49S

 1
23285A - VALVE, CHECK, NO.1
90917-10049

1HZ..HZB41..15S..5F;1HD#,1HZ..HDB5#,HZB4#,5#..09S,20S,26S,29S,39S,49S

 1
90917-10049

1HZ..HZB4#,5#

 1
25693A - DAMPER, EGR VACUUM MODULATOR
25693-64010

1H#..HDB5#,HZB4#,5#

 1
25819 - VALVE ASSY, VACUUM REGULATING
25819-58010

1H#..HDB5#,HZB4#,5#

 1
Common parts
90412-05001
90413-04004
90413-04008
90414-04002
90447-08107
90447-08155
90447-08156
90464-00020
90464-00074
90464-00082
90464-00288
90464-00567
90464-00598
90464-00605
90999-92002
90999-92004
91621-J0814
Linked diagrams
8401
