HZB50-ZRMNS5 (1997)
Toyota Coaster
ILLUST NO. 3 OF 3(9301-0408)
ﾋ-ﾀ ﾎﾟﾝﾌﾟ ﾂｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87320 - EXCHANGER ASSY, HEATER HEAT | ||||
| 87320-36040 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87320-36040 |
BB58,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 87348 - BLOCK, FUSE, NO.1 | ||||
| 87348-36030 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87348-36030 |
BB58,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 87348A - FUSE | ||||
| 90982-09002 |
BB58,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 90982-09002 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87402 - PIPE SUB-ASSY, HEATER FUEL | ||||
| 87402-36020 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87402-36020 |
BB58,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 87452D - BRACKET, POWER HEATER, NO.1 | ||||
| 87452-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87452-36010 |
BB58,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 87452E - BRACKET, POWER HEATER, NO.2 | ||||
| 87452-36020 |
BB58,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 87452-36020 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87460B - PARTS ASSY, ELECTRICAL | ||||
| 87460-36030 |
HDB51..29S..TD4..4FC;BB4#,55,HZB40,5#..DX,LX,STD |
1 | ||
| 87460-36030 |
HDB51..IV5;BB4#,58,HZB40,5#..DX,LX,STD ﾏﾆﾕｱﾙ |
1 | ||
| 87460-36040 |
HZB40,50..IV5;HDB5#,HZB41,50..(EX,GX,SULNG)..CBU ｵ-ﾄ |
1 | ||
| 87460-36030 |
BB58,HDB50,HZB40,46,5#..(09S,26S,29S,39S,49S)..(DX,LX,STD) ﾏﾆﾕｱﾙ |
1 | ||
| 87471 - JOINT, COMBUSTION HEATER FUEL | ||||
| 87471-36020 |
BB4#,5# |
1 | ||
| 87471-36010 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87471-36011 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87471-36011 |
BB58,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 87472B - PIPE, HEATER FUEL, NO.2 | ||||
| 87472-36091 |
BB58,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 87472-36091 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87480 - AMPLIFIER ASSY, HEATER CONTROL (FOR COMBUSTION HEATER) | ||||
| 87480-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87480-36010 |
BB58,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 87480B - RELAY ASSY, HEATER CONTROL | ||||
| 88630-90B01 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 88630-90B01 |
BB58,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 87480C - RELAY, HEATER CONTROL | ||||
| 90987-02005 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
3 | ||
| 90987-02005 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 |
3 | ||
| 87480C - RELAY, HEATER CONTROL | ||||
| 90987-02005 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
3 | ||
| 90987-02005 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 |
3 | ||
| Common parts | ||||
| 90179-08017 | ||||
| 90461-06156 | ||||
| 90461-10722 | ||||
| 90461-10723 | ||||
| 90467-15012 | ||||
| 90467-18002 | ||||
| 91651-40616 | ||||
| 91651-60616 | ||||
| 91651-60820 | ||||
| 95337-06007 | ||||
| 95337-06015 | ||||
| 96132-30600 | ||||
| 96132-41100 | ||||

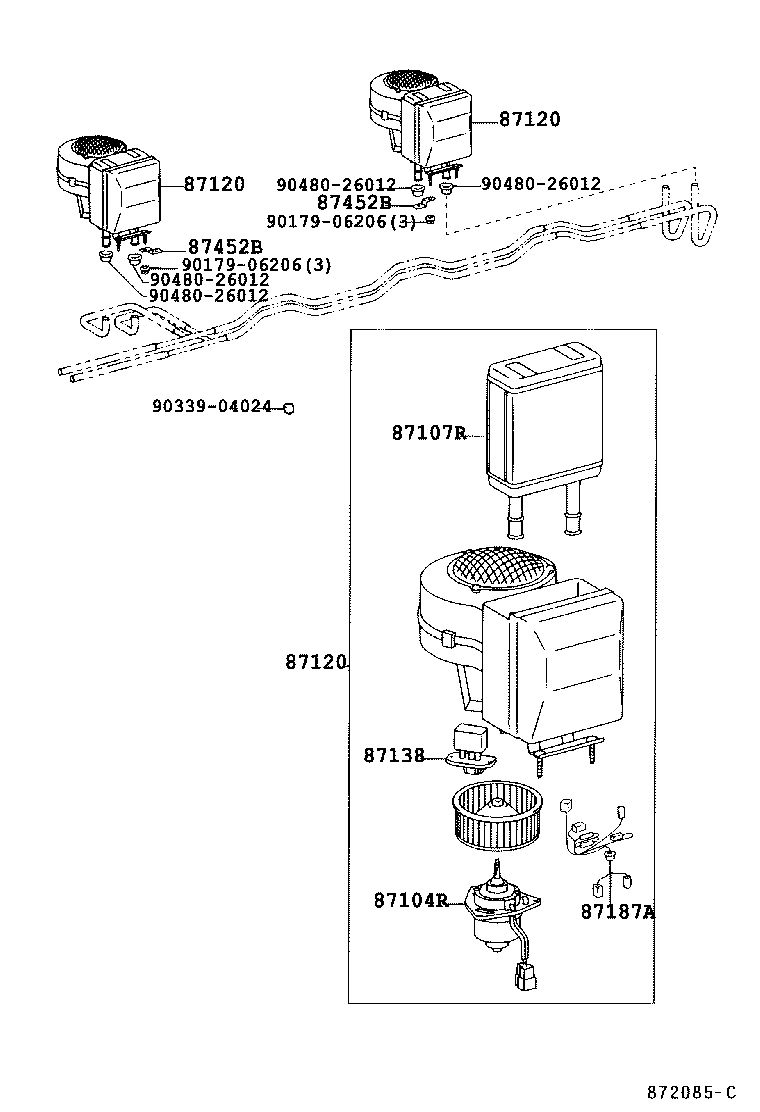

ILLUST NO. 1 OF 3(9301-0408)EX,GX,SULNG ; (0108-0408)IV5 ; (0408-)
ﾌﾛﾝﾄ(ｵｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-36220 |
HDB51..MTM;HDB51..IV1,IV5;HZB50..DX,LX,STD;HDB51..29S..TD2..4FC;HDB51..(20S,26S)..4FC;BB4#,5#,HDB50,HZB4#,56 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87104-36200 |
HDB51..IV5;BB4#,HZB40,5#..DX,LX,STD |
1 | ||
| 87104-36230 |
BZB40,50 |
1 | ||
| 87104-36200 |
HDB50,HZB40,46,5#..DX,LX,STD |
1 | ||
| 87104-36220 |
HDB50,HZB40,46,5#..DX,LX,STD ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-20110 |
BB4#,5#,HDB5#,HZB4#,5# ﾌﾛﾝﾄ |
1 | ||
| 87105-20110 |
BB58,BZB40,50,HDB5#,HZB4#,5# ﾌﾛﾝﾄ |
1 | ||
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-36030 |
HZB40,50..IV5;HDB5#,HZB41,50..EX,GX,SULNG ﾓｰﾄﾞ |
1 | ||
| 87106-36020 |
HZB40,50..IV5;HDB5#,HZB41,50..EX,GX,SULNG ｴｱﾐｯｸｽ |
1 | ||
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-36030 |
HZB40,50..IV5;HDB5#,HZB41,50..EX,GX,SULNG ﾓｰﾄﾞ |
1 | ||
| 87106-36020 |
HZB40,50..IV5;HDB5#,HZB41,50..EX,GX,SULNG ｴｱﾐｯｸｽ |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-36090 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 87107-36091 |
BB4#,58,HDB5#,HZB4#,5# |
1 | ||
| 87107-36091 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 87110 - HEATER ASSY | ||||
| 87110-36340 |
BB4#,HZB40,5#..DX,LX,STD |
1 | ||
| 87110-36430 |
BB4#,HZB40,5#..DX,LX,STD ｶﾝﾚｲﾁ ｼﾖｳ & FR ﾏﾆﾕｱﾙ ﾋ-ﾀ |
1 | ||
| 87110-36580 |
HDB51..IV5;BB4#,HZB40,5#..DX,LX,STD ｶﾝﾚｲﾁ ｼﾖｳ & FR ﾏﾆﾕｱﾙ ﾋ-ﾀ |
1 | ||
| 87110-36342 |
HDB51..IV5;BB4#,HZB40,5#..DX,LX,STD |
1 | ||
| 87110-36442 |
BZB40,50 |
1 | ||
| 87110-36351 |
HZB40,50..IV5;HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV1) ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 87110-36580 |
HDB50,HZB40,46,5#..DX,LX,STD ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87110-36342 |
HDB50,HZB40,46,5#..DX,LX,STD |
1 | ||
| 87174A - GUIDE, AIR HEATER | ||||
| 87174-36050 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 87174-36050 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 87211E - DUCT, AIR | ||||
| 87211-36080 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 87211-36080 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 87211F - DUCT, AIR | ||||
| 87211-36140 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 87211-36100 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 87211-36100 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 87248Q - PIPE, FRONT HEATER RADIATOR WATER | ||||
| 87248-36210 |
BB4#,HDB5#,HZB4#,5# NO.2 |
1 | ||
| 87248-36210 |
BZB40,50,HDB5#,HZB4#,5# NO.2 |
1 | ||
| 87248-36200 |
BZB40,50,HDB5#,HZB4#,5# NO.1 |
1 | ||
| 87248-36200 |
BB4#,HDB5#,HZB4#,5# NO.1 |
1 | ||
| 87248Q - PIPE, FRONT HEATER RADIATOR WATER | ||||
| 87248-36210 |
BB4#,HDB5#,HZB4#,5# NO.2 |
1 | ||
| 87248-36210 |
BZB40,50,HDB5#,HZB4#,5# NO.2 |
1 | ||
| 87248-36200 |
BZB40,50,HDB5#,HZB4#,5# NO.1 |
1 | ||
| 87248-36200 |
BB4#,HDB5#,HZB4#,5# NO.1 |
1 | ||
| 87452A - BRACKET, HEATER, FRONT | ||||
| 87452-36030 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 87452-36030 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 87452C - BRACKET, FRONT HEATER, NO.2 | ||||
| 87452-36040 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 87452-36040 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| Common parts | ||||
| 90099-00149 | ||||
| 91651-40616 | ||||
| 93383-16012 | ||||
| 93385-16012 | ||||
| 96761-19016 | ||||

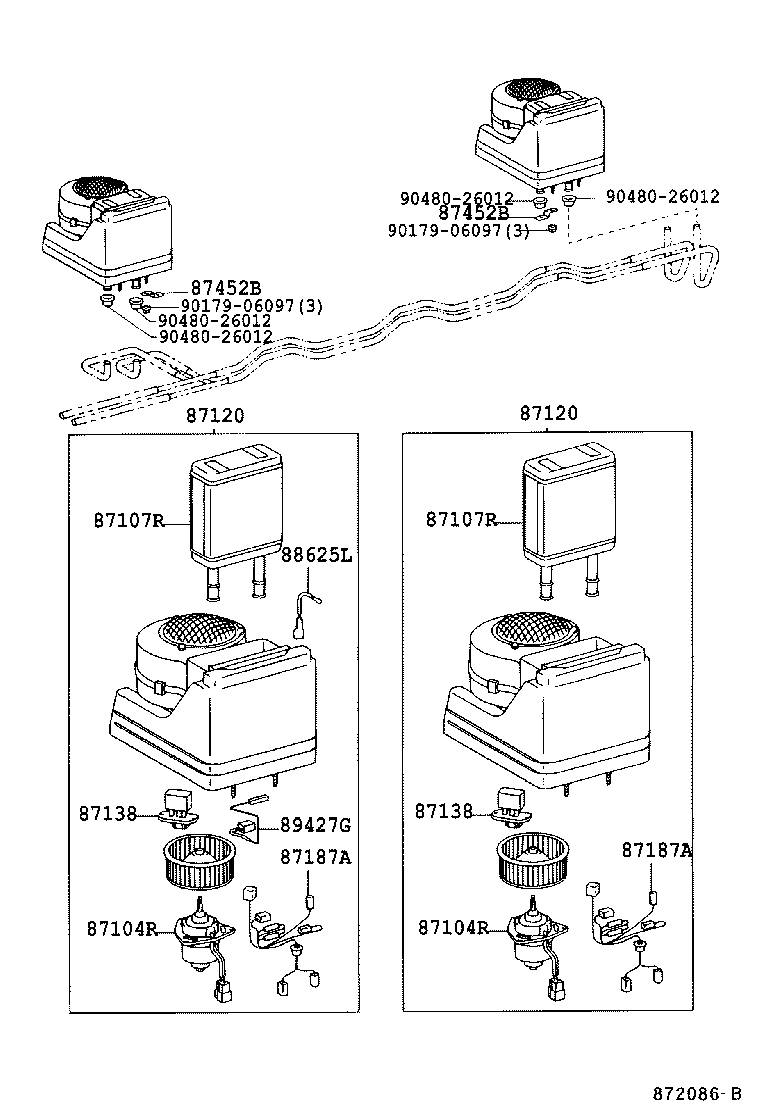

ILLUST NO. 2 OF 3(9301-0408)26S,29S..DX,LX,STD ; (0211-0408)08S,19S ; (0408-1501)BZB40,50..LX
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER | ||||
| 87104-36290 |
BB40,HZB40,50..(26S,29S)..(DX,LX,STD) ｶﾝﾚｲﾁ ｼﾖｳ & ﾕｶｵｷ ﾀｲﾌﾟ & ﾊﾟﾜ- ﾋ-ﾀ |
2 | ||
| 87104-36290 |
HZB50..IV5;HZB40..5F..IV5 ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 87104-36240 |
HZB40..5F;HZB40..LX..4FC..CBU;BB40,5#,HZB50..(26S,29S)..(DX,LX,STD) |
2 | ||
| 87104-36310 |
HZB41;HDB51,HZB40,50..IV5 ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾊﾟﾜ-ﾋ-ﾀ) |
2 | ||
| 87104-36300 |
HZB40,50..IV5 ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
2 | ||
| 87104-36240 |
HZB50..LX;HZB50..DX..5F;BB58,HDB50..DX,LX;HZB40..HRF..WC..5F;HZB40..HRF..26S..WC..4FC..CBU |
2 | ||
| 87104-36290 |
HZB40..26S..5F;HZB40..26S..4FC..CBU;BB58,HDB50,HZB50..DX,LX ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 87104-36270 |
BZB40,50..LX |
2 | ||
| 87107R - UNIT SUB-ASSY, REAR HEATER | ||||
| 87107-36160 |
BB40,55,HZB40,50..(26S,29S)..(DX,LX,STD) |
2 | ||
| 87107-36180 |
BB4#,HZB40,5#..(09S,26S,29S)..(DX,LX,STD) ｶﾝﾚｲﾁ ｼﾖｳ & ﾄｳｻｲ ﾀｲﾌﾟ & ﾊﾟﾜ- ﾋ-ﾀ |
2 | ||
| 87107-36210 |
HZB40..5F;HDB51..IV1;HZB40..LX..4FC..CBU;BB40,58,HDB50,HZB41,50..26S,29S |
2 | ||
| 87107-36210 |
HDB51..IV5;HZB40..5F..IV5;HZB40..(DX,LX)..CBU;BB58,BZB40,50,HDB50,HZB41,50..DX,EX,LX |
2 | ||
| 87120 - HEATER ASSY, REAR | ||||
| 87110-36530 |
BB40,55,HZB40,50..(26S,29S)..(DX,LX,STD) REAR |
1 | ||
| 87110-36470 |
BB40,HZB40..26S;HZB50..(DX,LX)..5F ｶﾝﾚｲﾁ ｼﾖｳ & ﾕｶｵｷ ﾀｲﾌﾟ & ﾊﾟﾜ- ﾋ-ﾀ,FRONT |
1 | ||
| 87110-36540 |
BB40,HZB40..26S;HZB50..(DX,LX)..5F ｶﾝﾚｲﾁ ｼﾖｳ & ﾕｶｵｷ ﾀｲﾌﾟ & ﾊﾟﾜ- ﾋ-ﾀ,REAR |
1 | ||
| 87110-36410 |
BB40,55,HZB40,50..(26S,29S)..(DX,LX,STD) FRONT |
1 | ||
| 87110-36590 |
HZB40..5F;HZB40..LX..4FC..CBU;BB40,58,HZB50..(26S,29S)..(DX,LX,STD) FRONT |
1 | ||
| 87110-36620 |
BB4#,58,HZB40,5#..(09S,26S,29S)..(DX,LX,STD) ｶﾝﾚｲﾁ ｼﾖｳ,ﾘﾔ |
1 | ||
| 87110-36281 |
HDB51,HZB40,41,50..IV5 ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾊﾟﾜ-ﾋ-ﾀ),ﾌﾛﾝﾄ |
1 | ||
| 87110-36590 |
BB58,HDB50,HZB40,46,5#..DX,LX ﾌﾛﾝﾄ |
1 | ||
| 87110-36421 |
HZB40,50..IV5 ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(ｵ-ﾄｴｱｺﾝ),ﾌﾛﾝﾄ |
1 | ||
| 87110-36311 |
HDB51,HZB40,41,50..IV5 ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾊﾟﾜ-ﾋ-ﾀ),ﾘﾔ |
1 | ||
| 87110-36610 |
HDB51..IV5;BB4#,58,HZB40,5#..(09S,26S,29S)..(DX,LX,STD) ｶﾝﾚｲﾁ ｼﾖｳ,ﾌﾛﾝﾄ |
1 | ||
| 87110-36331 |
HZB40,50..IV5 ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(ｵ-ﾄｴｱｺﾝ),ﾘﾔ |
1 | ||
| 87110-36590 |
HZB40..5F..IV5;HZB40..(DX,LX)..CBU;BB58,HDB50,HZB46,5#..(09S,29S)..(DX,LX) ﾌﾛﾝﾄ |
1 | ||
| 87110-36600 |
HZB40..5F;HZB40..LX..4FC..CBU;BB40,58,HZB50..(26S,29S)..(DX,LX,STD) REAR |
1 | ||
| 87110-36620 |
BB58,HDB50,HZB40,50..(26S,29S)..(DX,LX) ｶﾝﾚｲﾁ ｼﾖｳ,ﾘﾔ |
1 | ||
| 87110-36600 |
BB58,HDB50,HZB40,50..DX,LX ﾘﾔ |
1 | ||
| 87110-36610 |
BB58,HDB50,HZB40,46,5#..(09S,26S,29S)..(DX,LX) ｶﾝﾚｲﾁ ｼﾖｳ,ﾌﾛﾝﾄ |
1 | ||
| 87110-36481 |
BZB40,50..LX ﾌﾛﾝﾄ |
1 | ||
| 87110-36551 |
BZB40,50..LX ﾘﾔ |
1 | ||
| 87120 - HEATER ASSY, REAR | ||||
| 87110-36530 |
BB40,55,HZB40,50..(26S,29S)..(DX,LX,STD) REAR |
1 | ||
| 87110-36470 |
BB40,HZB40..26S;HZB50..(DX,LX)..5F ｶﾝﾚｲﾁ ｼﾖｳ & ﾕｶｵｷ ﾀｲﾌﾟ & ﾊﾟﾜ- ﾋ-ﾀ,FRONT |
1 | ||
| 87110-36540 |
BB40,HZB40..26S;HZB50..(DX,LX)..5F ｶﾝﾚｲﾁ ｼﾖｳ & ﾕｶｵｷ ﾀｲﾌﾟ & ﾊﾟﾜ- ﾋ-ﾀ,REAR |
1 | ||
| 87110-36410 |
BB40,55,HZB40,50..(26S,29S)..(DX,LX,STD) FRONT |
1 | ||
| 87110-36590 |
HZB40..5F;HZB40..LX..4FC..CBU;BB40,58,HZB50..(26S,29S)..(DX,LX,STD) FRONT |
1 | ||
| 87110-36620 |
BB4#,58,HZB40,5#..(09S,26S,29S)..(DX,LX,STD) ｶﾝﾚｲﾁ ｼﾖｳ,ﾘﾔ |
1 | ||
| 87110-36281 |
HDB51,HZB40,41,50..IV5 ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾊﾟﾜ-ﾋ-ﾀ),ﾌﾛﾝﾄ |
1 | ||
| 87110-36590 |
BB58,HDB50,HZB40,46,5#..DX,LX ﾌﾛﾝﾄ |
1 | ||
| 87110-36421 |
HZB40,50..IV5 ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(ｵ-ﾄｴｱｺﾝ),ﾌﾛﾝﾄ |
1 | ||
| 87110-36311 |
HDB51,HZB40,41,50..IV5 ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾊﾟﾜ-ﾋ-ﾀ),ﾘﾔ |
1 | ||
| 87110-36610 |
HDB51..IV5;BB4#,58,HZB40,5#..(09S,26S,29S)..(DX,LX,STD) ｶﾝﾚｲﾁ ｼﾖｳ,ﾌﾛﾝﾄ |
1 | ||
| 87110-36331 |
HZB40,50..IV5 ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(ｵ-ﾄｴｱｺﾝ),ﾘﾔ |
1 | ||
| 87110-36590 |
HZB40..5F..IV5;HZB40..(DX,LX)..CBU;BB58,HDB50,HZB46,5#..(09S,29S)..(DX,LX) ﾌﾛﾝﾄ |
1 | ||
| 87110-36600 |
HZB40..5F;HZB40..LX..4FC..CBU;BB40,58,HZB50..(26S,29S)..(DX,LX,STD) REAR |
1 | ||
| 87110-36620 |
BB58,HDB50,HZB40,50..(26S,29S)..(DX,LX) ｶﾝﾚｲﾁ ｼﾖｳ,ﾘﾔ |
1 | ||
| 87110-36600 |
BB58,HDB50,HZB40,50..DX,LX ﾘﾔ |
1 | ||
| 87110-36610 |
BB58,HDB50,HZB40,46,5#..(09S,26S,29S)..(DX,LX) ｶﾝﾚｲﾁ ｼﾖｳ,ﾌﾛﾝﾄ |
1 | ||
| 87110-36481 |
BZB40,50..LX ﾌﾛﾝﾄ |
1 | ||
| 87110-36551 |
BZB40,50..LX ﾘﾔ |
1 | ||
| 87120 - HEATER ASSY, REAR | ||||
| 87110-36530 |
BB40,55,HZB40,50..(26S,29S)..(DX,LX,STD) REAR |
1 | ||
| 87110-36470 |
BB40,HZB40..26S;HZB50..(DX,LX)..5F ｶﾝﾚｲﾁ ｼﾖｳ & ﾕｶｵｷ ﾀｲﾌﾟ & ﾊﾟﾜ- ﾋ-ﾀ,FRONT |
1 | ||
| 87110-36540 |
BB40,HZB40..26S;HZB50..(DX,LX)..5F ｶﾝﾚｲﾁ ｼﾖｳ & ﾕｶｵｷ ﾀｲﾌﾟ & ﾊﾟﾜ- ﾋ-ﾀ,REAR |
1 | ||
| 87110-36410 |
BB40,55,HZB40,50..(26S,29S)..(DX,LX,STD) FRONT |
1 | ||
| 87110-36590 |
HZB40..5F;HZB40..LX..4FC..CBU;BB40,58,HZB50..(26S,29S)..(DX,LX,STD) FRONT |
1 | ||
| 87110-36620 |
BB4#,58,HZB40,5#..(09S,26S,29S)..(DX,LX,STD) ｶﾝﾚｲﾁ ｼﾖｳ,ﾘﾔ |
1 | ||
| 87110-36281 |
HDB51,HZB40,41,50..IV5 ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾊﾟﾜ-ﾋ-ﾀ),ﾌﾛﾝﾄ |
1 | ||
| 87110-36590 |
BB58,HDB50,HZB40,46,5#..DX,LX ﾌﾛﾝﾄ |
1 | ||
| 87110-36421 |
HZB40,50..IV5 ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(ｵ-ﾄｴｱｺﾝ),ﾌﾛﾝﾄ |
1 | ||
| 87110-36311 |
HDB51,HZB40,41,50..IV5 ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾊﾟﾜ-ﾋ-ﾀ),ﾘﾔ |
1 | ||
| 87110-36610 |
HDB51..IV5;BB4#,58,HZB40,5#..(09S,26S,29S)..(DX,LX,STD) ｶﾝﾚｲﾁ ｼﾖｳ,ﾌﾛﾝﾄ |
1 | ||
| 87110-36331 |
HZB40,50..IV5 ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(ｵ-ﾄｴｱｺﾝ),ﾘﾔ |
1 | ||
| 87110-36590 |
HZB40..5F..IV5;HZB40..(DX,LX)..CBU;BB58,HDB50,HZB46,5#..(09S,29S)..(DX,LX) ﾌﾛﾝﾄ |
1 | ||
| 87110-36600 |
HZB40..5F;HZB40..LX..4FC..CBU;BB40,58,HZB50..(26S,29S)..(DX,LX,STD) REAR |
1 | ||
| 87110-36620 |
BB58,HDB50,HZB40,50..(26S,29S)..(DX,LX) ｶﾝﾚｲﾁ ｼﾖｳ,ﾘﾔ |
1 | ||
| 87110-36600 |
BB58,HDB50,HZB40,50..DX,LX ﾘﾔ |
1 | ||
| 87110-36610 |
BB58,HDB50,HZB40,46,5#..(09S,26S,29S)..(DX,LX) ｶﾝﾚｲﾁ ｼﾖｳ,ﾌﾛﾝﾄ |
1 | ||
| 87110-36481 |
BZB40,50..LX ﾌﾛﾝﾄ |
1 | ||
| 87110-36551 |
BZB40,50..LX ﾘﾔ |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-36120 |
BB40,HZB40,50..(26S,29S)..(DX,LX,STD) ｶﾝﾚｲﾁ ｼﾖｳ & ﾕｶｵｷ ﾀｲﾌﾟ & ﾊﾟﾜ- ﾋ-ﾀ |
2 | ||
| 87138-36120 |
HZB50..IV5;HZB40..5F..IV5 ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 87138-36240 |
HDB51,HZB40,41,50..IV5 ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾊﾟﾜ-ﾋ-ﾀ) |
2 | ||
| 87138-36170 |
HZB40,50..IV5 ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
2 | ||
| 87138-36110 |
HZB40..5F;HZB40..LX..4FC..CBU;BB40,5#,HZB50..(26S,29S)..(DX,LX,STD) |
2 | ||
| 87138-36110 |
HZB50..LX;HZB50..DX..5F;BB58,HDB50..DX,LX;HZB40..HRF..WC..5F;HZB40..HRF..26S..WC..4FC..CBU |
2 | ||
| 87138-36130 |
BZB40,50..LX |
2 | ||
| 87138-36120 |
HZB40..26S..5F;HZB40..26S..4FC..CBU;BB58,HDB50,HZB50..DX,LX ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 87187A - WIRE, BLOWER MOTOR LEAD | ||||
| 87187-36010 |
HZB40..5F;HZB40..LX..4FC..CBU;BB40,5#,HZB50..(26S,29S)..(DX,LX,STD) |
2 | ||
| 87187-36030 |
HZB41;HDB51,HZB40,50..IV1,IV5 ﾌﾛﾝﾄ |
1 | ||
| 87187-36010 |
HZB50..LX;HZB50..DX..5F;BB58,HDB50..DX,LX;HZB40..HRF..WC..5F;HZB40..HRF..26S..WC..4FC..CBU |
2 | ||
| 87187-36050 |
HZB41;HDB51,HZB40,50..IV1,IV5 ﾘﾔ |
1 | ||
| 87187-36020 |
BZB40,50..LX |
2 | ||
| 87452B - BRACKET, HEATER, REAR | ||||
| 87452-36100 |
BB58,BZB40,50,HDB5#,HZB4#,5#..09S,10S,19S,20S,24S,26S,29S |
2 | ||
| 87452-36100 |
BB4#,5#,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S |
2 | ||
| 87452B - BRACKET, HEATER, REAR | ||||
| 87452-36100 |
BB58,BZB40,50,HDB5#,HZB4#,5#..09S,10S,19S,20S,24S,26S,29S |
2 | ||
| 87452-36100 |
BB4#,5#,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S |
2 | ||
| Common parts | ||||
| 90179-06206 | ||||
| 90339-04024 | ||||
| 90480-26012 | ||||
ILLUST NO. 2 OF 3(9301-0408)IV1 ; (9301-0408)HZB41..CBU ; (0108-0408)IV5
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER | ||||
| 87104-36290 |
BB40,HZB40,50..(26S,29S)..(DX,LX,STD) ｶﾝﾚｲﾁ ｼﾖｳ & ﾕｶｵｷ ﾀｲﾌﾟ & ﾊﾟﾜ- ﾋ-ﾀ |
2 | ||
| 87104-36290 |
HZB50..IV5;HZB40..5F..IV5 ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 87104-36240 |
HZB40..5F;HZB40..LX..4FC..CBU;BB40,5#,HZB50..(26S,29S)..(DX,LX,STD) |
2 | ||
| 87104-36300 |
HZB40,50..IV5 ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
2 | ||
| 87104-36240 |
HZB50..LX;HZB50..DX..5F;BB58,HDB50..DX,LX;HZB40..HRF..WC..5F;HZB40..HRF..26S..WC..4FC..CBU |
2 | ||
| 87104-36290 |
HZB40..26S..5F;HZB40..26S..4FC..CBU;BB58,HDB50,HZB50..DX,LX ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 87104-36310 |
HZB41;HDB51,HZB40,50..IV5 ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾊﾟﾜ-ﾋ-ﾀ) |
2 | ||
| 87104-36270 |
BZB40,50..LX |
2 | ||
| 87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER | ||||
| 87104-36290 |
BB40,HZB40,50..(26S,29S)..(DX,LX,STD) ｶﾝﾚｲﾁ ｼﾖｳ & ﾕｶｵｷ ﾀｲﾌﾟ & ﾊﾟﾜ- ﾋ-ﾀ |
2 | ||
| 87104-36290 |
HZB50..IV5;HZB40..5F..IV5 ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 87104-36240 |
HZB40..5F;HZB40..LX..4FC..CBU;BB40,5#,HZB50..(26S,29S)..(DX,LX,STD) |
2 | ||
| 87104-36300 |
HZB40,50..IV5 ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
2 | ||
| 87104-36240 |
HZB50..LX;HZB50..DX..5F;BB58,HDB50..DX,LX;HZB40..HRF..WC..5F;HZB40..HRF..26S..WC..4FC..CBU |
2 | ||
| 87104-36290 |
HZB40..26S..5F;HZB40..26S..4FC..CBU;BB58,HDB50,HZB50..DX,LX ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 87104-36310 |
HZB41;HDB51,HZB40,50..IV5 ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾊﾟﾜ-ﾋ-ﾀ) |
2 | ||
| 87104-36270 |
BZB40,50..LX |
2 | ||
| 87107R - UNIT SUB-ASSY, REAR HEATER | ||||
| 87107-36160 |
BB40,55,HZB40,50..(26S,29S)..(DX,LX,STD) |
2 | ||
| 87107-36180 |
BB4#,HZB40,5#..(09S,26S,29S)..(DX,LX,STD) ｶﾝﾚｲﾁ ｼﾖｳ & ﾄｳｻｲ ﾀｲﾌﾟ & ﾊﾟﾜ- ﾋ-ﾀ |
2 | ||
| 87107-36210 |
HZB40..5F;HDB51..IV1;HZB40..LX..4FC..CBU;BB40,58,HDB50,HZB41,50..26S,29S |
2 | ||
| 87107-36210 |
HDB51..IV5;HZB40..5F..IV5;HZB40..(DX,LX)..CBU;BB58,BZB40,50,HDB50,HZB41,50..DX,EX,LX |
2 | ||
| 87107R - UNIT SUB-ASSY, REAR HEATER | ||||
| 87107-36160 |
BB40,55,HZB40,50..(26S,29S)..(DX,LX,STD) |
2 | ||
| 87107-36180 |
BB4#,HZB40,5#..(09S,26S,29S)..(DX,LX,STD) ｶﾝﾚｲﾁ ｼﾖｳ & ﾄｳｻｲ ﾀｲﾌﾟ & ﾊﾟﾜ- ﾋ-ﾀ |
2 | ||
| 87107-36210 |
HZB40..5F;HDB51..IV1;HZB40..LX..4FC..CBU;BB40,58,HDB50,HZB41,50..26S,29S |
2 | ||
| 87107-36210 |
HDB51..IV5;HZB40..5F..IV5;HZB40..(DX,LX)..CBU;BB58,BZB40,50,HDB50,HZB41,50..DX,EX,LX |
2 | ||
| 87120 - HEATER ASSY, REAR | ||||
| 87110-36530 |
BB40,55,HZB40,50..(26S,29S)..(DX,LX,STD) REAR |
1 | ||
| 87110-36470 |
BB40,HZB40..26S;HZB50..(DX,LX)..5F ｶﾝﾚｲﾁ ｼﾖｳ & ﾕｶｵｷ ﾀｲﾌﾟ & ﾊﾟﾜ- ﾋ-ﾀ,FRONT |
1 | ||
| 87110-36540 |
BB40,HZB40..26S;HZB50..(DX,LX)..5F ｶﾝﾚｲﾁ ｼﾖｳ & ﾕｶｵｷ ﾀｲﾌﾟ & ﾊﾟﾜ- ﾋ-ﾀ,REAR |
1 | ||
| 87110-36410 |
BB40,55,HZB40,50..(26S,29S)..(DX,LX,STD) FRONT |
1 | ||
| 87110-36590 |
HZB40..5F;HZB40..LX..4FC..CBU;BB40,58,HZB50..(26S,29S)..(DX,LX,STD) FRONT |
1 | ||
| 87110-36620 |
BB4#,58,HZB40,5#..(09S,26S,29S)..(DX,LX,STD) ｶﾝﾚｲﾁ ｼﾖｳ,ﾘﾔ |
1 | ||
| 87110-36281 |
HDB51,HZB40,41,50..IV5 ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾊﾟﾜ-ﾋ-ﾀ),ﾌﾛﾝﾄ |
1 | ||
| 87110-36590 |
BB58,HDB50,HZB40,46,5#..DX,LX ﾌﾛﾝﾄ |
1 | ||
| 87110-36421 |
HZB40,50..IV5 ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(ｵ-ﾄｴｱｺﾝ),ﾌﾛﾝﾄ |
1 | ||
| 87110-36311 |
HDB51,HZB40,41,50..IV5 ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾊﾟﾜ-ﾋ-ﾀ),ﾘﾔ |
1 | ||
| 87110-36610 |
HDB51..IV5;BB4#,58,HZB40,5#..(09S,26S,29S)..(DX,LX,STD) ｶﾝﾚｲﾁ ｼﾖｳ,ﾌﾛﾝﾄ |
1 | ||
| 87110-36331 |
HZB40,50..IV5 ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(ｵ-ﾄｴｱｺﾝ),ﾘﾔ |
1 | ||
| 87110-36590 |
HZB40..5F..IV5;HZB40..(DX,LX)..CBU;BB58,HDB50,HZB46,5#..(09S,29S)..(DX,LX) ﾌﾛﾝﾄ |
1 | ||
| 87110-36600 |
HZB40..5F;HZB40..LX..4FC..CBU;BB40,58,HZB50..(26S,29S)..(DX,LX,STD) REAR |
1 | ||
| 87110-36620 |
BB58,HDB50,HZB40,50..(26S,29S)..(DX,LX) ｶﾝﾚｲﾁ ｼﾖｳ,ﾘﾔ |
1 | ||
| 87110-36600 |
BB58,HDB50,HZB40,50..DX,LX ﾘﾔ |
1 | ||
| 87110-36610 |
BB58,HDB50,HZB40,46,5#..(09S,26S,29S)..(DX,LX) ｶﾝﾚｲﾁ ｼﾖｳ,ﾌﾛﾝﾄ |
1 | ||
| 87110-36481 |
BZB40,50..LX ﾌﾛﾝﾄ |
1 | ||
| 87110-36551 |
BZB40,50..LX ﾘﾔ |
1 | ||
| 87120 - HEATER ASSY, REAR | ||||
| 87110-36530 |
BB40,55,HZB40,50..(26S,29S)..(DX,LX,STD) REAR |
1 | ||
| 87110-36470 |
BB40,HZB40..26S;HZB50..(DX,LX)..5F ｶﾝﾚｲﾁ ｼﾖｳ & ﾕｶｵｷ ﾀｲﾌﾟ & ﾊﾟﾜ- ﾋ-ﾀ,FRONT |
1 | ||
| 87110-36540 |
BB40,HZB40..26S;HZB50..(DX,LX)..5F ｶﾝﾚｲﾁ ｼﾖｳ & ﾕｶｵｷ ﾀｲﾌﾟ & ﾊﾟﾜ- ﾋ-ﾀ,REAR |
1 | ||
| 87110-36410 |
BB40,55,HZB40,50..(26S,29S)..(DX,LX,STD) FRONT |
1 | ||
| 87110-36590 |
HZB40..5F;HZB40..LX..4FC..CBU;BB40,58,HZB50..(26S,29S)..(DX,LX,STD) FRONT |
1 | ||
| 87110-36620 |
BB4#,58,HZB40,5#..(09S,26S,29S)..(DX,LX,STD) ｶﾝﾚｲﾁ ｼﾖｳ,ﾘﾔ |
1 | ||
| 87110-36281 |
HDB51,HZB40,41,50..IV5 ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾊﾟﾜ-ﾋ-ﾀ),ﾌﾛﾝﾄ |
1 | ||
| 87110-36590 |
BB58,HDB50,HZB40,46,5#..DX,LX ﾌﾛﾝﾄ |
1 | ||
| 87110-36421 |
HZB40,50..IV5 ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(ｵ-ﾄｴｱｺﾝ),ﾌﾛﾝﾄ |
1 | ||
| 87110-36311 |
HDB51,HZB40,41,50..IV5 ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾊﾟﾜ-ﾋ-ﾀ),ﾘﾔ |
1 | ||
| 87110-36610 |
HDB51..IV5;BB4#,58,HZB40,5#..(09S,26S,29S)..(DX,LX,STD) ｶﾝﾚｲﾁ ｼﾖｳ,ﾌﾛﾝﾄ |
1 | ||
| 87110-36331 |
HZB40,50..IV5 ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(ｵ-ﾄｴｱｺﾝ),ﾘﾔ |
1 | ||
| 87110-36590 |
HZB40..5F..IV5;HZB40..(DX,LX)..CBU;BB58,HDB50,HZB46,5#..(09S,29S)..(DX,LX) ﾌﾛﾝﾄ |
1 | ||
| 87110-36600 |
HZB40..5F;HZB40..LX..4FC..CBU;BB40,58,HZB50..(26S,29S)..(DX,LX,STD) REAR |
1 | ||
| 87110-36620 |
BB58,HDB50,HZB40,50..(26S,29S)..(DX,LX) ｶﾝﾚｲﾁ ｼﾖｳ,ﾘﾔ |
1 | ||
| 87110-36600 |
BB58,HDB50,HZB40,50..DX,LX ﾘﾔ |
1 | ||
| 87110-36610 |
BB58,HDB50,HZB40,46,5#..(09S,26S,29S)..(DX,LX) ｶﾝﾚｲﾁ ｼﾖｳ,ﾌﾛﾝﾄ |
1 | ||
| 87110-36481 |
BZB40,50..LX ﾌﾛﾝﾄ |
1 | ||
| 87110-36551 |
BZB40,50..LX ﾘﾔ |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-36120 |
BB40,HZB40,50..(26S,29S)..(DX,LX,STD) ｶﾝﾚｲﾁ ｼﾖｳ & ﾕｶｵｷ ﾀｲﾌﾟ & ﾊﾟﾜ- ﾋ-ﾀ |
2 | ||
| 87138-36120 |
HZB50..IV5;HZB40..5F..IV5 ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 87138-36240 |
HDB51,HZB40,41,50..IV5 ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾊﾟﾜ-ﾋ-ﾀ) |
2 | ||
| 87138-36170 |
HZB40,50..IV5 ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
2 | ||
| 87138-36110 |
HZB40..5F;HZB40..LX..4FC..CBU;BB40,5#,HZB50..(26S,29S)..(DX,LX,STD) |
2 | ||
| 87138-36110 |
HZB50..LX;HZB50..DX..5F;BB58,HDB50..DX,LX;HZB40..HRF..WC..5F;HZB40..HRF..26S..WC..4FC..CBU |
2 | ||
| 87138-36130 |
BZB40,50..LX |
2 | ||
| 87138-36120 |
HZB40..26S..5F;HZB40..26S..4FC..CBU;BB58,HDB50,HZB50..DX,LX ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-36120 |
BB40,HZB40,50..(26S,29S)..(DX,LX,STD) ｶﾝﾚｲﾁ ｼﾖｳ & ﾕｶｵｷ ﾀｲﾌﾟ & ﾊﾟﾜ- ﾋ-ﾀ |
2 | ||
| 87138-36120 |
HZB50..IV5;HZB40..5F..IV5 ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 87138-36240 |
HDB51,HZB40,41,50..IV5 ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾊﾟﾜ-ﾋ-ﾀ) |
2 | ||
| 87138-36170 |
HZB40,50..IV5 ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
2 | ||
| 87138-36110 |
HZB40..5F;HZB40..LX..4FC..CBU;BB40,5#,HZB50..(26S,29S)..(DX,LX,STD) |
2 | ||
| 87138-36110 |
HZB50..LX;HZB50..DX..5F;BB58,HDB50..DX,LX;HZB40..HRF..WC..5F;HZB40..HRF..26S..WC..4FC..CBU |
2 | ||
| 87138-36130 |
BZB40,50..LX |
2 | ||
| 87138-36120 |
HZB40..26S..5F;HZB40..26S..4FC..CBU;BB58,HDB50,HZB50..DX,LX ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 87187A - WIRE, BLOWER MOTOR LEAD | ||||
| 87187-36010 |
HZB40..5F;HZB40..LX..4FC..CBU;BB40,5#,HZB50..(26S,29S)..(DX,LX,STD) |
2 | ||
| 87187-36030 |
HZB41;HDB51,HZB40,50..IV1,IV5 ﾌﾛﾝﾄ |
1 | ||
| 87187-36010 |
HZB50..LX;HZB50..DX..5F;BB58,HDB50..DX,LX;HZB40..HRF..WC..5F;HZB40..HRF..26S..WC..4FC..CBU |
2 | ||
| 87187-36050 |
HZB41;HDB51,HZB40,50..IV1,IV5 ﾘﾔ |
1 | ||
| 87187-36020 |
BZB40,50..LX |
2 | ||
| 87187A - WIRE, BLOWER MOTOR LEAD | ||||
| 87187-36010 |
HZB40..5F;HZB40..LX..4FC..CBU;BB40,5#,HZB50..(26S,29S)..(DX,LX,STD) |
2 | ||
| 87187-36030 |
HZB41;HDB51,HZB40,50..IV1,IV5 ﾌﾛﾝﾄ |
1 | ||
| 87187-36010 |
HZB50..LX;HZB50..DX..5F;BB58,HDB50..DX,LX;HZB40..HRF..WC..5F;HZB40..HRF..26S..WC..4FC..CBU |
2 | ||
| 87187-36050 |
HZB41;HDB51,HZB40,50..IV1,IV5 ﾘﾔ |
1 | ||
| 87187-36020 |
BZB40,50..LX |
2 | ||
| 87452B - BRACKET, HEATER, REAR | ||||
| 87452-36100 |
BB58,BZB40,50,HDB5#,HZB4#,5#..09S,10S,19S,20S,24S,26S,29S |
2 | ||
| 87452-36100 |
BB4#,5#,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S |
2 | ||
| 87452B - BRACKET, HEATER, REAR | ||||
| 87452-36100 |
BB58,BZB40,50,HDB5#,HZB4#,5#..09S,10S,19S,20S,24S,26S,29S |
2 | ||
| 87452-36100 |
BB4#,5#,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S |
2 | ||
| 88625L - THERMISTOR, COOLER | ||||
| 88625-36061 |
HZB40,50..IV5;HDB5#,HZB41,50..EX,GX,SULNG |
1 | ||
| 89427G - SWITCH, TEMPERATURE | ||||
| 89427-36011 |
HZB41;HDB51,HZB40,50..IV1,IV5 |
1 | ||
| Common parts | ||||
| 90179-06097 | ||||
| 90480-26012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
