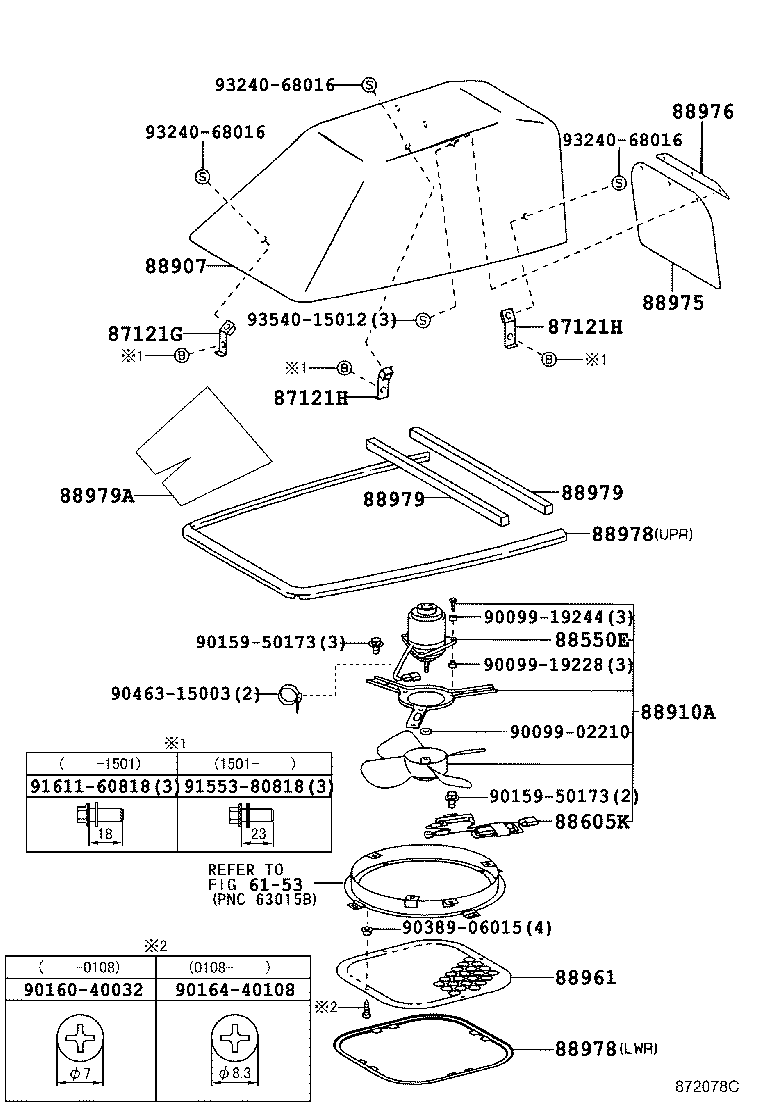

HZB50-ZRMES (1993)
Toyota Coaster
(9301-0408)EX,GX,SULNG..CBU ; (0108-0408)HDB51,HZB41..IV5 ; (0408-1501)EX,GX,SULNG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87121G - BRACKET, VENTILATOR, NO.1 | ||||
| 87121-90B02 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5) |
1 | ||
| 87121-90B02 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU |
1 | ||
| 87121H - BRACKET, VENTILATOR, NO.2 | ||||
| 87121-90B03 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU |
2 | ||
| 87121-90B03 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5) |
2 | ||
| 87121H - BRACKET, VENTILATOR, NO.2 | ||||
| 87121-90B03 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU |
2 | ||
| 87121-90B03 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5) |
2 | ||
| 88550E - MOTOR ASSY, BLOWER | ||||
| 88550-36120 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5) |
1 | ||
| 88550-36120 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU |
1 | ||
| 88605K - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-36150 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU |
1 | ||
| 88605-36150 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5) |
1 | ||
| 88907 - COVER SUB-ASSY, BOOST VENTILATOR | ||||
| 88907-36900 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5) |
1 | ||
| 88907-36900 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU |
1 | ||
| 88907-36010 |
HDB5#,HZB41,50..EX,GX,SULNG |
1 | ||
| 88910A - VENTILATOR ASSY, BOOST | ||||
| 88910-36020 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU |
1 | ||
| 88910-36020 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5) |
1 | ||
| 88961 - GRILLE, BOOST VENTILATOR | ||||
| 88961-36010A0 |
HDB5#,HZB41,50..EX,GX,SULNG IVORY,TRIM4# |
1 | ||
| 88961-36011B0 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
1 | ||
| 88961-36011A1 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU IVORY,TRIM4# |
1 | ||
| 88961-36011A0 |
HDB5#,HZB41,50..EX,GX,SULNG IVORY,TRIM4# |
1 | ||
| 88961-36011A1 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU IVORY,TRIM4# |
1 | ||
| 88975 - BUTTERFLY, BOOST VENTILATOR | ||||
| 88975-36011 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU |
1 | ||
| 88975-36011 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5) |
1 | ||
| 88975-36010 |
HDB5#,HZB41,50..EX,GX,SULNG |
1 | ||
| 88976 - PLATE, BOOST VENTILATOR BUTTERFLY | ||||
| 88976-36010 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU |
1 | ||
| 88976-36010 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5) |
1 | ||
| 88978 - TRIM, BOOST VENTILATOR COVER | ||||
| 88978-36020B0 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5) MD.CHARCOAL,TRIM1#,下側 |
1 | ||
| 88978-36020A0 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU IVORY,TRIM4# |
1 | ||
| 88978-36010 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5) 上側 |
1 | ||
| 88978-36010 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU 上側 |
1 | ||
| 88978-36020A0 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU IVORY,TRIM4#,下側 |
1 | ||
| 88978 - TRIM, BOOST VENTILATOR COVER | ||||
| 88978-36020B0 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5) MD.CHARCOAL,TRIM1#,下側 |
1 | ||
| 88978-36020A0 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU IVORY,TRIM4# |
1 | ||
| 88978-36010 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5) 上側 |
1 | ||
| 88978-36010 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU 上側 |
1 | ||
| 88978-36020A0 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU IVORY,TRIM4#,下側 |
1 | ||
| 88979 - SEAL, BOOST VENTILATOR | ||||
| 88979-36010 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU |
2 | ||
| 88979-36010 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5) |
2 | ||
| 88979 - SEAL, BOOST VENTILATOR | ||||
| 88979-36010 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU |
2 | ||
| 88979-36010 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5) |
2 | ||
| 88979A - SEAL, BOOST VENTILATOR NO.2 | ||||
| 88979-36020 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5) |
1 | ||
| 88979-36020 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU |
1 | ||
| Common parts | ||||
| 90099-02210 | ||||
| 90099-19228 | ||||
| 90099-19244 | ||||
| 90159-50173 | ||||
| 90160-40032 | ||||
| 90164-40108 | ||||
| 90389-06015 | ||||
| 90463-15003 | ||||
| 91553-80818 | ||||
| 91611-60818 | ||||
| 93240-68016 | ||||
| 93540-15012 | ||||
| Linked diagrams | ||||
| 6153 | ||||
