Toyota Coaster HZB50 HEATING & AIR CONDITIONING - COMPRESSOR

Manufacturers Home
Toyota
JP
COASTER
HZB50-ZRMES (1993)
8719 - HEATING & AIR CONDITIONING - COMPRESSOR

HZB50-ZRMES (1993)

Toyota Coaster

Production Jan 1993 - Aug 2004

Engine 1HZ

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

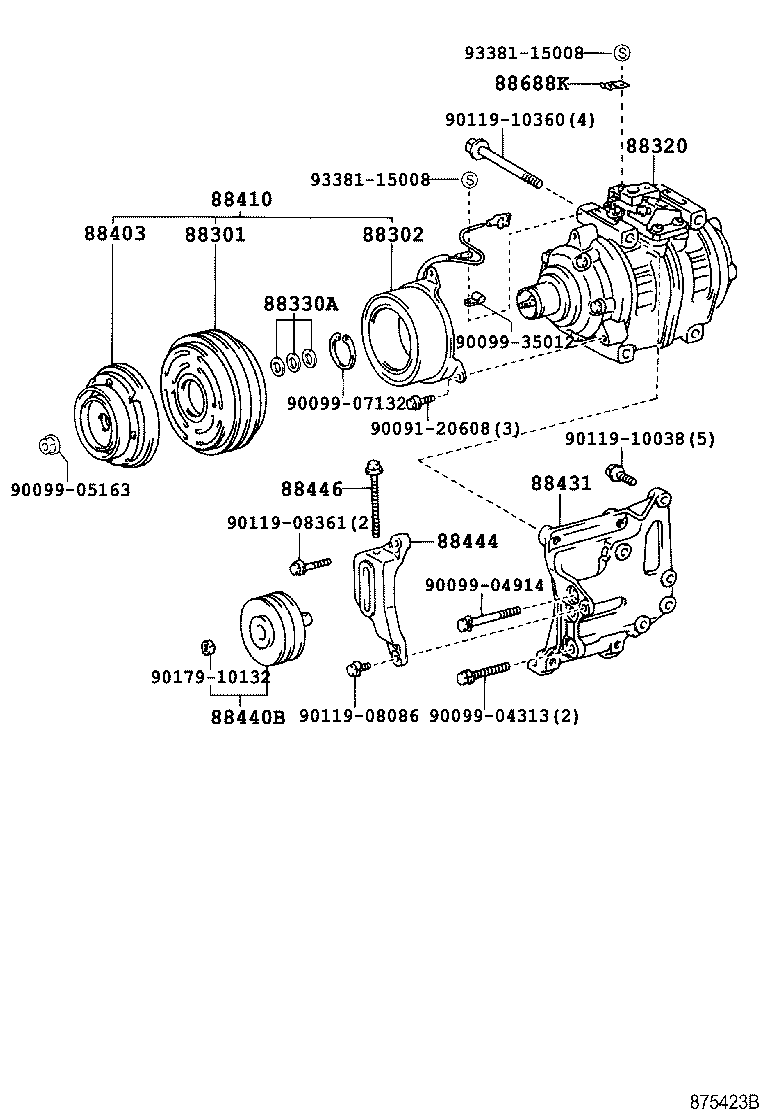

(0203-0408)BZB40,50

Click highlighted areas on diagram

Part #	Description	Period	Qty
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-36040	BB4#,55,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(DSL2,DSL4,TD2)	01/1993 - 02/1997	1
88412-36041	BB58,BZB40,50..WC	07/1999 - 08/2004	1
88412-36130	HDB5#,HZB4#,5#..WC	07/1999 - 08/2004	1
88412-36040	BB4#,HZB4#,5#..(EX,GX,LX,STD)..WC	02/1997 - 05/1997	1
88412-36040	HZB4#,5#..(EX,GX,LX,STD)..WC	05/1997 - 07/1999	1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-36240	BB58,HDB5#,HZB4#,5#..WC	07/1999 - 08/2004	1
88411-36240	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 07/1999	1
88411-36260	BZB40,50	03/2002 - 08/2004	1
88320 - COMPRESSOR ASSY, COOLER
88320-36530	HDB5#,HZB4#,5#..WC	07/1999 - 08/2004	1
88320-36360	HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 02/1996	1
88320-36530	HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	02/1996 - 07/1999	1
88320-36560	BB58,BZB40,50..WC	01/2002 - 08/2004	1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-12050	BB4#,55,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 02/1996	1
88335-12050	HZB4#,5#..(EX,GX,LX,STD)..WC	02/1996 - 01/1997	1
88335-12050	BB58,BZB40,50,HDB5#,HZB4#,5#..WC	07/1999 - 08/2004	1
88335-12050	HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1997 - 05/1997	1
88335-12050	BB4#,58,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	05/1997 - 07/1999	1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-36040	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 07/1999	1
88403-36040	BB58,BZB40,50,HDB5#,HZB4#,5#..WC	07/1999 - 08/2004	1
88410 - CLUTCH ASSY, MAGNET
88410-36341	HZB4#,5#..(EX,GX,LX,STD)..WC	01/1997 - 02/1997	1
88410-36340	BB4#,55,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(DSL2,DSL4,TD2)	01/1993 - 01/1997	1
88410-36341	BB55,HZB4#,5#..(EX,GX,LX,STD)..WC	02/1997 - 05/1997	1
88410-36520	BZB40,50	03/2002 - 08/2004	1
88410-36341	BB4#,58,HZB4#,5#..(EX,GX,LX,STD)..WC	05/1997 - 07/1999	1
88410-36510	HDB5#,HZB4#,5#..WC	07/1999 - 08/2004	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-36550	HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(DSL2,TD2)	01/1993 - 07/1999	1
88431-36610	HZB4#,5#..WC	07/1999 - 08/2004	1
88431-36421	BZB40,50	03/2002 - 08/2004	1
88440B - PULLEY ASSY, IDLE
88440-36130	BB58,BZB40,50..WC	07/1999 - 08/2004	1
88440-36130	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 07/1999	1
16604-76010	HZB4#,5#..WC	07/1999 - 08/2004	1
88444 - BRACKET, IDLE PULLEY
88444-36150	HZB4#,5#..WC	07/1999 - 08/2004	1
88444-36150	HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(DSL2,TD2)	01/1993 - 07/1999	1
88444-36092	BZB40,50	03/2002 - 08/2004	1
88446 - BOLT, IDLE PULLEY
90099-04306	BB58,BZB40,50..WC	07/1999 - 08/2004	1
90105-08099	HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 07/1999	1
90105-08099	HDB5#,HZB4#,5#..WC	07/1999 - 08/2004	1
88688K - BRACKET, COOLER COMPRESSOR
88688-36610	BB58,BZB40,50..WC	07/1999 - 08/2004	1
88688-36620	BB55,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	02/1997 - 07/1999	1
88688-36620	HDB5#,HZB4#,5#..WC	07/1999 - 08/2004	1
88688-36620	HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1997 - 02/1997	1
Common parts
90091-20608
90099-04313
90099-04914
90099-05163
90099-07132
90099-35012
90119-08086
90119-08361
90119-10038
90119-10360
90179-10132
93381-15008

(9301-0408)HZB4#,5#

Click highlighted areas on diagram

Part #	Description	Period	Qty
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-36040	BB4#,55,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(DSL2,DSL4,TD2)	01/1993 - 02/1997	1
88412-36041	BB58,BZB40,50..WC	07/1999 - 08/2004	1
88412-36130	HDB5#,HZB4#,5#..WC	07/1999 - 08/2004	1
88412-36040	BB4#,HZB4#,5#..(EX,GX,LX,STD)..WC	02/1997 - 05/1997	1
88412-36040	HZB4#,5#..(EX,GX,LX,STD)..WC	05/1997 - 07/1999	1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-36240	BB58,HDB5#,HZB4#,5#..WC	07/1999 - 08/2004	1
88411-36240	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 07/1999	1
88411-36260	BZB40,50	03/2002 - 08/2004	1
88320 - COMPRESSOR ASSY, COOLER
88320-36530	HDB5#,HZB4#,5#..WC	07/1999 - 08/2004	1
88320-36360	HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 02/1996	1
88320-36530	HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	02/1996 - 07/1999	1
88320-36560	BB58,BZB40,50..WC	01/2002 - 08/2004	1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-12050	BB4#,55,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 02/1996	1
88335-12050	HZB4#,5#..(EX,GX,LX,STD)..WC	02/1996 - 01/1997	1
88335-12050	BB58,BZB40,50,HDB5#,HZB4#,5#..WC	07/1999 - 08/2004	1
88335-12050	HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1997 - 05/1997	1
88335-12050	BB4#,58,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	05/1997 - 07/1999	1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-36040	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 07/1999	1
88403-36040	BB58,BZB40,50,HDB5#,HZB4#,5#..WC	07/1999 - 08/2004	1
88410 - CLUTCH ASSY, MAGNET
88410-36341	HZB4#,5#..(EX,GX,LX,STD)..WC	01/1997 - 02/1997	1
88410-36340	BB4#,55,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(DSL2,DSL4,TD2)	01/1993 - 01/1997	1
88410-36341	BB55,HZB4#,5#..(EX,GX,LX,STD)..WC	02/1997 - 05/1997	1
88410-36520	BZB40,50	03/2002 - 08/2004	1
88410-36341	BB4#,58,HZB4#,5#..(EX,GX,LX,STD)..WC	05/1997 - 07/1999	1
88410-36510	HDB5#,HZB4#,5#..WC	07/1999 - 08/2004	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-36550	HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(DSL2,TD2)	01/1993 - 07/1999	1
88431-36610	HZB4#,5#..WC	07/1999 - 08/2004	1
88431-36421	BZB40,50	03/2002 - 08/2004	1
88440B - PULLEY ASSY, IDLE
88440-36130	BB58,BZB40,50..WC	07/1999 - 08/2004	1
88440-36130	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 07/1999	1
16604-76010	HZB4#,5#..WC	07/1999 - 08/2004	1
88444 - BRACKET, IDLE PULLEY
88444-36150	HZB4#,5#..WC	07/1999 - 08/2004	1
88444-36150	HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(DSL2,TD2)	01/1993 - 07/1999	1
88444-36092	BZB40,50	03/2002 - 08/2004	1
88446 - BOLT, IDLE PULLEY
90099-04306	BB58,BZB40,50..WC	07/1999 - 08/2004	1
90105-08099	HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 07/1999	1
90105-08099	HDB5#,HZB4#,5#..WC	07/1999 - 08/2004	1
88688K - BRACKET, COOLER COMPRESSOR
88688-36610	BB58,BZB40,50..WC	07/1999 - 08/2004	1
88688-36620	BB55,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	02/1997 - 07/1999	1
88688-36620	HDB5#,HZB4#,5#..WC	07/1999 - 08/2004	1
88688-36620	HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1997 - 02/1997	1
Common parts
90091-20608
90099-05163
90099-07132
90119-10360
91511-61030
91512-61030
91512-61050
91512-G1025
93381-15008
