Toyota Coaster HZB50 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
JP
COASTER
HZB50-ZRMES (1993)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

HZB50-ZRMES (1993)

Toyota Coaster

Production Jan 1993 - Aug 2004

Engine 1HZ

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

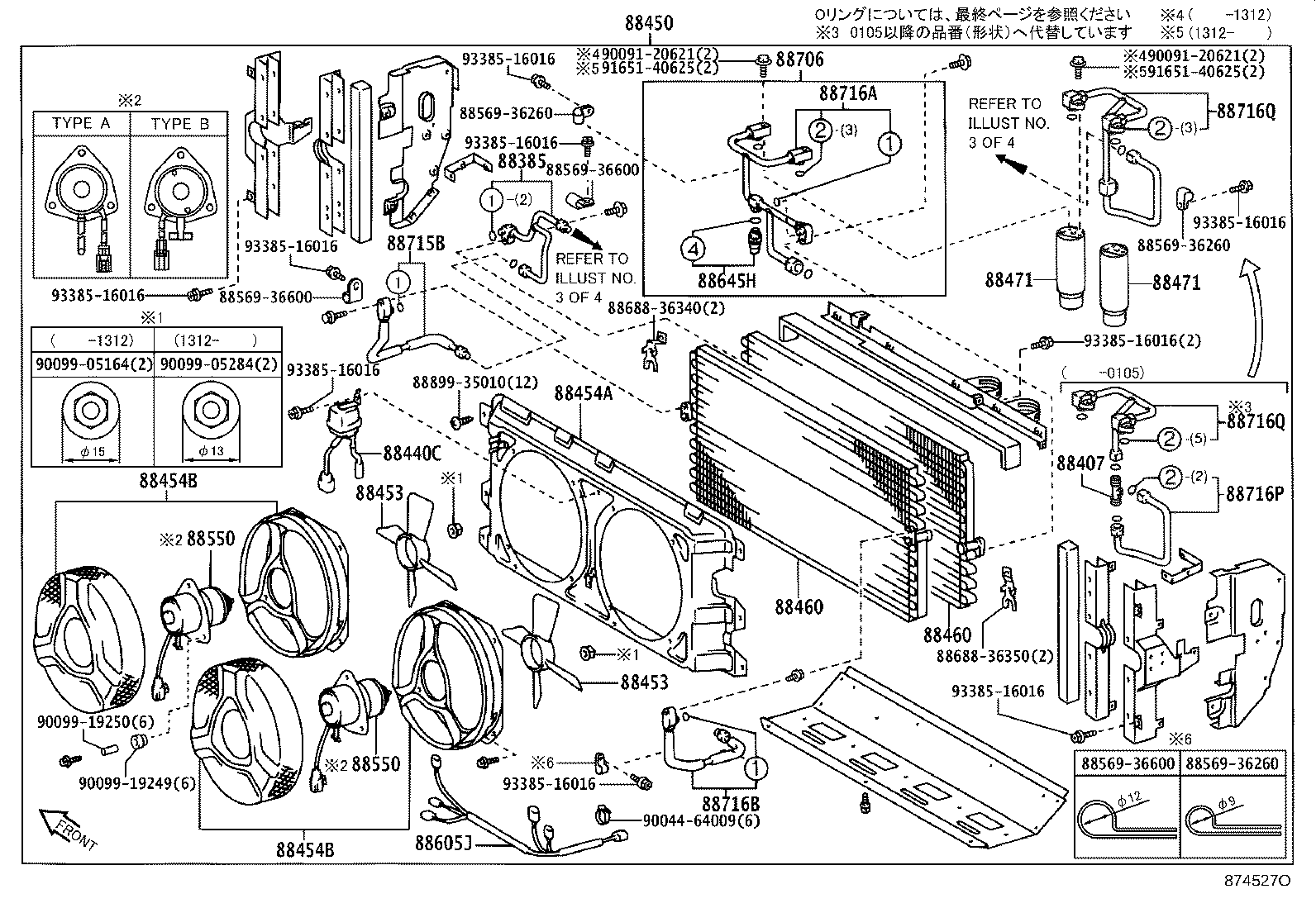

ILLUST NO. 1 OF 4(9301-9506)

Click highlighted areas on diagram

Part #	Description	Period	Qty
88415C - COVER, DUST, NO.1
88415-36060	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	1
88415-36060	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88415D - COVER, DUST, NO.2
88415-36080	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	1
88415-36080	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88415E - COVER, DUST, NO.3
88415-36140	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88415-36100	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 06/1995	1
88415-36140	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	06/1995 - 07/1999	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-36010	HDB5#,HZB5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 06/1995	1
88688-36460	HDB5#,HZB5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	06/1995 - 07/1999	1
88688-36460	HDB5#,HZB5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	07/1999 - 08/2004	1
88688-36870	BZB40,50	03/2002 - 08/2004	1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-36020	HDB5#,HZB5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 06/1995	1
88688-36450	BB5#,HDB5#,HZB5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	06/1995 - 07/1999	1
88688-36880	BZB40,50	03/2002 - 08/2004	1
88688-36450	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88463B - BRACKET, COOLER CONDENSER, NO.3
88463-36060	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 06/1995	2
88688-36490	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	06/1995 - 07/1999	2
88688-36490	HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	2
88463B - BRACKET, COOLER CONDENSER, NO.3
88463-36060	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 06/1995	2
88688-36490	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	06/1995 - 07/1999	2
88688-36490	HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-90B00	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	6
88467-90B00	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	6
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-90B00	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	6
88467-90B00	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	6
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-90B01	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	6
88467-90B01	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	6
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-90B01	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	6
88467-90B01	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	6
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-90B00	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	6
88469-90B00	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	6
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-90B00	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	6
88469-90B00	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	6
Common parts
90119-06100
91621-60614
91651-60816
91651-60840

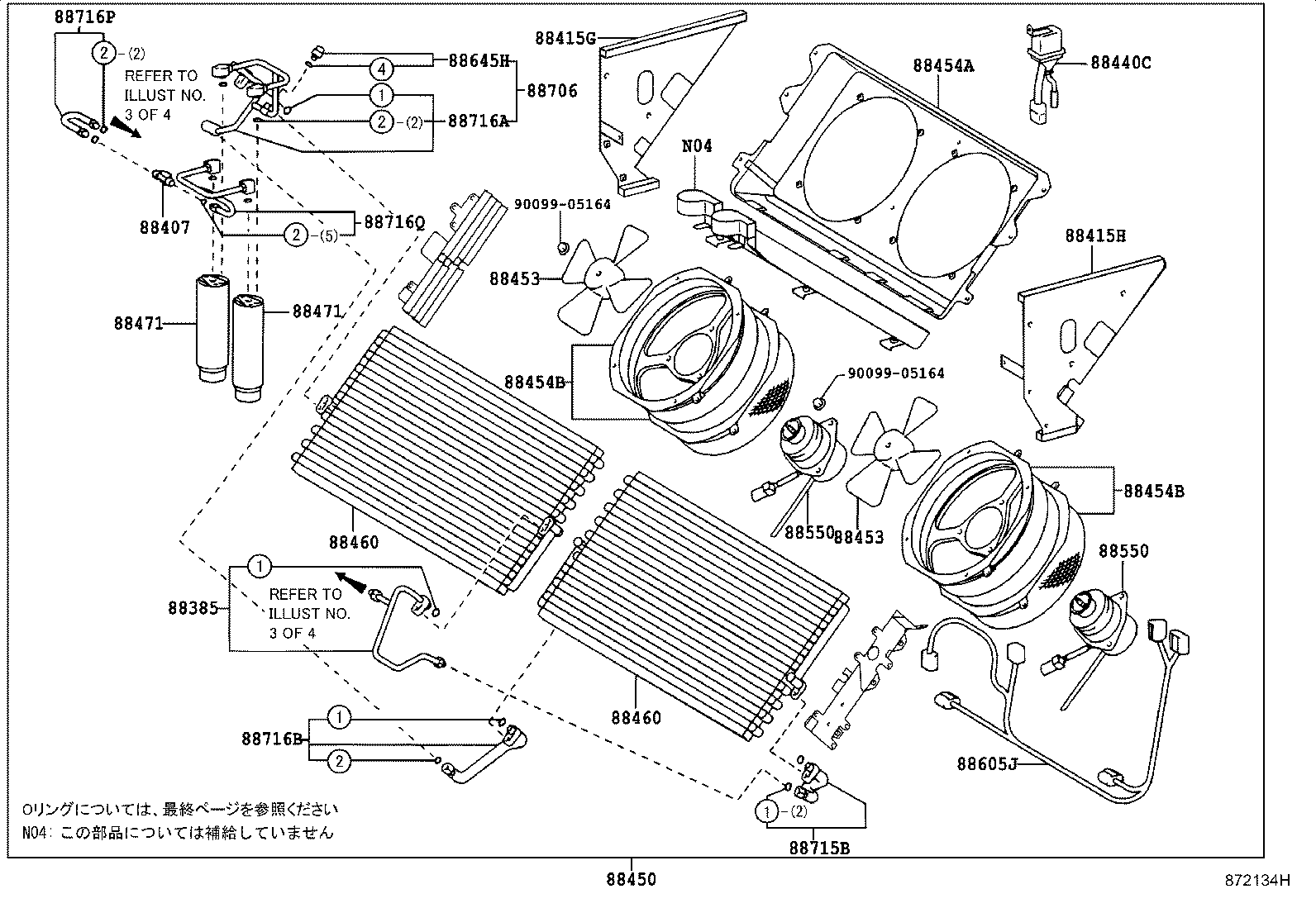

ILLUST NO. 2 OF 4(9301-9506)

Click highlighted areas on diagram

Part #	Description	Period	Qty
88385 - PIPE, COOLER REFRIGERANT DISCHARGE, NO.1
88715-36081	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88715-36081	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	06/1995 - 07/1999	1
88715-36080	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 06/1995	1
88407 - GLASS SUB-ASSY, SIGHT
88407-36020	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 05/2001	1
88407-36020	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) ｲﾗｽﾄ参照	01/1993 - 07/1999	1
88415G - COVER, COOLER CONDENSER DUST, NO.4
88415-36110	BB4#,HDB5#,HZB4#,5#	01/1993 - 06/1995	1
88415H - COVER, COOLER CONDENSER DUST, NO.5
88415-36120	BB4#,HDB5#,HZB4#,5#	01/1993 - 06/1995	1
88440C - RELAY ASSY, COOLER CONDENSER FAN
88440-36150	BZB40,50	03/2002 - 08/2004	1
88440-36160	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88440-36160	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	1
88450 - CONDENSER ASSY, W/RECEIVER
88450-36101	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 04/1993	1
88450-36102	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	04/1993 - 11/1994	1
88450-36200	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	06/1995 - 07/1999	1
88450-36200	HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88450-36140	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	11/1994 - 06/1995	1
88460-36152	BZB40,50	01/2004 - 08/2004	1
88453 - FAN, COOLING (FOR CONDENSER)
16361-13030	BB58,BZB40,50,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	2
16361-13030	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	2
88453 - FAN, COOLING (FOR CONDENSER)
16361-13030	BB58,BZB40,50,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	2
16361-13030	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	2
88454A - SHROUD, FAN
88454-36070	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 06/1995	1
88454-36071	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88454-36071	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	06/1995 - 07/1999	1
88454B - SHROUD, FAN
88454-36081	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	05/1993 - 07/1999	2
88454-36081	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	2
88454-36080	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 05/1993	2
88454B - SHROUD, FAN
88454-36081	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	05/1993 - 07/1999	2
88454-36081	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	2
88454-36080	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 05/1993	2
88460 - CONDENSER ASSY, COOLER
88340-36070	HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	2
88340-36070	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	06/1995 - 07/1999	2
88340-36010	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 06/1995	2
88340-36110	BZB40,50	03/2002 - 08/2004	2
88460 - CONDENSER ASSY, COOLER
88340-36070	HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	2
88340-36070	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	06/1995 - 07/1999	2
88340-36010	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 06/1995	2
88340-36110	BZB40,50	03/2002 - 08/2004	2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-50020	BB58,BZB40,50,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	2
88471-30370	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 03/1994	2
88471-50020	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	04/1994 - 07/1999	2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-50020	BB58,BZB40,50,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	2
88471-30370	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 03/1994	2
88471-50020	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	04/1994 - 07/1999	2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-36030	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC TYPE A:ｲﾗｽﾄ参照	01/1993 - 11/1996	2
88550-36031	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5) TYPE B:ｲﾗｽﾄ参照	07/1999 - 08/2004	2
88550-36031	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) TYPE B:ｲﾗｽﾄ参照	11/1996 - 07/1999	2
88550-36220	BZB40,50	03/2002 - 08/2004	2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-36030	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC TYPE A:ｲﾗｽﾄ参照	01/1993 - 11/1996	2
88550-36031	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5) TYPE B:ｲﾗｽﾄ参照	07/1999 - 08/2004	2
88550-36031	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) TYPE B:ｲﾗｽﾄ参照	11/1996 - 07/1999	2
88550-36220	BZB40,50	03/2002 - 08/2004	2
88605J - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-36170	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 06/1995	1
88605-36171	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	06/1995 - 07/1999	1
88605-36171	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88605-36341	BZB40,50	03/2002 - 08/2004	1
88645H - SWITCH, PRESSURE NO.1
88645-36050	BB58,BZB40,50,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88645-36050	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	11/1994 - 07/1999	1
88645-60030	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 10/1994	1
88706 - PIPE SUB-ASSY, LIQUID
88706-36040	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 10/1994	1
88706-36041	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	11/1994 - 06/1995	1
88706-36042	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88706-36042	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	06/1995 - 07/1999	1
88721-36150	BZB40,50	03/2002 - 08/2004	1
88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B
88715-36091	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	06/1995 - 07/1999	1
88715-36090	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 06/1995	1
88715-36091	HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-36161	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	06/1995 - 07/1999	1
88716-36160	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 06/1995	1
88716-36161	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-36171	HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88716-36171	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	06/1995 - 07/1999	1
88716-36170	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 06/1995	1
88716P - PIPE, COOLER REFRIGERANT LIQUID, P
88716-36281	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) ｲﾗｽﾄ参照	06/1995 - 07/1999	1
88716-36280	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 06/1995	1
88716-36281	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 05/2001	1
88716Q - PIPE, COOLER REFRIGERANT LIQUID, Q
88716-36290	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 06/1995	1
88716-36291	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	06/1995 - 07/1999	1
88716-36291	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 05/2001	1
88716-36292	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	05/2001 - 08/2004	1
Common parts
90099-05164

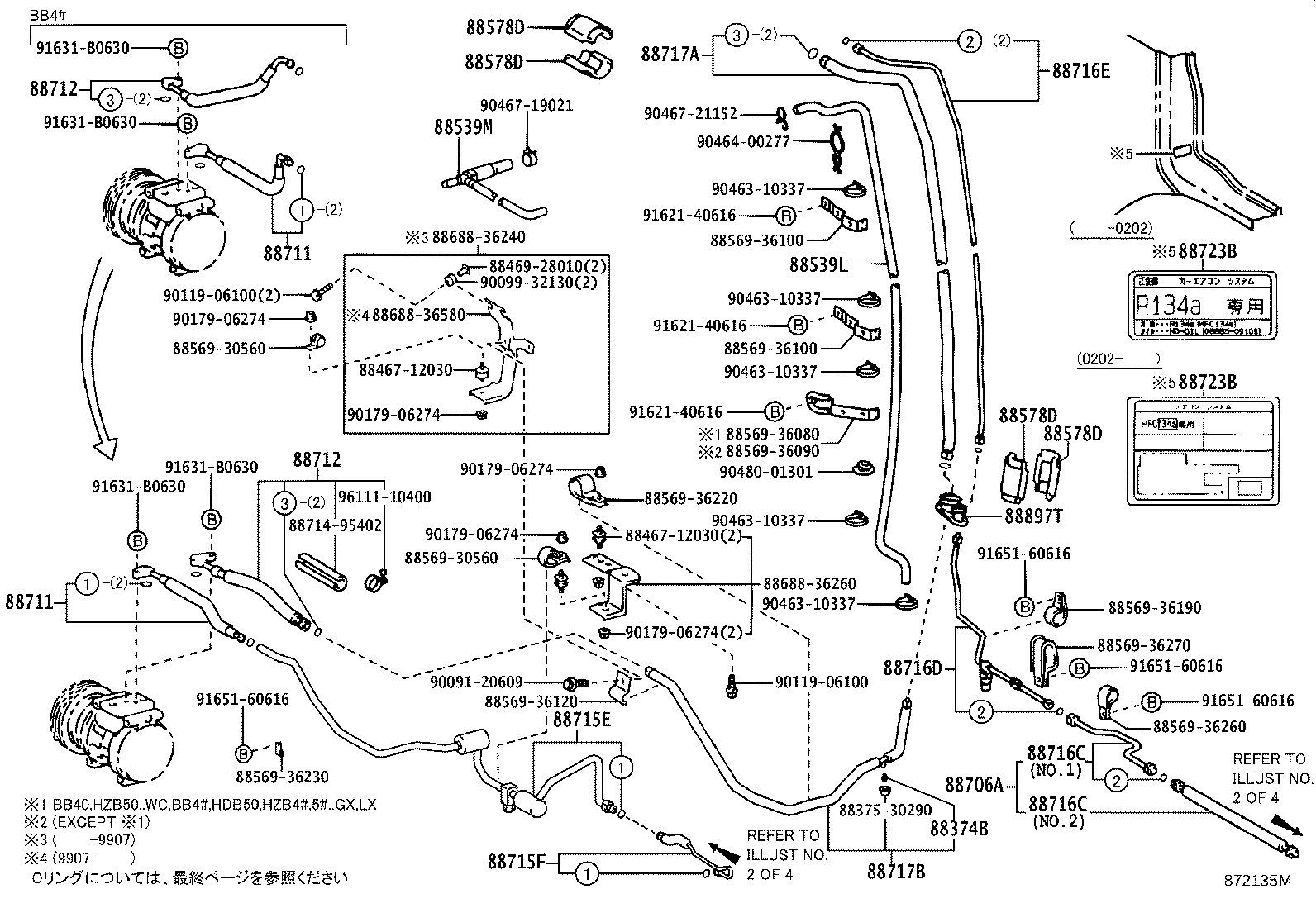

ILLUST NO. 3 OF 4(9301-9907)BB4#,HDB5#,HZB4#,5# ; (9907-0408)HZB4#,5#

Click highlighted areas on diagram

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	09/1994 - 07/1999	1
88374-30010	HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 09/1994	1
88374-30010	BB58,BZB40,50,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88539L - HOSE, DRAIN COOLER
88539-36150	BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5)	07/1999 - 08/2004	1
88539-36150	BB4#,5#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5)	01/1993 - 07/1999	1
88539M - HOSE, DRAIN COOLER, NO.2
88539-36170	HZB40,41..10S,19S;BZB40,50,HDB5#,HZB46..(08S,20S,24S,26S,29S)..(CBU,IV5)	07/1999 - 08/2004	1
88539-36170	BB4#,5#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5)	01/1993 - 07/1999	1
88578D - PACKING, COOLER PIPE, NO.1
88578-90B01	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	4
88578-90B01	BB58,BZB40,50,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	4
88578D - PACKING, COOLER PIPE, NO.1
88578-90B01	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	4
88578-90B01	BB58,BZB40,50,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	4
88578D - PACKING, COOLER PIPE, NO.1
88578-90B01	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	4
88578-90B01	BB58,BZB40,50,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	4
88578D - PACKING, COOLER PIPE, NO.1
88578-90B01	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	4
88578-90B01	BB58,BZB40,50,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	4
88706A - TUBE SUB-ASSY, LIQUID, A
88706-36050	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88706-36050	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	06/1995 - 07/1999	1
88706-36010	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 06/1995	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-36151	HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	04/1993 - 05/1997	1
88711-36480	BZB40,50	03/2002 - 08/2004	1
88711-36150	HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 04/1993	1
88711-36152	HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	05/1997 - 07/1999	1
88711-36530	HZB4#,5#..WC	07/1999 - 08/2004	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-36151	HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	04/1993 - 05/1997	1
88711-36480	BZB40,50	03/2002 - 08/2004	1
88711-36150	HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 04/1993	1
88711-36152	HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	05/1997 - 07/1999	1
88711-36530	HZB4#,5#..WC	07/1999 - 08/2004	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-36150	HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	1
88712-36510	HZB4#,5#..WC	07/1999 - 08/2004	1
88712-36461	BZB40,50	03/2002 - 08/2004	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-36150	HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	1
88712-36510	HZB4#,5#..WC	07/1999 - 08/2004	1
88712-36461	BZB40,50	03/2002 - 08/2004	1
88715E - PIPE, COOLER REFRIGERANT DISCHARGE, E
88715-36140	HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 04/1993	1
88715-36141	HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	04/1993 - 07/1999	1
88715-36320	BZB40,50	03/2002 - 08/2004	1
88715-36571	BZB40,50 NO.2	03/2002 - 08/2004	1
88715-36141	HZB4#,5#..WC	07/1999 - 08/2004	1
88715F - PIPE, COOLER REFRIGERANT DISCHARGE, F
88715-36130	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	1
88715-36130	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88715-36561	BZB40,50	03/2002 - 08/2004	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-36260	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5) NO.2	07/1999 - 08/2004	1
88716-36320	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) NO.1	06/1995 - 07/1999	1
88716-36140	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC NO.1	01/1993 - 06/1995	1
88716-36511	BZB40,50 NO.1	03/2002 - 08/2004	1
88716-36520	BZB40,50 NO.2	03/2002 - 08/2004	1
88716-36320	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5) NO.1	07/1999 - 08/2004	1
88716-36260	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) NO.2	01/1993 - 07/1999	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-36260	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5) NO.2	07/1999 - 08/2004	1
88716-36320	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) NO.1	06/1995 - 07/1999	1
88716-36140	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC NO.1	01/1993 - 06/1995	1
88716-36511	BZB40,50 NO.1	03/2002 - 08/2004	1
88716-36520	BZB40,50 NO.2	03/2002 - 08/2004	1
88716-36320	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5) NO.1	07/1999 - 08/2004	1
88716-36260	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) NO.2	01/1993 - 07/1999	1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-36492	BZB40,50 NO.2	03/2002 - 08/2004	1
88716-36150	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88716-36150	BZB40,50 NO.1	03/2002 - 08/2004	1
88716-36150	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-36220	BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5)	07/1999 - 08/2004	1
88716-36220	BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5)	01/1993 - 07/1999	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-36110	BB4#,5#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5)	01/1993 - 07/1999	1
88717-36110	BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5)	07/1999 - 08/2004	1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-36160	HZB4#,5#..WC	07/1999 - 08/2004	1
88717-36230	BZB40,50	03/2002 - 08/2004	1
88717-36160	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	1
88723B - LABEL, COOLER SERVICE CAUTION
88733-36020	BZB40,50,HDB5#,HZB4#,5#..WC	02/2002 - 08/2004	1
88723-20030	BB58,HDB5#,HZB4#,5#..WC	07/1999 - 02/2002	1
88723-20030	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	1
88723B - LABEL, COOLER SERVICE CAUTION
88733-36020	BZB40,50,HDB5#,HZB4#,5#..WC	02/2002 - 08/2004	1
88723-20030	BB58,HDB5#,HZB4#,5#..WC	07/1999 - 02/2002	1
88723-20030	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	1
88897T - GROMMET, COOLER
88897-36040	BB58,BZB40,50,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88897-36040	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	1
Common parts
88375-30290
88467-12030
88469-28010
88569-30560
88569-36080
88569-36090
88569-36100
88569-36120
88569-36190
88569-36220
88569-36230
88569-36260
88569-36270
88688-36240
88688-36260
88688-36580
88714-95402
90091-20609
90099-32130
90119-06100
90179-06274
90463-10337
90464-00277
90467-19021
90467-21152
90480-01301
91621-40616
91631-B0630
91651-60616
96111-10400

ILLUST NO. 1 OF 4(9506- )BB4#,5#,HDB5#,HZB4#,5#,XZB4#,5#

Click highlighted areas on diagram

Part #	Description	Period	Qty
88415C - COVER, DUST, NO.1
88415-36060	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	1
88415-36060	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88415D - COVER, DUST, NO.2
88415-36080	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	1
88415-36080	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88415E - COVER, DUST, NO.3
88415-36140	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88415-36100	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 06/1995	1
88415-36140	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	06/1995 - 07/1999	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-36010	HDB5#,HZB5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 06/1995	1
88688-36460	HDB5#,HZB5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	06/1995 - 07/1999	1
88688-36460	HDB5#,HZB5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	07/1999 - 08/2004	1
88688-36870	BZB40,50	03/2002 - 08/2004	1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-36020	HDB5#,HZB5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 06/1995	1
88688-36450	BB5#,HDB5#,HZB5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	06/1995 - 07/1999	1
88688-36880	BZB40,50	03/2002 - 08/2004	1
88688-36450	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88463B - BRACKET, COOLER CONDENSER, NO.3
88463-36060	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 06/1995	2
88688-36490	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	06/1995 - 07/1999	2
88688-36490	HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	2
88463B - BRACKET, COOLER CONDENSER, NO.3
88463-36060	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 06/1995	2
88688-36490	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	06/1995 - 07/1999	2
88688-36490	HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-90B00	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	6
88467-90B00	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	6
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-90B00	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	6
88467-90B00	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	6
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-90B01	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	6
88467-90B01	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	6
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-90B01	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	6
88467-90B01	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	6
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-90B00	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	6
88469-90B00	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	6
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-90B00	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	6
88469-90B00	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	6
Common parts
91553-80840
91621-60614
91651-60816

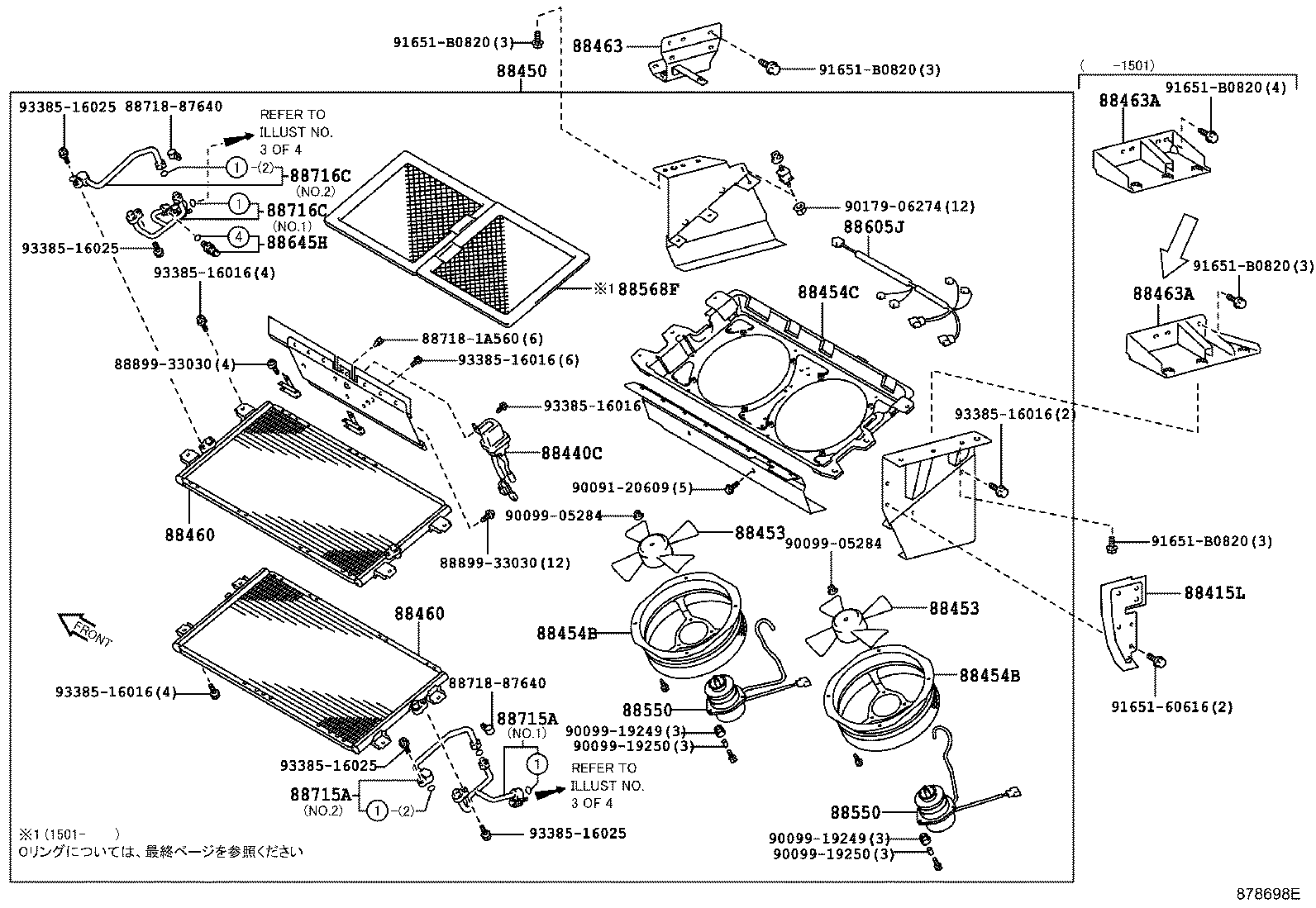

ILLUST NO. 2 OF 4(9506- )BB4#,5#,HDB5#,HZB4#,5# ; (1501- )XZB4#,5#

Click highlighted areas on diagram

Part #	Description	Period	Qty
88385 - PIPE, COOLER REFRIGERANT DISCHARGE, NO.1
88715-36081	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88715-36081	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	06/1995 - 07/1999	1
88715-36080	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 06/1995	1
88407 - GLASS SUB-ASSY, SIGHT
88407-36020	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 05/2001	1
88407-36020	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) ｲﾗｽﾄ参照	01/1993 - 07/1999	1
88440C - RELAY ASSY, COOLER CONDENSER FAN
88440-36150	BZB40,50	03/2002 - 08/2004	1
88440-36160	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88440-36160	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	1
88450 - CONDENSER ASSY, W/RECEIVER
88450-36101	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 04/1993	1
88450-36102	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	04/1993 - 11/1994	1
88450-36200	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	06/1995 - 07/1999	1
88450-36200	HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88450-36140	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	11/1994 - 06/1995	1
88460-36152	BZB40,50	01/2004 - 08/2004	1
88453 - FAN, COOLING (FOR CONDENSER)
16361-13030	BB58,BZB40,50,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	2
16361-13030	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	2
88453 - FAN, COOLING (FOR CONDENSER)
16361-13030	BB58,BZB40,50,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	2
16361-13030	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	2
88454A - SHROUD, FAN
88454-36070	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 06/1995	1
88454-36071	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88454-36071	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	06/1995 - 07/1999	1
88454B - SHROUD, FAN
88454-36081	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	05/1993 - 07/1999	2
88454-36081	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	2
88454-36080	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 05/1993	2
88454B - SHROUD, FAN
88454-36081	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	05/1993 - 07/1999	2
88454-36081	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	2
88454-36080	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 05/1993	2
88460 - CONDENSER ASSY, COOLER
88340-36070	HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	2
88340-36070	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	06/1995 - 07/1999	2
88340-36010	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 06/1995	2
88340-36110	BZB40,50	03/2002 - 08/2004	2
88460 - CONDENSER ASSY, COOLER
88340-36070	HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	2
88340-36070	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	06/1995 - 07/1999	2
88340-36010	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 06/1995	2
88340-36110	BZB40,50	03/2002 - 08/2004	2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-50020	BB58,BZB40,50,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	2
88471-30370	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 03/1994	2
88471-50020	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	04/1994 - 07/1999	2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-50020	BB58,BZB40,50,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	2
88471-30370	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 03/1994	2
88471-50020	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	04/1994 - 07/1999	2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-36030	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC TYPE A:ｲﾗｽﾄ参照	01/1993 - 11/1996	2
88550-36031	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5) TYPE B:ｲﾗｽﾄ参照	07/1999 - 08/2004	2
88550-36031	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) TYPE B:ｲﾗｽﾄ参照	11/1996 - 07/1999	2
88550-36220	BZB40,50	03/2002 - 08/2004	2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-36030	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC TYPE A:ｲﾗｽﾄ参照	01/1993 - 11/1996	2
88550-36031	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5) TYPE B:ｲﾗｽﾄ参照	07/1999 - 08/2004	2
88550-36031	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) TYPE B:ｲﾗｽﾄ参照	11/1996 - 07/1999	2
88550-36220	BZB40,50	03/2002 - 08/2004	2
88605J - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-36170	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 06/1995	1
88605-36171	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	06/1995 - 07/1999	1
88605-36171	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88605-36341	BZB40,50	03/2002 - 08/2004	1
88645H - SWITCH, PRESSURE NO.1
88645-36050	BB58,BZB40,50,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88645-36050	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	11/1994 - 07/1999	1
88645-60030	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 10/1994	1
88706 - PIPE SUB-ASSY, LIQUID
88706-36040	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 10/1994	1
88706-36041	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	11/1994 - 06/1995	1
88706-36042	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88706-36042	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	06/1995 - 07/1999	1
88721-36150	BZB40,50	03/2002 - 08/2004	1
88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B
88715-36091	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	06/1995 - 07/1999	1
88715-36090	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 06/1995	1
88715-36091	HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-36161	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	06/1995 - 07/1999	1
88716-36160	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 06/1995	1
88716-36161	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-36171	HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88716-36171	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	06/1995 - 07/1999	1
88716-36170	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 06/1995	1
88716P - PIPE, COOLER REFRIGERANT LIQUID, P
88716-36281	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) ｲﾗｽﾄ参照	06/1995 - 07/1999	1
88716-36280	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 06/1995	1
88716-36281	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 05/2001	1
88716Q - PIPE, COOLER REFRIGERANT LIQUID, Q
88716-36290	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 06/1995	1
88716-36291	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	06/1995 - 07/1999	1
88716-36291	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 05/2001	1
88716-36292	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	05/2001 - 08/2004	1
88716Q - PIPE, COOLER REFRIGERANT LIQUID, Q
88716-36290	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 06/1995	1
88716-36291	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	06/1995 - 07/1999	1
88716-36291	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 05/2001	1
88716-36292	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	05/2001 - 08/2004	1
Common parts
88569-36260
88569-36600
88688-36340
88688-36350
88899-35010
90044-64009
90091-20621
90099-05164
90099-05284
90099-19249
90099-19250
91651-40625
93385-16016

ILLUST NO. 4 OF 4(9301- )

Click highlighted areas on diagram

Oﾘﾝｸﾞ

Part #	Description	Period	Qty	Price
Common parts
90099-14119
90099-14120
90099-14122
90099-14126

ILLUST NO. 3 OF 4(0203-0408)BZB40,50

Click highlighted areas on diagram

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 09/1994	1
88374-30010	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	09/1994 - 07/1999	1
88374-30010	BB58,BZB40,50,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30290	BB58,BZB40,50,HDB5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-50020	BB58,BZB40,50,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	2
88471-30370	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 03/1994	2
88471-50020	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	04/1994 - 07/1999	2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-50020	BB58,BZB40,50,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	2
88471-30370	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 03/1994	2
88471-50020	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	04/1994 - 07/1999	2
88539L - HOSE, DRAIN COOLER
88539-36150	BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5)	07/1999 - 08/2004	1
88539-36150	BB4#,5#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5)	01/1993 - 07/1999	1
88539M - HOSE, DRAIN COOLER, NO.2
88539-36170	HZB40,41..10S,19S;BZB40,50,HDB5#,HZB46..(08S,20S,24S,26S,29S)..(CBU,IV5)	07/1999 - 08/2004	1
88539-36170	BB4#,5#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5)	01/1993 - 07/1999	1
88578D - PACKING, COOLER PIPE, NO.1
88578-90B01	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	4
88578-90B01	BB58,BZB40,50,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	4
88578D - PACKING, COOLER PIPE, NO.1
88578-90B01	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	4
88578-90B01	BB58,BZB40,50,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	4
88578D - PACKING, COOLER PIPE, NO.1
88578-90B01	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	4
88578-90B01	BB58,BZB40,50,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	4
88578D - PACKING, COOLER PIPE, NO.1
88578-90B01	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	4
88578-90B01	BB58,BZB40,50,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	4
88705 - PIPE SUB-ASSY, DISCHARGE
88705-36191	BZB40,50	03/2002 - 08/2004	1
88706 - PIPE SUB-ASSY, LIQUID
88706-36040	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 10/1994	1
88706-36041	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	11/1994 - 06/1995	1
88706-36042	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88706-36042	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	06/1995 - 07/1999	1
88721-36150	BZB40,50	03/2002 - 08/2004	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-36151	HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	04/1993 - 05/1997	1
88711-36480	BZB40,50	03/2002 - 08/2004	1
88711-36150	HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 04/1993	1
88711-36152	HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	05/1997 - 07/1999	1
88711-36530	HZB4#,5#..WC	07/1999 - 08/2004	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-36150	HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	1
88712-36510	HZB4#,5#..WC	07/1999 - 08/2004	1
88712-36461	BZB40,50	03/2002 - 08/2004	1
88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B
88715-36091	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	06/1995 - 07/1999	1
88715-36090	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 06/1995	1
88715-36091	HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88715E - PIPE, COOLER REFRIGERANT DISCHARGE, E
88715-36140	HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 04/1993	1
88715-36141	HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	04/1993 - 07/1999	1
88715-36320	BZB40,50	03/2002 - 08/2004	1
88715-36571	BZB40,50 NO.2	03/2002 - 08/2004	1
88715-36141	HZB4#,5#..WC	07/1999 - 08/2004	1
88715E - PIPE, COOLER REFRIGERANT DISCHARGE, E
88715-36140	HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 04/1993	1
88715-36141	HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	04/1993 - 07/1999	1
88715-36320	BZB40,50	03/2002 - 08/2004	1
88715-36571	BZB40,50 NO.2	03/2002 - 08/2004	1
88715-36141	HZB4#,5#..WC	07/1999 - 08/2004	1
88715F - PIPE, COOLER REFRIGERANT DISCHARGE, F
88715-36130	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	1
88715-36130	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88715-36561	BZB40,50	03/2002 - 08/2004	1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-36492	BZB40,50 NO.2	03/2002 - 08/2004	1
88716-36150	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88716-36150	BZB40,50 NO.1	03/2002 - 08/2004	1
88716-36150	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-36492	BZB40,50 NO.2	03/2002 - 08/2004	1
88716-36150	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88716-36150	BZB40,50 NO.1	03/2002 - 08/2004	1
88716-36150	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-36220	BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5)	07/1999 - 08/2004	1
88716-36220	BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5)	01/1993 - 07/1999	1
88716H - PIPE, COOLER REFRIGERANT LIQUID, H
88716-36482	BZB40,50	03/2002 - 08/2004	1
88716J - PIPE, COOLER REFRIGERANT LIQUID, J
88716-36470	BZB40,50	03/2002 - 08/2004	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-36110	BB4#,5#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5)	01/1993 - 07/1999	1
88717-36110	BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5)	07/1999 - 08/2004	1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-36160	HZB4#,5#..WC	07/1999 - 08/2004	1
88717-36230	BZB40,50	03/2002 - 08/2004	1
88717-36160	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	1
88723B - LABEL, COOLER SERVICE CAUTION
88733-36020	BZB40,50,HDB5#,HZB4#,5#..WC	02/2002 - 08/2004	1
88723-20030	BB58,HDB5#,HZB4#,5#..WC	07/1999 - 02/2002	1
88723-20030	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	1
88723B - LABEL, COOLER SERVICE CAUTION
88733-36020	BZB40,50,HDB5#,HZB4#,5#..WC	02/2002 - 08/2004	1
88723-20030	BB58,HDB5#,HZB4#,5#..WC	07/1999 - 02/2002	1
88723-20030	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	1
88897T - GROMMET, COOLER
88897-36040	BB58,BZB40,50,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88897-36040	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	1
Common parts
15188-87101
87127-28030
88467-12030
88469-28010
88569-30560
88569-36080
88569-36100
88569-36120
88569-36190
88569-36220
88569-36260
88569-36490
88569-36500
88569-36510
88688-36260
88688-36590
88688-36890
88688-3B020
88688-3B031
88688-3B041
88718-2B290
88718-6A140
88718-87640
90091-20609
90091-20621
90099-32130
90119-06100
90179-06206
90179-06274
90463-10337
90464-00277
90467-19021
90467-21152
90480-01301
91621-40616
91631-B0630
91651-60616
93381-16016
93385-16016
96111-10400
Linked diagrams
8719

ILLUST NO. 2 OF 4(0203- )BZB40,50

Click highlighted areas on diagram

Part #	Description	Period	Qty
88415L - COVER, DUST, NO.8
88415-36180	BZB40,50	03/2002 - 08/2004	1
88440C - RELAY ASSY, COOLER CONDENSER FAN
88440-36150	BZB40,50	03/2002 - 08/2004	1
88440-36160	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88440-36160	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	1
88450 - CONDENSER ASSY, W/RECEIVER
88450-36101	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 04/1993	1
88450-36102	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	04/1993 - 11/1994	1
88450-36200	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	06/1995 - 07/1999	1
88450-36200	HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88450-36140	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	11/1994 - 06/1995	1
88460-36152	BZB40,50	01/2004 - 08/2004	1
88453 - FAN, COOLING (FOR CONDENSER)
16361-13030	BB58,BZB40,50,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	2
16361-13030	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	2
88453 - FAN, COOLING (FOR CONDENSER)
16361-13030	BB58,BZB40,50,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	2
16361-13030	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	2
88454B - SHROUD, FAN
88454-36081	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	05/1993 - 07/1999	2
88454-36081	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	2
88454-36080	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 05/1993	2
88454B - SHROUD, FAN
88454-36081	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	05/1993 - 07/1999	2
88454-36081	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	2
88454-36080	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 05/1993	2
88454C - SHROUD, COOLER CONDENSER FAN NO.3
88454-36130	BZB40,50	03/2002 - 08/2004	1
88460 - CONDENSER ASSY, COOLER
88340-36070	HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	2
88340-36070	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	06/1995 - 07/1999	2
88340-36010	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 06/1995	2
88340-36110	BZB40,50	03/2002 - 08/2004	2
88460 - CONDENSER ASSY, COOLER
88340-36070	HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	2
88340-36070	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	06/1995 - 07/1999	2
88340-36010	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 06/1995	2
88340-36110	BZB40,50	03/2002 - 08/2004	2
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-36010	HDB5#,HZB5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 06/1995	1
88688-36460	HDB5#,HZB5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	06/1995 - 07/1999	1
88688-36460	HDB5#,HZB5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	07/1999 - 08/2004	1
88688-36870	BZB40,50	03/2002 - 08/2004	1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-36020	HDB5#,HZB5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 06/1995	1
88688-36450	BB5#,HDB5#,HZB5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	06/1995 - 07/1999	1
88688-36880	BZB40,50	03/2002 - 08/2004	1
88688-36450	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-36020	HDB5#,HZB5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 06/1995	1
88688-36450	BB5#,HDB5#,HZB5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	06/1995 - 07/1999	1
88688-36880	BZB40,50	03/2002 - 08/2004	1
88688-36450	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-36030	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC TYPE A:ｲﾗｽﾄ参照	01/1993 - 11/1996	2
88550-36031	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5) TYPE B:ｲﾗｽﾄ参照	07/1999 - 08/2004	2
88550-36031	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) TYPE B:ｲﾗｽﾄ参照	11/1996 - 07/1999	2
88550-36220	BZB40,50	03/2002 - 08/2004	2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-36030	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC TYPE A:ｲﾗｽﾄ参照	01/1993 - 11/1996	2
88550-36031	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5) TYPE B:ｲﾗｽﾄ参照	07/1999 - 08/2004	2
88550-36031	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) TYPE B:ｲﾗｽﾄ参照	11/1996 - 07/1999	2
88550-36220	BZB40,50	03/2002 - 08/2004	2
88605J - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-36170	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 06/1995	1
88605-36171	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	06/1995 - 07/1999	1
88605-36171	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88605-36341	BZB40,50	03/2002 - 08/2004	1
88645H - SWITCH, PRESSURE NO.1
88645-36050	BB58,BZB40,50,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
88645-36050	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	11/1994 - 07/1999	1
88645-60030	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 10/1994	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-36601	BZB40,50 NO.1	03/2002 - 08/2004	1
88715-36610	BZB40,50 NO.2	03/2002 - 08/2004	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-36601	BZB40,50 NO.1	03/2002 - 08/2004	1
88715-36610	BZB40,50 NO.2	03/2002 - 08/2004	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-36260	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5) NO.2	07/1999 - 08/2004	1
88716-36320	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) NO.1	06/1995 - 07/1999	1
88716-36140	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC NO.1	01/1993 - 06/1995	1
88716-36511	BZB40,50 NO.1	03/2002 - 08/2004	1
88716-36520	BZB40,50 NO.2	03/2002 - 08/2004	1
88716-36320	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5) NO.1	07/1999 - 08/2004	1
88716-36260	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) NO.2	01/1993 - 07/1999	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-36260	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5) NO.2	07/1999 - 08/2004	1
88716-36320	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) NO.1	06/1995 - 07/1999	1
88716-36140	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC NO.1	01/1993 - 06/1995	1
88716-36511	BZB40,50 NO.1	03/2002 - 08/2004	1
88716-36520	BZB40,50 NO.2	03/2002 - 08/2004	1
88716-36320	BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5) NO.1	07/1999 - 08/2004	1
88716-36260	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) NO.2	01/1993 - 07/1999	1
Common parts
88718-1A560
88718-87640
88899-33030
90091-20609
90099-05284
90099-19249
90099-19250
90179-06274
91651-60616
91651-B0820
93385-16016
93385-16025

HZB50-ZRMES (1993)

ILLUST NO. 1 OF 4(9301-9506)

ILLUST NO. 2 OF 4(9301-9506)

ILLUST NO. 3 OF 4(9301-9907)BB4#,HDB5#,HZB4#,5# ; (9907-0408)HZB4#,5#

ILLUST NO. 1 OF 4(9506- )BB4#,5#,HDB5#,HZB4#,5#,XZB4#,5#

ILLUST NO. 2 OF 4(9506- )BB4#,5#,HDB5#,HZB4#,5# ; (1501- )XZB4#,5#

ILLUST NO. 4 OF 4(9301- )

ILLUST NO. 3 OF 4(0203-0408)BZB40,50

ILLUST NO. 2 OF 4(0203- )BZB40,50

Part Price Details
