HZB50-ZRMES (1993)
Toyota Coaster

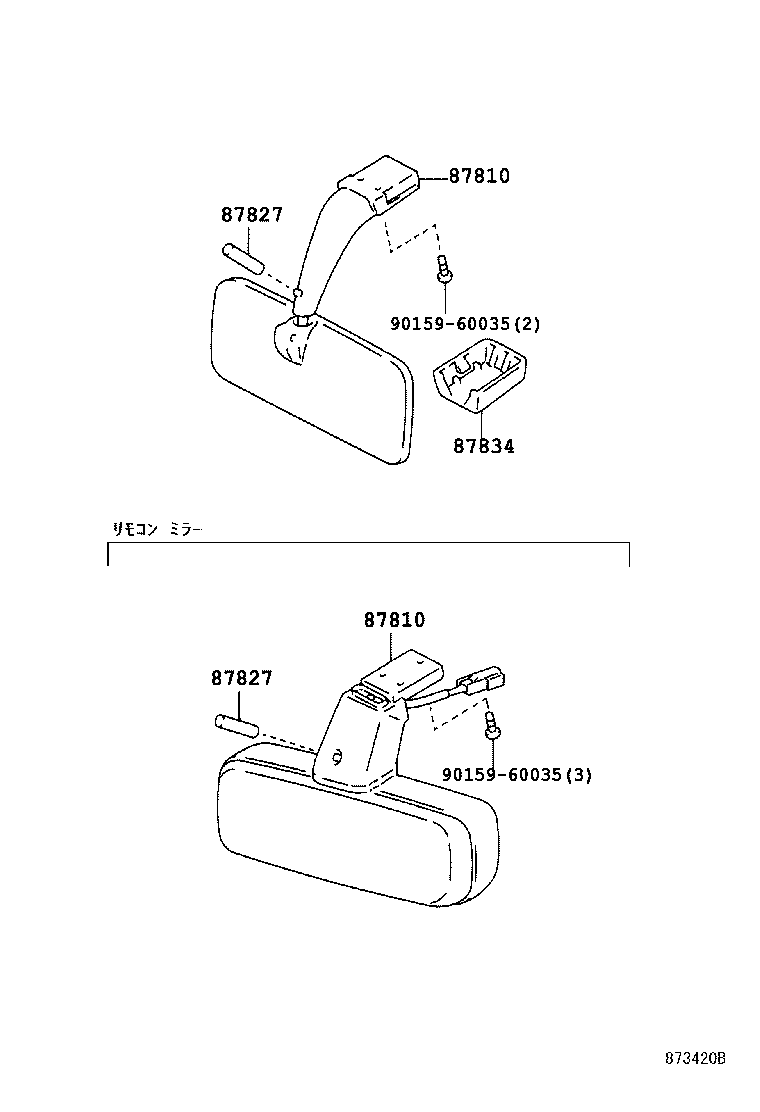

ILLUST NO. 1 OF 3(9301- )
ｲﾝﾅﾐﾗ-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-36010A1 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 IVORY,TRIM4# |
1 | ||
| 87810-36040B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 MD.CHARCOAL,TRIM1# |
1 | ||
| 87810-36040A0 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 IVORY,TRIM4# |
1 | ||
| 87810-36010A0 |
BB4#,HDB5#,HZB4#,5# IVORY,TRIM4# |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-36010A1 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 IVORY,TRIM4# |
1 | ||
| 87810-36040B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 MD.CHARCOAL,TRIM1# |
1 | ||
| 87810-36040A0 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 IVORY,TRIM4# |
1 | ||
| 87810-36010A0 |
BB4#,HDB5#,HZB4#,5# IVORY,TRIM4# |
1 | ||
| 87827 - ABSORBER, INNER REAR VIEW MIRROR | ||||
| 87828-10010 |
BB58,BZB40,50,HDB51,HZB41..CBU,IV5 長さ=40.5 |
1 | ||
| 87828-30010 |
BB58,BZB40,50,HDB51,HZB41..CBU,IV5 L=44.0 |
1 | ||
| 87828-32010 |
BB58,BZB40,50,HDB51,HZB41..CBU,IV5 L=47.0 |
1 | ||
| 87827 - ABSORBER, INNER REAR VIEW MIRROR | ||||
| 87828-10010 |
BB58,BZB40,50,HDB51,HZB41..CBU,IV5 長さ=40.5 |
1 | ||
| 87828-30010 |
BB58,BZB40,50,HDB51,HZB41..CBU,IV5 L=44.0 |
1 | ||
| 87828-32010 |
BB58,BZB40,50,HDB51,HZB41..CBU,IV5 L=47.0 |
1 | ||
| Common parts | ||||
| 90159-60035 | ||||

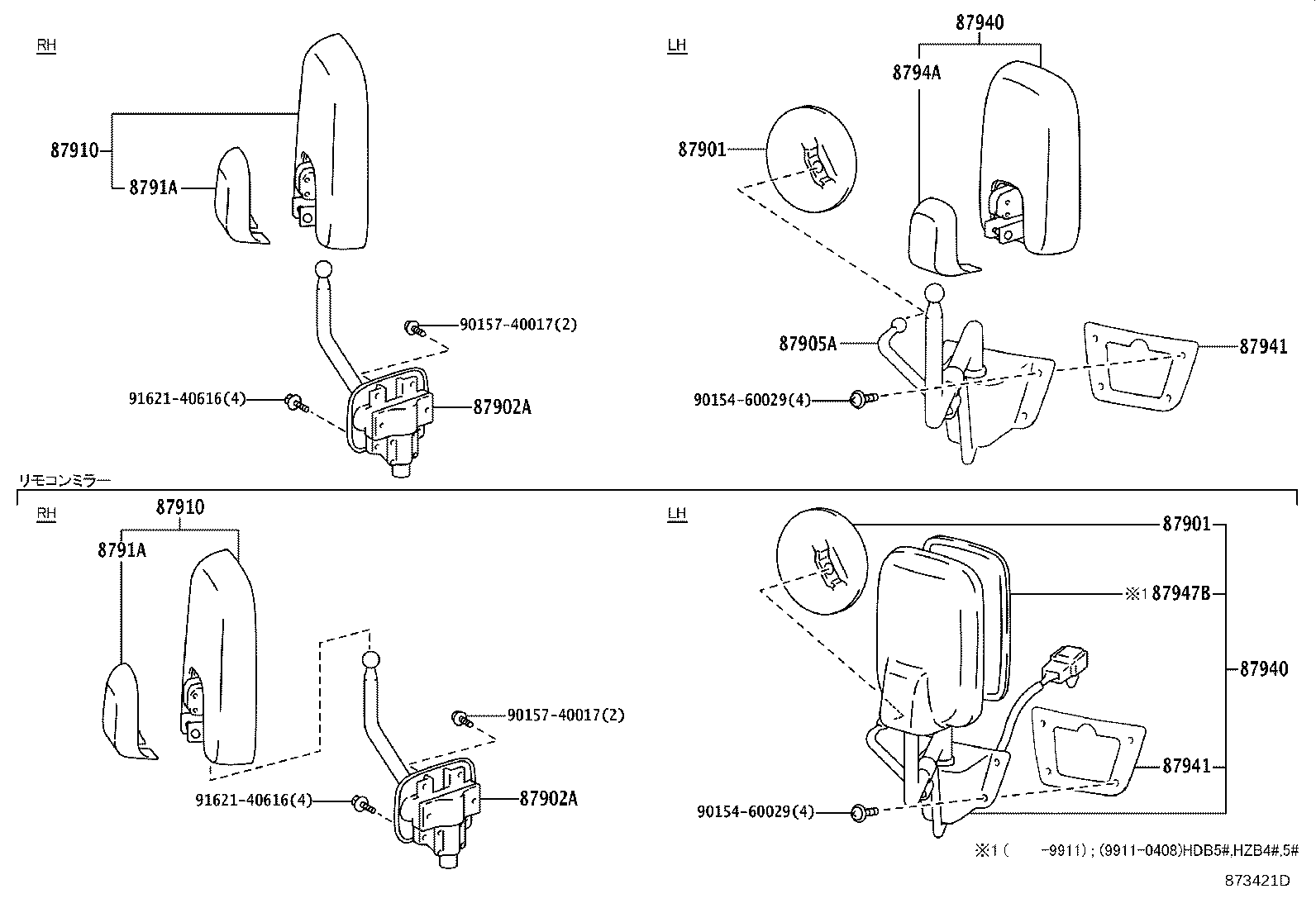

ILLUST NO. 2 OF 3(9301- )
ｱｳﾀﾐﾗ-(ｼｭﾄﾞｳｶｸﾉｳｼｷ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87901 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87097-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87097-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87901 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87097-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87097-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87902A - ARM SUB-ASSY, OUTER REAR VIEW MIRROR, RH | ||||
| 87902-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87902-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87902A - ARM SUB-ASSY, OUTER REAR VIEW MIRROR, RH | ||||
| 87902-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87902-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87905A - ARM SUB-ASSY, OUTER REAR VIEW MIRROR, LH | ||||
| 87905-36020 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87905-36020 |
BB58,BZB40,50,HDB50,HZB40,46,5# |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87901-36030 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 塗装不要 |
1 | ||
| 87901-36030 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 塗装不要 |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87901-36030 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 塗装不要 |
1 | ||
| 87901-36030 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 塗装不要 |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-36030 |
HDB5#,HZB4#,5#..CBU,IV5 塗装不要,ﾘﾓｺﾝ ﾐﾗ- |
1 | ||
| 87901-36030 |
BB4#,5#,HDB5#,HZB4#,5# 塗装不要 |
1 | ||
| 87940-36030 |
BB4#,5#,HDB5#,HZB4#,5# 塗装不要,ﾘﾓｺﾝ ﾐﾗ- |
1 | ||
| 87901-36030 |
BB58,BZB40,50,HDB50,HZB40,46,5# 塗装不要 |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-36030 |
HDB5#,HZB4#,5#..CBU,IV5 塗装不要,ﾘﾓｺﾝ ﾐﾗ- |
1 | ||
| 87901-36030 |
BB4#,5#,HDB5#,HZB4#,5# 塗装不要 |
1 | ||
| 87940-36030 |
BB4#,5#,HDB5#,HZB4#,5# 塗装不要,ﾘﾓｺﾝ ﾐﾗ- |
1 | ||
| 87901-36030 |
BB58,BZB40,50,HDB50,HZB40,46,5# 塗装不要 |
1 | ||
| 87941 - GASKET, OUTER REAR VIEW MIRROR, LH | ||||
| 87911-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87911-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87941 - GASKET, OUTER REAR VIEW MIRROR, LH | ||||
| 87911-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87911-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87947B - MIRROR, OUTER REAR VIEW, LH | ||||
| 87947-90B07 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87947-90B07 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| Common parts | ||||
| 90154-60029 | ||||
| 90157-40017 | ||||
| 91621-40616 | ||||

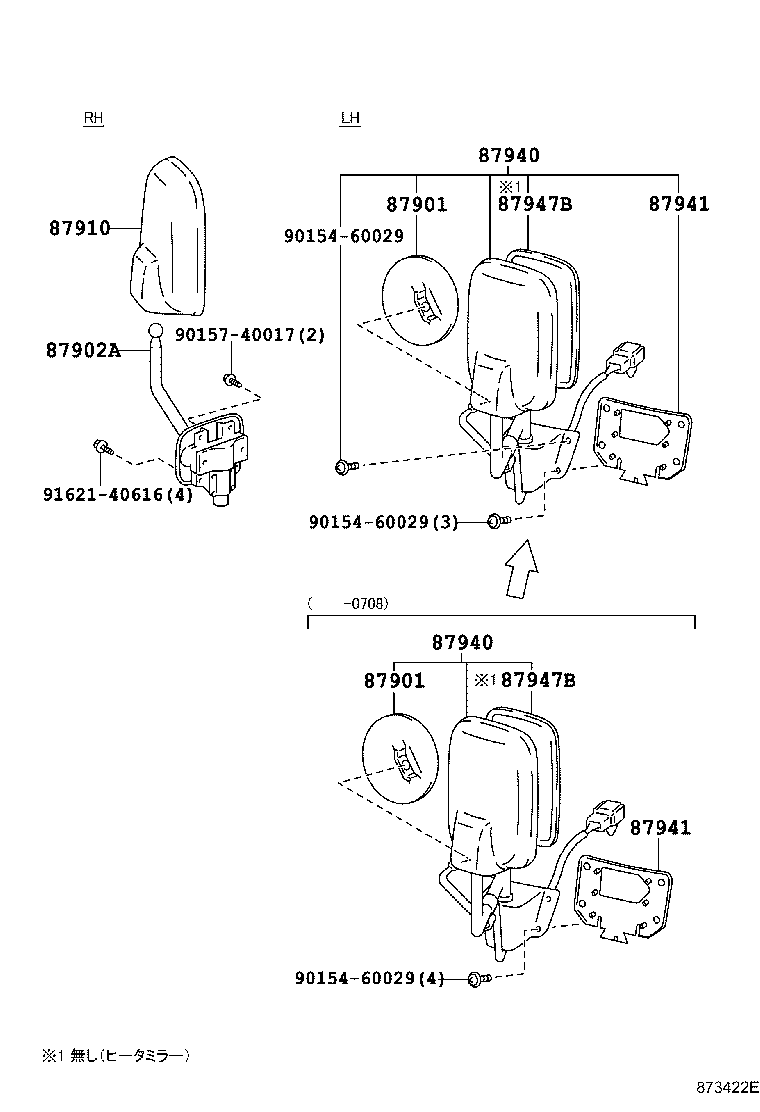

ILLUST NO. 2 OF 3(9301- )
ｱｳﾀﾐﾗ-(ﾃﾞﾝﾄﾞｳｶｸﾉｳｼｷ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87901 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87097-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87097-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87901 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87097-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87097-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87902A - ARM SUB-ASSY, OUTER REAR VIEW MIRROR, RH | ||||
| 87902-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87902-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87901-36030 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 塗装不要 |
1 | ||
| 87901-36030 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 塗装不要 |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-36030 |
HDB5#,HZB4#,5#..CBU,IV5 塗装不要,ﾘﾓｺﾝ ﾐﾗ- |
1 | ||
| 87901-36030 |
BB4#,5#,HDB5#,HZB4#,5# 塗装不要 |
1 | ||
| 87940-36030 |
BB4#,5#,HDB5#,HZB4#,5# 塗装不要,ﾘﾓｺﾝ ﾐﾗ- |
1 | ||
| 87901-36030 |
BB58,BZB40,50,HDB50,HZB40,46,5# 塗装不要 |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-36030 |
HDB5#,HZB4#,5#..CBU,IV5 塗装不要,ﾘﾓｺﾝ ﾐﾗ- |
1 | ||
| 87901-36030 |
BB4#,5#,HDB5#,HZB4#,5# 塗装不要 |
1 | ||
| 87940-36030 |
BB4#,5#,HDB5#,HZB4#,5# 塗装不要,ﾘﾓｺﾝ ﾐﾗ- |
1 | ||
| 87901-36030 |
BB58,BZB40,50,HDB50,HZB40,46,5# 塗装不要 |
1 | ||
| 87941 - GASKET, OUTER REAR VIEW MIRROR, LH | ||||
| 87911-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87911-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87941 - GASKET, OUTER REAR VIEW MIRROR, LH | ||||
| 87911-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87911-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87947B - MIRROR, OUTER REAR VIEW, LH | ||||
| 87947-90B07 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87947-90B07 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87947B - MIRROR, OUTER REAR VIEW, LH | ||||
| 87947-90B07 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87947-90B07 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| Common parts | ||||
| 90154-60029 | ||||
| 90157-40017 | ||||
| 91621-40616 | ||||
ILLUST NO. 3 OF 3(9301- )
ﾘﾔｱﾝﾀﾞﾐﾗ-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87907-36010 |
BB40,55,HDB5#,HZB4#,50 |
1 | ||
| 87907-36020 |
BB40,58,HDB5#,HZB4#,50..CBU |
1 | ||
| 87907-36020 |
BB58,BZB40,50,HDB5#,HZB40,41,50..CBU |
1 | ||
| 87950 - MIRROR ASSY, OUTER UNDER REAR VIEW | ||||
| 87950-36030 |
BB40,58,HDB5#,HZB4#,50..CBU TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 87950-36030 |
BB58,BZB40,50,HDB5#,HZB40,41,50..CBU TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 87950-36010 |
BB40,55,HDB5#,HZB4#,50 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 87950 - MIRROR ASSY, OUTER UNDER REAR VIEW | ||||
| 87950-36030 |
BB40,58,HDB5#,HZB4#,50..CBU TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 87950-36030 |
BB58,BZB40,50,HDB5#,HZB40,41,50..CBU TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 87950-36010 |
BB40,55,HDB5#,HZB4#,50 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 87951 - GASKET, OUTER UNDER REAR VIEW MIRROR | ||||
| 87951-36010 |
BB40,5#,HDB5#,HZB4#,50..CBU |
1 | ||
| 87951-36010 |
BB58,BZB40,50,HDB5#,HZB40,41,50..CBU |
1 | ||
| Common parts | ||||
| 90154-60029 | ||||
