HZB50-ZRMES (1993)
Toyota Coaster

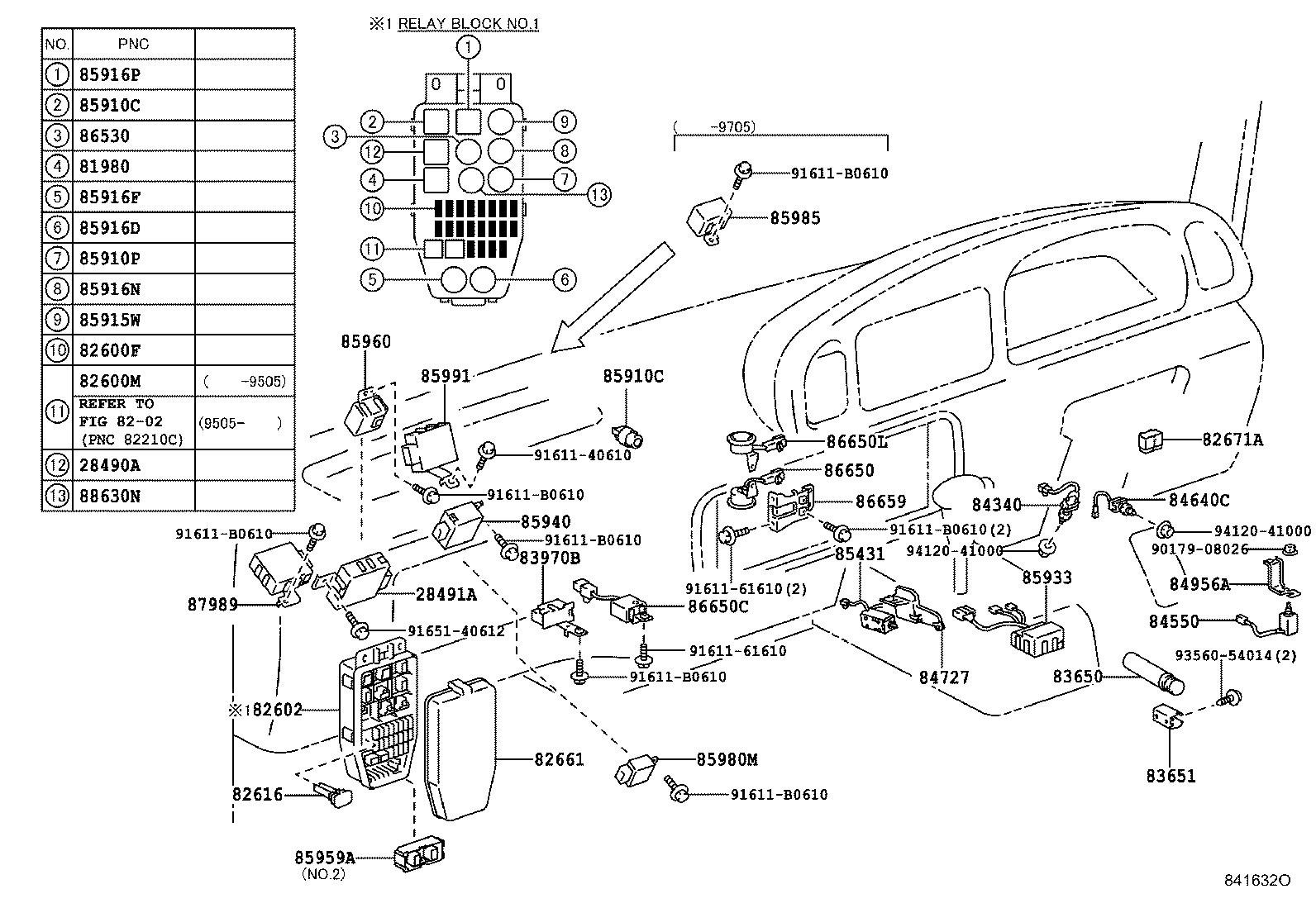

ILLUST NO. 4 OF 8(9301-9907)
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ & ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28490A - RELAY ASSY, EXHAUST RETARDER | ||||
| 28490-56080 |
15BFTE,1H#..BB58,HDB5#,HZB4#,5# |
1 | ||
| 28490-56080 |
15BF,3B,1H#..BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 28491A - COMPUTER, EXHAUST RETARDER | ||||
| 28491-58020 |
3B,1H#..BB4#,HDB5#,HZB4#,5#..MTM |
1 | ||
| 28491-56130 |
3B,1H#..BB4#,HDB5#,HZB4#,5#..5F |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-32010 |
BZB40,50..26S,29S,39S |
1 | ||
| 81980-60010 |
BB58,HDB5#,HZB4#,5#..08S,09S,10S,19S,20S,24S,26S,29S,39S |
1 | ||
| 81980-60010 |
BB4#,5#,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S,39S |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
BB4#,5#,HDB5#,HZB4#,5# 10A |
1 | ||
| 90982-09005 |
BB4#,5#,HDB5#,HZB4#,5# 7.5A |
1 | ||
| 90982-09002 |
BB58,BZB40,50,HDB5#,HZB4#,5# 10A |
1 | ||
| 90982-09004 |
BB4#,5#,HDB5#,HZB4#,5# 20A,黄 |
1 | ||
| 90982-09009 |
BB58,HDB5#,HZB4#,5# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09003 |
BB4#,5#,HDB5#,HZB4#,5# 15A |
1 | ||
| 90982-09004 |
BB58,BZB40,50,HDB5#,HZB4#,5# 20A,黄 |
1 | ||
| 90982-09005 |
BB58,BZB40,50,HDB5#,HZB4#,5# 7.5A |
1 | ||
| 90982-09003 |
BB58,BZB40,50,HDB5#,HZB4#,5# 15A |
1 | ||
| 90982-09011 |
BB58,HDB5#,HZB4#,5# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09008 |
BB58,HDB5#,HZB4#,5# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09010 |
HZB40,50..WC;BB58,BZB40,50,HDB5#,HZB41,46,56 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
BB4#,5#,HDB5#,HZB4#,5# 30A,ﾋﾟﾝｸ |
1 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-36010 |
BZB40,50 |
1 | ||
| 82602-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 82602-36010 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 82616-12010 |
BZB40,50 |
1 | ||
| 82616-12010 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-36080 |
BZB40,50 |
1 | ||
| 82661-36010 |
HZB50..STD..4FC;BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG |
1 | ||
| 82661-36011 |
BB4#,55,HDB5#,HZB4#,5# |
1 | ||
| 82661-36013 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 82661-36012 |
BB4#,58,HDB5#,HZB4#,5# |
1 | ||
| 82661-36014 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-30340 |
BB58,HDB5#,HZB41,50..(EX,GX,LX,SULNG)..(CBU,IV1) |
2 | ||
| 82671-30340 |
HZB50..29S..CBU;BB40,HZB50..(26S,39S,49S)..WOC;BB58,HDB5#,HZB41..WC..(CBU,IV1) |
2 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
BB4#,58,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 90986-01005 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 83651 - CLAMP, FUSEE | ||||
| 62199-90P80 |
BB4#,58,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 62199-90P80 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-36070 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 84340-36071 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 84340-36071 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-36040 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 84550-36040 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 84640C - SWITCH ASSY, EXHAUST RETARDER | ||||
| 84640-36060 |
BB4#,HDB5#,HZB4#,5#..MTM |
2 | ||
| 84640-36060 |
HDB5#,HZB4#,5#..MTM |
2 | ||
| 84956A - BRACKET, HAND BRAKE SIGNAL SWITCH | ||||
| 84956-36040 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 84956-36040 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-90K00 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 85913-90K00 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 90987-04002 |
BZB40,50 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-90K00 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 85913-90K00 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 90987-04002 |
BZB40,50 |
1 | ||
| 85915W - RELAY, AUTOMATIC DOOR | ||||
| 90987-02004 |
BZB40,50 |
1 | ||
| 90987-02005 |
BB58,HDB5#,HZB4#,5#..(09S,10S,19S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 90987-02005 |
HZB40,50..26S,29S;BB4#,HDB5#,HZB41,56..(09S,15S,20S,26S,29S)..CBU |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02005 |
BB4#,58,HDB5#,HZB4#,5# |
1 | ||
| 90987-02005 |
BB58,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG |
1 | ||
| 90987-02005 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG |
1 | ||
| 85916F - RELAY, CORNERING LAMP | ||||
| 90987-02005 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG |
1 | ||
| 90987-02005 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 90987-02005 |
BB4#,58,HDB5#,HZB4#,5# |
1 | ||
| 90987-02004 |
BZB40,50 |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02004 |
BZB40,50 |
1 | ||
| 90987-02005 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 90987-02005 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02007 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 90987-02007 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 90987-02006 |
BZB40,50 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-36040 |
BB4#,5#,HDB50,HZB40,5# |
1 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-36040 |
BZB40,50 NO.2 |
1 | ||
| 85959-36060 |
BB58,BZB40,50,HDB5#,HZB4#,5# NO.1 |
1 | ||
| 85959-36060 |
BB4#,5#,HDB5#,HZB4#,5# NO.1 |
1 | ||
| 85959-36040 |
HZB50..STD..4FC;BB40,HZB50..(39S,49S)..WOC;BB4#,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S NO.2 |
1 | ||
| 85959-36040 |
BB58,HDB5#,HZB4#,5# NO.2 |
1 | ||
| 85959-36040 |
BB4#,5#,HDB5#,HZB4#,5# NO.2 |
1 | ||
| 85985 - RELAY, KEY REMINDER | ||||
| 80590-36020 |
BB4#,55,HDB5#,HZB4#,5# |
1 | ||
| 80590-36030 |
BZB40,50 |
1 | ||
| 85991 - RELAY, SEAT BELT WARNING | ||||
| 85991-36030 |
BB4#,58,HDB5#,HZB4#,5# |
1 | ||
| 85991-36030 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-01004 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 90987-01003 |
BZB40,50 |
1 | ||
| 90987-01004 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 86650 - BUZZER ASSY, VACUUM INDICATOR | ||||
| 86650-36070 |
BZB40,50 |
1 | ||
| 86650-36080 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 86650-36080 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 86650C - BUZZER ASSY, SEDIMENTER WARNING | ||||
| 86650-36040 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 86650-36040 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 86659 - BRACKET, BUZZER | ||||
| 86659-36020 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 86659-36020 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 88630N - RELAY ASSY, COOLER | ||||
| 90987-03002 |
BB58;BB4#,55,HDB5#,HZB4#,5#..WC..(CBU,IV5) |
1 | ||
| 90987-03002 |
HZB4#,5#..WC |
1 | ||
| Common parts | ||||
| 90179-08026 | ||||
| 91611-40610 | ||||
| 91611-61610 | ||||
| 91611-B0610 | ||||
| 91651-40612 | ||||
| 93560-54014 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8202 | ||||

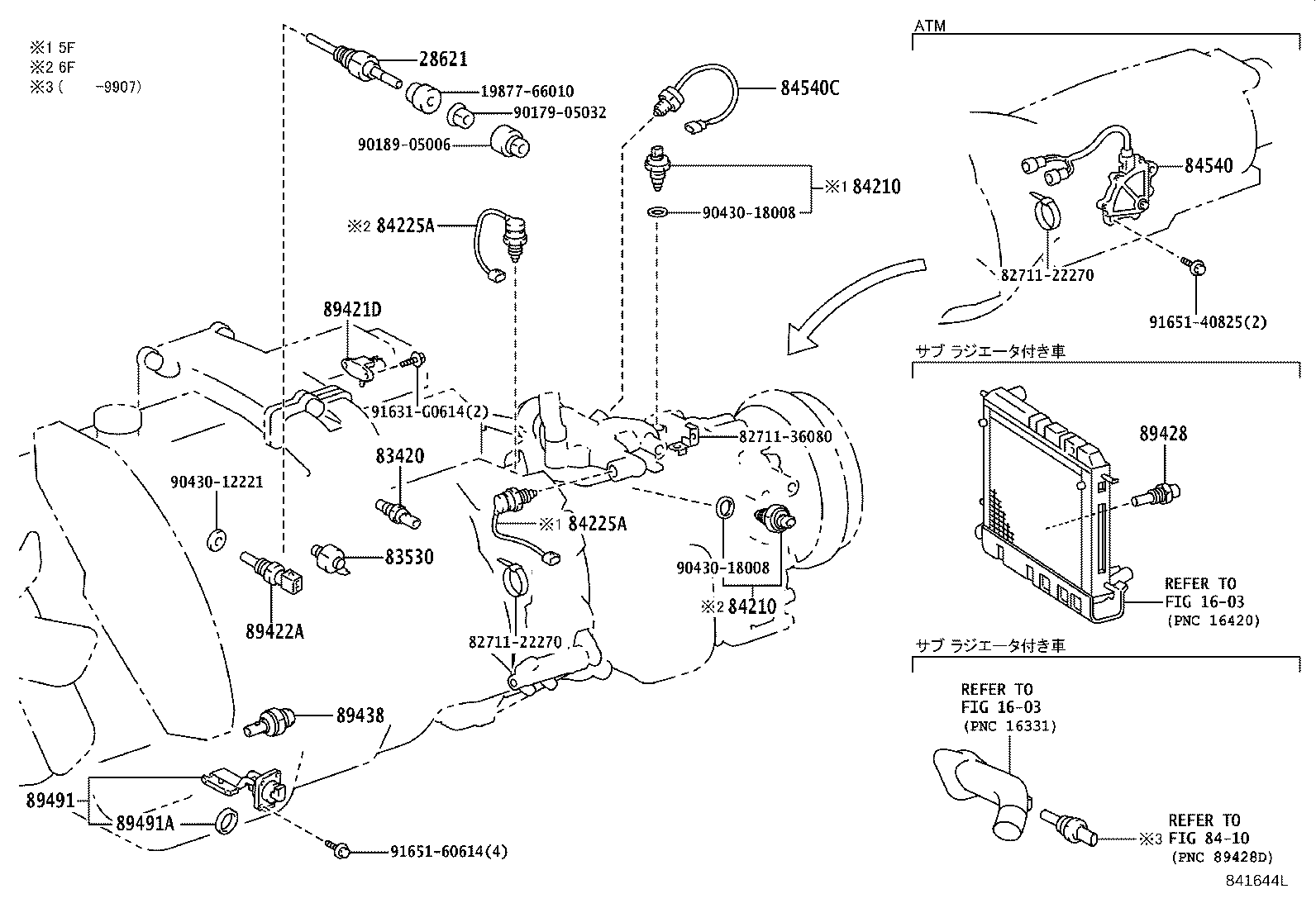

ILLUST NO. 1 OF 8(9301-0408)HDB5#,HZB4#,5#
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28621 - RESISTOR, GLOW PLUG | ||||
| 28621-68020 |
1HZ..HZB50..DX,GX,STD;1HDT,1HZ..HDB5#,HZB4#,56 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16040 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 83420-16040 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14030 |
HDB5#,HZB4#,5# |
1 | ||
| 83530-28030 |
HDB5#,HZB4#,5# |
1 | ||
| 83530-60010 |
BB58,BZB40,50 YAZAKI |
1 | ||
| 83530-28010 |
BB58,BZB40,50 DENSO |
1 | ||
| 83530-28030 |
HDB5#,HZB4#,5# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
BB4#,HDB5#,HZB4#,5#..MTM |
1 | ||
| 84210-12040 |
BZB40,50,HDB5#,HZB4#,5#..MTM |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
BB4#,HDB5#,HZB4#,5#..MTM |
1 | ||
| 84210-12040 |
BZB40,50,HDB5#,HZB4#,5#..MTM |
1 | ||
| 84540C - SWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE) | ||||
| 84540-36090 |
HDB5#,HZB4#,5#..MTM |
1 | ||
| 84540-36090 |
BB4#,HDB5#,HZB4#,5#..MTM |
1 | ||
| 89421D - SENSOR, TURBO PRESSURE | ||||
| 89421-20210 |
HZB4#,5# |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-20010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 89422-20010 |
BZB40,50,HZB4#,5# |
1 | ||
| 89438 - SWITCH, POWER STEERING OIL PRESSURE | ||||
| 89438-30010 |
BZB40,50 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-60060 |
HDB5#,HZB4#,5# |
1 | ||
| 89491-36080 |
HDB5#,HZB4#,5# |
1 | ||
| 89491-36070 |
BZB40,50 |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 90430-27001 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 89493-60010 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 90430-27001 |
BZB40,50 |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 82711-22270 | ||||
| 82711-36080 | ||||
| 90179-05032 | ||||
| 90189-05006 | ||||
| 90430-12221 | ||||
| 90430-18008 | ||||
| 91631-G0614 | ||||
| 91651-40825 | ||||
| 91651-60614 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8410 | ||||

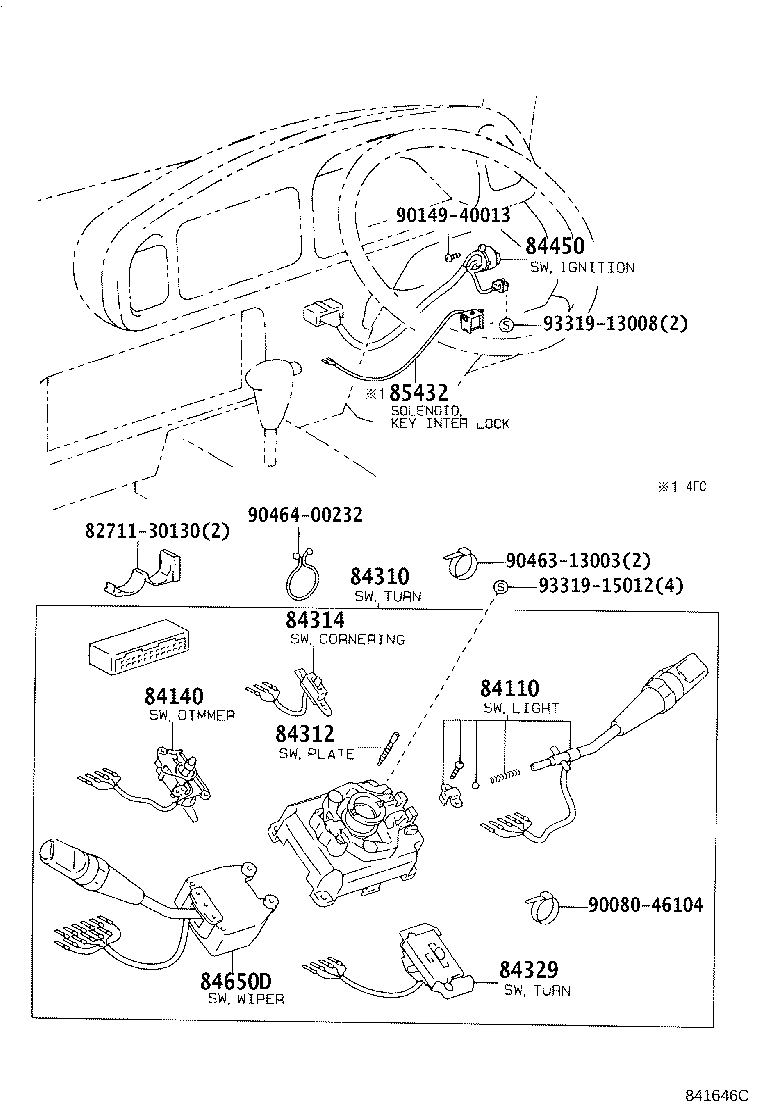

ILLUST NO. 5 OF 8(9301-9907)
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80226 |
BB58,HDB5#,HZB4#,5#..09S,10S,20S,24S,26S,29S |
1 | ||
| 84112-80144 |
BB4#,58,HDB5#,HZB4#,5# |
1 | ||
| 84112-80144 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG |
1 | ||
| 84112-80226 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 84112-80226 |
HZB40..19S;BZB40,50,HZB46..08S,26S,29S |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-36150 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 84140-36180 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-36570 |
HZB40..4FC..IV5;BB40,5#,HDB50,HZB40,50..(DX,GX,LX)..CBU |
1 | ||
| 84310-36560 |
HZB40..4FC..IV5;BB40,HDB50,HZB40,50..(DX,GX,LX)..CBU ﾅｼ(*RW) |
1 | ||
| 84310-3B150 |
BB58,HDB50,HZB40,46,5#..DX,GX,LX |
1 | ||
| 84310-36760 |
BB58,HDB50,HZB40,50..(26S,29S)..CBU ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 84312-20011 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 84314 - SWITCH, CORNERING LAMP | ||||
| 84314-36010 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG |
1 | ||
| 84314-36010 |
BB4#,58,HDB5#,HZB4#,5# |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-36070 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 84329-36050 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-36080 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 84450-36110 |
BZB40,50,HDB5#,HZB4#,5#..MTM |
1 | ||
| 84650D - SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL) | ||||
| 84652-36440 |
HZB40..4FC..IV5;BB40,5#,HDB50,HZB40,50..(26S,29S)..CBU ｱﾘ(*RW) |
1 | ||
| 84652-36430 |
HZB40..LX;BB4#,58,HDB50,HZB5# ﾅｼ(*RW) |
1 | ||
| 84652-36570 |
BB58,HDB50,HZB40,46,5#..09S,26S,29S,39S,49S ﾅｼ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84652-36560 |
BB58,HDB50,HZB40,50..(26S,29S)..CBU |
1 | ||
| Common parts | ||||
| 82711-30130 | ||||
| 90080-46104 | ||||
| 90149-40013 | ||||
| 90463-13003 | ||||
| 90464-00232 | ||||
| 93319-13008 | ||||
| 93319-15012 | ||||

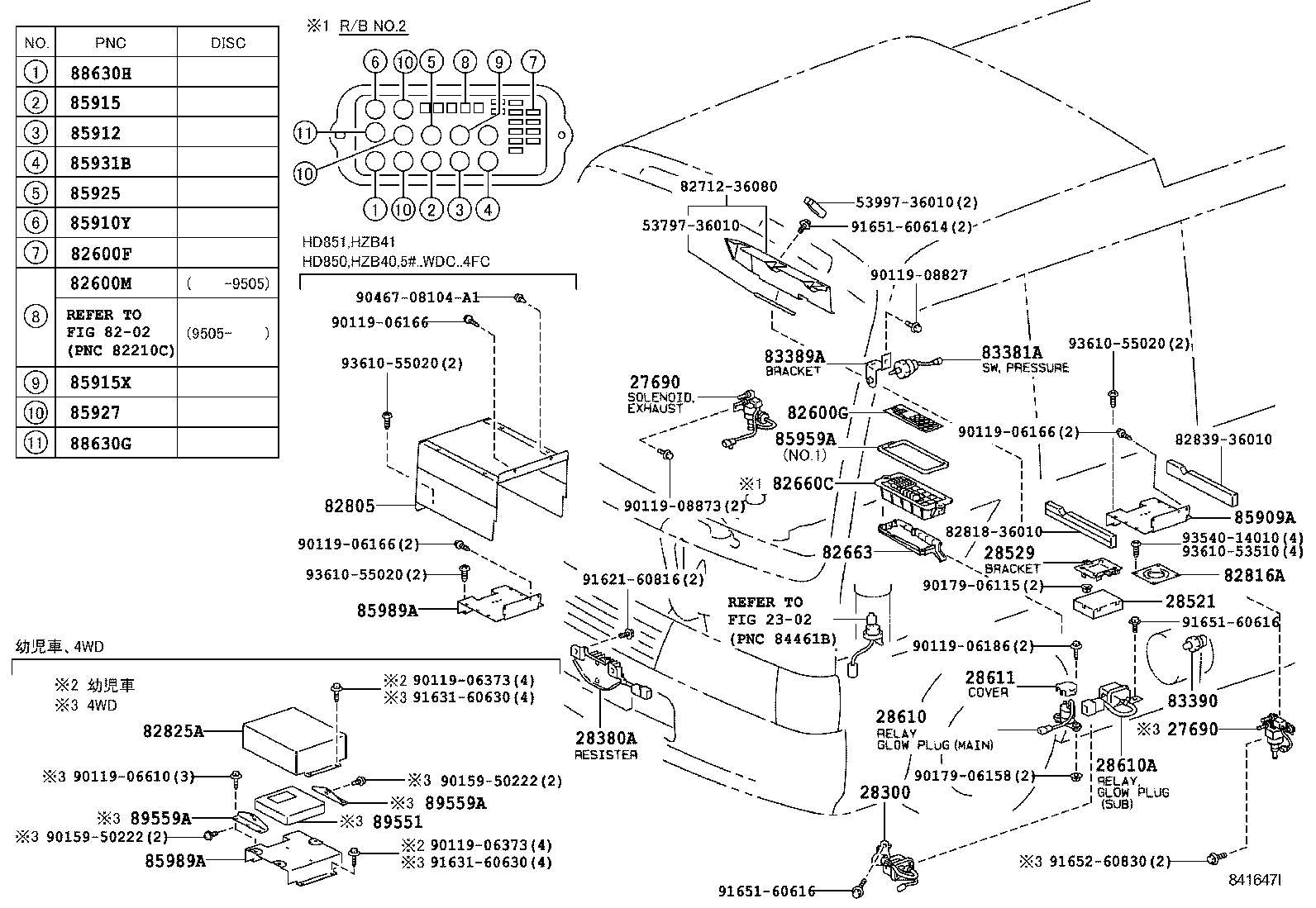

ILLUST NO. 6 OF 8(9301-9705)
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27690 - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-56150 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 27690-56150 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5# |
1 | ||
| 27690 - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-56150 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 27690-56150 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5# |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-56040 |
15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 28300-58040 |
15BFTE,1H#..BB58,HDB5#,HZB4#,5# |
1 | ||
| 28521 - TIMER, PREHEATING | ||||
| 28521-56060 |
1HZ..HZB4#,5# |
1 | ||
| 28521-17180 |
1HZ..HZB4#,5# |
1 | ||
| 28529 - BRACKET, PREHEATING TIMER, NO.1 | ||||
| 28529-56010 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5# |
1 | ||
| 28529-56060 |
1H#..HDB5#,HZB4#,5#..09S,20S,26S,29S |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-58110 |
15BF,3B,1HD#,1HZ..BB4#,55,HDB5#,HZB4#,5# |
1 | ||
| 28610A - RELAY ASSY, GLOW PLUG(SUB) | ||||
| 28610-58120 |
3B,1HDT,1HZ..BB4#,HDB5#,HZB4#,5# |
1 | ||
| 28610-58120 |
1HZ..HZB4#,5# |
1 | ||
| 28611 - COVER, GLOW PLUG RELAY | ||||
| 28611-58060 |
15BF,3B,1HD#,1HZ..BB4#,55,HDB5#,HZB4#,5# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
BB4#,5#,HDB5#,HZB4#,5# 10A |
1 | ||
| 90982-09005 |
BB4#,5#,HDB5#,HZB4#,5# 7.5A |
1 | ||
| 90982-09002 |
BB58,BZB40,50,HDB5#,HZB4#,5# 10A |
1 | ||
| 90982-09004 |
BB4#,5#,HDB5#,HZB4#,5# 20A,黄 |
1 | ||
| 90982-09009 |
BB58,HDB5#,HZB4#,5# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09003 |
BB4#,5#,HDB5#,HZB4#,5# 15A |
1 | ||
| 90982-09004 |
BB58,BZB40,50,HDB5#,HZB4#,5# 20A,黄 |
1 | ||
| 90982-09005 |
BB58,BZB40,50,HDB5#,HZB4#,5# 7.5A |
1 | ||
| 90982-09003 |
BB58,BZB40,50,HDB5#,HZB4#,5# 15A |
1 | ||
| 90982-09011 |
BB58,HDB5#,HZB4#,5# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09008 |
BB58,HDB5#,HZB4#,5# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09010 |
HZB40,50..WC;BB58,BZB40,50,HDB5#,HZB41,46,56 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 82683-36150 |
BZB40,50 |
1 | ||
| 82683-36151 |
BZB40,50 |
1 | ||
| 82683-36100 |
BB4#,58,HDB5#,HZB4#,5# |
1 | ||
| 82683-36102 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 82683-36011 |
BB4#,55,HDB5#,HZB4#,5# |
1 | ||
| 82683-36101 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
BB4#,5#,HDB5#,HZB4#,5# 30A,ﾋﾟﾝｸ |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 82660-36020 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 82663-36010 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 82816A - BRACKET, WIRING HARNESS GROMMET | ||||
| 82816-36010 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 82816-36010 |
HZB50..GX |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-36020 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 83390-36020 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 85909A - BRACKET SUB-ASSY, RELAY BLOCK | ||||
| 85909-36010 |
BB4#,HDB50,HZB40,5#..(09S,26S,29S)..5F |
1 | ||
| 85909-36011 |
BB4#,HDB50,HZB40,5#..(09S,26S,29S)..5F |
1 | ||
| 85909-36031 |
BB40,HDB50,HZB40,50..(26S,29S)..5F ｱﾘ(ｵﾘﾄﾞｼｷ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ) |
1 | ||
| 85909-36030 |
BB46..WOC;BB40,HDB50,HZB40,50..(26S,29S)..5F ｱﾘ(ｵﾘﾄﾞｼｷ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ) |
1 | ||
| 85910Y - RELAY, REAR HEATER | ||||
| 90987-02012 |
BZB40,50 |
1 | ||
| 90987-02017 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 90987-02005 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02005 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 90987-02017 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 90987-02012 |
BZB40,50 |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02012 |
BZB40,50 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02005 |
BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC |
3 | ||
| 90987-02017 |
BB58,HDB5#,HZB4#,5#..WC |
3 | ||
| 90987-02012 |
BZB40,50 |
3 | ||
| 85931B - RELAY, FUEL HEATER | ||||
| 90987-02017 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 90987-02005 |
HZB40..LX;BB4#,HDB5#,HZB41,5#..CBU,IV5 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-36040 |
BZB40,50 NO.2 |
1 | ||
| 85959-36060 |
BB58,BZB40,50,HDB5#,HZB4#,5# NO.1 |
1 | ||
| 85959-36060 |
BB4#,5#,HDB5#,HZB4#,5# NO.1 |
1 | ||
| 85959-36040 |
HZB50..STD..4FC;BB40,HZB50..(39S,49S)..WOC;BB4#,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S NO.2 |
1 | ||
| 85959-36040 |
BB58,HDB5#,HZB4#,5# NO.2 |
1 | ||
| 85959-36040 |
BB4#,5#,HDB5#,HZB4#,5# NO.2 |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02005 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU |
1 | ||
| 90987-02017 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5) |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02017 |
BB58,HDB5#,HZB4#,5#..WC |
1 | ||
| 90987-02005 |
BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC |
1 | ||
| 90987-02012 |
BZB40,50 |
1 | ||
| Common parts | ||||
| 53797-36010 | ||||
| 53997-36010 | ||||
| 82712-36080 | ||||
| 82818-36010 | ||||
| 82839-36010 | ||||
| 90119-06166 | ||||
| 90119-06186 | ||||
| 90119-06373 | ||||
| 90119-06610 | ||||
| 90119-08827 | ||||
| 90119-08873 | ||||
| 90159-50222 | ||||
| 90179-06115 | ||||
| 90179-06158 | ||||
| 90467-08104A1 | ||||
| 91621-60816 | ||||
| 91631-60630 | ||||
| 91651-60614 | ||||
| 91651-60616 | ||||
| 91652-60830 | ||||
| 93540-14010 | ||||
| 93610-53510 | ||||
| 93610-55020 | ||||
| Linked diagrams | ||||
| 2302 | ||||
| 8202 | ||||

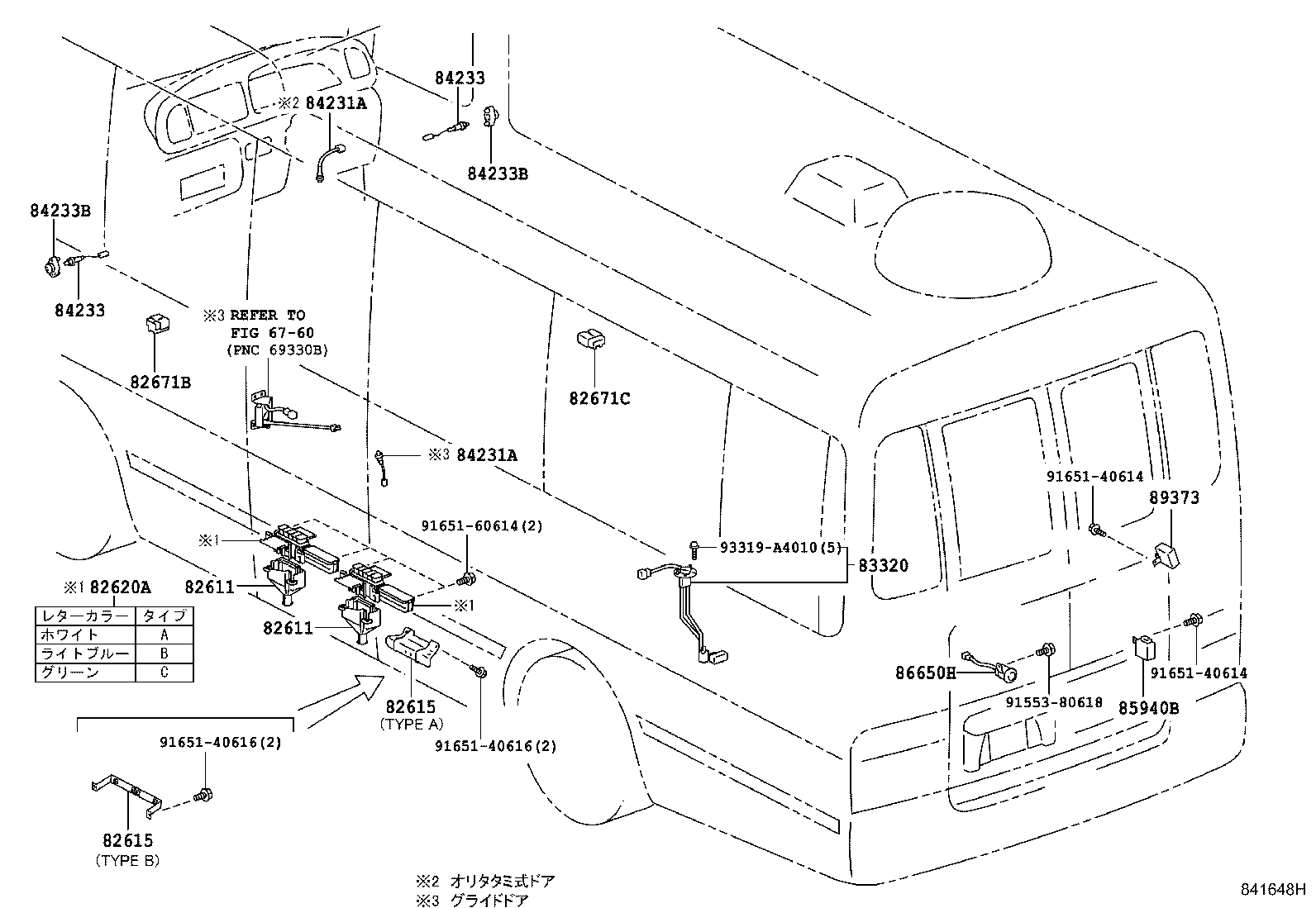

ILLUST NO. 7 OF 8(9301-9907)
ﾄﾞｱ,ﾙｰﾌ,ﾌﾛｱ & ﾊﾞｯｸﾄﾞｱ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-36030 |
BB4#,55,HDB50,HZB40,5# |
2 | ||
| 82611-36030 |
BB4#,58,HDB5#,HZB4#,5# |
2 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-36030 |
BB4#,55,HDB50,HZB40,5# |
2 | ||
| 82611-36030 |
BB4#,58,HDB5#,HZB4#,5# |
2 | ||
| 82615 - BRACKET, FUSE | ||||
| 82615-36010 |
HDB50,HZB40,5#..09S,26S,29S,49S ｱﾘ(ABS),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 82615-36020 |
BB4#,5#,HDB50,HZB40,5# TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 82615-36070 |
BZB40,50 |
1 | ||
| 82615-36020 |
BB58,HDB50,HZB40,46,5# |
1 | ||
| 82615 - BRACKET, FUSE | ||||
| 82615-36010 |
HDB50,HZB40,5#..09S,26S,29S,49S ｱﾘ(ABS),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 82615-36020 |
BB4#,5#,HDB50,HZB40,5# TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 82615-36070 |
BZB40,50 |
1 | ||
| 82615-36020 |
BB58,HDB50,HZB40,46,5# |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-36010 |
BB40..HRF..LX;BB46,55,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82620-36080 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 82620-36090 |
BZB40,50 |
1 | ||
| 82620-36020 |
BB4#,5#,HDB5#,HZB4#,5# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82671-30350 |
BB4#,58,HDB5#,HZB4#,5# |
1 | ||
| 82671-30350 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 82671C - BLOCK, JUNCTION | ||||
| 82671-30370 |
HDB5#,HZB41,50..(EX,GX,LX,SULNG)..CBU |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80261 |
BB4#,5#,HDB50,HZB40,5# |
1 | ||
| 83320-80261 |
BB58,HDB50,HZB40,46,5# |
1 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-36020 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 84231-36020 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-36020 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 84231-36020 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-22060 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 84231-22060 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-22060 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 84231-22060 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-22010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 84234-22010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-22010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 84234-22010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-36070 |
HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5) |
1 | ||
| 85940-36070 |
BB58,HDB5#,HZB40,41,50..(20S,26S,29S)..CBU |
1 | ||
| 86650H - BUZZER ASSY, BACK | ||||
| 86650-36100 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 86650-36100 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 86650-36090 |
BZB40,50 |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89370-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 89370-36060 |
BZB40,50 |
1 | ||
| 89370-36050 |
HDB5#,HZB4#,5# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89373-36040 |
1 | ||
| 89370-36010 |
HDB5#,HZB4#,5#..CBU,IV5 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89373-36010 |
1 | ||
| Common parts | ||||
| 91553-80618 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 91651-60614 | ||||
| 93319-A4010 | ||||
| Linked diagrams | ||||
| 6760 | ||||
ILLUST NO. 5 OF 8(9907- )
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80226 |
BB58,HDB5#,HZB4#,5#..09S,10S,20S,24S,26S,29S |
1 | ||
| 84112-80144 |
BB4#,58,HDB5#,HZB4#,5# |
1 | ||
| 84112-80144 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG |
1 | ||
| 84112-80226 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 84112-80226 |
HZB40..19S;BZB40,50,HZB46..08S,26S,29S |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-36150 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 84140-36180 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-36570 |
HZB40..4FC..IV5;BB40,5#,HDB50,HZB40,50..(DX,GX,LX)..CBU |
1 | ||
| 84310-36560 |
HZB40..4FC..IV5;BB40,HDB50,HZB40,50..(DX,GX,LX)..CBU ﾅｼ(*RW) |
1 | ||
| 84310-3B150 |
BB58,HDB50,HZB40,46,5#..DX,GX,LX |
1 | ||
| 84310-36760 |
BB58,HDB50,HZB40,50..(26S,29S)..CBU ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 84312-20011 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-36070 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 84329-36050 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-36080 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 84450-36110 |
BZB40,50,HDB5#,HZB4#,5#..MTM |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-36080 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 84450-36110 |
BZB40,50,HDB5#,HZB4#,5#..MTM |
1 | ||
| 84650D - SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL) | ||||
| 84652-36440 |
HZB40..4FC..IV5;BB40,5#,HDB50,HZB40,50..(26S,29S)..CBU ｱﾘ(*RW) |
1 | ||
| 84652-36430 |
HZB40..LX;BB4#,58,HDB50,HZB5# ﾅｼ(*RW) |
1 | ||
| 84652-36570 |
BB58,HDB50,HZB40,46,5#..09S,26S,29S,39S,49S ﾅｼ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84652-36560 |
BB58,HDB50,HZB40,50..(26S,29S)..CBU |
1 | ||
| Common parts | ||||
| 82711-30130 | ||||
| 82817-36030 | ||||
| 90080-46104 | ||||
| 90168-40129 | ||||
| 91611-G0612 | ||||
| 93319-15012 | ||||
ILLUST NO. 3 OF 8(9301-0708)
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74534B - PLATE, VOLTAGE CAUTION | ||||
| 74534-90K00 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 74534-90K00 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-36010 |
HDB5#,HZB41,50..(EX,GX)..(CBU,IV5) |
1 | ||
| 84119-36010 |
HDB5#,HZB41,50..(EX,GX)..CBU |
1 | ||
| 84170A - SWITCH ASSY, ROOM LAMP NO.1 | ||||
| 84170-36020 |
BZB40,50 |
1 | ||
| 84170-36040 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 84170-36040 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 84170B - SWITCH ASSY, ROOM LAMP NO.2 | ||||
| 84170-36050 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 84170-36030 |
BZB40,50 |
1 | ||
| 84170-36050 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 84170C - BULB,ROOM LAMP SWITCH | ||||
| 84999-10610 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 84999-10320 |
BZB40,50 |
2 | ||
| 84999-10610 |
BB58,HDB5#,HZB4#,5# |
2 | ||
| 84170C - BULB,ROOM LAMP SWITCH | ||||
| 84999-10610 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 84999-10320 |
BZB40,50 |
2 | ||
| 84999-10610 |
BB58,HDB5#,HZB4#,5# |
2 | ||
| 84170D - CAP BULB,ROOM LAMP SWITCH | ||||
| 84998-10270 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 84998-10270 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
2 | ||
| 84170D - CAP BULB,ROOM LAMP SWITCH | ||||
| 84998-10270 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 84998-10270 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
2 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-36080 |
BZB40,50 |
1 | ||
| 84332-36090 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 84332-36090 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10610 |
BB4#,5#,HDB5#,HZB4#,5# 28V 0.84W |
1 | ||
| 84999-10320 |
BZB40,50 14V 0.84W |
1 | ||
| 84999-10610 |
BB58,HDB5#,HZB4#,5# 28V 0.84W |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-36060 |
BZB40,50 |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
BZB40,50 14V 1.4W |
1 | ||
| 84999-10590 |
BB4#,5#,HDB5#,HZB4#,5# 24V 2.0W |
1 | ||
| 84730D - CAP, HEATER BLOWER SWITCH BULB | ||||
| 84998-10050 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 84730S - BULB, HEATER BLOWER SWITCH | ||||
| 84999-10100 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5) 24V 1.12W |
1 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84732-36080 |
BZB40,50 |
1 | ||
| 84732B - BULB, REAR HEATER BLOWER SWITCH | ||||
| 90981-11014 |
BZB40,50 14V 1.4W |
1 | ||
| 84732G - SWITCH, VENTILATOR | ||||
| 84732-36100 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5) |
1 | ||
| 84732-36100 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-36060 |
BZB40,50 |
1 | ||
| 84790-36030 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 84790-36030 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10370 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 28V 1.12W |
1 | ||
| 84999-10610 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 28V 0.84W |
1 | ||
| 84999-10320 |
BZB40,50 14V 0.84W |
1 | ||
| 84999-10370 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 28V 1.12W |
1 | ||
| 84999-10610 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 28V 0.84W |
1 | ||
| 84999-10520 |
BZB40,50 14V 1.12W |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10370 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 28V 1.12W |
1 | ||
| 84999-10610 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 28V 0.84W |
1 | ||
| 84999-10320 |
BZB40,50 14V 0.84W |
1 | ||
| 84999-10370 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 28V 1.12W |
1 | ||
| 84999-10610 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 28V 0.84W |
1 | ||
| 84999-10520 |
BZB40,50 14V 1.12W |
1 | ||
| 84790E - CAP, BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84998-10060 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 84998-10060 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 84870-36010 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 84890 - SWITCH ASSY, SIDE AUTO STEP | ||||
| 84890-36020 |
BZB40,50,HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..WC..(CBU,IV5) |
1 | ||
| 84890-36010 |
HDB5#,HZB40,41,50..(20S,26S,29S)..WC..(CBU,IV5) |
1 | ||
| 84890 - SWITCH ASSY, SIDE AUTO STEP | ||||
| 84890-36020 |
BZB40,50,HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..WC..(CBU,IV5) |
1 | ||
| 84890-36010 |
HDB5#,HZB40,41,50..(20S,26S,29S)..WC..(CBU,IV5) |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-36020 |
BB58,HDB5#,HZB4#,5#..(09S,10S,19S,20S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 84930-36010 |
BZB40,50 |
1 | ||
| 84930-36020 |
HZB40,50..26S,29S;BB4#,HDB5#,HZB41,56..(09S,15S,20S,26S,29S)..CBU |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-36020 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 85500-36020 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 85500-17060 |
BZB40,50 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-17020 |
BZB40,50 |
1 | ||
| 85520-95400 |
BB4#,58,HDB5#,HZB4#,5# |
1 | ||
| 85520-95400 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-30040 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 85533-30040 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| Common parts | ||||
| 55538-28010 | ||||
| 84999-10370 | ||||
ILLUST NO. 8 OF 8(9301- )
ﾄﾞｱ,ﾙｰﾌ,ﾌﾛｱ & ﾊﾞｯｸﾄﾞｱ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

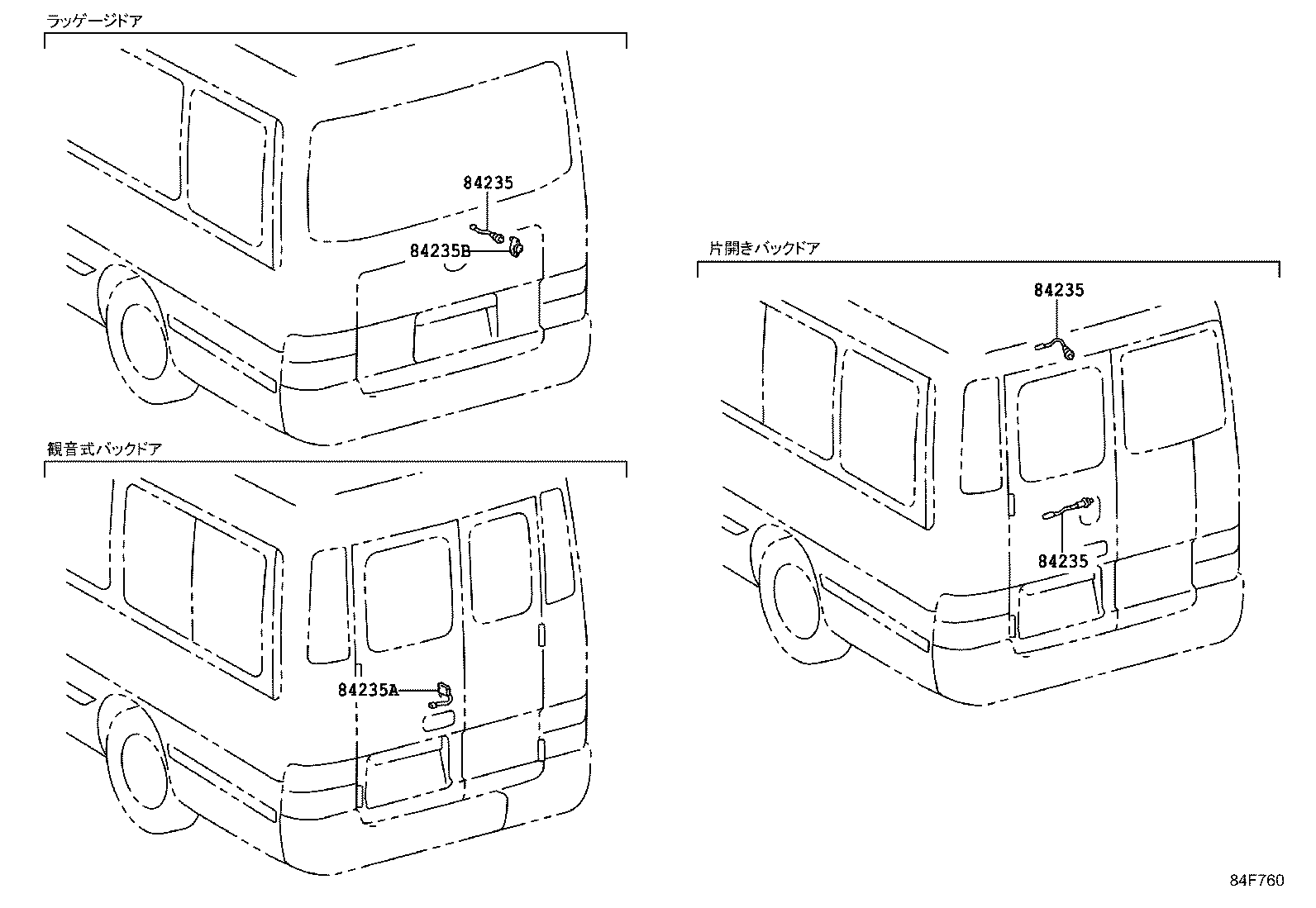

| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-36010 |
HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(DX,EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 84231-36010 |
BB58,BZB40,50,HDB5#,HZB40,41,50..(19S,20S,26S,29S)..CBU |
1 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-36010 |
HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(DX,EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 84231-36010 |
BB58,BZB40,50,HDB5#,HZB40,41,50..(19S,20S,26S,29S)..CBU |
1 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-36010 |
HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(DX,EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 84231-36010 |
BB58,BZB40,50,HDB5#,HZB40,41,50..(19S,20S,26S,29S)..CBU |
1 | ||
| 84235B - CUSHION, COURTESY SWITCH(FOR BACK DOOR) | ||||
| 84234-22010 |
BB58,BZB40,50,HDB5#,HZB40,41,50..(19S,20S,26S,29S)..CBU |
1 | ||
| 84234-22010 |
HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(DX,EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
