Toyota Coaster HZB50 WIRING & CLAMP

HZB50-ZRMES (1993)

Toyota Coaster

Production Jan 1993 - Aug 2004

Engine 1HZ

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

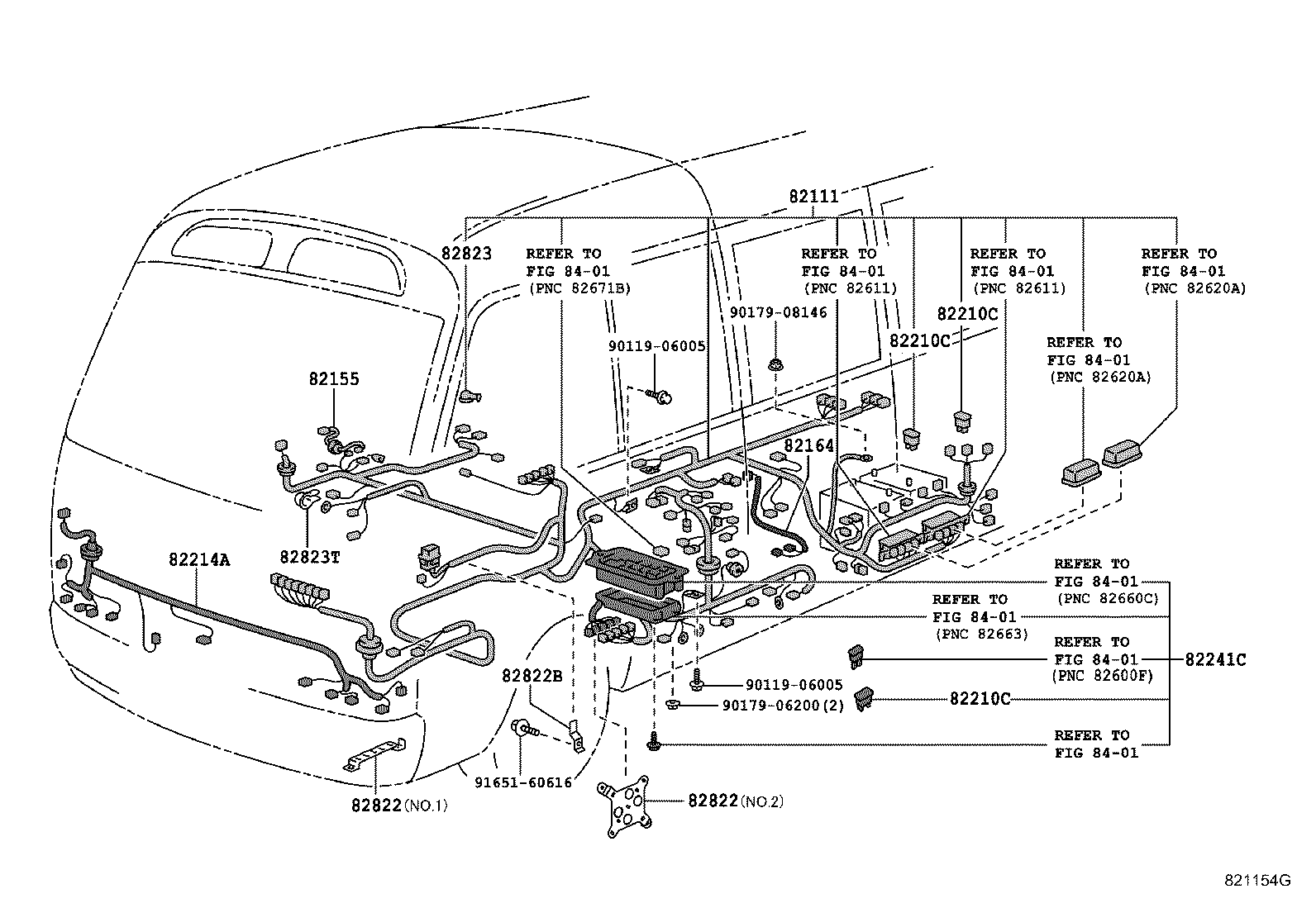

ILLUST NO. 1 OF 9(9301-9907)

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙ-ﾑ

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-36230	HDB50,HZB50..GX..5F	01/1993 - 05/1995	1
82111-36240	HZB50..WC..5F ｶﾝﾚｲﾁｼﾖｳ	01/1993 - 05/1995	1
82111-36400	HDB50,HZB50..GX..5F ｶﾝﾚｲﾁｼﾖｳ OR ｱﾘ(ｵ-ﾄﾄﾞｱ)	01/1993 - 05/1995	1
82111-36231	HZB50..GX..5F	05/1995 - 05/1997	1
82111-36401	HZB50..GX..5F ｶﾝﾚｲﾁｼﾖｳ OR ｱﾘ(ｵ-ﾄﾄﾞｱ)	05/1995 - 05/1997	1
82111-36232	HZB50..GX..5F	05/1997 - 08/1998	1
82111-36402	HZB50..GX..5F ｶﾝﾚｲﾁｼﾖｳ OR ｱﾘ(ABS) OR ｱﾘ(ｵ-ﾄﾄﾞｱﾌﾞｻﾞ-ﾂｷ)	05/1997 - 07/1999	1
82111-36403	HZB50..GX..5F	07/1999 - 08/2001	1
82111-36404	HZB50..GX..5F	08/2001 - 11/2002	1
82115-36290	BZB40,50	03/2002 - 11/2002	1
82111-36405	HZB50..GX..5F	11/2002 - 08/2004	1
82164 - WIRE, FRAME
82164-36040	HDB50,HZB40,5#..09S,26S,29S,49S	05/1997 - 07/1999	1
82164-36041	BZB40,50,HDB50,HZB40,46,5#..09S,26S,29S,39S,49S	07/1999 - 08/2004	1
82210C - FUSIBLE LINK
90982-08188	BB4#,5#,HDB5#,HZB4#,5# 30A,ﾒｽ端子,ﾋﾟﾝｸ,PACIFIC	01/1993 - 07/1999	1
90982-08246	BB4#,5#,HDB5#,HZB4#,5# 100A,ｵｽ端子,青	01/1993 - 07/1999	1
90982-08281	BB58,BZB40,50,HDB5#,HZB4#,5# 40A,ﾒｽ端子,緑	07/1999 - 08/2004	1
90982-08202	BB4#,5#,HDB5#,HZB4#,5# 60A,ｵｽ端子,黄	01/1993 - 07/1999	1
90982-08203	BB4#,5#,HDB5#,HZB4#,5# 80A,ｵｽ端子,黒	01/1993 - 07/1999	1
90982-08202	BB58,BZB40,50,HDB5#,HZB4#,5# 60A,ｵｽ端子,黄	07/1999 - 08/2004	1
90982-08223	BB4#,5#,HDB5#,HZB4#,5# 30A,ｵｽ端子,ﾋﾟﾝｸ	01/1993 - 07/1999	1
90982-08280	BB4#,5#,HDB5#,HZB4#,5# 30A,ﾒｽ端子,桃,YAZAKI	01/1993 - 07/1999	1
90982-08228	BB4#,5#,HDB5#,HZB4#,5# 50A,ｵｽ端子,赤	01/1993 - 07/1999	1
90982-08280	BB58,BZB40,50,HDB5#,HZB4#,5# 30A,ﾒｽ端子,桃	07/1999 - 08/2004	1
90982-08282	BB58,BZB40,50,HDB5#,HZB4#,5# 50A,ﾒｽ端子,赤	07/1999 - 08/2004	1
90982-08203	BZB40,50,HZB4#,5# 80A,ｵｽ端子,黒	07/1999 - 08/2004	1
90982-08274	BZB40,50,HDB5#,HZB4#,5#..WC 120A,ｵｽ端子,白	07/1999 - 08/2004	1
82210C - FUSIBLE LINK
90982-08188	BB4#,5#,HDB5#,HZB4#,5# 30A,ﾒｽ端子,ﾋﾟﾝｸ,PACIFIC	01/1993 - 07/1999	1
90982-08246	BB4#,5#,HDB5#,HZB4#,5# 100A,ｵｽ端子,青	01/1993 - 07/1999	1
90982-08281	BB58,BZB40,50,HDB5#,HZB4#,5# 40A,ﾒｽ端子,緑	07/1999 - 08/2004	1
90982-08202	BB4#,5#,HDB5#,HZB4#,5# 60A,ｵｽ端子,黄	01/1993 - 07/1999	1
90982-08203	BB4#,5#,HDB5#,HZB4#,5# 80A,ｵｽ端子,黒	01/1993 - 07/1999	1
90982-08202	BB58,BZB40,50,HDB5#,HZB4#,5# 60A,ｵｽ端子,黄	07/1999 - 08/2004	1
90982-08223	BB4#,5#,HDB5#,HZB4#,5# 30A,ｵｽ端子,ﾋﾟﾝｸ	01/1993 - 07/1999	1
90982-08280	BB4#,5#,HDB5#,HZB4#,5# 30A,ﾒｽ端子,桃,YAZAKI	01/1993 - 07/1999	1
90982-08228	BB4#,5#,HDB5#,HZB4#,5# 50A,ｵｽ端子,赤	01/1993 - 07/1999	1
90982-08280	BB58,BZB40,50,HDB5#,HZB4#,5# 30A,ﾒｽ端子,桃	07/1999 - 08/2004	1
90982-08282	BB58,BZB40,50,HDB5#,HZB4#,5# 50A,ﾒｽ端子,赤	07/1999 - 08/2004	1
90982-08203	BZB40,50,HZB4#,5# 80A,ｵｽ端子,黒	07/1999 - 08/2004	1
90982-08274	BZB40,50,HDB5#,HZB4#,5#..WC 120A,ｵｽ端子,白	07/1999 - 08/2004	1
82210C - FUSIBLE LINK
90982-08188	BB4#,5#,HDB5#,HZB4#,5# 30A,ﾒｽ端子,ﾋﾟﾝｸ,PACIFIC	01/1993 - 07/1999	1
90982-08246	BB4#,5#,HDB5#,HZB4#,5# 100A,ｵｽ端子,青	01/1993 - 07/1999	1
90982-08281	BB58,BZB40,50,HDB5#,HZB4#,5# 40A,ﾒｽ端子,緑	07/1999 - 08/2004	1
90982-08202	BB4#,5#,HDB5#,HZB4#,5# 60A,ｵｽ端子,黄	01/1993 - 07/1999	1
90982-08203	BB4#,5#,HDB5#,HZB4#,5# 80A,ｵｽ端子,黒	01/1993 - 07/1999	1
90982-08202	BB58,BZB40,50,HDB5#,HZB4#,5# 60A,ｵｽ端子,黄	07/1999 - 08/2004	1
90982-08223	BB4#,5#,HDB5#,HZB4#,5# 30A,ｵｽ端子,ﾋﾟﾝｸ	01/1993 - 07/1999	1
90982-08280	BB4#,5#,HDB5#,HZB4#,5# 30A,ﾒｽ端子,桃,YAZAKI	01/1993 - 07/1999	1
90982-08228	BB4#,5#,HDB5#,HZB4#,5# 50A,ｵｽ端子,赤	01/1993 - 07/1999	1
90982-08280	BB58,BZB40,50,HDB5#,HZB4#,5# 30A,ﾒｽ端子,桃	07/1999 - 08/2004	1
90982-08282	BB58,BZB40,50,HDB5#,HZB4#,5# 50A,ﾒｽ端子,赤	07/1999 - 08/2004	1
90982-08203	BZB40,50,HZB4#,5# 80A,ｵｽ端子,黒	07/1999 - 08/2004	1
90982-08274	BZB40,50,HDB5#,HZB4#,5#..WC 120A,ｵｽ端子,白	07/1999 - 08/2004	1
82214A - WIRE, LAMP
82214-36010	HDB5#,HZB41,50..EX,GX,SULNG	09/1993 - 05/1997	1
82214-36011	HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV1)	05/1997 - 07/1999	1
82214-36010	HZB50..GX;BB46,HDB5#,HZB41..DX,EX,GX,SULNG	01/1993 - 09/1993	1
82214-36013	HDB5#,HZB41,50..EX,GX,SULNG	08/2001 - 08/2004	1
82214-36012	HDB5#,HZB41,50..EX,GX,SULNG	07/1999 - 08/2001	1
82241C - WIRE, RELAY
82241-36060	HZB41,50..(EX,GX,STD)..WC..5F;BB40,HDB5#..(EX,GX,STD,SULNG)..WC	01/1993 - 05/1995	1
82241-36010	HZB4#,5#..(EX,GX,LX,STD)..WC..5F;BB4#,HDB5#..(EX,GX,LX,STD,SULNG)..WC ｶﾝﾚｲﾁｼﾖｳ	01/1993 - 05/1995	1
82241-36071	BB4#,HDB50..GX,LX;HZB40,5#..(GX,LX)..5F	05/1995 - 05/1997	1
82241-36061	HZB4#,5#..(EX,GX,LX,STD)..WC..5F;BB4#,HDB5#..(EX,GX,LX,STD,SULNG)..WC ｱﾘ(ﾘﾔｳｲﾝﾄﾞｳﾃﾞﾌｵﾂｶﾞ)	05/1995 - 05/1997	1
82241-36012	HDB50;HZB40,50..(GX,LX)..5F..CBU ｶﾝﾚｲﾁｼﾖｳ OR ｱﾘ(ABS OR *RWD OR ｵﾘﾄﾞﾃﾞﾝﾄﾞｳｵ-ﾄﾄﾞｱﾌﾞｻﾞ-ﾂｷ OR ｸﾞﾗｲﾄﾞｵ-ﾄﾄﾞｱﾌﾞｻﾞ-ﾂｷ)	05/1997 - 07/1999	1
82241-36013	HDB5#,HZB41,50..EX,GX,SULNG	07/1999 - 08/2001	1
82241-36072	BB4#,HDB50..GX,LX;HZB40,5#..(GX,LX)..5F	05/1997 - 08/1998	1
82241-36011	HZB4#,5#..(EX,GX,LX,STD)..WC..5F;BB4#,HDB5#..(EX,GX,LX,STD,SULNG)..WC ｱﾘ(ﾘﾔｳｲﾝﾄﾞｳﾃﾞﾌｵﾂｶﾞﾀｲﾏｰﾂｷ)	05/1995 - 05/1997	1
82241-36014	HDB5#,HZB41,50..EX,GX,SULNG	08/2001 - 08/2004	1
82822 - BRACKET,CONNECTOR BLOCK
82822-36030	BB4#,55,HDB5#,HZB4#,5# NO.1	01/1993 - 05/1997	1
82822-36070	BB58,HDB5#,HZB4#,5#	07/1999 - 08/2004	1
82822-36070	BB4#,58,HDB5#,HZB4#,5# NO.2	05/1997 - 07/1999	1
82822 - BRACKET,CONNECTOR BLOCK
82822-36030	BB4#,55,HDB5#,HZB4#,5# NO.1	01/1993 - 05/1997	1
82822-36070	BB58,HDB5#,HZB4#,5#	07/1999 - 08/2004	1
82822-36070	BB4#,58,HDB5#,HZB4#,5# NO.2	05/1997 - 07/1999	1
82822B - BRACKET, CONNECTOR BLOCK
82822-36010	BB4#,HDB5#,HZB4#,5#	01/1993 - 05/1995	1
82823 - CAP, TERMINAL, NO.1
82823-95401	BB58,BZB40,50	07/1999 - 08/2004	1
82823T - CAP, ALTERNATOR TERMINAL
82823-24030	BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) ﾌﾞﾗｯｸ	05/1995 - 07/1999	1
82823-24030	HDB50,HZB40,46,5#..HRF..(GX,LX);BZB40,50,HDB51,HZB41..EX,STD,SULNG ﾌﾞﾗｯｸ	07/1999 - 08/2004	1
82823-22050	HZB40..4FC..IV5;BB4#,5#,HZB4#,5#..CBU ﾀﾞｰｸｸﾞﾚｰ	05/1995 - 07/1999	1
82823-22050	BB58,BZB40,50,HDB50,HZB4#,5#..CBU ﾀﾞｰｸｸﾞﾚｰ	07/1999 - 08/2004	1
Common parts
90119-06005
90179-06200
90179-08146
91651-60616
Linked diagrams
8401

ILLUST NO. 2 OF 9(9301-0408)BB4#,5#

Click highlighted areas on diagram

ｴﾝｼﾞﾝ

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-36010	HDB50,HZB40,5#..5F	01/1993 - 05/1995	1
82121-36012	HZB40,5#..5F	05/1997 - 07/1999	1
82121-36011	HZB40,5#..5F	05/1995 - 05/1997	1
82121-36062	HZB40,5#..5F ｱﾘ(ABS)	05/1997 - 07/1999	1
82121-36063	HZB4#,5#..5F	07/1999 - 08/2004	1
82121 - WIRE, ENGINE
82121-36010	HDB50,HZB40,5#..5F	01/1993 - 05/1995	1
82121-36012	HZB40,5#..5F	05/1997 - 07/1999	1
82121-36011	HZB40,5#..5F	05/1995 - 05/1997	1
82121-36062	HZB40,5#..5F ｱﾘ(ABS)	05/1997 - 07/1999	1
82121-36063	HZB4#,5#..5F	07/1999 - 08/2004	1
82122 - WIRE, ENGINE, NO.2
82122-36150	BZB40,50	03/2002 - 08/2004	1
82122-36020	HDB5#,HZB4#,5#	01/1993 - 05/1995	1
82122-36021	HDB5#,HZB4#,5#	05/1995 - 07/1999	1
82122-36022	HDB5#,HZB4#,5#	07/1999 - 08/2004	1
82122 - WIRE, ENGINE, NO.2
82122-36150	BZB40,50	03/2002 - 08/2004	1
82122-36020	HDB5#,HZB4#,5#	01/1993 - 05/1995	1
82122-36021	HDB5#,HZB4#,5#	05/1995 - 07/1999	1
82122-36022	HDB5#,HZB4#,5#	07/1999 - 08/2004	1
82124 - WIRE, ENGINE, NO.4
82124-36010	BB4#,HDB5#,HZB4#,5#	01/1993 - 05/1995	1
82124-36011	BB58,HDB5#,HZB4#,5#	07/1999 - 08/2004	1
82124-36011	BB4#,5#,HDB5#,HZB4#,5#	05/1995 - 07/1999	1
82124 - WIRE, ENGINE, NO.4
82124-36010	BB4#,HDB5#,HZB4#,5#	01/1993 - 05/1995	1
82124-36011	BB58,HDB5#,HZB4#,5#	07/1999 - 08/2004	1
82124-36011	BB4#,5#,HDB5#,HZB4#,5#	05/1995 - 07/1999	1
82261A - WIRE, ALTERNATOR
82261-36021	HDB50,HZB40,5#..GX,LX ｶﾝﾚｲﾁｼﾖｳ	05/1995 - 05/1997	1
82261-36010	HDB50,HZB40,5#..(GX,LX,STD)..WC	01/1993 - 05/1995	1
82261-36020	HDB50,HZB40,5#..GX,LX ｶﾝﾚｲﾁｼﾖｳ	01/1993 - 05/1995	1
82261-36022	HDB50,HZB40,50..(GX,LX)..CBU ｱﾘ(ﾃﾚﾋﾞ & ﾋﾞﾃﾞｵ)	05/1997 - 07/1999	1
82261-36011	HDB50,HZB40,5#..(GX,LX,STD)..WC	05/1995 - 05/1997	1
82261-36012	HZB40..4FC..IV5;HDB50,HZB40,5#..(GX,LX,STD)..WC..CBU	05/1997 - 07/1999	1
82261-36100	HZB40..4FC..IV5;HDB50,HZB40,5#..(GX,LX)..CBU ｵﾙﾀﾈ-ﾀ=24V 85A & ｱﾘ(ABS)	05/1997 - 07/1999	1
82261-36090	HZB40..4FC..IV5;HDB50,HZB40,5#..(09S,26S,29S,49S)..(GX,LX,STD)..WC..CBU ｱﾘ(ABS)	05/1997 - 07/1999	1
82261-36091	BZB40,50,HZB46,56..09S,39S,49S;HZB40,50..(26S,29S,39S,49S)..WC..CBU ｱﾘ(ABS)	07/1999 - 08/2004	1
82261-36150	BZB40,50	03/2002 - 08/2004	1
82261-36101	HZB40,50..HRF..(26S,29S)..WC;BZB40,50,HZB46,56..09S,39S,49S ｵﾙﾀﾈ-ﾀ=24V 85A & ｱﾘ(ABS)	07/1999 - 08/2004	1
82671 - BLOCK, JUNCTION
82671-28010	BB58,BZB40,50,HDB5#,HZB4#,5#	07/1999 - 08/2004	1
82671-28010	BB55,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
82822A - BRACKET, CONNECTOR BLOCK
82822-36020	BB4#,5#,HDB5#,HZB4#,5#	05/1995 - 07/1999	1
82822-36020	HZB4#,5#	07/1999 - 08/2004	1
82822A - BRACKET, CONNECTOR BLOCK
82822-36020	BB4#,5#,HDB5#,HZB4#,5#	05/1995 - 07/1999	1
82822-36020	HZB4#,5#	07/1999 - 08/2004	1
82823S - CAP, STARTER TERMINAL
82823-30100	BB58,BZB40,50,HDB5#,HZB4#,5#	07/1999 - 08/2004	1
82823S - CAP, STARTER TERMINAL
82823-30100	BB58,BZB40,50,HDB5#,HZB4#,5#	07/1999 - 08/2004	1
82823S - CAP, STARTER TERMINAL
82823-30100	BB58,BZB40,50,HDB5#,HZB4#,5#	07/1999 - 08/2004	1
82823T - CAP, ALTERNATOR TERMINAL
82823-24030	BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) ﾌﾞﾗｯｸ	05/1995 - 07/1999	1
82823-24030	HDB50,HZB40,46,5#..HRF..(GX,LX);BZB40,50,HDB51,HZB41..EX,STD,SULNG ﾌﾞﾗｯｸ	07/1999 - 08/2004	1
82823-22050	HZB40..4FC..IV5;BB4#,5#,HZB4#,5#..CBU ﾀﾞｰｸｸﾞﾚｰ	05/1995 - 07/1999	1
82823-22050	BB58,BZB40,50,HDB50,HZB4#,5#..CBU ﾀﾞｰｸｸﾞﾚｰ	07/1999 - 08/2004	1
Common parts
82715-36060
90119-06915
90119-08827
90179-06158
90179-08204
91651-40614
91651-B0820
94130-00802
Linked diagrams
8201

ILLUST NO. 2 OF 9(9301-0408)HDB5#,HZB4#,5#

Click highlighted areas on diagram

ｴﾝｼﾞﾝ

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-36010	HDB50,HZB40,5#..5F	01/1993 - 05/1995	1
82121-36012	HZB40,5#..5F	05/1997 - 07/1999	1
82121-36011	HZB40,5#..5F	05/1995 - 05/1997	1
82121-36062	HZB40,5#..5F ｱﾘ(ABS)	05/1997 - 07/1999	1
82121-36063	HZB4#,5#..5F	07/1999 - 08/2004	1
82121 - WIRE, ENGINE
82121-36010	HDB50,HZB40,5#..5F	01/1993 - 05/1995	1
82121-36012	HZB40,5#..5F	05/1997 - 07/1999	1
82121-36011	HZB40,5#..5F	05/1995 - 05/1997	1
82121-36062	HZB40,5#..5F ｱﾘ(ABS)	05/1997 - 07/1999	1
82121-36063	HZB4#,5#..5F	07/1999 - 08/2004	1
82122 - WIRE, ENGINE, NO.2
82122-36150	BZB40,50	03/2002 - 08/2004	1
82122-36020	HDB5#,HZB4#,5#	01/1993 - 05/1995	1
82122-36021	HDB5#,HZB4#,5#	05/1995 - 07/1999	1
82122-36022	HDB5#,HZB4#,5#	07/1999 - 08/2004	1
82122 - WIRE, ENGINE, NO.2
82122-36150	BZB40,50	03/2002 - 08/2004	1
82122-36020	HDB5#,HZB4#,5#	01/1993 - 05/1995	1
82122-36021	HDB5#,HZB4#,5#	05/1995 - 07/1999	1
82122-36022	HDB5#,HZB4#,5#	07/1999 - 08/2004	1
82124 - WIRE, ENGINE, NO.4
82124-36010	BB4#,HDB5#,HZB4#,5#	01/1993 - 05/1995	1
82124-36011	BB58,HDB5#,HZB4#,5#	07/1999 - 08/2004	1
82124-36011	BB4#,5#,HDB5#,HZB4#,5#	05/1995 - 07/1999	1
82124 - WIRE, ENGINE, NO.4
82124-36010	BB4#,HDB5#,HZB4#,5#	01/1993 - 05/1995	1
82124-36011	BB58,HDB5#,HZB4#,5#	07/1999 - 08/2004	1
82124-36011	BB4#,5#,HDB5#,HZB4#,5#	05/1995 - 07/1999	1
82261A - WIRE, ALTERNATOR
82261-36021	HDB50,HZB40,5#..GX,LX ｶﾝﾚｲﾁｼﾖｳ	05/1995 - 05/1997	1
82261-36010	HDB50,HZB40,5#..(GX,LX,STD)..WC	01/1993 - 05/1995	1
82261-36020	HDB50,HZB40,5#..GX,LX ｶﾝﾚｲﾁｼﾖｳ	01/1993 - 05/1995	1
82261-36022	HDB50,HZB40,50..(GX,LX)..CBU ｱﾘ(ﾃﾚﾋﾞ & ﾋﾞﾃﾞｵ)	05/1997 - 07/1999	1
82261-36011	HDB50,HZB40,5#..(GX,LX,STD)..WC	05/1995 - 05/1997	1
82261-36012	HZB40..4FC..IV5;HDB50,HZB40,5#..(GX,LX,STD)..WC..CBU	05/1997 - 07/1999	1
82261-36100	HZB40..4FC..IV5;HDB50,HZB40,5#..(GX,LX)..CBU ｵﾙﾀﾈ-ﾀ=24V 85A & ｱﾘ(ABS)	05/1997 - 07/1999	1
82261-36090	HZB40..4FC..IV5;HDB50,HZB40,5#..(09S,26S,29S,49S)..(GX,LX,STD)..WC..CBU ｱﾘ(ABS)	05/1997 - 07/1999	1
82261-36091	BZB40,50,HZB46,56..09S,39S,49S;HZB40,50..(26S,29S,39S,49S)..WC..CBU ｱﾘ(ABS)	07/1999 - 08/2004	1
82261-36150	BZB40,50	03/2002 - 08/2004	1
82261-36101	HZB40,50..HRF..(26S,29S)..WC;BZB40,50,HZB46,56..09S,39S,49S ｵﾙﾀﾈ-ﾀ=24V 85A & ｱﾘ(ABS)	07/1999 - 08/2004	1
82261A - WIRE, ALTERNATOR
82261-36021	HDB50,HZB40,5#..GX,LX ｶﾝﾚｲﾁｼﾖｳ	05/1995 - 05/1997	1
82261-36010	HDB50,HZB40,5#..(GX,LX,STD)..WC	01/1993 - 05/1995	1
82261-36020	HDB50,HZB40,5#..GX,LX ｶﾝﾚｲﾁｼﾖｳ	01/1993 - 05/1995	1
82261-36022	HDB50,HZB40,50..(GX,LX)..CBU ｱﾘ(ﾃﾚﾋﾞ & ﾋﾞﾃﾞｵ)	05/1997 - 07/1999	1
82261-36011	HDB50,HZB40,5#..(GX,LX,STD)..WC	05/1995 - 05/1997	1
82261-36012	HZB40..4FC..IV5;HDB50,HZB40,5#..(GX,LX,STD)..WC..CBU	05/1997 - 07/1999	1
82261-36100	HZB40..4FC..IV5;HDB50,HZB40,5#..(GX,LX)..CBU ｵﾙﾀﾈ-ﾀ=24V 85A & ｱﾘ(ABS)	05/1997 - 07/1999	1
82261-36090	HZB40..4FC..IV5;HDB50,HZB40,5#..(09S,26S,29S,49S)..(GX,LX,STD)..WC..CBU ｱﾘ(ABS)	05/1997 - 07/1999	1
82261-36091	BZB40,50,HZB46,56..09S,39S,49S;HZB40,50..(26S,29S,39S,49S)..WC..CBU ｱﾘ(ABS)	07/1999 - 08/2004	1
82261-36150	BZB40,50	03/2002 - 08/2004	1
82261-36101	HZB40,50..HRF..(26S,29S)..WC;BZB40,50,HZB46,56..09S,39S,49S ｵﾙﾀﾈ-ﾀ=24V 85A & ｱﾘ(ABS)	07/1999 - 08/2004	1
82671 - BLOCK, JUNCTION
82671-28010	BB58,BZB40,50,HDB5#,HZB4#,5#	07/1999 - 08/2004	1
82671-28010	BB55,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
82671 - BLOCK, JUNCTION
82671-28010	BB58,BZB40,50,HDB5#,HZB4#,5#	07/1999 - 08/2004	1
82671-28010	BB55,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
82822A - BRACKET, CONNECTOR BLOCK
82822-36020	BB4#,5#,HDB5#,HZB4#,5#	05/1995 - 07/1999	1
82822-36020	HZB4#,5#	07/1999 - 08/2004	1
82823S - CAP, STARTER TERMINAL
82823-30100	BB58,BZB40,50,HDB5#,HZB4#,5#	07/1999 - 08/2004	1
82823T - CAP, ALTERNATOR TERMINAL
82823-24030	BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) ﾌﾞﾗｯｸ	05/1995 - 07/1999	1
82823-24030	HDB50,HZB40,46,5#..HRF..(GX,LX);BZB40,50,HDB51,HZB41..EX,STD,SULNG ﾌﾞﾗｯｸ	07/1999 - 08/2004	1
82823-22050	HZB40..4FC..IV5;BB4#,5#,HZB4#,5#..CBU ﾀﾞｰｸｸﾞﾚｰ	05/1995 - 07/1999	1
82823-22050	BB58,BZB40,50,HDB50,HZB4#,5#..CBU ﾀﾞｰｸｸﾞﾚｰ	07/1999 - 08/2004	1
Common parts
82715-36060
90119-06390
90119-06915
90119-08827
90179-06158
90179-08204
91622-G1014
91641-80812
91651-40620
91651-60620
91651-B0820
94130-00802
Linked diagrams
8201

ILLUST NO. 3 OF 9(9301-0408)

Click highlighted areas on diagram

ｶｳﾙ & ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ

Part #	Description	Period	Qty
82131 - WIRE, COWL
82131-36320	BB40,HZB50..WC..5F	01/1993 - 05/1995	1
82131-36210	HDB50,HZB50..GX..5F	01/1993 - 05/1995	1
82131-36270	HDB50,HZB50..GX..5F ｱﾘ(ｳ-ﾊ- ｽﾋﾟ-ｶ)	01/1993 - 05/1995	1
82131-36211	HDB50,HZB50..GX..5F	05/1995 - 05/1997	1
82131-36172	HDB5#,HZB41,50..MTM..(EX,GX,SULNG) ｱﾘ(ｳ-ﾊ- ｽﾋﾟ-ｶ)	05/1997 - 07/1999	1
82131-36271	HDB50,HZB50..GX..5F ｱﾘ(ｳ-ﾊ- ｽﾋﾟ-ｶ)	05/1995 - 05/1997	1
82131-36202	HDB5#,HZB41,50..MTM..(EX,GX,SULNG)	05/1997 - 07/1999	1
82131-36173	HZB41,50..(EX,GX)..5F ｱﾘ(ｳ-ﾊ- ｽﾋﾟ-ｶ)	07/1999 - 08/2001	1
82131-36203	HZB41,50..(EX,GX)..5F	07/1999 - 08/2001	1
82131-36174	HZB41,50..(EX,GX)..5F ｱﾘ(ｳ-ﾊ- ｽﾋﾟ-ｶ)	08/2001 - 08/2004	1
82131-36204	HZB41,50..(EX,GX)..5F	08/2001 - 08/2004	1
82131-36790	BZB40,50	03/2002 - 10/2003	1
82131-36791	BZB40,50	10/2003 - 08/2004	1
82141 - WIRE, INSTRUMENT PANEL
82141-36010	HDB5#,HZB41,50..EX,GX,SULNG	01/1993 - 05/1995	1
82141-36011	HDB5#,HZB41,50..EX,GX,SULNG	05/1995 - 05/1997	1
82141-36013	HDB5#,HZB41,50..EX,GX,SULNG	07/1999 - 08/2001	1
82141-36014	HDB5#,HZB41,50..EX,GX,SULNG	08/2001 - 08/2004	1
82141-36012	HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV1)	05/1997 - 07/1999	1
82141-36210	BZB40,50	03/2002 - 08/2004	1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-36030	BB4#,HDB50,HZB40,5#..5F	01/1993 - 05/1995	1
82142-36031	BB4#,HDB50,HZB40,5#..5F	05/1995 - 05/1997	1
82142-36150	HDB50,HZB50..MTM..GX	05/1997 - 07/1999	1
82142-36182	BZB40,50	03/2002 - 08/2004	1
82142-36033	BB58,HDB50,HZB40,46,5#	07/1999 - 08/2004	1
82210C - FUSIBLE LINK
90982-08188	BB4#,5#,HDB5#,HZB4#,5# 30A,ﾒｽ端子,ﾋﾟﾝｸ,PACIFIC	01/1993 - 07/1999	1
90982-08246	BB4#,5#,HDB5#,HZB4#,5# 100A,ｵｽ端子,青	01/1993 - 07/1999	1
90982-08281	BB58,BZB40,50,HDB5#,HZB4#,5# 40A,ﾒｽ端子,緑	07/1999 - 08/2004	1
90982-08202	BB4#,5#,HDB5#,HZB4#,5# 60A,ｵｽ端子,黄	01/1993 - 07/1999	1
90982-08203	BB4#,5#,HDB5#,HZB4#,5# 80A,ｵｽ端子,黒	01/1993 - 07/1999	1
90982-08202	BB58,BZB40,50,HDB5#,HZB4#,5# 60A,ｵｽ端子,黄	07/1999 - 08/2004	1
90982-08223	BB4#,5#,HDB5#,HZB4#,5# 30A,ｵｽ端子,ﾋﾟﾝｸ	01/1993 - 07/1999	1
90982-08280	BB4#,5#,HDB5#,HZB4#,5# 30A,ﾒｽ端子,桃,YAZAKI	01/1993 - 07/1999	1
90982-08228	BB4#,5#,HDB5#,HZB4#,5# 50A,ｵｽ端子,赤	01/1993 - 07/1999	1
90982-08280	BB58,BZB40,50,HDB5#,HZB4#,5# 30A,ﾒｽ端子,桃	07/1999 - 08/2004	1
90982-08282	BB58,BZB40,50,HDB5#,HZB4#,5# 50A,ﾒｽ端子,赤	07/1999 - 08/2004	1
90982-08203	BZB40,50,HZB4#,5# 80A,ｵｽ端子,黒	07/1999 - 08/2004	1
90982-08274	BZB40,50,HDB5#,HZB4#,5#..WC 120A,ｵｽ端子,白	07/1999 - 08/2004	1

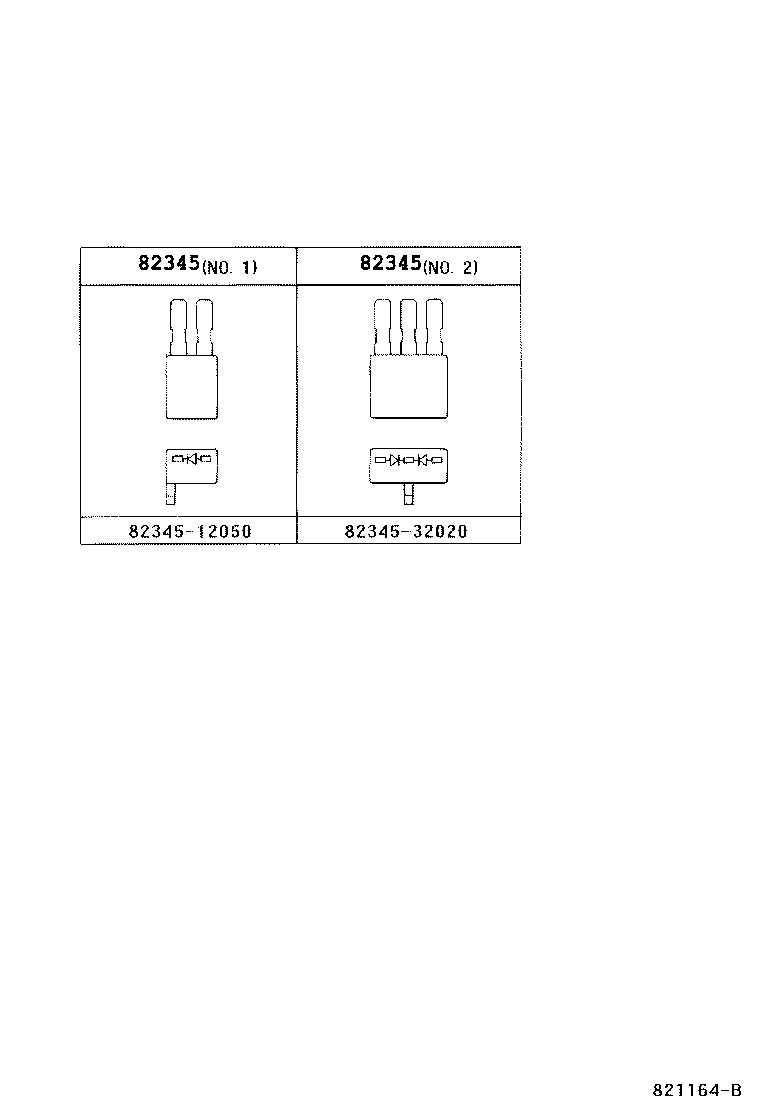

82345 - DIODE
82345-12050	BB4#,5#,HDB5#,HZB4#,5# NO.1	01/1993 - 07/1999	1
82345-32020	BB58,BZB40,50,HDB5#,HZB4#,5# NO.2	07/1999 - 08/2004	1
82345-12050	BB58,BZB40,50,HDB5#,HZB4#,5# NO.1	07/1999 - 08/2004	1
82345-32020	BB4#,5#,HDB5#,HZB4#,5# NO.2	01/1993 - 07/1999	1
82345 - DIODE
82345-12050	BB4#,5#,HDB5#,HZB4#,5# NO.1	01/1993 - 07/1999	1
82345-32020	BB58,BZB40,50,HDB5#,HZB4#,5# NO.2	07/1999 - 08/2004	1
82345-12050	BB58,BZB40,50,HDB5#,HZB4#,5# NO.1	07/1999 - 08/2004	1
82345-32020	BB4#,5#,HDB5#,HZB4#,5# NO.2	01/1993 - 07/1999	1
82666A - HOLDER, CONNECTOR NO.2
82666-36010	BZB40,50	03/2002 - 08/2004	2
82666-36010	BB58,HDB5#,HZB4#,5#	07/1999 - 08/2004	1
82666-36010	BB4#,5#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
82666B - HOLDER, CONNECTOR NO.3
82666-36020	BZB40,50	03/2002 - 08/2004	2
82666-36020	BB4#,5#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
82666-36020	BB58,HDB5#,HZB4#,5#	07/1999 - 08/2004	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-36060	BB58,BZB40,50,HDB5#,HZB4#,5#	12/2000 - 08/2004	1
82819C - GROMMET, WIRING HARNESS
82819-20070	HDB50..LX;BB58,HZB4#,5#;HDB5#..(EX,GX,SULNG)..6F	07/1999 - 08/2004	1
82819-20070	BZB40,50	03/2002 - 08/2004	2
82824 - CONNECTOR, WIRING HARNESS
82824-22060	HDB5#,HZB41,50..EX,GX,SULNG NO.1	01/1993 - 05/1995	1
82824-30130	HZB41,50..(EX,GX)..CBU;HDB5#..(EX,GX,SULNG)..6F	07/1999 - 08/2004	3
82824-22060	BB4#,5#,HDB5#,HZB4#,5# NO.1	05/1995 - 07/1999	1
82824F - CONNECTOR, WIRING HARNESS
82824-36060	BB40..SRF..LX;HDB5#,HZB41,50..EX,GX,SULNG	01/1993 - 02/1993	1
82824-36060	BB4#,HDB5#,HZB4#,5#	02/1993 - 05/1997	1
82824-36060	HDB5#,HZB41,50..EX,GX,SULNG	07/1999 - 08/2004	1
82824-36060	BB40,HDB5#,HZB41,50..(20S,26S,29S)..(DX,EX,GX,STD,SULNG)..(CBU,IV1)	05/1997 - 07/1999	1
82824H - CONNECTOR, WIRING HARNESS
82824-30130	HZB41,50..EX,GX;HDB5#..(EX,GX,SULNG)..6F	07/1999 - 08/2004	3
82824-30130	BZB40,50	03/2002 - 08/2004	4
85996A - BRACKET, RELAY, NO.2
85996-36010	HZB50..4FC..IV5;HZB50..STD..4FC;HZB41,50..HRF..WC..CBU;BB58,HDB5#,HZB40,56..4FC,6F	08/1998 - 07/1999	1
85996-36010	BB4#,5#,HDB5#,HZB4#,5#	01/1993 - 11/1997	1
85996-36010	BB58,BZB40,50,HDB5#,HZB4#,5#	07/1999 - 08/2004	1
85996-36010	HZB50..4FC..IV5;HZB50..STD..4FC;HZB41,50..(26S,29S)..CBU;BB58,HDB5#,HZB40,56..4FC,6F;BB40,HZB50..(26S,39S,49S)..WOC	11/1997 - 08/1998	1
Common parts
85999-36100
90119-06048
90119-06166
90119-06915
90463-12008
91651-40616
93568-55014
Linked diagrams
8401

ILLUST NO. 4 OF 9(9301-0408)

Click highlighted areas on diagram

ﾌﾛｱ

Part #	Description	Period	Qty
82132 - WIRE, COWL, NO.2
82132-36080	HDB50,HZB41,50..(26S,29S)..(EX,GX) ｱﾘ(ｳ-ﾊ- ｽﾋﾟ-ｶ)	01/1993 - 09/1993	1
82132-36011	HZB40,50;BB4#,58,HDB5#,HZB41,56..CBU,IV1	05/1997 - 07/1999	1
82132-36081	BB58,HDB5#,HZB41,50..(EX,GX,LX,SULNG)..CBU ｱﾘ(ｳ-ﾊ- ｽﾋﾟ-ｶ)	05/1997 - 07/1999	1
82132-36010	BB4#,55,HDB5#,HZB4#,5#..09S,20S,26S,29S,39S,49S	01/1993 - 05/1997	1
82132-36060	HDB5#,HZB41,50..EX,GX,LX,SULNG ｱﾘ(ｳ-ﾊ- ｽﾋﾟ-ｶ & ﾃﾚﾋﾞ & ﾋﾞﾃﾞｵ)	01/1993 - 05/1997	1
82132-36070	BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG) ｱﾘ(ﾃﾚﾋﾞ & ﾋﾞﾃﾞｵ)	01/1993 - 05/1997	1
82132-36062	HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..WC..CBU ｱﾘ(ﾃﾚﾋﾞ & ﾋﾞﾃﾞｵ)	07/1999 - 02/2000	1
82132-36080	BB55,HDB5#,HZB41,50..(20S,26S,29S)..(EX,GX,LX,SULNG) ｱﾘ(ｳ-ﾊ- ｽﾋﾟ-ｶ)	09/1993 - 05/1997	1
82132-36064	HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..WC..CBU ｱﾘ(ﾃﾚﾋﾞ & ﾋﾞﾃﾞｵ)	08/2001 - 08/2004	1
82132-36071	HZB40..4FC..IV5;HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(ﾃﾚﾋﾞ & ﾋﾞﾃﾞｵ)	05/1997 - 07/1999	1
82132-36061	HDB5#,HZB41,50..(EX,GX,LX,SULNG)..CBU ｱﾘ(ｳ-ﾊ- ｽﾋﾟ-ｶ & ﾃﾚﾋﾞ & ﾋﾞﾃﾞｵ)	05/1997 - 07/1999	1
82132-36082	BB58,HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..WC..CBU ｱﾘ(ｳ-ﾊ- ｽﾋﾟ-ｶ)	07/1999 - 08/2004	1
82132-36063	HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..WC..CBU ｱﾘ(ﾃﾚﾋﾞ & ﾋﾞﾃﾞｵ)	02/2000 - 08/2001	1
82132-36012	BB58,BZB40,50,HDB5#,HZB4#,5#	07/1999 - 08/2004	1
82159 - WIRE, PILLAR, NO.2
82159-36040	HDB5#,HZB41,50..EX,GX,SULNG	07/1999 - 08/2004	1
82159-36040	HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV1)	05/1997 - 07/1999	1
82161 - WIRE, FLOOR
82161-36110	HDB50,HZB50..29S ｱﾘ(ﾊﾟﾜ- ﾋ-ﾀ)	01/1993 - 05/1995	1
82161-36030	HDB50,HZB50..29S ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	01/1993 - 10/1995	1
82161-36180	HDB50,HZB5# ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ & ﾊﾟﾜ-ﾋ-ﾀ)	01/1993 - 10/1995	1
82161-36110	HDB50,HZB50..29S ｱﾘ(ﾊﾟﾜｰﾋｰﾀ)	05/1995 - 10/1995	1
82161-36031	HDB50,HZB50..29S ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	10/1995 - 05/1997	1
82161-36081	BB55,HDB50,HZB50..29S	10/1995 - 05/1997	1
82161-36080	HDB50,HZB50..29S	01/1993 - 10/1995	1
82161-36111	HDB50,HZB50..29S ｱﾘ(ﾊﾟﾜｰﾋｰﾀ)	10/1995 - 05/1997	1
82161-36181	HDB50,HZB5# ｱﾘ(ﾊﾟﾜ- ﾋ-ﾀ, ｵ-ﾄﾄﾞｱ=ｸﾞﾗｲﾄﾞｼｷ & ｶﾝﾉﾝﾄﾞｱ)	10/1995 - 05/1997	1
82161-36032	BB58,HDB50,HZB5# ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	05/1997 - 07/1999	1
82161-36112	HDB50,HZB50..29S..CBU ｱﾘ(ﾊﾟﾜｰﾋｰﾀ)	05/1997 - 07/1999	1
82161-36082	BB58,HDB50,HZB50..29S..CBU	05/1997 - 07/1999	1
82161-36033	BB58,HDB50,HZB5# ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	07/1999 - 08/2001	1
82161-36183	BB58,HDB50,HZB5# ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ & ﾊﾟﾜ-ﾋ-ﾀ)	07/1999 - 08/2001	1
82161-36182	BB58,HDB50,HZB5# ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ & ﾊﾟﾜ-ﾋ-ﾀ)	05/1997 - 07/1999	1
82161-36113	BB58,HDB50,HZB50..29S..CBU ｱﾘ(ﾊﾟﾜｰﾋｰﾀ)	07/1999 - 08/2004	1
82161-36083	BB58,BZB50,HDB50,HZB50..29S..CBU	07/1999 - 08/2004	1
82161-36034	BB58,HDB50,HZB5# ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	08/2001 - 08/2004	1
82161-36184	BB58,HDB50,HZB5# ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ & ﾊﾟﾜ-ﾋ-ﾀ)	08/2001 - 08/2004	1
82163 - WIRE, FLOOR, NO.3
82163-36010	BB58,BZB50,HDB5#,HZB4#,5#..WC..(CBU,IV5)	07/1999 - 08/2004	1
82163-36010	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	1
82164 - WIRE, FRAME
82164-36040	HDB50,HZB40,5#..09S,26S,29S,49S	05/1997 - 07/1999	1
82164-36041	BZB40,50,HDB50,HZB40,46,5#..09S,26S,29S,39S,49S	07/1999 - 08/2004	1
82214B - WIRE, LAMP, REAR
82214-60010	BB4#,58,HDB5#,HZB4#,5#..CBU,IV5	05/1997 - 07/1999	1
82214-60010	BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5	07/1999 - 08/2004	1
82281 - WIRE, GAGE
82281-36020	BB4#,HDB50,HZB40,5#	01/1993 - 10/1995	1
82281-36021	BB4#,5#,HDB50,HZB40,5#	10/1995 - 07/1999	1
82281-36021	BB58,HDB50,HZB40,46,5#	07/1999 - 08/2004	1
82561 - WIRE, REAR SPEAKER
82561-36020	BB5#,HDB5#,HZB41,50..(EX,GX,LX,SULNG)..CBU	02/1993 - 07/1999	1
82561-36020	BB58,HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..WC..CBU	07/1999 - 08/2004	1
82561A - WIRE, REAR SPEAKER NO.2
82561-36010	HDB51..29S..CBU;BB5#,HDB50,HZB41,50..(26S,29S)..(EX,GX,LX)..CBU	01/1993 - 07/1999	1
82562-36050	HDB51..29S..CBU;BB58,HDB50,HZB40,41,50..HRF..(26S,29S)..(EX,GX,LX)..CBU	08/2001 - 08/2004	1
82561-36010	HDB51..29S..CBU;BB58,HDB50,HZB40,41,50..HRF..(26S,29S)..WC..CBU	07/1999 - 08/2001	1
82816 - BRACKET, WIRING HARNESS GROMMET
82816-36020	BB58,HZB40..LX;BB4#,55,HDB5#,HZB41,5#..CBU,IV5	01/1993 - 07/1999	1
Common parts
82711-12200
90119-06923
93540-14010

ILLUST NO. 5 OF 9(9301-0408)

Click highlighted areas on diagram

ﾙ-ﾌ, ﾄﾞｱ(ﾊﾈｱｹﾞﾀｲﾌﾟ)

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-36010	BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5)	07/1999 - 08/2004	1
82151-36010	BB46..WC;BB40,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5)	01/1993 - 07/1999	1
82153 - WIRE, REAR DOOR, NO.1
82153-36010	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5)	01/1993 - 07/1999	1
82153-36010	BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5)	07/1999 - 08/2004	1
82154 - WIRE, REAR DOOR, NO.2
82154-36010	BB4#,HDB50,HZB40,5#..GX,LX ｱﾘ(ｸﾞﾗｲﾄﾞｼｷｻｲﾄﾞﾄﾞｱ)	01/1993 - 09/1993	1
82154-36020	BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG ｱﾘ(ｸﾞﾗｲﾄﾞｼｷｵ-ﾄｻｲﾄﾞﾄﾞｱ)	01/1993 - 05/1995	1
82154-36021	HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU ｱﾘ(ｸﾞﾗｲﾄﾞｼｷｵ-ﾄｻｲﾄﾞﾄﾞｱ)	05/1995 - 07/1999	1
82154-36010	HDB51..29S..4FC;HZB41..26S..4FC;BB4#,HDB50,HZB40,5#..GX,LX ｱﾘ(ｸﾞﾗｲﾄﾞｼｷｻｲﾄﾞﾄﾞｱ)	09/1993 - 05/1995	1
82154-36011	HDB51..IV5;BB4#,HDB50,HZB40,5#..GX,LX ｱﾘ(ｸﾞﾗｲﾄﾞｼｷｻｲﾄﾞﾄﾞｱ)	05/1997 - 07/1999	1
82154-36011	BZB40,50,HDB50,HZB40,46,5#..(GX,LX)..CBU ｱﾘ(ｸﾞﾗｲﾄﾞｼｷｻｲﾄﾞﾄﾞｱ)	07/1999 - 08/2004	1
82154-36011	HDB51..29S..4FC;BB4#,HDB50,HZB40,5#..GX,LX ｱﾘ(ｸﾞﾗｲﾄﾞｼｷｻｲﾄﾞﾄﾞｱ)	05/1995 - 05/1997	1
82154-36021	BZB40,50,HDB5#,HZB4#,5#..(09S,10S,19S,20S,24S,26S,29S)..WC..(CBU,IV5) ｱﾘ(ｸﾞﾗｲﾄﾞｼｷｵ-ﾄｻｲﾄﾞﾄﾞｱ)	07/1999 - 08/2004	1
82162 - WIRE, FLOOR, NO.2
82162-36013	HZB40..4FC..IV5;BB58,HDB5#,HZB40,41,50..(20S,26S,29S)..CBU	08/2000 - 08/2001	1
82162-36010	BB40,55,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG	01/1993 - 05/1997	1
82162-36080	HDB5#,HZB40,41,50..(20S,26S,29S)..CBU	08/2001 - 08/2004	1
82162-36012	HZB40..4FC..IV5;BB58,HDB5#,HZB40,41,50..(20S,26S,29S)..CBU	07/1999 - 08/2000	1
82162-36011	HZB40..4FC..IV5;BB40,58,HDB5#,HZB4#,50..(20S,26S,29S)..CBU	05/1997 - 07/1999	1
82171 - WIRE, ROOF, NO.1
82171-36020	HDB5#,HZB50..GX,SULNG ｱﾘ(ｶﾝｷｾﾝ)	01/1993 - 07/1999	1
82171-36070	HZB40..5F;HDB51..EX..CBU;HZB40..LX..4FC..CBU;BB4#,5#,HDB50,HZB41,5#..HRF ｱﾘ(ｸﾛﾂｸ)	01/1993 - 07/1999	1
82171-36090	HDB5#,HZB41,50..(EX,GX)..CBU ｱﾘ(ｹｲｺｳﾄｳ & ｶﾝｷｾﾝ)	07/1999 - 08/2004	1
82171-36080	BB58,HDB5#,HZB40,41,50..HRF..(10S,24S,26S,29S)..(EX,GX,LX)..(CBU,IV5) ｱﾘ(ｹｲｺｳﾄｳ)	07/1999 - 08/2004	1
82171-36080	HZB40,50..LX..4FC;HDB5#,HZB41,50..EX,GX ｱﾘ(ｹｲｺｳﾄｳ)	05/1995 - 05/1997	1
82171-36020	HDB5#,HZB50..(EX,GX,SULNG)..CBU ｱﾘ(ｶﾝｷｾﾝ)	07/1999 - 08/2004	1
82171-36080	BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX)..(CBU,IV5) ｱﾘ(ｹｲｺｳﾄｳ)	05/1997 - 07/1999	1
82171-36090	HDB5#,HZB41,50..(EX,GX)..CBU ｱﾘ(ｹｲｺｳﾄｳ & ｶﾝｷｾﾝ)	05/1995 - 07/1999	1
82171-36070	HZB40..HRF..5F;HZB40..HRF..26S..4FC..CBU;BB58,HDB5#,HZB41,46,5#..HRF..(09S,26S,29S,49S)..(CBU,IV5) ｱﾘ(ｸﾛﾂｸ)	07/1999 - 08/2004	1
82172 - WIRE, ROOF, NO.2
82172-36050	BB40,5#,HDB5#,HZB4#,50..HRF..(CBU,IV5) ｱﾘ(4 ｽﾋﾟ-ｶ)	01/1993 - 07/1999	1
82172-36070	BB58,HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..WC..CBU ｱﾘ(ｳ-ﾊ- ｽﾋﾟ-ｶ & 4 ｽﾋﾟ-ｶ)	07/1999 - 08/2004	1
82172-36070	BB5#,HDB5#,HZB41,50..(EX,GX,LX,SULNG)..CBU ｱﾘ(4 ｱﾝﾌﾟ)	01/1993 - 07/1999	1
82172-36050	BB58,BZB40,50,HDB5#,HZB40,41,50..HRF..(10S,20S,24S,26S,29S,49S)..(CBU,IV5) ｱﾘ(4 ｽﾋﾟ-ｶ)	07/1999 - 08/2004	1
82173 - WIRE, ROOF, NO.3
82173-36010	BB4#,55,HDB5#,HZB4#,5# ｱﾘ(ﾃﾞｼﾞﾀﾙｸﾛﾂｸ)	01/1993 - 05/1997	1
82173-36050	BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(ﾃﾞｼﾞﾀﾙｸﾛﾂｸ & ﾌﾛﾝﾄｽﾎﾟﾂﾄﾗﾝﾌﾟ)	05/1997 - 07/1999	1
82173-36050	BZB40,50,HDB5#,HZB40,41,50..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(ﾃﾞｼﾞﾀﾙｸﾛﾂｸ & ﾌﾛﾝﾄｽﾎﾟﾂﾄﾗﾝﾌﾟ)	07/1999 - 08/2004	1
82174 - WIRE, ROOF, NO.4
82174-36010	HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV1)	01/1993 - 07/1999	1
82174-36050	BZB40,50	03/2002 - 08/2004	1
82174-36010	HDB5#,HZB41,50..EX,GX,SULNG	07/1999 - 08/2004	1
82175 - WIRE, ROOF, NO.5
82175-36010	HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..WC..CBU	07/1999 - 12/1999	1
82175-36012	HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..WC..CBU	08/2001 - 08/2004	1
82175-36010	BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)	01/1993 - 05/1997	1
82175-36011	HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..WC..CBU	12/1999 - 08/2001	1
82175-36010	BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..(4FC,5F)..CBU ｱﾘ(ﾃﾚﾋﾞ & ﾋﾞﾃﾞｵ)	05/1997 - 07/1999	1
82184 - WIRE, BACK DOOR, NO.1
82184-36020	BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	01/1993 - 10/1995	1
82184-36021	HZB40..5F;HZB50..29S;HZB40..LX..4FC..CBU;BB4#,58,HDB5#,HZB41,56..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	10/1995 - 07/1999	1
82184-36010	HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5)	01/1993 - 07/1999	1
82184-36021	HZB40..5F..IV5;HZB40..(DX,LX)..CBU;BB58,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	07/1999 - 08/2004	1
82184-36010	BB58,BZB40,50,HDB5#,HZB40,41,50..(19S,20S,26S,29S)..CBU	07/1999 - 08/2004	1
82186 - WIRE, REAR WINDOW, NO.1
82186-36030	HZB40,50..26S,29S;BB4#,58,HDB5#,HZB41,56..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	01/1993 - 07/1999	1
82186-36010	BB58,HDB5#,HZB40,41,50..(19S,20S,26S,29S)..CBU	07/1999 - 08/2004	1
82186-36010	HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5)	01/1993 - 07/1999	1
82186-36030	BB58,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	07/1999 - 08/2004	1
82219 - WIRE, THERMO SENSOR
82219-36010	HDB5#,HZB41,50..EX,GX,SULNG	01/1993 - 05/1997	1
82376A - WIRE, AUTO FAN
82376-36030	HDB5#,HZB41,50..(EX,GX,SULNG)..CBU	09/1993 - 07/1999	1
82376-36030	HDB5#,HZB41,50..EX,GX,SULNG	01/1993 - 04/1993	1
82376-36030	HZB40..4FC;HDB5#,HZB41,50..EX,GX,SULNG	04/1993 - 09/1993	1
82376-36030	HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5)	07/1999 - 08/2004	1
Common parts
90119-06915
90980-10789
93560-14012

ILLUST NO. 5 OF 9(9301-1501)

Click highlighted areas on diagram

ﾙ-ﾌ, ﾄﾞｱ(ｶﾝﾉﾝﾀｲﾌﾟ)

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-36010	BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5)	07/1999 - 08/2004	1
82151-36010	BB46..WC;BB40,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5)	01/1993 - 07/1999	1
82153 - WIRE, REAR DOOR, NO.1
82153-36010	BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5)	01/1993 - 07/1999	1
82153-36010	BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5)	07/1999 - 08/2004	1
82154 - WIRE, REAR DOOR, NO.2
82154-36010	BB4#,HDB50,HZB40,5#..GX,LX ｱﾘ(ｸﾞﾗｲﾄﾞｼｷｻｲﾄﾞﾄﾞｱ)	01/1993 - 09/1993	1
82154-36020	BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG ｱﾘ(ｸﾞﾗｲﾄﾞｼｷｵ-ﾄｻｲﾄﾞﾄﾞｱ)	01/1993 - 05/1995	1
82154-36021	HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU ｱﾘ(ｸﾞﾗｲﾄﾞｼｷｵ-ﾄｻｲﾄﾞﾄﾞｱ)	05/1995 - 07/1999	1
82154-36010	HDB51..29S..4FC;HZB41..26S..4FC;BB4#,HDB50,HZB40,5#..GX,LX ｱﾘ(ｸﾞﾗｲﾄﾞｼｷｻｲﾄﾞﾄﾞｱ)	09/1993 - 05/1995	1
82154-36011	HDB51..IV5;BB4#,HDB50,HZB40,5#..GX,LX ｱﾘ(ｸﾞﾗｲﾄﾞｼｷｻｲﾄﾞﾄﾞｱ)	05/1997 - 07/1999	1
82154-36011	BZB40,50,HDB50,HZB40,46,5#..(GX,LX)..CBU ｱﾘ(ｸﾞﾗｲﾄﾞｼｷｻｲﾄﾞﾄﾞｱ)	07/1999 - 08/2004	1
82154-36011	HDB51..29S..4FC;BB4#,HDB50,HZB40,5#..GX,LX ｱﾘ(ｸﾞﾗｲﾄﾞｼｷｻｲﾄﾞﾄﾞｱ)	05/1995 - 05/1997	1
82154-36021	BZB40,50,HDB5#,HZB4#,5#..(09S,10S,19S,20S,24S,26S,29S)..WC..(CBU,IV5) ｱﾘ(ｸﾞﾗｲﾄﾞｼｷｵ-ﾄｻｲﾄﾞﾄﾞｱ)	07/1999 - 08/2004	1
82162 - WIRE, FLOOR, NO.2
82162-36013	HZB40..4FC..IV5;BB58,HDB5#,HZB40,41,50..(20S,26S,29S)..CBU	08/2000 - 08/2001	1
82162-36010	BB40,55,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG	01/1993 - 05/1997	1
82162-36080	HDB5#,HZB40,41,50..(20S,26S,29S)..CBU	08/2001 - 08/2004	1
82162-36012	HZB40..4FC..IV5;BB58,HDB5#,HZB40,41,50..(20S,26S,29S)..CBU	07/1999 - 08/2000	1
82162-36011	HZB40..4FC..IV5;BB40,58,HDB5#,HZB4#,50..(20S,26S,29S)..CBU	05/1997 - 07/1999	1
82171 - WIRE, ROOF, NO.1
82171-36020	HDB5#,HZB50..GX,SULNG ｱﾘ(ｶﾝｷｾﾝ)	01/1993 - 07/1999	1
82171-36070	HZB40..5F;HDB51..EX..CBU;HZB40..LX..4FC..CBU;BB4#,5#,HDB50,HZB41,5#..HRF ｱﾘ(ｸﾛﾂｸ)	01/1993 - 07/1999	1
82171-36090	HDB5#,HZB41,50..(EX,GX)..CBU ｱﾘ(ｹｲｺｳﾄｳ & ｶﾝｷｾﾝ)	07/1999 - 08/2004	1
82171-36080	BB58,HDB5#,HZB40,41,50..HRF..(10S,24S,26S,29S)..(EX,GX,LX)..(CBU,IV5) ｱﾘ(ｹｲｺｳﾄｳ)	07/1999 - 08/2004	1
82171-36080	HZB40,50..LX..4FC;HDB5#,HZB41,50..EX,GX ｱﾘ(ｹｲｺｳﾄｳ)	05/1995 - 05/1997	1
82171-36020	HDB5#,HZB50..(EX,GX,SULNG)..CBU ｱﾘ(ｶﾝｷｾﾝ)	07/1999 - 08/2004	1
82171-36080	BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX)..(CBU,IV5) ｱﾘ(ｹｲｺｳﾄｳ)	05/1997 - 07/1999	1
82171-36090	HDB5#,HZB41,50..(EX,GX)..CBU ｱﾘ(ｹｲｺｳﾄｳ & ｶﾝｷｾﾝ)	05/1995 - 07/1999	1
82171-36070	HZB40..HRF..5F;HZB40..HRF..26S..4FC..CBU;BB58,HDB5#,HZB41,46,5#..HRF..(09S,26S,29S,49S)..(CBU,IV5) ｱﾘ(ｸﾛﾂｸ)	07/1999 - 08/2004	1
82172 - WIRE, ROOF, NO.2
82172-36050	BB40,5#,HDB5#,HZB4#,50..HRF..(CBU,IV5) ｱﾘ(4 ｽﾋﾟ-ｶ)	01/1993 - 07/1999	1
82172-36070	BB58,HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..WC..CBU ｱﾘ(ｳ-ﾊ- ｽﾋﾟ-ｶ & 4 ｽﾋﾟ-ｶ)	07/1999 - 08/2004	1
82172-36070	BB5#,HDB5#,HZB41,50..(EX,GX,LX,SULNG)..CBU ｱﾘ(4 ｱﾝﾌﾟ)	01/1993 - 07/1999	1
82172-36050	BB58,BZB40,50,HDB5#,HZB40,41,50..HRF..(10S,20S,24S,26S,29S,49S)..(CBU,IV5) ｱﾘ(4 ｽﾋﾟ-ｶ)	07/1999 - 08/2004	1
82173 - WIRE, ROOF, NO.3
82173-36010	BB4#,55,HDB5#,HZB4#,5# ｱﾘ(ﾃﾞｼﾞﾀﾙｸﾛﾂｸ)	01/1993 - 05/1997	1
82173-36050	BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(ﾃﾞｼﾞﾀﾙｸﾛﾂｸ & ﾌﾛﾝﾄｽﾎﾟﾂﾄﾗﾝﾌﾟ)	05/1997 - 07/1999	1
82173-36050	BZB40,50,HDB5#,HZB40,41,50..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(ﾃﾞｼﾞﾀﾙｸﾛﾂｸ & ﾌﾛﾝﾄｽﾎﾟﾂﾄﾗﾝﾌﾟ)	07/1999 - 08/2004	1
82174 - WIRE, ROOF, NO.4
82174-36010	HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV1)	01/1993 - 07/1999	1
82174-36050	BZB40,50	03/2002 - 08/2004	1
82174-36010	HDB5#,HZB41,50..EX,GX,SULNG	07/1999 - 08/2004	1
82184 - WIRE, BACK DOOR, NO.1
82184-36020	BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	01/1993 - 10/1995	1
82184-36021	HZB40..5F;HZB50..29S;HZB40..LX..4FC..CBU;BB4#,58,HDB5#,HZB41,56..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	10/1995 - 07/1999	1
82184-36010	HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5)	01/1993 - 07/1999	1
82184-36021	HZB40..5F..IV5;HZB40..(DX,LX)..CBU;BB58,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	07/1999 - 08/2004	1
82184-36010	BB58,BZB40,50,HDB5#,HZB40,41,50..(19S,20S,26S,29S)..CBU	07/1999 - 08/2004	1
82186 - WIRE, REAR WINDOW, NO.1
82186-36030	HZB40,50..26S,29S;BB4#,58,HDB5#,HZB41,56..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	01/1993 - 07/1999	1
82186-36010	BB58,HDB5#,HZB40,41,50..(19S,20S,26S,29S)..CBU	07/1999 - 08/2004	1
82186-36010	HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5)	01/1993 - 07/1999	1
82186-36030	BB58,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	07/1999 - 08/2004	1
82186 - WIRE, REAR WINDOW, NO.1
82186-36030	HZB40,50..26S,29S;BB4#,58,HDB5#,HZB41,56..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	01/1993 - 07/1999	1
82186-36010	BB58,HDB5#,HZB40,41,50..(19S,20S,26S,29S)..CBU	07/1999 - 08/2004	1
82186-36010	HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5)	01/1993 - 07/1999	1
82186-36030	BB58,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	07/1999 - 08/2004	1
82219 - WIRE, THERMO SENSOR
82219-36010	HDB5#,HZB41,50..EX,GX,SULNG	01/1993 - 05/1997	1
Common parts
82711-36130
82817-12630
90119-06915
90467-08043
90480-30033
90980-10789
90980-12350

ILLUST NO. 6 OF 9(9301- )

Click highlighted areas on diagram

ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ

Part #	Description	Period	Qty	Price
Common parts
82711-22270
82711-60150
82711-60230
82711-60340
82711-60510
82712-36060
82715-25150
82715-26240
82715-28360
82715-28790
82715-34080
82715-35650
82715-36010
82715-36060
82715-36070
82715-36080
82715-36170
82715-37160
82715-47090
82715-60040
82715-60110
82715-60280
82715-60360
82715-60460
82715-60510
82715-60630
82715-60800
90464-00311
90464-00598
90464-00737
90464-00783
90949-01B51
91512-61014
91641-80812
91651-60616
91651-60620
91651-60816
91651-B0820
94130-00802

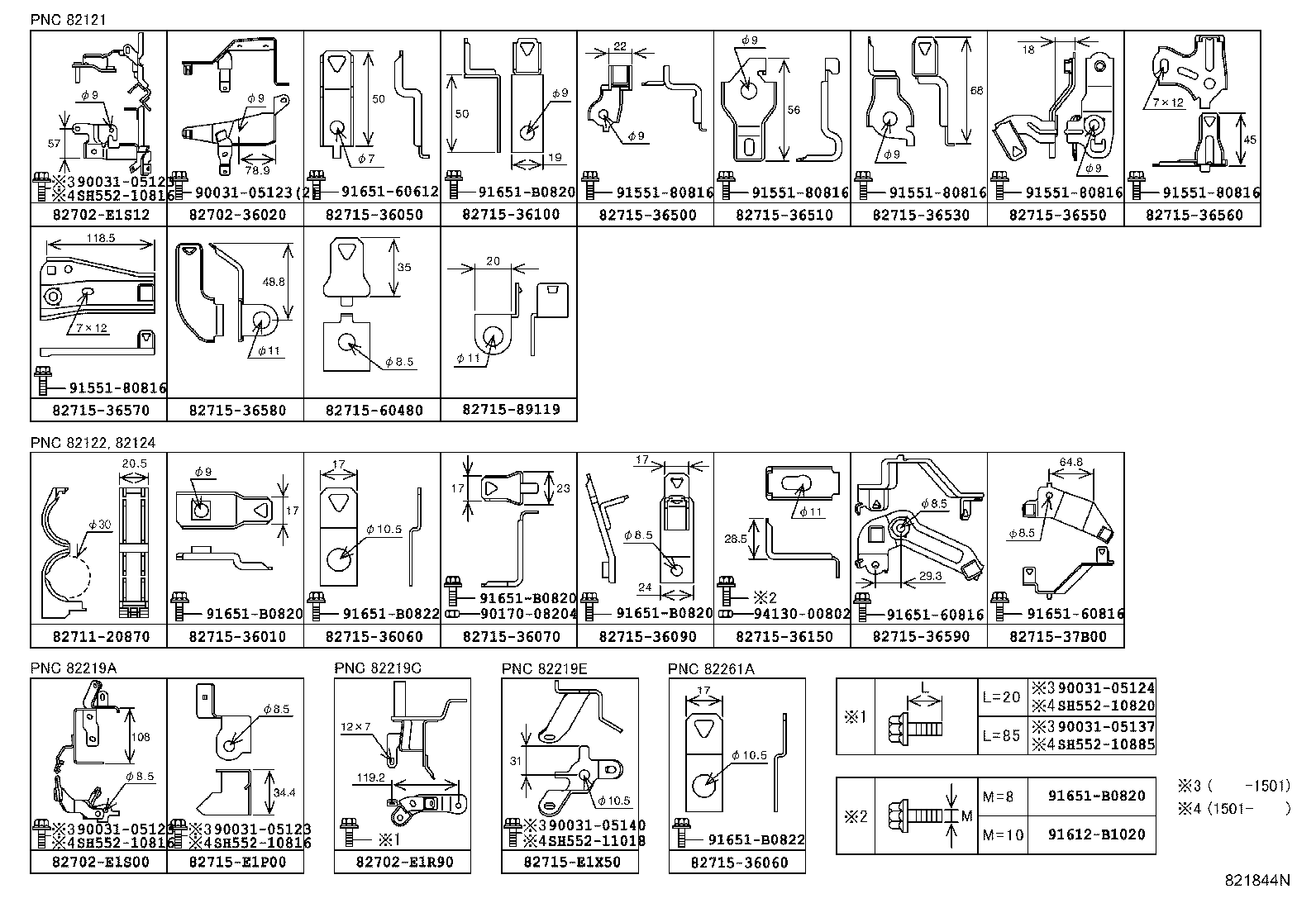

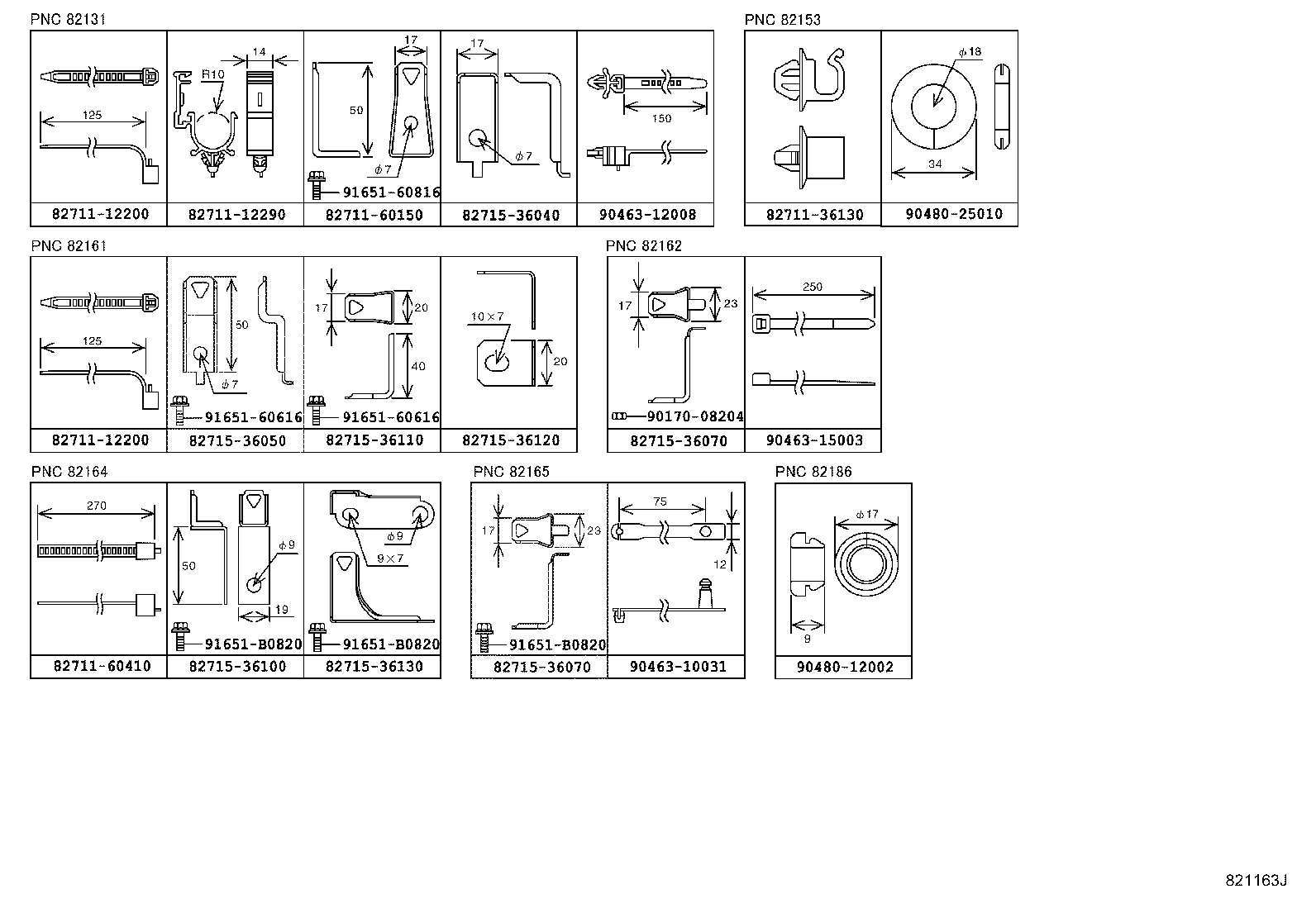

ILLUST NO. 6 OF 9(9301- )

Click highlighted areas on diagram

ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ

Part #	Description	Period	Qty	Price
Common parts
82711-12200
82711-12290
82711-36130
82711-60150
82711-60410
82715-36040
82715-36050
82715-36070
82715-36100
82715-36110
82715-36120
82715-36130
90170-08204
90463-10031
90463-12008
90463-15003
90480-12002
90480-25010
91651-60616
91651-60816
91651-B0820

ILLUST NO. 7 OF 9(9301- )

Click highlighted areas on diagram

ﾀﾞｲｵ-ﾄﾞ

Part #	Description	Period	Qty
82345 - DIODE
82345-12050	BB4#,5#,HDB5#,HZB4#,5# NO.1	01/1993 - 07/1999	1
82345-32020	BB58,BZB40,50,HDB5#,HZB4#,5# NO.2	07/1999 - 08/2004	1
82345-12050	BB58,BZB40,50,HDB5#,HZB4#,5# NO.1	07/1999 - 08/2004	1
82345-32020	BB4#,5#,HDB5#,HZB4#,5# NO.2	01/1993 - 07/1999	1
82345 - DIODE
82345-12050	BB4#,5#,HDB5#,HZB4#,5# NO.1	01/1993 - 07/1999	1
82345-32020	BB58,BZB40,50,HDB5#,HZB4#,5# NO.2	07/1999 - 08/2004	1
82345-12050	BB58,BZB40,50,HDB5#,HZB4#,5# NO.1	07/1999 - 08/2004	1
82345-32020	BB4#,5#,HDB5#,HZB4#,5# NO.2	01/1993 - 07/1999	1

ILLUST NO. 6 OF 9(9301- )

Click highlighted areas on diagram

ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ

Part #	Description	Period	Qty	Price
Common parts
82702-36020
82702-E1R90
82702-E1S00
82702-E1S12
82711-20870
82715-36010
82715-36050
82715-36060
82715-36070
82715-36090
82715-36100
82715-36150
82715-36500
82715-36510
82715-36530
82715-36550
82715-36560
82715-36570
82715-36580
82715-36590
82715-37B00
82715-60480
82715-89119
82715-E1P00
82715-E1X50
90031-05123
90031-05124
90031-05137
90031-05140
90170-08204
91551-80816
91612-B1020
91651-60612
91651-60816
91651-B0820
91651-B0822
94130-00802
SH552-10816
SH552-10820
SH552-10885
SH552-11018

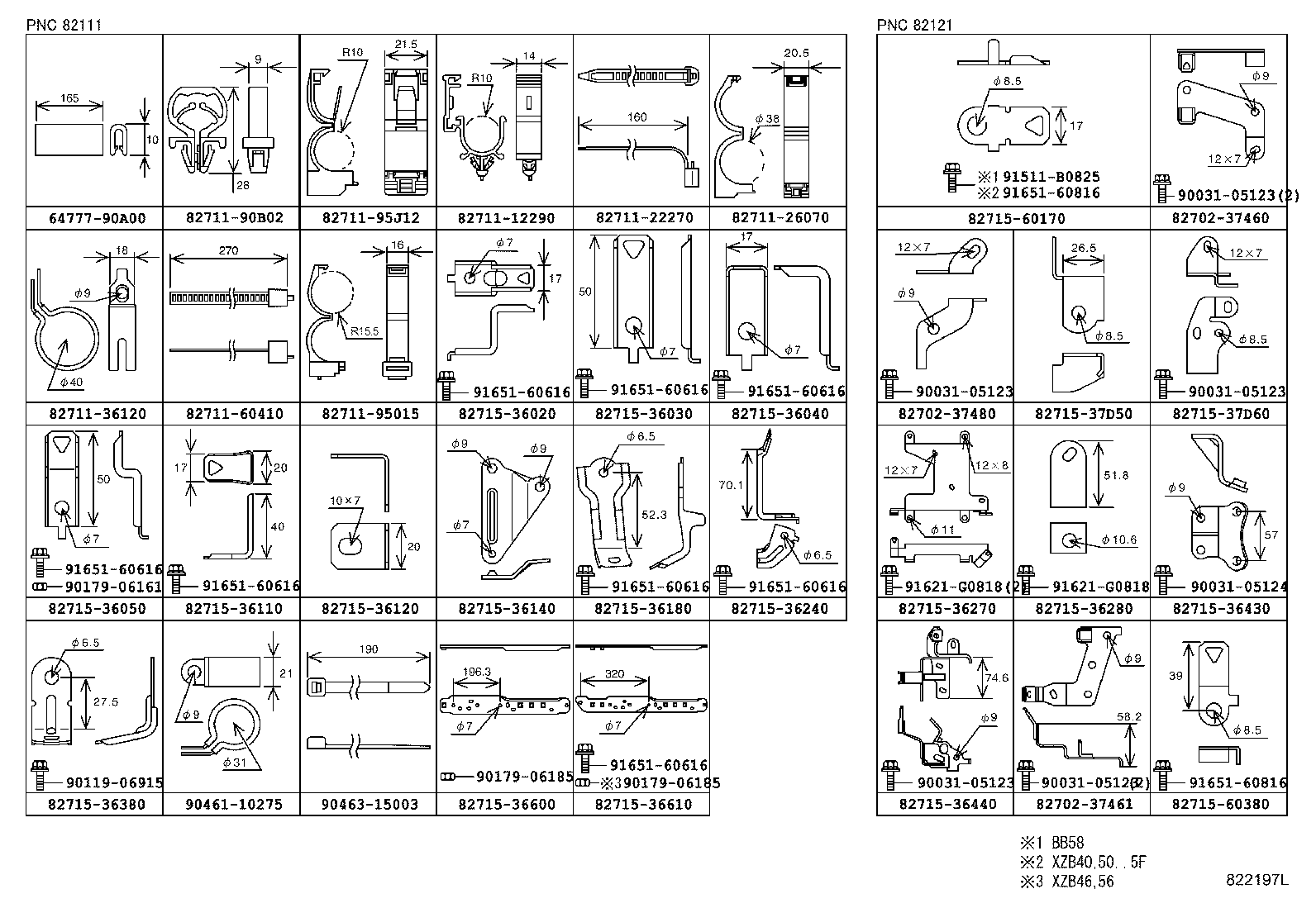

ILLUST NO. 6 OF 9(9301- )

Click highlighted areas on diagram

ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ

Part #	Description	Period	Qty	Price
Common parts
64777-90A00
82702-37460
82702-37461
82702-37480
82711-12290
82711-22270
82711-26070
82711-36120
82711-60410
82711-90B02
82711-95015
82711-95J12
82715-36020
82715-36030
82715-36040
82715-36050
82715-36110
82715-36120
82715-36140
82715-36180
82715-36240
82715-36270
82715-36280
82715-36380
82715-36430
82715-36440
82715-36600
82715-36610
82715-37D50
82715-37D60
82715-60170
82715-60380
90031-05123
90031-05124
90119-06915
90179-06161
90179-06185
90461-10275
90463-15003
91511-B0825
91621-G0818
91651-60616
91651-60816

ILLUST NO. 8 OF 9(0203- )BZB40,50

Click highlighted areas on diagram

ｹ-ﾌﾞﾙﾎﾞﾝﾄﾞ

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
82046-36040	BZB40,50	03/2002 - 08/2004	1
82001C - CABLE, BOND, NO.2
90980-07239	BZB40,50	03/2002 - 08/2004	1
82001D - CABLE, BOND, NO.3
90980-07317	BZB40,50	03/2002 - 08/2004	1
82001G - CABLE, BOND, NO.4
90980-07395	BZB40,50	03/2002 - 08/2004	1
Common parts
82711-2B660
90119-06390
91512-61014
91651-60614
Linked diagrams
8401

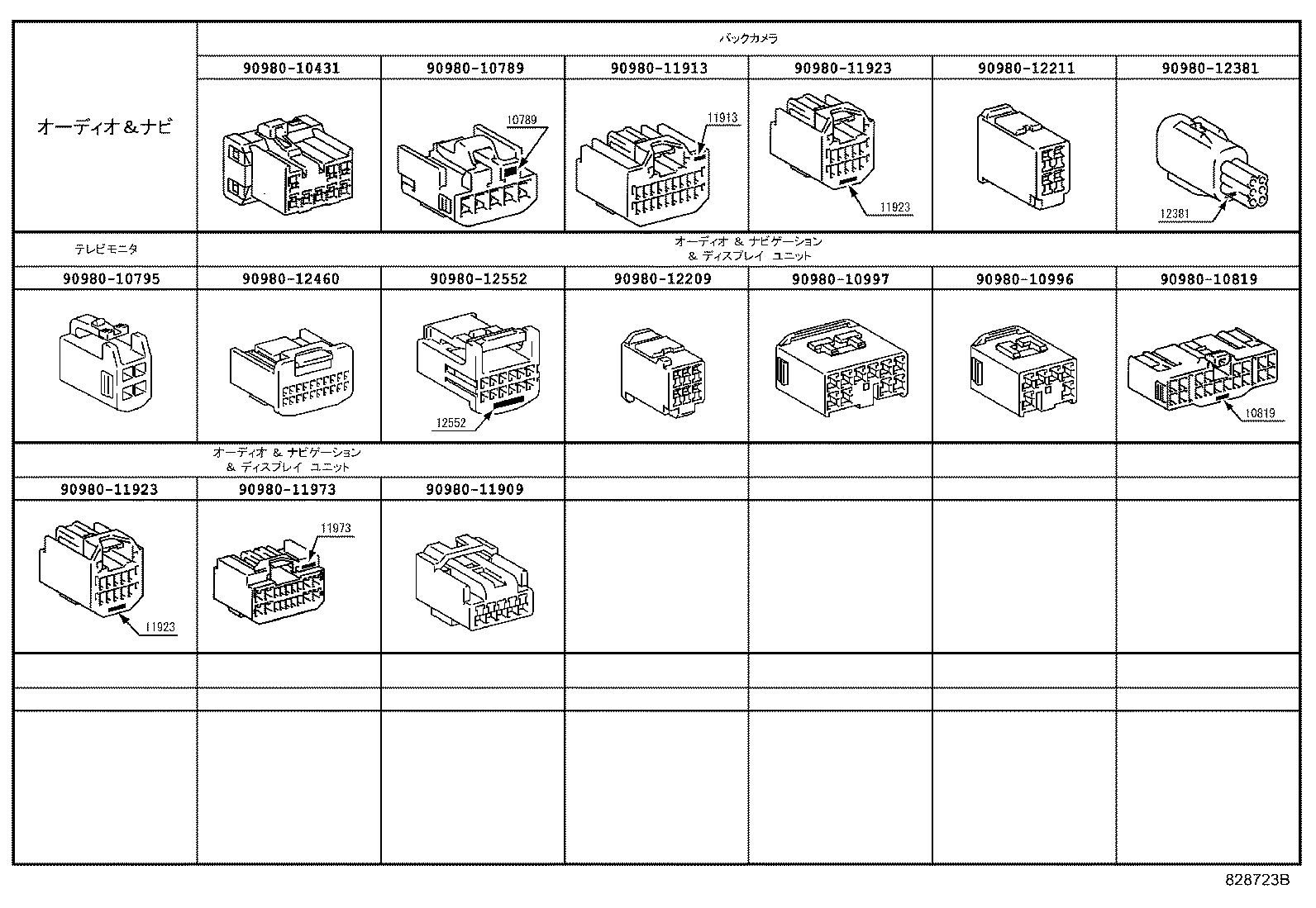

ILLUST NO. 9 OF 9(9301- )

Click highlighted areas on diagram

ｺﾈｸﾀ(2/2)

Part #	Description	Period	Qty	Price
Common parts
90980-10431
90980-10789
90980-10795
90980-10819
90980-10996
90980-10997
90980-11909
90980-11913
90980-11923
90980-11973
90980-12209
90980-12211
90980-12381
90980-12460
90980-12552

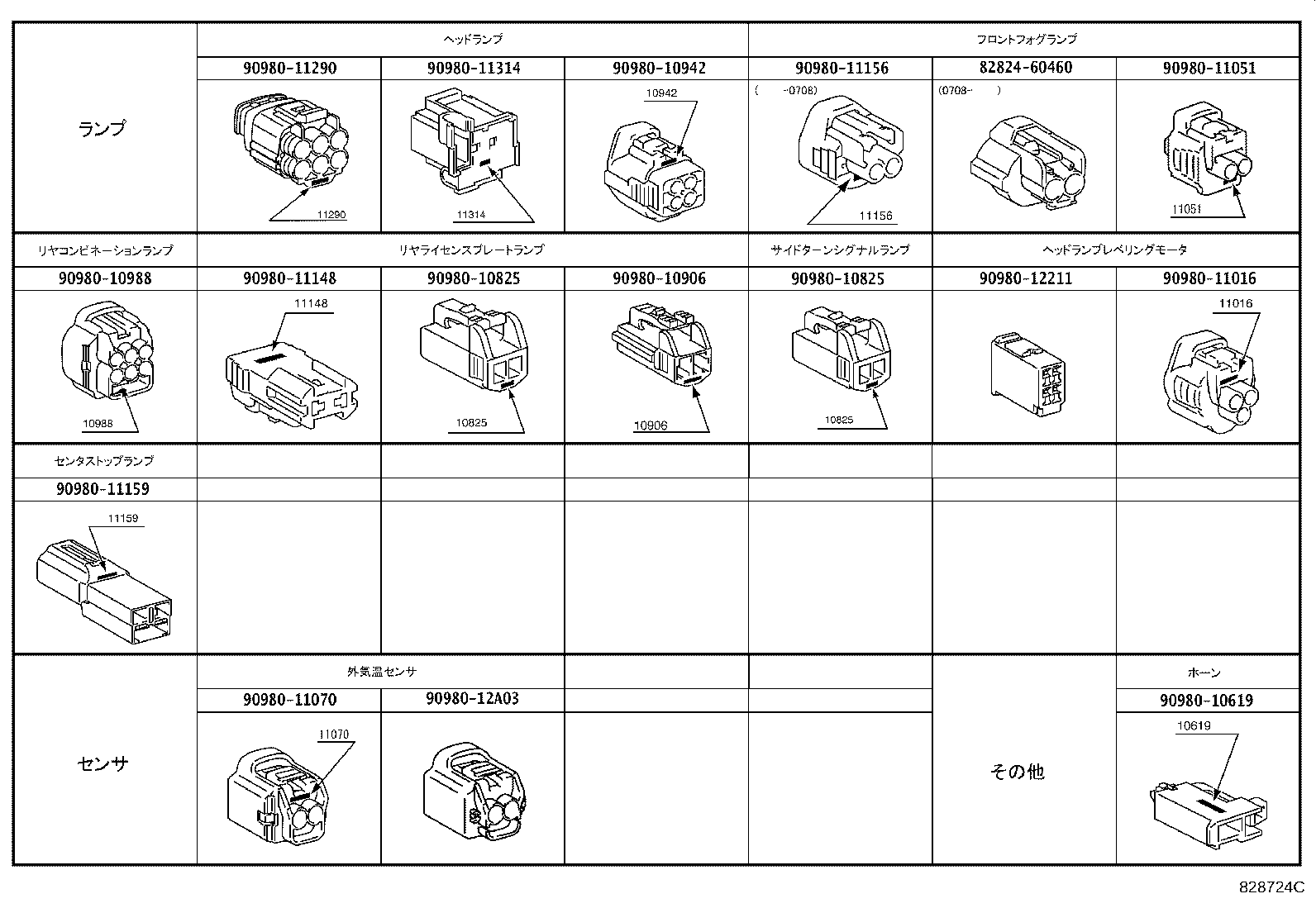

ILLUST NO. 9 OF 9(9301- )

Click highlighted areas on diagram

ｺﾈｸﾀ(1/2)

Part #	Description	Period	Qty	Price
Common parts
82824-60460
90980-10619
90980-10825
90980-10906
90980-10942
90980-10988
90980-11016
90980-11051
90980-11070
90980-11148
90980-11156
90980-11159
90980-11290
90980-11314
90980-12211
90980-12A03

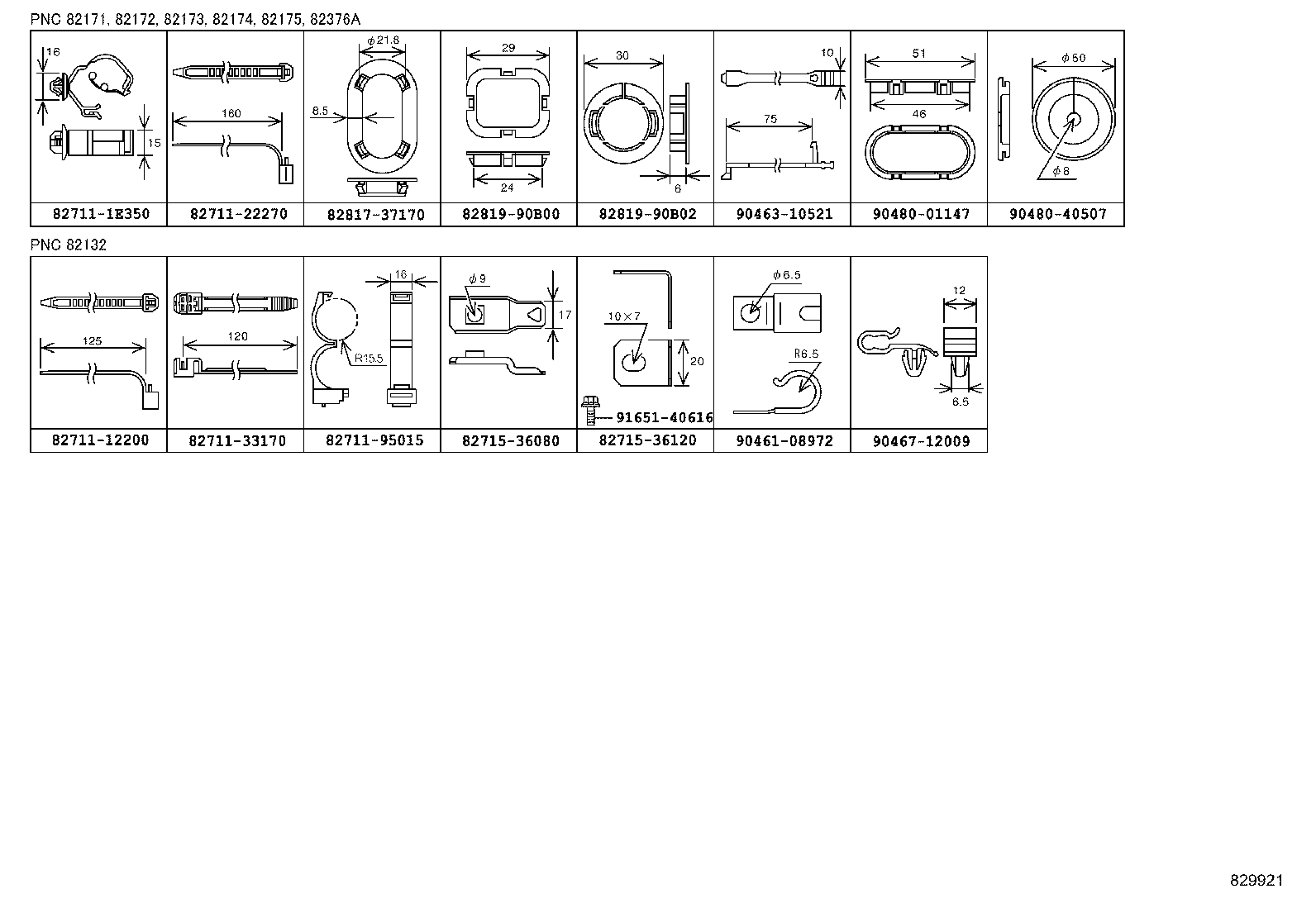

ILLUST NO. 6 OF 9(9301- )

Click highlighted areas on diagram

ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ

Part #	Description	Period	Qty	Price
Common parts
82711-12200
82711-1E350
82711-22270
82711-33170
82711-95015
82715-36080
82715-36120
82817-37170
82819-90B00
82819-90B02
90461-08972
90463-10521
90467-12009
90480-01147
90480-40507
91651-40616

HZB50-ZRMES (1993)

ILLUST NO. 1 OF 9(9301-9907)

ILLUST NO. 2 OF 9(9301-0408)BB4#,5#

ILLUST NO. 2 OF 9(9301-0408)HDB5#,HZB4#,5#

ILLUST NO. 3 OF 9(9301-0408)

ILLUST NO. 4 OF 9(9301-0408)

ILLUST NO. 5 OF 9(9301-0408)

ILLUST NO. 5 OF 9(9301-1501)

ILLUST NO. 6 OF 9(9301- )

ILLUST NO. 6 OF 9(9301- )

ILLUST NO. 7 OF 9(9301- )

ILLUST NO. 6 OF 9(9301- )

ILLUST NO. 6 OF 9(9301- )

ILLUST NO. 8 OF 9(0203- )BZB40,50

ILLUST NO. 9 OF 9(9301- )

ILLUST NO. 9 OF 9(9301- )

ILLUST NO. 6 OF 9(9301- )

Part Price Details
