HZB50-ZRMES (1993)

Toyota Coaster

Production Jan 1993 - Aug 2004
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9301- )

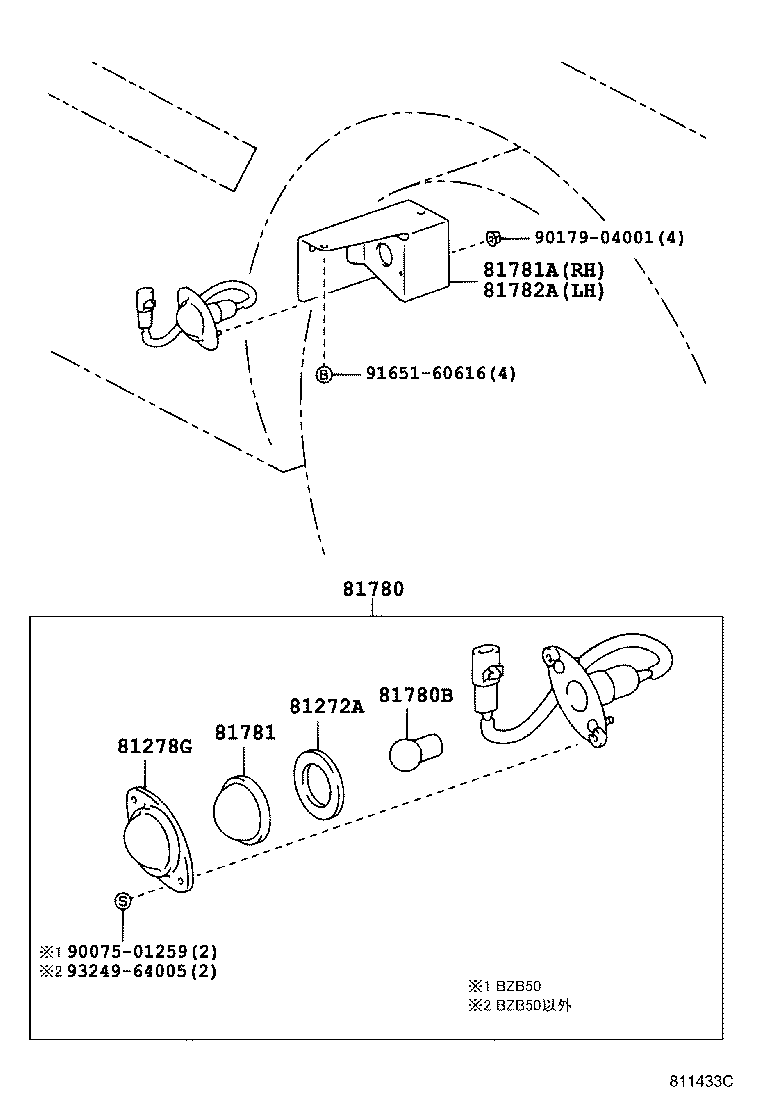

Click highlighted areas on diagram

diagram 81272A 81278G 81780 81780B 81781 81781A 81782A 9007501259 9017904001 9165160616 9324964005
Part # Description Qty Price
81272A - GASKET, REAR WHEEL LAMP
81272-10010

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 2
81272-10010

BB58,BZB50,HDB5#,HZB4#,5#..WC..(CBU,IV5)

 2
81278G - COVER, REAR WHEEL LAMP
81276-95016

BB58,BZB50,HDB5#,HZB4#,5#..WC..(CBU,IV5)

 2
81276-95016

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 2
81780 - LAMP ASSY, REAR WHEEL
81780-36010

BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)

 2
81780-36010

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 2
81780B - BULB, REAR WHEEL LAMP
99134-11120

BB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)

 2
99134-11120

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 2
81781 - LENS, REAR WHEEL LAMP
81271-10010

BB58,BZB50,HDB5#,HZB4#,5#..WC..(CBU,IV5)

 2
81271-10010

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 2
81781A - BRACKET, REAR WHEEL LAMP, RH
81781-36010

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 1
81781-36010

BB58,BZB50,HDB5#,HZB4#,5#..WC..(CBU,IV5)

 1
81782A - BRACKET, REAR WHEEL LAMP, LH
81782-36010

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 1
81782-36010

BB58,BZB50,HDB5#,HZB4#,5#..WC..(CBU,IV5)

 1
Common parts
90075-01259
90179-04001
91651-60616
93249-64005
