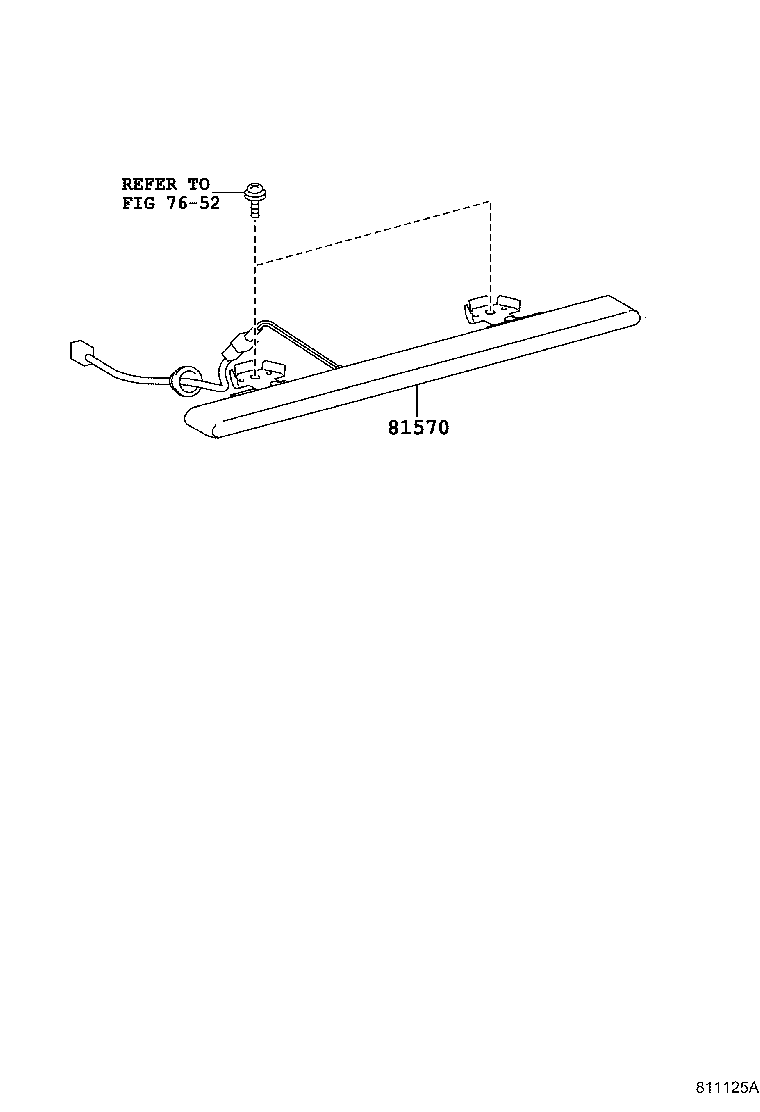

Toyota Coaster HZB50 CENTER STOP LAMP

Part #	Description	Period	Qty
81570 - LAMP ASSY, CENTER STOP
81570-60040	BB4#,58,HDB5#,HZB4#,5#..CBU,IV5	05/1997 - 07/1999	1
81570-60030	BZB40,50	03/2002 - 08/2004	1
81570-60040	BB58,HDB5#,HZB4#,5#..CBU,IV5	07/1999 - 08/2004	1
81570-36030	BB58,HDB50,HZB50..29S..WC..CBU ｱﾘ(ﾘﾔｽﾎﾟｲﾗ)	07/1999 - 08/2001	1
81572 - GASKET, CENTER STOP LAMP
81572-36010	BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..(CBU,IV5)	07/1999 - 08/2004	1
81572-36010	BB4#,58,HDB5#,HZB4#,5#..HRF..(CBU,IV5)	05/1997 - 07/1999	1
81977 - COVER, CENTER STOP LAMP
81977-60030B2	HZB40..5F;HZB40..LX..4FC..CBU;BB4#,58,HDB50,HZB5#..09S,26S,29S BLACK,058 ,2DR ,2DT ,21V	05/1997 - 07/1999	1
81977-60030B2	HZB40..26S..5F;HZB40..26S..4FC..CBU;BB58,HDB50,HZB46,5#..09S,29S BLACK,058 ,2DR ,2DT ,2FU	07/1999 - 08/2001	1
81977-60030B2	HDB50,HZB40,50..DX,GX;BB58,BZB40,50,HZB46,56..09S,26S,29S BLACK,058 ,2DT ,2HK ,2HL	08/2001 - 08/2004	1
Common parts
90159-50267
90159-60432
90189-06057
Linked diagrams
8202

Part #	Description	Period	Qty
81570 - LAMP ASSY, CENTER STOP
81570-60040	BB4#,58,HDB5#,HZB4#,5#..CBU,IV5	05/1997 - 07/1999	1
81570-60030	BZB40,50	03/2002 - 08/2004	1
81570-60040	BB58,HDB5#,HZB4#,5#..CBU,IV5	07/1999 - 08/2004	1
81570-36030	BB58,HDB50,HZB50..29S..WC..CBU ｱﾘ(ﾘﾔｽﾎﾟｲﾗ)	07/1999 - 08/2001	1
Linked diagrams
7652

HZB50-ZRMES (1993)
