HZB50-ZRMES (1993)
Toyota Coaster

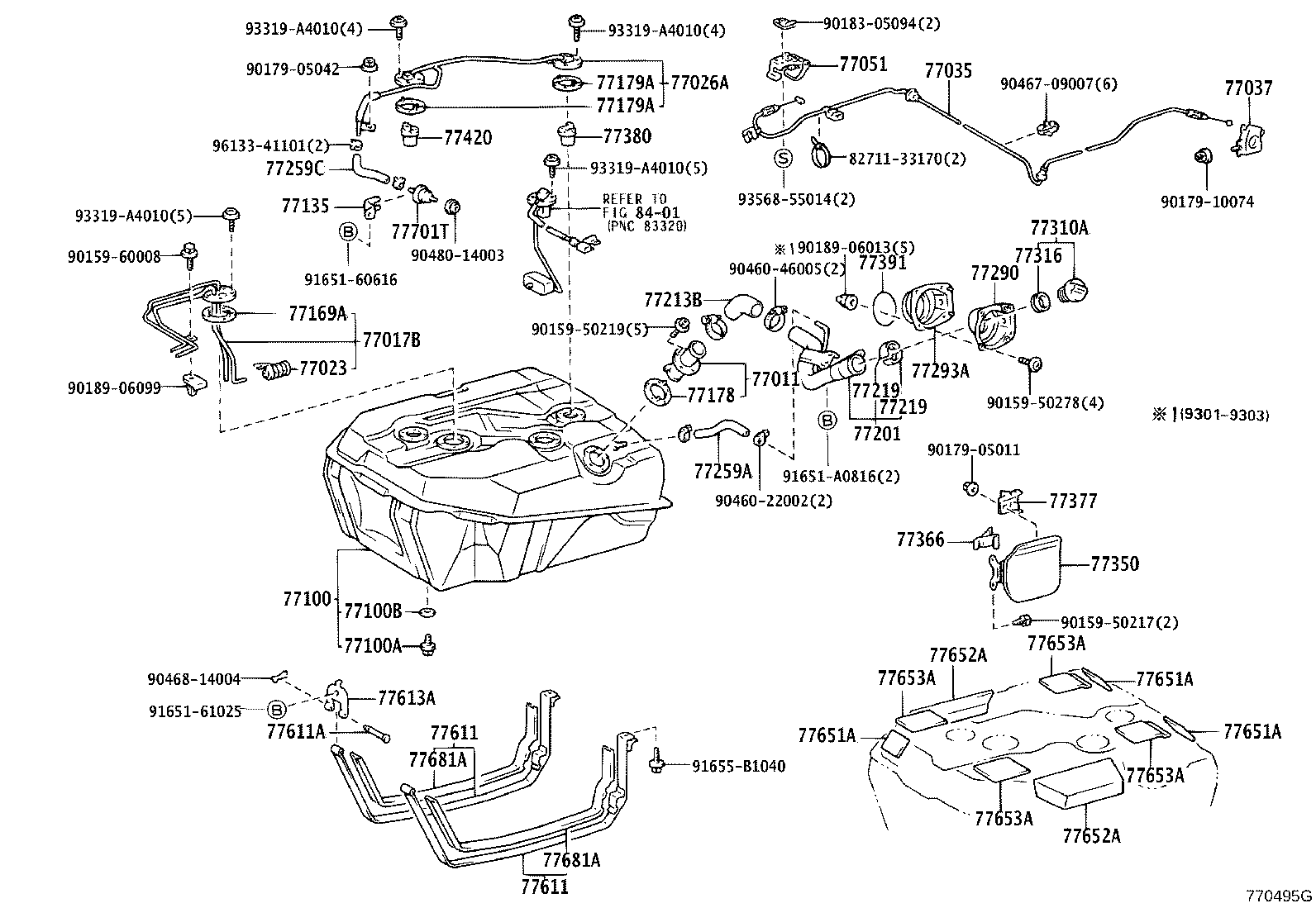

ILLUST NO. 1 OF 3(9301-0408)BB4#,5#,HDB5#,HZB4#,5#
ﾌｭｰｴﾙ ﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-12130 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77011-12130 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-36430 |
HDB5#,HZB4#,5# |
1 | ||
| 77017-36430 |
HZB4#,5# |
1 | ||
| 77017-36420 |
BB4#,5# |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-60010 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 77023-36010 |
BB4#,5# |
1 | ||
| 77023-60010 |
HDB5#,HZB4#,5# |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-36020 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77026-36020 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-36012 |
BB58,HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 77035-36010 |
HDB5#,HZB5# |
1 | ||
| 77035-36011 |
HDB5#,HZB5# |
1 | ||
| 77035-36012 |
BB5#,HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 77035-36080 |
BZB40,50 |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-12050 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77037-36010 |
BZB40,50 |
1 | ||
| 77037-12050 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77037-12050 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77051 - LEVER SUB-ASSY, FUEL LID OPEN | ||||
| 77051-30060E1 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 GREIGE,TRIM4# |
1 | ||
| 77051-30060E1 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 GREIGE,TRIM4# |
1 | ||
| 77051-30060E1 |
BB4#,HDB5#,HZB4#,5# GREIGE,TRIM4# |
1 | ||
| 77051-30060B3 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 DK.CHARCOAL,TRIM1# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-3B260 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77001-3B260 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 77001-3B301 |
BZB40,50 |
1 | ||
| 77001-3B300 |
BZB40,50 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 90105-12116 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 90430-12245 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 77135 - BRACKET, CHECK VALVE | ||||
| 77135-36040 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 77135-36040 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14020 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 77169-14020 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 77178-20030 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 77179-26010 |
BB58,HDB5#,HZB4#,5# |
2 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 77179-26010 |
BB58,HDB5#,HZB4#,5# |
2 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-36190 |
BZB40,50 |
1 | ||
| 77201-36170 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 77201-36180 |
BB4#,5#,HDB5#,HZB4#,5# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77201-36180 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 77201-36170 |
HDB5#,HZB4#,5# |
1 | ||
| 77201-36191 |
BZB40,50 |
1 | ||
| 77201-36180 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-36090 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77213-36090 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-32030 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 77219-32030 |
BB58,HDB5#,HZB4#,5# |
2 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-32030 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 77219-32030 |
BB58,HDB5#,HZB4#,5# |
2 | ||
| 77259A - HOSE, FUEL(FOR BREATHER TUBE) | ||||
| 77259-36070 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77259-36070 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 77259C - HOSE, FUEL | ||||
| 77259-36090 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77259-36090 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-12060 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77291-12060 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-12030 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77293-12030 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-35110 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77310-12150 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 77310-12150 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 77310-12150 |
BB4#,58,HDB5#,HZB4#,5# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77316-16010 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77350-36010 |
BZB40,50 NO.1 |
1 | ||
| 77350-36010 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77350-36030 |
BZB40,50 NO.2 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77360-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-60010 |
BZB40,50 NO.3 |
1 | ||
| 77377-20030 |
BZB40,50 NO.1 |
1 | ||
| 77377-20030 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77377-20030 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77377-12040 |
BZB40,50 NO.2 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 77380-26010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-14020 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77391-14020 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77420 - VALVE ASSY, FUEL CUT OFF, NO.2 | ||||
| 77420-26010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77420-26010 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-36120 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 77601-36120 |
BB58,HDB5#,HZB4#,5# |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-36120 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 77601-36120 |
BB58,HDB5#,HZB4#,5# |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-08047 |
BB58,HDB5#,HZB4#,5# |
2 | ||
| 90240-08047 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 77613A - BRACKET, FUEL TANK BAND, NO.1 | ||||
| 77613-36030 |
BB58,HDB5#,HZB4#,5# |
2 | ||
| 77613-36030 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-36130 |
BB4#,5#,HDB5#,HZB4#,5# |
3 | ||
| 77651-36130 |
BB58,HDB5#,HZB4#,5# |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-36130 |
BB4#,5#,HDB5#,HZB4#,5# |
3 | ||
| 77651-36130 |
BB58,HDB5#,HZB4#,5# |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-36130 |
BB4#,5#,HDB5#,HZB4#,5# |
3 | ||
| 77651-36130 |
BB58,HDB5#,HZB4#,5# |
3 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 77652-36010 |
BB58,HDB5#,HZB4#,5# |
2 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 77652-36010 |
BB58,HDB5#,HZB4#,5# |
2 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-36010 |
BB58,HDB5#,HZB4#,5# |
4 | ||
| 77653-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
4 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-36010 |
BB58,HDB5#,HZB4#,5# |
4 | ||
| 77653-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
4 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-36010 |
BB58,HDB5#,HZB4#,5# |
4 | ||
| 77653-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
4 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-36010 |
BB58,HDB5#,HZB4#,5# |
4 | ||
| 77653-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
4 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-36050 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 77681-36050 |
BB58,HDB5#,HZB4#,5# |
2 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-36050 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 77681-36050 |
BB58,HDB5#,HZB4#,5# |
2 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 90917-10020 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| Common parts | ||||
| 82711-33170 | ||||
| 90159-50217 | ||||
| 90159-50219 | ||||
| 90159-50278 | ||||
| 90159-60008 | ||||
| 90179-05011 | ||||
| 90179-05042 | ||||
| 90179-10074 | ||||
| 90183-05094 | ||||
| 90189-06013 | ||||
| 90189-06099 | ||||
| 90460-22002 | ||||
| 90460-46005 | ||||
| 90467-09007 | ||||
| 90468-14004 | ||||
| 90480-14003 | ||||
| 91651-60616 | ||||
| 91651-61025 | ||||
| 91651-A0816 | ||||
| 91655-B1040 | ||||
| 93319-A4010 | ||||
| 93568-55014 | ||||
| 96133-41101 | ||||
| Linked diagrams | ||||
| 8401 | ||||

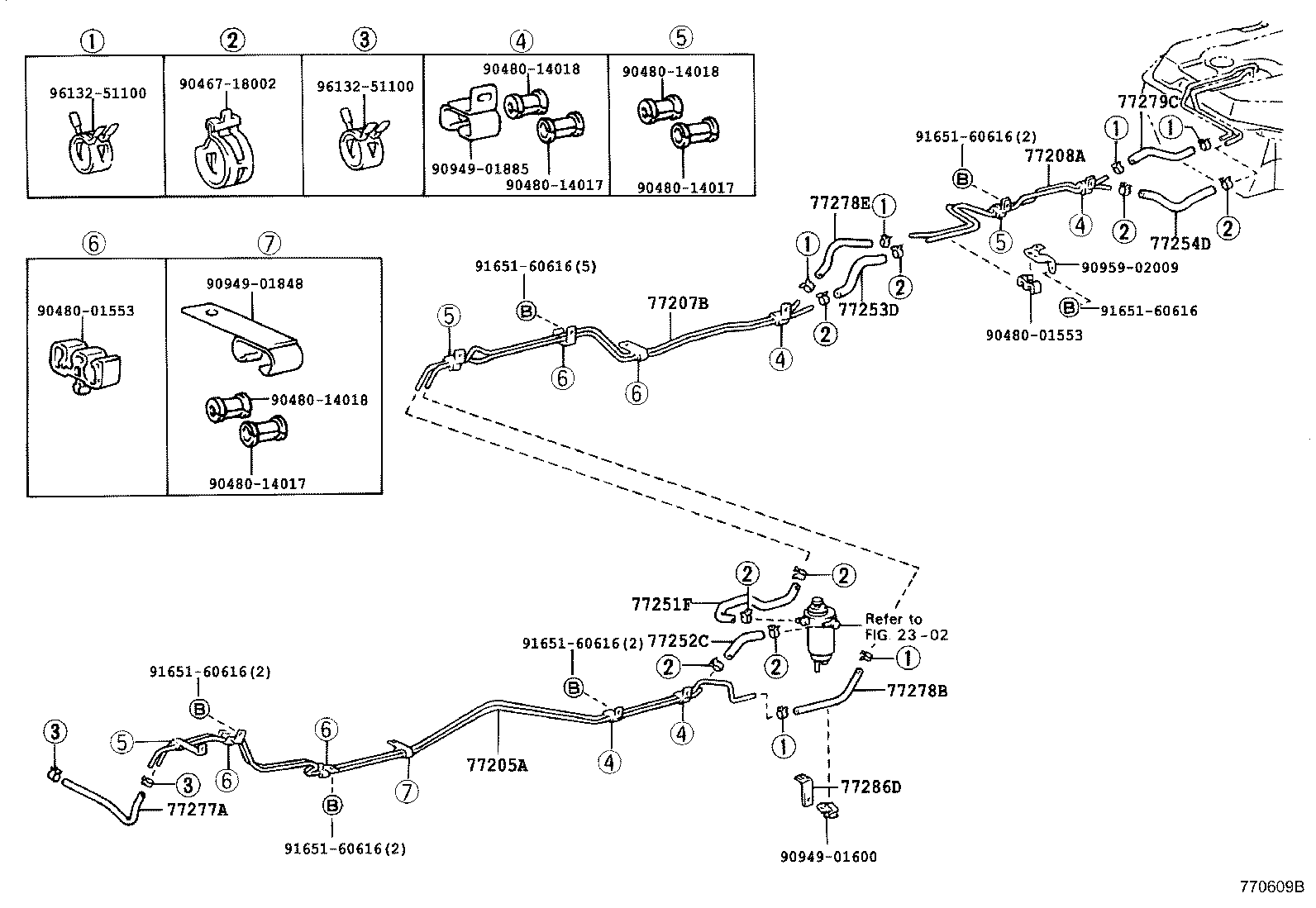

ILLUST NO. 2 OF 3(9301-9907)HDB5#,HZB5#
ﾌｭｰｴﾙ ﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205A - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-36780 |
HDB5#,HZB4#,5#..4FC,5F |
1 | ||
| 77205-3B060 |
HZB4#,5# |
1 | ||
| 77205-3B221 |
BZB40,50 |
1 | ||
| 77207B - TUBE SUB-ASSY, FUEL MAIN, NO.3 | ||||
| 77207-36100 |
HZB5# |
1 | ||
| 77207-36020 |
HDB5#,HZB5# |
1 | ||
| 77208A - TUBE SUB-ASSY, FUEL MAIN, NO.4 | ||||
| 77208-36190 |
HZB4#,5# |
1 | ||
| 77208-36140 |
HDB5#,HZB4#,5# |
1 | ||
| 77208-36150 |
BB4#,5# |
1 | ||
| 77251F - HOSE, FUEL | ||||
| 77259-36150 |
HDB5#,HZB4#,5# |
1 | ||
| 77259-36180 |
HDB5#,HZB4#,5# |
1 | ||
| 77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE) | ||||
| 95332-12015 |
HDB5#,HZB4#,5# |
1 | ||
| 77259-36190 |
HDB5#,HZB4#,5# |
1 | ||
| 77253D - HOSE, FUEL | ||||
| 95332-12022 |
HDB5#,HZB5# |
1 | ||
| 95332-12018 |
HDB5#,HZB4#,5# |
1 | ||
| 95332-12018 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 95332-12019 |
HDB5#,HZB4#,5# |
1 | ||
| 77254D - HOSE, FUEL | ||||
| 95332-12018 |
HDB5#,HZB4#,5# |
1 | ||
| 95332-12018 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 95332-10018 |
BB4#,5# |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95333-06030 |
HDB5#,HZB4#,5# *H,L=280 |
1 | ||
| 95333-06030 |
HZB4#,5# *H,L=280 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06020 |
HDB5#,HZB4#,5# *H,L=180 |
1 | ||
| 95333-06020 |
BB4#,HDB5#,HZB4#,5# *H,L=180 |
1 | ||
| 95333-06020 |
HZB4#,5# *H,L=150 |
1 | ||
| 95333-06020 |
BB4#,HDB5#,HZB4#,5# *H,L=180 |
1 | ||
| 77278E - HOSE, FUEL | ||||
| 95333-06020 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 95333-06020 |
HDB5#,HZB5# |
1 | ||
| 95333-06020 |
HZB4#,5# |
1 | ||
| 77279C - HOSE, FUEL | ||||
| 95333-06020 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 95333-06020 |
HZB4#,5# |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| Common parts | ||||
| 90467-18002 | ||||
| 90480-01553 | ||||
| 90480-14017 | ||||
| 90480-14018 | ||||
| 90949-01600 | ||||
| 90949-01848 | ||||
| 90949-01885 | ||||
| 90959-02009 | ||||
| 91651-60616 | ||||
| 96132-51100 | ||||
ILLUST NO. 2 OF 3(9907-0408)BB58,HZB4#,5#
ﾌｭｰｴﾙ ﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205A - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-36780 |
HDB5#,HZB4#,5#..4FC,5F |
1 | ||
| 77205-3B060 |
HZB4#,5# |
1 | ||
| 77205-3B221 |
BZB40,50 |
1 | ||
| 77207B - TUBE SUB-ASSY, FUEL MAIN, NO.3 | ||||
| 77207-36100 |
HZB5# |
1 | ||
| 77207-36020 |
HDB5#,HZB5# |
1 | ||
| 77208A - TUBE SUB-ASSY, FUEL MAIN, NO.4 | ||||
| 77208-36190 |
HZB4#,5# |
1 | ||
| 77208-36140 |
HDB5#,HZB4#,5# |
1 | ||
| 77208-36150 |
BB4#,5# |
1 | ||
| 77251F - HOSE, FUEL | ||||
| 77259-36150 |
HDB5#,HZB4#,5# |
1 | ||
| 77259-36180 |
HDB5#,HZB4#,5# |
1 | ||
| 77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE) | ||||
| 95332-12015 |
HDB5#,HZB4#,5# |
1 | ||
| 77259-36190 |
HDB5#,HZB4#,5# |
1 | ||
| 77253D - HOSE, FUEL | ||||
| 95332-12022 |
HDB5#,HZB5# |
1 | ||
| 95332-12018 |
HDB5#,HZB4#,5# |
1 | ||
| 95332-12018 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 95332-12019 |
HDB5#,HZB4#,5# |
1 | ||
| 77254D - HOSE, FUEL | ||||
| 95332-12018 |
HDB5#,HZB4#,5# |
1 | ||
| 95332-12018 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 95332-10018 |
BB4#,5# |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95333-06030 |
HDB5#,HZB4#,5# *H,L=280 |
1 | ||
| 95333-06030 |
HZB4#,5# *H,L=280 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06020 |
HDB5#,HZB4#,5# *H,L=180 |
1 | ||
| 95333-06020 |
BB4#,HDB5#,HZB4#,5# *H,L=180 |
1 | ||
| 95333-06020 |
HZB4#,5# *H,L=150 |
1 | ||
| 95333-06020 |
BB4#,HDB5#,HZB4#,5# *H,L=180 |
1 | ||
| 77278E - HOSE, FUEL | ||||
| 95333-06020 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 95333-06020 |
HDB5#,HZB5# |
1 | ||
| 95333-06020 |
HZB4#,5# |
1 | ||
| 77279C - HOSE, FUEL | ||||
| 95333-06020 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 95333-06020 |
HZB4#,5# |
1 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-36030 |
HDB5#,HZB4#,5#..09S,20S,26S,29S,39S,49S NO.2 |
1 | ||
| 77281E - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-36040 |
HDB5#,HZB4#,5# |
1 | ||
| 77285 - BRACKET, FUEL TUBE | ||||
| 77281-36010 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 90480-01553 |
HZB4#,5# TYPE H:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 90480-01553 |
HZB4#,5# TYPE H:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 90480-01553 |
HZB4#,5# TYPE H:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| Common parts | ||||
| 90467-18002 | ||||
| 90480-14017 | ||||
| 90480-14018 | ||||
| 90949-01600 | ||||
| 90949-01885 | ||||
| 91651-60616 | ||||
| 91651-60816 | ||||
| 96132-51100 | ||||

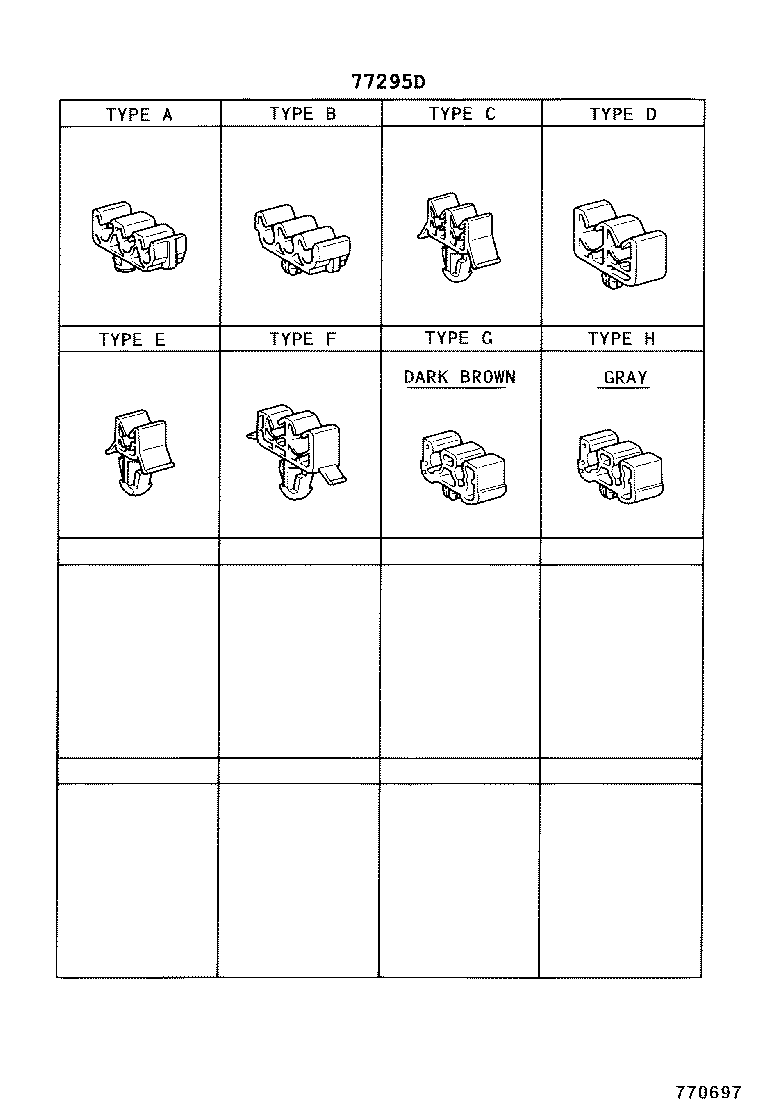

ILLUST NO. 3 OF 3(9907-0408)BB58,HDB5#,HZB4#,5#
ｸﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77295D - GROMMET, FUEL TUBE | ||||
| 90480-01553 |
HZB4#,5# TYPE H:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||

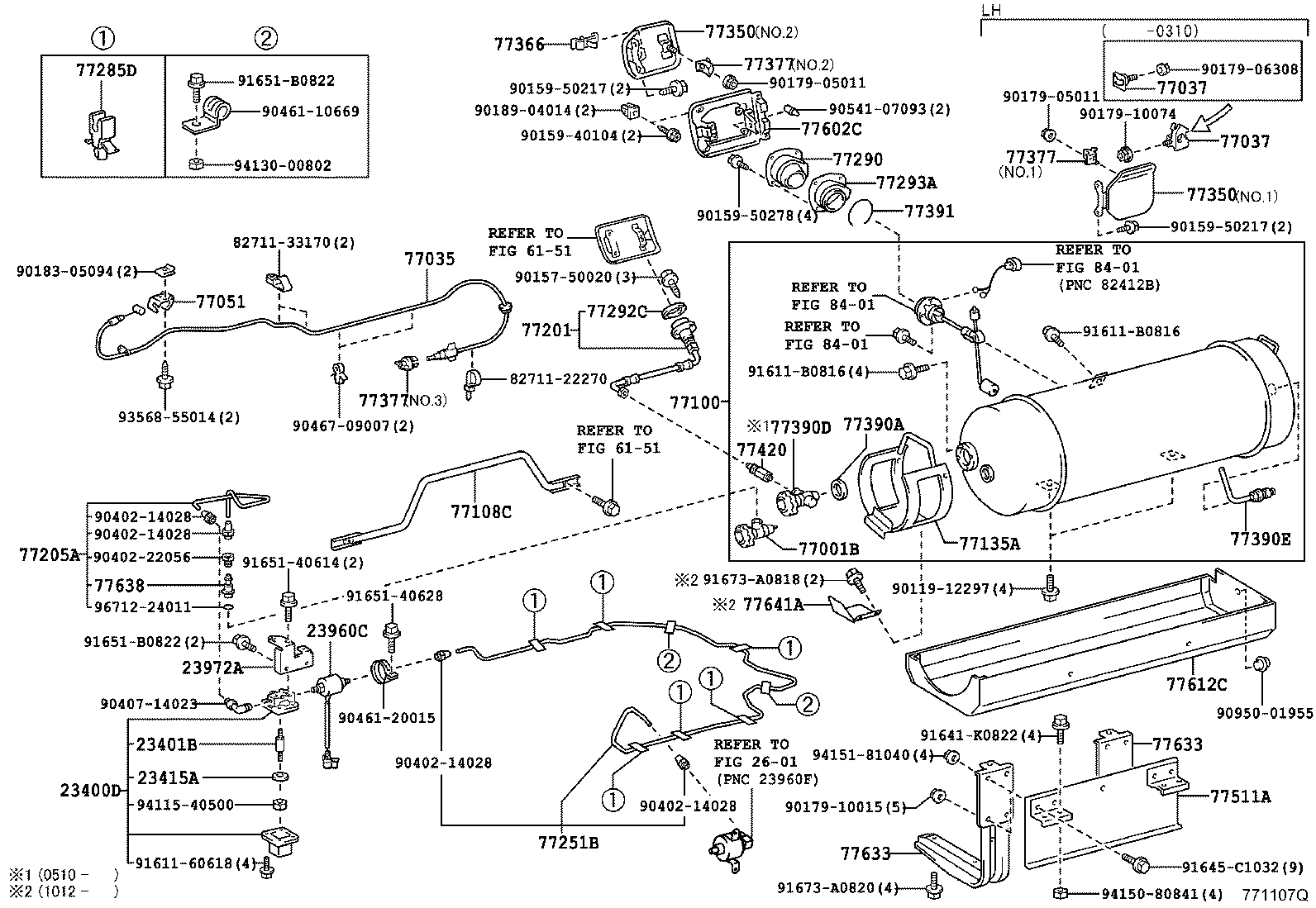

(0203- )BZB40,50
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77001B - VALVE (FOR LPG TANK) | ||||
| 90977-01024 |
BZB40,50 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-36012 |
BB58,HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 77035-36010 |
HDB5#,HZB5# |
1 | ||
| 77035-36011 |
HDB5#,HZB5# |
1 | ||
| 77035-36012 |
BB5#,HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 77035-36080 |
BZB40,50 |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-12050 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77037-36010 |
BZB40,50 |
1 | ||
| 77037-12050 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77037-12050 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-12050 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77037-36010 |
BZB40,50 |
1 | ||
| 77037-12050 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77037-12050 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77051 - LEVER SUB-ASSY, FUEL LID OPEN | ||||
| 77051-30060E1 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 GREIGE,TRIM4# |
1 | ||
| 77051-30060E1 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 GREIGE,TRIM4# |
1 | ||
| 77051-30060E1 |
BB4#,HDB5#,HZB4#,5# GREIGE,TRIM4# |
1 | ||
| 77051-30060B3 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 DK.CHARCOAL,TRIM1# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-3B260 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77001-3B260 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 77001-3B301 |
BZB40,50 |
1 | ||
| 77001-3B300 |
BZB40,50 |
1 | ||
| 77108C - PROTECTOR SUB-ASSY, FUEL TANK | ||||
| 77108-36010 |
BZB40,50 |
1 | ||
| 77108-36011 |
BZB40,50 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-36190 |
BZB40,50 |
1 | ||
| 77201-36170 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 77201-36180 |
BB4#,5#,HDB5#,HZB4#,5# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77201-36180 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 77201-36170 |
HDB5#,HZB4#,5# |
1 | ||
| 77201-36191 |
BZB40,50 |
1 | ||
| 77201-36180 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77205A - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-36780 |
HDB5#,HZB4#,5#..4FC,5F |
1 | ||
| 77205-3B060 |
HZB4#,5# |
1 | ||
| 77205-3B221 |
BZB40,50 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-3B890 |
BZB40,50 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-36240 |
BZB40,50 |
6 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-12060 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77291-12060 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77292C - SHIELD, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77291-30050 |
BZB40,50 |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-12030 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77293-12030 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77350-36010 |
BZB40,50 NO.1 |
1 | ||
| 77350-36010 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77350-36030 |
BZB40,50 NO.2 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77350-36010 |
BZB40,50 NO.1 |
1 | ||
| 77350-36010 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77350-36030 |
BZB40,50 NO.2 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77360-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-60010 |
BZB40,50 NO.3 |
1 | ||
| 77377-20030 |
BZB40,50 NO.1 |
1 | ||
| 77377-20030 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77377-20030 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77377-12040 |
BZB40,50 NO.2 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-60010 |
BZB40,50 NO.3 |
1 | ||
| 77377-20030 |
BZB40,50 NO.1 |
1 | ||
| 77377-20030 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77377-20030 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77377-12040 |
BZB40,50 NO.2 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-60010 |
BZB40,50 NO.3 |
1 | ||
| 77377-20030 |
BZB40,50 NO.1 |
1 | ||
| 77377-20030 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77377-20030 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77377-12040 |
BZB40,50 NO.2 |
1 | ||
| 77390A - GASKET (FOR FUEL TANK VALVE) | ||||
| 90430-42255 |
BZB40,50 |
1 | ||
| 77390E - VALVE, FUEL(FOR LPG) | ||||
| 90977-03003 |
BZB40,50 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-14020 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77391-14020 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77420 - VALVE ASSY, FUEL CUT OFF, NO.2 | ||||
| 77420-26010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77420-26010 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 77511A - BRACKET, FUEL TANK | ||||
| 77511-36050 |
BZB40,50 |
1 | ||
| 77602C - COVER SUB-ASSY, FUEL TANK, LOWER | ||||
| 77602-36030 |
BZB40,50 |
1 | ||
| 77612C - COVER, FUEL TANK, LOWER | ||||
| 77612-36060 |
BZB40,50 |
1 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77633-36210 |
BZB40,50 |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77633-36210 |
BZB40,50 |
2 | ||
| 77638 - SLEEVE, TANK VALVE JOINT | ||||
| 77638-20011 |
BZB40,50 |
1 | ||
| Common parts | ||||
| 82711-22270 | ||||
| 82711-33170 | ||||
| 90119-12297 | ||||
| 90157-50020 | ||||
| 90159-40104 | ||||
| 90159-50217 | ||||
| 90159-50278 | ||||
| 90179-05011 | ||||
| 90179-06308 | ||||
| 90179-10015 | ||||
| 90179-10074 | ||||
| 90183-05094 | ||||
| 90189-04014 | ||||
| 90402-14028 | ||||
| 90402-22056 | ||||
| 90407-14023 | ||||
| 90461-10669 | ||||
| 90461-20015 | ||||
| 90467-09007 | ||||
| 90541-07093 | ||||
| 90950-01955 | ||||
| 91611-60618 | ||||
| 91611-B0816 | ||||
| 91641-K0822 | ||||
| 91645-C1032 | ||||
| 91651-40614 | ||||
| 91651-40628 | ||||
| 91651-B0822 | ||||
| 91673-A0818 | ||||
| 91673-A0820 | ||||
| 93568-55014 | ||||
| 94115-40500 | ||||
| 94130-00802 | ||||
| 94150-80841 | ||||
| 94151-81040 | ||||
| 96712-24011 | ||||
| Linked diagrams | ||||
| 2601 | ||||
| 6151 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
