HZB50-ZRMES (1993)
Toyota Coaster
(9301-0408)
ﾄﾞｱｻｲﾄﾞ(ｵﾘﾀﾀﾐﾄﾞｱ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74703 - FRAME SUB-ASSY, HAND GRIP SIDE | ||||
| 74703-90B00 |
BB46..WOC;BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,STD |
1 | ||
| 74703-90B00 |
BB40,5#,HDB50,HZB40,50 |
1 | ||
| 74730 - FRAME ASSY, HAND GRIP | ||||
| 74730-36030 |
BB46..WOC;BB40,HDB5#,HZB4#,50..15S,26S,29S |
1 | ||
| 74730-36030 |
BB40,5#,HDB50,HZB40,50 |
1 | ||
| 74730-36031 |
BB40,58,HDB50,HZB40,50 |
1 | ||
| 74730 - FRAME ASSY, HAND GRIP | ||||
| 74730-36030 |
BB46..WOC;BB40,HDB5#,HZB4#,50..15S,26S,29S |
1 | ||
| 74730-36030 |
BB40,5#,HDB50,HZB40,50 |
1 | ||
| 74730-36031 |
BB40,58,HDB50,HZB40,50 |
1 | ||
| 74730 - FRAME ASSY, HAND GRIP | ||||
| 74730-36030 |
BB46..WOC;BB40,HDB5#,HZB4#,50..15S,26S,29S |
1 | ||
| 74730-36030 |
BB40,5#,HDB50,HZB40,50 |
1 | ||
| 74730-36031 |
BB40,58,HDB50,HZB40,50 |
1 | ||
| Common parts | ||||
| 90119-06184 | ||||
| 90159-40052 | ||||
| 90260-05001 | ||||
| 93385-26016 | ||||
(9301-9907)
ﾄﾞｱｻｲﾄﾞ(ｸﾞﾗｲﾄﾞﾄﾞｱ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74705B - NET SUB-ASSY, HAND GRIP PROTECTOR | ||||
| 74705-36020A0 |
BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG IVORY,TRIM4# |
1 | ||
| 74705-36021A0 |
HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU IVORY,TRIM4# |
1 | ||
| 74705-36021A0 |
HDB5#,HZB40,41,50..(20S,26S,29S)..WC..(CBU,IV5) IVORY,TRIM4# |
1 | ||
| 74705-36021B0 |
BZB40,50,HDB5#,HZB4#,50..(08S,10S,19S,20S,24S,26S,29S)..WC..(CBU,IV5) MD.CHARCOAL,TRIM1# |
1 | ||
| 74708 - FRAME SUB-ASSY, HAND GRIP, NO.2 | ||||
| 74708-36050 |
BZB40,50,HDB5#,HZB4#,50..(08S,10S,19S,20S,24S,26S,29S)..WC..(CBU,IV5) |
1 | ||
| 74708-36010 |
HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU |
1 | ||
| Common parts | ||||
| 90119-06184 | ||||
| 90159-40052 | ||||
| 90269-06006 | ||||
(9301-9505)09S,15S,20S,26S,29S

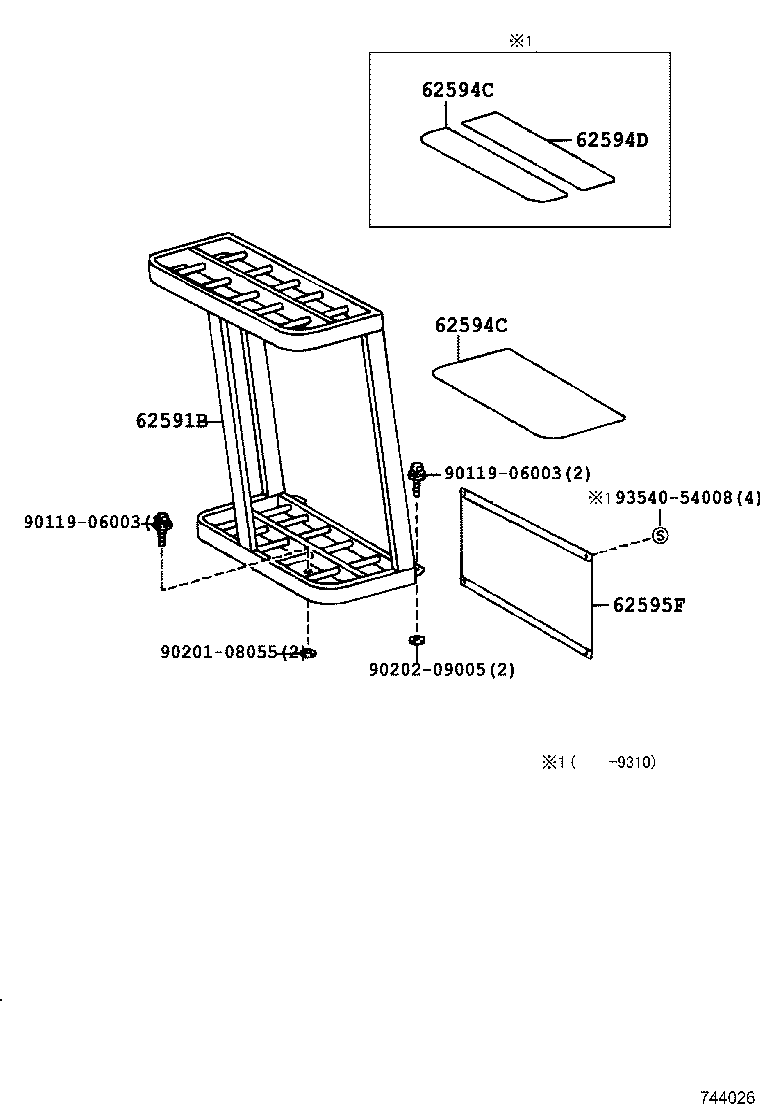

ｱﾝﾌﾞﾚﾗｽﾀﾝﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62591B - STAND, UMBRELLA | ||||
| 62591-36060B0 |
BZB40,50,HDB5#,HZB4#,5#..(09S,20S,26S,29S)..WC..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 62591-36010E0 |
BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG GRAIGE,TRIM4# |
1 | ||
| 62591-36040E0 |
BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG GRAIGE,TRIM4# |
1 | ||
| 62591-36060E0 |
HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..CBU GREIGE,TRIM4# |
1 | ||
| 62591-36050E0 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..CBU GREIGE,TRIM4# |
1 | ||
| 62594C - MAT, UMBRELLA STAND | ||||
| 62594-36060E0 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..CBU GREIGE,TRIM4# |
1 | ||
| 62594-36050E0 |
BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG GRAIGE,TRIM4# |
1 | ||
| 62594-36060E0 |
HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..CBU GREIGE,TRIM4# |
1 | ||
| 62594-36020 |
BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG |
1 | ||
| 62594-36060B0 |
BZB40,50,HDB5#,HZB4#,5#..(09S,20S,26S,29S)..WC..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 62594C - MAT, UMBRELLA STAND | ||||
| 62594-36050E0 |
BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG GRAIGE,TRIM4# |
1 | ||
| 62594-36060E0 |
HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..CBU GREIGE,TRIM4# |
1 | ||
| 62594-36020 |
BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG |
1 | ||
| 62594-36060B0 |
BZB40,50,HDB5#,HZB4#,5#..(09S,20S,26S,29S)..WC..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 62594-36060E0 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..CBU GREIGE,TRIM4# |
1 | ||
| 62594D - MAT, UMBRELLA STAND, NO.2 | ||||
| 62594-36020 |
BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG |
1 | ||
| 62595F - COVER, UMBRELLA STAND | ||||
| 62595-36010E0 |
BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG GRAIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-06003 | ||||
| 90201-08055 | ||||
| 90202-09005 | ||||
| 93540-54008 | ||||
