HZB50-ZRMES (1993)
Toyota Coaster
(9301-1501)
ｵﾘﾄﾞｼｷﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67224 - GUM, DOOR CUSHION, NO.2 | ||||
| 67224-90500 |
BB4#,5#,HDB50,HZB40,5# |
1 | ||
| 67224-90500 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 67224 - GUM, DOOR CUSHION, NO.2 | ||||
| 67224-90500 |
BB4#,5#,HDB50,HZB40,5# |
1 | ||
| 67224-90500 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 67255 - STOPPER, CENTER INSIDE LOCK | ||||
| 67255-36010 |
BB4#,HDB50,HZB40,5# |
1 | ||
| 69302B - LOCK SUB-ASSY, CENTER DOOR INSIDE HANDLE | ||||
| 69302-36010 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 69302-36010 |
BB4#,58,HDB50,HZB40,5# |
1 | ||
| 69302-36010 |
HZB40,50..5F;BB4#,55,HDB50,HZB56;HZB50..(GX,STD)..4FC |
1 | ||
| 69303B - HANDLE SUB-ASSY, CENTER DOOR LOCK, OUTSIDE | ||||
| 69303-36010 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 69303-36010 |
HZB40,50..5F;BB4#,55,HDB50,HZB56;HZB50..(GX,STD)..4FC |
1 | ||
| 69303-36010 |
BB4#,58,HDB50,HZB40,5# |
1 | ||
| 69405C - STOPPER SUB-ASSY, CENTER DOOR INSIDE LOOK | ||||
| 69405-90B00 |
BB4#,58,HDB50,HZB40,5# |
1 | ||
| 69405-90B00 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 69405-90B00 |
HZB40,50..5F;BB4#,55,HDB50,HZB56;HZB50..(GX,STD)..4FC |
1 | ||
| Common parts | ||||
| 67771-58010 | ||||
| 67897-36030 | ||||
| 90164-35037 | ||||
| 90179-04001 | ||||
| 90179-05172 | ||||
| 90179-06266 | ||||
| 90467-05102B1 | ||||
| 90467-10161 | ||||
| 90541-03010 | ||||
| 90541-05008 | ||||
| 91631-40614 | ||||
| 91653-A0616 | ||||
| 93239-24012 | ||||
| 93269-25010 | ||||
| Linked diagrams | ||||
| 8512 | ||||
(9301- )

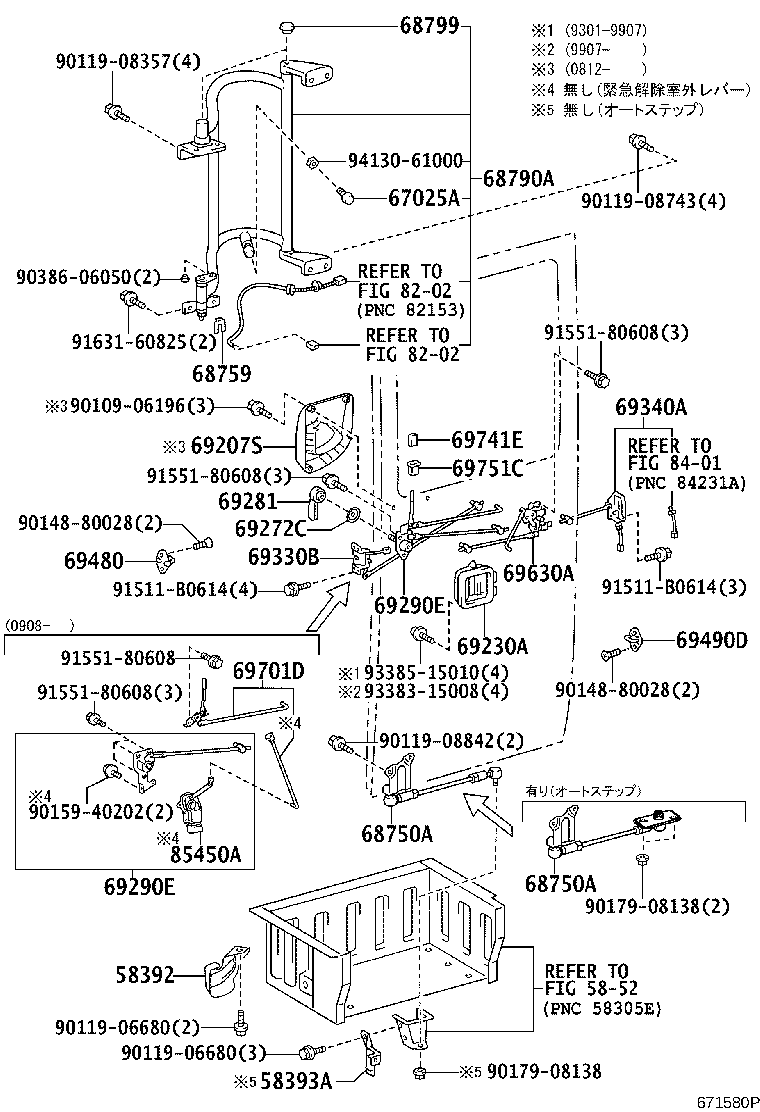

ｸﾞﾗｲﾄﾞ ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58392 - MUDGUARD, GLIDE DOOR LINK, FRONT | ||||
| 58392-36010 |
BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 58392-36010 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 58393A - MUDGUARD, GLIDE DOOR LINK, REAR | ||||
| 58393-90B01 |
HZB40..4FC..IV5;HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..CBU |
1 | ||
| 58393-90B01 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 58393-90B01 |
HZB40,50..(GX,LX)..CBU;BZB40,50,HDB5#,HZB41,46,56..(08S,09S,10S,20S,26S,29S)..(CBU,IV5) |
1 | ||
| 67025A - STOPPER SUB-ASSY, SLIDE DOOR, FRONT | ||||
| 67025-36010 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 67025-36010 |
BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 67025-36010 |
HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 67025-36010 |
HDB50,HZB40,46,5#..GX,LX |
1 | ||
| 68750A - LINK ASSY, GLIDE DOOR | ||||
| 68750-36020 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 68750-36040 |
BZB40,50,HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..WC..(CBU,IV5) ｱﾘ(ｵ-ﾄ ｽﾃﾂﾌﾟ) |
1 | ||
| 68750-36020 |
BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..CBU |
1 | ||
| 68750-36020 |
HZB40..4FC..IV5;HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..CBU |
1 | ||
| 68750A - LINK ASSY, GLIDE DOOR | ||||
| 68750-36020 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 68750-36040 |
BZB40,50,HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..WC..(CBU,IV5) ｱﾘ(ｵ-ﾄ ｽﾃﾂﾌﾟ) |
1 | ||
| 68750-36020 |
BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..CBU |
1 | ||
| 68750-36020 |
HZB40..4FC..IV5;HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..CBU |
1 | ||
| 68759 - SPACER, GLIDE DOOR ARM | ||||
| 68759-90B01 |
BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 68759-90B01 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 68790A - ARM ASSY, GLIDE DOOR | ||||
| 68790-36030A0 |
HDB50,HZB50..GX ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ ｻｲﾄﾞﾄﾞｱ & ｵ-ﾄ ｽﾃﾂﾌﾟ),IVORY,TRIM4# |
1 | ||
| 68790-36010A0 |
HZB40..LX..CBU;HDB51,HZB40..4FC..IV5;BB4#,HDB50,HZB5#..GX,LX IVORY,TRIM4# |
1 | ||
| 68790-36020A0 |
HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ ｻｲﾄﾞﾄﾞｱ),IVORY,TRIM4# |
1 | ||
| 68790-36010B0 |
BZB40,50,HDB50,HZB40,46,5#..(GX,LX)..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 68790-36020A0 |
HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..CBU ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ ｻｲﾄﾞﾄﾞｱ),IVORY,TRIM4# |
1 | ||
| 68790-36020B0 |
BZB40,50,HDB5#,HZB4#,5#..(09S,10S,19S,20S,24S,26S,29S)..WC..(CBU,IV5) ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ ｻｲﾄﾞﾄﾞｱ),MD.CHARCOAL,TRIM1# |
1 | ||
| 68790-36010A0 |
HZB40..4FC..IV5;HDB50,HZB40,46,5#..(GX,LX)..CBU IVORY,TRIM4# |
1 | ||
| 68799 - CAP, GLIDE DOOR ARM | ||||
| 68799-36010 |
HDB50,HZB40,46,5#..GX,LX |
2 | ||
| 68799-36010 |
BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
2 | ||
| 68799-36010 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
2 | ||
| 68799-36010 |
HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
2 | ||
| 69230A - HANDLE ASSY, GLIDE DOOR OUTSIDE | ||||
| 69230-36010 |
BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 69230-36010 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 69272C - PLATE, GLIDE DOOR INSIDE HANDLE | ||||
| 69272-3001008 |
HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) NATURAL WHITE,TRIM4# |
1 | ||
| 69272-3001008 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) NATURAL WHITE,TRIM4# |
1 | ||
| 69272-3001008 |
BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) NATURAL WHITE,TRIM1# |
1 | ||
| 69281 - HANDLE, GLIDE DOOR INSIDE | ||||
| 69281-36010B0 |
BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
1 | ||
| 69281-36010A0 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) IVORY,TRIM4# |
1 | ||
| 69281-36010A0 |
HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) IVORY,TRIM4# |
1 | ||
| 69290E - BASE ASSY, GLIDE DOOR INSIDE HANDLE | ||||
| 69290-36010 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 69290-36010 |
BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 69290E - BASE ASSY, GLIDE DOOR INSIDE HANDLE | ||||
| 69290-36010 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 69290-36010 |
BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 69330B - LOCK ASSY, GLIDE DOOR, FRONT | ||||
| 69330-36011 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 69330-36010 |
BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG |
1 | ||
| 69330-36011 |
BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 69340A - LOCK ASSY, GLIDE DOOR, REAR | ||||
| 69340-36010 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 69340-36010 |
BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 69480 - PLATE ASSY, GLIDE DOOR LOCK STRIKER, FRONT | ||||
| 69480-36011 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 69480-36011 |
BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 69480-36010 |
BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG |
1 | ||
| 69490D - PLATE ASSY, GLIDE DOOR LOCK STRIKER, REAR | ||||
| 69490-36011 |
BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 69490-36011 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 69490-36010 |
BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG |
1 | ||
| 69630A - CONTROL ASSY, GLIDE DOOR LOCK REMOTE | ||||
| 69630-36010 |
BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 69630-36010 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 69741E - KNOB, DOOR LOCK CONTROL | ||||
| 69741-90K00B6 |
BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
1 | ||
| 69741-90K00A0 |
HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) IVORY,TRIM4# |
1 | ||
| 69741-90K00A0 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) IVORY,TRIM4# |
1 | ||
| 69751C - HOLDER, DOOR LOCK CONTROL KNOB(FOR GLIDE DOOR) | ||||
| 69079-90K00A0 |
HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) IVORY,TRIM4# |
1 | ||
| 69079-90K00B2 |
BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
1 | ||
| 69079-90K00A0 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) IVORY,TRIM4# |
1 | ||
| Common parts | ||||
| 90109-06196 | ||||
| 90119-06680 | ||||
| 90119-08357 | ||||
| 90119-08743 | ||||
| 90119-08842 | ||||
| 90148-80028 | ||||
| 90159-40202 | ||||
| 90179-08138 | ||||
| 90386-06050 | ||||
| 91511-B0614 | ||||
| 91551-80608 | ||||
| 91631-60825 | ||||
| 93383-15008 | ||||
| 93385-15010 | ||||
| 94130-61000 | ||||
| Linked diagrams | ||||
| 5852 | ||||
| 8202 | ||||
| 8401 | ||||
