HZB50-ZRMES (1993)
Toyota Coaster
ILLUST NO. 1 OF 2(9301-0408)
ｵﾘﾄﾞｼｷﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003F - PANEL SUB-ASSY, CENTER DOOR, FRONT | ||||
| 67003-36070 |
BB46..WOC;BB40,HDB50,HZB40,50..26S,29S ｱﾘ(*FD ﾃﾞﾝﾄﾞｳ ｵ-ﾄ) |
1 | ||
| 67003-36020 |
BB40,HDB50,HZB40,50..GX,LX ｱﾘ(*FD) |
1 | ||
| 67003-36071 |
BB46..WOC;BB40,HDB50,HZB40,50..26S,29S ｱﾘ(*FD ﾃﾞﾝﾄﾞｳ ｵ-ﾄ) |
1 | ||
| 67003-36071 |
HDB50,HZB50..GX |
1 | ||
| 67004C - PANEL SUB-ASSY, CENTER DOOR, REAR | ||||
| 67004-36030 |
BB4#,HDB5#,HZB4#,5#..09S,15S,26S,29S |
1 | ||
| 67004-36030 |
BB4#,HDB50,HZB40,5#..09S,26S,29S |
1 | ||
| 67087 - PLATE SUB-ASSY, CENTER DOOR DUST SEAL, FRONT | ||||
| 67087-36010 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 67087-36011 |
BB4#,5#,HDB50,HZB40,5# |
1 | ||
| 67087-36010 |
BB4#,HDB50,HZB40,5# |
1 | ||
| 67088 - PLATE SUB-ASSY, CENTER DOOR DUST SEAL, REAR | ||||
| 67088-36010 |
BB4#,HDB50,HZB40,5# |
1 | ||
| 67088-36010 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 67088-36011 |
BB4#,5#,HDB50,HZB40,5# |
1 | ||
| 67171 - WEATHERSTRIP, CENTER DOOR GLASS, OUTER | ||||
| 68163-90B00 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD |
2 | ||
| 68163-90B00 |
BB4#,5#,HDB50,HZB40,5# |
2 | ||
| 67172 - WEATHERSTRIP, CENTER DOOR GLASS, INNER | ||||
| 68173-90B00 |
BB4#,5#,HDB50,HZB40,5# |
2 | ||
| 68173-90B00 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD |
2 | ||
| 67207D - COVER SUB-ASSY, CENTER DOOR, OUTER | ||||
| 67207-36010 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 67207-36010 |
BB4#,5#,HDB50,HZB40,5# |
1 | ||
| 67219 - BUSH, CENTER DOOR UPPER BEARING CASE | ||||
| 67219-90501 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 67219-90501 |
BB4#,58,HDB50,HZB40,5# |
1 | ||
| 67219-90501 |
HZB40,50..5F;BB4#,55,HDB50,HZB56;HZB50..(GX,STD)..4FC |
1 | ||
| 67253 - PIECE, CENTER DOOR GUIDE | ||||
| 67253-36010 |
BB4#,5#,HDB50,HZB40,5# |
1 | ||
| 67253-36010 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 67254 - STOPPER, CENTER DOOR, INSIDE NO.1 | ||||
| 67254-90B00 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD |
2 | ||
| 67254-90B00 |
BB4#,5#,HDB50,HZB40,5# |
2 | ||
| 67254 - STOPPER, CENTER DOOR, INSIDE NO.1 | ||||
| 67254-90B00 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD |
2 | ||
| 67254-90B00 |
BB4#,5#,HDB50,HZB40,5# |
2 | ||
| 67261B - CASE, CENTER DOOR GUIDE | ||||
| 67261-36010 |
BB4#,5#,HDB50,HZB40,5# |
1 | ||
| 67261-36010 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 67268 - ROLLAR, REAR DOOR, UPPER | ||||
| 67268-90B00 |
BB4#,HDB50,HZB40,5# |
1 | ||
| 67855C - WEATHERSTRIP, CENTER DOOR FRONT | ||||
| 67855-36030 |
BB4#,HDB50,HZB40,5# *H,L=1635 |
1 | ||
| 67855-36030 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD *H,L=1635 |
1 | ||
| 67856C - WEATHERSTRIP, CENTER DOOR, REAR | ||||
| 67856-36040 |
BB4#,HDB50,HZB40,5# *H,L=1665 |
1 | ||
| 67856-36040 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD *H,L=1665 |
1 | ||
| 67857D - WEATHERSTRIP, CENTER DOOR, CENTER | ||||
| 67857-36030 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD *H,L=1685 |
2 | ||
| 67857-36030 |
BB4#,HDB50,HZB40,5# *H,L=1685 |
2 | ||
| 67857D - WEATHERSTRIP, CENTER DOOR, CENTER | ||||
| 67857-36030 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD *H,L=1685 |
2 | ||
| 67857-36030 |
BB4#,HDB50,HZB40,5# *H,L=1685 |
2 | ||
| 67868M - CLIP, DOOR WEATHERSTRIP | ||||
| 67867-12150 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(*GLD) OR ｱﾘ(*GLD(ｵ-ﾄ)) |
18 | ||
| 67868-30040 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD ｱﾘ(*FD) OR ｱﾘ(*FD ﾃﾞﾝﾄﾞｳ ｵ-ﾄ) |
11 | ||
| 67867-12150 |
BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(*GLD) OR ｱﾘ(*GLD(ｵ-ﾄ)) |
18 | ||
| 67868-30040 |
BB4#,5#,HDB50,HZB40,5# ｱﾘ(*FD) OR ｱﾘ(*FD ﾃﾞﾝﾄﾞｳ ｵ-ﾄ) |
11 | ||
| 67869G - CLIP, DOOR WEATHERSTRIP | ||||
| 67869-90B00 |
BB4#,5#,HDB50,HZB40,5# |
2 | ||
| 67869-90B00 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD |
2 | ||
| 67869G - CLIP, DOOR WEATHERSTRIP | ||||
| 67869-90B00 |
BB4#,5#,HDB50,HZB40,5# |
2 | ||
| 67869-90B00 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD |
2 | ||
| 67873B - WEATHERSTRIP, REAR DOOR GLASS, FRONT RH | ||||
| 67873-36010 |
BB4#,5#,HDB50,HZB40,5# |
1 | ||
| 67873-36010 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 67874B - WEATHERSTRIP, CENTER DOOR, UPPER NO.2 | ||||
| 67874-36020 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 67874-36020 |
BB4#,5#,HDB50,HZB40,5# |
1 | ||

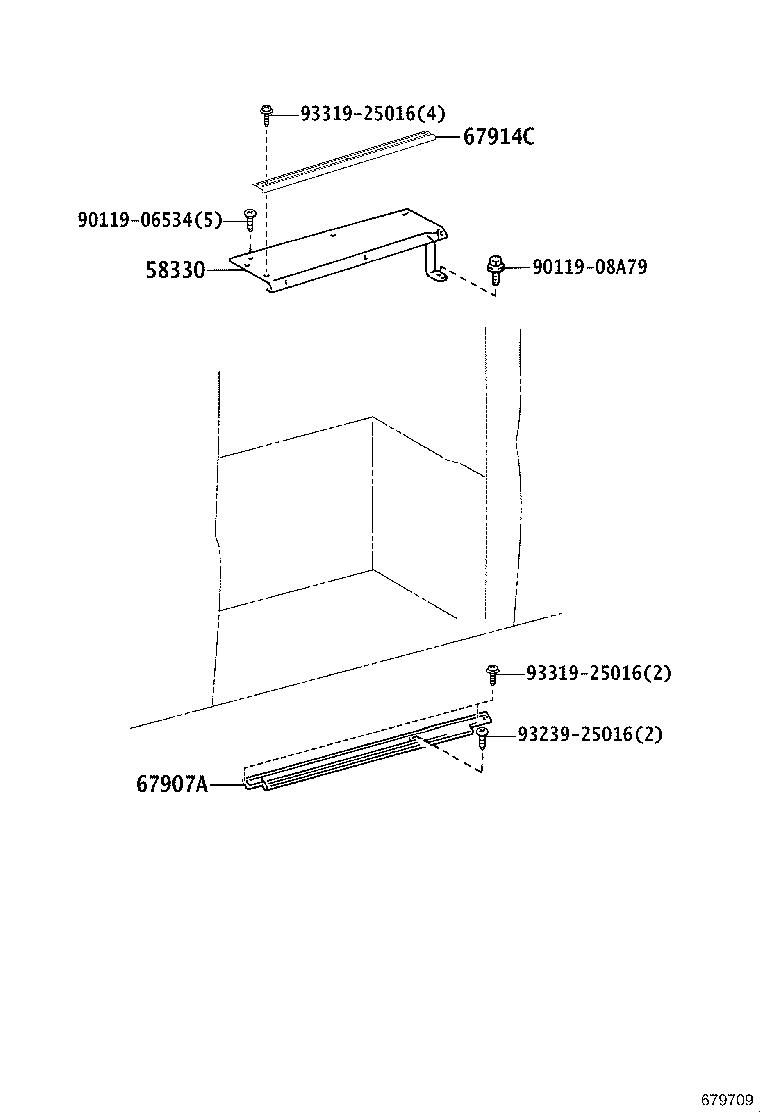

| 67907A - PLATE SUB-ASSY, CENTER DOOR SCUFF | ||||
| 67917-36020 |
BB40,HDB50,HZB40,50..GX,LX ｱﾘ(*FD) OR ｱﾘ(*FD ﾃﾞﾝﾄﾞｳ ｵ-ﾄ) |
1 | ||
| 67907-36020 |
BB40,HDB50,HZB40,50..GX,LX ｱﾘ(*FD) OR ｱﾘ(*FD ﾃﾞﾝﾄﾞｳ ｵ-ﾄ) |
1 | ||
| 67907-36010 |
BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG |
1 | ||
| 67917-36010 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(*GLD) OR ｱﾘ(*GLD(ｵ-ﾄ)) |
1 | ||
| 67907-36030 |
BB40,HDB50,HZB40,50..GX,LX ｱﾘ(*FD) OR ｱﾘ(*FD ﾃﾞﾝﾄﾞｳ ｵ-ﾄ) |
1 | ||
| 67917-36010 |
HDB5#,HZB4#,5#..(09S,20S,26S,29S)..(EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(*GLD) OR ｱﾘ(*GLD(ｵ-ﾄ)) |
1 | ||
| 67907-36030 |
HDB50,HZB50..GX ｱﾘ(*FD ﾃﾞﾝﾄﾞｳ ｵ-ﾄ) |
1 | ||
| 67917-36010 |
BZB40,50,HZB46..08S,26S,29S;HDB51,HZB40,41..10S,19S,24S ｱﾘ(*GLD) OR ｱﾘ(*GLD(ｵ-ﾄ)) |
1 | ||
| 68111 - GLASS, CENTER DOOR | ||||
| 68113-90B01 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD *TT,厚さ=3.5 |
2 | ||
| 68113-36070 |
BB4#,58,HDB50,HZB40,5# *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
2 | ||
| 68113-36040 |
BB4#,55,HDB50,HZB40,5# *TEM,厚さ=3.5 |
2 | ||
| 68705 - HINGE SUB-ASSY, CENTER DOOR, OUTER NO.1 | ||||
| 68705-90B01 |
BB46..WOC;BB40,HDB50,HZB40,50..26S,29S ｱﾘ(*FD ﾃﾞﾝﾄﾞｳ ｵ-ﾄ) |
1 | ||
| 68705-90B00 |
BB40,HDB50,HZB40,50..GX,LX ｱﾘ(*FD) |
1 | ||
| 68705-90B01 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 68705-90B01 |
HZB40,50..5F;BB4#,55,HDB50,HZB56;HZB50..(GX,STD)..4FC |
1 | ||
| 68705-90B01 |
BB4#,58,HDB50,HZB40,5# |
1 | ||
| 68706 - HINGE SUB-ASSY, CENTER DOOR, OUTER NO.1 | ||||
| 68706-90B01 |
BB4#,58,HDB50,HZB40,5# |
1 | ||
| 68706-90B01 |
HZB40,50..5F;BB4#,55,HDB50,HZB56;HZB50..(GX,STD)..4FC |
1 | ||
| 68706-90B01 |
BB46..WOC;BB40,HDB50,HZB40,50..26S,29S ｱﾘ(*FD ﾃﾞﾝﾄﾞｳ ｵ-ﾄ) |
1 | ||
| 68706-90B01 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 68706-90B00 |
BB40,HDB50,HZB40,50..GX,LX ｱﾘ(*FD) |
1 | ||
| 68706A - HINGE SUB-ASSY, CENTER DOOR, OUTER NO.1 | ||||
| 68706-90B01 |
BB4#,58,HDB50,HZB40,5# |
1 | ||
| 68706-90B01 |
HZB40,50..5F;BB4#,55,HDB50,HZB56;HZB50..(GX,STD)..4FC |
1 | ||
| 68706-90B01 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 68709 - CASE SUB-ASSY, CENTER DOOR UPPER BEARING | ||||
| 68709-90B00 |
BB4#,58,HDB50,HZB40,5# |
1 | ||
| 68709-90B00 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 68709-90B00 |
HZB40,50..5F;BB4#,55,HDB50,HZB56;HZB50..(GX,STD)..4FC |
1 | ||
| 68737 - CASE, CENTER DOOR LOWER BEARING | ||||
| 68737-36010 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 68737-36010 |
HZB40,50..5F;BB4#,55,HDB50,HZB56;HZB50..(GX,STD)..4FC |
1 | ||
| 68737-36010 |
BB4#,58,HDB50,HZB40,5# |
1 | ||
| 68739 - BALL, CENTER DOOR LOWER BEARING | ||||
| 68739-90B01 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 68739-90B01 |
HZB40,50..5F;BB4#,55,HDB50,HZB56;HZB50..(GX,STD)..4FC |
1 | ||
| 68739-90B01 |
BB4#,58,HDB50,HZB40,5# |
1 | ||
| 68759A - SPACER, CENTER DOOR HINGE | ||||
| 68769-90B00 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD |
2 | ||
| 68769-90B00 |
HZB40,50..5F;BB4#,55,HDB50,HZB56;HZB50..(GX,STD)..4FC |
2 | ||
| 68759-90B00 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD |
2 | ||
| 68769-90B00 |
BB4#,58,HDB50,HZB40,5# |
2 | ||
| 68759A - SPACER, CENTER DOOR HINGE | ||||
| 68769-90B00 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD |
2 | ||
| 68769-90B00 |
HZB40,50..5F;BB4#,55,HDB50,HZB56;HZB50..(GX,STD)..4FC |
2 | ||
| 68759-90B00 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD |
2 | ||
| 68769-90B00 |
BB4#,58,HDB50,HZB40,5# |
2 | ||
| 68769 - SPACER, CENTER DOOR HINGE, NO.2 | ||||
| 68769-90B00 |
HZB40,50..5F;BB4#,55,HDB50,HZB56;HZB50..(GX,STD)..4FC |
4 | ||
| 68769-90B00 |
BB4#,58,HDB50,HZB40,5# |
4 | ||
| 68769-90B00 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD |
4 | ||
| 68769 - SPACER, CENTER DOOR HINGE, NO.2 | ||||
| 68769-90B00 |
HZB40,50..5F;BB4#,55,HDB50,HZB56;HZB50..(GX,STD)..4FC |
4 | ||
| 68769-90B00 |
BB4#,58,HDB50,HZB40,5# |
4 | ||
| 68769-90B00 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD |
4 | ||
| 68769 - SPACER, CENTER DOOR HINGE, NO.2 | ||||
| 68769-90B00 |
HZB40,50..5F;BB4#,55,HDB50,HZB56;HZB50..(GX,STD)..4FC |
4 | ||
| 68769-90B00 |
BB4#,58,HDB50,HZB40,5# |
4 | ||
| 68769-90B00 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD |
4 | ||
| 68769 - SPACER, CENTER DOOR HINGE, NO.2 | ||||
| 68769-90B00 |
HZB40,50..5F;BB4#,55,HDB50,HZB56;HZB50..(GX,STD)..4FC |
4 | ||
| 68769-90B00 |
BB4#,58,HDB50,HZB40,5# |
4 | ||
| 68769-90B00 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD |
4 | ||
| 74642 - GRIP, GLIDE DOOR ASSIST | ||||
| 74642-90B00 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 74642-90B00 |
BB4#,HDB50,HZB40,5# |
1 | ||
| 75741B - MOULDING, CENTER DOOR, FRONT | ||||
| 75741-90B00 |
BB4#,HDB5#,HZB4#,5#..HRF..(DX,EX,GX,LX) |
1 | ||
| 75742A - MOULDING, CENTER DOOR, REAR | ||||
| 75742-90B00 |
BB4#,HDB5#,HZB4#,5#..HRF..(DX,EX,GX,LX) |
1 | ||
| Common parts | ||||
| 90159-40052 | ||||
| 90159-50199 | ||||
| 90159-60145 | ||||
| 90176-06027 | ||||
| 90179-06080 | ||||
| 90179-06299 | ||||
| 90201-10092 | ||||
| 90202-09005 | ||||
| 90363-10001 | ||||
| 90523-08001 | ||||
| 91621-B0625 | ||||
| 91651-40640 | ||||
| 91671-80616 | ||||
| 93239-25012 | ||||
| 93315-16014 | ||||
| 93330-18025 | ||||
| 93381-26030 | ||||
| 93540-13012 | ||||
| 93540-24512 | ||||
| 94611-11001 | ||||
| 94612-11001 | ||||
ILLUST NO. 1 OF 2(9301-0408)
ｸﾞﾗｲﾄﾞﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62925A - WEATHERSTRIP, GLIDE DOOR SIDE | ||||
| 62925-36020 |
BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 62925-36020 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 62927 - WEATHERSTRIP, GLIDE DOOR OUTER | ||||
| 62927-36010 |
HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 62927-36010 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 62927-36011 |
BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 63319E - MOULDING, SLIDE DOOR WINDOW | ||||
| 63319-95702A1 |
HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) IVORY,TRIM4# |
1 | ||
| 63319-95702A1 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) IVORY,TRIM4# |
1 | ||
| 63319-95702B1 |
BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
1 | ||
| 63319-95702A0 |
BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG IVORY,TRIM4# |
1 | ||
| 67003G - PANEL SUB-ASSY, SLIDE DOOR | ||||
| 67003-36040 |
BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 67003-36040 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 67680A - TRIM ASSY, GRIDE DOOR | ||||
| 67680-36010E0 |
HDB50,HZB50..GX GREIGE,TRIM4#,41 |
1 | ||
| 67680-36010E0 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX)..(CBU,IV5) GREIGE,TRIM4# |
1 | ||
| 67680-36010E0 |
HZB40..LX..5F;HZB40..LX..4FC..CBU;HDB5#,HZB41,46,5#..(EX,GX,LX)..(CBU,IV5) GREIGE,TRIM4# |
1 | ||
| 67680-36010B0 |
BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX)..(CBU,IV5) MD. CHARCOAL,TRIM1# |
1 | ||
| 67690 - TRIM ASSY, GRIDE DOOR, LOWER | ||||
| 67690-36010E0 |
HZB40..LX..5F;HZB40..LX..4FC..CBU;HDB5#,HZB41,46,5#..(EX,GX,LX)..(CBU,IV5) GREIGE,TRIM4# |
1 | ||
| 67690-36010B0 |
BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX)..(CBU,IV5) MD. CHARCOAL,TRIM1# |
1 | ||
| 67690-36010E0 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX)..(CBU,IV5) GREIGE,TRIM4# |
1 | ||
| 67745 - MOULDING, CENTER DOOR TRIM | ||||
| 67745-36030A0 |
BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG IVORY,TRIM4# |
1 | ||
| 67745-36030A1 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) IVORY,TRIM4# |
1 | ||
| 67745-36030A1 |
HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) IVORY,TRIM4# |
1 | ||
| 67745-36030B0 |
BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
1 | ||
| 67841A - COVER, GLIDE DOOR SERVICE HOLE | ||||
| 67841-36010 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 67841-36010 |
BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 67867H - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67868-22020 |
BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG |
18 | ||
| 67868-12090 |
BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
18 | ||
| 67867-12150 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
18 | ||
| 67868M - CLIP, DOOR WEATHERSTRIP | ||||
| 67867-12150 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(*GLD) OR ｱﾘ(*GLD(ｵ-ﾄ)) |
18 | ||
| 67868-30040 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD ｱﾘ(*FD) OR ｱﾘ(*FD ﾃﾞﾝﾄﾞｳ ｵ-ﾄ) |
11 | ||
| 67867-12150 |
BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(*GLD) OR ｱﾘ(*GLD(ｵ-ﾄ)) |
18 | ||
| 67868-30040 |
BB4#,5#,HDB50,HZB40,5# ｱﾘ(*FD) OR ｱﾘ(*FD ﾃﾞﾝﾄﾞｳ ｵ-ﾄ) |
11 | ||
| 67871B - WEATHERSTRIP, GLIDE DOOR | ||||
| 67871-36010 |
HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 67871-36011 |
BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 67871-36010 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 67907A - PLATE SUB-ASSY, CENTER DOOR SCUFF | ||||
| 67917-36020 |
BB40,HDB50,HZB40,50..GX,LX ｱﾘ(*FD) OR ｱﾘ(*FD ﾃﾞﾝﾄﾞｳ ｵ-ﾄ) |
1 | ||
| 67907-36020 |
BB40,HDB50,HZB40,50..GX,LX ｱﾘ(*FD) OR ｱﾘ(*FD ﾃﾞﾝﾄﾞｳ ｵ-ﾄ) |
1 | ||
| 67907-36010 |
BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG |
1 | ||
| 67917-36010 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(*GLD) OR ｱﾘ(*GLD(ｵ-ﾄ)) |
1 | ||
| 67907-36030 |
BB40,HDB50,HZB40,50..GX,LX ｱﾘ(*FD) OR ｱﾘ(*FD ﾃﾞﾝﾄﾞｳ ｵ-ﾄ) |
1 | ||
| 67917-36010 |
HDB5#,HZB4#,5#..(09S,20S,26S,29S)..(EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(*GLD) OR ｱﾘ(*GLD(ｵ-ﾄ)) |
1 | ||
| 67907-36030 |
HDB50,HZB50..GX ｱﾘ(*FD ﾃﾞﾝﾄﾞｳ ｵ-ﾄ) |
1 | ||
| 67917-36010 |
BZB40,50,HZB46..08S,26S,29S;HDB51,HZB40,41..10S,19S,24S ｱﾘ(*GLD) OR ｱﾘ(*GLD(ｵ-ﾄ)) |
1 | ||
| 68113C - GLASS, GLIDE DOOR | ||||
| 68103-36010 |
BB4#,HDB50,HZB40,5#..GX,LX *TT,厚さ=3.5,ﾌﾞﾙｰ |
1 | ||
| 68103-36020 |
BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68103-36050 |
HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68103-36050 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68103-36040 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68103-36040 |
BB4#,HDB50,HZB40,5#..GX,LX *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68165B - MOULDING, GLIDE DOOR GLASS | ||||
| 68165-36010 |
BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 68165-36010 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 68217B - PIN, GLIDE DOOR FIX WINDOW | ||||
| 68217-36010 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) ﾌﾞﾗｯｸ |
1 | ||
| 68217-36030 |
BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) ｵﾚﾝｼﾞ |
4 | ||
| 68217-36030 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) ｵﾚﾝｼﾞ |
4 | ||
| 68217-36010 |
BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) ﾌﾞﾗｯｸ |
1 | ||
| 68217-36020 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) ｸﾞﾚｰ |
1 | ||
| 68217-36020 |
BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) ｸﾞﾚｰ |
1 | ||
| 68218C - BUSH, GLIDE DOOR FIX WINDOW | ||||
| 68218-36010 |
BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
6 | ||
| 68218-36010 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
6 | ||
| 68618B - RETAINER, DOOR CHECK PIN | ||||
| 68618-22010 |
BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 68618-22010 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 68630B - CHECK ASSY, GLIDE DOOR | ||||
| 68630-36010 |
BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 68630-36010 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 68630C - PIN(FOR GLIDE DOOR CHECK) | ||||
| 68617-90K00 |
BZB40,50,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 68617-90K00 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| Common parts | ||||
| 67771-12050 | ||||
| 67771-28020 | ||||
| 67771-30090 | ||||
| 90333-35002 | ||||
| 91651-60616 | ||||
| 93229-25012 | ||||
| 93239-25012 | ||||
| 93319-25016 | ||||
ILLUST NO. 2 OF 2(9301- )
ｽﾃｯﾌﾟ(ｸﾞﾗｲﾄﾞﾄﾞｱ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58330 - STEP ASSY, CENTER DOOR | ||||
| 58330-36020 |
BZB40,50,HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..WC..(CBU,IV5) |
1 | ||
| 67907A - PLATE SUB-ASSY, CENTER DOOR SCUFF | ||||
| 67917-36020 |
BB40,HDB50,HZB40,50..GX,LX ｱﾘ(*FD) OR ｱﾘ(*FD ﾃﾞﾝﾄﾞｳ ｵ-ﾄ) |
1 | ||
| 67907-36020 |
BB40,HDB50,HZB40,50..GX,LX ｱﾘ(*FD) OR ｱﾘ(*FD ﾃﾞﾝﾄﾞｳ ｵ-ﾄ) |
1 | ||
| 67907-36010 |
BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG |
1 | ||
| 67917-36010 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(*GLD) OR ｱﾘ(*GLD(ｵ-ﾄ)) |
1 | ||
| 67907-36030 |
BB40,HDB50,HZB40,50..GX,LX ｱﾘ(*FD) OR ｱﾘ(*FD ﾃﾞﾝﾄﾞｳ ｵ-ﾄ) |
1 | ||
| 67917-36010 |
HDB5#,HZB4#,5#..(09S,20S,26S,29S)..(EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(*GLD) OR ｱﾘ(*GLD(ｵ-ﾄ)) |
1 | ||
| 67907-36030 |
HDB50,HZB50..GX ｱﾘ(*FD ﾃﾞﾝﾄﾞｳ ｵ-ﾄ) |
1 | ||
| 67917-36010 |
BZB40,50,HZB46..08S,26S,29S;HDB51,HZB40,41..10S,19S,24S ｱﾘ(*GLD) OR ｱﾘ(*GLD(ｵ-ﾄ)) |
1 | ||
| 67914C - PLATE, DOOR SCUFF, INSIDE LH | ||||
| 67914-36010 |
BZB40,50,HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..WC..(CBU,IV5) |
1 | ||
| Common parts | ||||
| 90119-06534 | ||||
| 90119-08A79 | ||||
| 93239-25016 | ||||
| 93319-25016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
