HZB50-ZRMES (1993)

Toyota Coaster

Production Jan 1993 - Aug 2004
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9301- )

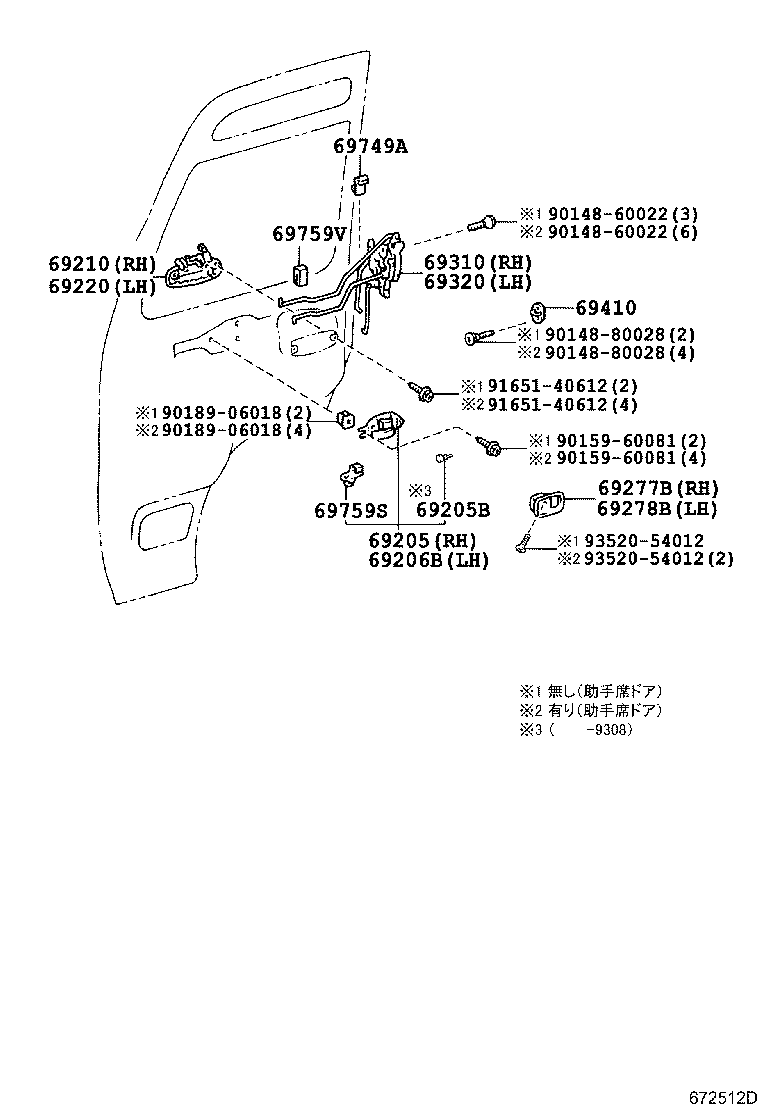

Click highlighted areas on diagram

diagram 69205 69205B 69206B 69210 69220 69277B 69278B 69310 69320 69410 69749A 69759S 69759V 9014860022 9014860022 9014880028 9014880028 9015960081 9015960081 9018906018 9018906018 9165140612 9165140612 9352054012 9352054012
Part # Description Qty Price
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-60040A0

BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5

IVORY,TRIM4#

 1
69205-60040B1

BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5

MD.CHARCOAL,TRIM1#

 1
69205-60030A0

BB4#,HDB5#,HZB4#,5#

IVORY,TRIM4#

 1
69205-60040A1

BB58,HDB5#,HZB4#,5#..CBU,IV5

IVORY,TRIM4#

 1
69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE)
90541-04018

BB4#,HDB5#,HZB4#,5#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-36010

BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5

塗装不要

 1
69210-36010

BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5

塗装不要

 1
69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH
69277-60010A0

BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5

IVORY,TRIM4#

 1
69277-60010A1

BB58,HDB5#,HZB4#,5#..CBU,IV5

IVORY,TRIM4#

 1
69277-60010B0

BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5

MD.CHARCOAL,TRIM1#

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-36010

BB4#,HDB5#,HZB4#,5#..CBU,IV5

 1
69310-36010

BZB40,50,HDB5#,HZB4#,5#..CBU,IV5

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-87001

BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5

 1
69410-87001

BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5

 1
69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1
69749-12010

BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5

 1
69749-12010

BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5

 1
69759S - SNAP, FRONT DOOR INSIDE HANDLE
69759-24070

BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5

 2
69759-24070

BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5

 2
69759V - SILENCER, FRONT DOOR LOCK LINK
69759-30021

BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5

 1
69759-30021

BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5

 1
Common parts
90148-60022
90148-80028
90159-60081
90189-06018
91651-40612
93520-54012
