HZB50-ZRMES (1993)
Toyota Coaster

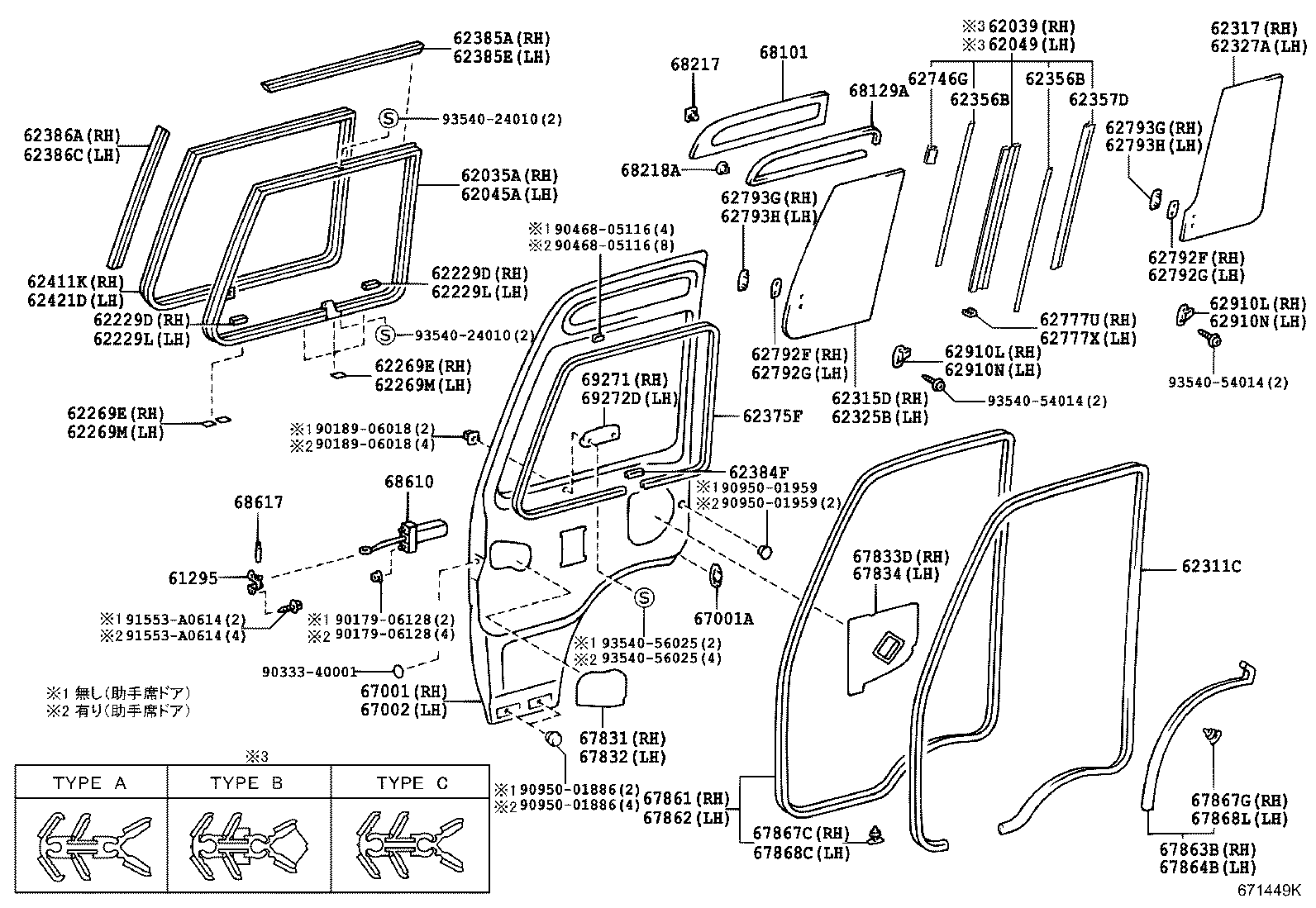

ILLUST NO. 1 OF 3(9301- )
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61295 - BRACKET, FRONT DOOR CHECK ARM | ||||
| 61295-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61295-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 62035A - FRAME SUB-ASSY, FRONT DOOR WINDOW, OUTER RH | ||||
| 62035-36010 |
BB4#,HDB50,HZB40,5# |
1 | ||
| 62035-36020 |
BB4#,HDB50,HZB40,5#..DX,GX,LX ｱﾘ(ﾌﾞﾛﾝｽﾞ ｶﾞﾗｽ) |
1 | ||
| 62035-36040 |
BB4#,5#,HDB50,HZB40,5#..DX,GX,LX ｱﾘ(ﾌﾞﾛﾝｽﾞ ｶﾞﾗｽ) |
1 | ||
| 62035-36031 |
BB4#,58,HDB50,HZB40,5# ｼﾙﾊﾞ- |
1 | ||
| 62035-36041 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) ﾌﾞﾗﾂｸ |
1 | ||
| 62035-36041 |
BB4#,58,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) ﾌﾞﾗﾂｸ |
1 | ||
| 62035-36030 |
BB4#,5#,HDB50,HZB40,5# |
1 | ||
| 62039 - FRAME SUB-ASSY, FRONT DOOR WINDOW, CENTER RH | ||||
| 62039-36010 |

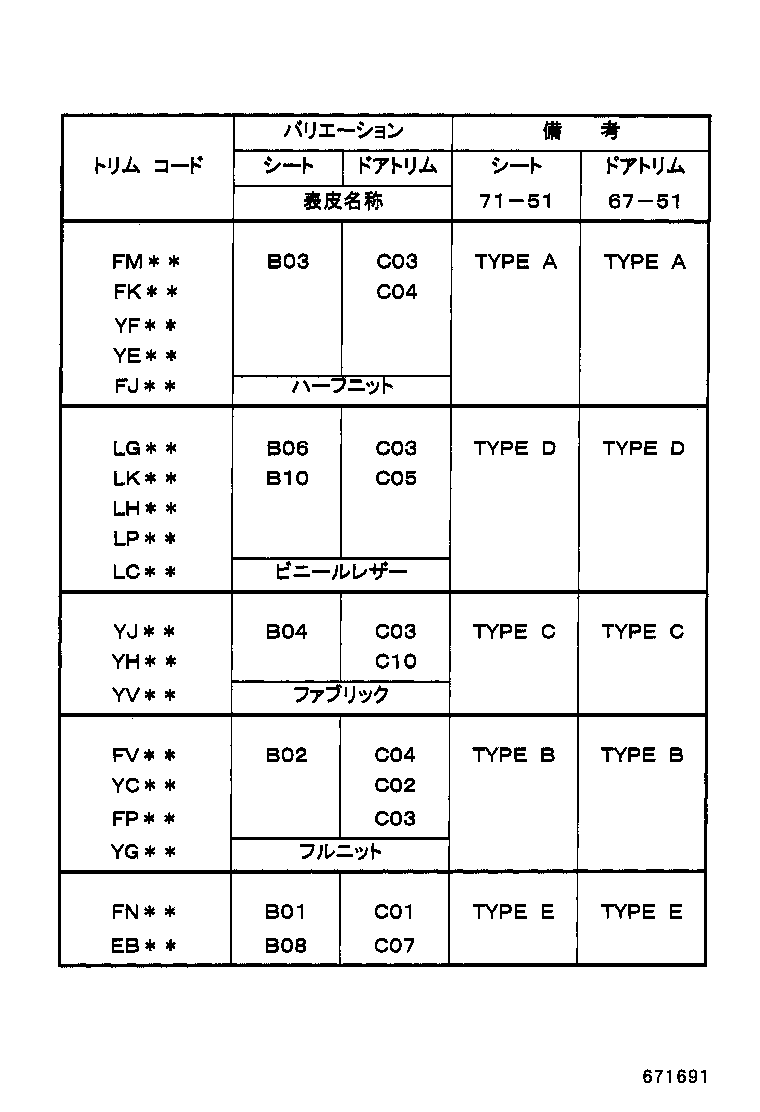

BB4#,5#,HDB50,HZB40,5# TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 62039-36011 |
BB4#,58,HDB50,HZB40,5# TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 62039-36021 |
BB58,HDB5#,HZB4#,5#..(09S,20S,26S,29S)..(CBU,IV5) ｱﾘ(ﾌﾞﾛﾝｽﾞ ｶﾞﾗｽ),TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 62039-36020 |
BB4#,5#,HDB50,HZB40,5#..DX,GX,LX ｱﾘ(ﾌﾞﾛﾝｽﾞ ｶﾞﾗｽ),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 62039-36022 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) ﾌﾞﾗﾂｸ,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 62039-36021 |
BB4#,58,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(ﾌﾞﾛﾝｽﾞ ｶﾞﾗｽ),TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 62229D - PACKING, FRONT DOOR WINDOW | ||||
| 62229-95J00 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) |
2 | ||
| 62229-95J00 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) |
2 | ||
| 62229D - PACKING, FRONT DOOR WINDOW | ||||
| 62229-95J00 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) |
2 | ||
| 62229-95J00 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) |
2 | ||
| 62269E - FILM, FRONT DOOR WINDOW FRAME, RH | ||||
| 62269-90K01 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
5 | ||
| 62269-90K01 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
5 | ||
| 62269E - FILM, FRONT DOOR WINDOW FRAME, RH | ||||
| 62269-90K01 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
5 | ||
| 62269-90K01 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
5 | ||
| 62315D - GLASS, FRONT DOOR WINDOW, FRONT RH | ||||
| 62315-36050 |
BB4#,58,HDB50,HZB40,5# *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 62315-36060 |
HZB50..DX..5F;HZB40,5#..HRF..(GX,LX) *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾌﾞﾛﾝｽﾞ ｶﾞﾗｽ) |
1 | ||
| 62315-36060 |
BB58..WC;BB4#,HDB50,HZB40,5#..DX,GX,LX *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾌﾞﾛﾝｽﾞ ｶﾞﾗｽ) |
1 | ||
| 62315-36020 |
BB40,HZB50..STD..WC;BB40,HZB50..DX,GX,LX;BB46,55,HDB50,HZB40,56..WC *TT,厚さ=5.0,ﾌﾞﾙｰ |
1 | ||
| 62315-36030 |
BB4#,55,HDB50,HZB40,5#..DX,GX,LX *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾌﾞﾛﾝｽﾞ ｶﾞﾗｽ) |
1 | ||
| 62315-36050 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 62317 - GLASS, FRONT DOOR WINDOW, REAR RH | ||||
| 62317-36060 |
BB58..WC;BB4#,HDB50,HZB40,5#..DX,GX,LX *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾌﾞﾛﾝｽﾞ ｶﾞﾗｽ) |
1 | ||
| 62317-36020 |
BB40,HZB50..STD..WC;BB40,HZB50..DX,GX,LX;BB46,55,HDB50,HZB40,56..WC *TT,厚さ=5.0,ﾌﾞﾙｰ |
1 | ||
| 62317-36050 |
BB4#,58,HDB50,HZB40,5# *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 62317-36030 |
BB4#,55,HDB50,HZB40,5#..DX,GX,LX *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾌﾞﾛﾝｽﾞ ｶﾞﾗｽ) |
1 | ||
| 62317-36060 |
HZB50..DX..5F;HZB40,5#..HRF..(GX,LX) *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾌﾞﾛﾝｽﾞ ｶﾞﾗｽ) |
1 | ||
| 62317-36050 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 62356B - WEATHERSTRIP, FRONT DOOR WINDOW, CENTER | ||||
| 62255-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 62255-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 62356B - WEATHERSTRIP, FRONT DOOR WINDOW, CENTER | ||||
| 62255-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 62255-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 62357D - WEATHERSTRIP, FRONT DOOR WINDOW, CENTER REAR | ||||
| 62357-36011 |
BB4#,58,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 62256-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 62357-36011 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 62375F - CLIP, FRONT DOOR WINDOW | ||||
| 62376-36010A0 |
BB4#,HDB5#,HZB4#,5# IVORY,TRIM4# |
1 | ||
| 62376-36010A1 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 IVORY,TRIM4# |
1 | ||
| 62376-36010A1 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 IVORY,TRIM4# |
1 | ||
| 62376-36010A1 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 IVORY,TRIM1# |
1 | ||
| 62384F - CAP,FRONT DOOR WINDOW | ||||
| 62384-36010A1 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 IVORY,TRIM4# |
1 | ||
| 62384-36010B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 MD.CHARCOAL,TRIM1# |
1 | ||
| 62384-36010A1 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 IVORY,TRIM4# |
1 | ||
| 62384-36010A0 |
BB4#,HDB5#,HZB4#,5# IVORY,TRIM4# |
1 | ||
| 62385A - SEAL, FRONT DOOR WINDOW, NO.1 | ||||
| 62386-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 62386-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 62386A - SEAL, FRONT DOOR WINDOW, NO.2 | ||||
| 62386-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 62386-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 62411K - RUN, FRONT DOOR WINDOW, RH | ||||
| 62411-36020 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 62411-36021 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 62411-36020 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 62411-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 62746G - PACKING, QUARTER WINDOW | ||||
| 62746-36010 |
BB4#,58,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 62746-90K00 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 62746-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 62777U - CAP, FRONT DOOR WINDOW CENTER SASH, RH | ||||
| 62777-36012 |
BB4#,58,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 62777-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 62777X - CAP, FRONT DOOR WINDOW CENTER SASH, LH | ||||
| 62777-36012 |
BB58,HDB5#,HZB4#,5#..(09S,20S,26S,29S)..(CBU,IV5) |
1 | ||
| 62777-36030 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 62792F - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 62792-95A00 |
BB4#,55,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 62792F - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 62792-95A00 |
BB4#,55,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 62792G - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 62792G - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 62793G - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95J00 |
BB4#,55,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 62793-95J00 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 62793G - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95J00 |
BB4#,55,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 62793-95J00 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 62793H - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95J00 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 62793H - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95J00 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 62910L - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BB4#,55,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 62910-95702 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 62910L - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BB4#,55,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 62910-95702 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 62910N - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 62910N - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-36110 |
HDB50,HZB50..GX ｱﾘ(ﾌﾞﾛﾝｽﾞ ｶﾞﾗｽ) |
1 | ||
| 67001-36110 |
BB40,HDB5#,HZB4#,50 ｱﾘ(ﾌﾞﾛﾝｽﾞ ｶﾞﾗｽ) |
1 | ||
| 67001-36200 |
BB40,5#,HDB50,HZB40,50 |
1 | ||
| 67001-36110 |
BB58,BZB40,50,HDB5#,HZB4#,50..(08S,10S,19S,20S,24S,26S,29S)..(CBU,IV5) ｱﾘ(ﾌﾛﾝﾄﾄﾞｱ ｱﾂﾊﾟ ｶﾞﾗｽ) |
1 | ||
| 67001-36200 |
HDB50,HZB50..GX |
1 | ||
| 67001-36110 |
BB40,5#,HDB5#,HZB4#,50..(DX,EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(ﾌﾛﾝﾄﾄﾞｱ ｱﾂﾊﾟ ｶﾞﾗｽ) |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 67831-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 67833D - COVER, FRONT DOOR SERVICE HOLE, NO.2 RH | ||||
| 67833-36020 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 67833-36020 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 67861-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH | ||||
| 67863-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 67863-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67868-22020 |
BB4#,HDB5#,HZB4#,5# |
22 | ||
| 67867-12150 |
BB4#,HDB5#,HZB4#,5# |
22 | ||
| 67867-12150 |
BB4#,55,HDB50,HZB40,5# |
22 | ||
| 67867-12150 |
HDB51..IV5;BB4#,58,HZB40,5# |
22 | ||
| 67867-12150 |
HZB50;BZB40,50,HDB50,HZB40,46,56..DX,LX,STD |
22 | ||
| 67867G - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
BB4#,HDB5#,HZB4#,5# |
13 | ||
| 67868-22020 |
BB4#,HDB5#,HZB4#,5# |
13 | ||
| 67867-12150 |
BB4#,55,HDB50,HZB40,5# |
13 | ||
| 67867-12150 |
HDB51..IV5;BB4#,58,HZB40,5# |
13 | ||
| 67867-12150 |
HZB50;BZB40,50,HDB5#,HZB40,46,56..(DX,EX,LX,STD,SULNG)..(CBU,IV5) |
13 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-36030 |
BB4#,58,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68111-36010 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68111-36030 |
BB58,HDB5#,HZB4#,5#..(09S,20S,26S,29S)..(CBU,IV5) *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68111-36040 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) *TT,厚さ=3.5,ﾀﾞｰｸｸﾞﾘｰﾝ |
1 | ||
| 68129A - DAM, FRONT DOOR FIX WINDOW GLASS ADHESIVE | ||||
| 68129-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 68129-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 68217 - PIN, FRONT DOOR FIX WINDOW | ||||
| 68217-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) ORANGE |
1 | ||
| 68217-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) ORANGE |
1 | ||
| 68217-36020 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) ｸﾞﾚｰ |
1 | ||
| 68217-36020 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) ｸﾞﾚｰ |
1 | ||
| 68218A - BUSH, FRONT DOOR FIX WINDOW | ||||
| 68218-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) |
2 | ||
| 68218-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) |
2 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 68610-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-50010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 68617-20011 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 68617-20011 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 69271 - HANDLE, FRONT DOOR INSIDE, RH | ||||
| 69271-36010E0 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 GREIGE,TRIM4# |
1 | ||
| 69271-36010B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 DK.CHARCOAL,TRIM1# |
1 | ||
| 69271-36010E0 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 GREIGE,TRIM4# |
1 | ||
| 69272D - HANDLE, FRONT DOOR INSIDE, LH | ||||
| 69271-36010B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 DK.CHARCOAL,TRIM1# |
1 | ||
| 69271-36010E0 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 GREIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90179-06128 | ||||
| 90189-06018 | ||||
| 90333-40001 | ||||
| 90468-05116 | ||||
| 90950-01886 | ||||
| 90950-01959 | ||||
| 91553-A0614 | ||||
| 93540-24010 | ||||
| 93540-54014 | ||||
| 93540-56025 | ||||
ILLUST NO. 3 OF 3(9301-9907)
ﾄﾘﾑｺｰﾄﾞ
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 3 OF 3(9907-0108)
ﾄﾘﾑｺｰﾄﾞ
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 3 OF 3(0108-0408)
ﾄﾘﾑｺｰﾄﾞ
| Part # | Description | Qty | Price |
|---|

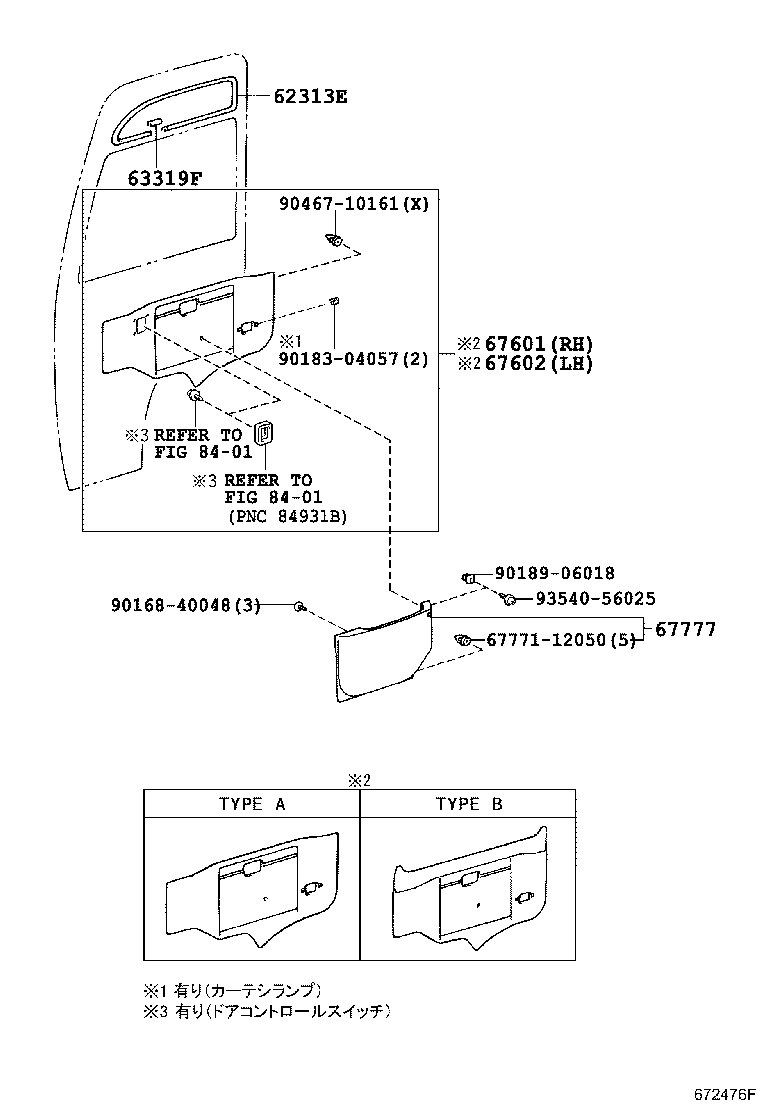

ILLUST NO. 2 OF 3(9301- )
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62313E - TRIM, FRONT DOOR OPENING, NO.2 RH | ||||
| 62314-36010A1 |
BB58,HDB5#,HZB4#,5#..(09S,20S,26S,29S)..(CBU,IV5) IVORY,TRIM4# |
1 | ||
| 62314-36010A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG IVORY,TRIM4# |
1 | ||
| 62314-36010B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
1 | ||
| 62314-36010A1 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) IVORY,TRIM4# |
1 | ||
| 63319F - JOINT, SUN ROOF OPENING TRIM | ||||
| 63319-95702A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG IVORY,TRIM4# |
1 | ||
| 63319-95702A1 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) IVORY,TRIM4# |
1 | ||
| 63319-95702A1 |
BB58,HDB5#,HZB4#,5#..(09S,20S,26S,29S)..(CBU,IV5) IVORY,TRIM4# |
1 | ||
| 63319-95702B1 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-36040E0 |
HDB50,HZB50..GX TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,GREIGE,TRIM4# |
1 | ||
| 67610-36040E0 |
HDB50,HZB50..GX TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,GREIGE,TRIM4# |
1 | ||
| 67610-36040B0 |
HZB40,50..IV5;HDB50,HZB50..GX TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,MD. CHARCOAL,TRIM1# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-36010A0 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 IVORY,TRIM4# |
1 | ||
| 67777-36010A0 |
HDB5#,HZB41,50..EX,GX,SULNG IVORY,TRIM4# |
1 | ||
| 67777-36010A0 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 IVORY,TRIM4# |
1 | ||
| 67777-36010B0 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 MD.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 67771-12050 | ||||
| 90168-40048 | ||||
| 90183-04057 | ||||
| 90189-06018 | ||||
| 90467-10161 | ||||
| 93540-56025 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
