HZB50-ZRMES (1993)
Toyota Coaster

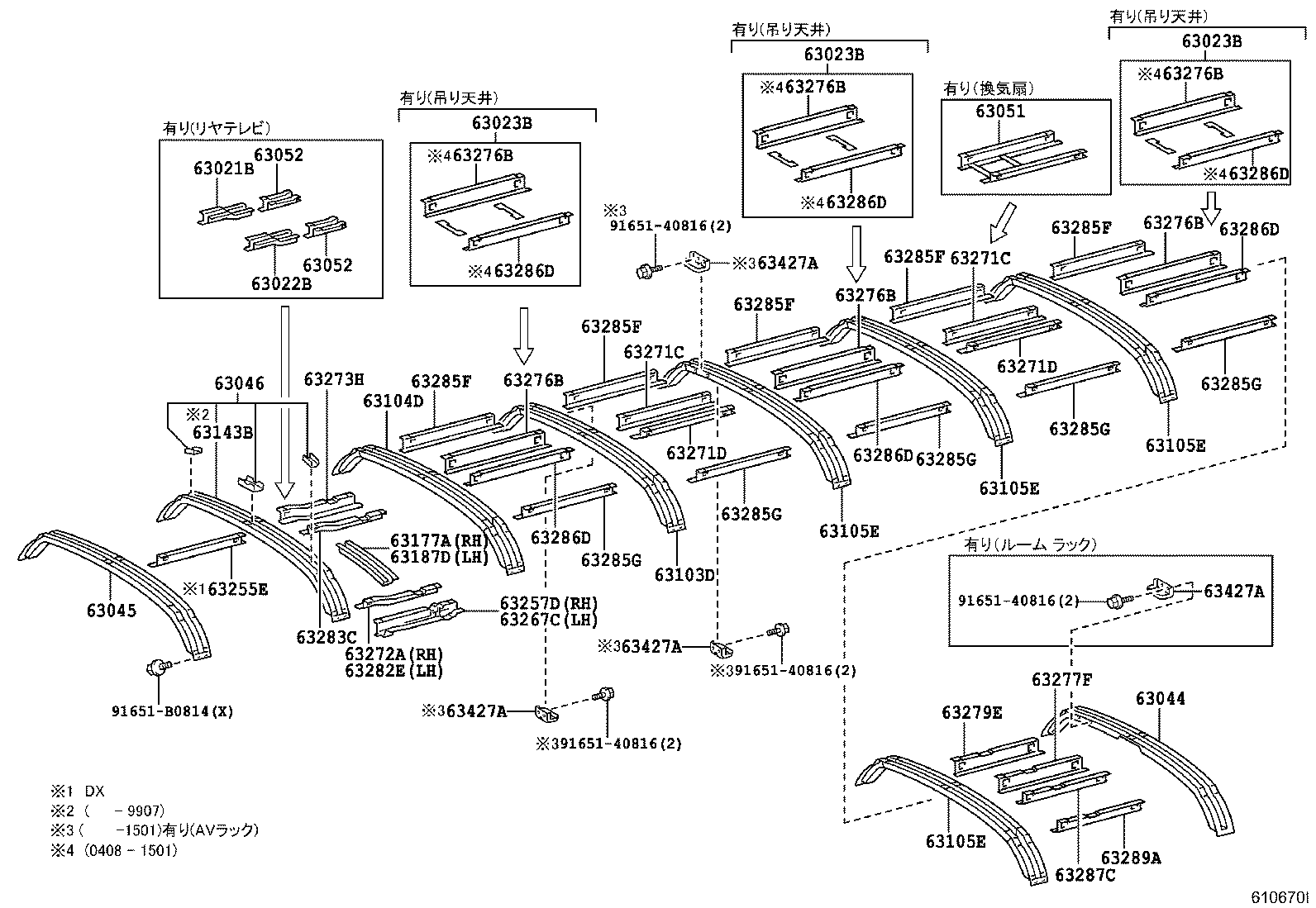

ILLUST NO. 4 OF 4(9705- )BB58,BZB50,HDB5#,HZB5#,XZB5#..HRF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63021B - STRENGTH SUB-ASSY, ROOF PANEL | ||||
| 63021-36010 |
HZB40..4FC..IV5;HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 63021-36010 |
HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..WC..CBU |
1 | ||
| 63022B - STRENGTH SUB-ASSY, ROOF PANEL, NO.2 | ||||
| 63022-36010 |
HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..WC..CBU |
1 | ||
| 63022-36010 |
HZB40..4FC..IV5;HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 63023B - STRENGTH SUB-ASSY, ROOF PANEL, CENTER NO.2 | ||||
| 63023-36010 |
BB58,HDB5#,HZB5#..(09S,26S,29S,49S)..(CBU,IV5) |
3 | ||
| 63023B - STRENGTH SUB-ASSY, ROOF PANEL, CENTER NO.2 | ||||
| 63023-36010 |
BB58,HDB5#,HZB5#..(09S,26S,29S,49S)..(CBU,IV5) |
3 | ||
| 63023B - STRENGTH SUB-ASSY, ROOF PANEL, CENTER NO.2 | ||||
| 63023-36010 |
BB58,HDB5#,HZB5#..(09S,26S,29S,49S)..(CBU,IV5) |
3 | ||
| 63044 - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2 A | ||||
| 63044-36010 |
BB40,58,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(ﾄﾚｲｼｷ ﾃﾆﾓﾂﾀﾞﾅ) |
1 | ||
| 63044-36010 |
BB58,HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..WC..(CBU,IV5) ｱﾘ(ﾄﾚｲｼｷ ﾃﾆﾓﾂﾀﾞﾅ) |
1 | ||
| 63044-36011 |
BB58,BZB40,50,HDB5#,HZB40,41,50..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 63125-36010 |
BB4#,58,HDB50,HZB4#,5#..HRF..CBU |
1 | ||
| 63045 - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3 | ||||
| 63045-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63045-36010 |
BB4#,58,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63046 - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4 A | ||||
| 63046-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63046-36010 |
BB4#,58,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63051 - STRENGTH SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63051-36010 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU |
1 | ||
| 63051-36010 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5) |
1 | ||
| 63052 - STRENGTH SUB-ASSY, ROOF PANEL, FRONT | ||||
| 63052-36010 |
HZB40..4FC..IV5;HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
2 | ||
| 63052-36010 |
HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..WC..CBU |
2 | ||
| 63052 - STRENGTH SUB-ASSY, ROOF PANEL, FRONT | ||||
| 63052-36010 |
HZB40..4FC..IV5;HZB40,50..(GX,LX)..CBU;BB40,HDB5#,HZB41..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
2 | ||
| 63052-36010 |
HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..WC..CBU |
2 | ||
| 63103D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3 | ||||
| 63105-36011 |
BB58,HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..WC..(CBU,IV5) ｱﾘ(ﾄﾚｲｼｷ ﾃﾆﾓﾂﾀﾞﾅ) |
1 | ||
| 63105-36012 |
BB58,BZB40,50,HDB5#,HZB40,41,50..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 63104-36011 |
BB58..WC;BB40,HDB50,HZB4#,50..HRF..CBU |
1 | ||
| 63105-36011 |
BB40,58,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(ﾄﾚｲｼｷ ﾃﾆﾓﾂﾀﾞﾅ) |
1 | ||
| 63104D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2 | ||||
| 63104-36011 |
BB58..WC;BB4#,HDB50,HZB4#,5#..HRF..CBU |
1 | ||
| 63105-36011 |
BB58,HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..WC..(CBU,IV5) ｱﾘ(ﾄﾚｲｼｷ ﾃﾆﾓﾂﾀﾞﾅ) |
1 | ||
| 63105-36012 |
BB58,BZB40,50,HDB5#,HZB40,41,50..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 63105-36011 |
BB40,58,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(ﾄﾚｲｼｷ ﾃﾆﾓﾂﾀﾞﾅ) |
1 | ||
| 63105E - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3 | ||||
| 63104-36011 |
HZB50..HRF..CBU;BB58,HDB50,HZB56..WC |
4 | ||
| 63105-36011 |
BB58,HDB5#,HZB50..(EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(ﾄﾚｲｼｷ ﾃﾆﾓﾂﾀﾞﾅ) |
4 | ||
| 63105-36011 |
BB58,HDB5#,HZB50..(20S,26S,29S)..WC..(CBU,IV5) ｱﾘ(ﾄﾚｲｼｷ ﾃﾆﾓﾂﾀﾞﾅ) |
4 | ||
| 63105-36012 |
BB58,BZB50,HDB5#,HZB50..(EX,GX,LX,SULNG)..(CBU,IV5) |
4 | ||
| 63105E - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3 | ||||
| 63104-36011 |
HZB50..HRF..CBU;BB58,HDB50,HZB56..WC |
4 | ||
| 63105-36011 |
BB58,HDB5#,HZB50..(EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(ﾄﾚｲｼｷ ﾃﾆﾓﾂﾀﾞﾅ) |
4 | ||
| 63105-36011 |
BB58,HDB5#,HZB50..(20S,26S,29S)..WC..(CBU,IV5) ｱﾘ(ﾄﾚｲｼｷ ﾃﾆﾓﾂﾀﾞﾅ) |
4 | ||
| 63105-36012 |
BB58,BZB50,HDB5#,HZB50..(EX,GX,LX,SULNG)..(CBU,IV5) |
4 | ||
| 63105E - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3 | ||||
| 63104-36011 |
HZB50..HRF..CBU;BB58,HDB50,HZB56..WC |
4 | ||
| 63105-36011 |
BB58,HDB5#,HZB50..(EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(ﾄﾚｲｼｷ ﾃﾆﾓﾂﾀﾞﾅ) |
4 | ||
| 63105-36011 |
BB58,HDB5#,HZB50..(20S,26S,29S)..WC..(CBU,IV5) ｱﾘ(ﾄﾚｲｼｷ ﾃﾆﾓﾂﾀﾞﾅ) |
4 | ||
| 63105-36012 |
BB58,BZB50,HDB5#,HZB50..(EX,GX,LX,SULNG)..(CBU,IV5) |
4 | ||
| 63105E - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3 | ||||
| 63104-36011 |
HZB50..HRF..CBU;BB58,HDB50,HZB56..WC |
4 | ||
| 63105-36011 |
BB58,HDB5#,HZB50..(EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(ﾄﾚｲｼｷ ﾃﾆﾓﾂﾀﾞﾅ) |
4 | ||
| 63105-36011 |
BB58,HDB5#,HZB50..(20S,26S,29S)..WC..(CBU,IV5) ｱﾘ(ﾄﾚｲｼｷ ﾃﾆﾓﾂﾀﾞﾅ) |
4 | ||
| 63105-36012 |
BB58,BZB50,HDB5#,HZB50..(EX,GX,LX,SULNG)..(CBU,IV5) |
4 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-36010 |
BB4#,58,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63177A - REINFORCEMENT, ROOF PANEL, RH NO.7 | ||||
| 63177-36011 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) |
1 | ||
| 63177-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) |
1 | ||
| 63177-36010 |
BB4#,58,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 63187D - REINFORCEMENT, ROOF PANEL, LH NO.7 | ||||
| 63187-36010 |
BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 63187-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..WC..(CBU,IV5) |
1 | ||
| 63257D - STRENGTH, ROOF PANEL, CENTER NO.7 RH | ||||
| 63257-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63257-36010 |
BB4#,58,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63267C - STRENGTH, ROOF PANEL, CENTER NO.7 LH | ||||
| 63267-36010 |
BB4#,58,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63267-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63271C - STRENGTH, ROOF PANEL, NO.1 RH | ||||
| 63271-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S,39S,49S)..(CBU,IV5) |
2 | ||
| 63271-36010 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU ｱﾘ(ｶﾝｷｾﾝ) |
1 | ||
| 63271-36010 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5) ｱﾘ(ｶﾝｷｾﾝ) |
1 | ||
| 63271-36010 |
HZB40..4FC..IV5;BB58,HZB40..WC..CBU;BB40,HDB5#,HZB41,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
2 | ||
| 63271C - STRENGTH, ROOF PANEL, NO.1 RH | ||||
| 63271-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S,39S,49S)..(CBU,IV5) |
2 | ||
| 63271-36010 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU ｱﾘ(ｶﾝｷｾﾝ) |
1 | ||
| 63271-36010 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5) ｱﾘ(ｶﾝｷｾﾝ) |
1 | ||
| 63271-36010 |
HZB40..4FC..IV5;BB58,HZB40..WC..CBU;BB40,HDB5#,HZB41,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
2 | ||
| 63271D - STRENGTH, ROOF PANEL, NO.1 LH | ||||
| 63271-36010 |
HZB40..4FC..IV5;BB58,HZB40..WC..CBU;BB40,HDB5#,HZB41,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
2 | ||
| 63271-36010 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5) ｱﾘ(ｶﾝｷｾﾝ) |
1 | ||
| 63271-36010 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU ｱﾘ(ｶﾝｷｾﾝ) |
1 | ||
| 63271-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S,39S,49S)..(CBU,IV5) |
2 | ||
| 63271D - STRENGTH, ROOF PANEL, NO.1 LH | ||||
| 63271-36010 |
HZB40..4FC..IV5;BB58,HZB40..WC..CBU;BB40,HDB5#,HZB41,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
2 | ||
| 63271-36010 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5) ｱﾘ(ｶﾝｷｾﾝ) |
1 | ||
| 63271-36010 |
HDB5#,HZB41,50..(EX,GX,SULNG)..CBU ｱﾘ(ｶﾝｷｾﾝ) |
1 | ||
| 63271-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,24S,26S,29S,39S,49S)..(CBU,IV5) |
2 | ||
| 63272A - STRENGTH, ROOF PANEL, NO.2 RH | ||||
| 63272-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63272-36010 |
BB4#,58,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63273H - STRENGTH, ROOF PANEL, NO.3 | ||||
| 63273-36010 |
BB4#,58,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63273-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63276B - STRENGTH, ROOF PANEL, NO.6 RH | ||||
| 63276-36010 |
HZB50..WC;BB58,HDB5#,HZB56..(09S,26S,29S)..(CBU,IV5) |
3 | ||
| 63276-36010 |
BB58,BZB50,HDB5#,HZB5#..WC..(CBU,IV5) |
3 | ||
| 63276B - STRENGTH, ROOF PANEL, NO.6 RH | ||||
| 63276-36010 |
HZB50..WC;BB58,HDB5#,HZB56..(09S,26S,29S)..(CBU,IV5) |
3 | ||
| 63276-36010 |
BB58,BZB50,HDB5#,HZB5#..WC..(CBU,IV5) |
3 | ||
| 63276B - STRENGTH, ROOF PANEL, NO.6 RH | ||||
| 63276-36010 |
HZB50..WC;BB58,HDB5#,HZB56..(09S,26S,29S)..(CBU,IV5) |
3 | ||
| 63276-36010 |
BB58,BZB50,HDB5#,HZB5#..WC..(CBU,IV5) |
3 | ||
| 63276B - STRENGTH, ROOF PANEL, NO.6 RH | ||||
| 63276-36010 |
HZB50..WC;BB58,HDB5#,HZB56..(09S,26S,29S)..(CBU,IV5) |
3 | ||
| 63276-36010 |
BB58,BZB50,HDB5#,HZB5#..WC..(CBU,IV5) |
3 | ||
| 63276B - STRENGTH, ROOF PANEL, NO.6 RH | ||||
| 63276-36010 |
HZB50..WC;BB58,HDB5#,HZB56..(09S,26S,29S)..(CBU,IV5) |
3 | ||
| 63276-36010 |
BB58,BZB50,HDB5#,HZB5#..WC..(CBU,IV5) |
3 | ||
| 63276B - STRENGTH, ROOF PANEL, NO.6 RH | ||||
| 63276-36010 |
HZB50..WC;BB58,HDB5#,HZB56..(09S,26S,29S)..(CBU,IV5) |
3 | ||
| 63276-36010 |
BB58,BZB50,HDB5#,HZB5#..WC..(CBU,IV5) |
3 | ||
| 63277F - STRENGTH, ROOF PANEL, NO.7 RH | ||||
| 63277-36010 |
HZB40..HRF..WC;BB58,BZB40,50,HDB5#,HZB41,46,5#..HRF..(DX,EX,GX,LX,STD)..(CBU,IV5) |
1 | ||
| 63277-36010 |
BB58,HDB5#,HZB5#..HRF..(CBU,IV5) |
1 | ||
| 63277-36010 |
BB40..HRF..WC;BB46,58,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63279E - STRENGTH, ROOF PANEL, NO.9 RH | ||||
| 63279-36010 |
BB4#,58,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63279-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63282E - STRENGTH, ROOF PANEL, NO.2 LH | ||||
| 63282-36010 |
BB4#,58,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63282-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63283C - STRENGTH, ROOF PANEL, NO.3 LH | ||||
| 63283-36010 |
BB4#,58,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63283-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63285F - STRENGTH, ROOF PANEL, NO.5 RH | ||||
| 63285-36010 |
BB58,BZB50,HDB5#,HZB5#..CBU,IV5 |
5 | ||
| 63285-36010 |
BB58,HDB5#,HZB5#..CBU,IV5 |
5 | ||
| 63285F - STRENGTH, ROOF PANEL, NO.5 RH | ||||
| 63285-36010 |
BB58,BZB50,HDB5#,HZB5#..CBU,IV5 |
5 | ||
| 63285-36010 |
BB58,HDB5#,HZB5#..CBU,IV5 |
5 | ||
| 63285F - STRENGTH, ROOF PANEL, NO.5 RH | ||||
| 63285-36010 |
BB58,BZB50,HDB5#,HZB5#..CBU,IV5 |
5 | ||
| 63285-36010 |
BB58,HDB5#,HZB5#..CBU,IV5 |
5 | ||
| 63285F - STRENGTH, ROOF PANEL, NO.5 RH | ||||
| 63285-36010 |
BB58,BZB50,HDB5#,HZB5#..CBU,IV5 |
5 | ||
| 63285-36010 |
BB58,HDB5#,HZB5#..CBU,IV5 |
5 | ||
| 63285F - STRENGTH, ROOF PANEL, NO.5 RH | ||||
| 63285-36010 |
BB58,BZB50,HDB5#,HZB5#..CBU,IV5 |
5 | ||
| 63285-36010 |
BB58,HDB5#,HZB5#..CBU,IV5 |
5 | ||
| 63285G - STRENGTH, ROOF PANEL, NO.5 LH | ||||
| 63285-36010 |
BB58,HDB5#,HZB5#..CBU,IV5 |
5 | ||
| 63285-36010 |
BB58,BZB50,HDB5#,HZB5#..CBU,IV5 |
5 | ||
| 63285G - STRENGTH, ROOF PANEL, NO.5 LH | ||||
| 63285-36010 |
BB58,HDB5#,HZB5#..CBU,IV5 |
5 | ||
| 63285-36010 |
BB58,BZB50,HDB5#,HZB5#..CBU,IV5 |
5 | ||
| 63285G - STRENGTH, ROOF PANEL, NO.5 LH | ||||
| 63285-36010 |
BB58,HDB5#,HZB5#..CBU,IV5 |
5 | ||
| 63285-36010 |
BB58,BZB50,HDB5#,HZB5#..CBU,IV5 |
5 | ||
| 63285G - STRENGTH, ROOF PANEL, NO.5 LH | ||||
| 63285-36010 |
BB58,HDB5#,HZB5#..CBU,IV5 |
5 | ||
| 63285-36010 |
BB58,BZB50,HDB5#,HZB5#..CBU,IV5 |
5 | ||
| 63285G - STRENGTH, ROOF PANEL, NO.5 LH | ||||
| 63285-36010 |
BB58,HDB5#,HZB5#..CBU,IV5 |
5 | ||
| 63285-36010 |
BB58,BZB50,HDB5#,HZB5#..CBU,IV5 |
5 | ||
| 63286D - STRENGTH, ROOF PANEL, NO.6 LH | ||||
| 63286-36010 |
HZB50..WC;BB58,HDB5#,HZB56..(09S,26S,29S)..(CBU,IV5) |
3 | ||
| 63286-36010 |
BB58,BZB50,HDB5#,HZB5#..WC..(CBU,IV5) |
3 | ||
| 63286D - STRENGTH, ROOF PANEL, NO.6 LH | ||||
| 63286-36010 |
HZB50..WC;BB58,HDB5#,HZB56..(09S,26S,29S)..(CBU,IV5) |
3 | ||
| 63286-36010 |
BB58,BZB50,HDB5#,HZB5#..WC..(CBU,IV5) |
3 | ||
| 63286D - STRENGTH, ROOF PANEL, NO.6 LH | ||||
| 63286-36010 |
HZB50..WC;BB58,HDB5#,HZB56..(09S,26S,29S)..(CBU,IV5) |
3 | ||
| 63286-36010 |
BB58,BZB50,HDB5#,HZB5#..WC..(CBU,IV5) |
3 | ||
| 63286D - STRENGTH, ROOF PANEL, NO.6 LH | ||||
| 63286-36010 |
HZB50..WC;BB58,HDB5#,HZB56..(09S,26S,29S)..(CBU,IV5) |
3 | ||
| 63286-36010 |
BB58,BZB50,HDB5#,HZB5#..WC..(CBU,IV5) |
3 | ||
| 63286D - STRENGTH, ROOF PANEL, NO.6 LH | ||||
| 63286-36010 |
HZB50..WC;BB58,HDB5#,HZB56..(09S,26S,29S)..(CBU,IV5) |
3 | ||
| 63286-36010 |
BB58,BZB50,HDB5#,HZB5#..WC..(CBU,IV5) |
3 | ||
| 63286D - STRENGTH, ROOF PANEL, NO.6 LH | ||||
| 63286-36010 |
HZB50..WC;BB58,HDB5#,HZB56..(09S,26S,29S)..(CBU,IV5) |
3 | ||
| 63286-36010 |
BB58,BZB50,HDB5#,HZB5#..WC..(CBU,IV5) |
3 | ||
| 63287C - STRENGTH, ROOF PANEL, NO.7 LH | ||||
| 63287-36010 |
HZB40..HRF..WC;BB58,BZB40,50,HDB5#,HZB41,46,5#..HRF..(CBU,IV5) |
1 | ||
| 63287-36010 |
BB58,HDB5#,HZB5#..HRF..(CBU,IV5) |
1 | ||
| 63287-36010 |
BB40..HRF..WC;BB46,58,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63289A - STRENGTH, ROOF PANEL, NO.9 LH | ||||
| 63289-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63289-36010 |
BB4#,58,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63427A - BRACKET, ROOM RACK FLAME | ||||
| 63427-36010 |
BB40,58,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 63427-36010 |
BB58,BZB40,50,HDB5#,HZB40,41,50..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 63427A - BRACKET, ROOM RACK FLAME | ||||
| 63427-36010 |
BB40,58,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 63427-36010 |
BB58,BZB40,50,HDB5#,HZB40,41,50..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 63427A - BRACKET, ROOM RACK FLAME | ||||
| 63427-36010 |
BB40,58,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 63427-36010 |
BB58,BZB40,50,HDB5#,HZB40,41,50..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 63427A - BRACKET, ROOM RACK FLAME | ||||
| 63427-36010 |
BB40,58,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 63427-36010 |
BB58,BZB40,50,HDB5#,HZB40,41,50..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| Common parts | ||||
| 91651-40816 | ||||
| 91651-B0814 | ||||
ILLUST NO. 2 OF 4(9301- )
ﾙｰﾌﾍﾞﾝﾁﾚｰﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62956B - RETAINER, QUARTER VENT LOUVER, LH | ||||
| 62955-36020 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
12 | ||
| 62956-36010 |
BB4#,55,HDB5#,HZB4#,5# |
12 | ||
| 62955-36020 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
12 | ||
| 62956B - RETAINER, QUARTER VENT LOUVER, LH | ||||
| 62955-36020 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
12 | ||
| 62956-36010 |
BB4#,55,HDB5#,HZB4#,5# |
12 | ||
| 62955-36020 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
12 | ||
| 62956B - RETAINER, QUARTER VENT LOUVER, LH | ||||
| 62955-36020 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
12 | ||
| 62956-36010 |
BB4#,55,HDB5#,HZB4#,5# |
12 | ||
| 62955-36020 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
12 | ||
| 63085A - LOUVER SUB-ASSY, ROOF VENTILATOR, RH | ||||
| 63085-36010 |
BB4#,55,HDB5#,HZB4#,5#..HRF |
1 | ||
| 63085-36011 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63085-36011 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63085A - LOUVER SUB-ASSY, ROOF VENTILATOR, RH | ||||
| 63085-36010 |
BB4#,55,HDB5#,HZB4#,5#..HRF |
1 | ||
| 63085-36011 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63085-36011 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63086A - LOUVER SUB-ASSY, ROOF VENTILATOR, LH | ||||
| 63086-36011 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63086-36010 |
BB4#,55,HDB5#,HZB4#,5#..HRF |
1 | ||
| 63086-36011 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63086A - LOUVER SUB-ASSY, ROOF VENTILATOR, LH | ||||
| 63086-36011 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63086-36010 |
BB4#,55,HDB5#,HZB4#,5#..HRF |
1 | ||
| 63086-36011 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63669A - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63669-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63669A - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63669-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63830 - DUCT ASSY, ROOF VENTILATOR | ||||
| 63830-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) |
1 | ||
| 63830-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..WC..(CBU,IV5) |
1 | ||
| 63849 - HOSE, ROOF VENTILATOR DRAIN | ||||
| 63849-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63849-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63859 - HOSE, ROOF VENTILATOR DRAIN, NO.2 | ||||
| 63859-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63859-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| Common parts | ||||
| 90189-06134 | ||||
| 90480-40013 | ||||
| 93540-54512 | ||||
| 93590-16020 | ||||
| 96136-41901 | ||||
ILLUST NO. 1 OF 4(9301- )
ﾙｰﾌﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63015B - FLANGE SUB-ASSY, BOOST VENTILATOR HOLE | ||||
| 63015-36010 |
HZB50..GX;BB4#,HDB5#,HZB4#,56..HRF..(EX,GX,LX,SULNG)..CBU |
1 | ||
| 63015-36010 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5) |
1 | ||
| 63083A - PANEL SUB-ASSY, ROOF VENTILATOR | ||||
| 63083-36010 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63083-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63083A - PANEL SUB-ASSY, ROOF VENTILATOR | ||||
| 63083-36010 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63083-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63109A - PANEL SUB-ASSY, BACK WINDOW, UPPER | ||||
| 63109-36030 |
HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,58,HDB5#,HZB41..(20S,26S,29S)..(CBU,IV5) |
1 | ||
| 63109-36010 |
BB40,55,HDB5#,HZB4#,50..15S,20S,26S,29S |
1 | ||
| 63109-36030 |
BB58,BZB40,50,HDB5#,HZB40,41,50..(19S,20S,26S,29S)..CBU |
1 | ||
| 63109A - PANEL SUB-ASSY, BACK WINDOW, UPPER | ||||
| 63109-36030 |
HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,58,HDB5#,HZB41..(20S,26S,29S)..(CBU,IV5) |
1 | ||
| 63109-36010 |
BB40,55,HDB5#,HZB4#,50..15S,20S,26S,29S |
1 | ||
| 63109-36030 |
BB58,BZB40,50,HDB5#,HZB40,41,50..(19S,20S,26S,29S)..CBU |
1 | ||
| 63111B - PANEL, ROOF, NO.1 | ||||
| 63111-36011 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63111-36011 |
HDB51..5F;HDB51..(20S,26S)..4FC;BB40,HDB50,HZB4#,50..HRF..(EX,GX,LX) ｱﾘ(*TV) |
1 | ||
| 63111-36010 |
HZB50..HRF;BB58,HZB40..LX;BB40,HDB5#,HZB41..HRF..CBU ｱﾘ(ﾅﾋﾞｹﾞ-ﾀ ｺﾝﾊﾟｽ) |
1 | ||
| 63111-36011 |
HZB40,41,50..HRF..(26S,29S)..WC..CBU ｱﾘ(*TV) |
1 | ||
| 63111-36010 |
BB4#,55,HDB5#,HZB4#,5#..HRF |
1 | ||
| 63111-36011 |
HZB40,50..IV5;HZB40,41..10S,19S;HZB40,50..HRF..(DX,STD);BB58,BZB40,50,HDB5#,HZB46,56..HRF..(CBU,IV5) |
1 | ||
| 63111-36011 |
HZB40..4FC..IV5;BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU ｱﾘ(*TV & ﾅﾋﾞｹﾞ-ﾀ ｺﾝﾊﾟｽ) |
1 | ||
| 63111B - PANEL, ROOF, NO.1 | ||||
| 63111-36011 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63111-36011 |
HDB51..5F;HDB51..(20S,26S)..4FC;BB40,HDB50,HZB4#,50..HRF..(EX,GX,LX) ｱﾘ(*TV) |
1 | ||
| 63111-36010 |
HZB50..HRF;BB58,HZB40..LX;BB40,HDB5#,HZB41..HRF..CBU ｱﾘ(ﾅﾋﾞｹﾞ-ﾀ ｺﾝﾊﾟｽ) |
1 | ||
| 63111-36011 |
HZB40,41,50..HRF..(26S,29S)..WC..CBU ｱﾘ(*TV) |
1 | ||
| 63111-36010 |
BB4#,55,HDB5#,HZB4#,5#..HRF |
1 | ||
| 63111-36011 |
HZB40,50..IV5;HZB40,41..10S,19S;HZB40,50..HRF..(DX,STD);BB58,BZB40,50,HDB5#,HZB46,56..HRF..(CBU,IV5) |
1 | ||
| 63111-36011 |
HZB40..4FC..IV5;BB40,HDB5#,HZB4#,50..HRF..(EX,GX,LX,SULNG)..CBU ｱﾘ(*TV & ﾅﾋﾞｹﾞ-ﾀ ｺﾝﾊﾟｽ) |
1 | ||
| 63112A - PANEL, ROOF, NO.2 | ||||
| 63116-36040 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63116-36040 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63112A - PANEL, ROOF, NO.2 | ||||
| 63116-36040 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63116-36040 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63113A - PANEL, ROOF, NO.3 | ||||
| 63117-36070 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63117-36070 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63113A - PANEL, ROOF, NO.3 | ||||
| 63117-36070 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63117-36070 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63114C - SUPPORT, ROOF PANEL, FRONT LH | ||||
| 63118-36010 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63118-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63114C - SUPPORT, ROOF PANEL, FRONT LH | ||||
| 63118-36010 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63118-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63115C - PANEL, ROOF, NO.4 | ||||
| 63115-36170 |
BB40,HDB5#,HZB4#,50..HRF ｱﾘ(*SOBD & ﾊﾞﾂｸｱｲ ﾃﾚﾋﾞ) |
1 | ||
| 63115-36160 |
BB40,HDB5#,HZB4#,50..HRF ｱﾘ(*SOBD) |
1 | ||
| 63115-36160 |
HZB40,50..HRF..5F;BB40,HDB5#,HZB41..HRF ｱﾘ(*SOBD) |
1 | ||
| 63115-36170 |
HZB40,50..HRF..5F;BB40,HDB5#,HZB41..HRF ｱﾘ(*SOBD & ﾊﾞﾂｸｱｲ ﾃﾚﾋﾞ) |
1 | ||
| 63115-36040 |
BB40,55,HDB5#,HZB4#,50..HRF ｱﾘ(ﾊﾞﾂｸｱｲ ﾃﾚﾋﾞ) |
1 | ||
| 63115-36050 |
BB40,55,HDB5#,HZB4#,50..HRF |
1 | ||
| 63115-36160 |
HZB50..GX..4FC;HZB40,50..HRF..5F;BB40,HDB5#,HZB41..HRF ｱﾘ(*SOBD) |
1 | ||
| 63115-36170 |
HZB50..GX..4FC;HDB51..(20S,26S)..4FC;BB40,HDB50,HZB41..HRF;HDB51,HZB40,50..HRF..5F ｱﾘ(*SOBD & ﾊﾞﾂｸｱｲ ﾃﾚﾋﾞ) |
1 | ||
| 63115-36270 |
BB58..WC;BB40,HDB5#,HZB4#,50..HRF..CBU ｱﾘ(*SOBD & ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ & ﾊﾞﾂｸｱｲ ﾃﾚﾋﾞ) |
1 | ||
| 63115-36260 |
HZB40..4FC..IV5;HZB50..HRF..CBU;BB58,HZB40..LX..CBU;BB40,HDB5#,HZB41..HRF..(CBU,IV5) ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ & ﾊﾞﾂｸｱｲ ﾃﾚﾋﾞ) |
1 | ||
| 63115-36400 |
HZB40..4FC..IV5;HZB50..HRF..CBU;BB58,HZB40..LX..CBU;BB40,HDB5#,HZB41..HRF..(CBU,IV5) ｱﾘ(ﾊﾞﾂｸｱｲ ﾃﾚﾋﾞ) |
1 | ||
| 63115-36160 |
BB58..WC;BB40,HDB5#,HZB4#,50..HRF..CBU ｱﾘ(*SOBD) |
1 | ||
| 63115-36360 |
BB40,58,HDB5#,HZB4#,50..HRF..CBU ｱﾘ(ﾘﾔﾜｲﾊﾟ & ﾘﾔ ｱﾝﾀﾞ-ﾐﾗ- & ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟﾗﾝﾌﾟ) |
1 | ||
| 63115-36370 |
HZB40..5F;HZB50..HRF;BB58,HZB40..LX..4FC..CBU;BB4#,HDB5#,HZB41,56..HRF..CBU ｱﾘ(*SOBD & ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ) |
1 | ||
| 63115-36410 |
BB40,58,HDB5#,HZB4#,50..HRF..CBU ｱﾘ(ﾘﾔﾜｲﾊﾟ & ﾘﾔ ｱﾝﾀﾞ-ﾐﾗ-) |
1 | ||
| 63115-36420 |
BB58..WC;BB40,HDB5#,HZB4#,50..HRF..CBU ｱﾘ(*SOBD & ﾊﾞﾂｸｱｲ ﾃﾚﾋﾞ) |
1 | ||
| 63115-36350 |
BB58,HDB50,HZB50..29S..WC..CBU ｱﾘ(ﾘﾔﾜｲﾊﾟ & ﾘﾔ ｽﾎﾟｲﾗ & ﾊﾞﾂｸ ﾓﾆﾀ-) |
1 | ||
| 63115-36740 |
BB58,HDB50,HZB50..29S..WC..CBU ｱﾘ(*SOBD & ﾊﾞﾂｸ ﾓﾆﾀ- & ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 63115-36730 |
BB58,HDB50,HZB50..29S..WC..CBU ｱﾘ(*SOBD & ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 63115-36360 |
BB58,BZB40,50,HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..CBU ｱﾘ(ﾘﾔﾜｲﾊﾟ & ﾘﾔ ｱﾝﾀﾞ-ﾐﾗ- & ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟﾗﾝﾌﾟ) |
1 | ||
| 63115-36850 |
BB58,BZB40,50,HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..CBU ｱﾘ(ﾘﾔﾜｲﾊﾟ & ﾊﾞﾂｸ ﾓﾆﾀ- & ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟﾗﾝﾌﾟ) |
1 | ||
| 63115-36720 |
BB58,HDB50,HZB50..29S..WC..CBU ｱﾘ(ﾘﾔﾜｲﾊﾟ & ﾘﾔ ｽﾎﾟｲﾗ & ﾘﾔ ｱﾝﾀﾞ-ﾐﾗ-) |
1 | ||
| 63115-36860 |
BB58,HDB5#,HZB4#,5#..HRF..(09S,20S,26S,29S)..(CBU,IV5) ｱﾘ(*SOBD & ﾊﾞﾂｸ ﾓﾆﾀ- & ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟﾗﾝﾌﾟ) |
1 | ||
| 63115-36370 |
HZB40..HRF..5F;HZB40..HRF..26S..4FC..CBU;BB58,HDB5#,HZB41,46,5#..(09S,20S,26S,29S)..(CBU,IV5) ｱﾘ(*SOBD & ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ) |
1 | ||
| 63115C - PANEL, ROOF, NO.4 | ||||
| 63115-36170 |
BB40,HDB5#,HZB4#,50..HRF ｱﾘ(*SOBD & ﾊﾞﾂｸｱｲ ﾃﾚﾋﾞ) |
1 | ||
| 63115-36160 |
BB40,HDB5#,HZB4#,50..HRF ｱﾘ(*SOBD) |
1 | ||
| 63115-36160 |
HZB40,50..HRF..5F;BB40,HDB5#,HZB41..HRF ｱﾘ(*SOBD) |
1 | ||
| 63115-36170 |
HZB40,50..HRF..5F;BB40,HDB5#,HZB41..HRF ｱﾘ(*SOBD & ﾊﾞﾂｸｱｲ ﾃﾚﾋﾞ) |
1 | ||
| 63115-36040 |
BB40,55,HDB5#,HZB4#,50..HRF ｱﾘ(ﾊﾞﾂｸｱｲ ﾃﾚﾋﾞ) |
1 | ||
| 63115-36050 |
BB40,55,HDB5#,HZB4#,50..HRF |
1 | ||
| 63115-36160 |
HZB50..GX..4FC;HZB40,50..HRF..5F;BB40,HDB5#,HZB41..HRF ｱﾘ(*SOBD) |
1 | ||
| 63115-36170 |
HZB50..GX..4FC;HDB51..(20S,26S)..4FC;BB40,HDB50,HZB41..HRF;HDB51,HZB40,50..HRF..5F ｱﾘ(*SOBD & ﾊﾞﾂｸｱｲ ﾃﾚﾋﾞ) |
1 | ||
| 63115-36270 |
BB58..WC;BB40,HDB5#,HZB4#,50..HRF..CBU ｱﾘ(*SOBD & ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ & ﾊﾞﾂｸｱｲ ﾃﾚﾋﾞ) |
1 | ||
| 63115-36260 |
HZB40..4FC..IV5;HZB50..HRF..CBU;BB58,HZB40..LX..CBU;BB40,HDB5#,HZB41..HRF..(CBU,IV5) ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ & ﾊﾞﾂｸｱｲ ﾃﾚﾋﾞ) |
1 | ||
| 63115-36400 |
HZB40..4FC..IV5;HZB50..HRF..CBU;BB58,HZB40..LX..CBU;BB40,HDB5#,HZB41..HRF..(CBU,IV5) ｱﾘ(ﾊﾞﾂｸｱｲ ﾃﾚﾋﾞ) |
1 | ||
| 63115-36160 |
BB58..WC;BB40,HDB5#,HZB4#,50..HRF..CBU ｱﾘ(*SOBD) |
1 | ||
| 63115-36360 |
BB40,58,HDB5#,HZB4#,50..HRF..CBU ｱﾘ(ﾘﾔﾜｲﾊﾟ & ﾘﾔ ｱﾝﾀﾞ-ﾐﾗ- & ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟﾗﾝﾌﾟ) |
1 | ||
| 63115-36370 |
HZB40..5F;HZB50..HRF;BB58,HZB40..LX..4FC..CBU;BB4#,HDB5#,HZB41,56..HRF..CBU ｱﾘ(*SOBD & ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ) |
1 | ||
| 63115-36410 |
BB40,58,HDB5#,HZB4#,50..HRF..CBU ｱﾘ(ﾘﾔﾜｲﾊﾟ & ﾘﾔ ｱﾝﾀﾞ-ﾐﾗ-) |
1 | ||
| 63115-36420 |
BB58..WC;BB40,HDB5#,HZB4#,50..HRF..CBU ｱﾘ(*SOBD & ﾊﾞﾂｸｱｲ ﾃﾚﾋﾞ) |
1 | ||
| 63115-36350 |
BB58,HDB50,HZB50..29S..WC..CBU ｱﾘ(ﾘﾔﾜｲﾊﾟ & ﾘﾔ ｽﾎﾟｲﾗ & ﾊﾞﾂｸ ﾓﾆﾀ-) |
1 | ||
| 63115-36740 |
BB58,HDB50,HZB50..29S..WC..CBU ｱﾘ(*SOBD & ﾊﾞﾂｸ ﾓﾆﾀ- & ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 63115-36730 |
BB58,HDB50,HZB50..29S..WC..CBU ｱﾘ(*SOBD & ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 63115-36360 |
BB58,BZB40,50,HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..CBU ｱﾘ(ﾘﾔﾜｲﾊﾟ & ﾘﾔ ｱﾝﾀﾞ-ﾐﾗ- & ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟﾗﾝﾌﾟ) |
1 | ||
| 63115-36850 |
BB58,BZB40,50,HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..CBU ｱﾘ(ﾘﾔﾜｲﾊﾟ & ﾊﾞﾂｸ ﾓﾆﾀ- & ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟﾗﾝﾌﾟ) |
1 | ||
| 63115-36720 |
BB58,HDB50,HZB50..29S..WC..CBU ｱﾘ(ﾘﾔﾜｲﾊﾟ & ﾘﾔ ｽﾎﾟｲﾗ & ﾘﾔ ｱﾝﾀﾞ-ﾐﾗ-) |
1 | ||
| 63115-36860 |
BB58,HDB5#,HZB4#,5#..HRF..(09S,20S,26S,29S)..(CBU,IV5) ｱﾘ(*SOBD & ﾊﾞﾂｸ ﾓﾆﾀ- & ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟﾗﾝﾌﾟ) |
1 | ||
| 63115-36370 |
HZB40..HRF..5F;HZB40..HRF..26S..4FC..CBU;BB58,HDB5#,HZB41,46,5#..(09S,20S,26S,29S)..(CBU,IV5) ｱﾘ(*SOBD & ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ) |
1 | ||
| 63118A - SUPPORT, ROOF PANEL, FRONT RH | ||||
| 63118-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63118-36010 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63118A - SUPPORT, ROOF PANEL, FRONT RH | ||||
| 63118-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63118-36010 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63119A - SUPPORT, ROOF PANEL, REAR RH | ||||
| 63119-36010 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63119-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63119A - SUPPORT, ROOF PANEL, REAR RH | ||||
| 63119-36010 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63119-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63127D - RETAINER, ROOF TELEVISION CAMERA | ||||
| 63127-36010 |
HZB40,50..HRF..5F;BB4#,HDB5#,HZB41,56..HRF |
1 | ||
| 63127-36010 |
BB4#,HDB5#,HZB4#,5#..HRF |
1 | ||
| 63127-36010 |
HZB50..GX..4FC;HDB51..(20S,26S)..4FC;HDB51,HZB40,50..HRF..5F;BB4#,55,HDB50,HZB41,56..HRF |
1 | ||
| 63127-36010 |
HZB40..5F;HZB40..LX..4FC..CBU;BB4#,58,HDB5#,HZB41,5#..HRF..(CBU,IV5) |
1 | ||
| 63127-36050 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63127D - RETAINER, ROOF TELEVISION CAMERA | ||||
| 63127-36010 |
HZB40,50..HRF..5F;BB4#,HDB5#,HZB41,56..HRF |
1 | ||
| 63127-36010 |
BB4#,HDB5#,HZB4#,5#..HRF |
1 | ||
| 63127-36010 |
HZB50..GX..4FC;HDB51..(20S,26S)..4FC;HDB51,HZB40,50..HRF..5F;BB4#,55,HDB50,HZB41,56..HRF |
1 | ||
| 63127-36010 |
HZB40..5F;HZB40..LX..4FC..CBU;BB4#,58,HDB5#,HZB41,5#..HRF..(CBU,IV5) |
1 | ||
| 63127-36050 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63128B - SUPPORT, ROOF PANEL, REAR LH | ||||
| 63119-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..(09S,10S,20S,24S,26S,29S,49S)..(CBU,IV5) |
1 | ||
| 63119-36010 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63128B - SUPPORT, ROOF PANEL, REAR LH | ||||
| 63119-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..HRF..(09S,10S,20S,24S,26S,29S,49S)..(CBU,IV5) |
1 | ||
| 63119-36010 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(CBU,IV5) |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63132-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63132-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63137B - RETAINER, OUTER UNDER REAR VIEW MIRROR | ||||
| 63137-36010 |
BB40,5#,HDB5#,HZB4#,50..HRF..CBU |
1 | ||
| 63137-36010 |
BB58,BZB40,50,HDB5#,HZB40,41,50..HRF..CBU |
1 | ||
| 63137B - RETAINER, OUTER UNDER REAR VIEW MIRROR | ||||
| 63137-36010 |
BB40,5#,HDB5#,HZB4#,50..HRF..CBU |
1 | ||
| 63137-36010 |
BB58,BZB40,50,HDB5#,HZB40,41,50..HRF..CBU |
1 | ||
| 63139B - BRACKET, WINDSHIELD HEADER CLOCK SUPPORT | ||||
| 63139-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63139-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63139B - BRACKET, WINDSHIELD HEADER CLOCK SUPPORT | ||||
| 63139-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63139-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63154 - REINFORCEMENT, WINDSHIELD HEADER PANEL, CENTER | ||||
| 63154-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63154-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63154 - REINFORCEMENT, WINDSHIELD HEADER PANEL, CENTER | ||||
| 63154-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63154-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63171B - BRACKET, INNER MIRROR BASE | ||||
| 63171-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63171-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63171B - BRACKET, INNER MIRROR BASE | ||||
| 63171-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63171-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 63194A - BRACKET, BOOST VENTIRATOR COVER, NO.1 | ||||
| 63194-90B00 |
HDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5) |
3 | ||
| 63194-90B00 |
HZB50..GX;BB4#,HDB5#,HZB4#,56..HRF..(EX,GX,LX,SULNG)..CBU |
3 | ||
| 63211B - PANEL, REMOVABLE ROOF | ||||
| 63211-36010 |
BB5#,HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 63211-36010 |
BB58,BZB50,HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 63211B - PANEL, REMOVABLE ROOF | ||||
| 63211-36010 |
BB5#,HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 63211-36010 |
BB58,BZB50,HDB5#,HZB5#..CBU,IV5 |
1 | ||
| 63212B - PANEL, ROOF WIND DEFLECTOR | ||||
| 63212-36010 |
HDB5#,HZB50..(EX,GX,SULNG)..CBU |
1 | ||
| 63212-36010 |
HDB5#,HZB50..(EX,GX,SULNG)..(CBU,IV5) |
1 | ||
| 63236B - BRACKET, ROOM SPEAKER | ||||
| 63236-36010 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 63236-36010 |
BB40..DX;BB40..SRF..WC;BB40..39S..WOC;BB58,HDB5#,HZB4#,50..(DX,EX,GX,STD,SULNG)..(CBU,IV5) |
4 | ||
| 63236-36010 |
BB58,BZB40,50,HDB5#,HZB40,41,50..CBU,IV5 ｱﾘ(4 ｽﾋﾟ-ｶ) |
4 | ||
| 63236B - BRACKET, ROOM SPEAKER | ||||
| 63236-36010 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 63236-36010 |
BB40..DX;BB40..SRF..WC;BB40..39S..WOC;BB58,HDB5#,HZB4#,50..(DX,EX,GX,STD,SULNG)..(CBU,IV5) |
4 | ||
| 63236-36010 |
BB58,BZB40,50,HDB5#,HZB40,41,50..CBU,IV5 ｱﾘ(4 ｽﾋﾟ-ｶ) |
4 | ||
| Common parts | ||||
| 90179-06159 | ||||
| 90950-01824 | ||||
ILLUST NO. 3 OF 4(9301- )
ﾗｯｹﾞｰｼﾞﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64013A - RAIL SUB-ASSY, BACK | ||||
| 64013-36020 |
BB40,HDB50,HZB40,50..DX,GX,LX ﾅｼ(ｻｲｺｳﾚﾂ ｼ-ﾄ) OR ｱﾘ(ｻｲｺｳﾚﾂ ｵﾘﾀﾀﾐ ｼ-ﾄ) |
1 | ||
| 64013-36020 |
HDB50,HZB50..GX *RC4 OR *RC5 OR *RC6 OR ﾅｼ(ｻｲｺｳﾚﾂ ｼ-ﾄ) OR ｱﾘ(ｻｲｺｳﾚﾂ ｵﾘﾀﾀﾐ ｼ-ﾄ) |
1 | ||
| 64013-36040 |
BB40,5#,HDB50,HZB40,50..(DX,GX,LX)..CBU |
1 | ||
| 64013-36020 |
HZB40..5F;BB40,HDB50,HZB50..DX,GX,LX ﾅｼ(ｻｲｺｳﾚﾂ ｼ-ﾄ) OR ｱﾘ(ｻｲｺｳﾚﾂ ｵﾘﾀﾀﾐ ｼ-ﾄ) |
1 | ||
| 64013-36020 |
HZB40..5F;BB40,HDB50,HZB50..DX,GX,LX ﾅｼ(ﾘﾔ ｼ-ﾄ) OR ｱﾘ(ｻｲｺｳﾚﾂ ｵﾘﾀﾀﾐｼ-ﾄ) |
1 | ||
| 64013-36020 |
BB58,BZB40,50,HDB5#,HZB40,41,50..(20S,26S,29S)..CBU ｱﾘ(ｻｲｺｳﾚﾂ ｵﾘﾀﾀﾐｼ-ﾄ & ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 64013-36020 |
BB40,HDB50,HZB40,50..(DX,GX,LX)..CBU ﾅｼ(ﾘﾔ ｼ-ﾄ) OR ｱﾘ(ｻｲｺｳﾚﾂ ｵﾘﾀﾀﾐｼ-ﾄ) |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64814-36040 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 *TT,厚さ=3.5,ｸﾞﾘｰﾝ,左側 |
1 | ||
| 64814-36020 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),左側 |
1 | ||
| 64814-36020 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),左側 |
1 | ||
| 64811-36060 |
BB40,55,HDB5#,HZB4#,50..15S,20S,26S,29S *EHTT,厚さ=4.0,ﾌﾞﾙｰ |
1 | ||
| 64811-36100 |
HZB40..4FC..IV5;BB40,HDB50,HZB40,50..(26S,29S)..CBU *TT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 64811-36110 |
HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,58,HDB5#,HZB41..(20S,26S,29S)..(CBU,IV5) *EHTT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 64813-36020 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),右側 |
1 | ||
| 64814-36020 |
HZB50..GX..4FC;HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),左側 |
1 | ||
| 64813-36020 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),右側 |
1 | ||
| 64813-36110 |
BB40,HDB5#,HZB4#,50..(DX,EX,GX,LX,SULNG)..CBU *TT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(*SOBD),右側 |
1 | ||
| 64813-36020 |
HZB50..GX..4FC;HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),右側 |
1 | ||
| 64811-36020 |
BB40,HDB50,HZB40,50..26S,29S *TT,厚さ=4.0,ﾌﾞﾙｰ |
1 | ||
| 64814-36040 |
BB40,HDB5#,HZB4#,50..(DX,EX,GX,LX,SULNG)..CBU *TT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(*SOBD),左側 |
1 | ||
| 64814-36041 |
HZB40;BZB50,HDB51,HZB41..(EX,STD,SULNG)..(CBU,IV5);BB58,BZB40,HDB50,HZB46,5#..08S,09S,29S,39S,49S *TT,厚さ=3.5,ｸﾞﾘｰﾝ,左側 |
1 | ||
| 64813-36110 |
BB58,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) *TT,厚さ=3.5,ｸﾞﾘｰﾝ,右側 |
1 | ||
| 64811-36110 |
BB58,HDB5#,HZB40,41,50..(19S,20S,26S,29S)..CBU *EHTT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 64811-36100 |
BZB40,50,HDB50,HZB40,50..(DX,GX,LX)..CBU *TT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 64813-36111 |
BB58,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) *TT,厚さ=3.5,ｸﾞﾘｰﾝ,右側 |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64832-36010 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),左側 |
1 | ||
| 64812-36020 |
BB40,HDB50,HZB40,50..26S,29S ｱﾘ(*RWD) |
1 | ||
| 64831-36010 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),右側 |
1 | ||
| 64832-36010 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),左側 |
1 | ||
| 64812-36010 |
BB40,HDB50,HZB40,50..26S,29S |
1 | ||
| 64831-36010 |
HZB50..GX..4FC;HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),右側 |
1 | ||
| 64831-36010 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),右側 |
1 | ||
| 64812-36020 |
HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5) |
1 | ||
| 64832-36010 |
BB58..WC;BB40,HDB5#,HZB4#,50..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(*SOBD),左側 |
1 | ||
| 64832-36010 |
HZB50..GX..4FC;HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),左側 |
1 | ||
| 64831-36010 |
HZB50..29S..5F..CBU;HZB50..(DX,GX)..4FC;BB58,HDB5#,HZB4#..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(*SOBD),右側 |
1 | ||
| 64831-36010 |
BB58..WC;BB40,HDB5#,HZB4#,50..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(*SOBD),右側 |
1 | ||
| 64812-36020 |
HZB40..DX;HZB40..SRF..LX;HZB50..LX..CBU;HZB50..DX..4FC;BB58,BZB40,50,HDB5#,HZB41..HRF..CBU ｱﾘ(ﾗﾂｹﾞ-ｼﾞ ﾄﾞｱ) |
1 | ||
| 64812-36020 |
HZB50..GX;HZB50..DX..5F;HZB40..HRF..26S..WC..CBU ｱﾘ(*RWD) |
1 | ||
| 64832-36010 |
HZB50..GX..4FC;HZB50..29S..5F..CBU;HZB4#..HRF..(08S,19S,26S)..WC..CBU ｱﾘ(*SOBD),左側 |
1 | ||
ILLUST NO. 3 OF 4(9301- )
ｶﾀﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ OR ｶﾝﾉﾝﾋﾞﾗｷﾊﾞｯｸﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61277A - JOINT, ROOF DRIP CHANNEL | ||||
| 61277-36010 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG |
2 | ||
| 61277-36010 |
HZB40,50..(26S,29S)..5F;BB4#,HDB5#,HZB41,56..DX,EX,GX,LX,SULNG |
2 | ||
| 61277-36010 |
HZB50..GX..4FC;HDB51..(20S,26S)..4FC;BB4#,HDB50,HZB41,56..DX,EX,GX,LX;HDB51,HZB40,50..(20S,26S,29S)..5F |
2 | ||
| 61277-36010 |
HZB40..5F;HZB50..29S;HZB40..LX..4FC..CBU;BB4#,58,HDB5#,HZB41,56..(DX,EX,GX,LX,SULNG)..CBU |
2 | ||
| 61277-36010 |
HZB40..5F..IV5;HZB50..29S..5F;HZB50..4FC..IV5;HZB50..(DX,GX)..4FC;HZB40..(DX,LX)..CBU;BB58,HDB5#,HZB41,46,56..CBU,IV5 |
2 | ||
| 61277A - JOINT, ROOF DRIP CHANNEL | ||||
| 61277-36010 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG |
2 | ||
| 61277-36010 |
HZB40,50..(26S,29S)..5F;BB4#,HDB5#,HZB41,56..DX,EX,GX,LX,SULNG |
2 | ||
| 61277-36010 |
HZB50..GX..4FC;HDB51..(20S,26S)..4FC;BB4#,HDB50,HZB41,56..DX,EX,GX,LX;HDB51,HZB40,50..(20S,26S,29S)..5F |
2 | ||
| 61277-36010 |
HZB40..5F;HZB50..29S;HZB40..LX..4FC..CBU;BB4#,58,HDB5#,HZB41,56..(DX,EX,GX,LX,SULNG)..CBU |
2 | ||
| 61277-36010 |
HZB40..5F..IV5;HZB50..29S..5F;HZB50..4FC..IV5;HZB50..(DX,GX)..4FC;HZB40..(DX,LX)..CBU;BB58,HDB5#,HZB41,46,56..CBU,IV5 |
2 | ||
| 61277A - JOINT, ROOF DRIP CHANNEL | ||||
| 61277-36010 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG |
2 | ||
| 61277-36010 |
HZB40,50..(26S,29S)..5F;BB4#,HDB5#,HZB41,56..DX,EX,GX,LX,SULNG |
2 | ||
| 61277-36010 |
HZB50..GX..4FC;HDB51..(20S,26S)..4FC;BB4#,HDB50,HZB41,56..DX,EX,GX,LX;HDB51,HZB40,50..(20S,26S,29S)..5F |
2 | ||
| 61277-36010 |
HZB40..5F;HZB50..29S;HZB40..LX..4FC..CBU;BB4#,58,HDB5#,HZB41,56..(DX,EX,GX,LX,SULNG)..CBU |
2 | ||
| 61277-36010 |
HZB40..5F..IV5;HZB50..29S..5F;HZB50..4FC..IV5;HZB50..(DX,GX)..4FC;HZB40..(DX,LX)..CBU;BB58,HDB5#,HZB41,46,56..CBU,IV5 |
2 | ||
| 64014A - RAIL SUB-ASSY, UPPER BACK | ||||
| 64014-36010 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG |
1 | ||
| 64014-36010 |
HZB50..GX..4FC;HDB51..(20S,26S)..4FC;BB4#,HDB50,HZB41,56..DX,EX,GX,LX;HDB51,HZB40,50..(20S,26S,29S)..5F |
1 | ||
| 64014-36020 |
HZB40..5F;HZB50..29S;HZB40..LX..4FC..CBU;BB4#,58,HDB5#,HZB41,56..(DX,EX,GX,LX,SULNG)..CBU |
1 | ||
| 64014-36020 |
HZB40..5F..IV5;HZB40..(DX,LX)..CBU;BB58,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 64014-36010 |
HZB40,50..(26S,29S)..5F;BB4#,HDB5#,HZB41,56..DX,EX,GX,LX,SULNG |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64814-36020 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),左側 |
1 | ||
| 64814-36020 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),左側 |
1 | ||
| 64811-36060 |
BB40,55,HDB5#,HZB4#,50..15S,20S,26S,29S *EHTT,厚さ=4.0,ﾌﾞﾙｰ |
1 | ||
| 64811-36100 |
HZB40..4FC..IV5;BB40,HDB50,HZB40,50..(26S,29S)..CBU *TT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 64811-36110 |
HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,58,HDB5#,HZB41..(20S,26S,29S)..(CBU,IV5) *EHTT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 64813-36020 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),右側 |
1 | ||
| 64814-36020 |
HZB50..GX..4FC;HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),左側 |
1 | ||
| 64813-36020 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),右側 |
1 | ||
| 64813-36110 |
BB40,HDB5#,HZB4#,50..(DX,EX,GX,LX,SULNG)..CBU *TT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(*SOBD),右側 |
1 | ||
| 64813-36020 |
HZB50..GX..4FC;HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),右側 |
1 | ||
| 64811-36020 |
BB40,HDB50,HZB40,50..26S,29S *TT,厚さ=4.0,ﾌﾞﾙｰ |
1 | ||
| 64814-36040 |
BB40,HDB5#,HZB4#,50..(DX,EX,GX,LX,SULNG)..CBU *TT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(*SOBD),左側 |
1 | ||
| 64814-36041 |
HZB40;BZB50,HDB51,HZB41..(EX,STD,SULNG)..(CBU,IV5);BB58,BZB40,HDB50,HZB46,5#..08S,09S,29S,39S,49S *TT,厚さ=3.5,ｸﾞﾘｰﾝ,左側 |
1 | ||
| 64814-36040 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 *TT,厚さ=3.5,ｸﾞﾘｰﾝ,左側 |
1 | ||
| 64813-36110 |
BB58,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) *TT,厚さ=3.5,ｸﾞﾘｰﾝ,右側 |
1 | ||
| 64811-36110 |
BB58,HDB5#,HZB40,41,50..(19S,20S,26S,29S)..CBU *EHTT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 64811-36100 |
BZB40,50,HDB50,HZB40,50..(DX,GX,LX)..CBU *TT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 64813-36111 |
BB58,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) *TT,厚さ=3.5,ｸﾞﾘｰﾝ,右側 |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64814-36040 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 *TT,厚さ=3.5,ｸﾞﾘｰﾝ,左側 |
1 | ||
| 64814-36020 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),左側 |
1 | ||
| 64814-36020 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),左側 |
1 | ||
| 64811-36060 |
BB40,55,HDB5#,HZB4#,50..15S,20S,26S,29S *EHTT,厚さ=4.0,ﾌﾞﾙｰ |
1 | ||
| 64811-36100 |
HZB40..4FC..IV5;BB40,HDB50,HZB40,50..(26S,29S)..CBU *TT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 64811-36110 |
HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,58,HDB5#,HZB41..(20S,26S,29S)..(CBU,IV5) *EHTT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 64813-36020 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),右側 |
1 | ||
| 64814-36020 |
HZB50..GX..4FC;HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),左側 |
1 | ||
| 64813-36020 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),右側 |
1 | ||
| 64813-36110 |
BB40,HDB5#,HZB4#,50..(DX,EX,GX,LX,SULNG)..CBU *TT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(*SOBD),右側 |
1 | ||
| 64813-36020 |
HZB50..GX..4FC;HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),右側 |
1 | ||
| 64811-36020 |
BB40,HDB50,HZB40,50..26S,29S *TT,厚さ=4.0,ﾌﾞﾙｰ |
1 | ||
| 64814-36040 |
BB40,HDB5#,HZB4#,50..(DX,EX,GX,LX,SULNG)..CBU *TT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(*SOBD),左側 |
1 | ||
| 64814-36041 |
HZB40;BZB50,HDB51,HZB41..(EX,STD,SULNG)..(CBU,IV5);BB58,BZB40,HDB50,HZB46,5#..08S,09S,29S,39S,49S *TT,厚さ=3.5,ｸﾞﾘｰﾝ,左側 |
1 | ||
| 64813-36110 |
BB58,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) *TT,厚さ=3.5,ｸﾞﾘｰﾝ,右側 |
1 | ||
| 64811-36110 |
BB58,HDB5#,HZB40,41,50..(19S,20S,26S,29S)..CBU *EHTT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 64811-36100 |
BZB40,50,HDB50,HZB40,50..(DX,GX,LX)..CBU *TT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 64813-36111 |
BB58,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) *TT,厚さ=3.5,ｸﾞﾘｰﾝ,右側 |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64814-36020 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),左側 |
1 | ||
| 64814-36020 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),左側 |
1 | ||
| 64811-36060 |
BB40,55,HDB5#,HZB4#,50..15S,20S,26S,29S *EHTT,厚さ=4.0,ﾌﾞﾙｰ |
1 | ||
| 64811-36100 |
HZB40..4FC..IV5;BB40,HDB50,HZB40,50..(26S,29S)..CBU *TT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 64811-36110 |
HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,58,HDB5#,HZB41..(20S,26S,29S)..(CBU,IV5) *EHTT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 64813-36020 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),右側 |
1 | ||
| 64814-36020 |
HZB50..GX..4FC;HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),左側 |
1 | ||
| 64813-36020 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),右側 |
1 | ||
| 64813-36110 |
BB40,HDB5#,HZB4#,50..(DX,EX,GX,LX,SULNG)..CBU *TT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(*SOBD),右側 |
1 | ||
| 64813-36020 |
HZB50..GX..4FC;HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),右側 |
1 | ||
| 64811-36020 |
BB40,HDB50,HZB40,50..26S,29S *TT,厚さ=4.0,ﾌﾞﾙｰ |
1 | ||
| 64814-36040 |
BB40,HDB5#,HZB4#,50..(DX,EX,GX,LX,SULNG)..CBU *TT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(*SOBD),左側 |
1 | ||
| 64814-36041 |
HZB40;BZB50,HDB51,HZB41..(EX,STD,SULNG)..(CBU,IV5);BB58,BZB40,HDB50,HZB46,5#..08S,09S,29S,39S,49S *TT,厚さ=3.5,ｸﾞﾘｰﾝ,左側 |
1 | ||
| 64814-36040 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 *TT,厚さ=3.5,ｸﾞﾘｰﾝ,左側 |
1 | ||
| 64813-36110 |
BB58,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) *TT,厚さ=3.5,ｸﾞﾘｰﾝ,右側 |
1 | ||
| 64811-36110 |
BB58,HDB5#,HZB40,41,50..(19S,20S,26S,29S)..CBU *EHTT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 64811-36100 |
BZB40,50,HDB50,HZB40,50..(DX,GX,LX)..CBU *TT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 64813-36111 |
BB58,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) *TT,厚さ=3.5,ｸﾞﾘｰﾝ,右側 |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64814-36041 |
HZB40;BZB50,HDB51,HZB41..(EX,STD,SULNG)..(CBU,IV5);BB58,BZB40,HDB50,HZB46,5#..08S,09S,29S,39S,49S *TT,厚さ=3.5,ｸﾞﾘｰﾝ,左側 |
1 | ||
| 64814-36020 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),左側 |
1 | ||
| 64814-36020 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),左側 |
1 | ||
| 64811-36060 |
BB40,55,HDB5#,HZB4#,50..15S,20S,26S,29S *EHTT,厚さ=4.0,ﾌﾞﾙｰ |
1 | ||
| 64811-36100 |
HZB40..4FC..IV5;BB40,HDB50,HZB40,50..(26S,29S)..CBU *TT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 64811-36110 |
HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,58,HDB5#,HZB41..(20S,26S,29S)..(CBU,IV5) *EHTT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 64813-36020 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),右側 |
1 | ||
| 64814-36020 |
HZB50..GX..4FC;HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),左側 |
1 | ||
| 64813-36020 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),右側 |
1 | ||
| 64813-36110 |
BB40,HDB5#,HZB4#,50..(DX,EX,GX,LX,SULNG)..CBU *TT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(*SOBD),右側 |
1 | ||
| 64813-36020 |
HZB50..GX..4FC;HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG *TT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(*SOBD),右側 |
1 | ||
| 64811-36020 |
BB40,HDB50,HZB40,50..26S,29S *TT,厚さ=4.0,ﾌﾞﾙｰ |
1 | ||
| 64814-36040 |
BB40,HDB5#,HZB4#,50..(DX,EX,GX,LX,SULNG)..CBU *TT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(*SOBD),左側 |
1 | ||
| 64814-36040 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 *TT,厚さ=3.5,ｸﾞﾘｰﾝ,左側 |
1 | ||
| 64813-36110 |
BB58,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) *TT,厚さ=3.5,ｸﾞﾘｰﾝ,右側 |
1 | ||
| 64811-36110 |
BB58,HDB5#,HZB40,41,50..(19S,20S,26S,29S)..CBU *EHTT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 64811-36100 |
BZB40,50,HDB50,HZB40,50..(DX,GX,LX)..CBU *TT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 64813-36111 |
BB58,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) *TT,厚さ=3.5,ｸﾞﾘｰﾝ,右側 |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64832-36010 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),左側 |
1 | ||
| 64812-36020 |
BB40,HDB50,HZB40,50..26S,29S ｱﾘ(*RWD) |
1 | ||
| 64831-36010 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),右側 |
1 | ||
| 64832-36010 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),左側 |
1 | ||
| 64812-36010 |
BB40,HDB50,HZB40,50..26S,29S |
1 | ||
| 64831-36010 |
HZB50..GX..4FC;HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),右側 |
1 | ||
| 64831-36010 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),右側 |
1 | ||
| 64812-36020 |
HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5) |
1 | ||
| 64832-36010 |
BB58..WC;BB40,HDB5#,HZB4#,50..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(*SOBD),左側 |
1 | ||
| 64832-36010 |
HZB50..GX..4FC;HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),左側 |
1 | ||
| 64831-36010 |
HZB50..29S..5F..CBU;HZB50..(DX,GX)..4FC;BB58,HDB5#,HZB4#..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(*SOBD),右側 |
1 | ||
| 64831-36010 |
BB58..WC;BB40,HDB5#,HZB4#,50..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(*SOBD),右側 |
1 | ||
| 64812-36020 |
HZB40..DX;HZB40..SRF..LX;HZB50..LX..CBU;HZB50..DX..4FC;BB58,BZB40,50,HDB5#,HZB41..HRF..CBU ｱﾘ(ﾗﾂｹﾞ-ｼﾞ ﾄﾞｱ) |
1 | ||
| 64812-36020 |
HZB50..GX;HZB50..DX..5F;HZB40..HRF..26S..WC..CBU ｱﾘ(*RWD) |
1 | ||
| 64832-36010 |
HZB50..GX..4FC;HZB50..29S..5F..CBU;HZB4#..HRF..(08S,19S,26S)..WC..CBU ｱﾘ(*SOBD),左側 |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64832-36010 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),左側 |
1 | ||
| 64812-36020 |
BB40,HDB50,HZB40,50..26S,29S ｱﾘ(*RWD) |
1 | ||
| 64831-36010 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),右側 |
1 | ||
| 64832-36010 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),左側 |
1 | ||
| 64812-36010 |
BB40,HDB50,HZB40,50..26S,29S |
1 | ||
| 64831-36010 |
HZB50..GX..4FC;HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),右側 |
1 | ||
| 64831-36010 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),右側 |
1 | ||
| 64812-36020 |
HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5) |
1 | ||
| 64832-36010 |
BB58..WC;BB40,HDB5#,HZB4#,50..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(*SOBD),左側 |
1 | ||
| 64832-36010 |
HZB50..GX..4FC;HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),左側 |
1 | ||
| 64831-36010 |
HZB50..29S..5F..CBU;HZB50..(DX,GX)..4FC;BB58,HDB5#,HZB4#..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(*SOBD),右側 |
1 | ||
| 64831-36010 |
BB58..WC;BB40,HDB5#,HZB4#,50..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(*SOBD),右側 |
1 | ||
| 64812-36020 |
HZB40..DX;HZB40..SRF..LX;HZB50..LX..CBU;HZB50..DX..4FC;BB58,BZB40,50,HDB5#,HZB41..HRF..CBU ｱﾘ(ﾗﾂｹﾞ-ｼﾞ ﾄﾞｱ) |
1 | ||
| 64812-36020 |
HZB50..GX;HZB50..DX..5F;HZB40..HRF..26S..WC..CBU ｱﾘ(*RWD) |
1 | ||
| 64832-36010 |
HZB50..GX..4FC;HZB50..29S..5F..CBU;HZB4#..HRF..(08S,19S,26S)..WC..CBU ｱﾘ(*SOBD),左側 |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64832-36010 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),左側 |
1 | ||
| 64812-36020 |
BB40,HDB50,HZB40,50..26S,29S ｱﾘ(*RWD) |
1 | ||
| 64831-36010 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),右側 |
1 | ||
| 64832-36010 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),左側 |
1 | ||
| 64812-36010 |
BB40,HDB50,HZB40,50..26S,29S |
1 | ||
| 64831-36010 |
HZB50..GX..4FC;HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),右側 |
1 | ||
| 64831-36010 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),右側 |
1 | ||
| 64812-36020 |
HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5) |
1 | ||
| 64832-36010 |
BB58..WC;BB40,HDB5#,HZB4#,50..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(*SOBD),左側 |
1 | ||
| 64832-36010 |
HZB50..GX..4FC;HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),左側 |
1 | ||
| 64831-36010 |
HZB50..29S..5F..CBU;HZB50..(DX,GX)..4FC;BB58,HDB5#,HZB4#..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(*SOBD),右側 |
1 | ||
| 64831-36010 |
BB58..WC;BB40,HDB5#,HZB4#,50..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(*SOBD),右側 |
1 | ||
| 64812-36020 |
HZB40..DX;HZB40..SRF..LX;HZB50..LX..CBU;HZB50..DX..4FC;BB58,BZB40,50,HDB5#,HZB41..HRF..CBU ｱﾘ(ﾗﾂｹﾞ-ｼﾞ ﾄﾞｱ) |
1 | ||
| 64812-36020 |
HZB50..GX;HZB50..DX..5F;HZB40..HRF..26S..WC..CBU ｱﾘ(*RWD) |
1 | ||
| 64832-36010 |
HZB50..GX..4FC;HZB50..29S..5F..CBU;HZB4#..HRF..(08S,19S,26S)..WC..CBU ｱﾘ(*SOBD),左側 |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64832-36010 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),左側 |
1 | ||
| 64812-36020 |
BB40,HDB50,HZB40,50..26S,29S ｱﾘ(*RWD) |
1 | ||
| 64831-36010 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),右側 |
1 | ||
| 64832-36010 |
HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),左側 |
1 | ||
| 64812-36010 |
BB40,HDB50,HZB40,50..26S,29S |
1 | ||
| 64831-36010 |
HZB50..GX..4FC;HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),右側 |
1 | ||
| 64831-36010 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),右側 |
1 | ||
| 64812-36020 |
HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5) |
1 | ||
| 64832-36010 |
BB58..WC;BB40,HDB5#,HZB4#,50..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(*SOBD),左側 |
1 | ||
| 64832-36010 |
HZB50..GX..4FC;HZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD),左側 |
1 | ||
| 64831-36010 |
HZB50..29S..5F..CBU;HZB50..(DX,GX)..4FC;BB58,HDB5#,HZB4#..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(*SOBD),右側 |
1 | ||
| 64831-36010 |
BB58..WC;BB40,HDB5#,HZB4#,50..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(*SOBD),右側 |
1 | ||
| 64812-36020 |
HZB40..DX;HZB40..SRF..LX;HZB50..LX..CBU;HZB50..DX..4FC;BB58,BZB40,50,HDB5#,HZB41..HRF..CBU ｱﾘ(ﾗﾂｹﾞ-ｼﾞ ﾄﾞｱ) |
1 | ||
| 64812-36020 |
HZB50..GX;HZB50..DX..5F;HZB40..HRF..26S..WC..CBU ｱﾘ(*RWD) |
1 | ||
| 64832-36010 |
HZB50..GX..4FC;HZB50..29S..5F..CBU;HZB4#..HRF..(08S,19S,26S)..WC..CBU ｱﾘ(*SOBD),左側 |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
