HZB50-ZRMES (1993)
Toyota Coaster
ILLUST NO. 1 OF 6(9301-1501)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58285C - COVER, REAR FLOOR HOLE | ||||
| 62429-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 62429-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| Common parts | ||||
| 90333-25001 | ||||
| 90333-48001 | ||||
| 90950-01348 | ||||
| 90950-01370 | ||||
| 90950-01429 | ||||
| 90950-01506 | ||||
| 90950-01557 | ||||
| 90950-06034 | ||||

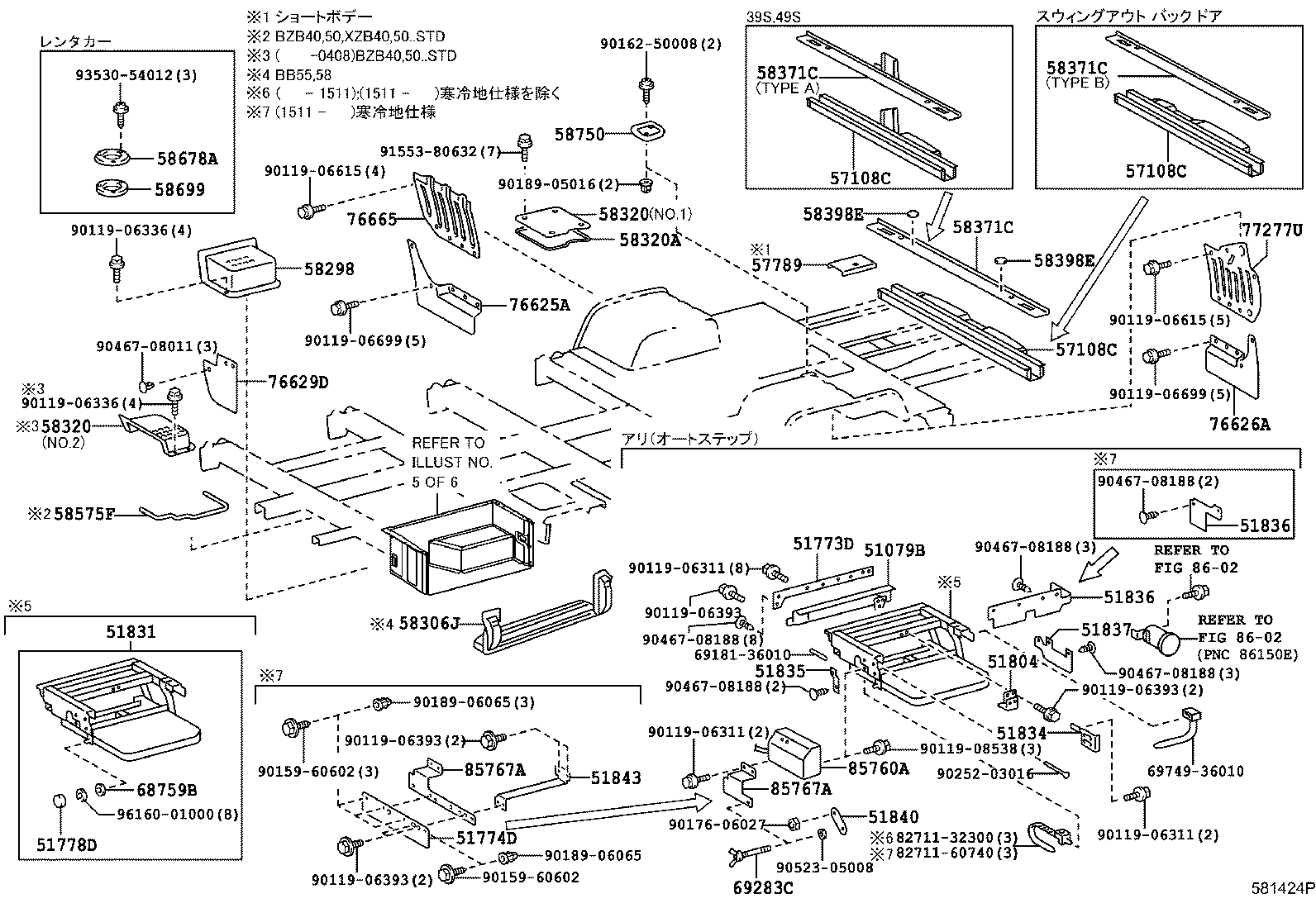

ILLUST NO. 2 OF 6(9301-0108)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51079B - BRACKET SUB-ASSY, SIDE STEP | ||||
| 51079-36011 |
BZB40,50,HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..WC..(CBU,IV5) |
1 | ||
| 51718A - PROTECTOR, STEP COVER, RH | ||||
| 51718-36010 |
HDB5#,HZB40,41,50..(20S,26S,29S)..WC..(CBU,IV5) |
1 | ||
| 51773D - COVER, STEP PLATE, RH | ||||
| 51773-36010 |
BZB40,50,HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..WC..(CBU,IV5) |
1 | ||
| 51778D - COVER, SIDE DOOR STEP PLATE, NO.1 | ||||
| 51778-36010 |
HZB40..LX..5F;HZB40..26S..WC..4FC..CBU;HDB5#,HZB41,50..(20S,26S,29S)..WC..(CBU,IV5) |
8 | ||
| 51804 - STOPPER SUB-ASSY, SIDE AUTO STEP | ||||
| 51804-36010 |
BZB40,50,HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..WC..(CBU,IV5) |
1 | ||
| 51831 - STEP, SIDE AUTO | ||||
| 51831-36011 |
BZB40,50,HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..WC..(CBU,IV5) |
1 | ||
| 51834 - PROTECTOR, SIDE AUTO STEP | ||||
| 51834-36010 |
BZB40,50,HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..WC..(CBU,IV5) |
1 | ||
| 51835 - COVER, SIDE AUTO STEP, NO.1 | ||||
| 51835-36010 |
BZB40,50,HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..WC..(CBU,IV5) |
1 | ||
| 51836 - COVER, SIDE AUTO STEP, NO.2 | ||||
| 51836-36010 |
BZB40,50,HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..WC..(CBU,IV5) |
1 | ||
| 51837 - COVER, SIDE AUTO STEP, NO.3 | ||||
| 51837-36010 |
BZB40,50,HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..WC..(CBU,IV5) |
1 | ||
| 51840 - HANDLE ASSY, SIDE AUTO STEP | ||||
| 51840-36020 |
BZB40,50,HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..WC..(CBU,IV5) |
1 | ||
| 51840-36010 |
HDB5#,HZB40,41,50..(20S,26S,29S)..WC..(CBU,IV5) |
1 | ||
| 57108C - CROSSMEMBER SUB-ASSY, FLOOR, NO.8 | ||||
| 57108-36040 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD) |
1 | ||
| 57108-36030 |
HZB50..GX ｱﾘ(*FD) |
1 | ||
| 57108-36040 |
HDB51..TD4;HDB51..(20S,26S)..TD2;BB40,HDB50,HZB4#,50..(DX,EX,GX,LX)..(DSL2,TD2) ｱﾘ(*SOBD) |
1 | ||
| 57108-36030 |
HZB50..GX ｱﾘ(*FD) |
1 | ||
| 57108-36030 |
HZB50..GX;HZB40..4FC ｱﾘ(*FD) |
1 | ||
| 57108-36030 |
BB58,BZB40,50,HDB5#,HZB40,41,50..(19S,20S,26S,29S)..CBU |
1 | ||
| 57108-36030 |
HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5) |
1 | ||
| 57108-36040 |
HZB40..5F..IV5;HZB40..(DX,LX)..CBU;BB58,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 57108-36040 |
HZB40..5F;HZB50..29S;HZB40..LX..4FC..CBU;BB4#,58,HDB5#,HZB41,56..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 57108C - CROSSMEMBER SUB-ASSY, FLOOR, NO.8 | ||||
| 57108-36040 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD) |
1 | ||
| 57108-36030 |
HZB50..GX ｱﾘ(*FD) |
1 | ||
| 57108-36040 |
HDB51..TD4;HDB51..(20S,26S)..TD2;BB40,HDB50,HZB4#,50..(DX,EX,GX,LX)..(DSL2,TD2) ｱﾘ(*SOBD) |
1 | ||
| 57108-36030 |
HZB50..GX ｱﾘ(*FD) |
1 | ||
| 57108-36030 |
HZB50..GX;HZB40..4FC ｱﾘ(*FD) |
1 | ||
| 57108-36030 |
BB58,BZB40,50,HDB5#,HZB40,41,50..(19S,20S,26S,29S)..CBU |
1 | ||
| 57108-36030 |
HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5) |
1 | ||
| 57108-36040 |
HZB40..5F..IV5;HZB40..(DX,LX)..CBU;BB58,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 57108-36040 |
HZB40..5F;HZB50..29S;HZB40..LX..4FC..CBU;BB4#,58,HDB5#,HZB41,56..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 57108C - CROSSMEMBER SUB-ASSY, FLOOR, NO.8 | ||||
| 57108-36040 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD) |
1 | ||
| 57108-36030 |
HZB50..GX ｱﾘ(*FD) |
1 | ||
| 57108-36040 |
HDB51..TD4;HDB51..(20S,26S)..TD2;BB40,HDB50,HZB4#,50..(DX,EX,GX,LX)..(DSL2,TD2) ｱﾘ(*SOBD) |
1 | ||
| 57108-36030 |
HZB50..GX ｱﾘ(*FD) |
1 | ||
| 57108-36030 |
HZB50..GX;HZB40..4FC ｱﾘ(*FD) |
1 | ||
| 57108-36030 |
BB58,BZB40,50,HDB5#,HZB40,41,50..(19S,20S,26S,29S)..CBU |
1 | ||
| 57108-36030 |
HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5) |
1 | ||
| 57108-36040 |
HZB40..5F..IV5;HZB40..(DX,LX)..CBU;BB58,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 57108-36040 |
HZB40..5F;HZB50..29S;HZB40..LX..4FC..CBU;BB4#,58,HDB5#,HZB41,56..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 58371C - PANEL, BODY LOWER BACK, UPPER | ||||
| 58371-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,20S,26S,29S)..(CBU,IV5) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 58371-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S)..(CBU,IV5) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 58371C - PANEL, BODY LOWER BACK, UPPER | ||||
| 58371-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,20S,26S,29S)..(CBU,IV5) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 58371-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S)..(CBU,IV5) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 58371C - PANEL, BODY LOWER BACK, UPPER | ||||
| 58371-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,20S,26S,29S)..(CBU,IV5) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 58371-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S)..(CBU,IV5) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 58398E - COVER, FLOOR UNDER, NO.1 | ||||
| 58398-36020 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 58398-36020 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 58398E - COVER, FLOOR UNDER, NO.1 | ||||
| 58398-36020 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 58398-36020 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 58678A - PLATE, REAR FLOOR MAT DRIP | ||||
| 58678-90B00B0 |
HDB5#,HZB50..(26S,29S)..WC..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 58678-90B00E0 |
HDB5#,HZB50..(26S,29S)..WC..CBU GREIGE,TRIM4# |
1 | ||
| 58678-90B00E0 |
HDB5#,HZB50..(EX,GX,LX)..CBU GREIGE,TRIM4# |
1 | ||
| 58678-90B00E0 |
HDB5#,HZB50..EX,GX,LX GREIGE,TRIM4# |
1 | ||
| 58699 - PACKING, REAR FLOOR MAT DRIP | ||||
| 58699-90B00 |
HDB5#,HZB50..(EX,GX,LX)..CBU *RC4 OR *RC5 OR *RC6 OR *RC7 |
1 | ||
| 58699-90B00 |
HZB50..29S..WC..CBU *RC4 OR *RC5 OR *RC6 |
1 | ||
| 58750 - COVER ASSY, FUEL TANK INSPECTION HOLE | ||||
| 58750-36010E0 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 GREIGE,TRIM4# |
1 | ||
| 58750-36010B1 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 MD.CHARCOAL,TRIM1# |
1 | ||
| 58750-36010E0 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 GREIGE,TRIM4# |
1 | ||
| 58750-36010E0 |
BB4#,HDB5#,HZB4#,5# GREIGE,TRIM4# |
1 | ||
| 68759B - SPACER, CENTER DOOR HINGE | ||||
| 68759-36010 |
BZB40,50,HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..WC..(CBU,IV5) |
8 | ||
| 76625A - MUDGUARD, REAR BODY, RH | ||||
| 76625-36010 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 76625-36010 |
BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 76626A - MUDGUARD, REAR BODY, LH | ||||
| 76626-36010 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 76626-36010 |
BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 76629D - MUDGUARD, FRONT SIDE MEMBER | ||||
| 76629-36010 |
HDB5#,HZB4#,5#..(09S,20S,26S,29S,49S)..(CBU,IV5) |
1 | ||
| 76665 - BRACE, REAR MUDGUARD | ||||
| 76665-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 76665-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77277U - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77277-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 85760A - MOTOR ASSY, SIDE AUTO STEP | ||||
| 85760-36011 |
HDB5#,HZB40,41,50..(20S,26S,29S)..WC..(CBU,IV5) |
1 | ||
| 85760-36012 |
HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 85767A - PROTECTOR, SIDE AUTO STEP MOTOR | ||||
| 85767-36011 |
BZB40,50,HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..WC..(CBU,IV5) |
1 | ||
| 85767-36010 |
HDB5#,HZB40,41,50..(20S,26S,29S)..WC..(CBU,IV5) |
1 | ||
| Common parts | ||||
| 69181-36010 | ||||
| 69749-36010 | ||||
| 82711-32300 | ||||
| 90119-06336 | ||||
| 90119-06393 | ||||
| 90119-06615 | ||||
| 90119-06699 | ||||
| 90119-08538 | ||||
| 90162-50008 | ||||
| 90189-05016 | ||||
| 90252-03016 | ||||
| 90467-08011 | ||||
| 90467-08188 | ||||
| 91553-80632 | ||||
| 93530-53012 | ||||
| 93530-54012 | ||||
| 96160-01000 | ||||
| Linked diagrams | ||||
| 8602 | ||||

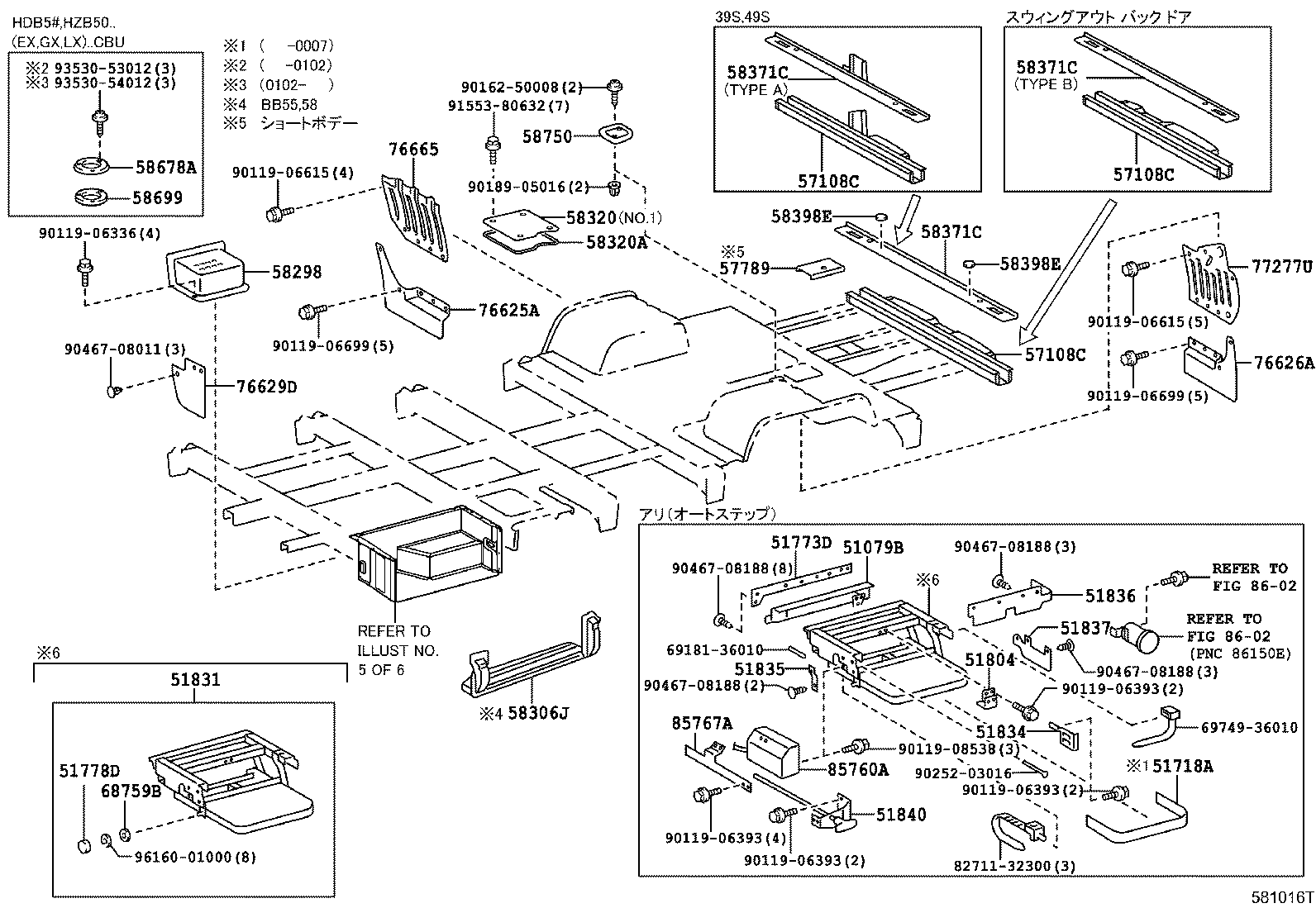

ILLUST NO. 2 OF 6(0108- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51079B - BRACKET SUB-ASSY, SIDE STEP | ||||
| 51079-36011 |
BZB40,50,HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..WC..(CBU,IV5) |
1 | ||
| 51773D - COVER, STEP PLATE, RH | ||||
| 51773-36010 |
BZB40,50,HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..WC..(CBU,IV5) |
1 | ||
| 51778D - COVER, SIDE DOOR STEP PLATE, NO.1 | ||||
| 51778-36010 |
HZB40..LX..5F;HZB40..26S..WC..4FC..CBU;HDB5#,HZB41,50..(20S,26S,29S)..WC..(CBU,IV5) |
8 | ||
| 51804 - STOPPER SUB-ASSY, SIDE AUTO STEP | ||||
| 51804-36010 |
BZB40,50,HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..WC..(CBU,IV5) |
1 | ||
| 51831 - STEP, SIDE AUTO | ||||
| 51831-36011 |
BZB40,50,HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..WC..(CBU,IV5) |
1 | ||
| 51834 - PROTECTOR, SIDE AUTO STEP | ||||
| 51834-36010 |
BZB40,50,HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..WC..(CBU,IV5) |
1 | ||
| 51835 - COVER, SIDE AUTO STEP, NO.1 | ||||
| 51835-36010 |
BZB40,50,HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..WC..(CBU,IV5) |
1 | ||
| 51836 - COVER, SIDE AUTO STEP, NO.2 | ||||
| 51836-36010 |
BZB40,50,HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..WC..(CBU,IV5) |
1 | ||
| 51836 - COVER, SIDE AUTO STEP, NO.2 | ||||
| 51836-36010 |
BZB40,50,HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..WC..(CBU,IV5) |
1 | ||
| 51837 - COVER, SIDE AUTO STEP, NO.3 | ||||
| 51837-36010 |
BZB40,50,HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..WC..(CBU,IV5) |
1 | ||
| 51840 - HANDLE ASSY, SIDE AUTO STEP | ||||
| 51840-36020 |
BZB40,50,HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..WC..(CBU,IV5) |
1 | ||
| 51840-36010 |
HDB5#,HZB40,41,50..(20S,26S,29S)..WC..(CBU,IV5) |
1 | ||
| 57108C - CROSSMEMBER SUB-ASSY, FLOOR, NO.8 | ||||
| 57108-36040 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD) |
1 | ||
| 57108-36030 |
HZB50..GX ｱﾘ(*FD) |
1 | ||
| 57108-36040 |
HDB51..TD4;HDB51..(20S,26S)..TD2;BB40,HDB50,HZB4#,50..(DX,EX,GX,LX)..(DSL2,TD2) ｱﾘ(*SOBD) |
1 | ||
| 57108-36030 |
HZB50..GX ｱﾘ(*FD) |
1 | ||
| 57108-36030 |
HZB50..GX;HZB40..4FC ｱﾘ(*FD) |
1 | ||
| 57108-36030 |
BB58,BZB40,50,HDB5#,HZB40,41,50..(19S,20S,26S,29S)..CBU |
1 | ||
| 57108-36030 |
HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5) |
1 | ||
| 57108-36040 |
HZB40..5F..IV5;HZB40..(DX,LX)..CBU;BB58,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 57108-36040 |
HZB40..5F;HZB50..29S;HZB40..LX..4FC..CBU;BB4#,58,HDB5#,HZB41,56..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 57108C - CROSSMEMBER SUB-ASSY, FLOOR, NO.8 | ||||
| 57108-36040 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD) |
1 | ||
| 57108-36030 |
HZB50..GX ｱﾘ(*FD) |
1 | ||
| 57108-36040 |
HDB51..TD4;HDB51..(20S,26S)..TD2;BB40,HDB50,HZB4#,50..(DX,EX,GX,LX)..(DSL2,TD2) ｱﾘ(*SOBD) |
1 | ||
| 57108-36030 |
HZB50..GX ｱﾘ(*FD) |
1 | ||
| 57108-36030 |
HZB50..GX;HZB40..4FC ｱﾘ(*FD) |
1 | ||
| 57108-36030 |
BB58,BZB40,50,HDB5#,HZB40,41,50..(19S,20S,26S,29S)..CBU |
1 | ||
| 57108-36030 |
HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5) |
1 | ||
| 57108-36040 |
HZB40..5F..IV5;HZB40..(DX,LX)..CBU;BB58,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 57108-36040 |
HZB40..5F;HZB50..29S;HZB40..LX..4FC..CBU;BB4#,58,HDB5#,HZB41,56..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 57108C - CROSSMEMBER SUB-ASSY, FLOOR, NO.8 | ||||
| 57108-36040 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG ｱﾘ(*SOBD) |
1 | ||
| 57108-36030 |
HZB50..GX ｱﾘ(*FD) |
1 | ||
| 57108-36040 |
HDB51..TD4;HDB51..(20S,26S)..TD2;BB40,HDB50,HZB4#,50..(DX,EX,GX,LX)..(DSL2,TD2) ｱﾘ(*SOBD) |
1 | ||
| 57108-36030 |
HZB50..GX ｱﾘ(*FD) |
1 | ||
| 57108-36030 |
HZB50..GX;HZB40..4FC ｱﾘ(*FD) |
1 | ||
| 57108-36030 |
BB58,BZB40,50,HDB5#,HZB40,41,50..(19S,20S,26S,29S)..CBU |
1 | ||
| 57108-36030 |
HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5) |
1 | ||
| 57108-36040 |
HZB40..5F..IV5;HZB40..(DX,LX)..CBU;BB58,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 57108-36040 |
HZB40..5F;HZB50..29S;HZB40..LX..4FC..CBU;BB4#,58,HDB5#,HZB41,56..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 58371C - PANEL, BODY LOWER BACK, UPPER | ||||
| 58371-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,20S,26S,29S)..(CBU,IV5) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 58371-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S)..(CBU,IV5) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 58371C - PANEL, BODY LOWER BACK, UPPER | ||||
| 58371-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,20S,26S,29S)..(CBU,IV5) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 58371-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S)..(CBU,IV5) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 58371C - PANEL, BODY LOWER BACK, UPPER | ||||
| 58371-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,20S,26S,29S)..(CBU,IV5) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 58371-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,20S,24S,26S,29S)..(CBU,IV5) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 58398E - COVER, FLOOR UNDER, NO.1 | ||||
| 58398-36020 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 58398-36020 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 58398E - COVER, FLOOR UNDER, NO.1 | ||||
| 58398-36020 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 58398-36020 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 58678A - PLATE, REAR FLOOR MAT DRIP | ||||
| 58678-90B00B0 |
HDB5#,HZB50..(26S,29S)..WC..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 58678-90B00E0 |
HDB5#,HZB50..(26S,29S)..WC..CBU GREIGE,TRIM4# |
1 | ||
| 58678-90B00E0 |
HDB5#,HZB50..(EX,GX,LX)..CBU GREIGE,TRIM4# |
1 | ||
| 58678-90B00E0 |
HDB5#,HZB50..EX,GX,LX GREIGE,TRIM4# |
1 | ||
| 58699 - PACKING, REAR FLOOR MAT DRIP | ||||
| 58699-90B00 |
HDB5#,HZB50..(EX,GX,LX)..CBU *RC4 OR *RC5 OR *RC6 OR *RC7 |
1 | ||
| 58699-90B00 |
HZB50..29S..WC..CBU *RC4 OR *RC5 OR *RC6 |
1 | ||
| 58750 - COVER ASSY, FUEL TANK INSPECTION HOLE | ||||
| 58750-36010E0 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 GREIGE,TRIM4# |
1 | ||
| 58750-36010B1 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 MD.CHARCOAL,TRIM1# |
1 | ||
| 58750-36010E0 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 GREIGE,TRIM4# |
1 | ||
| 58750-36010E0 |
BB4#,HDB5#,HZB4#,5# GREIGE,TRIM4# |
1 | ||
| 68759B - SPACER, CENTER DOOR HINGE | ||||
| 68759-36010 |
BZB40,50,HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..WC..(CBU,IV5) |
8 | ||
| 69283C - STOPPER, DOOR INSIDE HANDLE | ||||
| 69283-36011 |
BZB40,50,HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..WC..(CBU,IV5) |
1 | ||
| 76625A - MUDGUARD, REAR BODY, RH | ||||
| 76625-36010 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 76625-36010 |
BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 76626A - MUDGUARD, REAR BODY, LH | ||||
| 76626-36010 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 76626-36010 |
BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 76629D - MUDGUARD, FRONT SIDE MEMBER | ||||
| 76629-36010 |
HDB5#,HZB4#,5#..(09S,20S,26S,29S,49S)..(CBU,IV5) |
1 | ||
| 76665 - BRACE, REAR MUDGUARD | ||||
| 76665-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 76665-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77277U - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77277-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 85760A - MOTOR ASSY, SIDE AUTO STEP | ||||
| 85760-36011 |
HDB5#,HZB40,41,50..(20S,26S,29S)..WC..(CBU,IV5) |
1 | ||
| 85760-36012 |
HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 85767A - PROTECTOR, SIDE AUTO STEP MOTOR | ||||
| 85767-36011 |
BZB40,50,HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..WC..(CBU,IV5) |
1 | ||
| 85767-36010 |
HDB5#,HZB40,41,50..(20S,26S,29S)..WC..(CBU,IV5) |
1 | ||
| 85767A - PROTECTOR, SIDE AUTO STEP MOTOR | ||||
| 85767-36011 |
BZB40,50,HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..WC..(CBU,IV5) |
1 | ||
| 85767-36010 |
HDB5#,HZB40,41,50..(20S,26S,29S)..WC..(CBU,IV5) |
1 | ||
| Common parts | ||||
| 69181-36010 | ||||
| 69749-36010 | ||||
| 82711-32300 | ||||
| 82711-60740 | ||||
| 90119-06311 | ||||
| 90119-06336 | ||||
| 90119-06393 | ||||
| 90119-06615 | ||||
| 90119-06699 | ||||
| 90119-08538 | ||||
| 90159-60602 | ||||
| 90162-50008 | ||||
| 90176-06027 | ||||
| 90189-05016 | ||||
| 90189-06065 | ||||
| 90252-03016 | ||||
| 90467-08011 | ||||
| 90467-08188 | ||||
| 90523-05008 | ||||
| 91553-80632 | ||||
| 93530-54012 | ||||
| 96160-01000 | ||||
| Linked diagrams | ||||
| 8602 | ||||
ILLUST NO. 4 OF 6(9301-0408)HDB5#,HZB5# ; (0408-1108)XZB51..CBU ;(0408-1108)XZB50..GX..6FC ; (0408-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 59302B - RETAINER SUB-ASSY, REAR SEAT, NO.2 | ||||
| 59302-36011 |
HDB5#,HZB50..(EX,GX)..CBU |
1 | ||
| 59302B - RETAINER SUB-ASSY, REAR SEAT, NO.2 | ||||
| 59302-36011 |
HDB5#,HZB50..(EX,GX)..CBU |
1 | ||
| 59302B - RETAINER SUB-ASSY, REAR SEAT, NO.2 | ||||
| 59302-36011 |
HDB5#,HZB50..(EX,GX)..CBU |
1 | ||
| 59303A - RETAINER SUB-ASSY, REAR SEAT, NO.3 | ||||
| 59303-36021 |
HDB5#,HZB50..29S..(EX,GX)..CBU |
1 | ||
| 59303A - RETAINER SUB-ASSY, REAR SEAT, NO.3 | ||||
| 59303-36021 |
HDB5#,HZB50..29S..(EX,GX)..CBU |
1 | ||
| 59303A - RETAINER SUB-ASSY, REAR SEAT, NO.3 | ||||
| 59303-36021 |
HDB5#,HZB50..29S..(EX,GX)..CBU |
1 | ||
ILLUST NO. 3 OF 6(9301-1501)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90161-40029 | ||||
| 90161-50002 | ||||
ILLUST NO. 5 OF 6(9301- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58305E - PANEL SUB-ASSY, CENTER DOOR STEP | ||||
| 58305-36080 |
HDB50,HZB50..GX ｱﾘ(ｽﾃﾂﾌﾟ ﾏﾂﾄ),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36040 |
BB4#,HDB50,HZB40,5#..GX,LX TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36050 |
BB4#,HDB50,HZB40,5#..GX,LX ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ ﾄﾞｱ, ﾌﾞｻﾞ-ﾂｷ),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36020 |
BB4#,HDB50,HZB40,5#..09S,26S,29S ｱﾘ(*FD),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36060 |
HDB50,HZB50..GX ｱﾘ(ｽﾃﾂﾌﾟ ﾏﾂﾄ & *GLD),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36120 |
HDB50,HZB50..GX ｱﾘ(*GLD),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36070 |
HDB50,HZB50..GX ｱﾘ(ｽﾃﾂﾌﾟ ﾏﾂﾄ & *GLD),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36130 |
HDB50,HZB50..GX ｱﾘ(*FD(ｵ-ﾄ)),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36180 |
HDB50,HZB50..GX ｱﾘ(ｽﾃﾂﾌﾟ ﾏﾂﾄ(ﾀﾃｶﾍﾞ ﾏﾂﾄ ﾂｷ)),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36140 |
HDB51..IV5;HDB50,HZB50..GX ｱﾘ(ﾀﾃｶﾍﾞ ﾏﾂﾄ),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36200 |
HDB5#,HZB40,41,50..(20S,26S,29S)..WC..(CBU,IV5) ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ ﾄﾞｱ, ｶｸﾉｳ ｽﾃﾂﾌﾟﾂｷ),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36250 |
BZB40,50,HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..WC..(CBU,IV5) ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ ﾄﾞｱ, ｶｸﾉｳ ｽﾃﾂﾌﾟﾂｷ),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36180 |
HZB50..GX ｱﾘ(ｽﾃﾂﾌﾟ ﾏﾂﾄ(ﾀﾃｶﾍﾞ ﾏﾂﾄ ﾂｷ)),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36140 |
HDB50,HZB50..GX ｱﾘ(ﾀﾃｶﾍﾞ ﾏﾂﾄ),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36251 |
BZB40,50,HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..WC..(CBU,IV5) ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ ﾄﾞｱ, ｶｸﾉｳ ｽﾃﾂﾌﾟﾂｷ),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36120 |
HZB50..GX ｱﾘ(*GLD),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36070 |
HZB50..GX ｱﾘ(ｽﾃﾂﾌﾟ ﾏﾂﾄ & *GLD),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305E - PANEL SUB-ASSY, CENTER DOOR STEP | ||||
| 58305-36080 |
HDB50,HZB50..GX ｱﾘ(ｽﾃﾂﾌﾟ ﾏﾂﾄ),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36040 |
BB4#,HDB50,HZB40,5#..GX,LX TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36050 |
BB4#,HDB50,HZB40,5#..GX,LX ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ ﾄﾞｱ, ﾌﾞｻﾞ-ﾂｷ),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36020 |
BB4#,HDB50,HZB40,5#..09S,26S,29S ｱﾘ(*FD),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36060 |
HDB50,HZB50..GX ｱﾘ(ｽﾃﾂﾌﾟ ﾏﾂﾄ & *GLD),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36120 |
HDB50,HZB50..GX ｱﾘ(*GLD),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36070 |
HDB50,HZB50..GX ｱﾘ(ｽﾃﾂﾌﾟ ﾏﾂﾄ & *GLD),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36130 |
HDB50,HZB50..GX ｱﾘ(*FD(ｵ-ﾄ)),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36180 |
HDB50,HZB50..GX ｱﾘ(ｽﾃﾂﾌﾟ ﾏﾂﾄ(ﾀﾃｶﾍﾞ ﾏﾂﾄ ﾂｷ)),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36140 |
HDB51..IV5;HDB50,HZB50..GX ｱﾘ(ﾀﾃｶﾍﾞ ﾏﾂﾄ),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36200 |
HDB5#,HZB40,41,50..(20S,26S,29S)..WC..(CBU,IV5) ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ ﾄﾞｱ, ｶｸﾉｳ ｽﾃﾂﾌﾟﾂｷ),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36250 |
BZB40,50,HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..WC..(CBU,IV5) ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ ﾄﾞｱ, ｶｸﾉｳ ｽﾃﾂﾌﾟﾂｷ),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36180 |
HZB50..GX ｱﾘ(ｽﾃﾂﾌﾟ ﾏﾂﾄ(ﾀﾃｶﾍﾞ ﾏﾂﾄ ﾂｷ)),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36140 |
HDB50,HZB50..GX ｱﾘ(ﾀﾃｶﾍﾞ ﾏﾂﾄ),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36251 |
BZB40,50,HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..WC..(CBU,IV5) ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ ﾄﾞｱ, ｶｸﾉｳ ｽﾃﾂﾌﾟﾂｷ),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36120 |
HZB50..GX ｱﾘ(*GLD),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36070 |
HZB50..GX ｱﾘ(ｽﾃﾂﾌﾟ ﾏﾂﾄ & *GLD),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305E - PANEL SUB-ASSY, CENTER DOOR STEP | ||||
| 58305-36080 |
HDB50,HZB50..GX ｱﾘ(ｽﾃﾂﾌﾟ ﾏﾂﾄ),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36040 |
BB4#,HDB50,HZB40,5#..GX,LX TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36050 |
BB4#,HDB50,HZB40,5#..GX,LX ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ ﾄﾞｱ, ﾌﾞｻﾞ-ﾂｷ),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36020 |
BB4#,HDB50,HZB40,5#..09S,26S,29S ｱﾘ(*FD),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36060 |
HDB50,HZB50..GX ｱﾘ(ｽﾃﾂﾌﾟ ﾏﾂﾄ & *GLD),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36120 |
HDB50,HZB50..GX ｱﾘ(*GLD),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36070 |
HDB50,HZB50..GX ｱﾘ(ｽﾃﾂﾌﾟ ﾏﾂﾄ & *GLD),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36130 |
HDB50,HZB50..GX ｱﾘ(*FD(ｵ-ﾄ)),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36180 |
HDB50,HZB50..GX ｱﾘ(ｽﾃﾂﾌﾟ ﾏﾂﾄ(ﾀﾃｶﾍﾞ ﾏﾂﾄ ﾂｷ)),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36140 |
HDB51..IV5;HDB50,HZB50..GX ｱﾘ(ﾀﾃｶﾍﾞ ﾏﾂﾄ),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36200 |
HDB5#,HZB40,41,50..(20S,26S,29S)..WC..(CBU,IV5) ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ ﾄﾞｱ, ｶｸﾉｳ ｽﾃﾂﾌﾟﾂｷ),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36250 |
BZB40,50,HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..WC..(CBU,IV5) ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ ﾄﾞｱ, ｶｸﾉｳ ｽﾃﾂﾌﾟﾂｷ),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36180 |
HZB50..GX ｱﾘ(ｽﾃﾂﾌﾟ ﾏﾂﾄ(ﾀﾃｶﾍﾞ ﾏﾂﾄ ﾂｷ)),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36140 |
HDB50,HZB50..GX ｱﾘ(ﾀﾃｶﾍﾞ ﾏﾂﾄ),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36251 |
BZB40,50,HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..WC..(CBU,IV5) ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ ﾄﾞｱ, ｶｸﾉｳ ｽﾃﾂﾌﾟﾂｷ),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36120 |
HZB50..GX ｱﾘ(*GLD),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36070 |
HZB50..GX ｱﾘ(ｽﾃﾂﾌﾟ ﾏﾂﾄ & *GLD),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305E - PANEL SUB-ASSY, CENTER DOOR STEP | ||||
| 58305-36080 |
HDB50,HZB50..GX ｱﾘ(ｽﾃﾂﾌﾟ ﾏﾂﾄ),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36040 |
BB4#,HDB50,HZB40,5#..GX,LX TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36050 |
BB4#,HDB50,HZB40,5#..GX,LX ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ ﾄﾞｱ, ﾌﾞｻﾞ-ﾂｷ),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36020 |
BB4#,HDB50,HZB40,5#..09S,26S,29S ｱﾘ(*FD),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36060 |
HDB50,HZB50..GX ｱﾘ(ｽﾃﾂﾌﾟ ﾏﾂﾄ & *GLD),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36120 |
HDB50,HZB50..GX ｱﾘ(*GLD),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36070 |
HDB50,HZB50..GX ｱﾘ(ｽﾃﾂﾌﾟ ﾏﾂﾄ & *GLD),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36130 |
HDB50,HZB50..GX ｱﾘ(*FD(ｵ-ﾄ)),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36180 |
HDB50,HZB50..GX ｱﾘ(ｽﾃﾂﾌﾟ ﾏﾂﾄ(ﾀﾃｶﾍﾞ ﾏﾂﾄ ﾂｷ)),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36140 |
HDB51..IV5;HDB50,HZB50..GX ｱﾘ(ﾀﾃｶﾍﾞ ﾏﾂﾄ),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36200 |
HDB5#,HZB40,41,50..(20S,26S,29S)..WC..(CBU,IV5) ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ ﾄﾞｱ, ｶｸﾉｳ ｽﾃﾂﾌﾟﾂｷ),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36250 |
BZB40,50,HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..WC..(CBU,IV5) ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ ﾄﾞｱ, ｶｸﾉｳ ｽﾃﾂﾌﾟﾂｷ),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36180 |
HZB50..GX ｱﾘ(ｽﾃﾂﾌﾟ ﾏﾂﾄ(ﾀﾃｶﾍﾞ ﾏﾂﾄ ﾂｷ)),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36140 |
HDB50,HZB50..GX ｱﾘ(ﾀﾃｶﾍﾞ ﾏﾂﾄ),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36251 |
BZB40,50,HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..WC..(CBU,IV5) ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ ﾄﾞｱ, ｶｸﾉｳ ｽﾃﾂﾌﾟﾂｷ),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36120 |
HZB50..GX ｱﾘ(*GLD),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58305-36070 |
HZB50..GX ｱﾘ(ｽﾃﾂﾌﾟ ﾏﾂﾄ & *GLD),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| Common parts | ||||
| 90119-08A79 | ||||
| 91651-60616 | ||||
| Linked diagrams | ||||
| 6759 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
