HZB50-ZRMES (1993)
Toyota Coaster

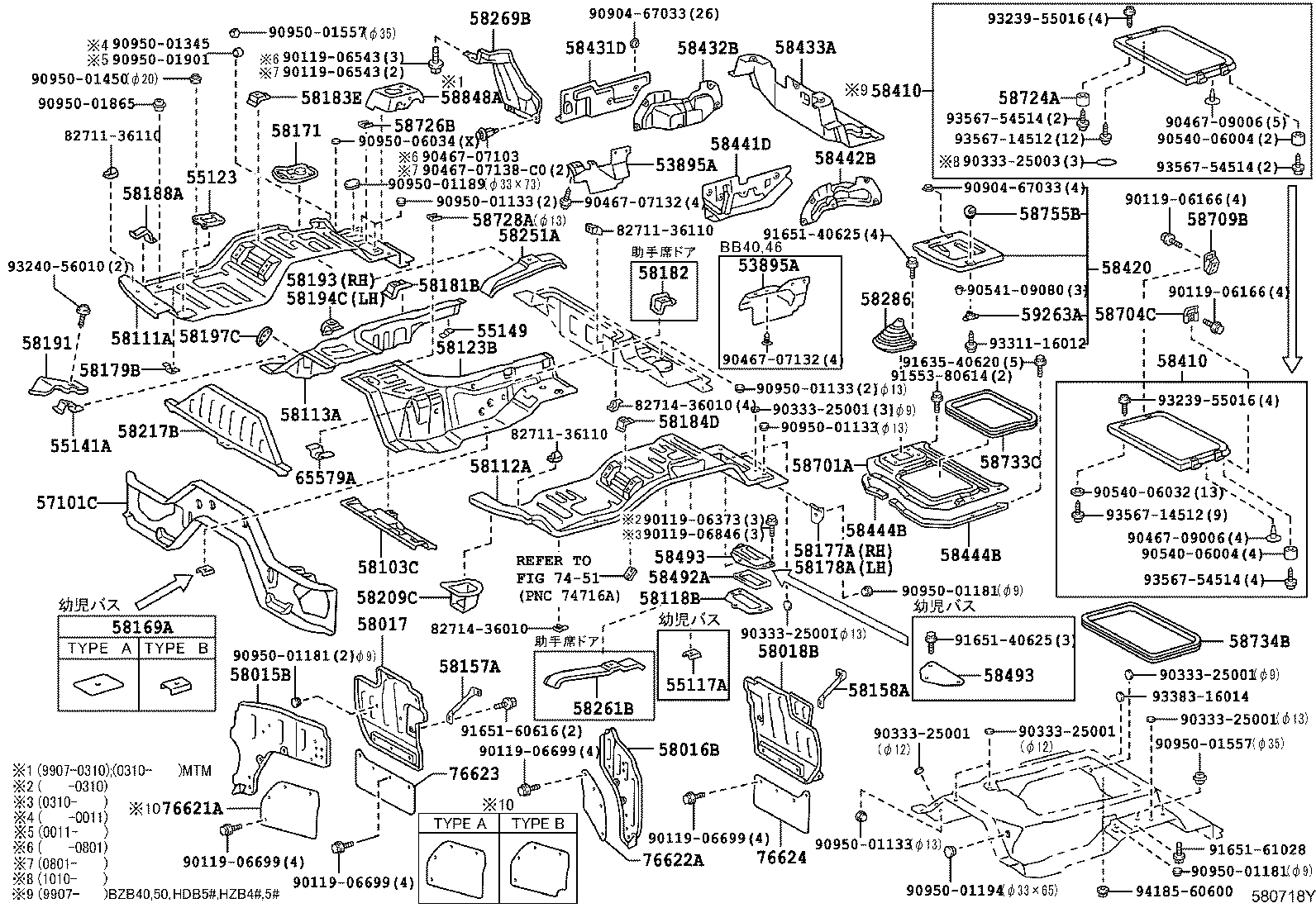

ILLUST NO. 2 OF 2(9301-0408)BB4#,BZB40,50,HDB5#,HZB4#,5# ; (0408-)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53711C - APRON, FRONT FENDER, RH | ||||
| 53711-36010 |
HDB5#,HZB4#,5# |
1 | ||
| 53711-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 53711-36011 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 53712C - APRON, FRONT FENDER, LH | ||||
| 53712-36011 |
HDB5#,HZB4#,5# |
1 | ||
| 53712-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 53712-36010 |
HDB5#,HZB4#,5# |
1 | ||
| 53896C - SHIELD, SIDE FLOOR APRON, FRONT LH | ||||
| 53896-36050 |
BZB40,50 |
1 | ||
| 55161B - BRACKET, HEATER MOUNTING, RH | ||||
| 55161-36020 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 55161-36020 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 55162 - BRACKET, HEATER MOUNTING, LH | ||||
| 55162-36020 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 55162-36020 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 57011 - MEMBER SUB-ASSY, FLOOR, RH | ||||
| 57011-36010 |
BB4#,HDB50,HZB40,5# |
1 | ||
| 57011-36070 |
BB4#,HDB50,HZB40,5# |
1 | ||
| 57011-36070 |
BZB40,50,HDB50,HZB40,46,5# |
1 | ||
| 57012 - MENBER SUB-ASSY | ||||
| 57012-36010 |
BB4#,HDB50,HZB40,5# |
1 | ||
| 57012-36100 |
BZB40,50 |
1 | ||
| 57012-36010 |
HDB50,HZB40,46,5# |
1 | ||
| 57102A - CROSSMENBER SUB-ASSY, FLOOR, NO.2 | ||||
| 57102-36010 |
BZB40,50,HDB5#,HZB4#,5#..4FC,5F |
1 | ||
| 57102-36010 |
BB4#,HDB5#,HZB4#,5#..4FC,5F |
1 | ||
| 57326 - BRACKET, WATER VALVE | ||||
| 57326-36010 |
BZB40,50 |
1 | ||
| 58115A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58115-36080 |
BB4#,HDB5#,HZB4#,5#..(09S,20S,26S,29S)..(4FC,5F) |
1 | ||
| 58115-36082 |
HZB4#,5#..DX,EX,GX,LX |
1 | ||
| 58115-36010 |
BB4#,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S |
1 | ||
| 58115-36081 |
HZB4#,5#..09S,26S,29S |
1 | ||
| 58127B - GUSSET, SHIFT & SELECT LEVER SUPPORT | ||||
| 58127-36020 |
BB4#,HDB5#,HZB4#,5#..MTM |
1 | ||
| 58127-36010 |
BB4#,HDB5#,HZB4#,5#..5F |
1 | ||
| 58173B - ANGLE, FRONT FLOOR SIDE, RH | ||||
| 58043-36030 |
BB4#,HDB5#,HZB4#,5#..5F |
1 | ||
| 58043-36050 |
BB4#,HDB5#,HZB4#,5#..MTM |
1 | ||
| 58043-36050 |
BZB40,50,HDB5#,HZB4#,5#..MTM |
1 | ||
| 58174A - ANGLE SUB-ASSY, FRONT FLOOR SIDE, LH | ||||
| 58174-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 58174-36060 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 58174-36060 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58175A - REINFORCEMENT, PARKING BRAKE BASE, NO.1 | ||||
| 58108-36030 |
BB4#,HDB5#,HZB4#,5#..MTM |
1 | ||
| 58108-36020 |
BB4#,55,HDB5#,HZB4#,5# |
1 | ||
| 58175-36030 |
HZB40,50..DX,GX,LX;HZB40,50..STD..4FC;BZB40,50,HDB5#,HZB41,46,56 |
1 | ||
| 58440 - COVER ASSY, BATTERY SERVICE HOLE | ||||
| 58440-36060B0 |
BZB40,50 MD.CHARCOAL,TRIM1# |
1 | ||
| 58440-36010E0 |
BB58,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) GREIGE,TRIM4# |
1 | ||
| 58440-36010E0 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) GREIGE,TRIM4# |
1 | ||
| 58440-36010B1 |
BB58,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
1 | ||
| 58440-36070B0 |
BZB40,50 MD.CHARCOAL,TRIM1# |
1 | ||
| 58440 - COVER ASSY, BATTERY SERVICE HOLE | ||||
| 58440-36060B0 |
BZB40,50 MD.CHARCOAL,TRIM1# |
1 | ||
| 58440-36010E0 |
BB58,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) GREIGE,TRIM4# |
1 | ||
| 58440-36010E0 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) GREIGE,TRIM4# |
1 | ||
| 58440-36010B1 |
BB58,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
1 | ||
| 58440-36070B0 |
BZB40,50 MD.CHARCOAL,TRIM1# |
1 | ||
| 58449C - WEATHERSTRIP, BATTERY SERVICE COVER | ||||
| 58449-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 58449-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 58449C - WEATHERSTRIP, BATTERY SERVICE COVER | ||||
| 58449-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 58449-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 58497 - PLATE, BATTERY SERVICE HOLE COVER LOCK | ||||
| 58497-36020B0 |
BZB40,50 MD.CHARCOAL,TRIM1# |
1 | ||
| 58497-36010E0 |
BB4#,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S GREIGE,TRIM4# |
1 | ||
| 58497-36010E0 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 GREIGE,TRIM4# |
1 | ||
| 58497-36010E0 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 GREIGE,TRIM4# |
1 | ||
| 58497-36010B1 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 MD.CHARCOAL,TRIM1# |
1 | ||
| 58497-36030B0 |
BZB40,50 MD.CHARCOAL,TRIM1# |
1 | ||
| 58497 - PLATE, BATTERY SERVICE HOLE COVER LOCK | ||||
| 58497-36020B0 |
BZB40,50 MD.CHARCOAL,TRIM1# |
1 | ||
| 58497-36010E0 |
BB4#,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S GREIGE,TRIM4# |
1 | ||
| 58497-36010E0 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 GREIGE,TRIM4# |
1 | ||
| 58497-36010E0 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 GREIGE,TRIM4# |
1 | ||
| 58497-36010B1 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 MD.CHARCOAL,TRIM1# |
1 | ||
| 58497-36030B0 |
BZB40,50 MD.CHARCOAL,TRIM1# |
1 | ||
| 58755A - HANDLE, ENGINE SERVICE COVER CATCH | ||||
| 58755-95D00 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 58755-95D00 |
BZB40,50 |
1 | ||
| 58755-95D00 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 59263 - HOOK, ENGINE COVER LOCK | ||||
| 59263-95D00 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 59263-95D00 |
BZB40,50 |
1 | ||
| 59263-95D00 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| Common parts | ||||
| 82715-26720 | ||||
| 89987-36010 | ||||
| 90119-06324 | ||||
| 90176-05013 | ||||
| 90333-30004 | ||||
| 90467-07132 | ||||
| 90904-67033 | ||||
| 91651-40616 | ||||
| 93240-16008 | ||||
| 93311-16012 | ||||
| 93540-55014 | ||||

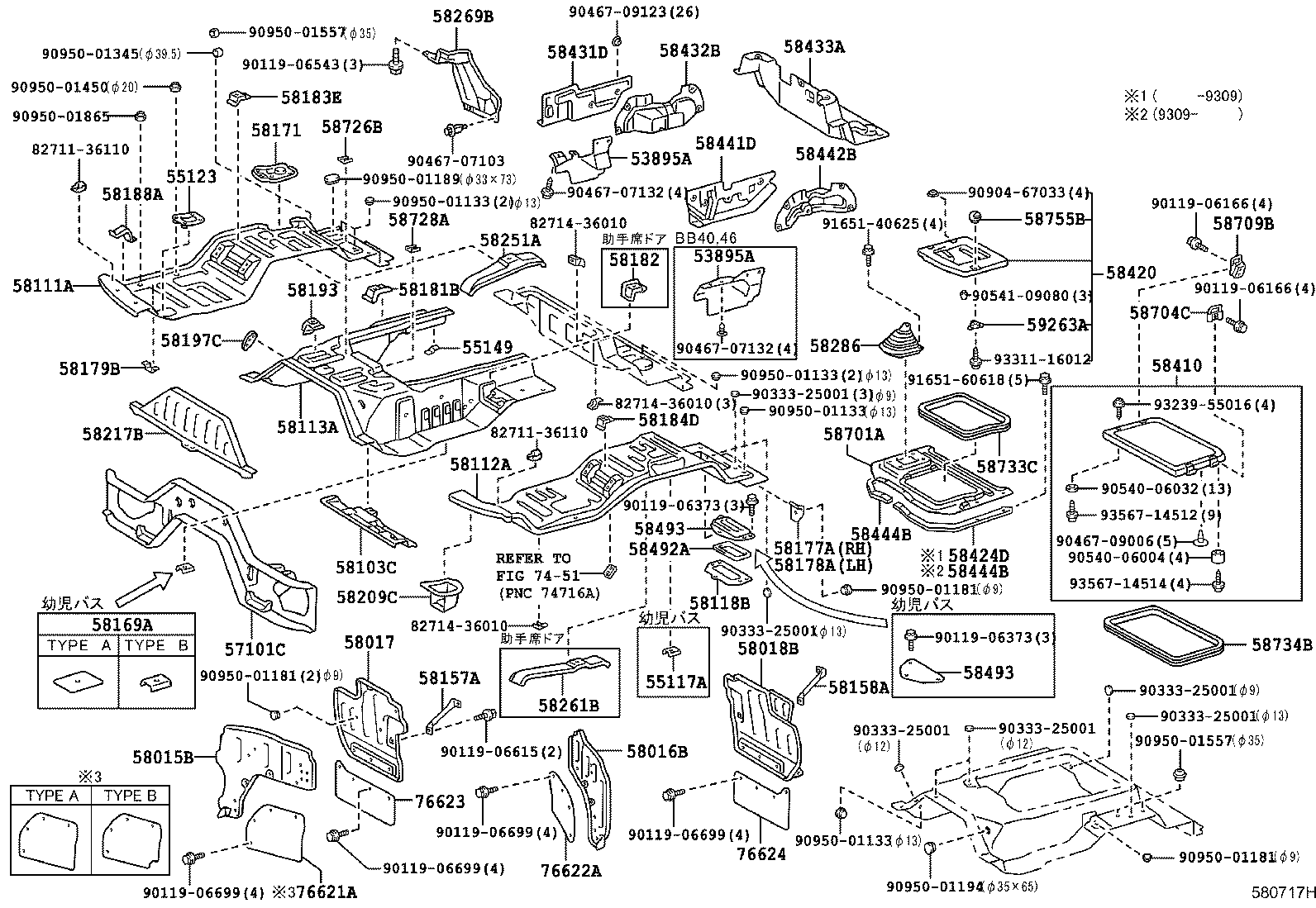

ILLUST NO. 1 OF 2(9301-9705)BB4#,HDB5#,HZB4#,5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53895A - SHIELD, SIDE FLOOR APRON, FRONT | ||||
| 53896-36020 |
HDB5#,HZB4#,5# |
1 | ||
| 53895A - SHIELD, SIDE FLOOR APRON, FRONT | ||||
| 53896-36020 |
HDB5#,HZB4#,5# |
1 | ||
| 55123 - REINFORCEMENT, STEERING SUPPORT | ||||
| 55123-36020 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 55123-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 55149 - BRACKET, DASH WIRING HARNESS | ||||
| 55149-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 55149-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 57101C - CROSSMEMBER SUB-ASSY, FLOOR, NO.1 | ||||
| 57101-36040 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 57101-36040 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 57101-36020 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 58015B - PANEL SUB-ASSY, FRONT FLOOR HOUSING, FRONT RH | ||||
| 58015-36010 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58015-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 58016B - PANEL SUB-ASSY, FRONT FLOOR HOUSING, FRONT LH | ||||
| 58016-36020 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58016-36020 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 58017 - PANEL SUB-ASSY, FRONT FLOOR HOUSING, REAR RH | ||||
| 58017-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 58017-36010 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58018B - PANEL SUB-ASSY, FRONT FLOOR HOUSING, REAR LH | ||||
| 58018-36020 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58018-36020 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 58103C - REINFORCEMENT SUB-ASSY, FRONT FLOOR, FRONT | ||||
| 58103-36010 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58103-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-36022 |
HDB51..IV1,IV5;BB4#,58,HDB50,HZB40,5#..GX,LX |
1 | ||
| 58111-36020 |
BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG |
1 | ||
| 58111-36030 |
BB40,HZB50..WC |
1 | ||
| 58111-36031 |
BB40,HZB50..WC |
1 | ||
| 58111-36031 |
BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG ｱﾘ(ｱｸｾﾙﾚ-ﾀ ｲﾝﾀ-ﾛﾂｸ) |
1 | ||
| 58111-36030 |
BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG ｱﾘ(ｱｸｾﾙﾚ-ﾀ ｲﾝﾀ-ﾛﾂｸ) |
1 | ||
| 58111-36032 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(4FC,5F)..CBU ｱﾘ(ｱｸｾﾙﾚ-ﾀ ｲﾝﾀ-ﾛﾂｸ) |
1 | ||
| 58111-36021 |
BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG |
1 | ||
| 58111-36032 |
BB40,HZB50..WC |
1 | ||
| 58111-36022 |
BB4#,55,HDB5#,HZB4#,5#..EX,GX,LX,SULNG |
1 | ||
| 58111-36023 |
HDB51..IV1;BB58,BZB40,50,HDB50,HZB40,46,5#..GX,LX |
1 | ||
| 58111-36033 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,19S,20S,24S,26S,29S,39S,49S)..WC..(CBU,IV5) ｱﾘ(ｱｸｾﾙﾚ-ﾀ ｲﾝﾀ-ﾛﾂｸ) |
1 | ||
| 58111-36032 |
HZB40..5F;HZB40..LX..4FC..CBU;BB40,HDB50,HZB50..GX,LX ｱﾘ(*FD(ｵ-ﾄ)) OR ｱﾘ(*GLD(ｵ-ﾄ)) |
1 | ||
| 58112A - PANEL, FRONT FLOOR, LH | ||||
| 58112-36040 |
BB40,5#,HDB5#,HZB4#,50..(15S,20S,26S,29S)..(CBU,IV5) |
1 | ||
| 58112-36041 |
BB58,BZB40,50,HDB5#,HZB40,41,50..(DX,EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(ｼﾖｳｶｷ) |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-36020 |
BB4#,55,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S |
1 | ||
| 58113-36131 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 58113-36130 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 58113-36131 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58118B - REINFORCEMENT, FRONT FLOOR PANEL, NO.2 | ||||
| 58118-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 58118-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58157A - STAY, FRONT FLOOR HOUSING, REAR RH | ||||
| 58157-36010 |
BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 58157-36010 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 58158A - STAY, FRONT FLOOR HOUSING, REAR LH | ||||
| 58158-36010 |
BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 58158-36010 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 58169A - RETAINER, REAR HEATER MOUNTING | ||||
| 90297-03007 |
BB40,HZB50..WC..5F |
8 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58107-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58107-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 58177A - EXTENSION, FRONT FLOOR PANEL, RH | ||||
| 58177-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 58177-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58178A - EXTENSION, FRONT FLOOR PANEL, LH | ||||
| 58178-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58178-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 58179B - BRACKET, ACCELERATOR CABLE CLAMP | ||||
| 58179-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58179-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 58181B - BRACKET, FRONT SEAT INSIDE MOUNTING, FRONT RH | ||||
| 58181-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58181-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 58183E - BRACKET, FRONT SEAT MOUNTING, OUTSIDE | ||||
| 58184-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58184-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 58184D - BRACKET, FRONT SEAT MOUNTING, OUTSIDE | ||||
| 58184-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG |
1 | ||
| 58184-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,20S,26S,29S)..(CBU,IV5) |
1 | ||
| 58188A - BRACKET, ACCELERATOR PEDAL STOPPER | ||||
| 58188-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58188-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58193-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 58193-36010 |
BB4#,55,HDB5#,HZB4#,5# |
2 | ||
| 58193-36010 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58197C - PLATE, VACUUM TUBE BRACKET, RH | ||||
| 58197-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58197-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 58209C - COVER SUB-ASSY, HEATER AIR INTAKE | ||||
| 58209-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58209-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 58217B - PLATE, FRONT FLOOR | ||||
| 58217-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 58217-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58251A - REINFORCEMENT, FRONT SEAT, FRONT RH | ||||
| 58251-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58251-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 58269B - COVER, PARKING BRAKE CABLE, RH | ||||
| 58269-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 58269-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 58286 - BOOT, SHIFT & SELECT LEVER, NO.1 | ||||
| 58280-36010 |
BB4#,HDB5#,HZB4#,5#..MTM |
1 | ||
| 58280-36010 |
BZB40,50,HDB5#,HZB4#,5#..MTM |
1 | ||
| 58410 - COVER, ENGINE SERVICE HOLE | ||||
| 58410-36031E0 |
BB4#,HDB50,HZB40,5#..GX,LX GREIGE,TRIM4# |
1 | ||
| 58410-36030 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 58410-36021E1 |
BB4#,HDB50,HZB40,5#..GX,LX GREIGE,TRIM4# |
1 | ||
| 58410-36031E1 |
HDB50,HZB50..GX GREIGE,TRIM4# |
1 | ||
| 58410-36031E0 |
BB4#,HDB50,HZB40,5# GREIGE,TRIM4# |
1 | ||
| 58410-36070 |
BB4#,HDB50,HZB40,5#..GX,LX |
1 | ||
| 58410-36031E0 |
BB4#,HDB50,HZB40,5# GREIGE,TRIM4# |
1 | ||
| 58410-36081 |
HDB5#,HZB4#,5# |
1 | ||
| 58410-36081B0 |
BZB40,50,HDB5#,HZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 58420 - COVER ASSY, ENGINE SERVICE HOLE, NO.2 | ||||
| 58420-36030 |
BB4#,55,HDB5#,HZB4#,5# |
1 | ||
| 58420-36110 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58420-36080 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 58424D - PACKING, ENGINE COVER | ||||
| 58424-36020 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 58431D - SILENCER, ENGINE ROOM SIDE, FRONT RH | ||||
| 58431-36100 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 58431-36091 |
BZB40,50,HZB40,46,5# |
1 | ||
| 58431-36091 |
BB4#,HZB40,5# |
1 | ||
| 58431-36030 |
BB4#,55,HDB5#,HZB4#,5# |
1 | ||
| 58432B - SILENCER, ENGINE ROOM SIDE, REAR RH | ||||
| 58432-36010 |
BZB40,50,HZB40,46,5# |
1 | ||
| 58432-36010 |
BB4#,HZB40,5# |
1 | ||
| 58432-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 58433A - SILENCER, ENGINE ROOM SIDE END | ||||
| 58433-36070 |
BB4#,HDB5#,HZB4#,5#..4FC,5F |
1 | ||
| 58433-36070 |
HDB5#,HZB4#,5#..4FC,5F |
1 | ||
| 58433-36020 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 58441D - SILENCER, ENGING ROOM SIDE, FRONT LH | ||||
| 58441-36030 |
BB4#,55,HDB5#,HZB4#,5# |
1 | ||
| 58441-36090 |
HZB40,46,5# |
1 | ||
| 58441-36090 |
BB4#,HZB40,5# |
1 | ||
| 58441-36140 |
BZB40,50 |
1 | ||
| 58442B - SILENCER, ENGING ROOM SIDE, REAR LH | ||||
| 58442-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 58442-36100 |
BB4#,HZB40,5# |
1 | ||
| 58442-36100 |
HZB40,46,5# |
1 | ||
| 58444B - PACKING, ENGINE SUB COVER | ||||
| 58444-36050 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 58444-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 58444-36050 |
BZB40,50,HDB5#,HZB4#,5# |
2 | ||
| 58444B - PACKING, ENGINE SUB COVER | ||||
| 58444-36050 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 58444-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 58444-36050 |
BZB40,50,HDB5#,HZB4#,5# |
2 | ||
| 58492A - PACKING, RELAY BLOCK HOLE COVER | ||||
| 58492-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 58492-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 58493 - RETAINER, ENGINE COVER, NO.3 | ||||
| 58493-36010E0 |
BB4#,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S GREIGE,TRIM4# |
1 | ||
| 58493-36010E0 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 GREIGE,TRIM4# |
1 | ||
| 58493-36010B1 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 MD.CHARCOAL,TRIM1# |
1 | ||
| 58493-36010E0 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,20S,26S,29S)..(CBU,IV5) GREIGE,TRIM4# |
1 | ||
| 58493 - RETAINER, ENGINE COVER, NO.3 | ||||
| 58493-36010E0 |
BB4#,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S GREIGE,TRIM4# |
1 | ||
| 58493-36010E0 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 GREIGE,TRIM4# |
1 | ||
| 58493-36010B1 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 MD.CHARCOAL,TRIM1# |
1 | ||
| 58493-36010E0 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,20S,26S,29S)..(CBU,IV5) GREIGE,TRIM4# |
1 | ||
| 58701A - PANEL SUB-ASSY, ENGINE SERVICE COVER, FRONT | ||||
| 58701-36010 |
BB4#,HDB5#,HZB4#,5#..5F |
1 | ||
| 58701-36011 |
BB4#,HDB5#,HZB4#,5#..5F |
1 | ||
| 58701-36080 |
BB4#,HDB5#,HZB4#,5#..MTM |
1 | ||
| 58701-36101 |
HDB5#,HZB4#,5#..MTM |
1 | ||
| 58701-36180 |
BZB40,50 |
1 | ||
| 58704C - HOOK SUB-ASSY, ENGINE SERVICE COVER CATCH, REAR | ||||
| 58704-36040E0 |
BB4#,HDB5#,HZB4#,5# GREIGE,TRIM4# |
2 | ||
| 58704-36010E0 |
BB4#,HDB5#,HZB4#,5# GREIGE,TRIM4# |
2 | ||
| 58704-36040E0 |
HDB5#,HZB4#,5# GREIGE,TRIM4# |
2 | ||
| 58704-36010E0 |
BB4#,HDB5#,HZB4#,5# GREIGE,TRIM4# |
2 | ||
| 58704-36010E0 |
BB4#,HDB5#,HZB4#,5# GREIGE,TRIM4# |
2 | ||
| 58704-36040B0 |
BZB40,50,HDB5#,HZB4#,5# MD.CHARCOAL,TRIM1# |
2 | ||
| 58709B - CATCH SUB-ASSY, ENGINE SERVICE COVER | ||||
| 58709-36011E0 |
BB4#,HDB5#,HZB4#,5# GREIGE,TRIM4# |
2 | ||
| 58709-36010E0 |
BB4#,HDB5#,HZB4#,5# GREIGE,TRIM4# |
2 | ||
| 58709-36030E0 |
HDB5#,HZB4#,5# GREIGE,TRIM4# |
2 | ||
| 58709-36030E0 |
BB4#,HDB5#,HZB4#,5# GREIGE,TRIM4# |
2 | ||
| 58709-36030B0 |
BZB40,50,HDB5#,HZB4#,5# MD.CHARCOAL,TRIM1# |
2 | ||
| 58726B - PLATE, ENGINE SERVICE COVER, FRONT UPPER | ||||
| 58726-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 58726-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58728A - PLATE, ENGINE SERVICE COVER, NO.2 | ||||
| 58728-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 58728-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58733C - WEATHERSTRIP, ENGINE SERVICE COVER, FRONT | ||||
| 58733-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 58733-36050 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58734B - WEATHERSTRIP, ENGINE SERVICE COVER, REAR | ||||
| 58734-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 58734-36030 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 58734-36060 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58755B - HANDLE, ENGINE SERVICE COVER CATCH | ||||
| 58755-95D00 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 58755-95D00 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 59263A - HOOK, ENGINE COVER LOCK | ||||
| 59263-95D00 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 59263-95D00 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 76621A - MUDGUARD, FRONT BODY, FRONT RH | ||||
| 76621-36020 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 76621-36020 |
HDB5#,HZB4#,5#..CBU,IV5 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 76621-36010 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 76621-36010 |
BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 76622A - MUDGUARD, FRONT BODY, FRONT LH | ||||
| 76622-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 76622-36020 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 76622-36020 |
HDB5#,HZB4#,5#..CBU,IV5 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 76622-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 76623 - MUDGUARD, FRONT BODY, REAR RH | ||||
| 76623-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 76623-36011 |
BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 76623-36011 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 76624 - MUDGUARD, FRONT BODY, REAR LH | ||||
| 76624-36011 |
BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 76624-36011 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 76624-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| Common parts | ||||
| 82711-36110 | ||||
| 82714-36010 | ||||
| 90119-06166 | ||||
| 90119-06373 | ||||
| 90119-06543 | ||||
| 90119-06615 | ||||
| 90119-06699 | ||||
| 90333-25001 | ||||
| 90467-07103 | ||||
| 90467-07132 | ||||
| 90467-09006 | ||||
| 90467-09123 | ||||
| 90540-06004 | ||||
| 90540-06032 | ||||
| 90541-09080 | ||||
| 90904-67033 | ||||
| 90950-01133 | ||||
| 90950-01181 | ||||
| 90950-01189 | ||||
| 90950-01194 | ||||
| 90950-01345 | ||||
| 90950-01450 | ||||
| 90950-01557 | ||||
| 90950-01865 | ||||
| 91651-40625 | ||||
| 91651-60618 | ||||
| 93239-55016 | ||||
| 93311-16012 | ||||
| 93567-14512 | ||||
| 93567-14514 | ||||
| Linked diagrams | ||||
| 7451 | ||||
ILLUST NO. 1 OF 2(9705-0408)BB4#,BZB40,50,HDB5#,HZB4#,5# ; (0408-)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53895A - SHIELD, SIDE FLOOR APRON, FRONT | ||||
| 53896-36020 |
HDB5#,HZB4#,5# |
1 | ||
| 53895A - SHIELD, SIDE FLOOR APRON, FRONT | ||||
| 53896-36020 |
HDB5#,HZB4#,5# |
1 | ||
| 55123 - REINFORCEMENT, STEERING SUPPORT | ||||
| 55123-36020 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 55123-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 55149 - BRACKET, DASH WIRING HARNESS | ||||
| 55149-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 55149-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 57101C - CROSSMEMBER SUB-ASSY, FLOOR, NO.1 | ||||
| 57101-36040 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 57101-36040 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 57101-36020 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 58015B - PANEL SUB-ASSY, FRONT FLOOR HOUSING, FRONT RH | ||||
| 58015-36010 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58015-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 58016B - PANEL SUB-ASSY, FRONT FLOOR HOUSING, FRONT LH | ||||
| 58016-36020 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58016-36020 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 58017 - PANEL SUB-ASSY, FRONT FLOOR HOUSING, REAR RH | ||||
| 58017-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 58017-36010 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58018B - PANEL SUB-ASSY, FRONT FLOOR HOUSING, REAR LH | ||||
| 58018-36020 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58018-36020 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 58103C - REINFORCEMENT SUB-ASSY, FRONT FLOOR, FRONT | ||||
| 58103-36010 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58103-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-36033 |
BB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,19S,20S,24S,26S,29S,39S,49S)..WC..(CBU,IV5) ｱﾘ(ｱｸｾﾙﾚ-ﾀ ｲﾝﾀ-ﾛﾂｸ) |
1 | ||
| 58111-36022 |
HDB51..IV1,IV5;BB4#,58,HDB50,HZB40,5#..GX,LX |
1 | ||
| 58111-36020 |
BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG |
1 | ||
| 58111-36030 |
BB40,HZB50..WC |
1 | ||
| 58111-36031 |
BB40,HZB50..WC |
1 | ||
| 58111-36031 |
BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG ｱﾘ(ｱｸｾﾙﾚ-ﾀ ｲﾝﾀ-ﾛﾂｸ) |
1 | ||
| 58111-36030 |
BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG ｱﾘ(ｱｸｾﾙﾚ-ﾀ ｲﾝﾀ-ﾛﾂｸ) |
1 | ||
| 58111-36032 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(4FC,5F)..CBU ｱﾘ(ｱｸｾﾙﾚ-ﾀ ｲﾝﾀ-ﾛﾂｸ) |
1 | ||
| 58111-36021 |
BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG |
1 | ||
| 58111-36032 |
BB40,HZB50..WC |
1 | ||
| 58111-36022 |
BB4#,55,HDB5#,HZB4#,5#..EX,GX,LX,SULNG |
1 | ||
| 58111-36023 |
HDB51..IV1;BB58,BZB40,50,HDB50,HZB40,46,5#..GX,LX |
1 | ||
| 58111-36032 |
HZB40..5F;HZB40..LX..4FC..CBU;BB40,HDB50,HZB50..GX,LX ｱﾘ(*FD(ｵ-ﾄ)) OR ｱﾘ(*GLD(ｵ-ﾄ)) |
1 | ||
| 58112A - PANEL, FRONT FLOOR, LH | ||||
| 58112-36040 |
BB40,5#,HDB5#,HZB4#,50..(15S,20S,26S,29S)..(CBU,IV5) |
1 | ||
| 58112-36041 |
BB58,BZB40,50,HDB5#,HZB40,41,50..(DX,EX,GX,LX,SULNG)..(CBU,IV5) ｱﾘ(ｼﾖｳｶｷ) |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-36020 |
BB4#,55,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S |
1 | ||
| 58113-36131 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 58113-36130 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 58113-36131 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58118B - REINFORCEMENT, FRONT FLOOR PANEL, NO.2 | ||||
| 58118-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 58118-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58123B - PANEL, FRONT FLOOR, CENTER LH | ||||
| 58123-36040 |
HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG |
1 | ||
| 58123-36040 |
BB4#,HDB5#,HZB4#,5#..09S,20S,26S,29S |
1 | ||
| 58157A - STAY, FRONT FLOOR HOUSING, REAR RH | ||||
| 58157-36010 |
BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 58157-36010 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 58158A - STAY, FRONT FLOOR HOUSING, REAR LH | ||||
| 58158-36010 |
BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 58158-36010 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 58169A - RETAINER, REAR HEATER MOUNTING | ||||
| 90297-03007 |
BB40,HZB50..WC..5F |
8 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58107-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58107-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 58177A - EXTENSION, FRONT FLOOR PANEL, RH | ||||
| 58177-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 58177-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58178A - EXTENSION, FRONT FLOOR PANEL, LH | ||||
| 58178-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58178-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 58179B - BRACKET, ACCELERATOR CABLE CLAMP | ||||
| 58179-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58179-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 58181B - BRACKET, FRONT SEAT INSIDE MOUNTING, FRONT RH | ||||
| 58181-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58181-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 58183E - BRACKET, FRONT SEAT MOUNTING, OUTSIDE | ||||
| 58184-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58184-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 58184D - BRACKET, FRONT SEAT MOUNTING, OUTSIDE | ||||
| 58184-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG |
1 | ||
| 58184-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,20S,26S,29S)..(CBU,IV5) |
1 | ||
| 58188A - BRACKET, ACCELERATOR PEDAL STOPPER | ||||
| 58188-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58188-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58193-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 58193-36010 |
BB4#,55,HDB5#,HZB4#,5# |
2 | ||
| 58193-36010 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58194C - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, LH | ||||
| 58193-36010 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58197C - PLATE, VACUUM TUBE BRACKET, RH | ||||
| 58197-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58197-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 58209C - COVER SUB-ASSY, HEATER AIR INTAKE | ||||
| 58209-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58209-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 58217B - PLATE, FRONT FLOOR | ||||
| 58217-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 58217-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58251A - REINFORCEMENT, FRONT SEAT, FRONT RH | ||||
| 58251-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58251-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 58269B - COVER, PARKING BRAKE CABLE, RH | ||||
| 58269-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 58269-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 58286 - BOOT, SHIFT & SELECT LEVER, NO.1 | ||||
| 58280-36010 |
BB4#,HDB5#,HZB4#,5#..MTM |
1 | ||
| 58280-36010 |
BZB40,50,HDB5#,HZB4#,5#..MTM |
1 | ||
| 58410 - COVER, ENGINE SERVICE HOLE | ||||
| 58410-36031E0 |
BB4#,HDB50,HZB40,5#..GX,LX GREIGE,TRIM4# |
1 | ||
| 58410-36030 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 58410-36021E1 |
BB4#,HDB50,HZB40,5#..GX,LX GREIGE,TRIM4# |
1 | ||
| 58410-36031E1 |
HDB50,HZB50..GX GREIGE,TRIM4# |
1 | ||
| 58410-36031E0 |
BB4#,HDB50,HZB40,5# GREIGE,TRIM4# |
1 | ||
| 58410-36070 |
BB4#,HDB50,HZB40,5#..GX,LX |
1 | ||
| 58410-36031E0 |
BB4#,HDB50,HZB40,5# GREIGE,TRIM4# |
1 | ||
| 58410-36081 |
HDB5#,HZB4#,5# |
1 | ||
| 58410-36081B0 |
BZB40,50,HDB5#,HZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 58410 - COVER, ENGINE SERVICE HOLE | ||||
| 58410-36031E0 |
BB4#,HDB50,HZB40,5#..GX,LX GREIGE,TRIM4# |
1 | ||
| 58410-36030 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 58410-36021E1 |
BB4#,HDB50,HZB40,5#..GX,LX GREIGE,TRIM4# |
1 | ||
| 58410-36031E1 |
HDB50,HZB50..GX GREIGE,TRIM4# |
1 | ||
| 58410-36031E0 |
BB4#,HDB50,HZB40,5# GREIGE,TRIM4# |
1 | ||
| 58410-36070 |
BB4#,HDB50,HZB40,5#..GX,LX |
1 | ||
| 58410-36031E0 |
BB4#,HDB50,HZB40,5# GREIGE,TRIM4# |
1 | ||
| 58410-36081 |
HDB5#,HZB4#,5# |
1 | ||
| 58410-36081B0 |
BZB40,50,HDB5#,HZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 58420 - COVER ASSY, ENGINE SERVICE HOLE, NO.2 | ||||
| 58420-36030 |
BB4#,55,HDB5#,HZB4#,5# |
1 | ||
| 58420-36110 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58420-36080 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 58431D - SILENCER, ENGINE ROOM SIDE, FRONT RH | ||||
| 58431-36100 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 58431-36091 |
BZB40,50,HZB40,46,5# |
1 | ||
| 58431-36091 |
BB4#,HZB40,5# |
1 | ||
| 58431-36030 |
BB4#,55,HDB5#,HZB4#,5# |
1 | ||
| 58432B - SILENCER, ENGINE ROOM SIDE, REAR RH | ||||
| 58432-36010 |
BZB40,50,HZB40,46,5# |
1 | ||
| 58432-36010 |
BB4#,HZB40,5# |
1 | ||
| 58432-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 58433A - SILENCER, ENGINE ROOM SIDE END | ||||
| 58433-36070 |
BB4#,HDB5#,HZB4#,5#..4FC,5F |
1 | ||
| 58433-36070 |
HDB5#,HZB4#,5#..4FC,5F |
1 | ||
| 58433-36020 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 58441D - SILENCER, ENGING ROOM SIDE, FRONT LH | ||||
| 58441-36030 |
BB4#,55,HDB5#,HZB4#,5# |
1 | ||
| 58441-36090 |
HZB40,46,5# |
1 | ||
| 58441-36090 |
BB4#,HZB40,5# |
1 | ||
| 58441-36140 |
BZB40,50 |
1 | ||
| 58442B - SILENCER, ENGING ROOM SIDE, REAR LH | ||||
| 58442-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 58442-36100 |
BB4#,HZB40,5# |
1 | ||
| 58442-36100 |
HZB40,46,5# |
1 | ||
| 58444B - PACKING, ENGINE SUB COVER | ||||
| 58444-36050 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 58444-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 58444-36050 |
BZB40,50,HDB5#,HZB4#,5# |
2 | ||
| 58444B - PACKING, ENGINE SUB COVER | ||||
| 58444-36050 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 58444-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 58444-36050 |
BZB40,50,HDB5#,HZB4#,5# |
2 | ||
| 58492A - PACKING, RELAY BLOCK HOLE COVER | ||||
| 58492-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 58492-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 58493 - RETAINER, ENGINE COVER, NO.3 | ||||
| 58493-36010E0 |
BB4#,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S GREIGE,TRIM4# |
1 | ||
| 58493-36010E0 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 GREIGE,TRIM4# |
1 | ||
| 58493-36010B1 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 MD.CHARCOAL,TRIM1# |
1 | ||
| 58493-36010E0 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,20S,26S,29S)..(CBU,IV5) GREIGE,TRIM4# |
1 | ||
| 58493 - RETAINER, ENGINE COVER, NO.3 | ||||
| 58493-36010E0 |
BB4#,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S GREIGE,TRIM4# |
1 | ||
| 58493-36010E0 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 GREIGE,TRIM4# |
1 | ||
| 58493-36010B1 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 MD.CHARCOAL,TRIM1# |
1 | ||
| 58493-36010E0 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,20S,26S,29S)..(CBU,IV5) GREIGE,TRIM4# |
1 | ||
| 58701A - PANEL SUB-ASSY, ENGINE SERVICE COVER, FRONT | ||||
| 58701-36010 |
BB4#,HDB5#,HZB4#,5#..5F |
1 | ||
| 58701-36011 |
BB4#,HDB5#,HZB4#,5#..5F |
1 | ||
| 58701-36080 |
BB4#,HDB5#,HZB4#,5#..MTM |
1 | ||
| 58701-36101 |
HDB5#,HZB4#,5#..MTM |
1 | ||
| 58701-36180 |
BZB40,50 |
1 | ||
| 58704C - HOOK SUB-ASSY, ENGINE SERVICE COVER CATCH, REAR | ||||
| 58704-36040E0 |
BB4#,HDB5#,HZB4#,5# GREIGE,TRIM4# |
2 | ||
| 58704-36010E0 |
BB4#,HDB5#,HZB4#,5# GREIGE,TRIM4# |
2 | ||
| 58704-36010E0 |
BB4#,HDB5#,HZB4#,5# GREIGE,TRIM4# |
2 | ||
| 58704-36040E0 |
HDB5#,HZB4#,5# GREIGE,TRIM4# |
2 | ||
| 58704-36010E0 |
BB4#,HDB5#,HZB4#,5# GREIGE,TRIM4# |
2 | ||
| 58704-36040B0 |
BZB40,50,HDB5#,HZB4#,5# MD.CHARCOAL,TRIM1# |
2 | ||
| 58709B - CATCH SUB-ASSY, ENGINE SERVICE COVER | ||||
| 58709-36011E0 |
BB4#,HDB5#,HZB4#,5# GREIGE,TRIM4# |
2 | ||
| 58709-36010E0 |
BB4#,HDB5#,HZB4#,5# GREIGE,TRIM4# |
2 | ||
| 58709-36030E0 |
HDB5#,HZB4#,5# GREIGE,TRIM4# |
2 | ||
| 58709-36030E0 |
BB4#,HDB5#,HZB4#,5# GREIGE,TRIM4# |
2 | ||
| 58709-36030B0 |
BZB40,50,HDB5#,HZB4#,5# MD.CHARCOAL,TRIM1# |
2 | ||
| 58724A - CUSHION, ENGINE SERVICE COVER, NO.2 | ||||
| 58724-90B00 |
BZB40,50,HDB5#,HZB4#,5# |
2 | ||
| 58726B - PLATE, ENGINE SERVICE COVER, FRONT UPPER | ||||
| 58726-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 58726-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58728A - PLATE, ENGINE SERVICE COVER, NO.2 | ||||
| 58728-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 58728-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58733C - WEATHERSTRIP, ENGINE SERVICE COVER, FRONT | ||||
| 58733-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 58733-36050 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58734B - WEATHERSTRIP, ENGINE SERVICE COVER, REAR | ||||
| 58734-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 58734-36030 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 58734-36060 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58755B - HANDLE, ENGINE SERVICE COVER CATCH | ||||
| 58755-95D00 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 58755-95D00 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 58848A - COVER, SHIFT LEVER HOLE | ||||
| 58848-36020 |
BZB40,50,HDB5#,HZB4#,5#..MTM |
1 | ||
| 59263A - HOOK, ENGINE COVER LOCK | ||||
| 59263-95D00 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 59263-95D00 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 65579A - BRACKET, HEATER PIPE | ||||
| 65579-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 65579-36010 |
BZB40,50 |
1 | ||
| 76621A - MUDGUARD, FRONT BODY, FRONT RH | ||||
| 76621-36020 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 76621-36020 |
HDB5#,HZB4#,5#..CBU,IV5 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 76621-36010 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 76621-36010 |
BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 76622A - MUDGUARD, FRONT BODY, FRONT LH | ||||
| 76622-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 76622-36020 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 76622-36020 |
HDB5#,HZB4#,5#..CBU,IV5 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 76622-36010 |
BB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 76623 - MUDGUARD, FRONT BODY, REAR RH | ||||
| 76623-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 76623-36011 |
BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 76623-36011 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 76624 - MUDGUARD, FRONT BODY, REAR LH | ||||
| 76624-36011 |
BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 76624-36011 |
BB4#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 76624-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| Common parts | ||||
| 82711-36110 | ||||
| 82714-36010 | ||||
| 90119-06166 | ||||
| 90119-06373 | ||||
| 90119-06543 | ||||
| 90119-06699 | ||||
| 90119-06846 | ||||
| 90333-25001 | ||||
| 90333-25003 | ||||
| 90467-07103 | ||||
| 90467-07132 | ||||
| 90467-07138C0 | ||||
| 90467-09006 | ||||
| 90540-06004 | ||||
| 90540-06032 | ||||
| 90541-09080 | ||||
| 90904-67033 | ||||
| 90950-01133 | ||||
| 90950-01181 | ||||
| 90950-01189 | ||||
| 90950-01194 | ||||
| 90950-01345 | ||||
| 90950-01450 | ||||
| 90950-01557 | ||||
| 90950-01865 | ||||
| 90950-01901 | ||||
| 90950-06034 | ||||
| 91553-80614 | ||||
| 91635-40620 | ||||
| 91651-40625 | ||||
| 91651-60616 | ||||
| 91651-61028 | ||||
| 93239-55016 | ||||
| 93240-56010 | ||||
| 93311-16012 | ||||
| 93383-16014 | ||||
| 93567-14512 | ||||
| 93567-54514 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7451 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
