HZB50-ZRMES (1993)
Toyota Coaster
Production
Jan 1993
-
Aug 2004
Engine
1HZ
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

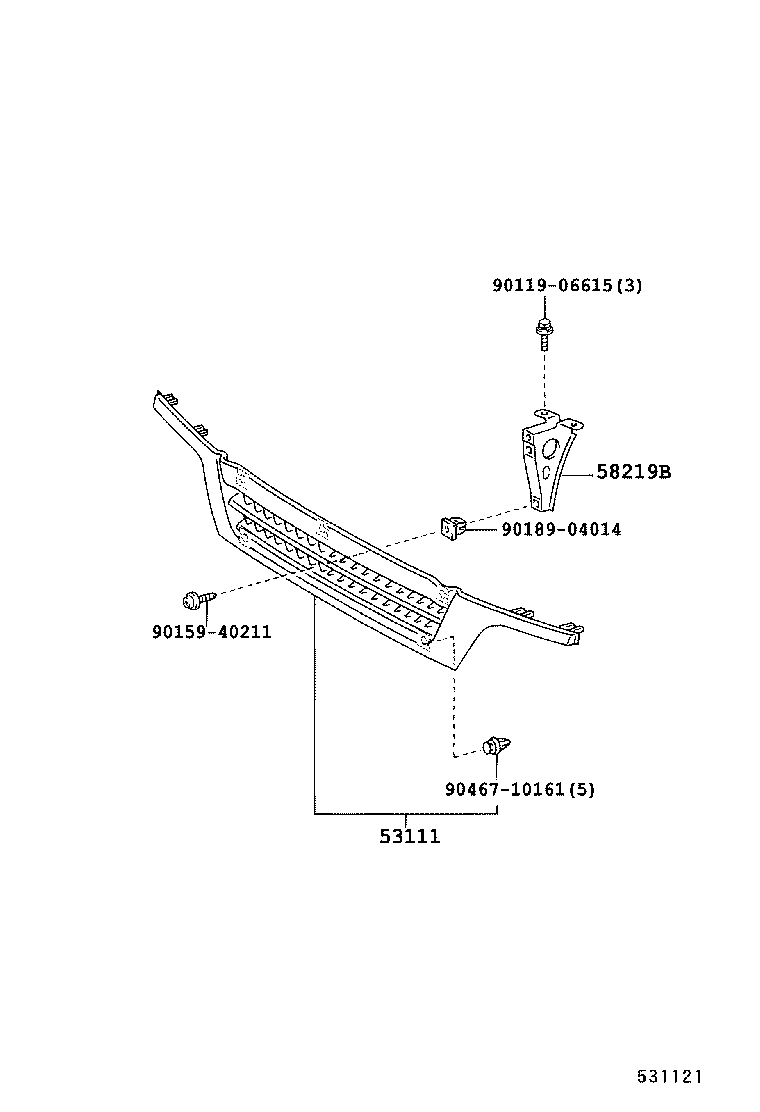

(0108-0408)BZB40,50,HDB5#,HZB4#,5# ; (0408-0708)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53111-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 塗装不要 |
1 | ||
| 53111-36010 |
HDB5#,HZB4#,5#..CBU,IV5 塗装不要 |
1 | ||
| 53101-36040 |
HZB40,50;BZB40,50,HDB5#,HZB41,46,56..HRF..(CBU,IV5) 塗装不要,ﾄｿｳ ﾅｼ |
1 | ||
| 58219B - BRACKET, FRONT FLOOR TO GRILLE | ||||
| 58219-36010 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 58219-36030 |
BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 58219-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| Common parts | ||||
| 90119-06615 | ||||
| 90159-40211 | ||||
| 90189-04014 | ||||
| 90467-10161 | ||||

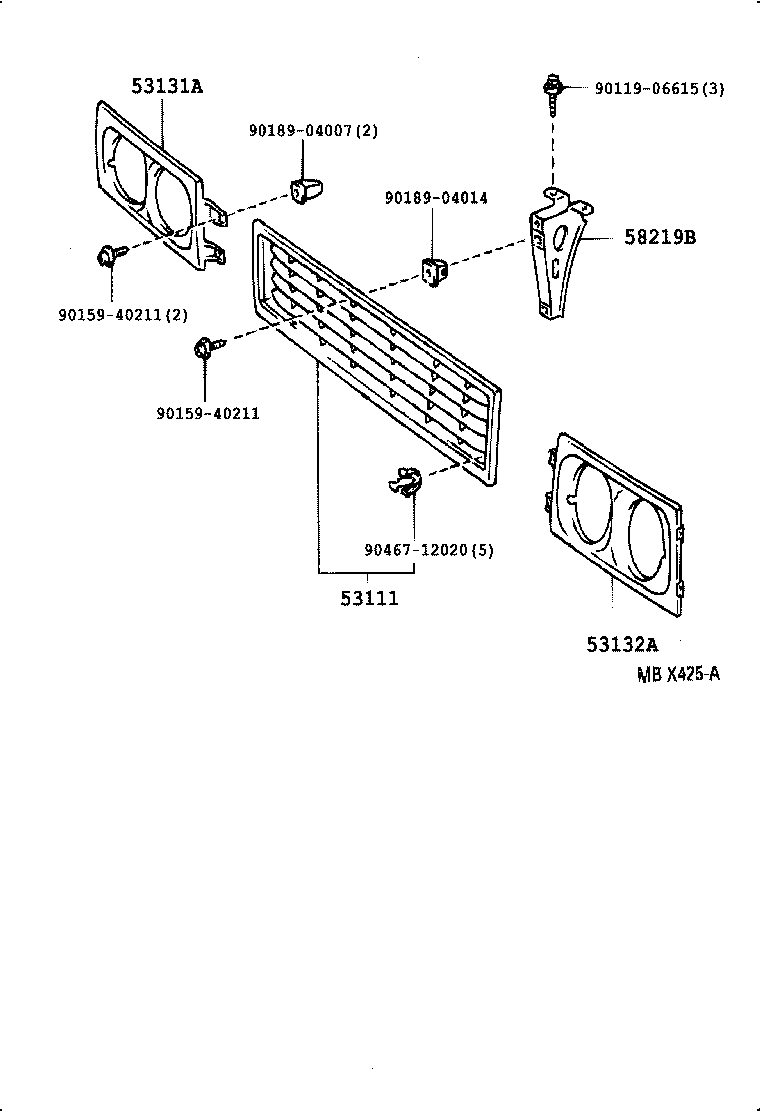

(9301-0108)CBU,IV5 ; (0108-0408)BB58
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53111-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 塗装不要 |
1 | ||
| 53111-36010 |
HDB5#,HZB4#,5#..CBU,IV5 塗装不要 |
1 | ||
| 53101-36040 |
HZB40,50;BZB40,50,HDB5#,HZB41,46,56..HRF..(CBU,IV5) 塗装不要,ﾄｿｳ ﾅｼ |
1 | ||
| 58219B - BRACKET, FRONT FLOOR TO GRILLE | ||||
| 58219-36010 |
BB58,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 58219-36030 |
BZB40,50,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 58219-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| Common parts | ||||
| 90119-06615 | ||||
| 90159-40211 | ||||
| 90189-04007 | ||||
| 90189-04014 | ||||
| 90467-12020 | ||||
