HZB50-ZRMES (1993)

Toyota Coaster

Production Jan 1993 - Aug 2004
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9301-9505)

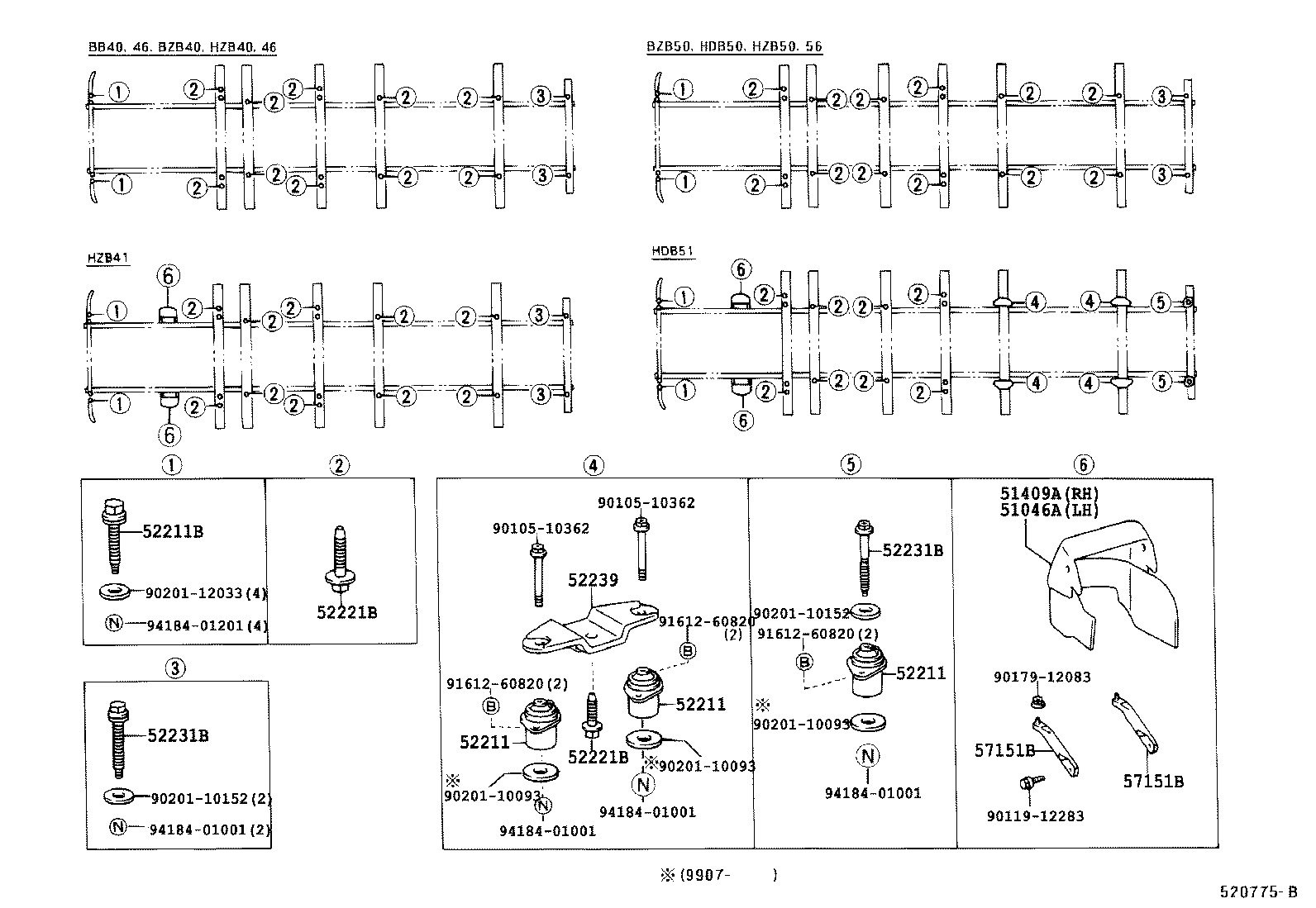

Click highlighted areas on diagram

diagram 51046A 51409A 52211 52211 52211 52211B 52221B 52221B 52231B 52231B 52239 57151B 57151B 9010510362 9010510362 9011912283 9017912083 9020110152 9020110152 9020112033 9161260820 9161260820 9161260820 9418401000 9418401000 9418401001 9418401001 9418401201
Part # Description Qty Price
52211 - CUSHION, BODY MOUNTING, NO.1 UPPER
52211-36030

HDB5#,HZB50..EX,GX,SULNG

 10
52211-36030

HDB5#,HZB50..EX,GX,SULNG

 10
52211 - CUSHION, BODY MOUNTING, NO.1 UPPER
52211-36030

HDB5#,HZB50..EX,GX,SULNG

 10
52211-36030

HDB5#,HZB50..EX,GX,SULNG

 10
52211 - CUSHION, BODY MOUNTING, NO.1 UPPER
52211-36030

HDB5#,HZB50..EX,GX,SULNG

 10
52211-36030

HDB5#,HZB50..EX,GX,SULNG

 10
52211B - BOLT(FOR BODY MOUNTING NO.1 CUSHION)
90119-12275

BB4#,HDB5#,HZB4#,5#

 4
90119-12275

BZB40,50,HDB5#,HZB4#,5#

 4
90119-12257

BB4#,HDB5#,HZB4#,5#

 4
52221B - BOLT(FOR BODY MOUNT NO.2 CUSHION)
90119-10762

HDB5#,HZB5#..CBU,IV5

 16
90119-10762

HDB5#,HZB5#..CBU,IV5

 16
52221B - BOLT(FOR BODY MOUNT NO.2 CUSHION)
90119-10762

HDB5#,HZB5#..CBU,IV5

 16
90119-10762

HDB5#,HZB5#..CBU,IV5

 16
52231B - BOLT(FOR BODY MOUNT NO.3 CUSHION)
90901-05014

HZB50..GX;BB58,HDB5#..CBU,IV5

 2
90119-10762

BB4#,HDB50,HZB4#,5#

 2
90119-10748

BB4#,HDB50,HZB40,5#

 2
90901-05014

HDB50,HZB50..GX;BB58,HDB51..CBU,IV5

 2
90119-10748

BB4#,HDB50,HZB4#,5#

 2
52231B - BOLT(FOR BODY MOUNT NO.3 CUSHION)
90901-05014

HZB50..GX;BB58,HDB5#..CBU,IV5

 2
90119-10762

BB4#,HDB50,HZB4#,5#

 2
90119-10748

BB4#,HDB50,HZB40,5#

 2
90901-05014

HDB50,HZB50..GX;BB58,HDB51..CBU,IV5

 2
90119-10748

BB4#,HDB50,HZB4#,5#

 2
52239 - PLATE, BODY MOUNTING
52239-36010

HDB5#,HZB50..EX,GX,SULNG

 4
52239-36010

HDB5#,HZB50..EX,GX,SULNG

 4
Common parts
90105-10362
90119-12283
90179-12083
90201-10152
90201-12033
91612-60820
94184-01000
94184-01001
94184-01201

(9505-0408)BB4#,BZB40,50,HDB5#,HZB4#,5#

Click highlighted areas on diagram

diagram 51046A 51409A 52211 52211 52211 52211B 52221B 52221B 52231B 52231B 52239 57151B 57151B 9010510362 9010510362 9011912283 9017912083 9020110093 9020110093 9020110093 9020110152 9020110152 9020112033 9161260820 9161260820 9161260820 9418401001 9418401001 9418401001 9418401001 9418401201
Part # Description Qty Price
52211 - CUSHION, BODY MOUNTING, NO.1 UPPER
52211-36030

HDB5#,HZB50..EX,GX,SULNG

 10
52211-36030

HDB5#,HZB50..EX,GX,SULNG

 10
52211 - CUSHION, BODY MOUNTING, NO.1 UPPER
52211-36030

HDB5#,HZB50..EX,GX,SULNG

 10
52211-36030

HDB5#,HZB50..EX,GX,SULNG

 10
52211 - CUSHION, BODY MOUNTING, NO.1 UPPER
52211-36030

HDB5#,HZB50..EX,GX,SULNG

 10
52211-36030

HDB5#,HZB50..EX,GX,SULNG

 10
52211B - BOLT(FOR BODY MOUNTING NO.1 CUSHION)
90119-12275

BB4#,HDB5#,HZB4#,5#

 4
90119-12275

BZB40,50,HDB5#,HZB4#,5#

 4
90119-12257

BB4#,HDB5#,HZB4#,5#

 4
52221B - BOLT(FOR BODY MOUNT NO.2 CUSHION)
90119-10762

HDB5#,HZB5#..CBU,IV5

 16
90119-10762

HDB5#,HZB5#..CBU,IV5

 16
52221B - BOLT(FOR BODY MOUNT NO.2 CUSHION)
90119-10762

HDB5#,HZB5#..CBU,IV5

 16
90119-10762

HDB5#,HZB5#..CBU,IV5

 16
52231B - BOLT(FOR BODY MOUNT NO.3 CUSHION)
90901-05014

HZB50..GX;BB58,HDB5#..CBU,IV5

 2
90119-10762

BB4#,HDB50,HZB4#,5#

 2
90119-10748

BB4#,HDB50,HZB40,5#

 2
90901-05014

HDB50,HZB50..GX;BB58,HDB51..CBU,IV5

 2
90119-10748

BB4#,HDB50,HZB4#,5#

 2
52231B - BOLT(FOR BODY MOUNT NO.3 CUSHION)
90901-05014

HZB50..GX;BB58,HDB5#..CBU,IV5

 2
90119-10762

BB4#,HDB50,HZB4#,5#

 2
90119-10748

BB4#,HDB50,HZB40,5#

 2
90901-05014

HDB50,HZB50..GX;BB58,HDB51..CBU,IV5

 2
90119-10748

BB4#,HDB50,HZB4#,5#

 2
52239 - PLATE, BODY MOUNTING
52239-36010

HDB5#,HZB50..EX,GX,SULNG

 4
52239-36010

HDB5#,HZB50..EX,GX,SULNG

 4
Common parts
90105-10362
90119-12283
90179-12083
90201-10093
90201-10152
90201-12033
91612-60820
94184-01001
94184-01201
