HZB50-ZRMES (1993)
Toyota Coaster

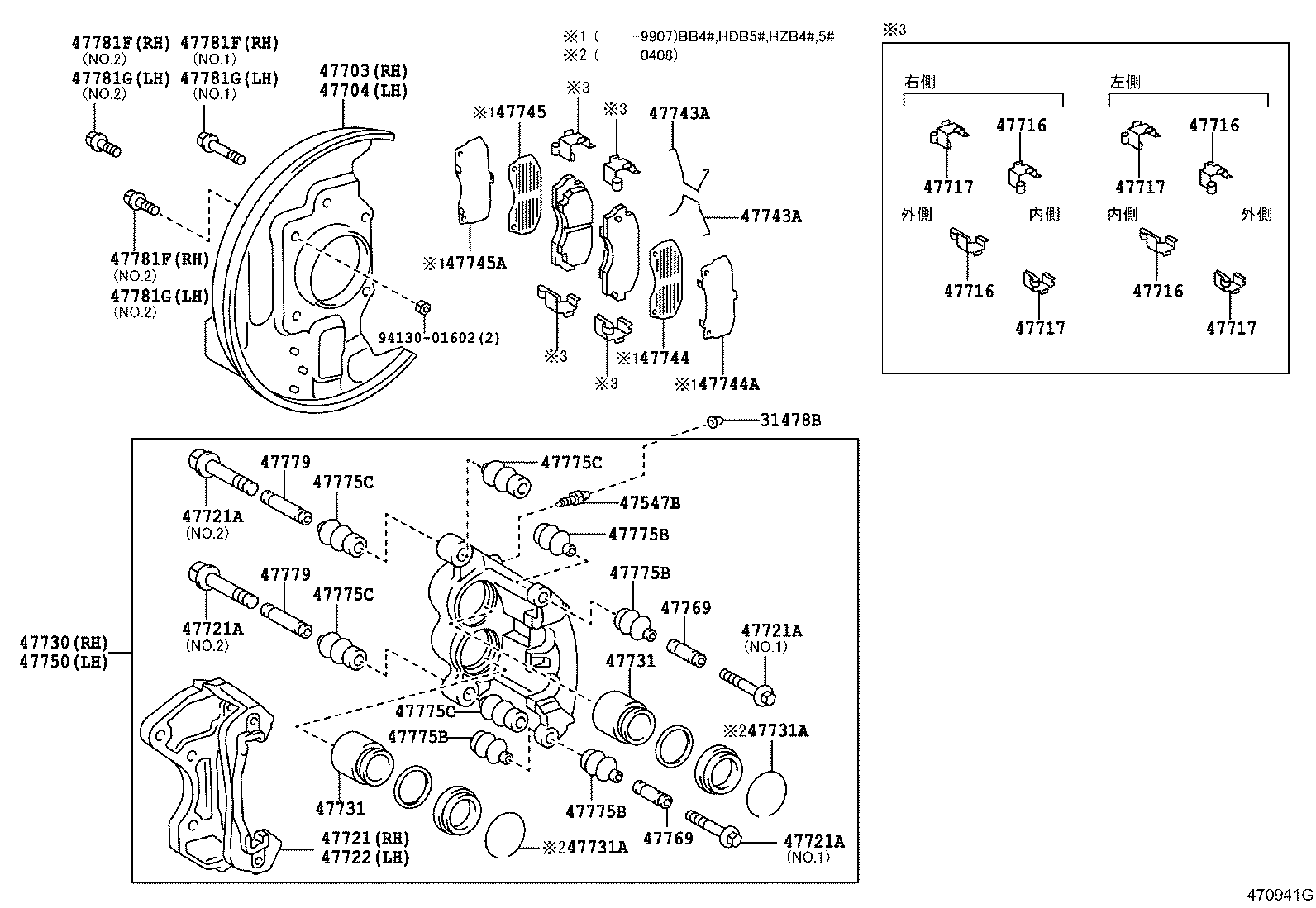

ILLUST NO. 1 OF 2(9505- )BB4#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
2 | ||
| 31478-30010 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-12010 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 47547-12010 |
BZB40,50,HDB5#,HZB4#,5# |
2 | ||
| 47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH | ||||
| 47703-36040 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47703-36060 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH | ||||
| 47704-36060 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 47704-36040 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-36020 |
BZB40,50,HDB5#,HZB4#,5# |
4 | ||
| 47716-36020 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-36020 |
BZB40,50,HDB5#,HZB4#,5# |
4 | ||
| 47716-36020 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-36020 |
BZB40,50,HDB5#,HZB4#,5# |
4 | ||
| 47716-36020 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-36020 |
BZB40,50,HDB5#,HZB4#,5# |
4 | ||
| 47716-36020 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-36020 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47717-36020 |
BZB40,50,HDB5#,HZB4#,5# |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-36020 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47717-36020 |
BZB40,50,HDB5#,HZB4#,5# |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-36020 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47717-36020 |
BZB40,50,HDB5#,HZB4#,5# |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-36020 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47717-36020 |
BZB40,50,HDB5#,HZB4#,5# |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-36040 |
HDB5#,HZB41,5# ｱﾘ(ABS) |
1 | ||
| 47721-36040 |
HDB5#,HZB41,5# |
1 | ||
| 47721-36040 |
BZB40,50 |
1 | ||
| 47721-36040 |
HZB40..26S..WC;HDB5#,HZB41,46,5#..09S,10S,20S,24S,26S,29S,49S ｱﾘ(ABS) |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-08992 |
BZB40,50,HDB5#,HZB4#,5# *8−1.25PX62−30,NO.1 |
4 | ||
| 90119-08992 |
BB4#,HDB5#,HZB4#,5# *8−1.25PX62−30,NO.1 |
4 | ||
| 90119-12256 |
BZB40,50,HDB5#,HZB4#,5# *12−1.25PX75−30,NO.2 |
4 | ||
| 90119-12256 |
BB4#,HDB5#,HZB4#,5# *12−1.25PX75−30,NO.2 |
4 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-08992 |
BZB40,50,HDB5#,HZB4#,5# *8−1.25PX62−30,NO.1 |
4 | ||
| 90119-08992 |
BB4#,HDB5#,HZB4#,5# *8−1.25PX62−30,NO.1 |
4 | ||
| 90119-12256 |
BZB40,50,HDB5#,HZB4#,5# *12−1.25PX75−30,NO.2 |
4 | ||
| 90119-12256 |
BB4#,HDB5#,HZB4#,5# *12−1.25PX75−30,NO.2 |
4 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-08992 |
BZB40,50,HDB5#,HZB4#,5# *8−1.25PX62−30,NO.1 |
4 | ||
| 90119-08992 |
BB4#,HDB5#,HZB4#,5# *8−1.25PX62−30,NO.1 |
4 | ||
| 90119-12256 |
BZB40,50,HDB5#,HZB4#,5# *12−1.25PX75−30,NO.2 |
4 | ||
| 90119-12256 |
BB4#,HDB5#,HZB4#,5# *12−1.25PX75−30,NO.2 |
4 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-08992 |
BZB40,50,HDB5#,HZB4#,5# *8−1.25PX62−30,NO.1 |
4 | ||
| 90119-08992 |
BB4#,HDB5#,HZB4#,5# *8−1.25PX62−30,NO.1 |
4 | ||
| 90119-12256 |
BZB40,50,HDB5#,HZB4#,5# *12−1.25PX75−30,NO.2 |
4 | ||
| 90119-12256 |
BB4#,HDB5#,HZB4#,5# *12−1.25PX75−30,NO.2 |
4 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-36040 |
HDB5#,HZB41,5# |
1 | ||
| 47722-36040 |
HDB5#,HZB41,5# ｱﾘ(ABS) |
1 | ||
| 47722-36040 |
HZB40..26S..WC;HDB5#,HZB41,46,5#..09S,10S,20S,24S,26S,29S,49S ｱﾘ(ABS) |
1 | ||
| 47722-36040 |
BZB40,50 |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-36040 |
HDB5#,HZB41,5# |
1 | ||
| 47730-36040 |
BZB40,50,HDB5#,HZB41,5# |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-36020 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47731-36020 |
BZB40,50,HDB5#,HZB4#,5# |
4 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-36020 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47731-36020 |
BZB40,50,HDB5#,HZB4#,5# |
4 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-61001 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 90522-61001 |
BZB40,50,HDB5#,HZB4#,5# |
4 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-61001 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 90522-61001 |
BZB40,50,HDB5#,HZB4#,5# |
4 | ||
| 47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) | ||||
| 47743-36020 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47743-36020 |
BZB40,50,HDB5#,HZB4#,5# |
4 | ||
| 47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) | ||||
| 47743-36020 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47743-36020 |
BZB40,50,HDB5#,HZB4#,5# |
4 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47742-36010 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 47744A - SHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE) | ||||
| 47745-36010 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47742-36010 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 47745A - SHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE) | ||||
| 47745-36010 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-36040 |
HDB5#,HZB41,5# |
1 | ||
| 47750-36040 |
BZB40,50,HDB5#,HZB41,5# |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-36030 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47769-36030 |
BZB40,50,HDB5#,HZB4#,5# |
4 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-36030 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47769-36030 |
BZB40,50,HDB5#,HZB4#,5# |
4 | ||
| 47775B - BOOT, BUSH DUST, NO.1 | ||||
| 47775-36040 |
BZB40,50,HDB5#,HZB4#,5# |
8 | ||
| 47775-36040 |
BB4#,HDB5#,HZB4#,5# |
8 | ||
| 47775B - BOOT, BUSH DUST, NO.1 | ||||
| 47775-36040 |
BZB40,50,HDB5#,HZB4#,5# |
8 | ||
| 47775-36040 |
BB4#,HDB5#,HZB4#,5# |
8 | ||
| 47775B - BOOT, BUSH DUST, NO.1 | ||||
| 47775-36040 |
BZB40,50,HDB5#,HZB4#,5# |
8 | ||
| 47775-36040 |
BB4#,HDB5#,HZB4#,5# |
8 | ||
| 47775B - BOOT, BUSH DUST, NO.1 | ||||
| 47775-36040 |
BZB40,50,HDB5#,HZB4#,5# |
8 | ||
| 47775-36040 |
BB4#,HDB5#,HZB4#,5# |
8 | ||
| 47775C - BOOT, BUSH DUST, NO.2 | ||||
| 47775-36050 |
BB4#,HDB5#,HZB4#,5# |
8 | ||
| 47775-36050 |
BZB40,50,HDB5#,HZB4#,5# |
8 | ||
| 47775C - BOOT, BUSH DUST, NO.2 | ||||
| 47775-36050 |
BB4#,HDB5#,HZB4#,5# |
8 | ||
| 47775-36050 |
BZB40,50,HDB5#,HZB4#,5# |
8 | ||
| 47775C - BOOT, BUSH DUST, NO.2 | ||||
| 47775-36050 |
BB4#,HDB5#,HZB4#,5# |
8 | ||
| 47775-36050 |
BZB40,50,HDB5#,HZB4#,5# |
8 | ||
| 47775C - BOOT, BUSH DUST, NO.2 | ||||
| 47775-36050 |
BB4#,HDB5#,HZB4#,5# |
8 | ||
| 47775-36050 |
BZB40,50,HDB5#,HZB4#,5# |
8 | ||
| 47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47779-36010 |
BZB40,50,HDB5#,HZB4#,5# |
4 | ||
| 47779-36010 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47779-36010 |
BZB40,50,HDB5#,HZB4#,5# |
4 | ||
| 47779-36010 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47781F - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH) | ||||
| 90105-16044 |
BB4#,HDB5#,HZB4#,5# NO.1 |
2 | ||
| 90105-16045 |
BB4#,HDB5#,HZB4#,5# NO.2 |
2 | ||
| 90105-16044 |
BZB40,50,HDB5#,HZB4#,5# NO.1 |
2 | ||
| 90105-16045 |
BZB40,50,HDB5#,HZB4#,5# NO.2 |
2 | ||
| 47781F - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH) | ||||
| 90105-16044 |
BB4#,HDB5#,HZB4#,5# NO.1 |
2 | ||
| 90105-16045 |
BB4#,HDB5#,HZB4#,5# NO.2 |
2 | ||
| 90105-16044 |
BZB40,50,HDB5#,HZB4#,5# NO.1 |
2 | ||
| 90105-16045 |
BZB40,50,HDB5#,HZB4#,5# NO.2 |
2 | ||
| 47781F - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH) | ||||
| 90105-16044 |
BB4#,HDB5#,HZB4#,5# NO.1 |
2 | ||
| 90105-16045 |
BB4#,HDB5#,HZB4#,5# NO.2 |
2 | ||
| 90105-16044 |
BZB40,50,HDB5#,HZB4#,5# NO.1 |
2 | ||
| 90105-16045 |
BZB40,50,HDB5#,HZB4#,5# NO.2 |
2 | ||
| 47781G - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH) | ||||
| 90105-16044 |
BZB40,50,HDB5#,HZB4#,5# NO.1 |
2 | ||
| 90105-16045 |
BB4#,HDB5#,HZB4#,5# NO.2 |
2 | ||
| 90105-16045 |
BZB40,50,HDB5#,HZB4#,5# NO.2 |
2 | ||
| 90105-16044 |
BB4#,HDB5#,HZB4#,5# NO.1 |
2 | ||
| 47781G - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH) | ||||
| 90105-16044 |
BZB40,50,HDB5#,HZB4#,5# NO.1 |
2 | ||
| 90105-16045 |
BB4#,HDB5#,HZB4#,5# NO.2 |
2 | ||
| 90105-16045 |
BZB40,50,HDB5#,HZB4#,5# NO.2 |
2 | ||
| 90105-16044 |
BB4#,HDB5#,HZB4#,5# NO.1 |
2 | ||
| 47781G - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH) | ||||
| 90105-16044 |
BZB40,50,HDB5#,HZB4#,5# NO.1 |
2 | ||
| 90105-16045 |
BB4#,HDB5#,HZB4#,5# NO.2 |
2 | ||
| 90105-16045 |
BZB40,50,HDB5#,HZB4#,5# NO.2 |
2 | ||
| 90105-16044 |
BB4#,HDB5#,HZB4#,5# NO.1 |
2 | ||
| Common parts | ||||
| 94130-01602 | ||||

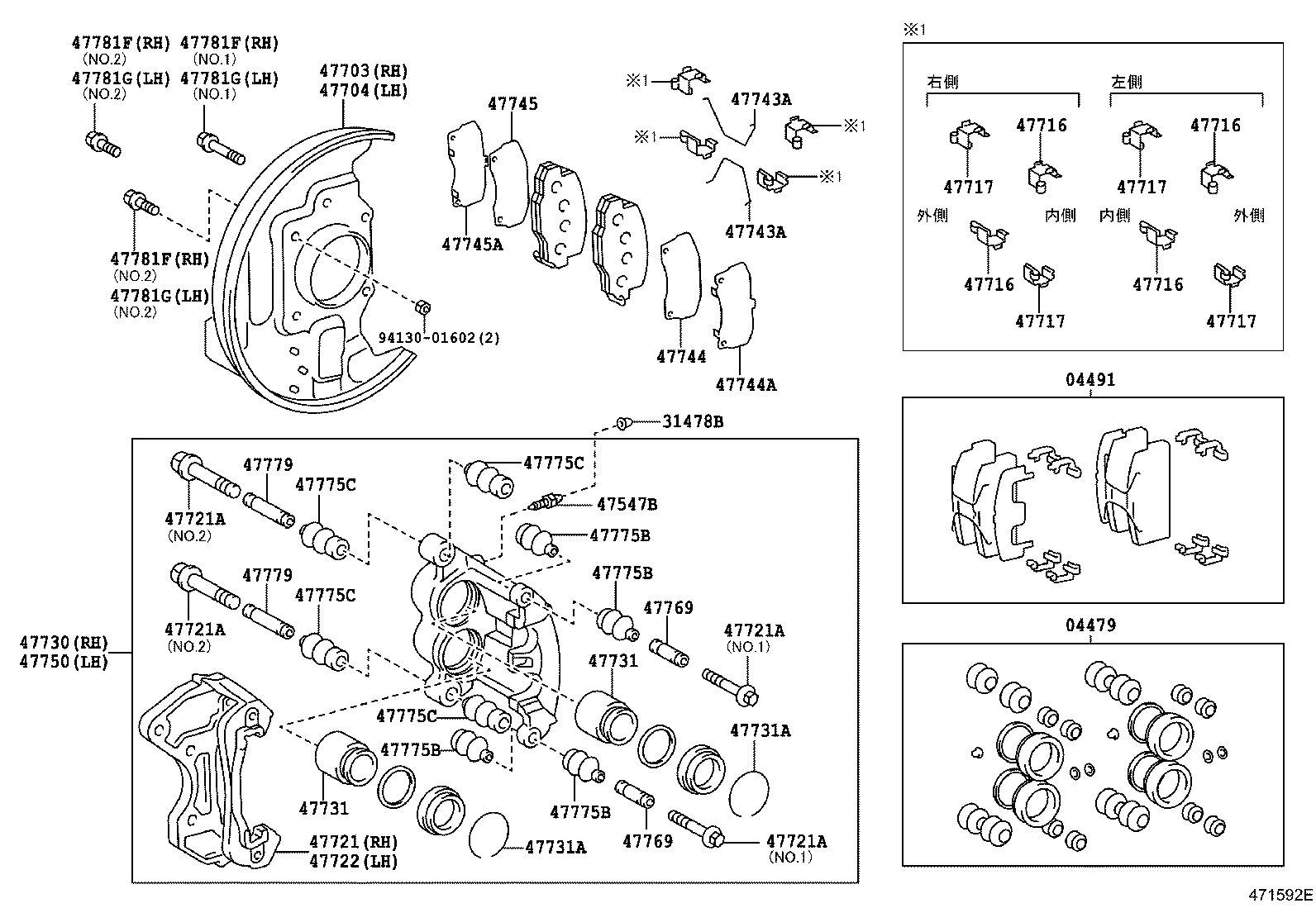

ILLUST NO. 1 OF 2(9301-9505)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

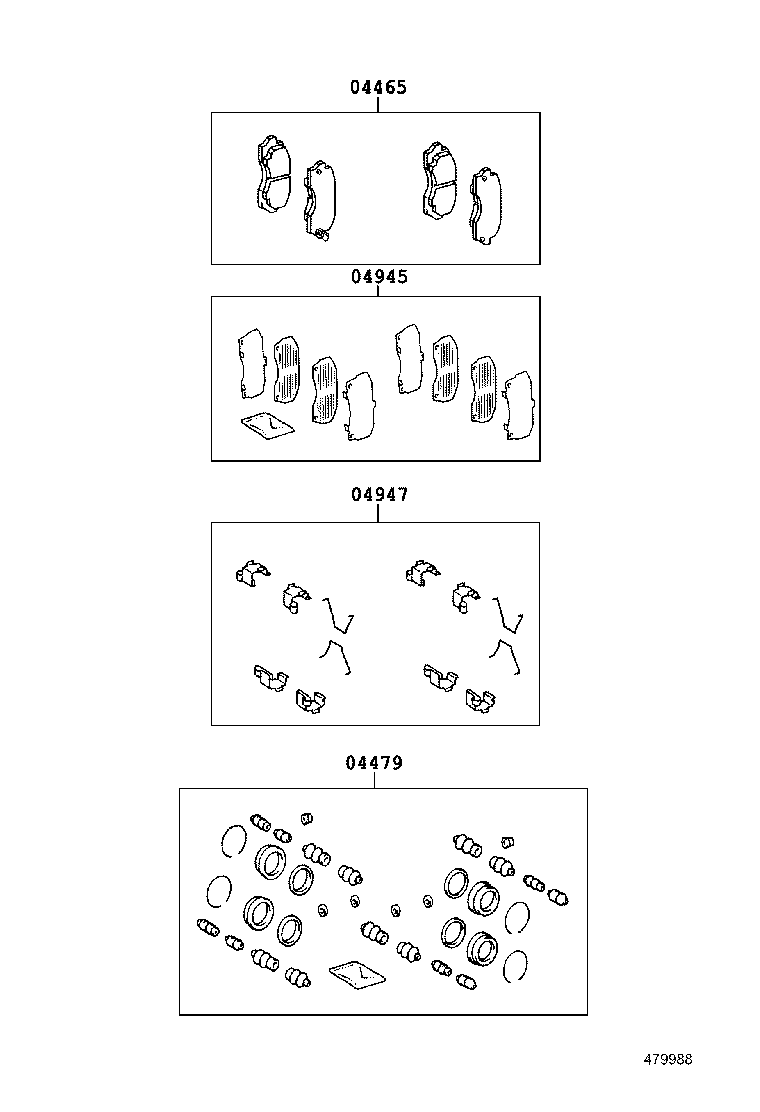

| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-36020 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 04479-36020 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 04491 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-36080 |
HDB5#,HZB41,5# |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
2 | ||
| 31478-30010 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-12010 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 47547-12010 |
BZB40,50,HDB5#,HZB4#,5# |
2 | ||
| 47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH | ||||
| 47703-36040 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47703-36060 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH | ||||
| 47704-36060 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 47704-36040 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-36020 |
BZB40,50,HDB5#,HZB4#,5# |
4 | ||
| 47716-36020 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-36020 |
BZB40,50,HDB5#,HZB4#,5# |
4 | ||
| 47716-36020 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-36020 |
BZB40,50,HDB5#,HZB4#,5# |
4 | ||
| 47716-36020 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-36020 |
BZB40,50,HDB5#,HZB4#,5# |
4 | ||
| 47716-36020 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-36020 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47717-36020 |
BZB40,50,HDB5#,HZB4#,5# |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-36020 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47717-36020 |
BZB40,50,HDB5#,HZB4#,5# |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-36020 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47717-36020 |
BZB40,50,HDB5#,HZB4#,5# |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-36020 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47717-36020 |
BZB40,50,HDB5#,HZB4#,5# |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-36040 |
HDB5#,HZB41,5# ｱﾘ(ABS) |
1 | ||
| 47721-36040 |
HDB5#,HZB41,5# |
1 | ||
| 47721-36040 |
BZB40,50 |
1 | ||
| 47721-36040 |
HZB40..26S..WC;HDB5#,HZB41,46,5#..09S,10S,20S,24S,26S,29S,49S ｱﾘ(ABS) |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-08992 |
BZB40,50,HDB5#,HZB4#,5# *8−1.25PX62−30,NO.1 |
4 | ||
| 90119-08992 |
BB4#,HDB5#,HZB4#,5# *8−1.25PX62−30,NO.1 |
4 | ||
| 90119-12256 |
BZB40,50,HDB5#,HZB4#,5# *12−1.25PX75−30,NO.2 |
4 | ||
| 90119-12256 |
BB4#,HDB5#,HZB4#,5# *12−1.25PX75−30,NO.2 |
4 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-08992 |
BZB40,50,HDB5#,HZB4#,5# *8−1.25PX62−30,NO.1 |
4 | ||
| 90119-08992 |
BB4#,HDB5#,HZB4#,5# *8−1.25PX62−30,NO.1 |
4 | ||
| 90119-12256 |
BZB40,50,HDB5#,HZB4#,5# *12−1.25PX75−30,NO.2 |
4 | ||
| 90119-12256 |
BB4#,HDB5#,HZB4#,5# *12−1.25PX75−30,NO.2 |
4 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-08992 |
BZB40,50,HDB5#,HZB4#,5# *8−1.25PX62−30,NO.1 |
4 | ||
| 90119-08992 |
BB4#,HDB5#,HZB4#,5# *8−1.25PX62−30,NO.1 |
4 | ||
| 90119-12256 |
BZB40,50,HDB5#,HZB4#,5# *12−1.25PX75−30,NO.2 |
4 | ||
| 90119-12256 |
BB4#,HDB5#,HZB4#,5# *12−1.25PX75−30,NO.2 |
4 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-08992 |
BZB40,50,HDB5#,HZB4#,5# *8−1.25PX62−30,NO.1 |
4 | ||
| 90119-08992 |
BB4#,HDB5#,HZB4#,5# *8−1.25PX62−30,NO.1 |
4 | ||
| 90119-12256 |
BZB40,50,HDB5#,HZB4#,5# *12−1.25PX75−30,NO.2 |
4 | ||
| 90119-12256 |
BB4#,HDB5#,HZB4#,5# *12−1.25PX75−30,NO.2 |
4 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-36040 |
HDB5#,HZB41,5# |
1 | ||
| 47722-36040 |
HDB5#,HZB41,5# ｱﾘ(ABS) |
1 | ||
| 47722-36040 |
HZB40..26S..WC;HDB5#,HZB41,46,5#..09S,10S,20S,24S,26S,29S,49S ｱﾘ(ABS) |
1 | ||
| 47722-36040 |
BZB40,50 |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-36040 |
HDB5#,HZB41,5# |
1 | ||
| 47730-36040 |
BZB40,50,HDB5#,HZB41,5# |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-36020 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47731-36020 |
BZB40,50,HDB5#,HZB4#,5# |
4 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-36020 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47731-36020 |
BZB40,50,HDB5#,HZB4#,5# |
4 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-61001 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 90522-61001 |
BZB40,50,HDB5#,HZB4#,5# |
4 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-61001 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 90522-61001 |
BZB40,50,HDB5#,HZB4#,5# |
4 | ||
| 47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) | ||||
| 47743-36020 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47743-36020 |
BZB40,50,HDB5#,HZB4#,5# |
4 | ||
| 47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) | ||||
| 47743-36020 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47743-36020 |
BZB40,50,HDB5#,HZB4#,5# |
4 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47742-36010 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 47744A - SHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE) | ||||
| 47745-36010 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47742-36010 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 47745A - SHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE) | ||||
| 47745-36010 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-36040 |
HDB5#,HZB41,5# |
1 | ||
| 47750-36040 |
BZB40,50,HDB5#,HZB41,5# |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-36030 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47769-36030 |
BZB40,50,HDB5#,HZB4#,5# |
4 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-36030 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47769-36030 |
BZB40,50,HDB5#,HZB4#,5# |
4 | ||
| 47775B - BOOT, BUSH DUST, NO.1 | ||||
| 47775-36040 |
BZB40,50,HDB5#,HZB4#,5# |
8 | ||
| 47775-36040 |
BB4#,HDB5#,HZB4#,5# |
8 | ||
| 47775B - BOOT, BUSH DUST, NO.1 | ||||
| 47775-36040 |
BZB40,50,HDB5#,HZB4#,5# |
8 | ||
| 47775-36040 |
BB4#,HDB5#,HZB4#,5# |
8 | ||
| 47775B - BOOT, BUSH DUST, NO.1 | ||||
| 47775-36040 |
BZB40,50,HDB5#,HZB4#,5# |
8 | ||
| 47775-36040 |
BB4#,HDB5#,HZB4#,5# |
8 | ||
| 47775B - BOOT, BUSH DUST, NO.1 | ||||
| 47775-36040 |
BZB40,50,HDB5#,HZB4#,5# |
8 | ||
| 47775-36040 |
BB4#,HDB5#,HZB4#,5# |
8 | ||
| 47775C - BOOT, BUSH DUST, NO.2 | ||||
| 47775-36050 |
BB4#,HDB5#,HZB4#,5# |
8 | ||
| 47775-36050 |
BZB40,50,HDB5#,HZB4#,5# |
8 | ||
| 47775C - BOOT, BUSH DUST, NO.2 | ||||
| 47775-36050 |
BB4#,HDB5#,HZB4#,5# |
8 | ||
| 47775-36050 |
BZB40,50,HDB5#,HZB4#,5# |
8 | ||
| 47775C - BOOT, BUSH DUST, NO.2 | ||||
| 47775-36050 |
BB4#,HDB5#,HZB4#,5# |
8 | ||
| 47775-36050 |
BZB40,50,HDB5#,HZB4#,5# |
8 | ||
| 47775C - BOOT, BUSH DUST, NO.2 | ||||
| 47775-36050 |
BB4#,HDB5#,HZB4#,5# |
8 | ||
| 47775-36050 |
BZB40,50,HDB5#,HZB4#,5# |
8 | ||
| 47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47779-36010 |
BZB40,50,HDB5#,HZB4#,5# |
4 | ||
| 47779-36010 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47779-36010 |
BZB40,50,HDB5#,HZB4#,5# |
4 | ||
| 47779-36010 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 47781F - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH) | ||||
| 90105-16044 |
BB4#,HDB5#,HZB4#,5# NO.1 |
2 | ||
| 90105-16045 |
BB4#,HDB5#,HZB4#,5# NO.2 |
2 | ||
| 90105-16044 |
BZB40,50,HDB5#,HZB4#,5# NO.1 |
2 | ||
| 90105-16045 |
BZB40,50,HDB5#,HZB4#,5# NO.2 |
2 | ||
| 47781F - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH) | ||||
| 90105-16044 |
BB4#,HDB5#,HZB4#,5# NO.1 |
2 | ||
| 90105-16045 |
BB4#,HDB5#,HZB4#,5# NO.2 |
2 | ||
| 90105-16044 |
BZB40,50,HDB5#,HZB4#,5# NO.1 |
2 | ||
| 90105-16045 |
BZB40,50,HDB5#,HZB4#,5# NO.2 |
2 | ||
| 47781F - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH) | ||||
| 90105-16044 |
BB4#,HDB5#,HZB4#,5# NO.1 |
2 | ||
| 90105-16045 |
BB4#,HDB5#,HZB4#,5# NO.2 |
2 | ||
| 90105-16044 |
BZB40,50,HDB5#,HZB4#,5# NO.1 |
2 | ||
| 90105-16045 |
BZB40,50,HDB5#,HZB4#,5# NO.2 |
2 | ||
| 47781G - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH) | ||||
| 90105-16044 |
BZB40,50,HDB5#,HZB4#,5# NO.1 |
2 | ||
| 90105-16045 |
BB4#,HDB5#,HZB4#,5# NO.2 |
2 | ||
| 90105-16045 |
BZB40,50,HDB5#,HZB4#,5# NO.2 |
2 | ||
| 90105-16044 |
BB4#,HDB5#,HZB4#,5# NO.1 |
2 | ||
| 47781G - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH) | ||||
| 90105-16044 |
BZB40,50,HDB5#,HZB4#,5# NO.1 |
2 | ||
| 90105-16045 |
BB4#,HDB5#,HZB4#,5# NO.2 |
2 | ||
| 90105-16045 |
BZB40,50,HDB5#,HZB4#,5# NO.2 |
2 | ||
| 90105-16044 |
BB4#,HDB5#,HZB4#,5# NO.1 |
2 | ||
| 47781G - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH) | ||||
| 90105-16044 |
BZB40,50,HDB5#,HZB4#,5# NO.1 |
2 | ||
| 90105-16045 |
BB4#,HDB5#,HZB4#,5# NO.2 |
2 | ||
| 90105-16045 |
BZB40,50,HDB5#,HZB4#,5# NO.2 |
2 | ||
| 90105-16044 |
BB4#,HDB5#,HZB4#,5# NO.1 |
2 | ||
| Common parts | ||||
| 94130-01602 | ||||
ILLUST NO. 2 OF 2(9505- )BB4#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-36030 |
HDB5#,HZB41,5# ﾏｰｸ AISIN PC519 |
1 | ||
| 04465-36080 |
BZB40,50,HDB5#,HZB41,5# ﾏｰｸ AISIN T536 |
1 | ||
| 04465-36030 |
HDB5#,HZB41,5# ﾏｰｸ AISIN PC519 |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-36020 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 04479-36020 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 04945-36010 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-36020 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 04947-36020 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
ILLUST NO. 2 OF 2(9301-9505)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-36030 |
HDB5#,HZB41,5# ﾏｰｸ AISIN PC519 |
1 | ||
| 04465-36080 |
BZB40,50,HDB5#,HZB41,5# ﾏｰｸ AISIN T536 |
1 | ||
| 04465-36030 |
HDB5#,HZB41,5# ﾏｰｸ AISIN PC519 |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 04945-36010 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-36020 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 04947-36020 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
