HZB50-ZRMES (1993)
Toyota Coaster
ILLUST NO. 1 OF 2(9301-9907)BB4#,5# ; (0203- )BZB40,50
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-36090 |
HDB5#,HZB4#,5# |
1 | ||
| 04446-36100 |
BZB40,50 |
1 | ||
| 04446-36090 |
HZB4#,5# |
1 | ||
| 44033 - ROTOR SUB-ASSY, W/CAM & VANE | ||||
| 44033-36040 |
BB55,HDB5#,HZB4#,5# |
1 | ||
| 44033-36040 |
BZB40,50,HZB4#,5# |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-36200 |
HDB5#,HZB4#,5# |
1 | ||
| 44302-36210 |
BB4#,5# |
1 | ||
| 44302-36200 |
HZB4#,5# |
1 | ||
| 44302-36210 |
BZB40,50 |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90029-20043 |
BB55,HDB5#,HZB4#,5# |
1 | ||
| 90029-20043 |
BZB40,50,HZB4#,5# |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90029-21018 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 90029-21018 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) | ||||
| 96151-04000 |
BZB40,50,HZB4#,5# |
1 | ||
| 96151-04000 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44304-36200 |
HDB5#,HZB4#,5# |
1 | ||
| 44304-36210 |
BZB40,50 |
1 | ||
| 44304-36200 |
HZB4#,5# |
1 | ||
| 44310C - RING, O(FOR VANE PUMP) | ||||
| 90301-60002 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 90301-60002 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90029-18002 |
HDB5#,HZB4#,5# |
1 | ||
| 90029-18001 |
BB4#,5# |
1 | ||
| 90029-18002 |
HZB4#,5# |
1 | ||
| 90029-18001 |
BZB40,50 |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-36110 |
BB4#,5# |
1 | ||
| 44312-89101 |
HZB4#,5# |
1 | ||
| 44312-36110 |
BZB40,50 |
1 | ||
| 44312-89101 |
HDB5#,HZB4#,5# |
1 | ||
| 44312A - BEARING(FOR VANE PUMP SHAFT) | ||||
| 90029-36003 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 90029-36003 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90029-52402 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 90029-52402 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 44316 - GEAR, VANE PUMP | ||||
| 44316-36020 |
BB4#,5# |
1 | ||
| 44316-60010 |
HDB5#,HZB4#,5# |
1 | ||
| 44316-36020 |
BZB40,50 |
1 | ||
| 44316-60010 |
HZB4#,5# |
1 | ||
| 44316A - RING | ||||
| 96150-01700 |
BB4#,5# |
1 | ||
| 96150-01700 |
BZB40,50 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-36240 |
HDB5#,HZB4#,5# |
1 | ||
| 44320-36240 |
HZB4#,5# |
1 | ||
| 44320-36250 |
BZB40,50 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-36240 |
HDB5#,HZB4#,5# |
1 | ||
| 44320-36240 |
HZB4#,5# |
1 | ||
| 44320-36250 |
BZB40,50 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 44347-89101 |
BB4#,5#,HDB5#,HZB4#,5# 長さ=29.1 |
1 | ||
| 44347-89101 |
BZB40,50,HZB4#,5# 長さ=29.1 |
1 | ||
| 44328B - END, VANE PUMP HOUSING | ||||
| 44328-89101 |
BZB40,50,HZB4#,5# |
1 | ||
| 44328-89101 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 44328C - RING, O(FOR PUMP HOUSING END) | ||||
| 90029-20042 |
BB55,HDB5#,HZB4#,5# |
1 | ||
| 90029-20042 |
BZB40,50,HZB4#,5# |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-36200 |
BB55,HDB5#,HZB4#,5# 二本溝 |
1 | ||
| 44330-36210 |
BB55,HDB5#,HZB4#,5# 一本溝 |
1 | ||
| 44330-36220 |
BZB40,50,HZB4#,5# 溝無し |
1 | ||
| 44330-36220 |
BB55,HDB5#,HZB4#,5# 溝無し |
1 | ||
| 44330-36210 |
BZB40,50,HZB4#,5# 一本溝 |
1 | ||
| 44330-36200 |
BZB40,50,HZB4#,5# 二本溝 |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90029-60002 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 90029-60002 |
BZB40,50,HZB4#,5# |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-36040 |
BZB40,50,HZB4#,5# |
1 | ||
| 44342-36040 |
BB55,HDB5#,HZB4#,5# |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 96711-24060 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 96711-24060 |
BZB40,50,HZB4#,5# |
1 | ||
| 44342B - SPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90029-60003 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 90029-60003 |
BZB40,50,HZB4#,5# |
1 | ||
| Common parts | ||||
| 91612-61035 | ||||
| 91612-B1020 | ||||

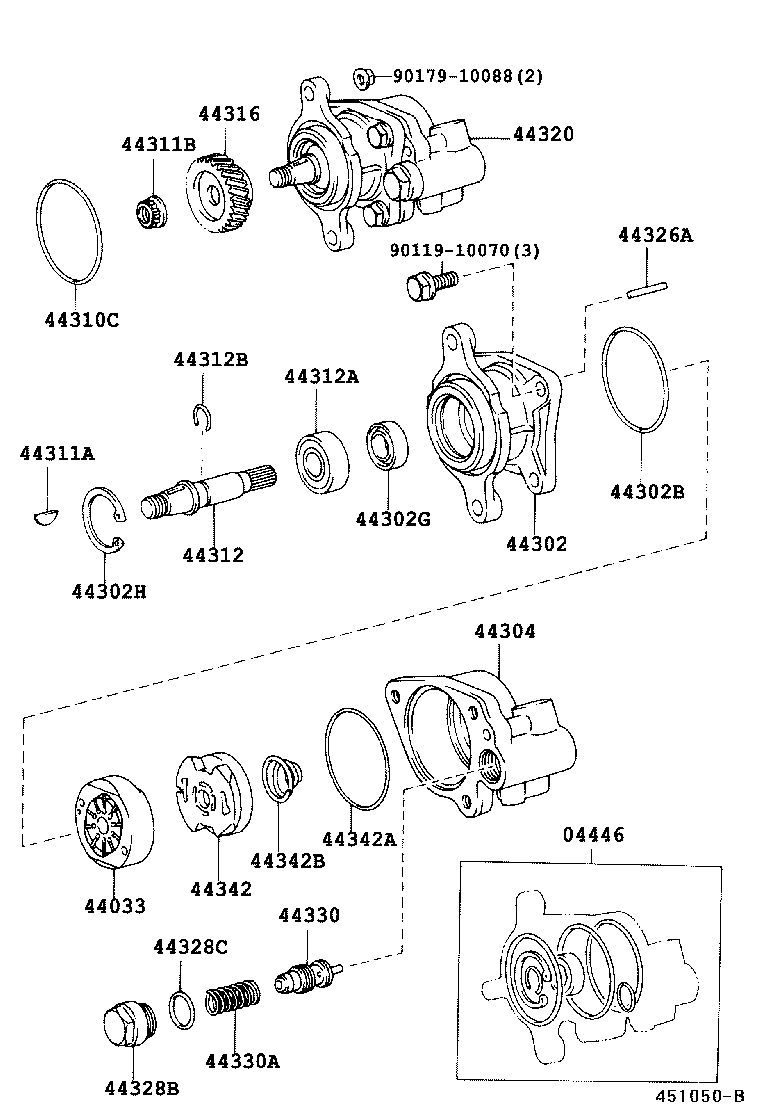

ILLUST NO. 1 OF 2(9301-9907)HDB5#,HZB4#,5# ; (9907-0408)HZB4#,5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-36090 |
HDB5#,HZB4#,5# |
1 | ||
| 04446-36100 |
BZB40,50 |
1 | ||
| 04446-36090 |
HZB4#,5# |
1 | ||
| 44033 - ROTOR SUB-ASSY, W/CAM & VANE | ||||
| 44033-36040 |
BB55,HDB5#,HZB4#,5# |
1 | ||
| 44033-36040 |
BZB40,50,HZB4#,5# |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-36200 |
HDB5#,HZB4#,5# |
1 | ||
| 44302-36210 |
BB4#,5# |
1 | ||
| 44302-36200 |
HZB4#,5# |
1 | ||
| 44302-36210 |
BZB40,50 |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90029-20043 |
BB55,HDB5#,HZB4#,5# |
1 | ||
| 90029-20043 |
BZB40,50,HZB4#,5# |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90029-21018 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 90029-21018 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) | ||||
| 96151-04000 |
BZB40,50,HZB4#,5# |
1 | ||
| 96151-04000 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44304-36200 |
HDB5#,HZB4#,5# |
1 | ||
| 44304-36210 |
BZB40,50 |
1 | ||
| 44304-36200 |
HZB4#,5# |
1 | ||
| 44310C - RING, O(FOR VANE PUMP) | ||||
| 90301-60002 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 90301-60002 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90029-18002 |
HDB5#,HZB4#,5# |
1 | ||
| 90029-18001 |
BB4#,5# |
1 | ||
| 90029-18002 |
HZB4#,5# |
1 | ||
| 90029-18001 |
BZB40,50 |
1 | ||
| 44311B - NUT(FOR VANE PUMP PULLEY) | ||||
| 90179-14009 |
HDB5#,HZB4#,5# |
1 | ||
| 90179-14009 |
HZB4#,5# |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-36110 |
BB4#,5# |
1 | ||
| 44312-89101 |
HZB4#,5# |
1 | ||
| 44312-36110 |
BZB40,50 |
1 | ||
| 44312-89101 |
HDB5#,HZB4#,5# |
1 | ||
| 44312A - BEARING(FOR VANE PUMP SHAFT) | ||||
| 90029-36003 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 90029-36003 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90029-52402 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 90029-52402 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 44316 - GEAR, VANE PUMP | ||||
| 44316-36020 |
BB4#,5# |
1 | ||
| 44316-60010 |
HDB5#,HZB4#,5# |
1 | ||
| 44316-36020 |
BZB40,50 |
1 | ||
| 44316-60010 |
HZB4#,5# |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-36240 |
HDB5#,HZB4#,5# |
1 | ||
| 44320-36240 |
HZB4#,5# |
1 | ||
| 44320-36250 |
BZB40,50 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 44347-89101 |
BB4#,5#,HDB5#,HZB4#,5# 長さ=29.1 |
1 | ||
| 44347-89101 |
BZB40,50,HZB4#,5# 長さ=29.1 |
1 | ||
| 44328B - END, VANE PUMP HOUSING | ||||
| 44328-89101 |
BZB40,50,HZB4#,5# |
1 | ||
| 44328-89101 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 44328C - RING, O(FOR PUMP HOUSING END) | ||||
| 90029-20042 |
BB55,HDB5#,HZB4#,5# |
1 | ||
| 90029-20042 |
BZB40,50,HZB4#,5# |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-36200 |
BB55,HDB5#,HZB4#,5# 二本溝 |
1 | ||
| 44330-36210 |
BB55,HDB5#,HZB4#,5# 一本溝 |
1 | ||
| 44330-36220 |
BZB40,50,HZB4#,5# 溝無し |
1 | ||
| 44330-36220 |
BB55,HDB5#,HZB4#,5# 溝無し |
1 | ||
| 44330-36210 |
BZB40,50,HZB4#,5# 一本溝 |
1 | ||
| 44330-36200 |
BZB40,50,HZB4#,5# 二本溝 |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90029-60002 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 90029-60002 |
BZB40,50,HZB4#,5# |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-36040 |
BZB40,50,HZB4#,5# |
1 | ||
| 44342-36040 |
BB55,HDB5#,HZB4#,5# |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 96711-24060 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 96711-24060 |
BZB40,50,HZB4#,5# |
1 | ||
| 44342B - SPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90029-60003 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 90029-60003 |
BZB40,50,HZB4#,5# |
1 | ||
| Common parts | ||||
| 90119-10070 | ||||
| 90179-10088 | ||||
ILLUST NO. 2 OF 2(9301-0408)BB4#,5#,HDB5#,HZB4#,5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44037-36080 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 44037-36080 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 44310B - UNION(FOR VANE PUMP) | ||||
| 90405-16031 |
HZB4#,5# |
1 | ||
| 90405-16031 |
HDB5#,HZB4#,5# |
1 | ||
| 44337-37010 |
BZB40,50 |
1 | ||
| 44310B - UNION(FOR VANE PUMP) | ||||
| 90405-16031 |
HZB4#,5# |
1 | ||
| 90405-16031 |
HDB5#,HZB4#,5# |
1 | ||
| 44337-37010 |
BZB40,50 |
1 | ||
| 44310D - RING, O(FOR VANE PUMP UNION) | ||||
| 96711-19019 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 96711-19019 |
BZB40,50,HZB4#,5# |
1 | ||
| 44310D - RING, O(FOR VANE PUMP UNION) | ||||
| 96711-19019 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 96711-19019 |
BZB40,50,HZB4#,5# |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-36331 |
HZB4#,5# |
1 | ||
| 44360-36330 |
HDB5#,HZB4#,5# |
1 | ||
| 44360-36331 |
HDB5#,HZB4#,5# |
1 | ||
| 44360-36390 |
BZB40,50 |
1 | ||
| 44363 - STRAINER, OIL(FOR VANE PUMP) | ||||
| 44363-36040 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 44363-36040 |
HZB4#,5# |
1 | ||
| 44391 - PLATE, POWER STEERING OIL RESERVOIR CAUTION | ||||
| 44391-36020 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 44391-36020 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| Common parts | ||||
| 90029-10600 | ||||
| 90029-20701 | ||||
| 91611-60812 | ||||
| 91611-G0612 | ||||
| Linked diagrams | ||||
| 4503 | ||||
ILLUST NO. 2 OF 2(0203- )BZB40,50
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44310B - UNION(FOR VANE PUMP) | ||||
| 90405-16031 |
HZB4#,5# |
1 | ||
| 90405-16031 |
HDB5#,HZB4#,5# |
1 | ||
| 44337-37010 |
BZB40,50 |
1 | ||
| 44310D - RING, O(FOR VANE PUMP UNION) | ||||
| 96711-19019 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 96711-19019 |
BZB40,50,HZB4#,5# |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-36331 |
HZB4#,5# |
1 | ||
| 44360-36330 |
HDB5#,HZB4#,5# |
1 | ||
| 44360-36331 |
HDB5#,HZB4#,5# |
1 | ||
| 44360-36390 |
BZB40,50 |
1 | ||
| 44391 - PLATE, POWER STEERING OIL RESERVOIR CAUTION | ||||
| 44391-36020 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 44391-36020 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| Common parts | ||||
| 91611-G0612 | ||||
| Linked diagrams | ||||
| 4503 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
