HZB50-ZRMES (1993)
Toyota Coaster
(9301-9907)BB4#,HDB5#,HZB4#,5#
ﾃﾞｨｽｸ ﾌﾞﾚｰｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42627 - BOLT, FRONT WHEEL CAP SET | ||||
| 42627-36011 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 42627-36020 |
BZB40,50,HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..WC |
6 | ||
| 42627-36011 |
HDB5#,HZB41,50..EX,GX,SULNG |
4 | ||
| 42627-36020 |
HDB5#,HZB40,41,50..(20S,26S,29S)..WC..(CBU,IV5) |
6 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02071 |
BZB40,50,HDB5#,HZB4#,5# |
5 | ||
| 90942-02071 |
BB4#,HDB5#,HZB4#,5# |
5 | ||
| 43501F - SEAL, OIL (FOR FRONT AXLE HUB RH) | ||||
| 90311-68002 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 90311-68001 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 43501H - NUT (FOR FRONT AXLE SHAFT RH) | ||||
| 90178-28001 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 90170-26001 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 43501L - WASHER, CLAW (FOR FRONT AXLE HUB RH) | ||||
| 90214-27001 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 90214-29001 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 43501M - BEARING (FOR FRONT AXLE HUB INNER RH) | ||||
| 90366-50069 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 90368-42045 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 43501N - BEARING (FOR FRONT AXLE HUB OUTER RH) | ||||
| 90366-35105 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 90368-28001 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02072 |
BZB40,50,HDB5#,HZB4#,5# |
5 | ||
| 90942-02072 |
BB4#,HDB5#,HZB4#,5# |
5 | ||
| 43502F - SEAL, OIL (FOR FRONT AXLE HUB LH) | ||||
| 90311-68001 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 90311-68002 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 43502H - NUT (FOR FRONT AXLE SHAFT LH) | ||||
| 90170-26001 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 90178-28001 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 43502L - WASHER, CLAW (FOR FRONT AXLE HUB LH) | ||||
| 90214-29001 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 90214-27001 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 43502M - BEARING (FOR FRONT AXLE HUB INNER LH) | ||||
| 90368-42045 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 90366-50069 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 43502N - BEARING (FOR FRONT AXLE HUB OUTER LH) | ||||
| 90366-35105 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 90368-28001 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 43510H - HUB & DISC(DRUM) ASSY, FRONT AXLE, RH | ||||
| 43510-39075 |
HDB5#,HZB4#,5#..(09S,20S,26S,29S,49S)..(CBU,IV5) ｱﾘ(ABS) |
1 | ||
| 43510-39115 |
HZB50;BZB40,50,HDB5#,HZB41,56..HRF |
1 | ||
| 43510-39065 |
HDB5#,HZB41,5#..CBU,IV5 |
1 | ||
| 43512 - DISC, FRONT | ||||
| 43512-36180 |
HDB5#,HZB41,5# ｱﾘ(ABS) |
2 | ||
| 43512-36180 |
HDB5#,HZB4#,5#..09S,20S,26S,29S,49S ｱﾘ(ABS) |
2 | ||
| 43512-36181 |
HZB50;HDB5#,HZB4#,56..(08S,09S,19S,20S,26S,29S)..WC ｱﾘ(ABS) |
2 | ||
| 43512-36181 |
BZB40,50;HDB51,HZB41..IV5 |
2 | ||
| 43514B - CAP, FRONT AXLE HUB GREASE, RH | ||||
| 43514-36050 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 43514-37030 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 43514C - CAP, FRONT AXLE HUB GREASE, LH | ||||
| 43514-37030 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 43514-36050 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 43520A - HUB & DISC(DRUM) ASSY, FRONT AXLE, LH | ||||
| 43520-39055 |
HDB5#,HZB4#,5#..(09S,20S,26S,29S,49S)..(CBU,IV5) ｱﾘ(ABS) |
1 | ||
| 43520-39045 |
HDB5#,HZB41,5#..CBU,IV5 |
1 | ||
| 43520-39095 |
HZB50;BZB40,50,HDB5#,HZB41,56..HRF |
1 | ||
| 43525B - CAP, FRONT WHEEL ADJUSTING LOCK, RH | ||||
| 43525-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 43525-37010 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 43525C - CAP, FRONT WHEEL ADJUSTING LOCK, LH | ||||
| 43525-37010 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 43525-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| Common parts | ||||
| 90105-14101 | ||||
| 90252-05001 | ||||
| 94512-00800 | ||||

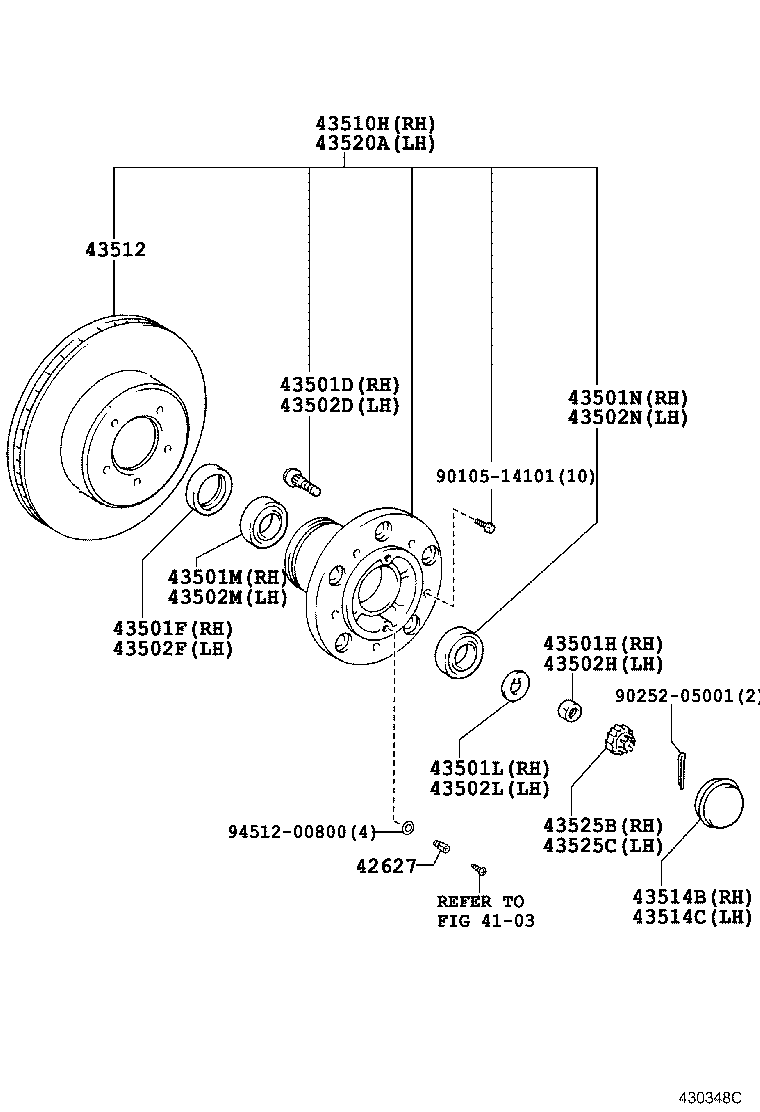

| Linked diagrams | ||||
| 4103 | ||||
(9907- )BZB40,50,HDB5#,HZB4#,5#,XZB4#,5#
ﾃﾞｨｽｸ ﾌﾞﾚｰｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42627 - BOLT, FRONT WHEEL CAP SET | ||||
| 42627-36011 |
BB4#,HDB5#,HZB4#,5# |
4 | ||
| 42627-36020 |
BZB40,50,HDB5#,HZB40,41,50..(10S,20S,24S,26S,29S)..WC |
6 | ||
| 42627-36011 |
HDB5#,HZB41,50..EX,GX,SULNG |
4 | ||
| 42627-36020 |
HDB5#,HZB40,41,50..(20S,26S,29S)..WC..(CBU,IV5) |
6 | ||
| 43226 - SPACER, STEERING KNUCKLE | ||||
| 43226-37020 |
BZB40,50,HDB5#,HZB4#,5# |
2 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02071 |
BZB40,50,HDB5#,HZB4#,5# |
5 | ||
| 90942-02071 |
BB4#,HDB5#,HZB4#,5# |
5 | ||
| 43501F - SEAL, OIL (FOR FRONT AXLE HUB RH) | ||||
| 90311-68002 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 90311-68001 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 43501H - NUT (FOR FRONT AXLE SHAFT RH) | ||||
| 90178-28001 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 90170-26001 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 43501L - WASHER, CLAW (FOR FRONT AXLE HUB RH) | ||||
| 90214-27001 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 90214-29001 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 43501M - BEARING (FOR FRONT AXLE HUB INNER RH) | ||||
| 90366-50069 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 90368-42045 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 43501N - BEARING (FOR FRONT AXLE HUB OUTER RH) | ||||
| 90366-35105 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 90368-28001 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02072 |
BZB40,50,HDB5#,HZB4#,5# |
5 | ||
| 90942-02072 |
BB4#,HDB5#,HZB4#,5# |
5 | ||
| 43502F - SEAL, OIL (FOR FRONT AXLE HUB LH) | ||||
| 90311-68001 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 90311-68002 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 43502H - NUT (FOR FRONT AXLE SHAFT LH) | ||||
| 90170-26001 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 90178-28001 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 43502L - WASHER, CLAW (FOR FRONT AXLE HUB LH) | ||||
| 90214-29001 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 90214-27001 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 43502M - BEARING (FOR FRONT AXLE HUB INNER LH) | ||||
| 90368-42045 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 90366-50069 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 43502N - BEARING (FOR FRONT AXLE HUB OUTER LH) | ||||
| 90366-35105 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 90368-28001 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 43510H - HUB & DISC(DRUM) ASSY, FRONT AXLE, RH | ||||
| 43510-39075 |
HDB5#,HZB4#,5#..(09S,20S,26S,29S,49S)..(CBU,IV5) ｱﾘ(ABS) |
1 | ||
| 43510-39115 |
HZB50;BZB40,50,HDB5#,HZB41,56..HRF |
1 | ||
| 43510-39065 |
HDB5#,HZB41,5#..CBU,IV5 |
1 | ||
| 43512 - DISC, FRONT | ||||
| 43512-36180 |
HDB5#,HZB41,5# ｱﾘ(ABS) |
2 | ||
| 43512-36180 |
HDB5#,HZB4#,5#..09S,20S,26S,29S,49S ｱﾘ(ABS) |
2 | ||
| 43512-36181 |
HZB50;HDB5#,HZB4#,56..(08S,09S,19S,20S,26S,29S)..WC ｱﾘ(ABS) |
2 | ||
| 43512-36181 |
BZB40,50;HDB51,HZB41..IV5 |
2 | ||
| 43514B - CAP, FRONT AXLE HUB GREASE, RH | ||||
| 43514-36050 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 43514-37030 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 43514C - CAP, FRONT AXLE HUB GREASE, LH | ||||
| 43514-37030 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 43514-36050 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 43515 - ROTOR, SKID CONTROL, FRONT | ||||
| 43515-37010 |
BZB40,50,HDB5#,HZB4#,5#..09S,10S,20S,24S,26S,29S,39S,49S |
2 | ||
| 43515-37010 |
BZB40,50,HDB5#,HZB4#,5# |
2 | ||
| 43520A - HUB & DISC(DRUM) ASSY, FRONT AXLE, LH | ||||
| 43520-39055 |
HDB5#,HZB4#,5#..(09S,20S,26S,29S,49S)..(CBU,IV5) ｱﾘ(ABS) |
1 | ||
| 43520-39045 |
HDB5#,HZB41,5#..CBU,IV5 |
1 | ||
| 43520-39095 |
HZB50;BZB40,50,HDB5#,HZB41,56..HRF |
1 | ||
| 43525B - CAP, FRONT WHEEL ADJUSTING LOCK, RH | ||||
| 43525-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 43525-37010 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 43525C - CAP, FRONT WHEEL ADJUSTING LOCK, LH | ||||
| 43525-37010 |
BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 43525-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| Common parts | ||||
| 90105-14101 | ||||
| 90201-10075 | ||||
| 90467-10205 | ||||
| 95381-04035 | ||||
| Linked diagrams | ||||
| 4103 | ||||
