HZB50-ZRMES (1993)

Toyota Coaster

Production Jan 1993 - Aug 2004
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

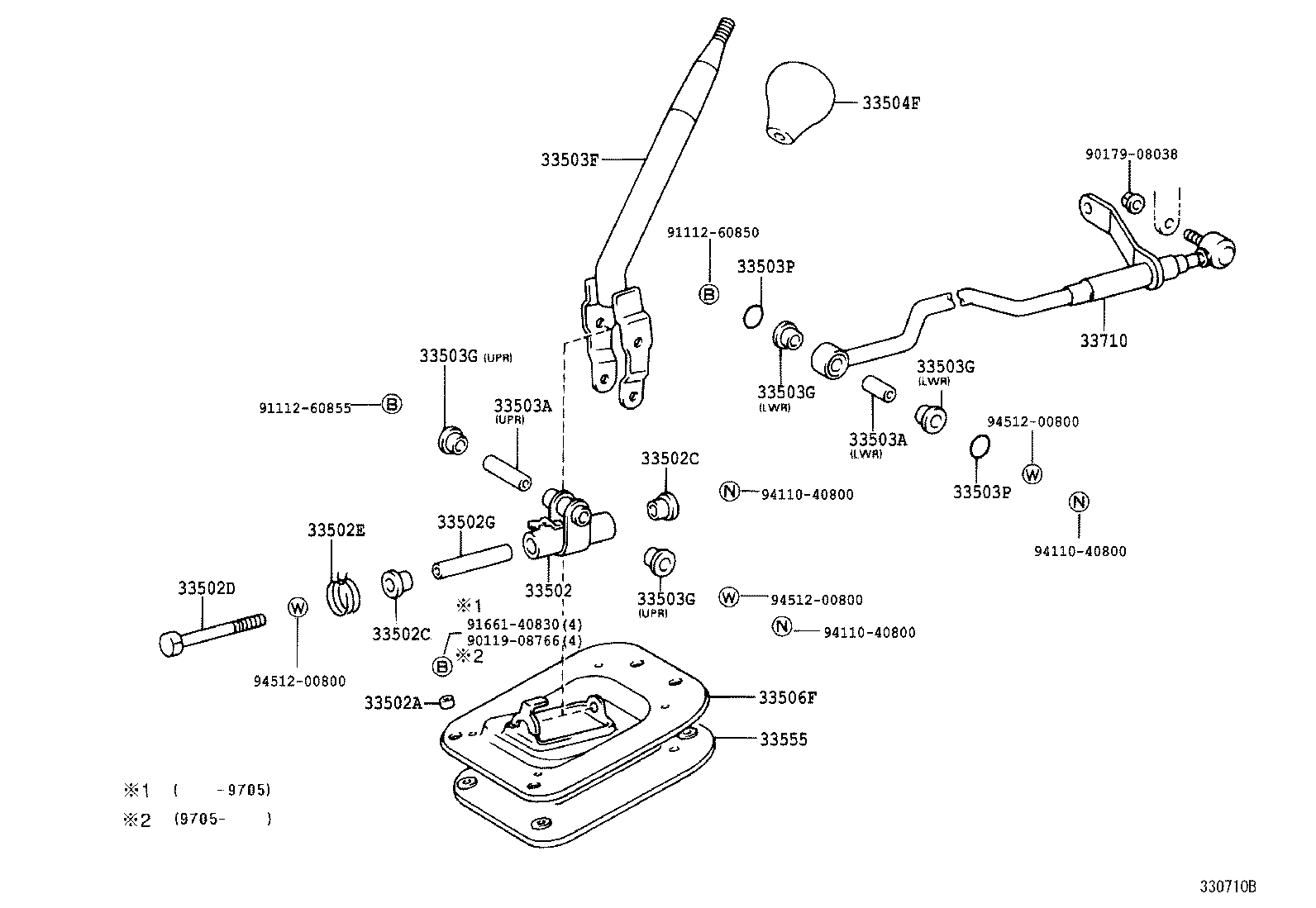

ILLUST NO. 1 OF 2(9301-9907)MTM

Click highlighted areas on diagram

diagram 33502 33502A 33502C 33502C 33502D 33502E 33502G 33503A 33503A 33503F 33503G 33503G 33503G 33503G 33503P 33503P 33504F 33506F 33555 33710 9011908766 9017908038 9111260850 9111260855 9166140830 9411040800 9411040800 9411040800 9451200800 9451200800 9451200800
Part # Description Qty Price
33502 - PLATE SUB-ASSY, SHIFT LEVER
33502-36100

BB4#,HDB5#,HZB4#,5#..MTM

 1
33502C - BUSH (FOR FLOOR SHIFT SETTING)
90386-13192

BB4#,HDB5#,HZB4#,5#..MTM

 2
33502C - BUSH (FOR FLOOR SHIFT SETTING)
90386-13192

BB4#,HDB5#,HZB4#,5#..MTM

 2
33502D - BOLT, HEXAGON (FOR SHIFT LEVER PLATE)
90101-08107

BB4#,HDB5#,HZB4#,5#..MTM

 1
33502E - SPRING, TORSION (FOR SHIFT LEVER PLATE)
90508-32033

BB4#,HDB5#,HZB4#,5#..MTM

 1
33502G - COLLAR (FOR SHIFT LEVER PLATE)
90387-08064

BB4#,HDB5#,HZB4#,5#..MTM

 1
33503A - COLLAR(FOR SHIFT LEVER)
90387-08065

BB4#,HDB5#,HZB4#,5#..MTM

下側

 1
90387-08063

BB4#,HDB5#,HZB4#,5#..MTM

上側

 1
90440-13003

BZB40,50,HDB5#,HZB4#,5#..MTM

 1
33503A - COLLAR(FOR SHIFT LEVER)
90387-08065

BB4#,HDB5#,HZB4#,5#..MTM

下側

 1
90387-08063

BB4#,HDB5#,HZB4#,5#..MTM

上側

 1
90440-13003

BZB40,50,HDB5#,HZB4#,5#..MTM

 1
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33055-36050

BB4#,HDB5#,HZB4#,5#..5F

 1
33055-36060

BZB40,50,HDB5#,HZB4#,5#..MTM

 1
33055-36080

BB4#,HDB5#,HZB4#,5#..MTM

 1
33503G - BUSH(FOR SHIFT LEVER)
90389-11002

BB4#,HDB5#,HZB4#,5#..MTM

下側

 2
90386-13192

BB4#,HDB5#,HZB4#,5#..MTM

上側

 2
33503G - BUSH(FOR SHIFT LEVER)
90389-11002

BB4#,HDB5#,HZB4#,5#..MTM

下側

 2
90386-13192

BB4#,HDB5#,HZB4#,5#..MTM

上側

 2
33503G - BUSH(FOR SHIFT LEVER)
90389-11002

BB4#,HDB5#,HZB4#,5#..MTM

下側

 2
90386-13192

BB4#,HDB5#,HZB4#,5#..MTM

上側

 2
33503G - BUSH(FOR SHIFT LEVER)
90389-11002

BB4#,HDB5#,HZB4#,5#..MTM

下側

 2
90386-13192

BB4#,HDB5#,HZB4#,5#..MTM

上側

 2
33503P - RING, O(FOR SHIFT LEVER)
96711-24018

BB4#,HDB5#,HZB4#,5#..MTM

 2
33503P - RING, O(FOR SHIFT LEVER)
96711-24018

BB4#,HDB5#,HZB4#,5#..MTM

 2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-36051E0

BB4#,HDB5#,HZB4#,5#..5F

GRAIGE,TRIM4#

 1
33504-36051C0

HZB4#,5#..5F

BLACK,TRIM4#

 1
33504-36051C0

BZB40,50,HZB4#,5#..5F

BLACK,TRIM1#

 1
33504-36060E0

BB4#,HDB5#,HZB4#,5#..5F

GREIGE,TRIM4#

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-36010

BZB40,50,HDB5#,HZB4#,5#..MTM

 1
33571-36210

BB4#,HDB50,HZB40,5#..MTM

 1
33710 - ROD ASSY, GEAR SHIFTING, NO.1
33710-36260

BB4#,HDB5#,HZB4#,5#..MTM

 1
Common parts
90119-08766
90179-08038
91112-60850
91112-60855
91661-40830
94110-40800
94512-00800

ILLUST NO. 1 OF 2(9907- )MTM

Click highlighted areas on diagram

diagram 33503A 33503F 33504F 33506F 33523B 33534 33534C 33534C 33534C 33534C 33548F 33602B 33602B 33602D 33602D 33602E 33602F 9010108139 9011908766 9111140855 9111150871 9165160816 9413060800 9413060800 9413060800 9453100800 9453100800 9453100800 9461210800
Part # Description Qty Price
33503A - COLLAR(FOR SHIFT LEVER)
90387-08065

BB4#,HDB5#,HZB4#,5#..MTM

下側

 1
90387-08063

BB4#,HDB5#,HZB4#,5#..MTM

上側

 1
90440-13003

BZB40,50,HDB5#,HZB4#,5#..MTM

 1
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33055-36050

BB4#,HDB5#,HZB4#,5#..5F

 1
33055-36060

BZB40,50,HDB5#,HZB4#,5#..MTM

 1
33055-36080

BB4#,HDB5#,HZB4#,5#..MTM

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-36051E0

BB4#,HDB5#,HZB4#,5#..5F

GRAIGE,TRIM4#

 1
33504-36051C0

HZB4#,5#..5F

BLACK,TRIM4#

 1
33504-36051C0

BZB40,50,HZB4#,5#..5F

BLACK,TRIM1#

 1
33504-36060E0

BB4#,HDB5#,HZB4#,5#..5F

GREIGE,TRIM4#

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-36010

BZB40,50,HDB5#,HZB4#,5#..MTM

 1
33571-36210

BB4#,HDB50,HZB40,5#..MTM

 1
33523B - PIN, SHIFT LEVER (FOR FLOOR SHIFT)
33523-36040

BZB40,50,HDB5#,HZB4#,5#..MTM

 1
33534 - BELLCRANK, SELECTING
33534-36090

BZB40,50,HDB5#,HZB4#,5#..MTM

 1
33534C - BUSH (FOR SELECTING BELLCRANK NO.1)
90386-13007

BZB40,50,HDB5#,HZB4#,5#..MTM

 4
33534C - BUSH (FOR SELECTING BELLCRANK NO.1)
90386-13007

BZB40,50,HDB5#,HZB4#,5#..MTM

 4
33534C - BUSH (FOR SELECTING BELLCRANK NO.1)
90386-13007

BZB40,50,HDB5#,HZB4#,5#..MTM

 4
33534C - BUSH (FOR SELECTING BELLCRANK NO.1)
90386-13007

BZB40,50,HDB5#,HZB4#,5#..MTM

 4
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-12021

BZB40,50,HDB5#,HZB4#,5#..MTM

 1
33602B - BUSHING (FOR SELECT LEVER)
90386-13007

BZB40,50,HDB5#,HZB4#,5#..MTM

 2
33602B - BUSHING (FOR SELECT LEVER)
90386-13007

BZB40,50,HDB5#,HZB4#,5#..MTM

 2
33602D - COLLAR (FOR SELECT LEVER)
90387-08148

BZB40,50,HDB5#,HZB4#,5#..MTM

NO.2

 1
90387-08063

BZB40,50,HDB5#,HZB4#,5#..MTM

NO.1

 1
33602D - COLLAR (FOR SELECT LEVER)
90387-08148

BZB40,50,HDB5#,HZB4#,5#..MTM

NO.2

 1
90387-08063

BZB40,50,HDB5#,HZB4#,5#..MTM

NO.1

 1
33602E - SPRING, TORSION (FOR SELECT LEVER)
90949-03067

BZB40,50,HDB5#,HZB4#,5#..MTM

 1
33602F - LEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT)
33602-36031

BZB40,50,HDB5#,HZB4#,5#..MTM

 1
Common parts
90101-08139
90119-08766
91111-40855
91111-50871
91651-60816
94130-60800
94531-00800
94612-10800

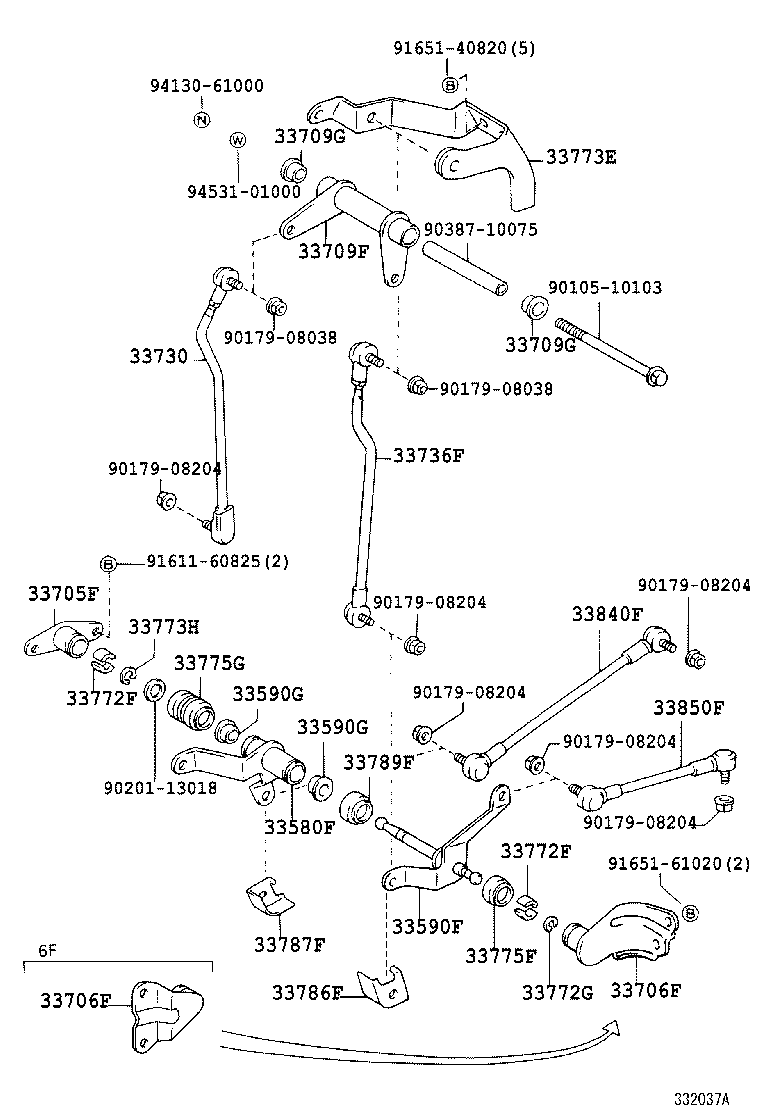

ILLUST NO. 2 OF 2(9301-9907)MTM

Click highlighted areas on diagram

diagram 33580F 33590F 33590G 33590G 33705F 33706F 33706F 33709F 33709G 33709G 33730 33736F 33772F 33772F 33772G 33773E 33773H 33775F 33775G 33786F 33787F 33789F 33840F 33850F 9010510103 9017908038 9017908038 9017908204 9017908204 9017908204 9017908204 9017908204 9017908204 9020113018 9038710075 9161160825 9165140820 9165161020 9413061000 9453101000
Part # Description Qty Price
33580F - BELLCRANK ASSY, SHIFTING (FOR FLOOR SHIFT)
33580-36080

BB4#,HDB5#,HZB4#,5#..MTM

 1
33590F - CRANK ASSY, SELECTING BELL (FOR FLOOR SHIFT)
33590-36110

BB4#,HDB5#,HZB4#,5#..MTM

 1
33590G - BUSH (FOR SELECTING BELL CRANK)
90386-13007

BB4#,HDB5#,HZB4#,5#..MTM

 2
33590G - BUSH (FOR SELECTING BELL CRANK)
90386-13007

BB4#,HDB5#,HZB4#,5#..MTM

 2
33705F - SUPPORT SUB-ASSY, CROSS SHAFT, NO.1 (FOR FLOOR SHIFT)
33705-36350

BB4#,HDB5#,HZB4#,5#..MTM

 1
33706F - SUPPORT SUB-ASSY, CROSS SHAFT, NO.2 (FOR FLOOR SHIFT)
33706-36150

HDB5#,HZB4#,5#..5F

 1
33706F - SUPPORT SUB-ASSY, CROSS SHAFT, NO.2 (FOR FLOOR SHIFT)
33706-36150

HDB5#,HZB4#,5#..5F

 1
33709F - SHAFT SUB-ASSY, CROSS, NO.1 (FOR FLOOR SHIFT)
33709-36360

BB4#,HDB5#,HZB4#,5#..5F

 1
33709-36361

BB4#,HDB5#,HZB4#,5#..MTM

 1
33709G - BUSH (FOR CROSS SHAFT, NO.1
90386-13007

BB4#,HDB5#,HZB4#,5#..5F

 2
90386-13020

BB4#,HDB5#,HZB4#,5#..MTM

 2
33709G - BUSH (FOR CROSS SHAFT, NO.1
90386-13007

BB4#,HDB5#,HZB4#,5#..5F

 2
90386-13020

BB4#,HDB5#,HZB4#,5#..MTM

 2
33730 - ROD ASSY, GEAR SHIFTING, NO.2 (FOR FLOOR SHIFT)
33730-36300

BB4#,HDB5#,HZB4#,5#..MTM

 1
33736F - ROD, GEAR SELECTING, NO.2(FOR FLOOR SHIFT)
33790-36580

BB4#,HDB5#,HZB4#,5#..MTM

 1
33772F - BUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT)
33772-26010

BB4#,HDB5#,HZB4#,5#..MTM

 2
33772F - BUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT)
33772-26010

BB4#,HDB5#,HZB4#,5#..MTM

 2
33772G - RING, SNAP (FOR CROSS SAFT SUPPORT BUSH)
96151-01600

BB4#,HDB5#,HZB4#,5#..MTM

 1
33773E - SUPPORT, CROSS SHAFT, NO.1
33773-36150

BB4#,HDB5#,HZB4#,5#..5F

 1
33773-36160

BB4#,HDB5#,HZB4#,5#..MTM

 1
33773H - RING, SNAP (FOR CROSS SHAFT SUPPORT SNAP)
90520-12256

BB4#,HDB5#,HZB4#,5#..MTM

 1
33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT)
33775-34010

BB4#,HDB5#,HZB4#,5#..MTM

 1
33775G - COVER, CROSS SHAFT DUST, NO.2 (FOR FLOOR SHIFT)
33775-28030

BB4#,HDB5#,HZB4#,5#..MTM

 1
33786F - INSULATOR, CROSS SHAFT LEVER HEAT, NO.2 (FOR FLOOR SHIF
33786-36030

BB4#,HDB5#,HZB4#,5#..MTM

 1
33787F - INSULATOR, CROSS SHAFT LEVER HEAT, NO.3
33786-36030

BB4#,HDB5#,HZB4#,5#..MTM

 1
33789F - COVER, CROSS SHAFT DUST, NO.1(FOR FLOOR SHIFT)
33789-36020

BB4#,HDB5#,HZB4#,5#..MTM

 1
33840F - ROD ASSY, GEAR SHIFTING, NO.3
33840-36410

HDB5#,HZB4#,5#..5F

 1
33850F - ROD ASSY, GEAR SELECTING, NO.3
33850-36290

HDB5#,HZB4#,5#..5F

 1
Common parts
90105-10103
90179-08038
90179-08204
90201-13018
90387-10075
91611-60825
91651-40820
91651-61020
94130-61000
94531-01000
