HZB50-ZRMES (1993)
Toyota Coaster

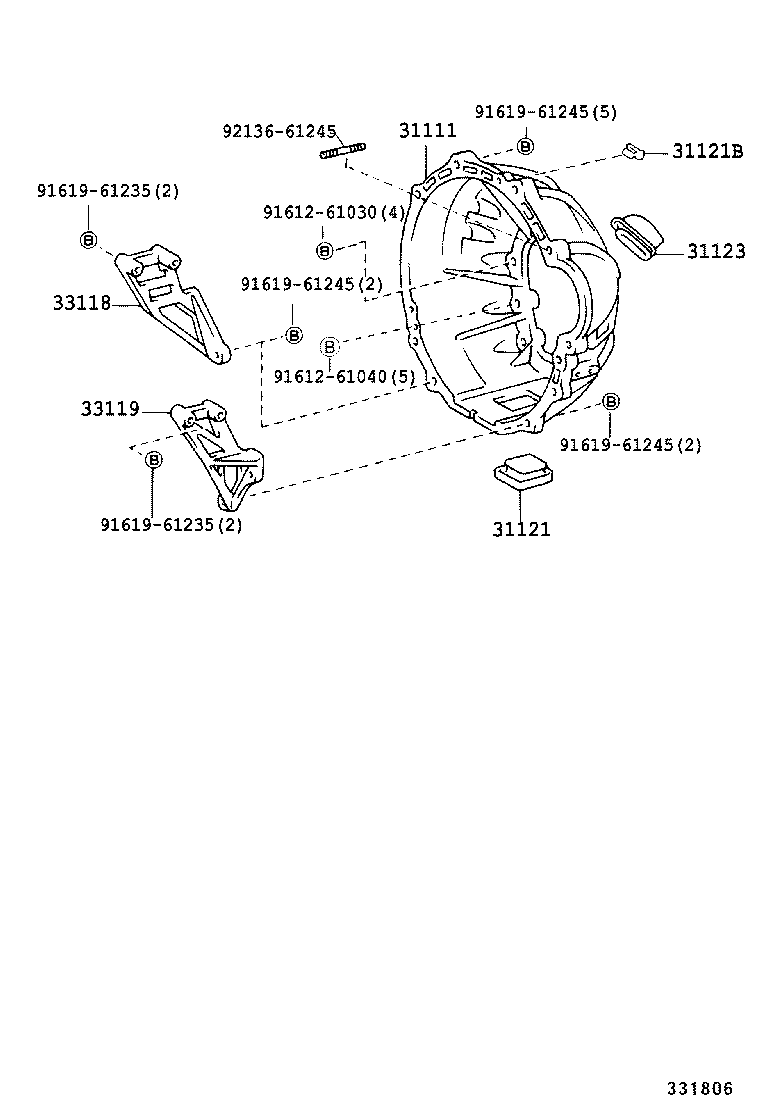

ILLUST NO. 1 OF 2(9301-9705)HDB5#,HZB4#,5#..5F ; (9705-0408)HZB4#,5#..5F
M155
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-36320 |
HDB5#,HZB4#,5#..5F |
1 | ||
| 31111-36320 |
HZB4#,5#..5F |
1 | ||
| 31111-37020 |
BZB40,50 |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-36040 |
BZB40,50,HZB4#,5#..5F |
1 | ||
| 31121-36040 |
BB4#,HDB5#,HZB4#,5#..5F |
1 | ||
| 31121B - COVER, CLUTCH HOUSING, NO.3 | ||||
| 31121-26020 |
HDB5#,HZB4#,5#..5F |
1 | ||
| 31121-26020 |
HZB4#,5#..5F |
1 | ||
| 31123 - COVER, CLUTCH HOUSING, NO.2 | ||||
| 31121-36070 |
HDB5#,HZB4#,5#..5F |
1 | ||
| 31121-36070 |
HZB4#,5#..5F |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-60060 |
HDB5#,HZB4#,5#..MTM |
1 | ||
| 33118-60060 |
HDB5#,HZB4#,5#..MTM |
1 | ||
| 33118-37020 |
BZB40,50 |
1 | ||
| 33118-60030 |
HDB5#,HZB4#,5#..MTM |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-60031 |
HDB5#,HZB4#,5#..MTM |
1 | ||
| 33119-60070 |
HDB5#,HZB4#,5#..MTM |
1 | ||
| 33119-60070 |
HDB5#,HZB4#,5#..MTM |
1 | ||
| 33119-37020 |
BZB40,50 |
1 | ||
| Common parts | ||||
| 91612-61030 | ||||
| 91612-61040 | ||||
| 91619-61235 | ||||
| 91619-61245 | ||||
| 92136-61245 | ||||

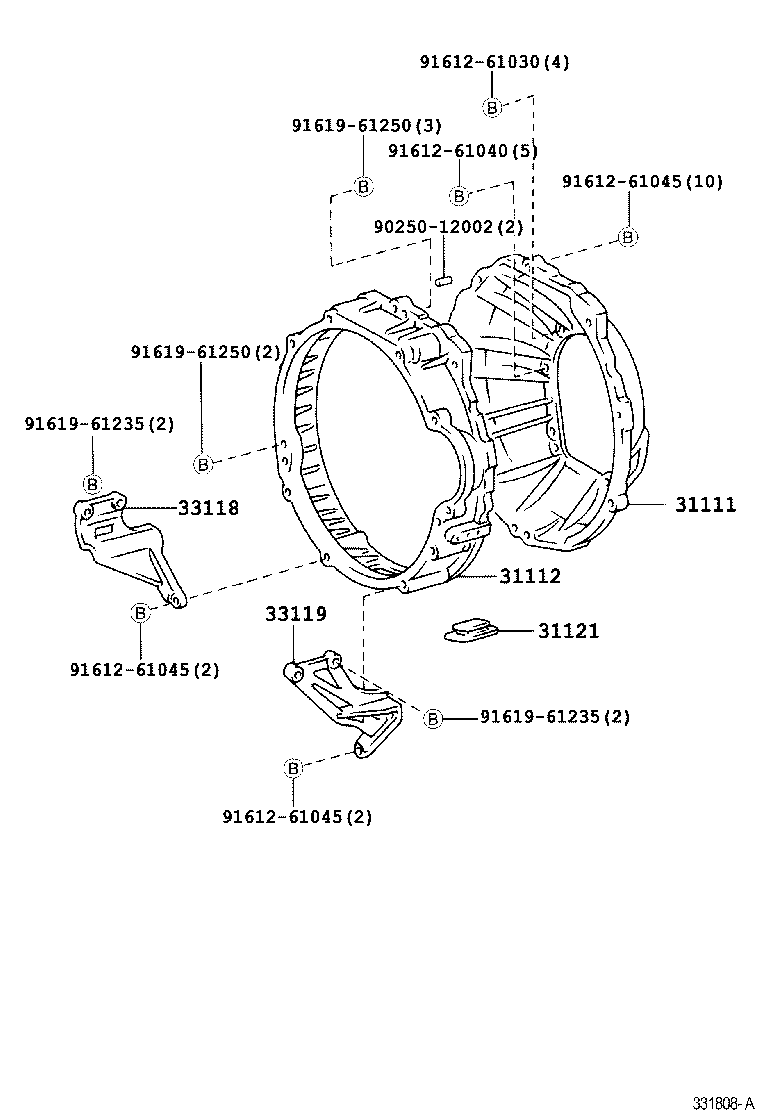

ILLUST NO. 1 OF 2(0203- )BZB40,50
M155
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-36320 |
HDB5#,HZB4#,5#..5F |
1 | ||
| 31111-36320 |
HZB4#,5#..5F |
1 | ||
| 31111-37020 |
BZB40,50 |
1 | ||
| 31112 - HOUSING, CLUTCH, FRONT | ||||
| 31112-37012 |
BZB40,50 |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-36040 |
BZB40,50,HZB4#,5#..5F |
1 | ||
| 31121-36040 |
BB4#,HDB5#,HZB4#,5#..5F |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-60060 |
HDB5#,HZB4#,5#..MTM |
1 | ||
| 33118-60060 |
HDB5#,HZB4#,5#..MTM |
1 | ||
| 33118-37020 |
BZB40,50 |
1 | ||
| 33118-60030 |
HDB5#,HZB4#,5#..MTM |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-60070 |
HDB5#,HZB4#,5#..MTM |
1 | ||
| 33119-60031 |
HDB5#,HZB4#,5#..MTM |
1 | ||
| 33119-60070 |
HDB5#,HZB4#,5#..MTM |
1 | ||
| 33119-37020 |
BZB40,50 |
1 | ||
| Common parts | ||||
| 90250-12002 | ||||
| 91612-61030 | ||||
| 91612-61040 | ||||
| 91612-61045 | ||||
| 91619-61235 | ||||
| 91619-61250 | ||||

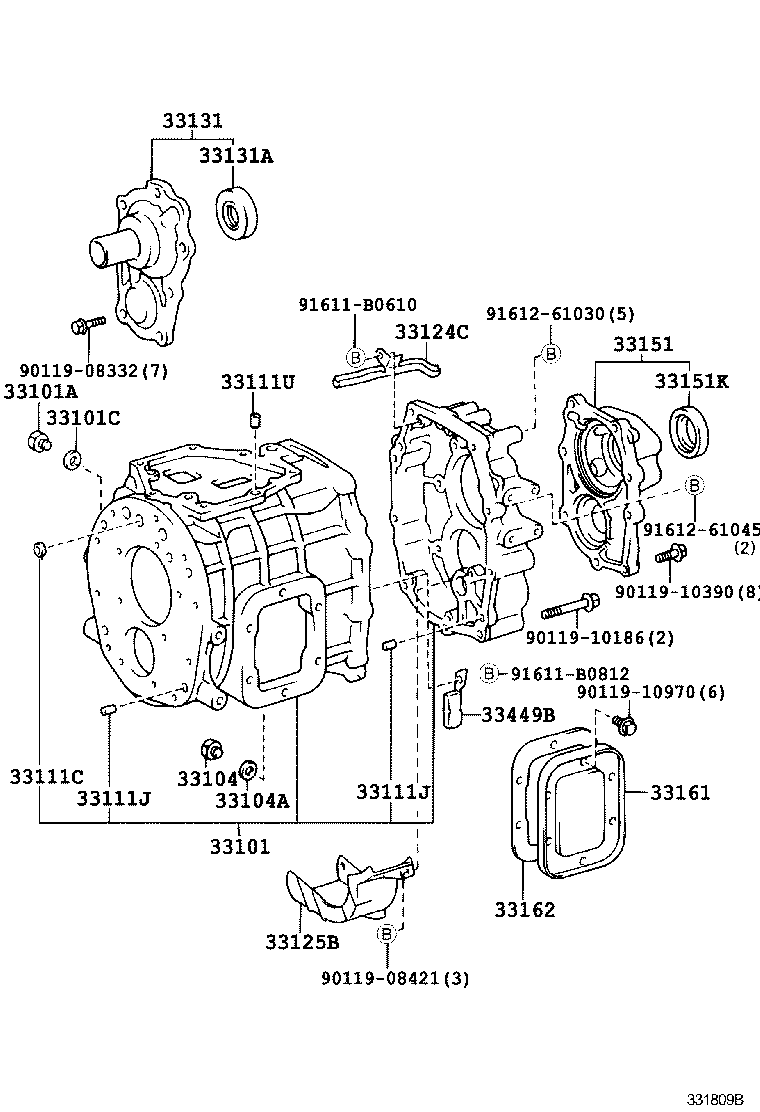

ILLUST NO. 2 OF 2(9301-0408)BB4#,BZB40,50,HZB4#,5#..5F ; (0408-)BZB40,50
M152,M155
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33101 - CASE SUB-ASSY, MANUAL TRANSMISSION | ||||
| 33101-36083 |
BB4#,HZB4#,5#..5F |
1 | ||
| 33101-36081 |
BB4#,HZB4#,5#..5F |
1 | ||
| 33101-36080 |
BB4#,HZB4#,5#..5F |
1 | ||
| 33101-36084 |
BZB40,50,HZB4#,5#..5F |
1 | ||
| 33101-36083 |
HZB4#,5#..5F |
1 | ||
| 33101-36082 |
BB4#,HZB4#,5#..5F |
1 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18006 |
BB4#,HDB5#,HZB4#,5#..MTM |
1 | ||
| 90341-18006 |
BZB40,50,HDB5#,HZB4#,5#..MTM |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
BZB40,50,HDB5#,HZB4#,5#..MTM |
1 | ||
| 90430-18008 |
BB4#,HDB5#,HZB4#,5#..MTM |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
BB4#,HDB5#,HZB4#,5#..MTM |
1 | ||
| 90341-18006 |
BZB40,50,HDB5#,HZB4#,5#..MTM |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
BZB40,50,HDB5#,HZB4#,5#..MTM |
1 | ||
| 90430-18008 |
BB4#,HDB5#,HZB4#,5#..MTM |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 96411-11600 |
BB4#,HDB5#,HZB4#,5#..5F |
3 | ||
| 96411-11600 |
BZB40,50,HZB4#,5#..5F |
3 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
BB4#,HDB5#,HZB4#,5#..5F 長さ=16,外径=12 |
4 | ||
| 90250-12002 |
BZB40,50,HZB4#,5#..5F 長さ=16,外径=12 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
BB4#,HDB5#,HZB4#,5#..5F 長さ=16,外径=12 |
4 | ||
| 90250-12002 |
BZB40,50,HZB4#,5#..5F 長さ=16,外径=12 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11001 |
BZB40,50,HZB4#,5#..5F 長さ=11,外径=11 |
1 | ||
| 90253-13017 |
BB4#,HDB5#,HZB4#,5#..5F 長さ=12,外径=13 |
2 | ||
| 90253-11001 |
BB4#,HDB5#,HZB4#,5#..5F 長さ=11,外径=11 |
1 | ||
| 90253-13017 |
BZB40,50,HZB4#,5#..5F 長さ=12,外径=13 |
2 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-36030 |
BB4#,HZB4#,5#..5F |
1 | ||
| 33124-36030 |
BZB40,50,HZB4#,5#..5F |
1 | ||
| 33125B - RECEIVER, MANUAL TRANSMISSION CASE | ||||
| 33125-36020 |
BZB40,50,HZB4#,5#..5F |
1 | ||
| 33125-36020 |
BB4#,HZB4#,5#..5F |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-36080 |
HDB5#,HZB4#,5#..5F |
1 | ||
| 33018-36080 |
HZB4#,5#..5F |
1 | ||
| 33018-37010 |
BZB40,50 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-35023 |
HDB5#,HZB4#,5#..MTM |
1 | ||
| 90311-35023 |
BZB40,50,HDB5#,HZB4#,5#..MTM |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33017-36031 |
BZB40,50,HZB4#,5#..5F |
1 | ||
| 33017-36030 |
BB4#,HZB4#,5#..5F |
1 | ||
| 33017-36031 |
BB4#,HZB4#,5#..5F |
1 | ||
| 33151K - SEAL, TYPE T OIL | ||||
| 90311-48011 |
BB4#,HDB5#,HZB4#,5#..5F |
1 | ||
| 90311-48011 |
BZB40,50,HDB5#,HZB4#,5#..MTM |
1 | ||
| 33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF | ||||
| 33161-36010 |
BB4#,HZB4#,5#..5F |
1 | ||
| 33161-36010 |
BZB40,50,HZB4#,5#..5F |
1 | ||
| 33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER | ||||
| 33162-36020 |
BZB40,50,HDB5#,HZB4#,5#..MTM |
1 | ||
| 33162-36020 |
HDB5#..6F;BB4#,HZB4#,5#..5F |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-36010 |
BB4#,HDB5#,HZB4#,5#..5F |
1 | ||
| 33449-36010 |
BZB40,50,HZB4#,5#..5F |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90119-08421 | ||||
| 90119-10186 | ||||
| 90119-10390 | ||||
| 90119-10970 | ||||
| 91611-B0610 | ||||
| 91611-B0812 | ||||
| 91612-61030 | ||||
| 91612-61045 | ||||
