HZB50-ZRMES (1993)

Toyota Coaster

Production Jan 1993 - Aug 2004
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9301- )MTM

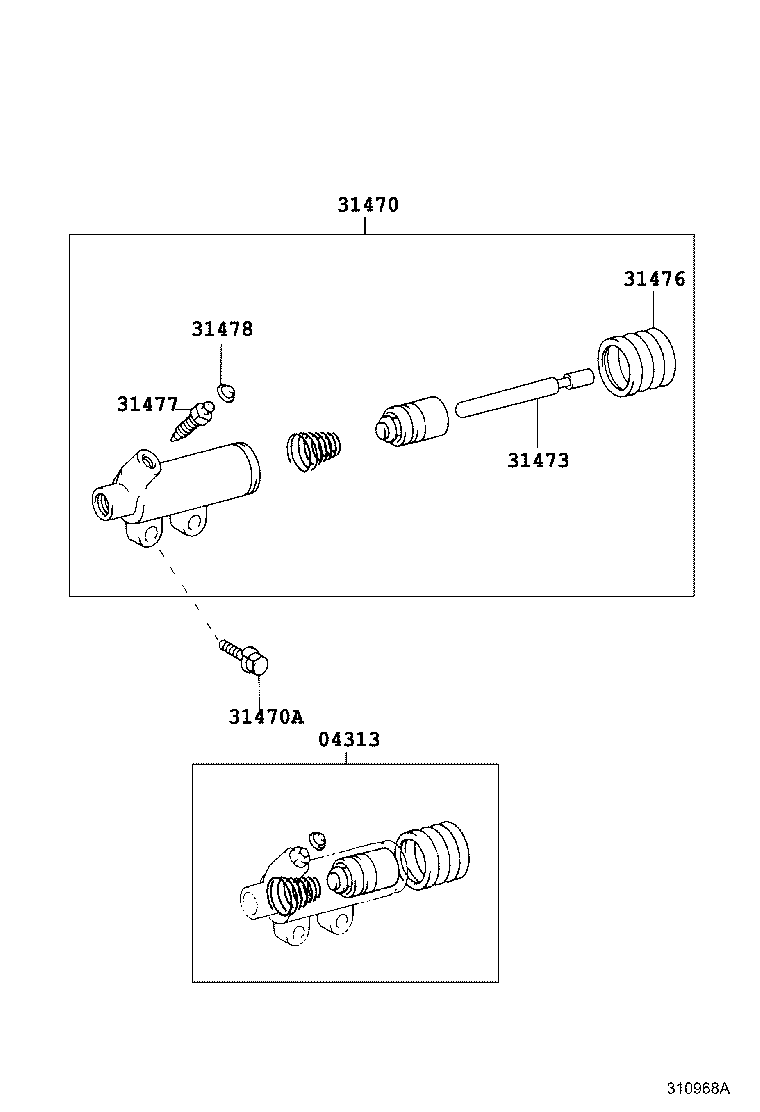

Click highlighted areas on diagram

diagram 04313 31470 31470A 31473 31476 31477 31478
Part # Description Qty Price
04313 - CYLINDER KIT, CLUTCH RELEASE
04313-37030

BZB40,50

 1
04313-36130

HDB5#,HZB4#,5#..5F

 1
04313-36180

HDB5#,HZB4#,5#..MTM

 1
04313-36180

HDB5#,HZB4#,5#..MTM

 1
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-36290

HDB5#,HZB4#,5#..5F

 1
31470-36291

HDB5#,HZB4#,5#..MTM

 1
31470-37040

BZB40,50

 1
31470-36291

HDB5#,HZB4#,5#..MTM

 1
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
91611-B0825

HDB5#,HZB4#,5#..MTM

*8−1.25PX25−25

 2
91611-B0825

BZB40,50,HDB5#,HZB4#,5#..MTM

*8−1.25PX25−25

 2
31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-14030

BZB40,50

 1
31473-60080

HDB5#,HZB4#,5#..MTM

 1
31473-60080

HDB5#,HZB4#,5#..MTM

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-36010

HDB5#,HZB4#,5#..MTM

 1
31476-22010

BZB40,50

 1
31476-36010

HDB5#,HZB4#,5#..MTM

 1
31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER)
47547-12010

BZB40,50,HDB5#,HZB4#,5#..MTM

 1
47547-12010

BB4#,HDB5#,HZB4#,5#..MTM

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

BZB40,50,HDB5#,HZB4#,5#..MTM

 1
31478-30010

BB4#,HDB5#,HZB4#,5#..MTM

 1
