HZB50-ZRMES (1993)
Toyota Coaster
(9301- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02330 |
1HZ..HZB40..4FC..IV5;1HD#,1HZ..HDB5#,HZB4#,5#..(09S,20S,26S,29S,49S)..CBU 長さ=1005X2 |
1 | ||
| 90916-02452 |
1HZ..HZB40..4FC..IV5;1H#..HDB5#,HZB4#,5#..CBU ｵﾙﾀﾈ-ﾀ 24V 60A,長さ=1005X2本掛け |
1 | ||
| 90916-02452 |
1HZ..HZB40..4FC..IV5;1H#..HDB5#,HZB4#,5#..CBU ｵﾙﾀﾈ-ﾀ 24V 60A,長さ=1005X2本掛け |
1 | ||
| 90916-02331 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) ｵﾙﾀﾈｰﾀ 24V 85A,長さ=1065x2本掛け |
1 | ||
| 90916-02452 |
1H#..HDB50,HZB4#,5#..CBU ｵﾙﾀﾈ-ﾀ 24V 60A,長さ=1005X2本掛け |
1 | ||
| 90916-02331 |
1HD#,1HZ..HDB5#,HZB4#,5#..EX,GX,LX,SULNG ｵﾙﾀﾈｰﾀ 24V 85A,長さ=1065x2本掛け |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02330 |
1HZ..HZB40..4FC..IV5;1HD#,1HZ..HDB5#,HZB4#,5#..(09S,20S,26S,29S,49S)..CBU 長さ=1005X2 |
1 | ||
| 90916-02452 |
1HZ..HZB40..4FC..IV5;1H#..HDB5#,HZB4#,5#..CBU ｵﾙﾀﾈ-ﾀ 24V 60A,長さ=1005X2本掛け |
1 | ||
| 90916-02452 |
1HZ..HZB40..4FC..IV5;1H#..HDB5#,HZB4#,5#..CBU ｵﾙﾀﾈ-ﾀ 24V 60A,長さ=1005X2本掛け |
1 | ||
| 90916-02331 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) ｵﾙﾀﾈｰﾀ 24V 85A,長さ=1065x2本掛け |
1 | ||
| 90916-02452 |
1H#..HDB50,HZB4#,5#..CBU ｵﾙﾀﾈ-ﾀ 24V 60A,長さ=1005X2本掛け |
1 | ||
| 90916-02331 |
1HD#,1HZ..HDB5#,HZB4#,5#..EX,GX,LX,SULNG ｵﾙﾀﾈｰﾀ 24V 85A,長さ=1065x2本掛け |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02330 |
1HZ..HZB40..4FC..IV5;1HD#,1HZ..HDB5#,HZB4#,5#..(09S,20S,26S,29S,49S)..CBU 長さ=1005X2 |
1 | ||
| 90916-02452 |
1HZ..HZB40..4FC..IV5;1H#..HDB5#,HZB4#,5#..CBU ｵﾙﾀﾈ-ﾀ 24V 60A,長さ=1005X2本掛け |
1 | ||
| 90916-02452 |
1HZ..HZB40..4FC..IV5;1H#..HDB5#,HZB4#,5#..CBU ｵﾙﾀﾈ-ﾀ 24V 60A,長さ=1005X2本掛け |
1 | ||
| 90916-02331 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) ｵﾙﾀﾈｰﾀ 24V 85A,長さ=1065x2本掛け |
1 | ||
| 90916-02452 |
1H#..HDB50,HZB4#,5#..CBU ｵﾙﾀﾈ-ﾀ 24V 60A,長さ=1005X2本掛け |
1 | ||
| 90916-02331 |
1HD#,1HZ..HDB5#,HZB4#,5#..EX,GX,LX,SULNG ｵﾙﾀﾈｰﾀ 24V 85A,長さ=1065x2本掛け |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02330 |
1HZ..HZB40..4FC..IV5;1HD#,1HZ..HDB5#,HZB4#,5#..(09S,20S,26S,29S,49S)..CBU 長さ=1005X2 |
1 | ||
| 90916-02452 |
1HZ..HZB40..4FC..IV5;1H#..HDB5#,HZB4#,5#..CBU ｵﾙﾀﾈ-ﾀ 24V 60A,長さ=1005X2本掛け |
1 | ||
| 90916-02452 |
1HZ..HZB40..4FC..IV5;1H#..HDB5#,HZB4#,5#..CBU ｵﾙﾀﾈ-ﾀ 24V 60A,長さ=1005X2本掛け |
1 | ||
| 90916-02331 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) ｵﾙﾀﾈｰﾀ 24V 85A,長さ=1065x2本掛け |
1 | ||
| 90916-02452 |
1H#..HDB50,HZB4#,5#..CBU ｵﾙﾀﾈ-ﾀ 24V 60A,長さ=1005X2本掛け |
1 | ||
| 90916-02331 |
1HD#,1HZ..HDB5#,HZB4#,5#..EX,GX,LX,SULNG ｵﾙﾀﾈｰﾀ 24V 85A,長さ=1065x2本掛け |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02330 |
1HZ..HZB40..4FC..IV5;1HD#,1HZ..HDB5#,HZB4#,5#..(09S,20S,26S,29S,49S)..CBU 長さ=1005X2 |
1 | ||
| 90916-02452 |
1HZ..HZB40..4FC..IV5;1H#..HDB5#,HZB4#,5#..CBU ｵﾙﾀﾈ-ﾀ 24V 60A,長さ=1005X2本掛け |
1 | ||
| 90916-02452 |
1HZ..HZB40..4FC..IV5;1H#..HDB5#,HZB4#,5#..CBU ｵﾙﾀﾈ-ﾀ 24V 60A,長さ=1005X2本掛け |
1 | ||
| 90916-02331 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) ｵﾙﾀﾈｰﾀ 24V 85A,長さ=1065x2本掛け |
1 | ||
| 90916-02452 |
1H#..HDB50,HZB4#,5#..CBU ｵﾙﾀﾈ-ﾀ 24V 60A,長さ=1005X2本掛け |
1 | ||
| 90916-02331 |
1HD#,1HZ..HDB5#,HZB4#,5#..EX,GX,LX,SULNG ｵﾙﾀﾈｰﾀ 24V 85A,長さ=1065x2本掛け |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 90916-02419 |
HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC |
1 | ||
| 90916-02451 |
HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC 長さ=1380 |
1 | ||
| 90916-02227 |
BZB40,50 長さ=1120 |
1 | ||
| 99367-31350 |
HDB5#,HZB4#,5#..WC 長さ=1350 |
1 | ||
| 90916-02387 |
HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 90916-02419 |
HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC |
1 | ||
| 90916-02451 |
HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC 長さ=1380 |
1 | ||
| 90916-02227 |
BZB40,50 長さ=1120 |
1 | ||
| 99367-31350 |
HDB5#,HZB4#,5#..WC 長さ=1350 |
1 | ||
| 90916-02387 |
HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 90916-02419 |
HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC |
1 | ||
| 90916-02451 |
HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC 長さ=1380 |
1 | ||
| 90916-02227 |
BZB40,50 長さ=1120 |
1 | ||
| 99367-31350 |
HDB5#,HZB4#,5#..WC 長さ=1350 |
1 | ||
| 90916-02387 |
HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 90916-02419 |
HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC |
1 | ||
| 90916-02451 |
HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC 長さ=1380 |
1 | ||
| 90916-02227 |
BZB40,50 長さ=1120 |
1 | ||
| 99367-31350 |
HDB5#,HZB4#,5#..WC 長さ=1350 |
1 | ||
| 90916-02387 |
HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 90916-02419 |
HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC |
1 | ||
| 90916-02451 |
HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC 長さ=1380 |
1 | ||
| 90916-02227 |
BZB40,50 長さ=1120 |
1 | ||
| 99367-31350 |
HDB5#,HZB4#,5#..WC 長さ=1350 |
1 | ||
| 90916-02387 |
HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC |
1 | ||

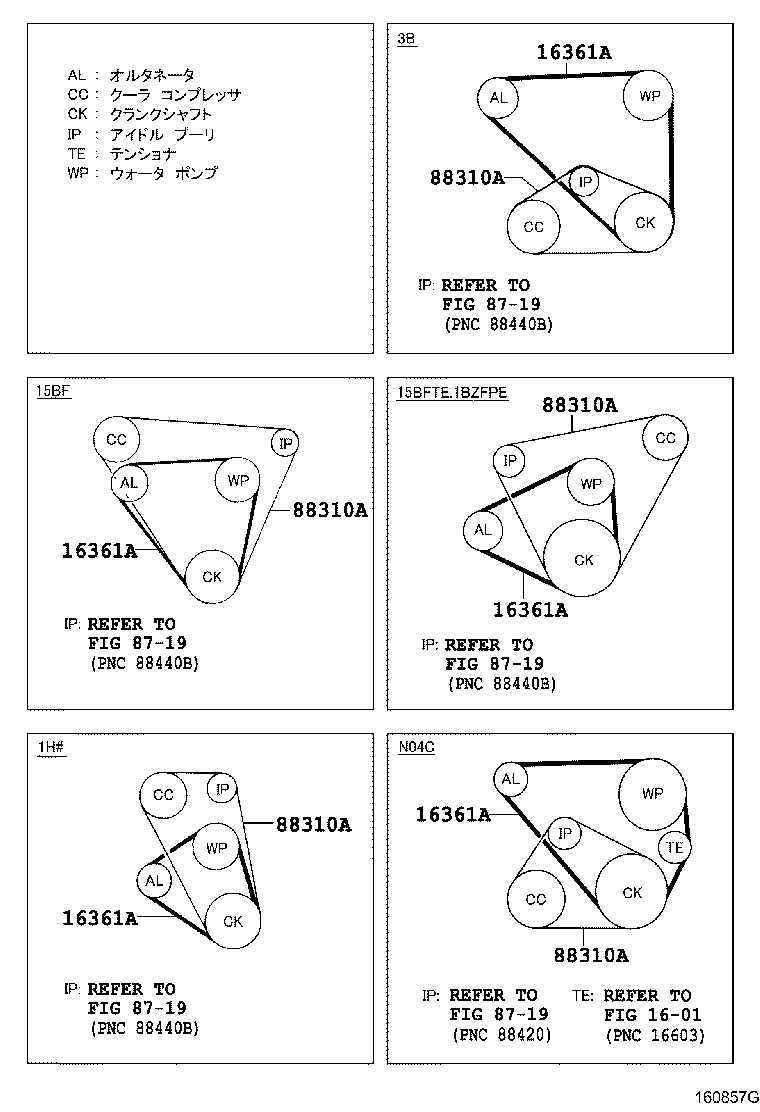

| Linked diagrams | ||||
| 1601 | ||||
| 8719 | ||||
