HZB50-ZKPSS (1999)
Toyota Coaster

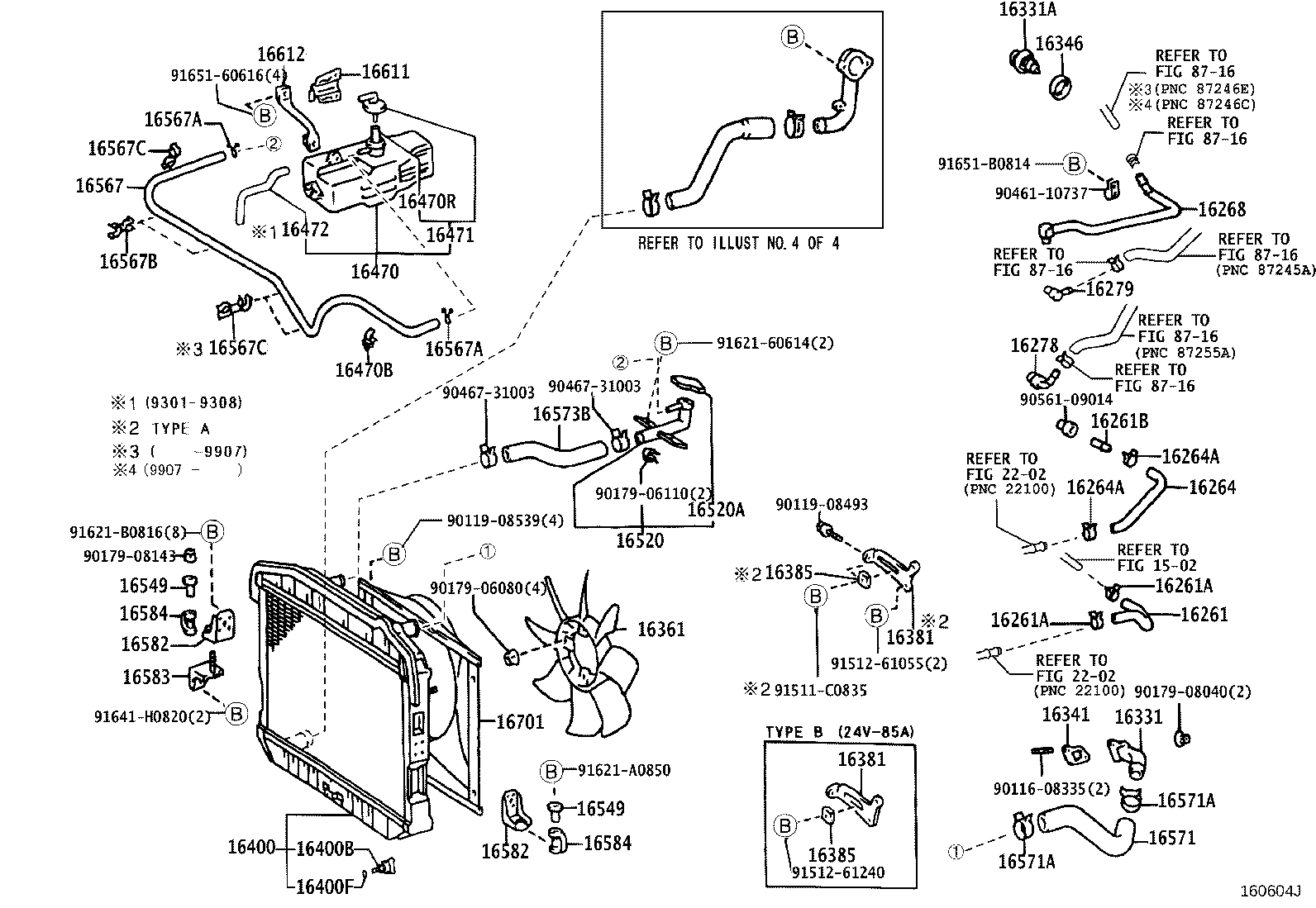

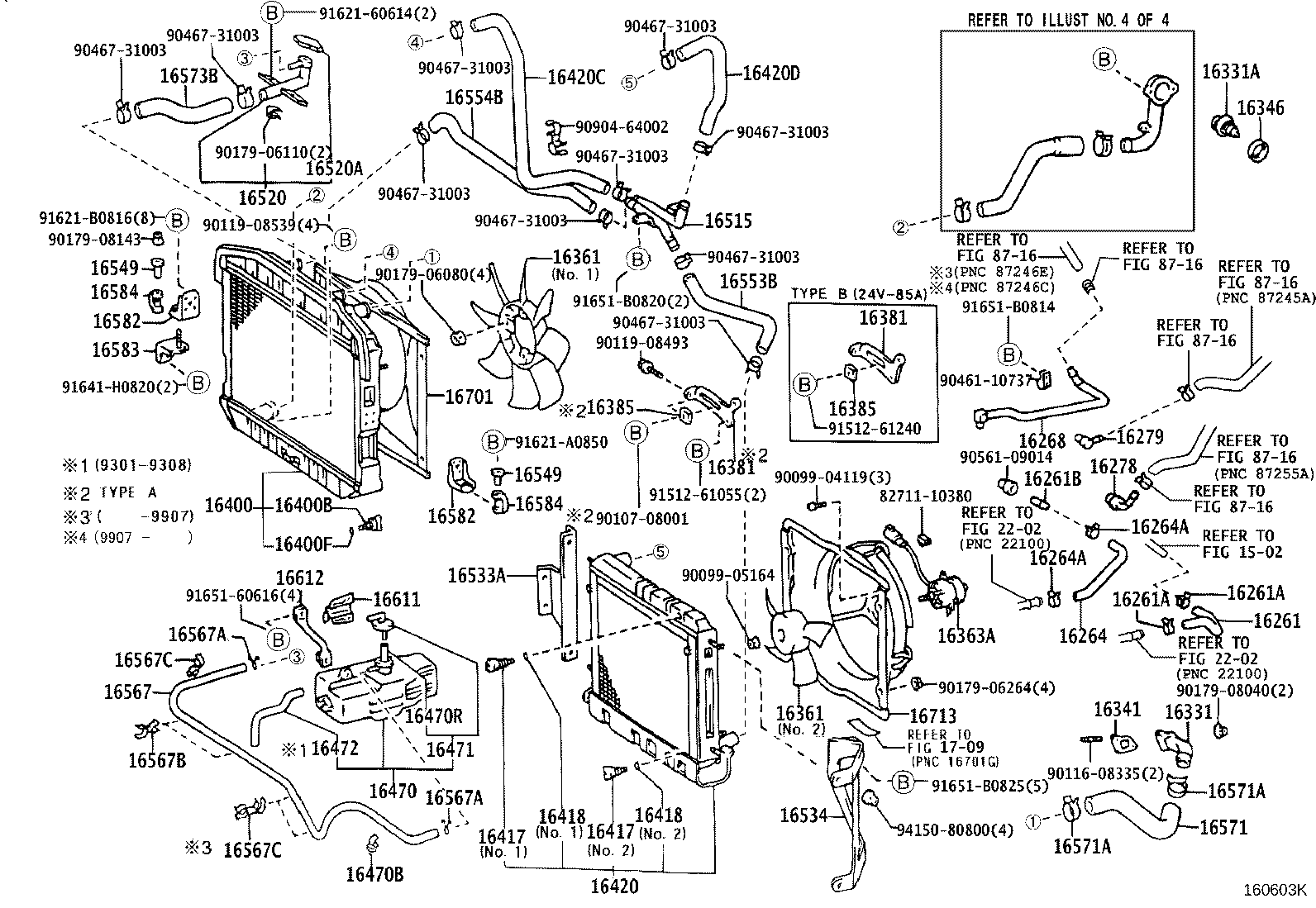

ILLUST NO. 1 OF 4(9301-0408)1HZ..4FC
ｱﾘ(ｻﾌﾞ ﾗｼﾞｴ-ﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-17010 |
1HZ..HZB4#,5# |
1 | ||
| 16261-17010 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1HZ..HZB40..IV5;1HZ..HZB40..DX,STD;1HZ..HZB40..SRF..LX;1HZ..HZB50..WOC..4FC;1HZ..HZB4#,50..HRF..(08S,09S,10S,19S,29S,49S)..(EX,LX,STD) |
2 | ||
| 90467-15022 |
1HZ..HZB4#,5# ﾎﾂｶｲﾄﾞｳ ｼﾖｳ |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1HZ..HZB40..IV5;1HZ..HZB40..DX,STD;1HZ..HZB40..SRF..LX;1HZ..HZB50..WOC..4FC;1HZ..HZB4#,50..HRF..(08S,09S,10S,19S,29S,49S)..(EX,LX,STD) |
2 | ||
| 90467-15022 |
1HZ..HZB4#,5# ﾎﾂｶｲﾄﾞｳ ｼﾖｳ |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90406-10014 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 90406-10014 |
1HZ..HZB4#,5# |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-17010 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 16264-17011 |
1HZ..HZB4#,5# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
1HD#,1HZ..HDB5#,HZB4#,5# |
2 | ||
| 90467-15022 |
1HZ..HZB4#,5# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
1HD#,1HZ..HDB5#,HZB4#,5# |
2 | ||
| 90467-15022 |
1HZ..HZB4#,5# |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-17010 |
1HZ..HZB4#,5# |
1 | ||
| 16268-17010 |
1HZ..HZB4#,5# |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-17010 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 16278-17010 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-17010 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 16279-17010 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-17030 |
1HZ..HZB4#,5#..4FC |
1 | ||
| 16331-17010 |
1HZ..HZB4#,5# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03089 |
1HD#,1HZ..HDB5#,HZB4#,5# *WAX 76−90 |
1 | ||
| 90916-03089 |
1H#..HDB5#,HZB4#,5# *WAX 76−90 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-17010 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 16341-17010 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-66020 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 16346-66020 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 16361 - FAN | ||||
| 16361-74070 |
1HZ..HZB4#,5#..4FC NO.2 |
1 | ||
| 16361-17030 |
1H#..HDB5#,HZB4#,5# NO.1 |
1 | ||
| 16361-74070 |
1HZ..HZB4#,5#..4FC NO.2 |
1 | ||
| 16361-17010 |
1HZ..HZB4#,5# NO.1 |
1 | ||
| 16361 - FAN | ||||
| 16361-74070 |
1HZ..HZB4#,5#..4FC NO.2 |
1 | ||
| 16361-17030 |
1H#..HDB5#,HZB4#,5# NO.1 |
1 | ||
| 16361-74070 |
1HZ..HZB4#,5#..4FC NO.2 |
1 | ||
| 16361-17010 |
1HZ..HZB4#,5# NO.1 |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-17020 |
1HZ..HZB4#,5#..4FC |
1 | ||
| 16363-17020 |
1HZ..HZB4#,5#..4FC |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-17020 |
1HZ..HZB40..4FC..IV5;1HD#,1HZ..HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..(EX,GX,LX,STD,SULNG)..WC..CBU TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16381-17020 |
1HZ..HZB40..4FC..IV5;1H#..HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..CBU TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16381-17020 |
1H#..HDB50,HZB4#,5#..(EX,GX,LX,STD)..WC..CBU TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-17020 |
1HZ..HZB40..4FC..IV5;1HD#,1HZ..HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..(EX,GX,LX,STD,SULNG)..WC..CBU TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16381-17020 |
1HZ..HZB40..4FC..IV5;1H#..HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..CBU TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16381-17020 |
1H#..HDB50,HZB4#,5#..(EX,GX,LX,STD)..WC..CBU TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-17010 |
1H#..HDB50,HZB4#,5#..CBU TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16385-17010 |
1HZ..HZB40..4FC..IV5;1HD#,1HZ..HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-17010 |
1H#..HDB50,HZB4#,5#..CBU TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16385-17010 |
1HZ..HZB40..4FC..IV5;1HD#,1HZ..HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-17200 |
1HZ..HZB4#,5#..4FC |
1 | ||
| 16400-17251 |
1HZ..HZB4#,5#..4FC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24200 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 16417-15210 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 16418-24200 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 16417 - COCK | ||||
| 16417-24051 |
1HZ..HZB4#,5#..4FC NO.1 |
1 | ||
| 16417-15210 |
1HZ..HZB4#,5#..4FC |
2 | ||
| 16417-24200 |
1HZ..HZB4#,5#..4FC NO.2 |
1 | ||
| 16417 - COCK | ||||
| 16417-24051 |
1HZ..HZB4#,5#..4FC NO.1 |
1 | ||
| 16417-15210 |
1HZ..HZB4#,5#..4FC |
2 | ||
| 16417-24200 |
1HZ..HZB4#,5#..4FC NO.2 |
1 | ||
| 16418 - PACKING | ||||
| 16418-24200 |
1HZ..HZB4#,5#..4FC NO.2 |
1 | ||
| 16418-15520 |
1HZ..HZB4#,5#..4FC |
2 | ||
| 16418-24051 |
1HZ..HZB4#,5#..4FC NO.1 |
1 | ||
| 16418 - PACKING | ||||
| 16418-24200 |
1HZ..HZB4#,5#..4FC NO.2 |
1 | ||
| 16418-15520 |
1HZ..HZB4#,5#..4FC |
2 | ||
| 16418-24051 |
1HZ..HZB4#,5#..4FC NO.1 |
1 | ||
| 16420 - RADIATOR ASSY, SUB | ||||
| 16510-17010 |
1HZ..HZB4#,5#..4FC |
1 | ||
| 16510-17030 |
1HZ..HZB4#,5#..4FC |
1 | ||
| 16420C - HOSE, SUB RADIATOR, NO.1 | ||||
| 16551-17010 |
1HZ..HZB4#,5#..4FC |
1 | ||
| 16551-17011 |
1HZ..HZB4#,5#..4FC |
1 | ||
| 16420D - HOSE, SUB RADIATOR, NO.2 | ||||
| 16552-17010 |
1HZ..HZB4#,5#..4FC |
1 | ||
| 16552-17011 |
1HZ..HZB4#,5#..4FC |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-17061 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 16470-17060 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-12026 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 90467-12026 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1HD#,1HZ..HDB5#,HZB4#,5# *H,L=135 |
1 | ||
| 90445-12078 |
1H#..HDB5#,HZB4#,5# *H,L=135 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-17030 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 16405-17030 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 16472-17060 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 16515 - PIPE, SUB RADIATOR, NO.1 | ||||
| 16515-17010 |
1HZ..HZB4#,5#..4FC |
1 | ||
| 16515-17010 |
1HZ..HZB4#,5#..4FC |
1 | ||
| 16520 - FILLER ASSY, WATER | ||||
| 16520-17010 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 16520-17020 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 16520A - CAP SUB-ASSY, WATER FILLER | ||||
| 16401-72090 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 16401-62100 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 16533A - SUPPORT, SUB-RADIATOR | ||||
| 16533-17010 |
1HZ..HZB4#,5#..4FC |
1 | ||
| 16533-17010 |
1HZ..HZB4#,5#..4FC |
1 | ||
| 16534 - SUPPORT, RADIATOR, NO.2 | ||||
| 16534-17010 |
1HZ..HZB4#,5#..4FC |
1 | ||
| 16534-17010 |
1HZ..HZB4#,5#..4FC |
1 | ||
| 16549 - COLLAR, RADIATOR SUPPORT, NO.2 | ||||
| 16549-61010 |
1HD#,1HZ..HDB5#,HZB4#,5# |
2 | ||
| 16549-61010 |
1H#..HDB5#,HZB4#,5# |
2 | ||
| 16549 - COLLAR, RADIATOR SUPPORT, NO.2 | ||||
| 16549-61010 |
1HD#,1HZ..HDB5#,HZB4#,5# |
2 | ||
| 16549-61010 |
1H#..HDB5#,HZB4#,5# |
2 | ||
| 16553B - HOSE, SUB RADIATOR, NO.3 | ||||
| 16553-17010 |
1HZ..HZB4#,5#..4FC |
1 | ||
| 16553-17010 |
1HZ..HZB4#,5#..4FC |
1 | ||
| 16554B - HOSE, SUB RADIATOR, NO.4 | ||||
| 16554-17010 |
1HZ..HZB4#,5#..4FC |
1 | ||
| 16554-17010 |
1HZ..HZB4#,5#..4FC |
1 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-17010 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 16567-17020 |
1HZ..HZB4#,5# |
1 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1H#..HDB5#,HZB4#,5# |
2 | ||
| 90467-11085 |
1HD#,1HZ..HDB5#,HZB4#,5# |
2 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1H#..HDB5#,HZB4#,5# |
2 | ||
| 90467-11085 |
1HD#,1HZ..HDB5#,HZB4#,5# |
2 | ||
| 16567B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.2) | ||||
| 90464-00460 |
1HD#,1HZ..HDB5#,HZB4#,5# |
3 | ||
| 90464-00460 |
1HZ..HZB4#,5# |
2 | ||
| 16567C - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.3) | ||||
| 90464-00618 |
1HD#,1HZ..HDB5#,HZB4#,5# |
3 | ||
| 90464-00618 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 16567C - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.3) | ||||
| 90464-00618 |
1HD#,1HZ..HDB5#,HZB4#,5# |
3 | ||
| 90464-00618 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-17060 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 16571-17061 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
1HD#,1HZ..HDB5#,HZB4#,5# ﾗｼﾞｪｰﾀ側 |
1 | ||
| 90467-41006 |
1H#..HDB5#,HZB4#,5# ｴﾝｼﾞﾝ側 |
1 | ||
| 90466-41007 |
1H#..HDB5#,HZB4#,5# ｴﾝｼﾞﾝ側 |
1 | ||
| 90467-43002 |
1H#..HDB5#,HZB4#,5# ﾗｼﾞｪｰﾀ側 |
1 | ||
| 90467-41006 |
1HD#,1HZ..HDB5#,HZB4#,5# ｴﾝｼﾞﾝ側 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
1HD#,1HZ..HDB5#,HZB4#,5# ﾗｼﾞｪｰﾀ側 |
1 | ||
| 90467-41006 |
1H#..HDB5#,HZB4#,5# ｴﾝｼﾞﾝ側 |
1 | ||
| 90466-41007 |
1H#..HDB5#,HZB4#,5# ｴﾝｼﾞﾝ側 |
1 | ||
| 90467-43002 |
1H#..HDB5#,HZB4#,5# ﾗｼﾞｪｰﾀ側 |
1 | ||
| 90467-41006 |
1HD#,1HZ..HDB5#,HZB4#,5# ｴﾝｼﾞﾝ側 |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-17010 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 16573-17010 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-17010 |
1HD#,1HZ..HDB5#,HZB4#,5# |
2 | ||
| 16582-17010 |
1H#..HDB5#,HZB4#,5# |
2 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-17010 |
1HD#,1HZ..HDB5#,HZB4#,5# |
2 | ||
| 16582-17010 |
1H#..HDB5#,HZB4#,5# |
2 | ||
| 16583 - BRACKET, RADIATOR, NO.2 | ||||
| 16583-17010 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 16583-17010 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-61020 |
1HD#,1HZ..HDB5#,HZB4#,5# |
2 | ||
| 16584-61020 |
1H#..HDB5#,HZB4#,5# |
2 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-61020 |
1HD#,1HZ..HDB5#,HZB4#,5# |
2 | ||
| 16584-61020 |
1H#..HDB5#,HZB4#,5# |
2 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-16010 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 16611-16010 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 16612 - BRACKET, RADIATOR RESERVE TANK, NO.2 | ||||
| 16612-17010 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 16612-17010 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-17060 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 16711-17120 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 16713 - SHROUD, FAN, NO.3 | ||||
| 16713-17010 |
1HZ..HZB4#,5#..4FC |
1 | ||
| 16713-17010 |
1HZ..HZB4#,5#..4FC |
1 | ||
| Common parts | ||||
| 82711-10380 | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90107-08001 | ||||
| 90116-08335 | ||||
| 90119-08493 | ||||
| 90119-08539 | ||||
| 90179-06080 | ||||
| 90179-06110 | ||||
| 90179-06264 | ||||
| 90179-08040 | ||||
| 90179-08143 | ||||
| 90461-10737 | ||||
| 90467-31003 | ||||
| 90561-09014 | ||||
| 90904-64002 | ||||
| 91512-61055 | ||||
| 91512-61240 | ||||
| 91621-60614 | ||||
| 91621-A0850 | ||||
| 91621-B0816 | ||||
| 91641-H0820 | ||||
| 91651-60616 | ||||
| 91651-B0814 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| 94150-80800 | ||||
| Linked diagrams | ||||
| 1502 | ||||
| 1709 | ||||
| 2202 | ||||
| 8716 | ||||
ILLUST NO. 1 OF 4(9301-0408)1HZ..09S,15S,26S,29S,39S,49S
ﾅｼ(ｻﾌﾞ ﾗｼﾞｴ-ﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-17010 |
1HZ..HZB4#,5# |
1 | ||
| 16261-17010 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1HZ..HZB40..IV5;1HZ..HZB40..DX,STD;1HZ..HZB40..SRF..LX;1HZ..HZB50..WOC..4FC;1HZ..HZB4#,50..HRF..(08S,09S,10S,19S,29S,49S)..(EX,LX,STD) |
2 | ||
| 90467-15022 |
1HZ..HZB4#,5# ﾎﾂｶｲﾄﾞｳ ｼﾖｳ |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1HZ..HZB40..IV5;1HZ..HZB40..DX,STD;1HZ..HZB40..SRF..LX;1HZ..HZB50..WOC..4FC;1HZ..HZB4#,50..HRF..(08S,09S,10S,19S,29S,49S)..(EX,LX,STD) |
2 | ||
| 90467-15022 |
1HZ..HZB4#,5# ﾎﾂｶｲﾄﾞｳ ｼﾖｳ |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90406-10014 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 90406-10014 |
1HZ..HZB4#,5# |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-17010 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 16264-17011 |
1HZ..HZB4#,5# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
1HD#,1HZ..HDB5#,HZB4#,5# |
2 | ||
| 90467-15022 |
1HZ..HZB4#,5# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
1HD#,1HZ..HDB5#,HZB4#,5# |
2 | ||
| 90467-15022 |
1HZ..HZB4#,5# |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-17010 |
1HZ..HZB4#,5# |
1 | ||
| 16268-17010 |
1HZ..HZB4#,5# |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-17010 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 16278-17010 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-17010 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 16279-17010 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-17030 |
1HZ..HZB4#,5#..4FC |
1 | ||
| 16331-17010 |
1HZ..HZB4#,5# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03089 |
1HD#,1HZ..HDB5#,HZB4#,5# *WAX 76−90 |
1 | ||
| 90916-03089 |
1H#..HDB5#,HZB4#,5# *WAX 76−90 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-17010 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 16341-17010 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-66020 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 16346-66020 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 16361 - FAN | ||||
| 16361-74070 |
1HZ..HZB4#,5#..4FC NO.2 |
1 | ||
| 16361-17030 |
1H#..HDB5#,HZB4#,5# NO.1 |
1 | ||
| 16361-74070 |
1HZ..HZB4#,5#..4FC NO.2 |
1 | ||
| 16361-17010 |
1HZ..HZB4#,5# NO.1 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-17020 |
1HZ..HZB40..4FC..IV5;1HD#,1HZ..HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..(EX,GX,LX,STD,SULNG)..WC..CBU TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16381-17020 |
1HZ..HZB40..4FC..IV5;1H#..HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..CBU TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16381-17020 |
1H#..HDB50,HZB4#,5#..(EX,GX,LX,STD)..WC..CBU TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-17020 |
1HZ..HZB40..4FC..IV5;1HD#,1HZ..HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..(EX,GX,LX,STD,SULNG)..WC..CBU TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16381-17020 |
1HZ..HZB40..4FC..IV5;1H#..HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..CBU TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16381-17020 |
1H#..HDB50,HZB4#,5#..(EX,GX,LX,STD)..WC..CBU TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-17010 |
1H#..HDB50,HZB4#,5#..CBU TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16385-17010 |
1HZ..HZB40..4FC..IV5;1HD#,1HZ..HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-17010 |
1H#..HDB50,HZB4#,5#..CBU TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16385-17010 |
1HZ..HZB40..4FC..IV5;1HD#,1HZ..HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-17200 |
1HZ..HZB4#,5#..4FC |
1 | ||
| 16400-17251 |
1HZ..HZB4#,5#..4FC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24200 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 16417-15210 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 16418-24200 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-17061 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 16470-17060 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-12026 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 90467-12026 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1HD#,1HZ..HDB5#,HZB4#,5# *H,L=135 |
1 | ||
| 90445-12078 |
1H#..HDB5#,HZB4#,5# *H,L=135 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-17030 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 16405-17030 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 16472-17060 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 16520 - FILLER ASSY, WATER | ||||
| 16520-17010 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 16520-17020 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 16520A - CAP SUB-ASSY, WATER FILLER | ||||
| 16401-72090 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 16401-62100 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 16549 - COLLAR, RADIATOR SUPPORT, NO.2 | ||||
| 16549-61010 |
1HD#,1HZ..HDB5#,HZB4#,5# |
2 | ||
| 16549-61010 |
1H#..HDB5#,HZB4#,5# |
2 | ||
| 16549 - COLLAR, RADIATOR SUPPORT, NO.2 | ||||
| 16549-61010 |
1HD#,1HZ..HDB5#,HZB4#,5# |
2 | ||
| 16549-61010 |
1H#..HDB5#,HZB4#,5# |
2 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-17010 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 16567-17020 |
1HZ..HZB4#,5# |
1 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1H#..HDB5#,HZB4#,5# |
2 | ||
| 90467-11085 |
1HD#,1HZ..HDB5#,HZB4#,5# |
2 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1H#..HDB5#,HZB4#,5# |
2 | ||
| 90467-11085 |
1HD#,1HZ..HDB5#,HZB4#,5# |
2 | ||
| 16567B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.2) | ||||
| 90464-00460 |
1HD#,1HZ..HDB5#,HZB4#,5# |
3 | ||
| 90464-00460 |
1HZ..HZB4#,5# |
2 | ||
| 16567C - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.3) | ||||
| 90464-00618 |
1HD#,1HZ..HDB5#,HZB4#,5# |
3 | ||
| 90464-00618 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 16567C - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.3) | ||||
| 90464-00618 |
1HD#,1HZ..HDB5#,HZB4#,5# |
3 | ||
| 90464-00618 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-17060 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 16571-17061 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
1HD#,1HZ..HDB5#,HZB4#,5# ﾗｼﾞｪｰﾀ側 |
1 | ||
| 90467-41006 |
1H#..HDB5#,HZB4#,5# ｴﾝｼﾞﾝ側 |
1 | ||
| 90466-41007 |
1H#..HDB5#,HZB4#,5# ｴﾝｼﾞﾝ側 |
1 | ||
| 90467-43002 |
1H#..HDB5#,HZB4#,5# ﾗｼﾞｪｰﾀ側 |
1 | ||
| 90467-41006 |
1HD#,1HZ..HDB5#,HZB4#,5# ｴﾝｼﾞﾝ側 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
1HD#,1HZ..HDB5#,HZB4#,5# ﾗｼﾞｪｰﾀ側 |
1 | ||
| 90467-41006 |
1H#..HDB5#,HZB4#,5# ｴﾝｼﾞﾝ側 |
1 | ||
| 90466-41007 |
1H#..HDB5#,HZB4#,5# ｴﾝｼﾞﾝ側 |
1 | ||
| 90467-43002 |
1H#..HDB5#,HZB4#,5# ﾗｼﾞｪｰﾀ側 |
1 | ||
| 90467-41006 |
1HD#,1HZ..HDB5#,HZB4#,5# ｴﾝｼﾞﾝ側 |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-17010 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 16573-17010 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-17010 |
1HD#,1HZ..HDB5#,HZB4#,5# |
2 | ||
| 16582-17010 |
1H#..HDB5#,HZB4#,5# |
2 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-17010 |
1HD#,1HZ..HDB5#,HZB4#,5# |
2 | ||
| 16582-17010 |
1H#..HDB5#,HZB4#,5# |
2 | ||
| 16583 - BRACKET, RADIATOR, NO.2 | ||||
| 16583-17010 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 16583-17010 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-61020 |
1HD#,1HZ..HDB5#,HZB4#,5# |
2 | ||
| 16584-61020 |
1H#..HDB5#,HZB4#,5# |
2 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-61020 |
1HD#,1HZ..HDB5#,HZB4#,5# |
2 | ||
| 16584-61020 |
1H#..HDB5#,HZB4#,5# |
2 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-16010 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 16611-16010 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 16612 - BRACKET, RADIATOR RESERVE TANK, NO.2 | ||||
| 16612-17010 |
1HD#,1HZ..HDB5#,HZB4#,5# |
1 | ||
| 16612-17010 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-17060 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| 16711-17120 |
1H#..HDB5#,HZB4#,5# |
1 | ||
| Common parts | ||||
| 90116-08335 | ||||
| 90119-08493 | ||||
| 90119-08539 | ||||
| 90179-06080 | ||||
| 90179-06110 | ||||
| 90179-08040 | ||||
| 90179-08143 | ||||
| 90461-10737 | ||||
| 90467-31003 | ||||
| 90561-09014 | ||||
| 91511-C0835 | ||||
| 91512-61055 | ||||
| 91512-61240 | ||||
| 91621-60614 | ||||
| 91621-A0850 | ||||
| 91621-B0816 | ||||
| 91641-H0820 | ||||
| 91651-60616 | ||||
| 91651-B0814 | ||||
| Linked diagrams | ||||
| 1502 | ||||
| 2202 | ||||
| 8716 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
