HZB50-BRMDS (1993)

Toyota Coaster

Production Jan 1993 - Jul 1999
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9301-0408)1HD#,1HZ

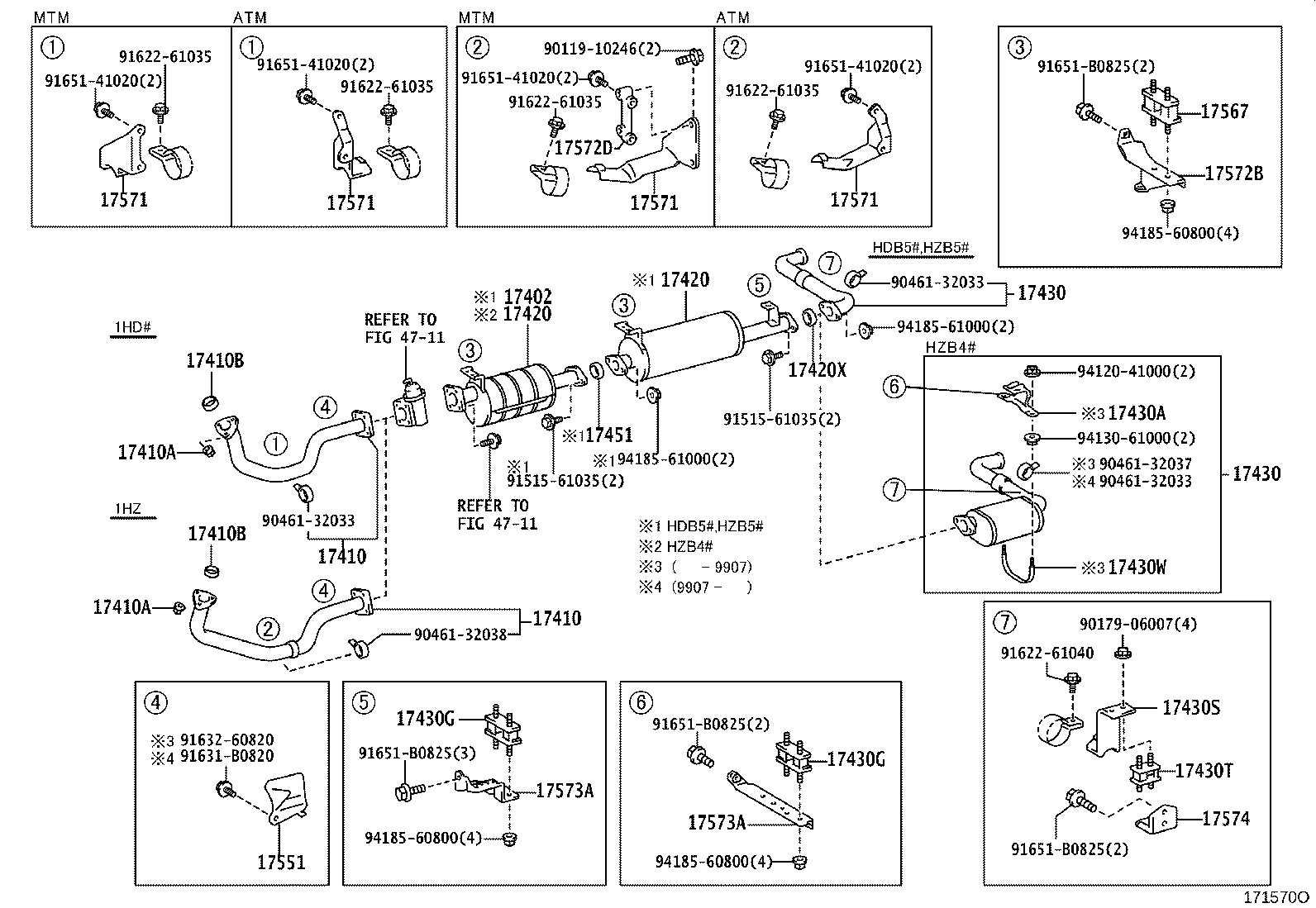

Click highlighted areas on diagram

diagram 17402 17410 17410 17410A 17410A 17410B 17410B 17420 17420 17420X 17430 17430 17430A 17430G 17430G 17430S 17430T 17430W 17451 17551 17567 17571 17571 17571 17571 17572B 17572D 17573A 17573A 17574 4711 4711 9011910246 9017906007 9046132033 9046132033 9046132033 9046132037 9046132038 9151561035 9151561035 9162261035 9162261035 9162261035 9162261035 9162261040 91631B0820 9163260820 9165141020 9165141020 9165141020 9165141020 91651B0825 91651B0825 91651B0825 91651B0825 9412041000 9413061000 9418560800 9418560800 9418560800 9418561000 9418561000
Part # Description Qty Price
17402 - PIPE SUB-ASSY, EXHAUST, FRONT NO.2
17402-17050

1HD#,1HZ..HDB5#,HZB5#

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17401-17110

1HZ..HZB4#,5#

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17401-17110

1HZ..HZB4#,5#

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#

 3
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#

 3
17410B - GASKET, EXHAUST PIPE
90917-06059

15BF,3B,1HZ..BB4#,5#,HZB4#,5#

 1
17410B - GASKET, EXHAUST PIPE
90917-06059

15BF,3B,1HZ..BB4#,5#,HZB4#,5#

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17403-17150

1HD#,1HZ..HDB5#,HZB5#

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17403-17150

1HD#,1HZ..HDB5#,HZB5#

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06054

1H#..HDB5#,HZB4#,5#

 1
90917-06054

1HD#,1HZ..HDB5#,HZB5#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-17140

1HD#,1HZ..HDB5#,HZB5#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-17140

1HD#,1HZ..HDB5#,HZB5#

 1
17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER)
17567-58010

1HD#,1HZ..HDB5#,HZB4#,5#

 1
17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER)
17567-58010

1HD#,1HZ..HDB5#,HZB4#,5#

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17561-17010

1HD#,1HZ..HDB5#,HZB5#

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17567-17010

3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#

 1
17451 - GASKET, EXHAUST PIPE
90917-06054

1HD#,1HZ..HDB5#,HZB5#

 1
17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1
17551-17010

3B,1H#..BB4#,HDB5#,HZB4#,5#

 1
17551-17011

3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#

 1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-58010

1HD#,1HZ..HDB5#,HZB5#

 2
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-17080

1HZ..HZB4#,5#..5F

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-17080

1HZ..HZB4#,5#..5F

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-17080

1HZ..HZB4#,5#..5F

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-17080

1HZ..HZB4#,5#..5F

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-17030

1HD#,1HZ..HDB5#,HZB5#

 2
17572D - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17579-73010

3B,1HZ..BB4#,HZB4#,5#..5F

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-17010

1HD#,1HZ..HDB5#,HZB5#

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-17010

1HD#,1HZ..HDB5#,HZB5#

 1
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-17010

3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#

 1
Common parts
90119-10246
90179-06007
90461-32033
90461-32037
90461-32038
91515-61035
91622-61035
91622-61040
91631-B0820
91632-60820
91651-41020
91651-B0825
94120-41000
94130-61000
94185-60800
94185-61000
Linked diagrams
4711
